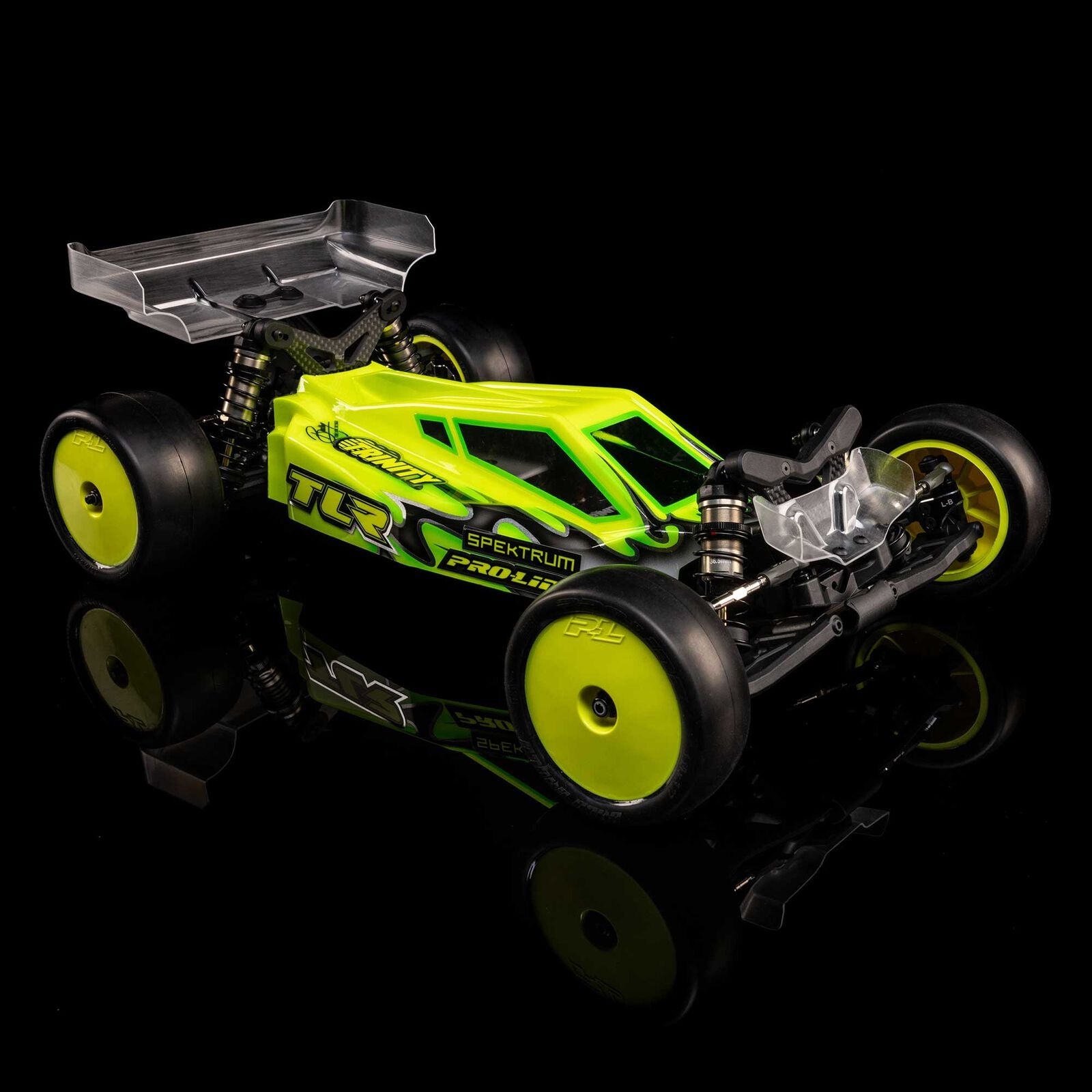

TLR 1/10 22X Dirt/Clay Buggy Kit

TLR takes the lessons of its revolutionary 22 series and launches the next era of electric racing dominance with the 22X DC 2WD kit — a brand new design with greater adjustability for higher speed capability on today’s high grip dirt and clay surfaces.

In the Box

Team Losi Racing 22X DC 1/10 Scale 2WD Race Buggy Kit x1
Pro Line Sector 22X Body x1
Pro Line Air Force 7 in Wing x1
Pro Line Front Wing x1
Product Manual x1

Needed to Complete

ESC x1
540 Size Motor x1
2S LiPo Shorty Battery x1
LiPo Battery Charger x1
Receiver x1
Transmitter x1
Servo x1
48 Pitch Pinion Gear x1
30 x 30 mm Motor Fan Optional x1
2.2 in Buggy Wheels 2WD Fronts Buggy Rears x4
2.2 in Buggy Tyres 2WD Fronts Buggy Rears x4
Polycarbonate Paint

Features

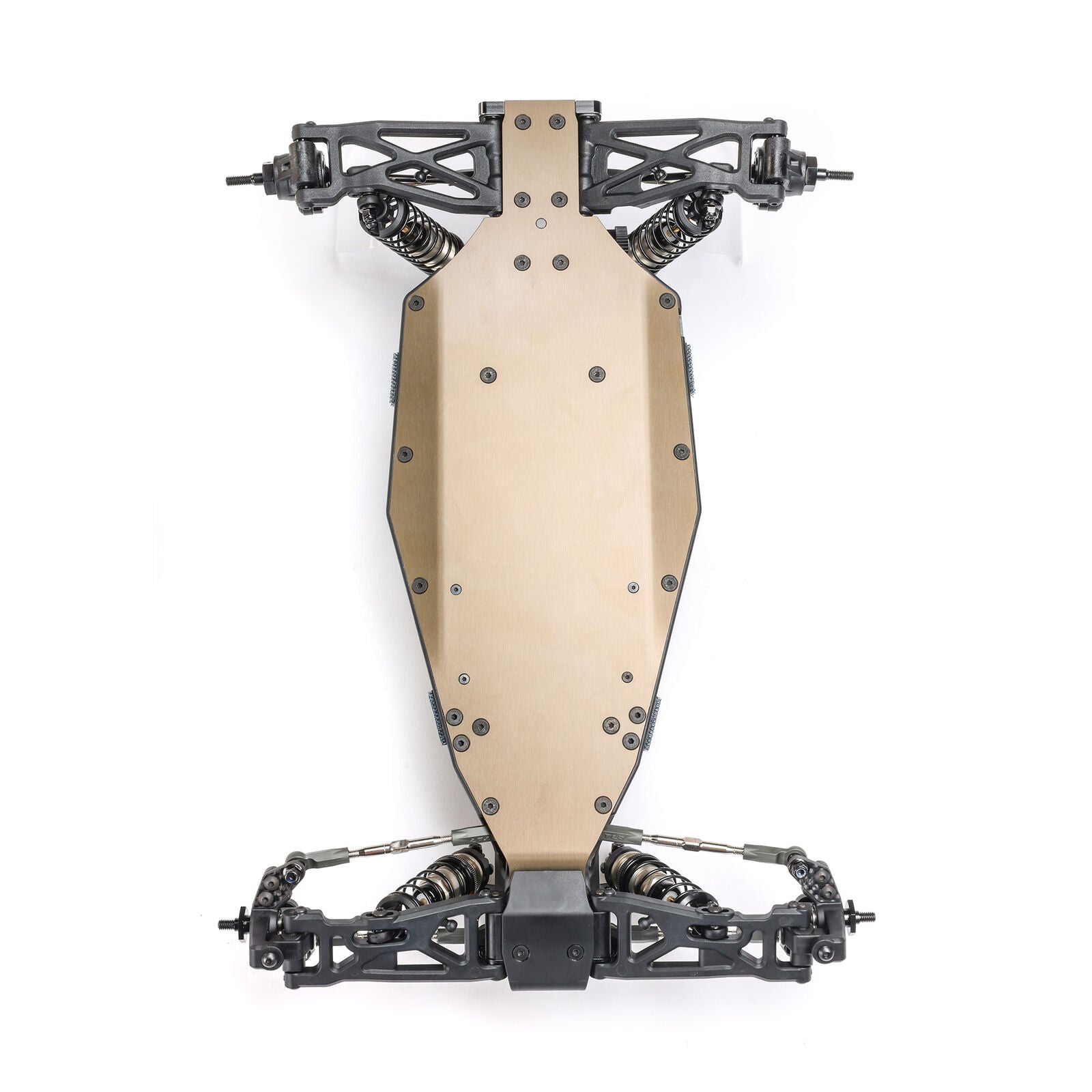

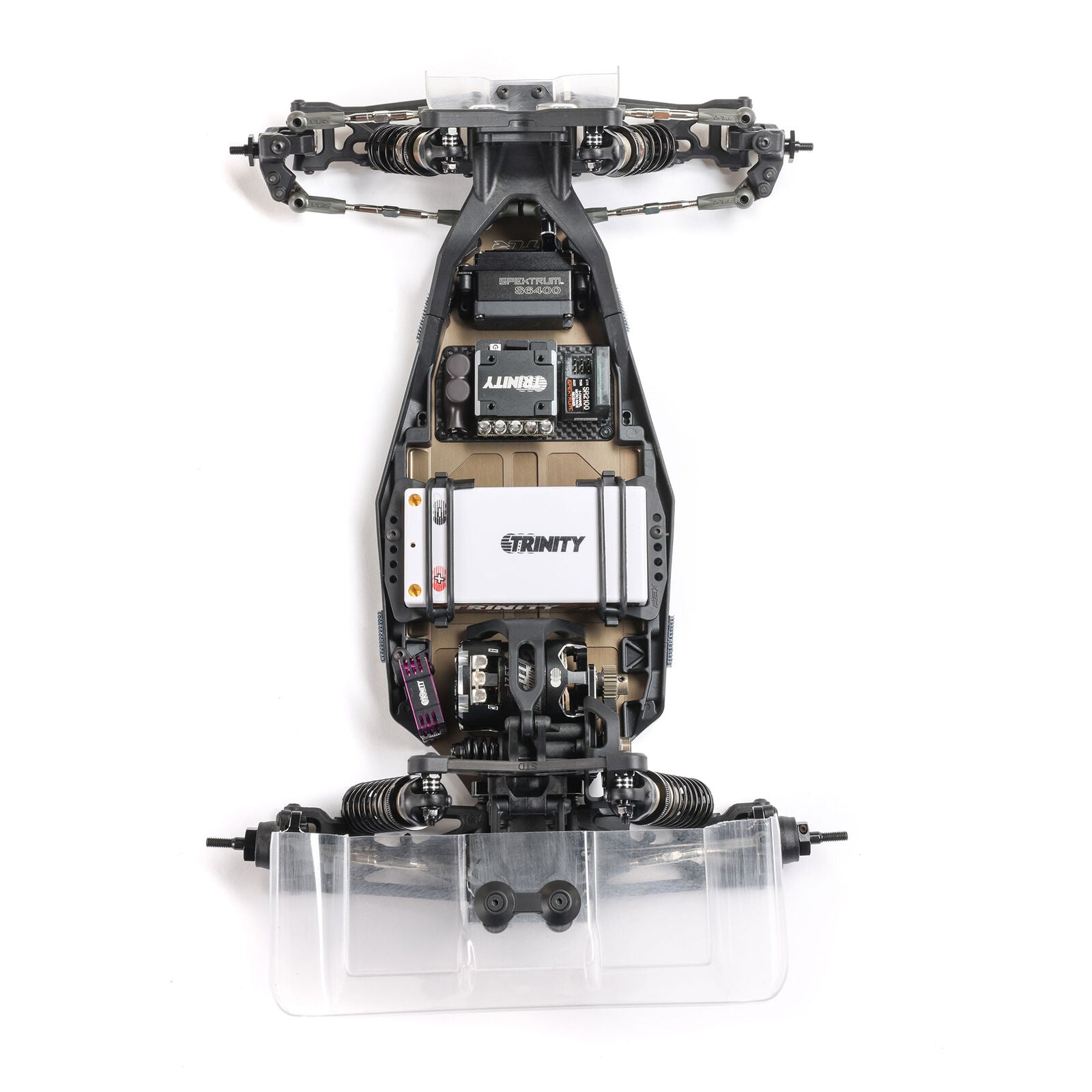

Hard anodised 2 mm machined 7075 T6 aluminium chassis

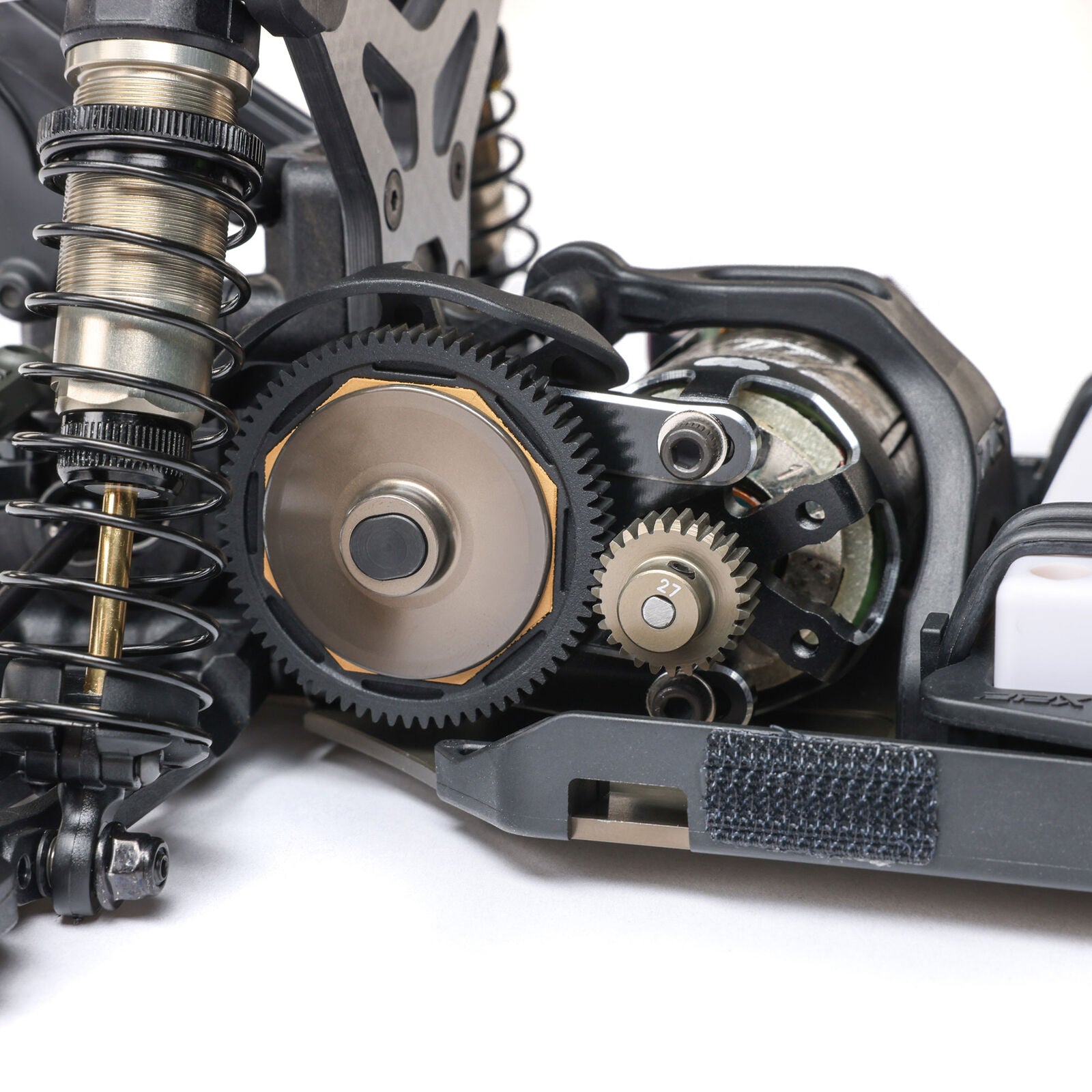

New laydown gearbox with easy access differential and idler gear

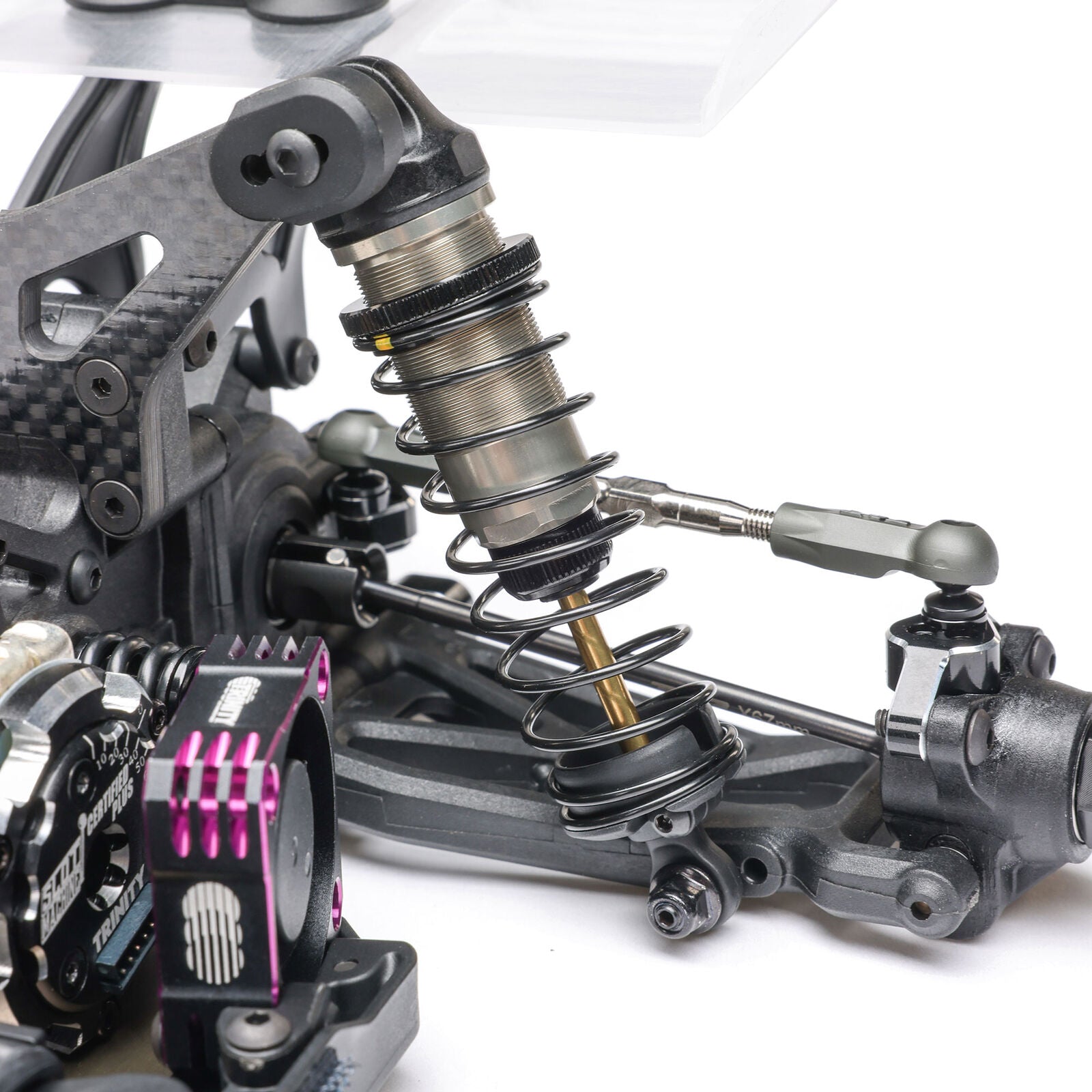

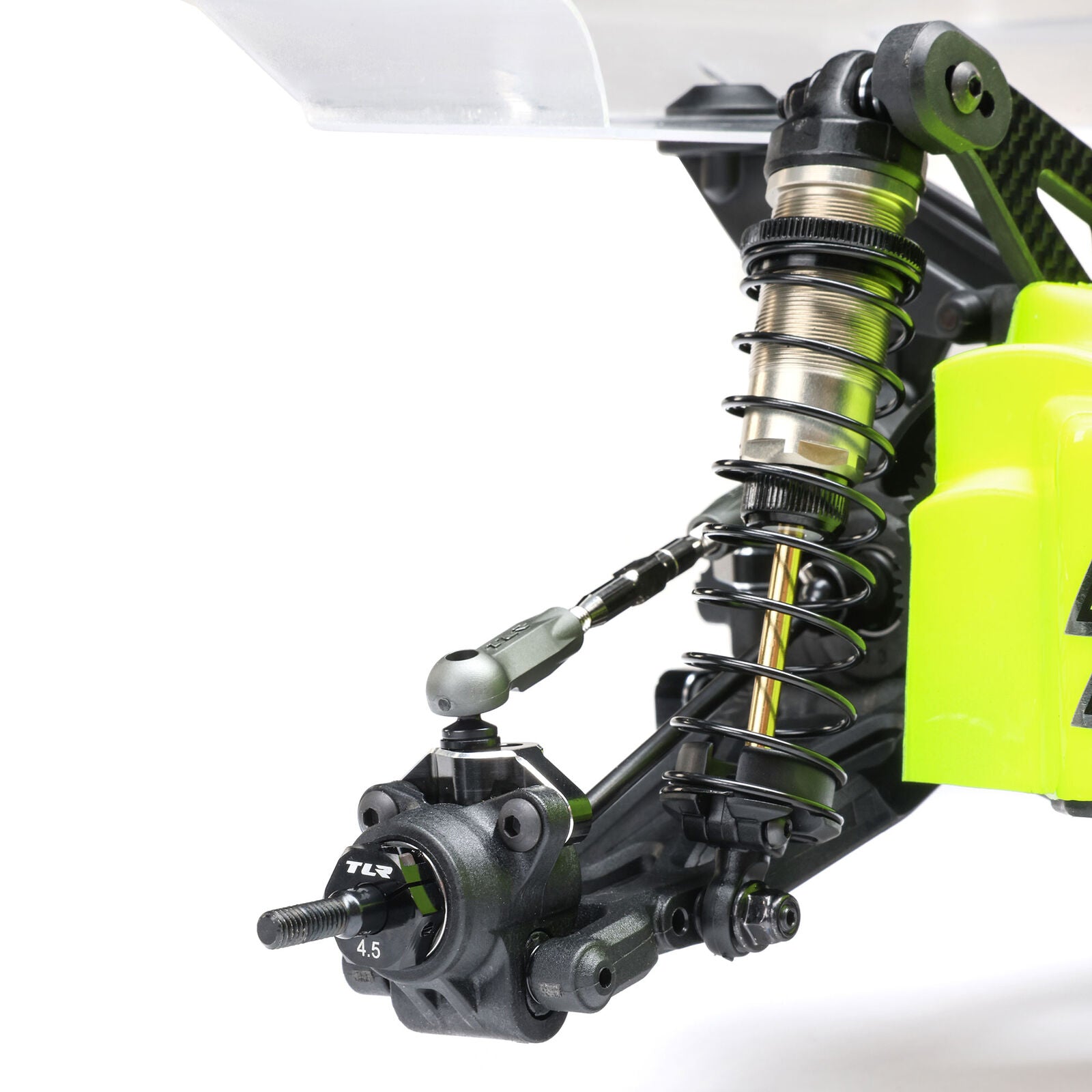

Larger 13 mm big bore shocks for optimal handling and cornering
Larger 13 mm shock springs for proper support
Adjustable caster from minus 5 degrees to 5 degrees in 2.5 degree increments
Adjustable kick up from 20 degrees to 25 degrees in 2.5 degree increments
Multiple steering offsets available get the feel you need on any surface
Industry standard offset front wheels

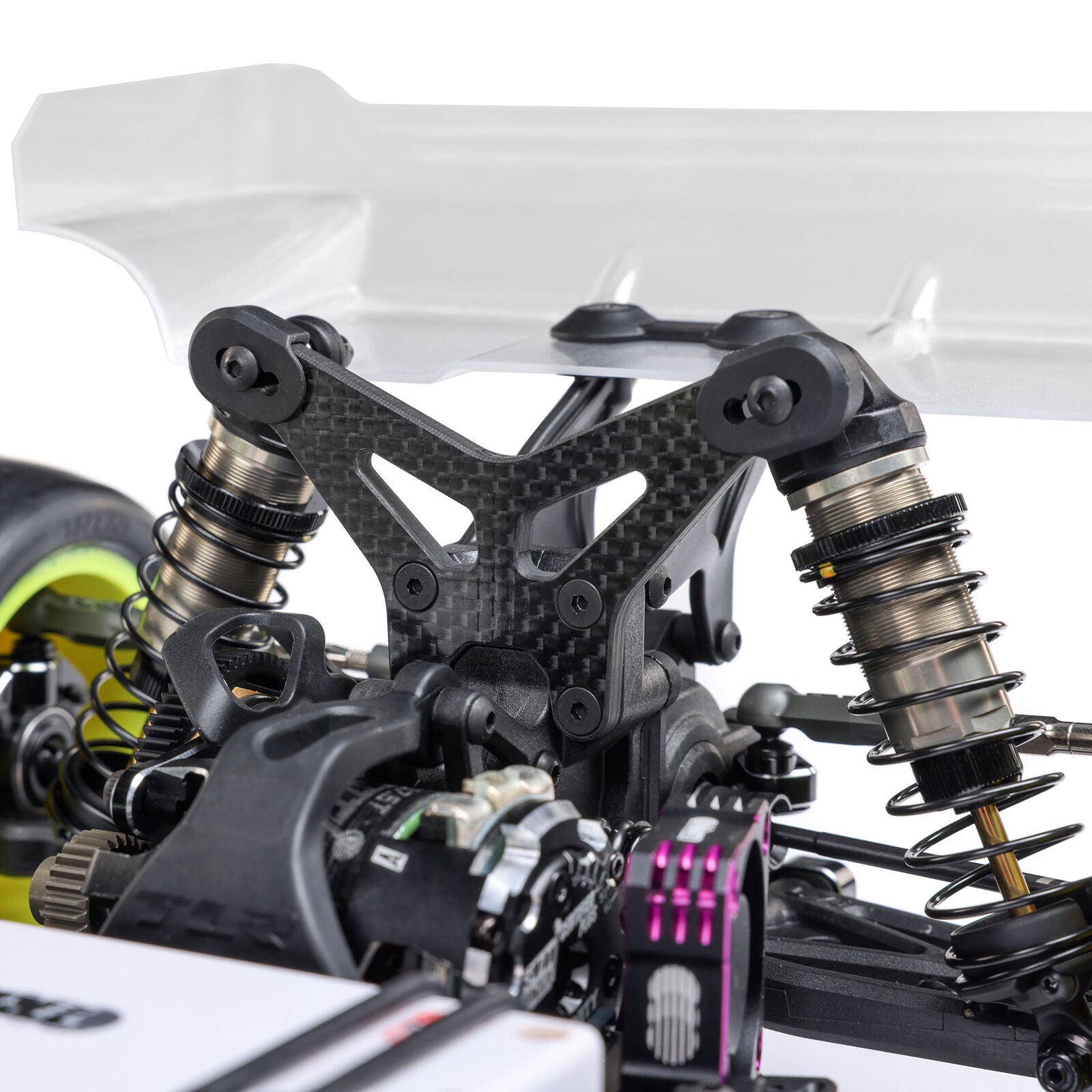

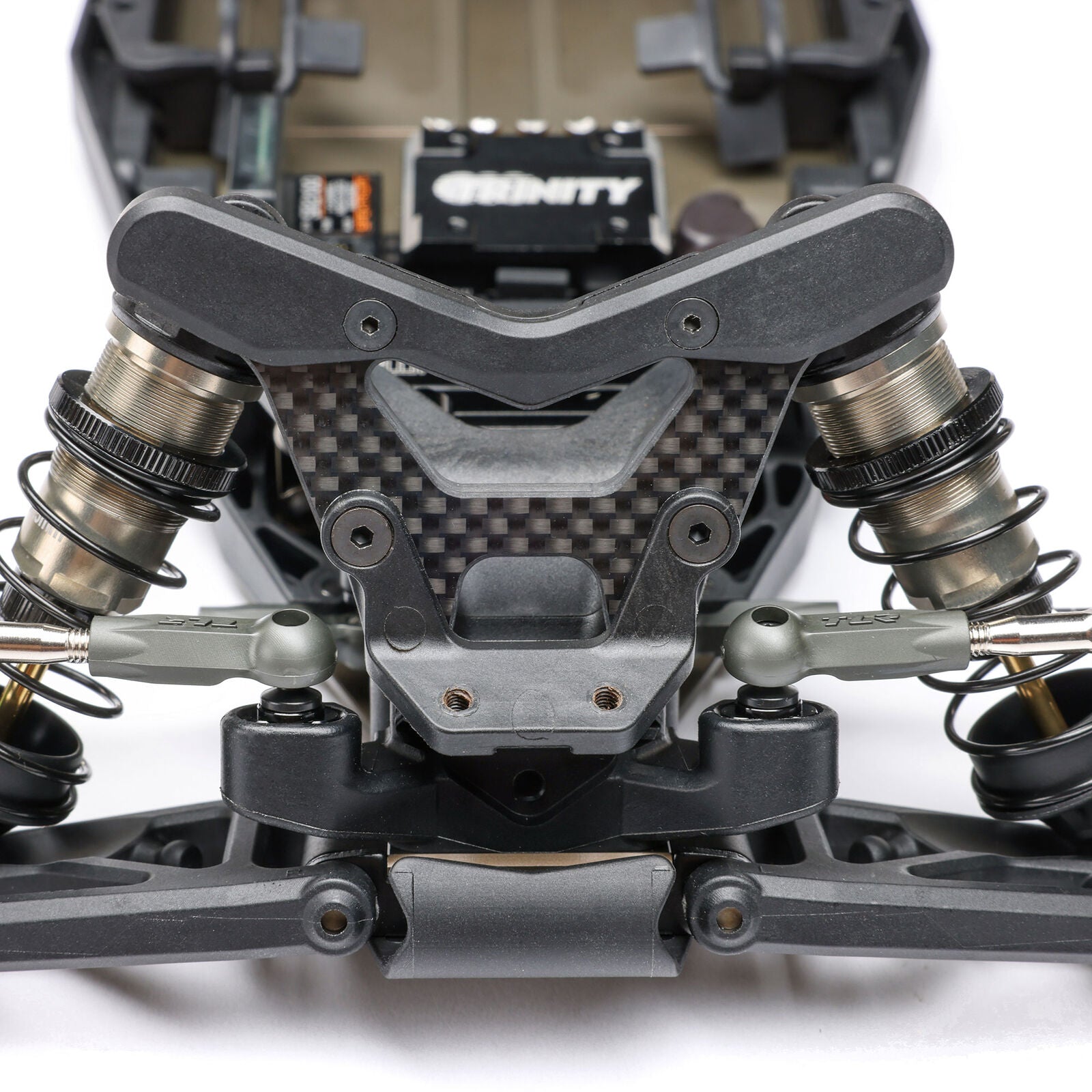

Rigid 4 mm woven carbon fibre front and rear shock towers
Refined steering geometry for a consistent feel around the track
New ball studs and rod ends with 5.8 mm balls for interference free movement

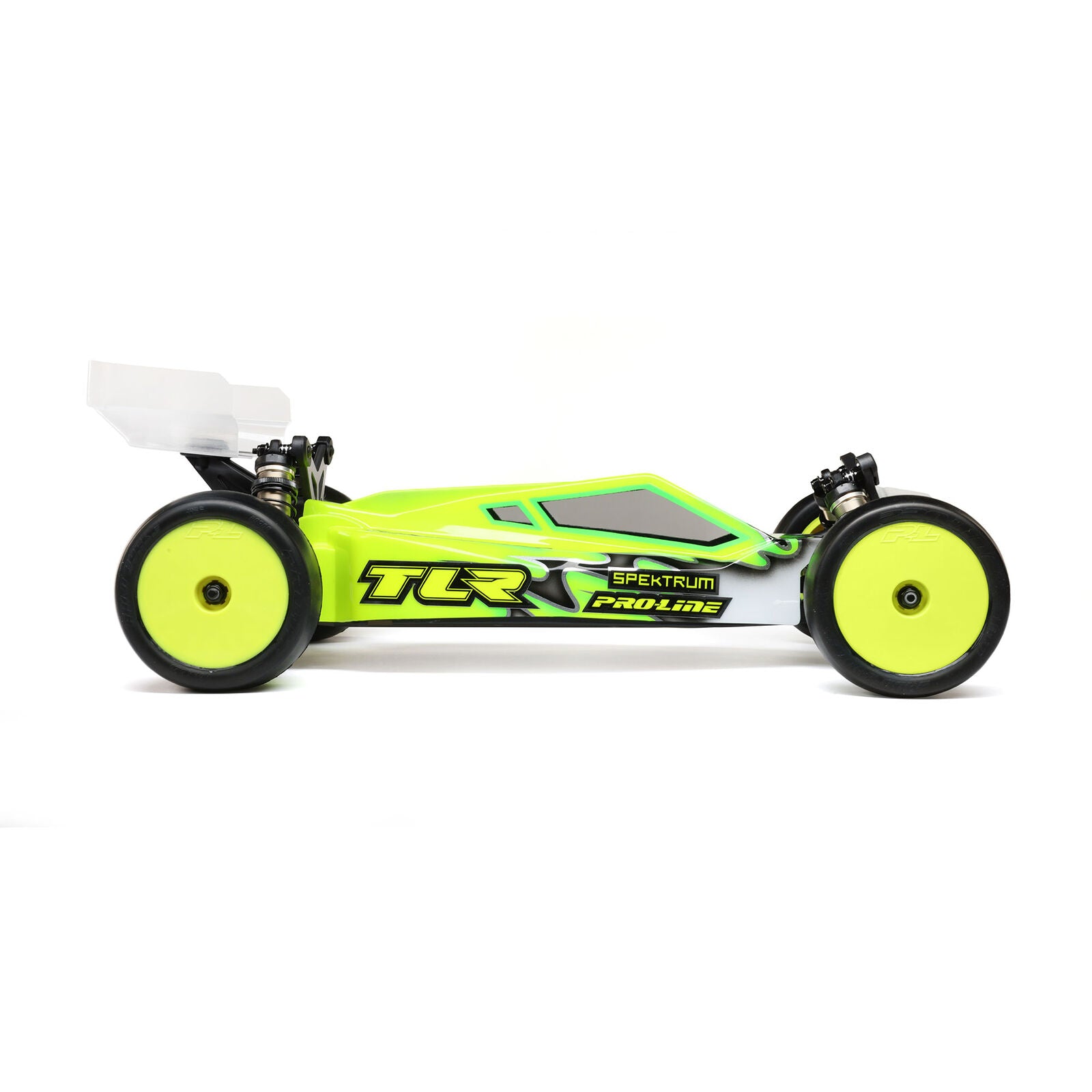

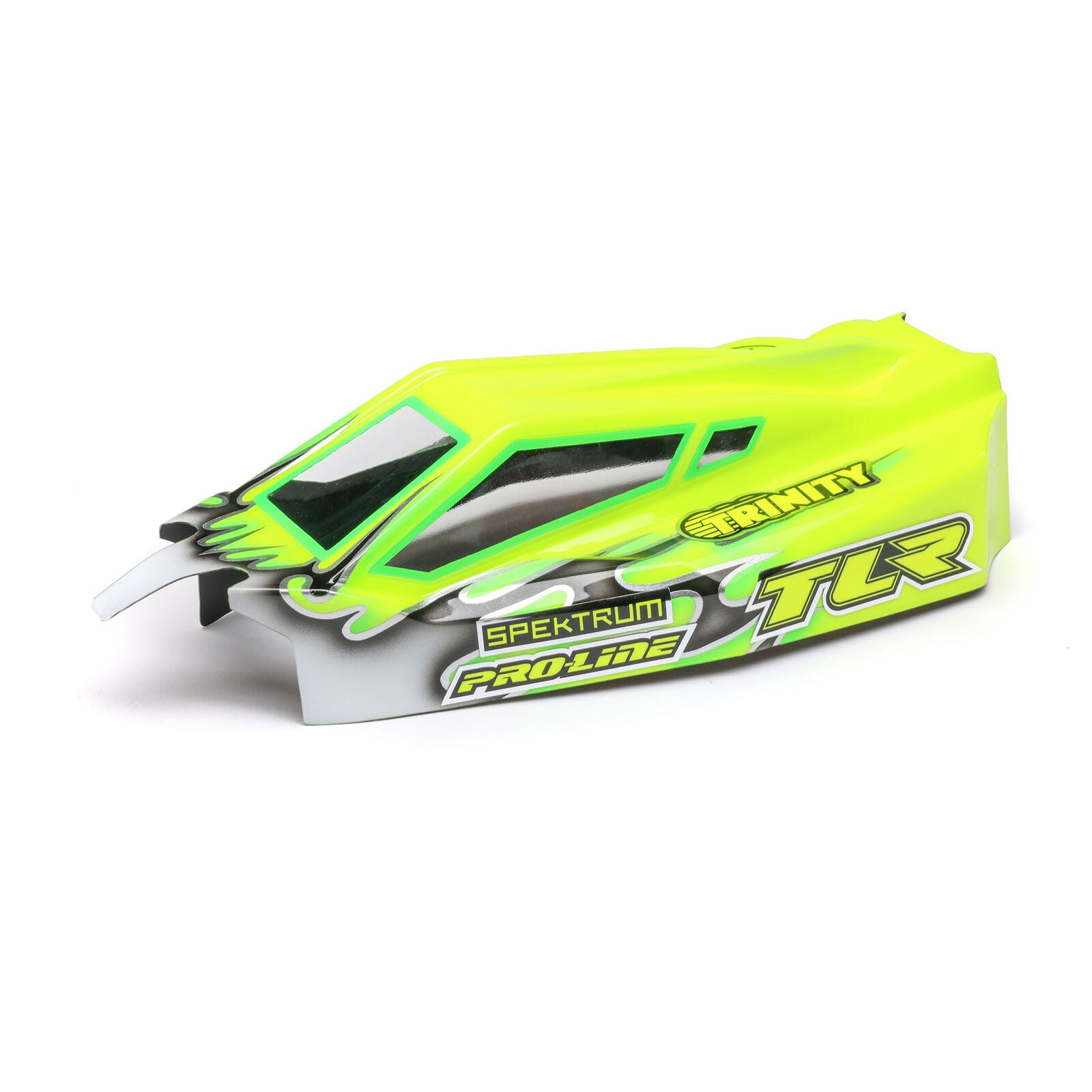

Lightweight Pro Line Sector 22X body

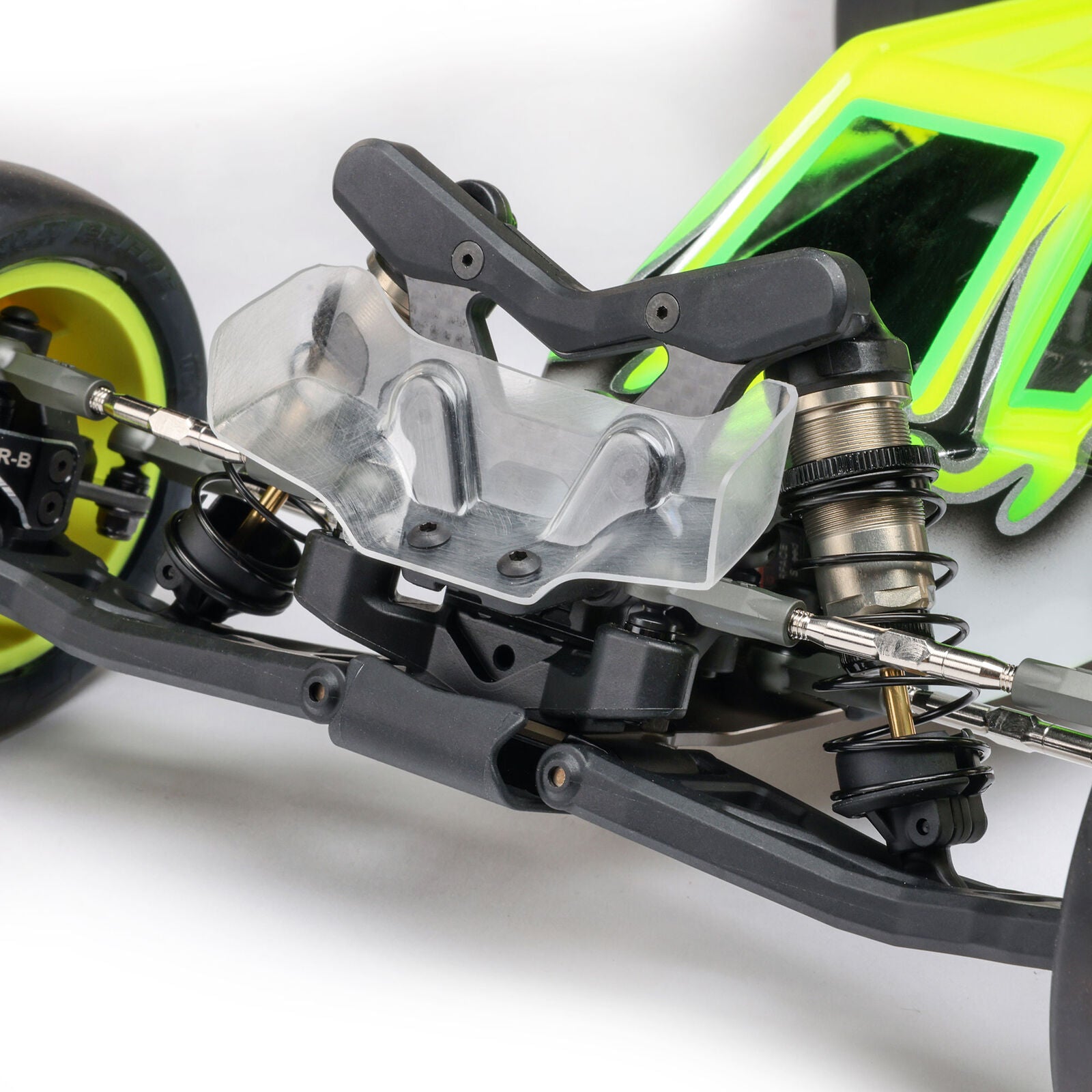

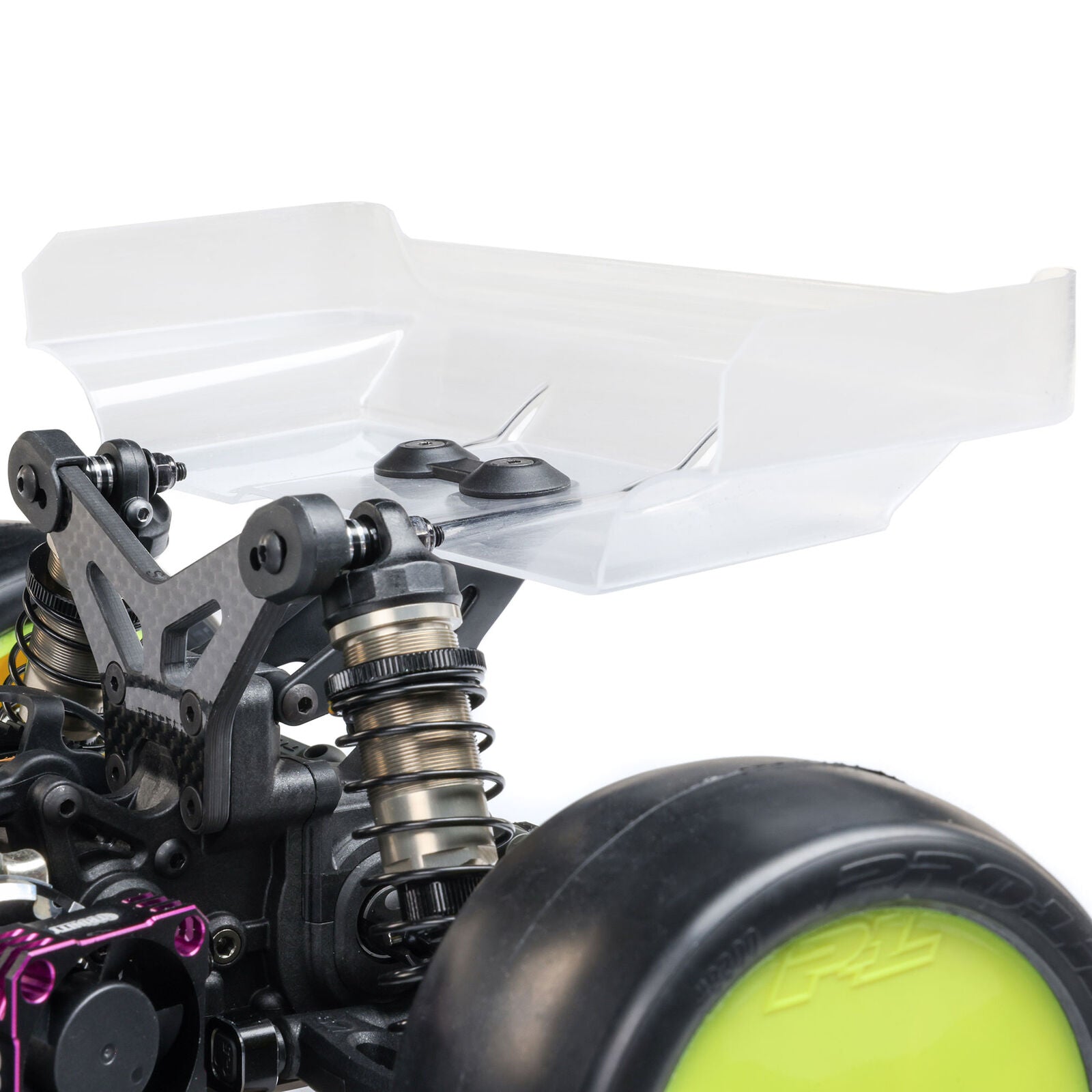

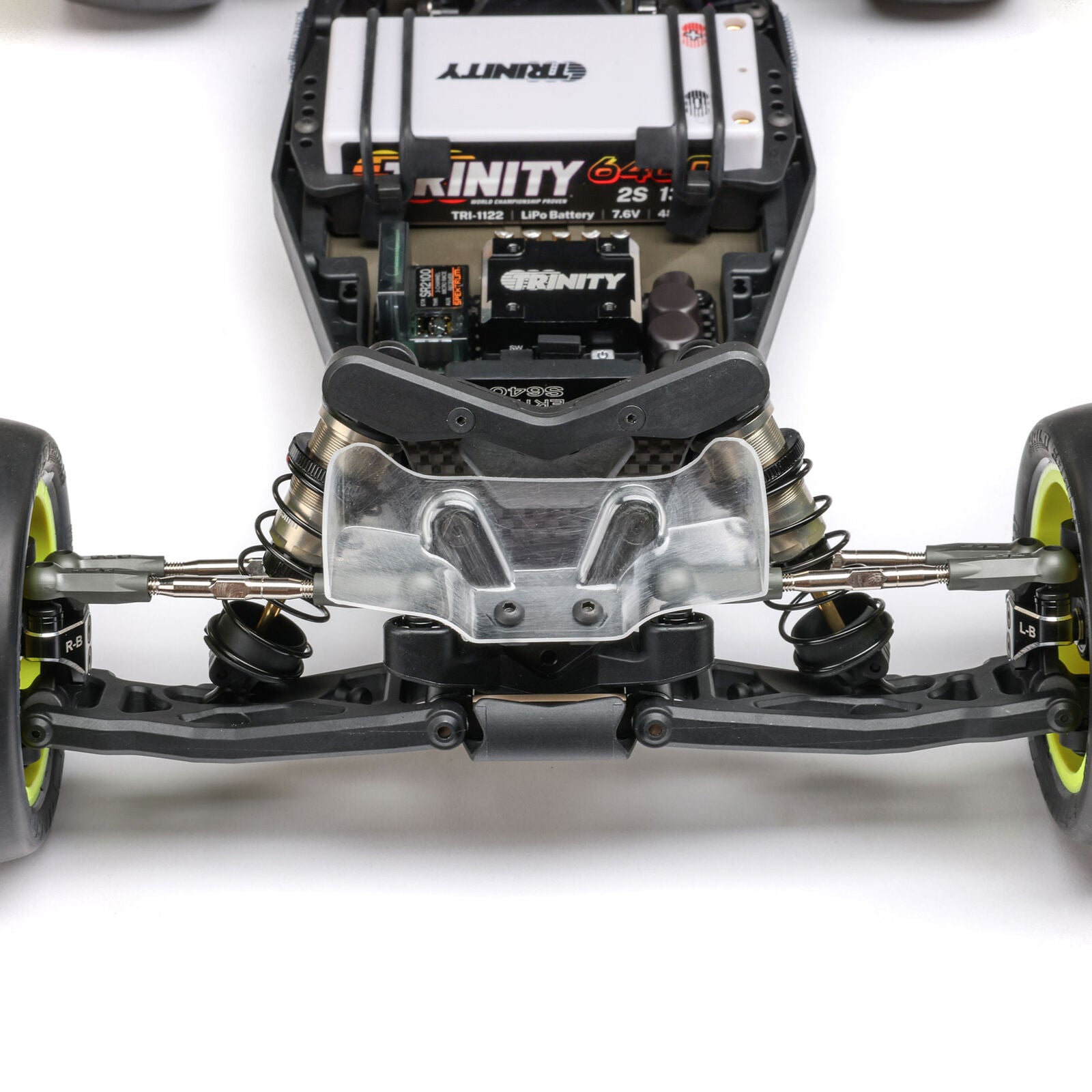

Air Force 7 in clear rear buggy wing and low mount front wing
Glass filled composite parts in multiple stiffnesses available for tuning rigidity
Multiple rear arm lengths available for tuning rear grip

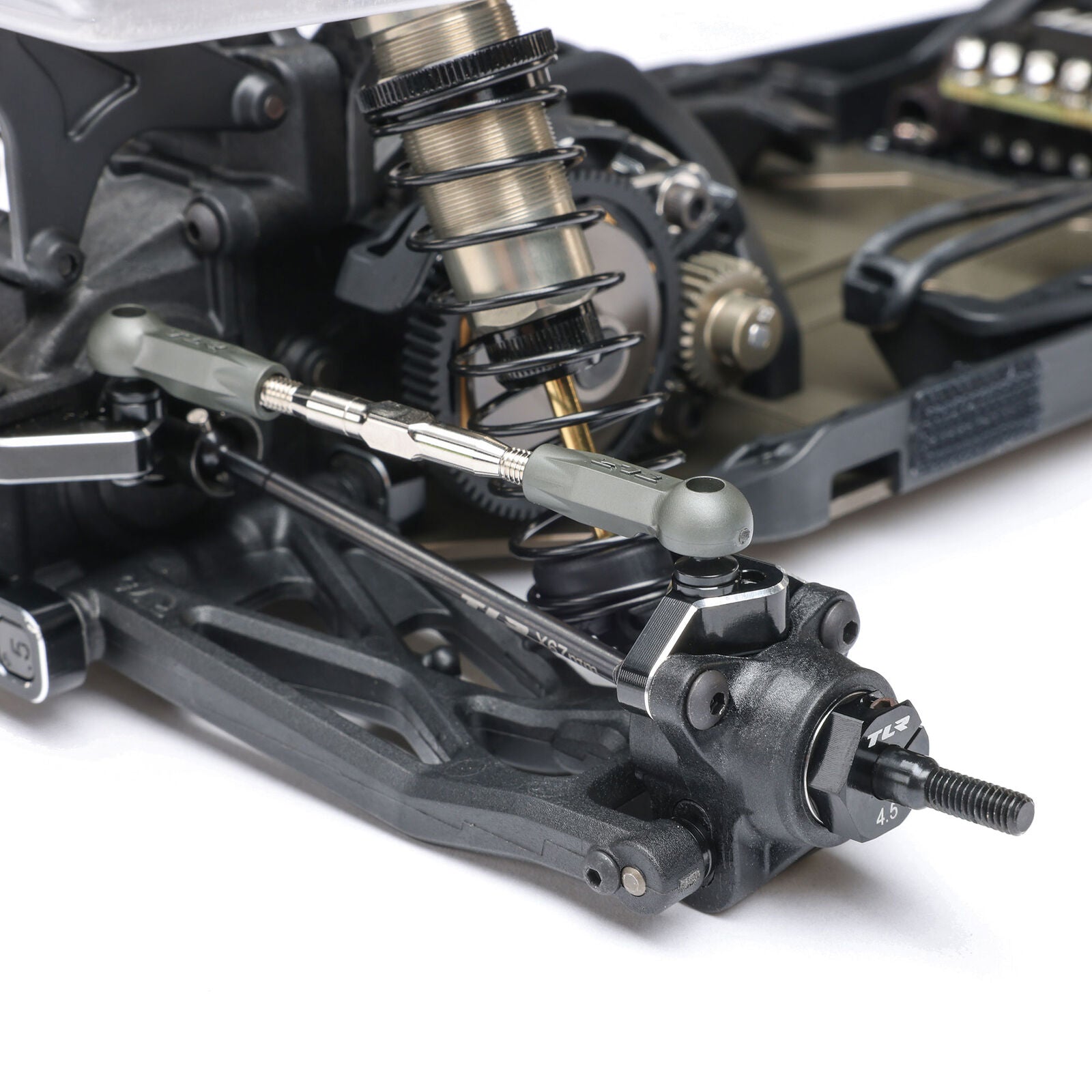

Proven Variable Height Axle VHA rear hubs with easy bite and roll adjustment
Adjustable rear pivots for anti squat and rear toe refinement
Super Heavy Duty Slipper SHDS with new layout for improved vehicle balance

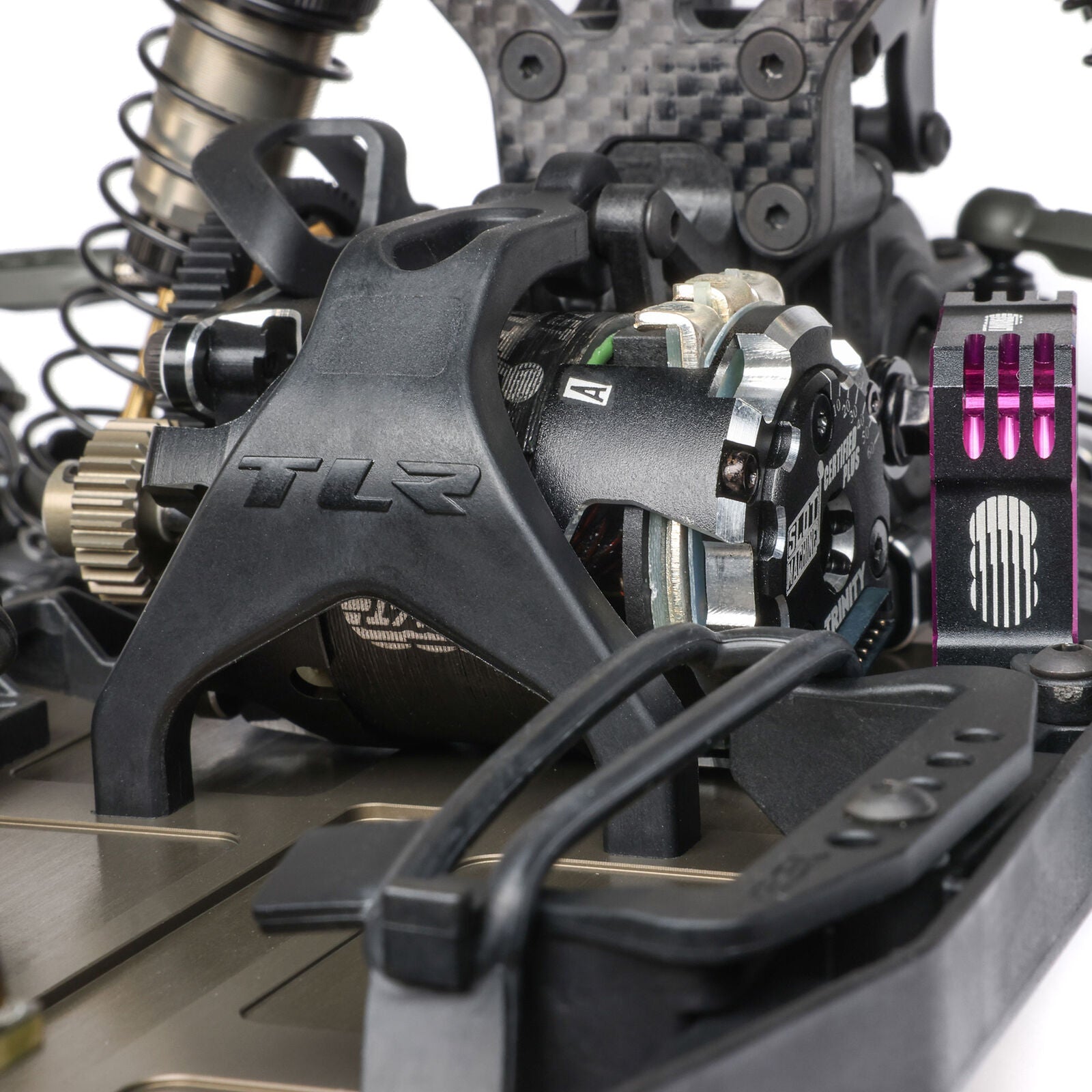

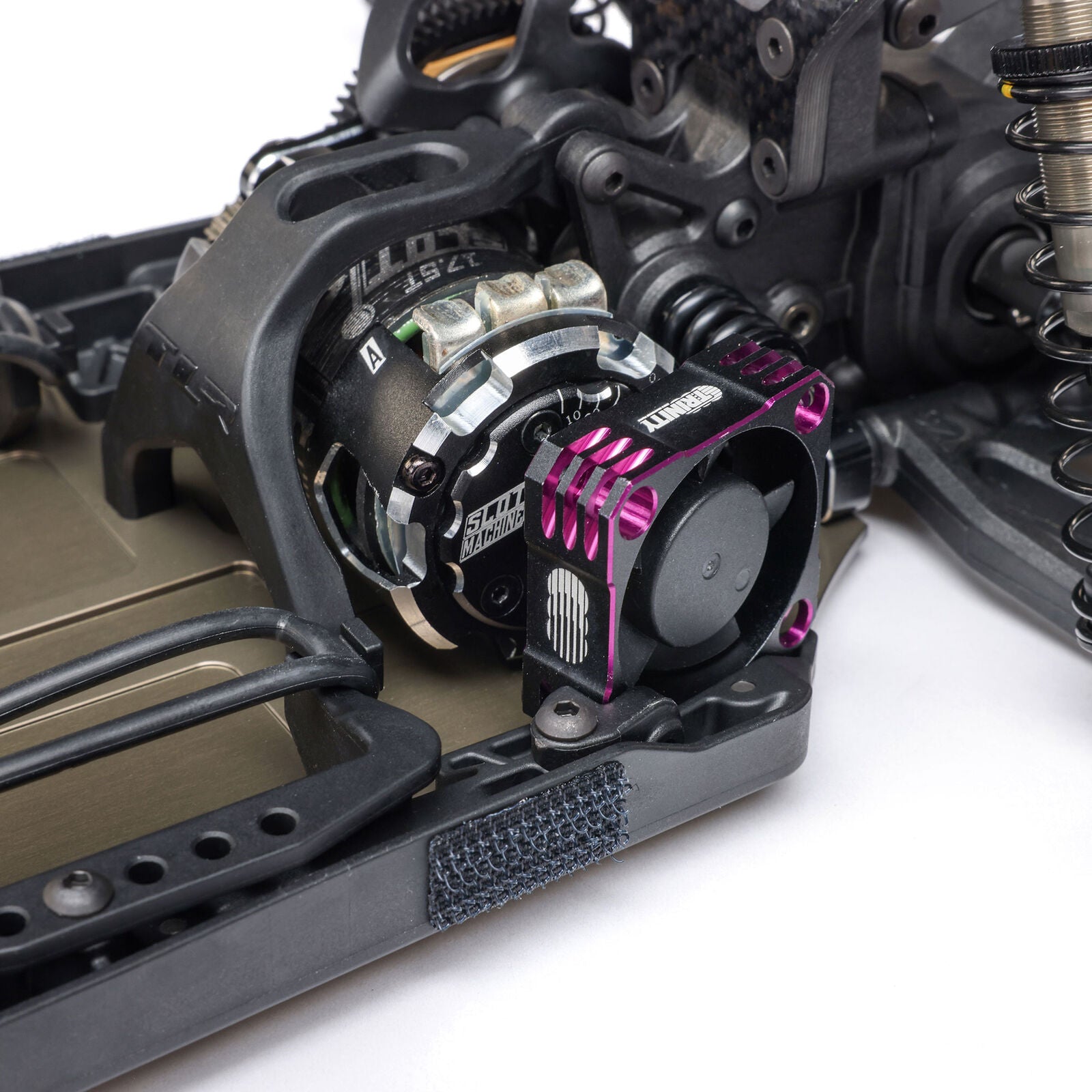

Built in motor fan mount for 30 mm x 30 mm fans
Maximum tunability out of the box no need to buy extra parts
Optimised shock tower locations
Shock tower covers to protect track surfaces from rollovers

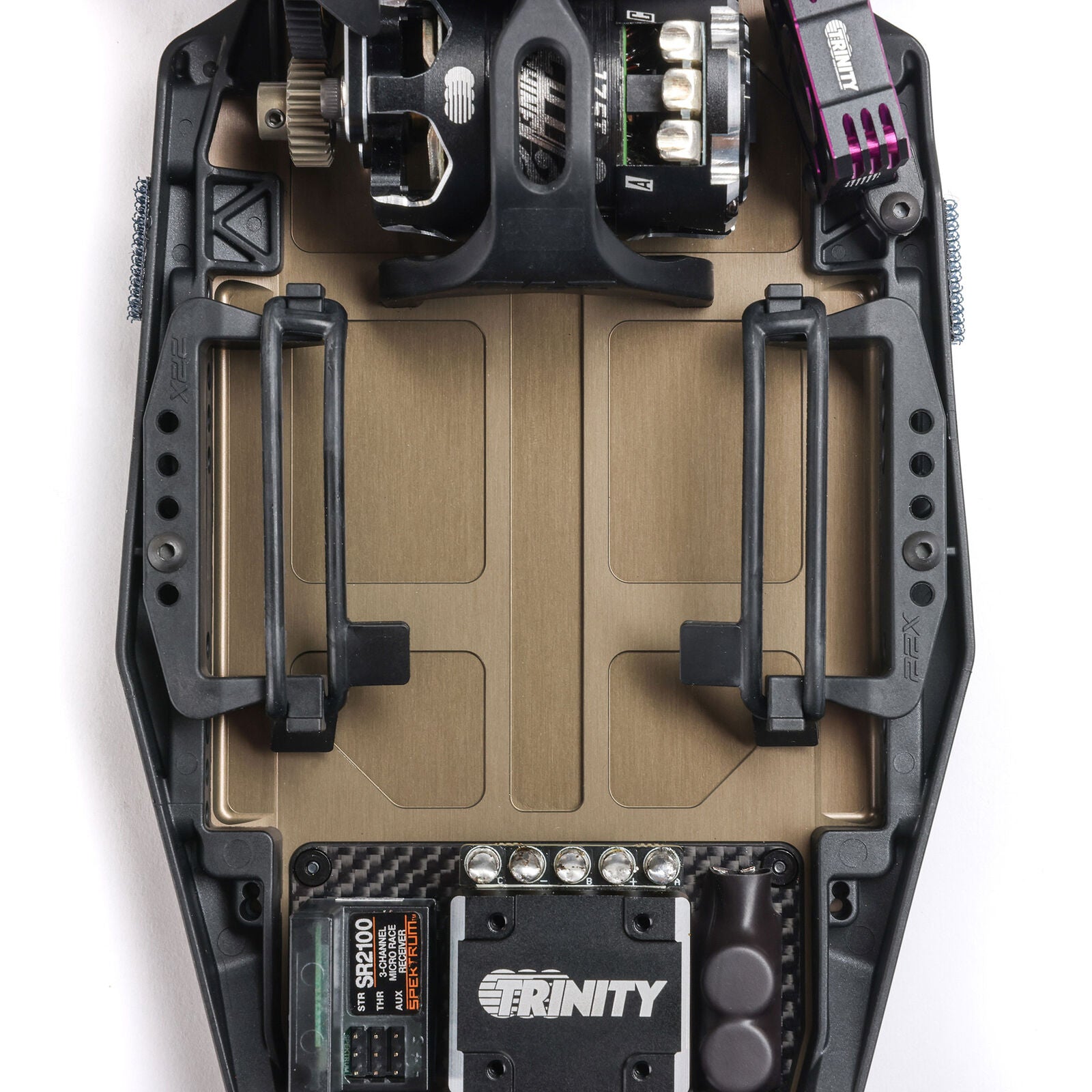

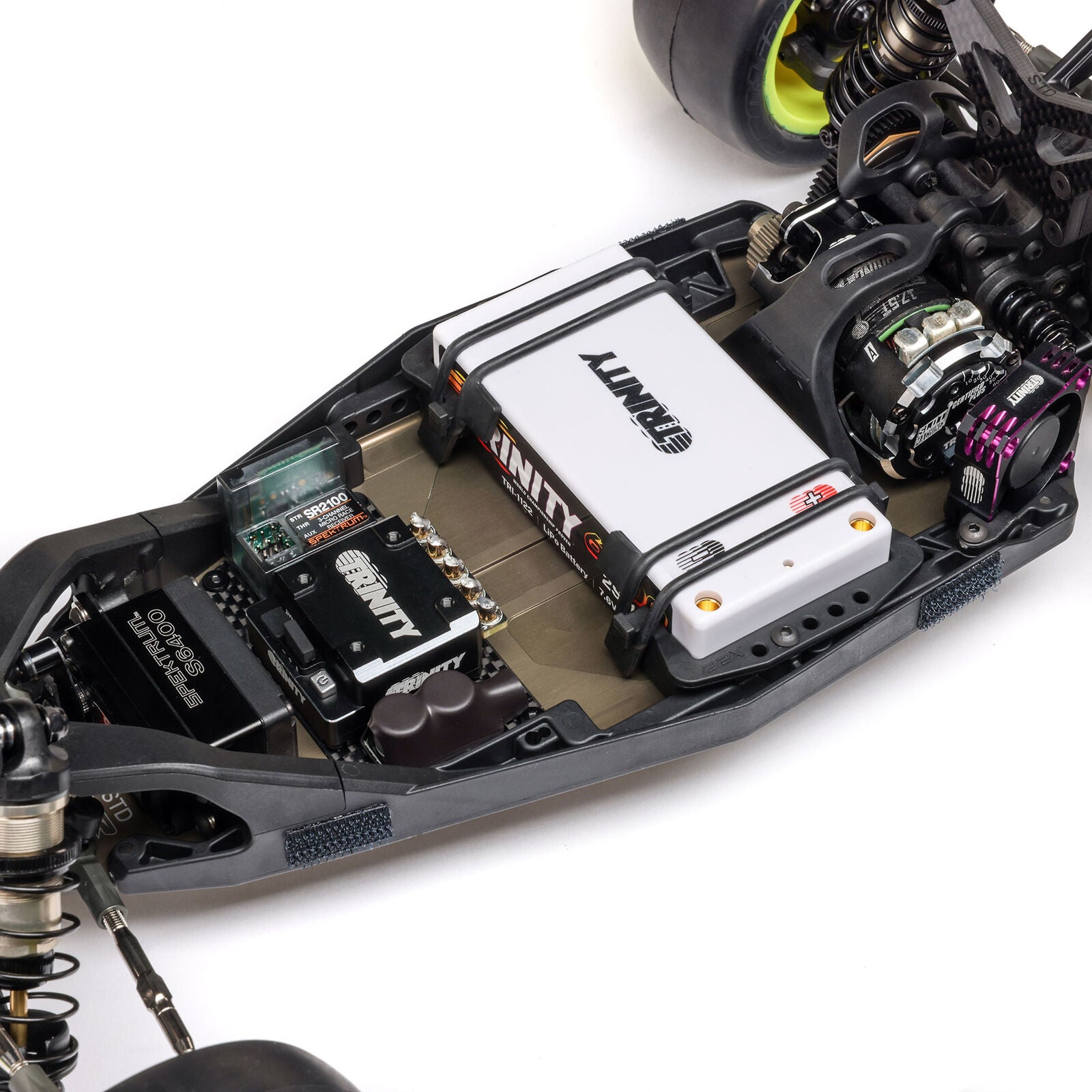

Adjustable battery mount
Many aluminium parts chassis motor plate axles shock stand offs pivots ball stud washers rear clamping hexes A B front outer camber block 25T clamping servo horn

More Information

In 2010, Team Losi Racing introduced the revolutionary 22, a completely new 2WD platform that jump started the electric buggy racing scene and launched a series of TLR 22 vehicles with top level performance.

Now, a new era of domination begins with the 1/10 scale 22X DC 2WD Race Buggy Kit. TLR started with lessons learned from the World Championship winning 22 and years of further 22 platform development, along with valuable racer feedback. The result is a brand new buggy design that is easier to maintain and optimised for dirt and clay tracks, with extensive adjustability that helps drivers go faster on today’s high grip surfaces.

If you are ready for the podium, the 22X DC 2WD kit is equipped to take you there. Key improvements include a hard anodised 2 mm 7075 T6 aluminium chassis that is lengthened and optimised for higher grip tracks, plus larger 13 mm big bore shocks with 13 mm springs for plush landings and responsive cornering.

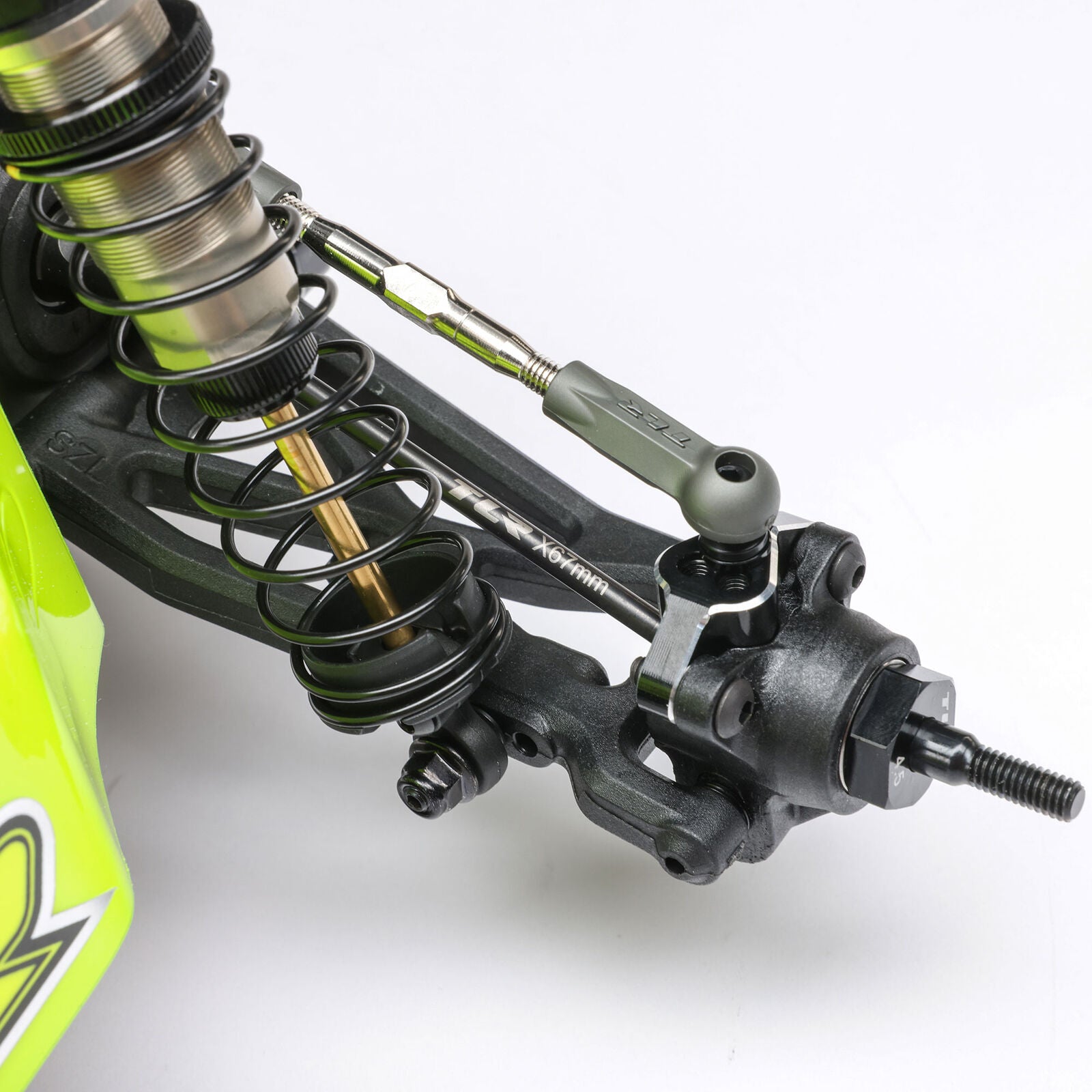

Two front caster block and spindle options allow you to tune the steering feel for different surfaces, with wide or narrow king pin locations available. The wide location provides a more linear feel and keeps the buggy flatter through corners, while the narrow location delivers a more aggressive steering response.

The TLR 22X DC 2WD kit also features a new laydown gearbox design with easy access to the differential and idler gear. This allows quick maintenance without disassembling the entire gearbox, a major advantage since the suspension mounting points are integrated with the gearbox.

TLR includes many option items with the 22X DC race kit to provide maximum tunability straight out of the box. Racing conditions have evolved from traditional loose grip dirt to high grip clay, carpet, and astroturf surfaces. With the TLR 22X DC, you can adapt to virtually any track and compete with confidence.

Specifications

Approximate Assembly Time: 3 to 5 Hours
Body: Pre cut
Chassis: 7075 T6 Aluminium Milled Plate 2 mm thick
Completion Level: Kit
Differential: Ball
Drivetrain: 2WD
Front Track: 250 mm (9.8 in)
Gear Pitch: 48 Pitch
Internal Gear Ratio: 2.6:1
LiPo Compatibility: 2S
Max Battery Dimensions: 25.1 mm x 47 mm x 96 mm
Power Type: Electric
Product Height: 147 mm (5.8 in)
Product Length: 371 mm (14.6 in)
Rear Track: 250 mm (9.8 in)
Scale: 1/10
Shock Type: 13 mm Big Bore Shocks
Spur Gear: 78T
Vehicle Size: Standard
Vehicle Type: Buggy
Wheel Hex Size: 12 mm
Wheelbase: 284 mm (11.2 in)
