Team Losi Racing

TLR 1/10 22X AC 2WD Buggy Race Kit (Astro/Carpet)

TLR 1/10 22X AC 2WD Buggy Race Kit (Astro/Carpet)

TLR-1234

R 12,434.00
R 12,434.00
Special Offer Out of stock
VAT incl.

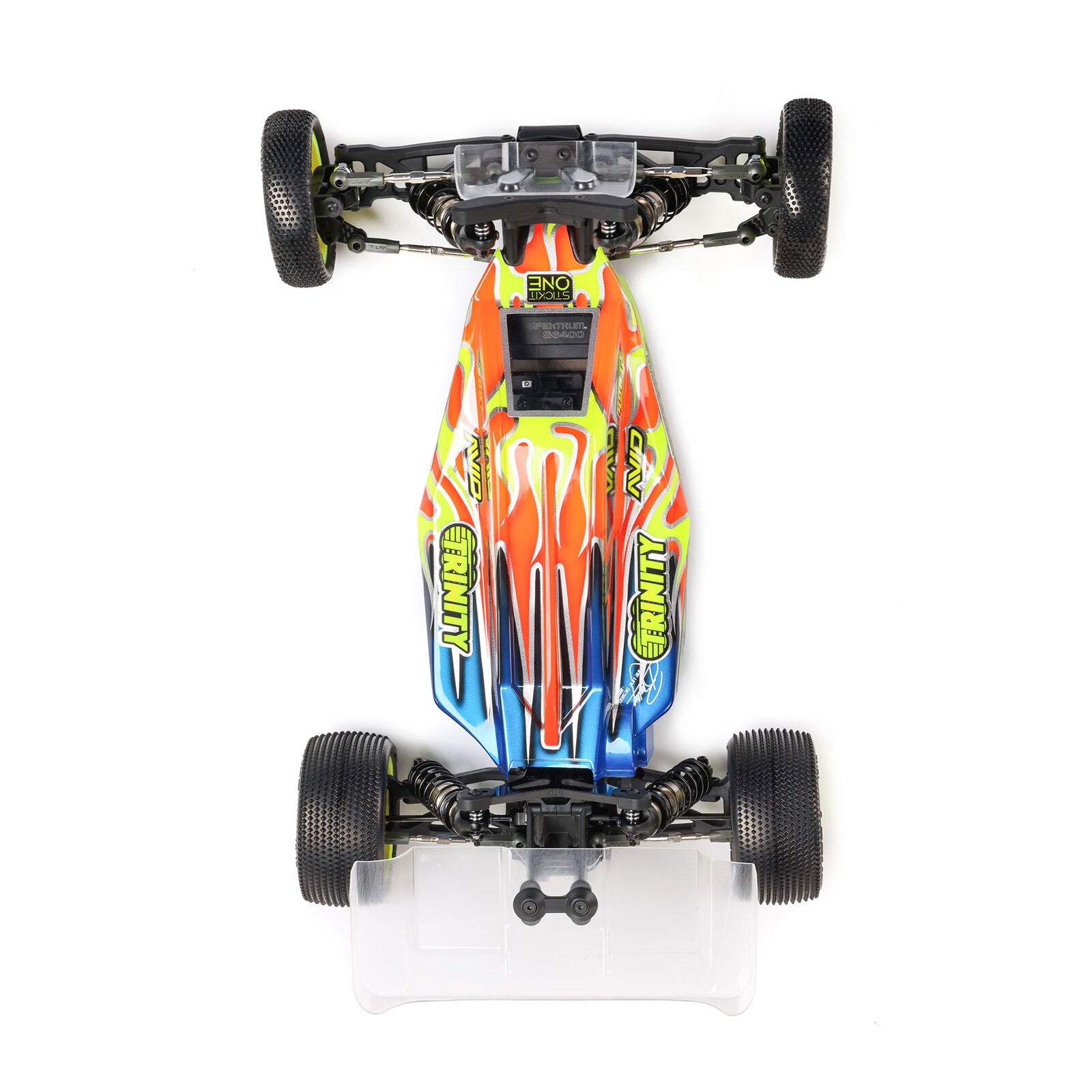

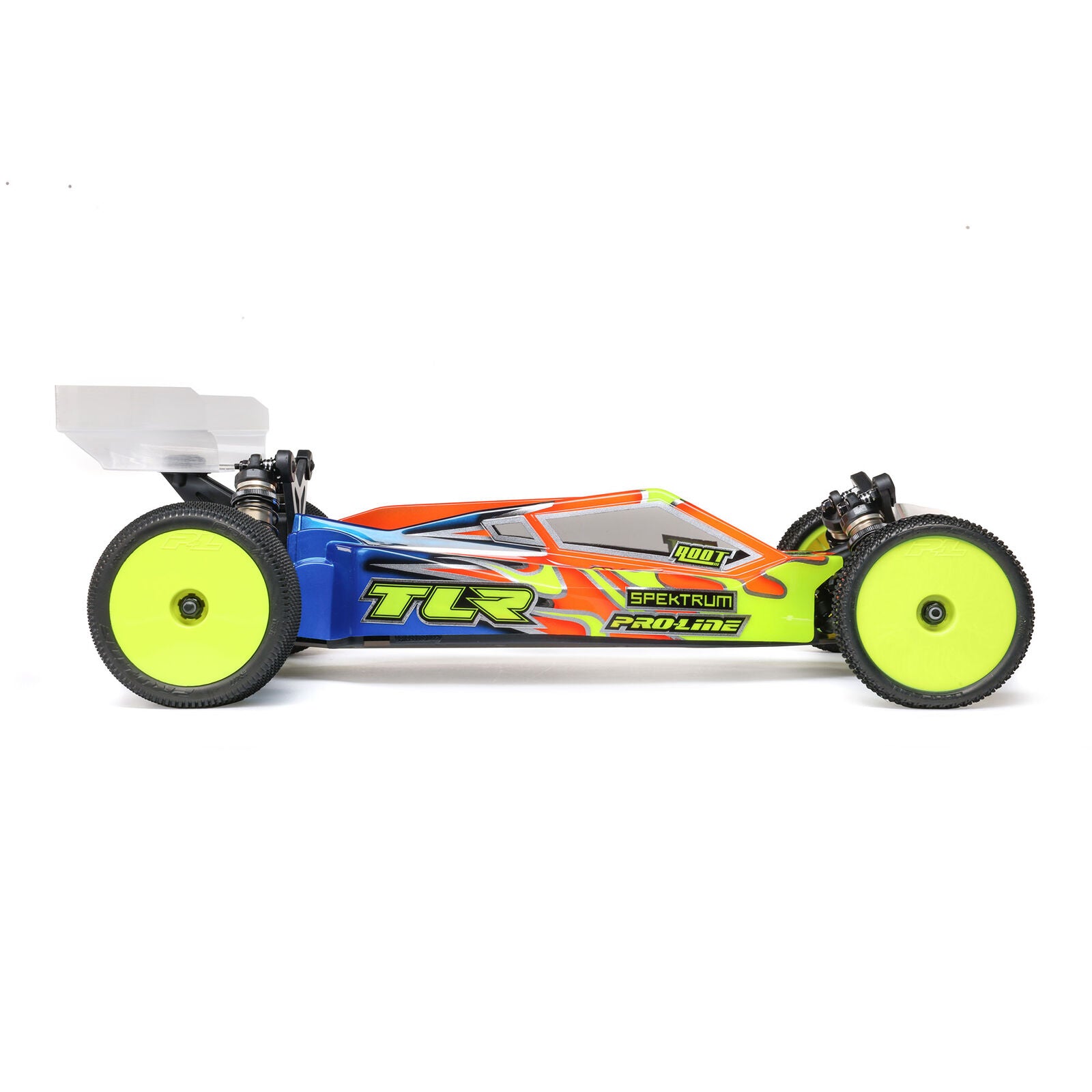

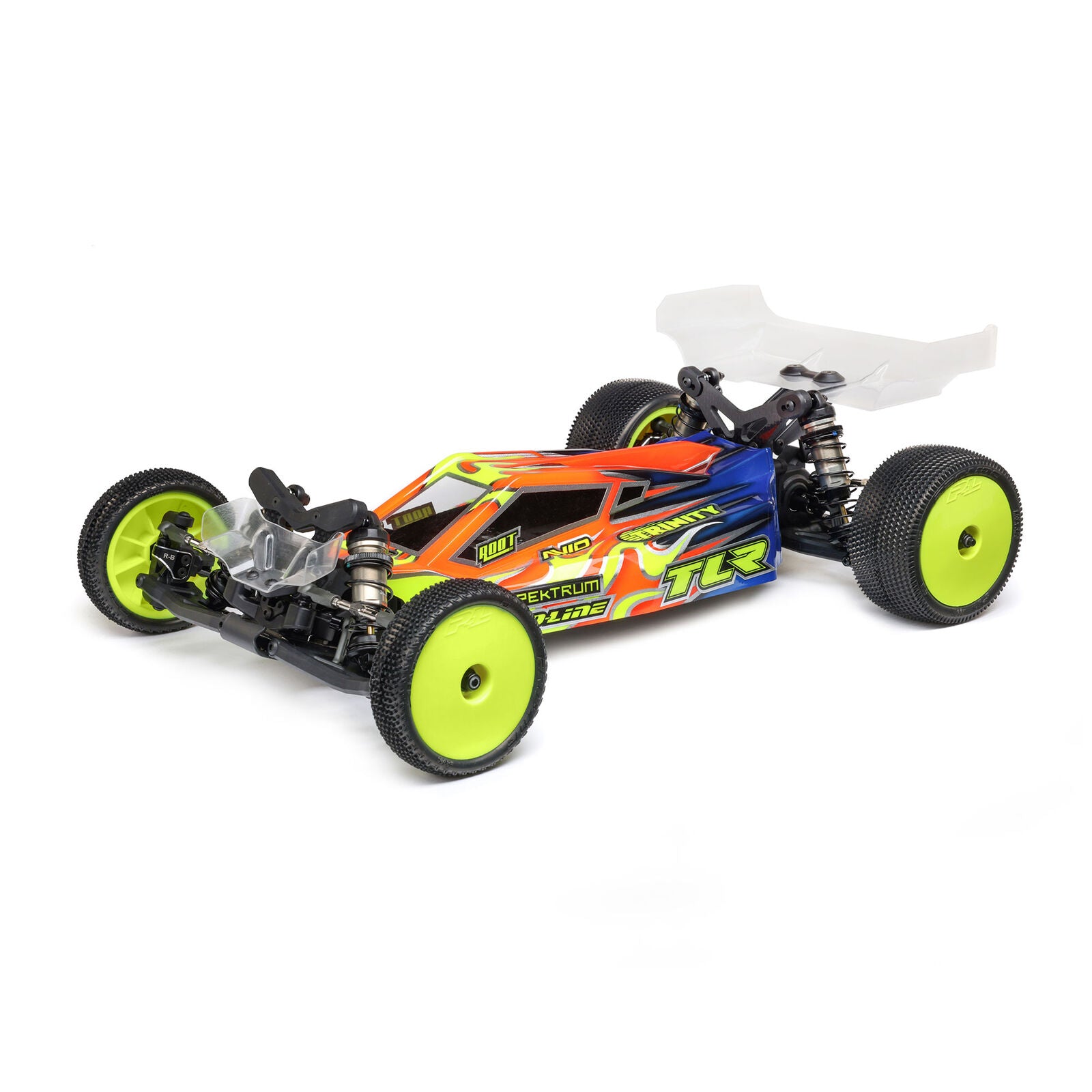

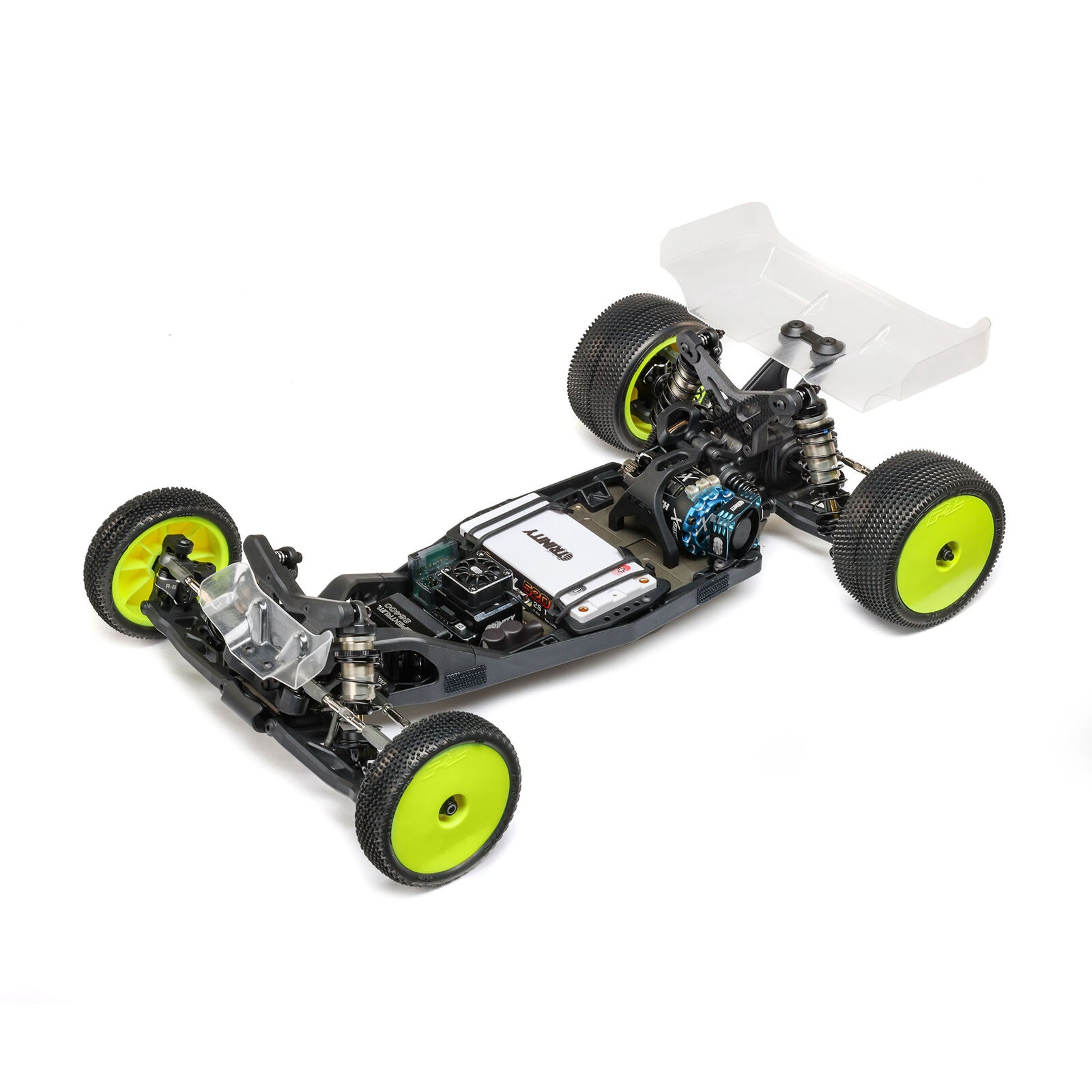

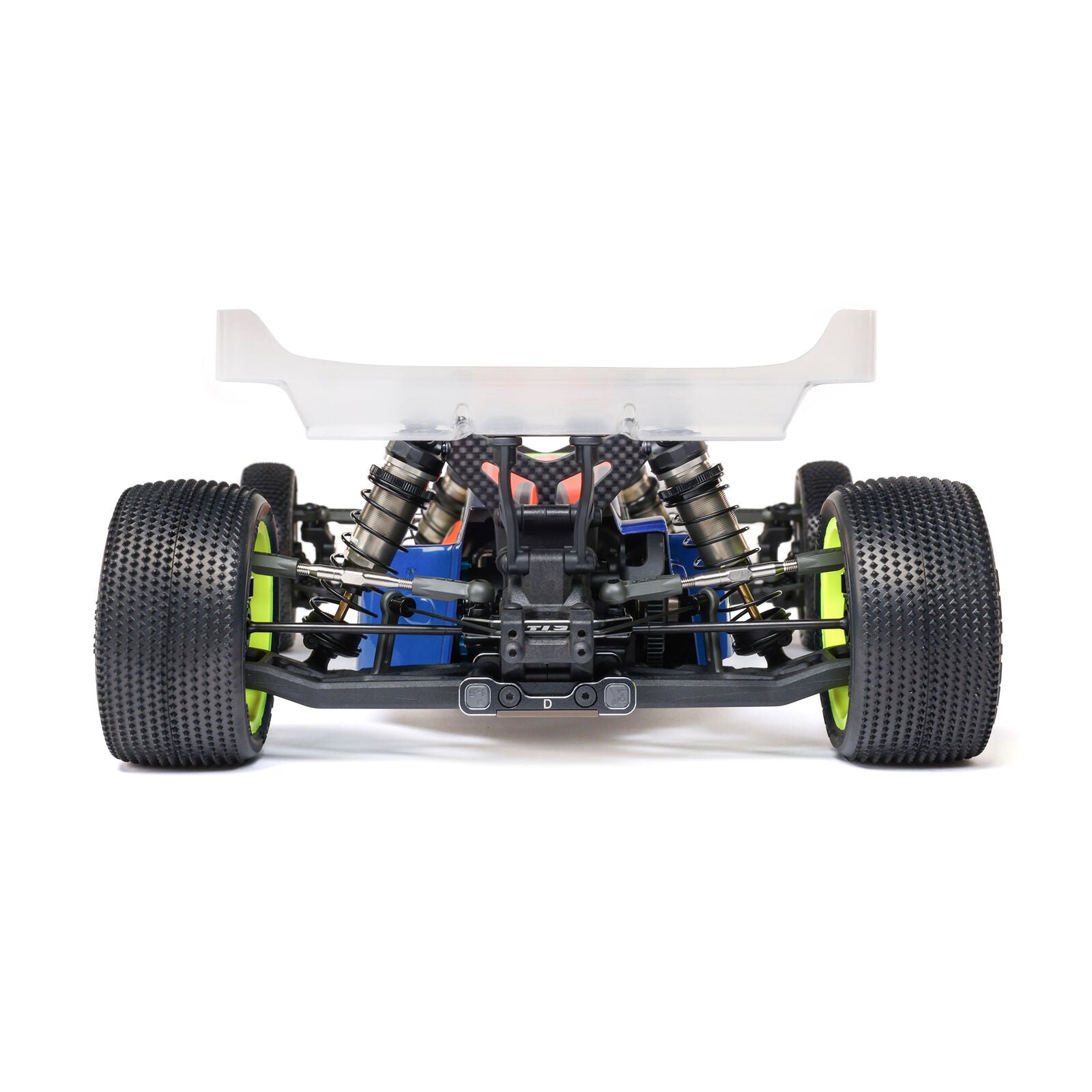

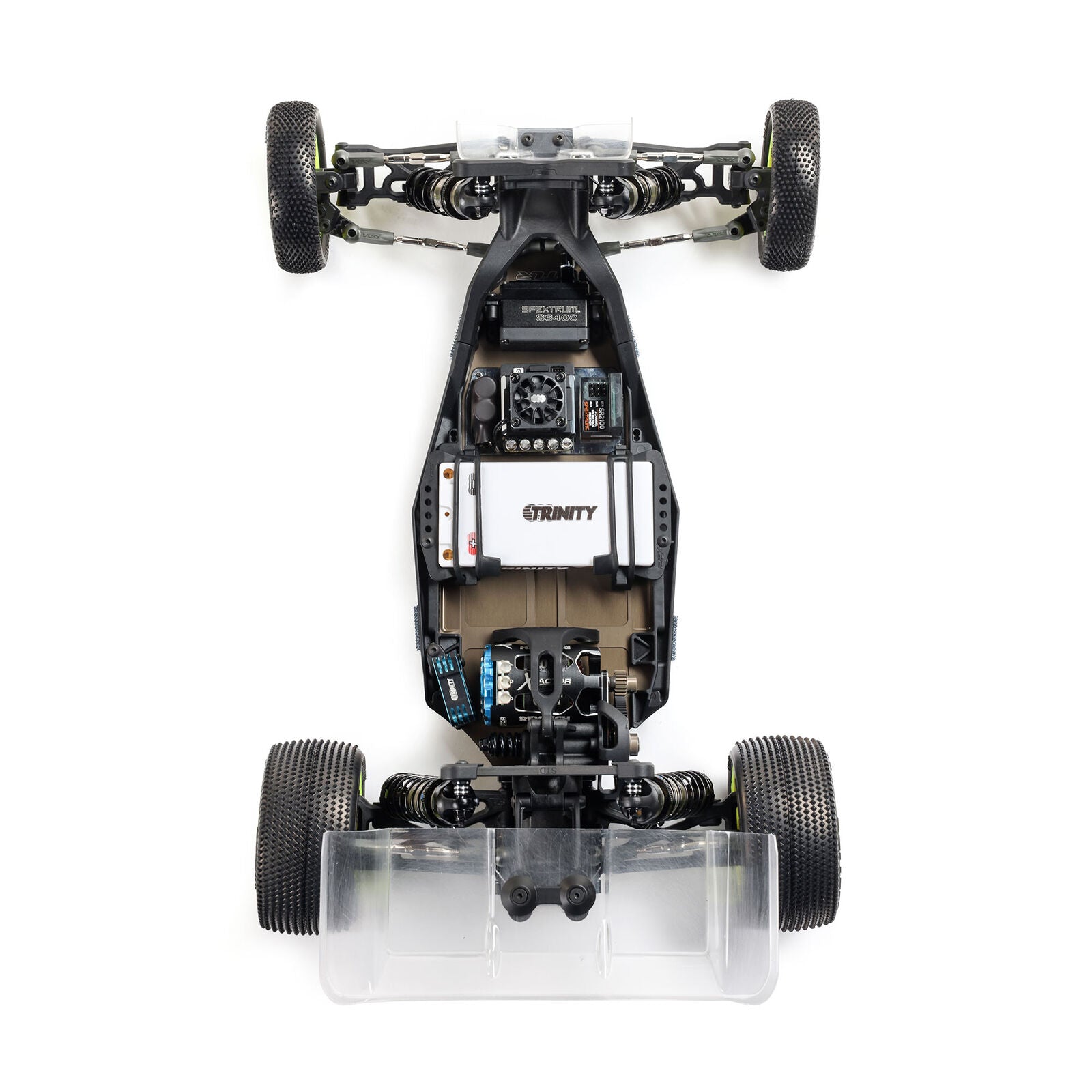

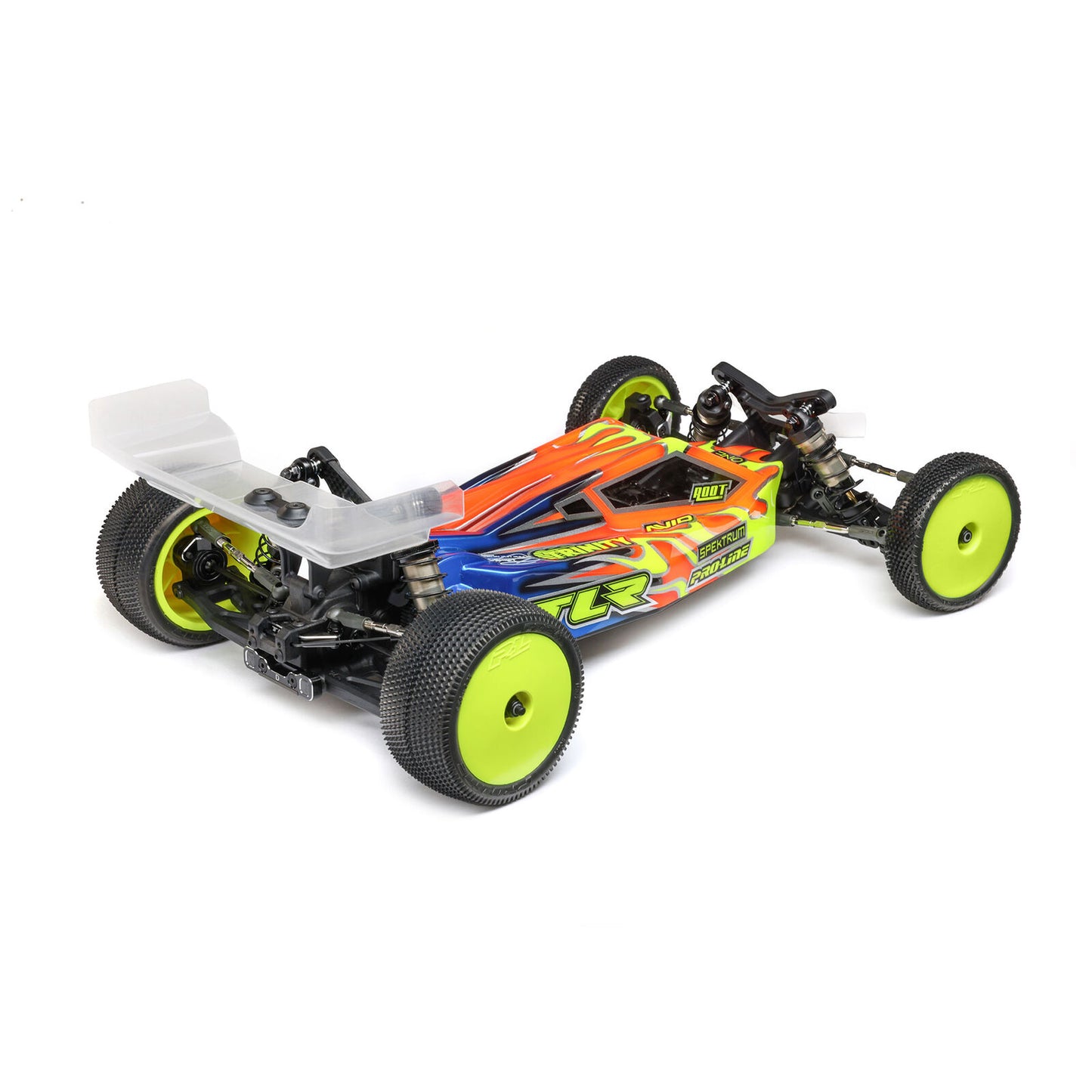

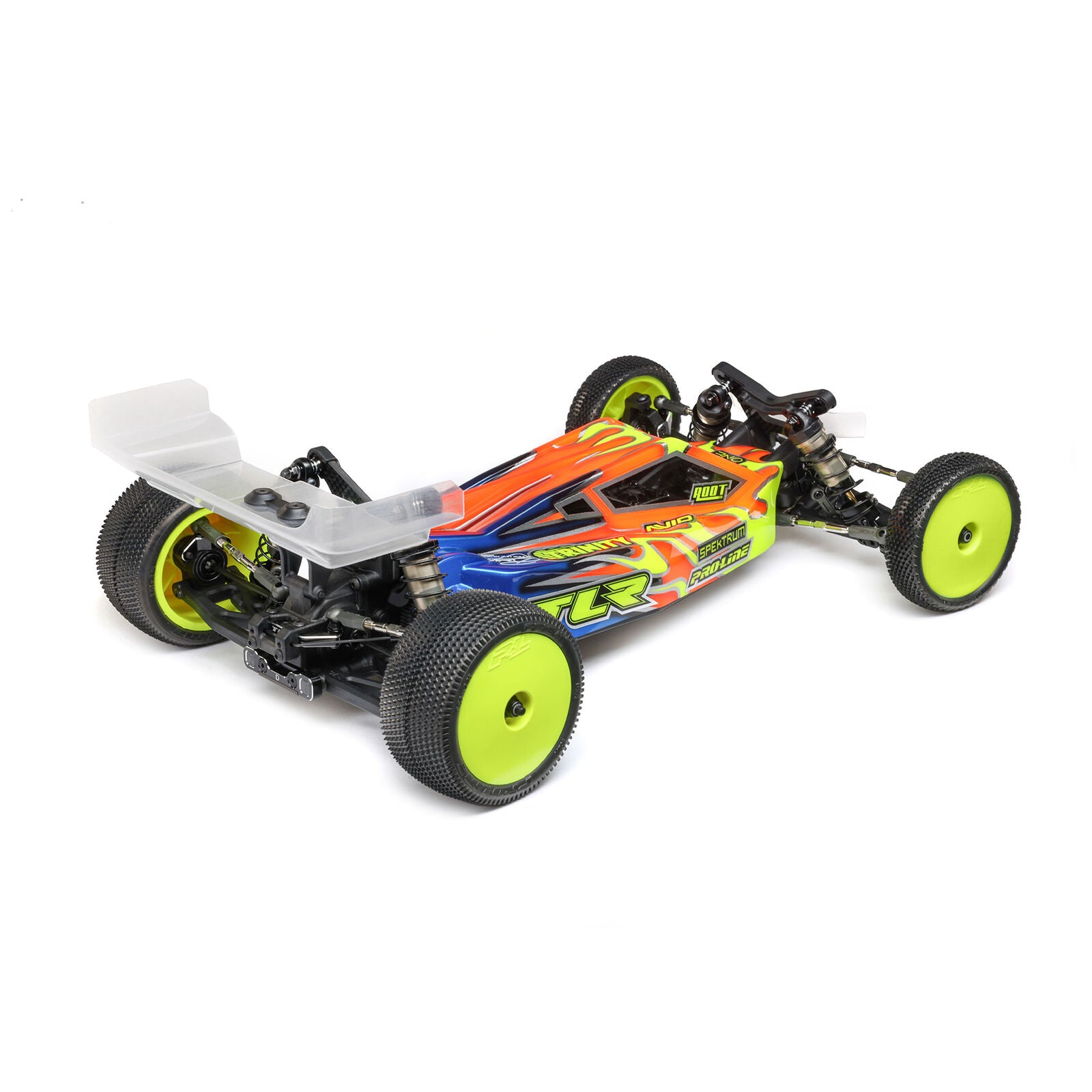

The Team Losi Racing 22X AC 1/10 scale 2WD race buggy kit (TLR-1234) is engineered for high-grip astro and carpet tracks. With a hard-anodised 7075-T6 aluminium chassis, larger 13 mm big-bore shocks, and a new laydown gearbox for quick differential access, it delivers precise handling, durability, and easy maintenance for serious racers.

Features

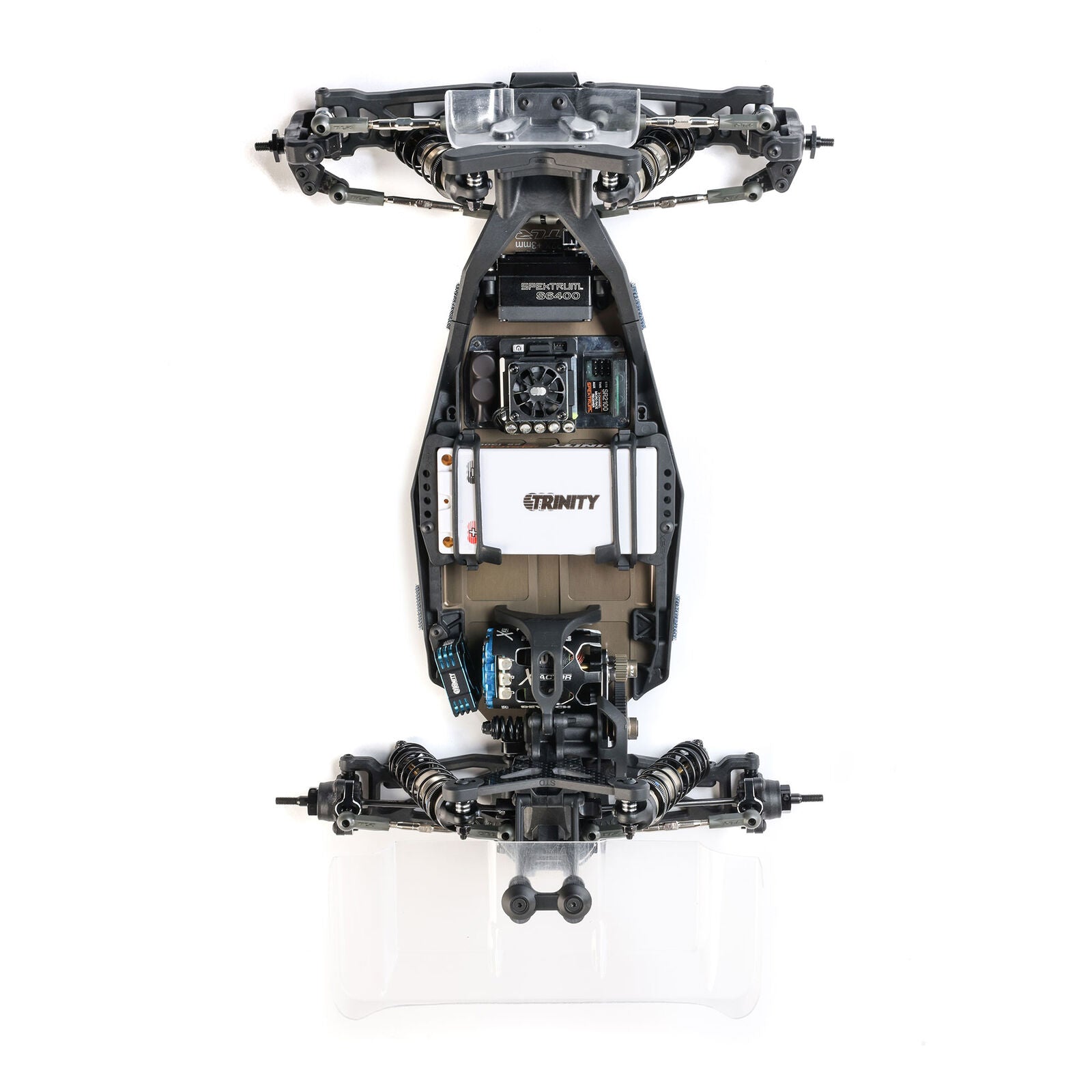

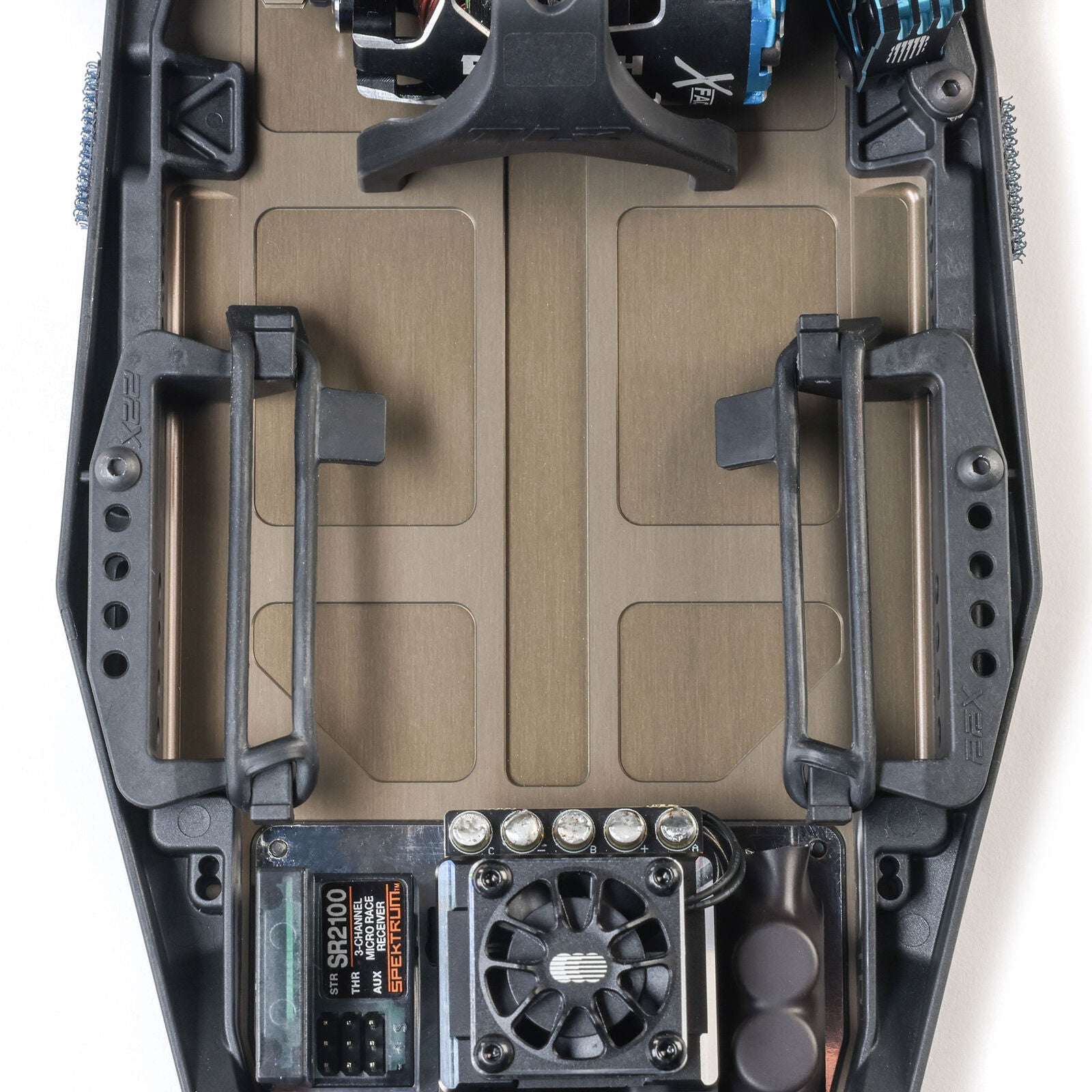

  • Hard-anodised 2 mm 7075-T6 aluminium chassis for strength and consistent flex

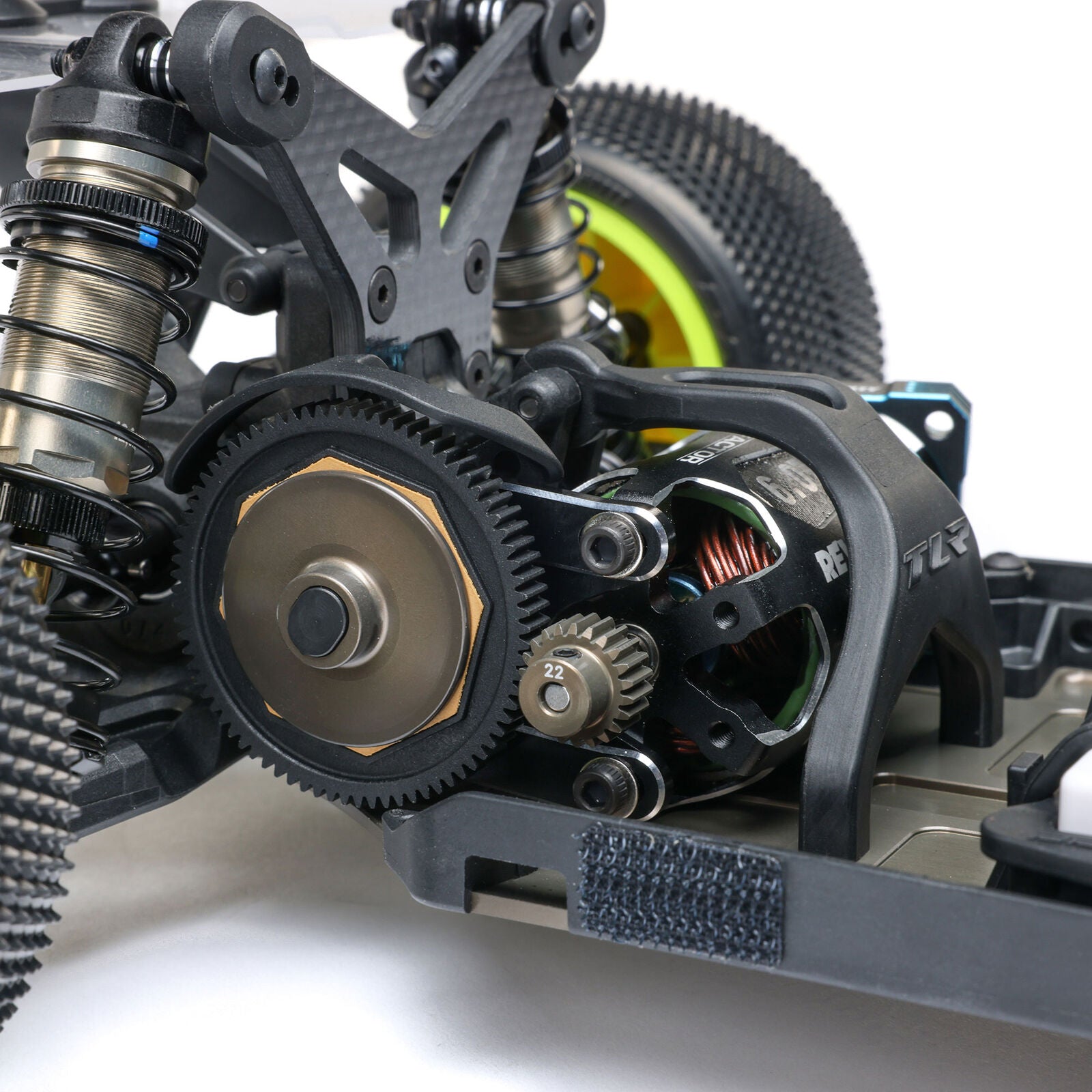

  • New laydown gearbox with easy-access differential and idler gear for faster servicing

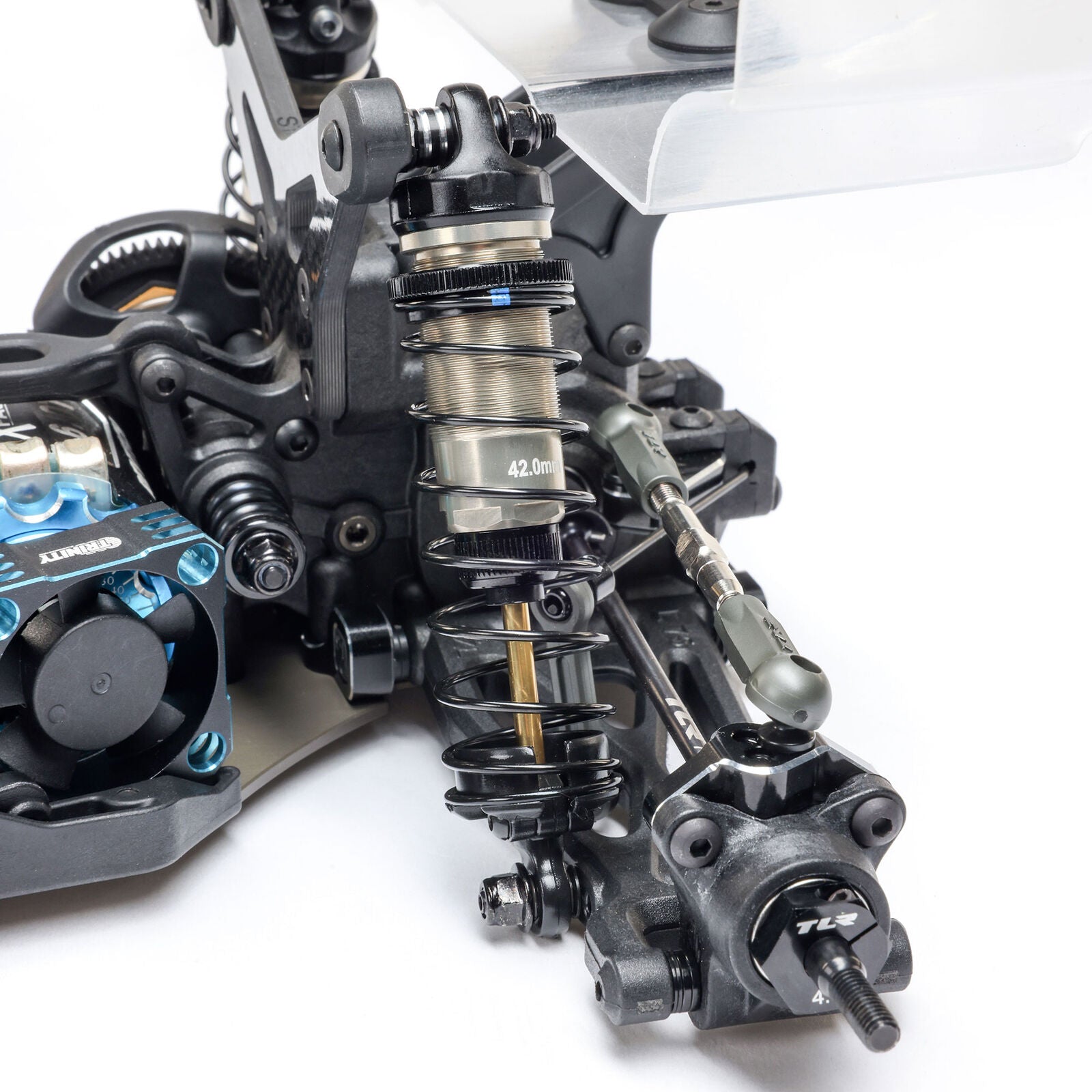

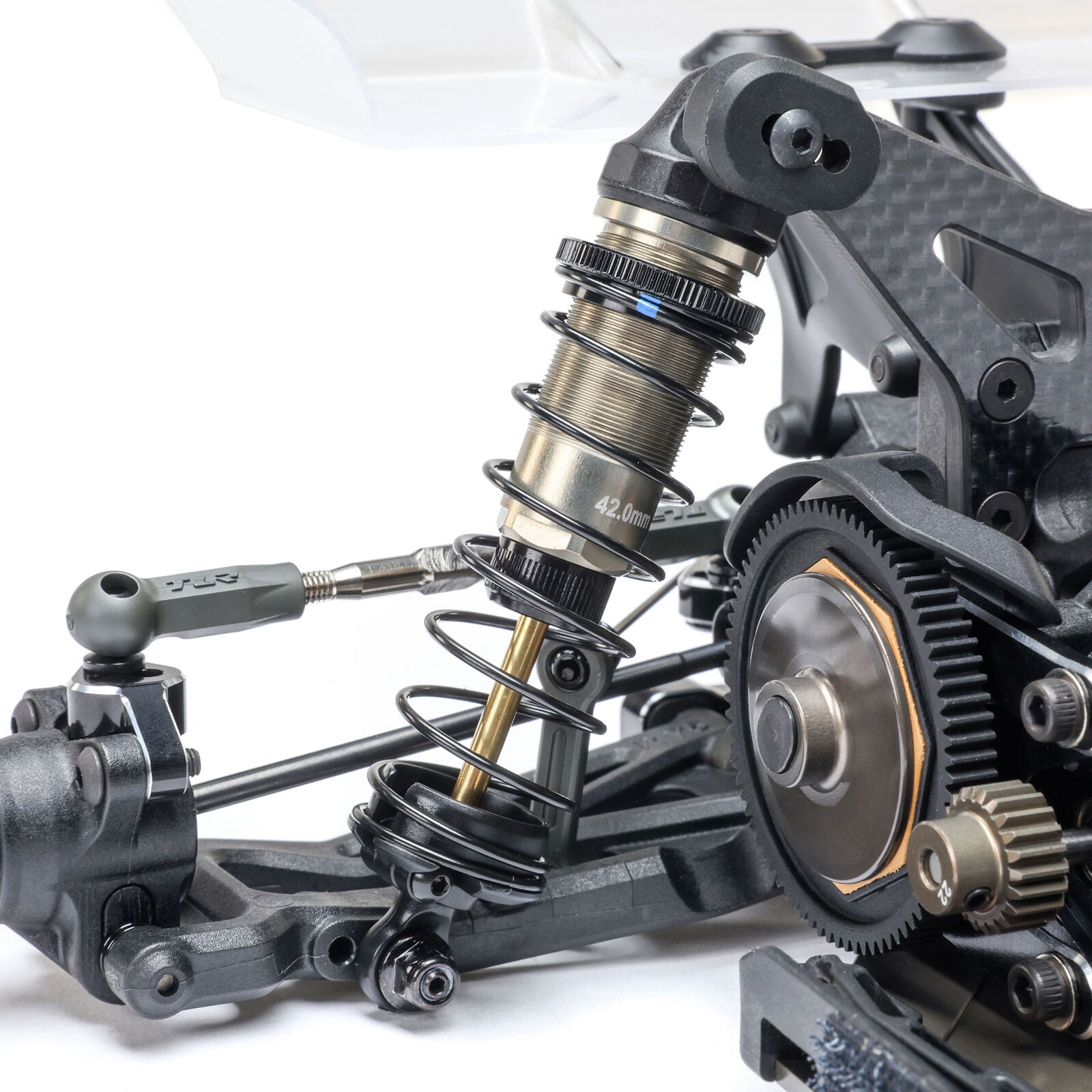

  • Larger 13 mm big-bore shocks with matching 13 mm springs for plush landings and cornering grip
  • Adjustable caster from −5° to 5° in 2.5° steps; kick-up adjustable from 20° to 25° in 2.5° steps

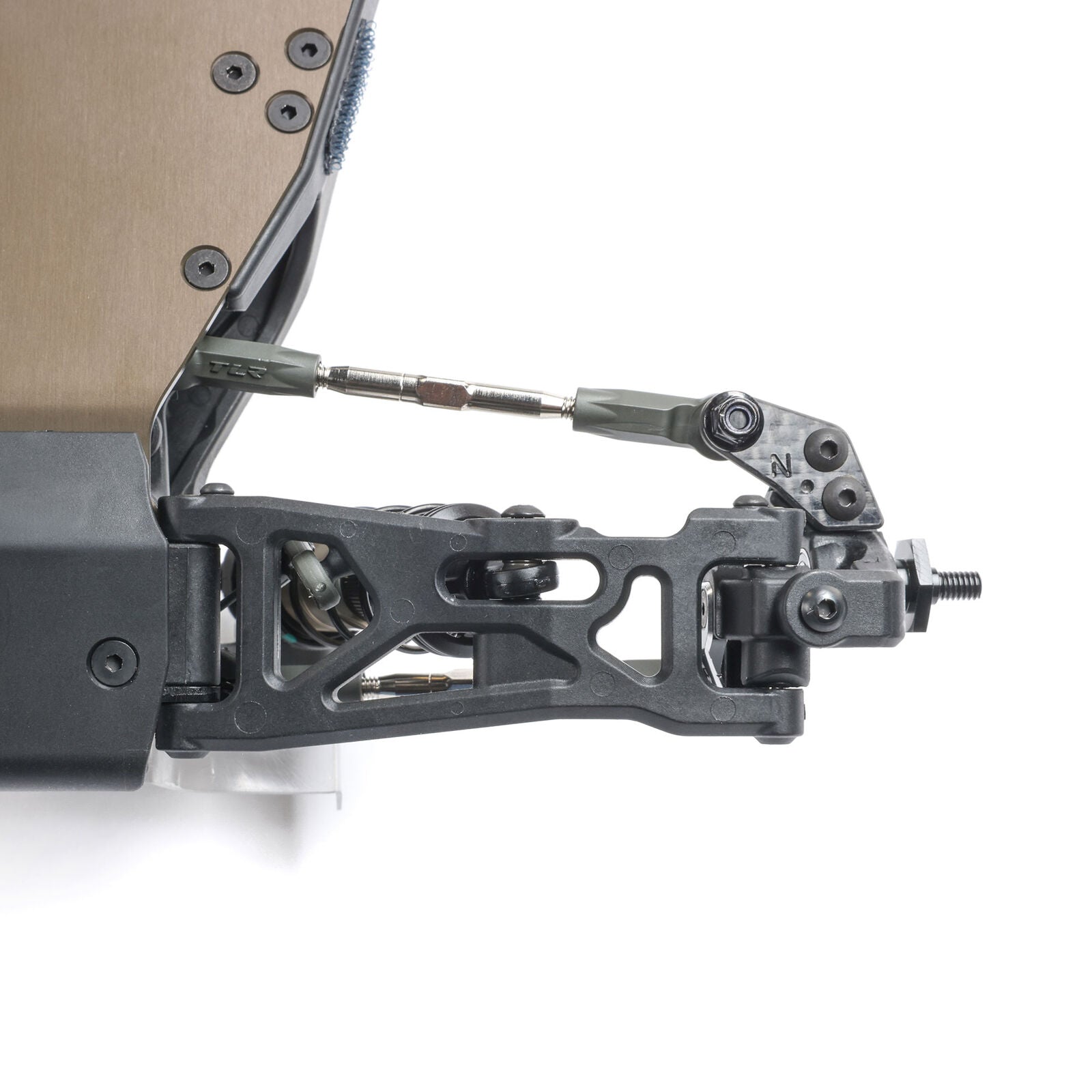

  • Wide or narrow king-pin options to tune steering feel for astro or carpet

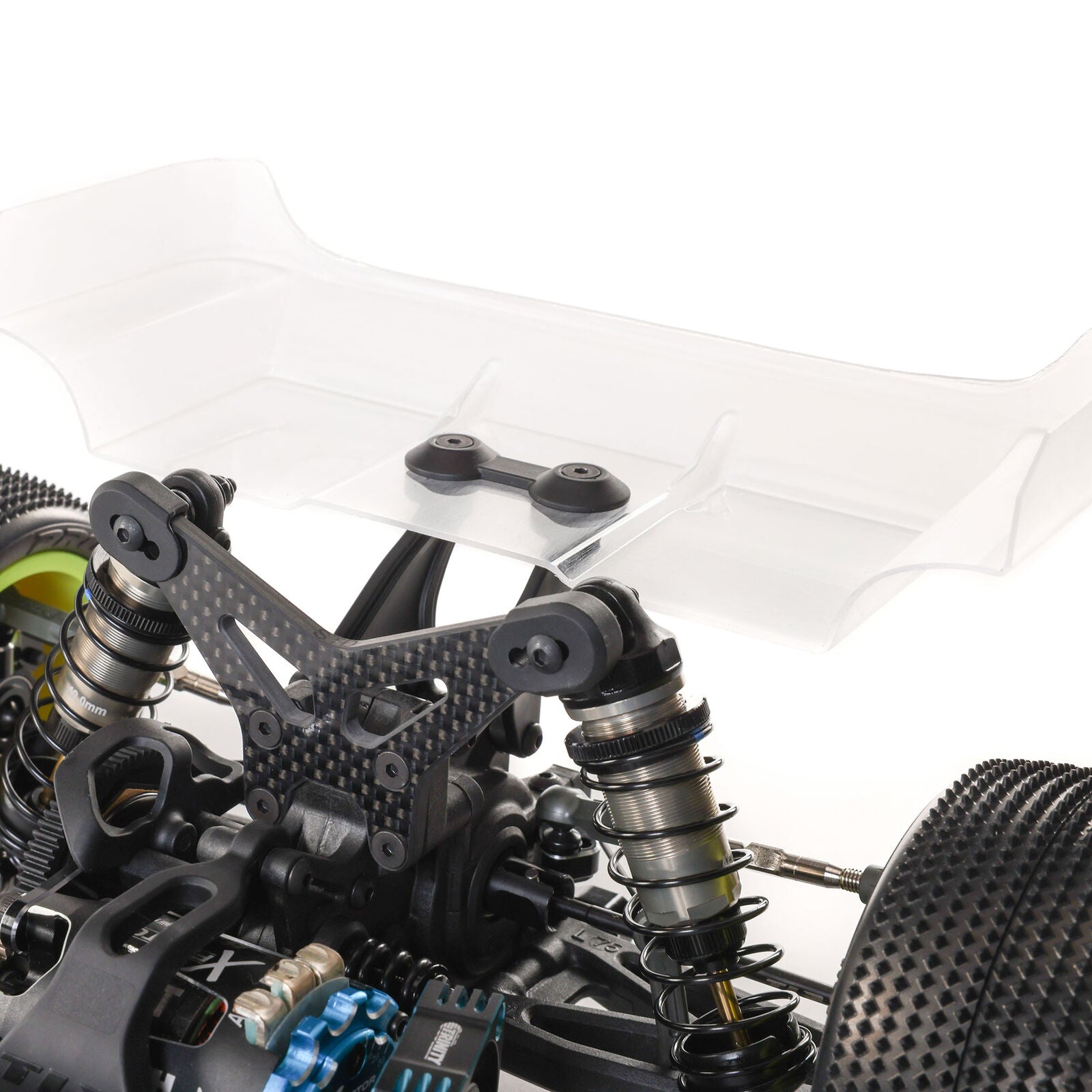

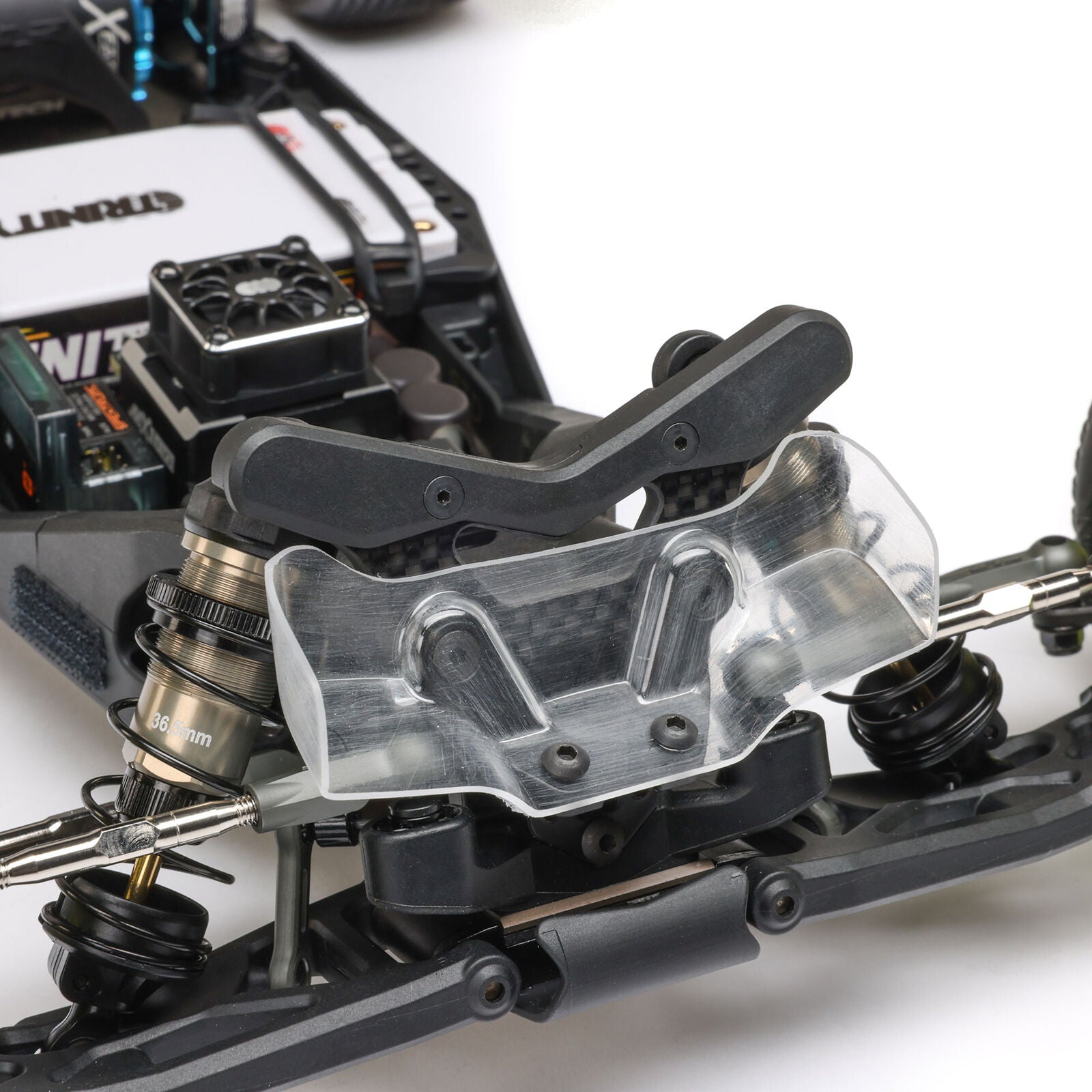

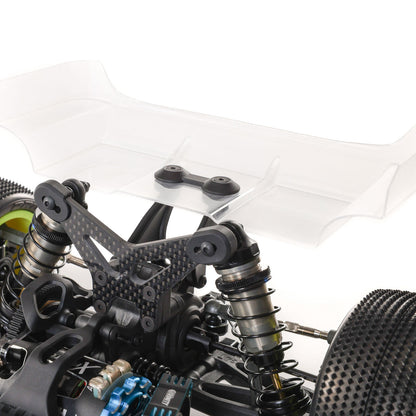

  • Rigid 4 mm woven carbon-fibre shock towers with protective tower covers

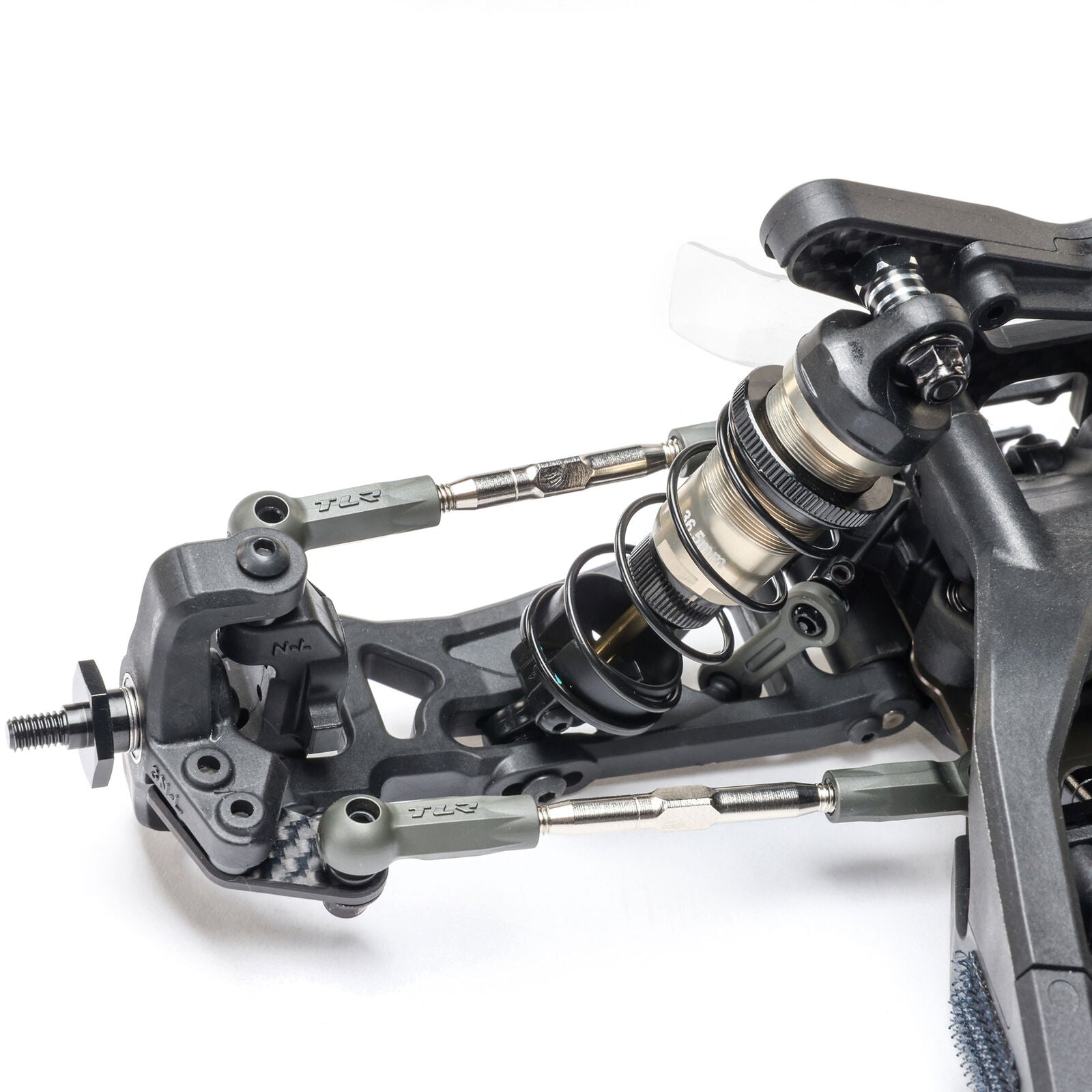

  • Refined steering geometry for smooth, consistent response
  • New 5.8 mm ball studs and rod ends for free suspension movement and quick roll-centre changes

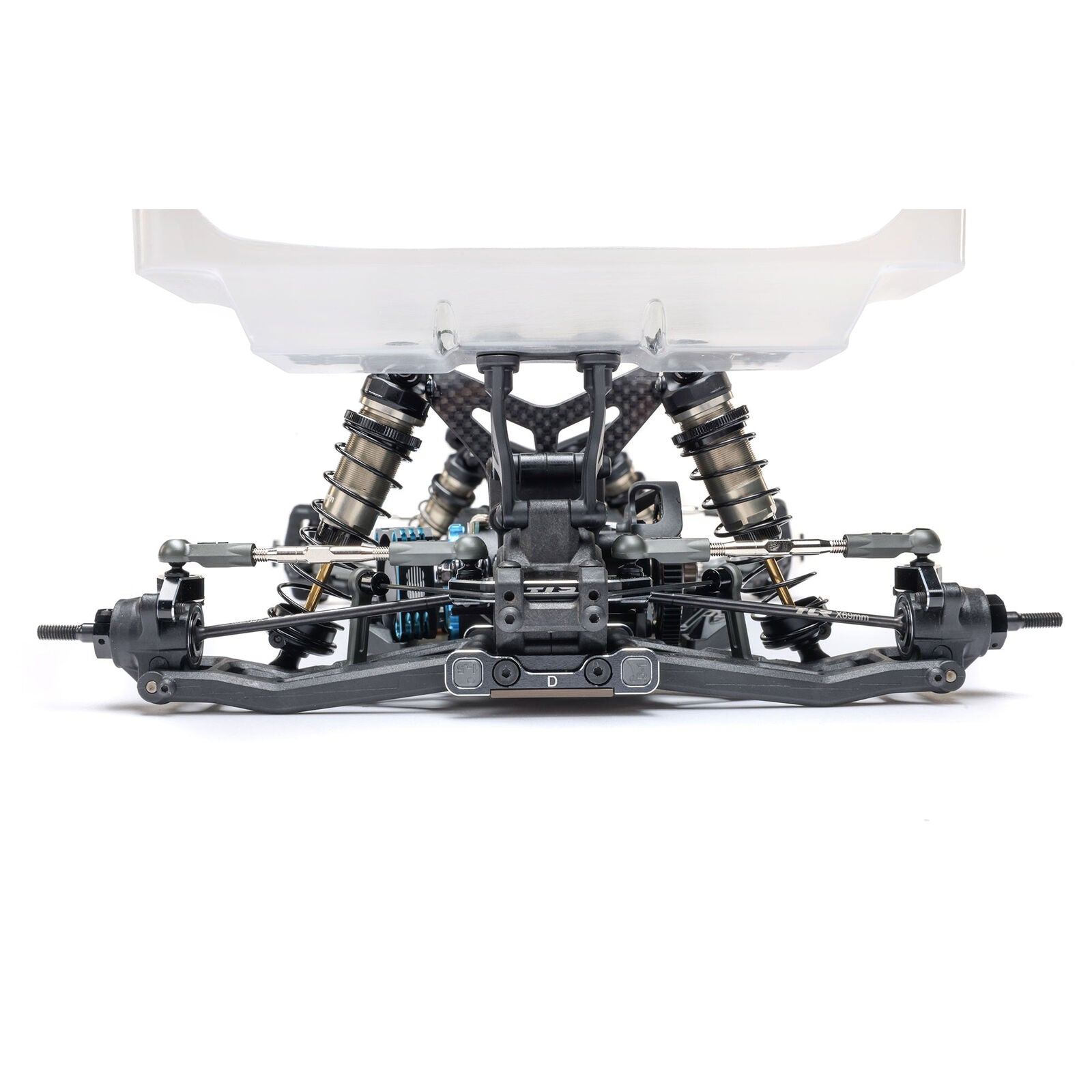

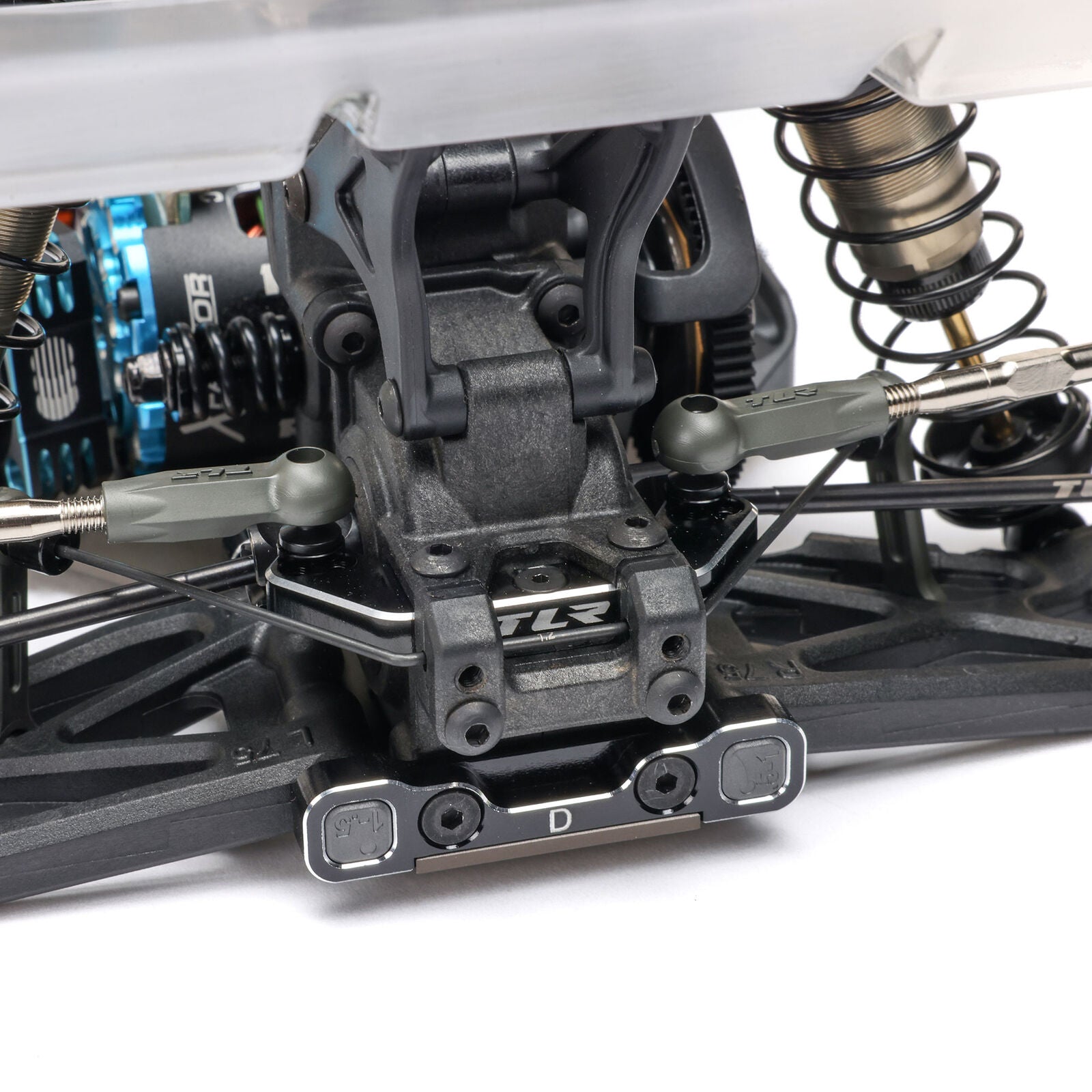

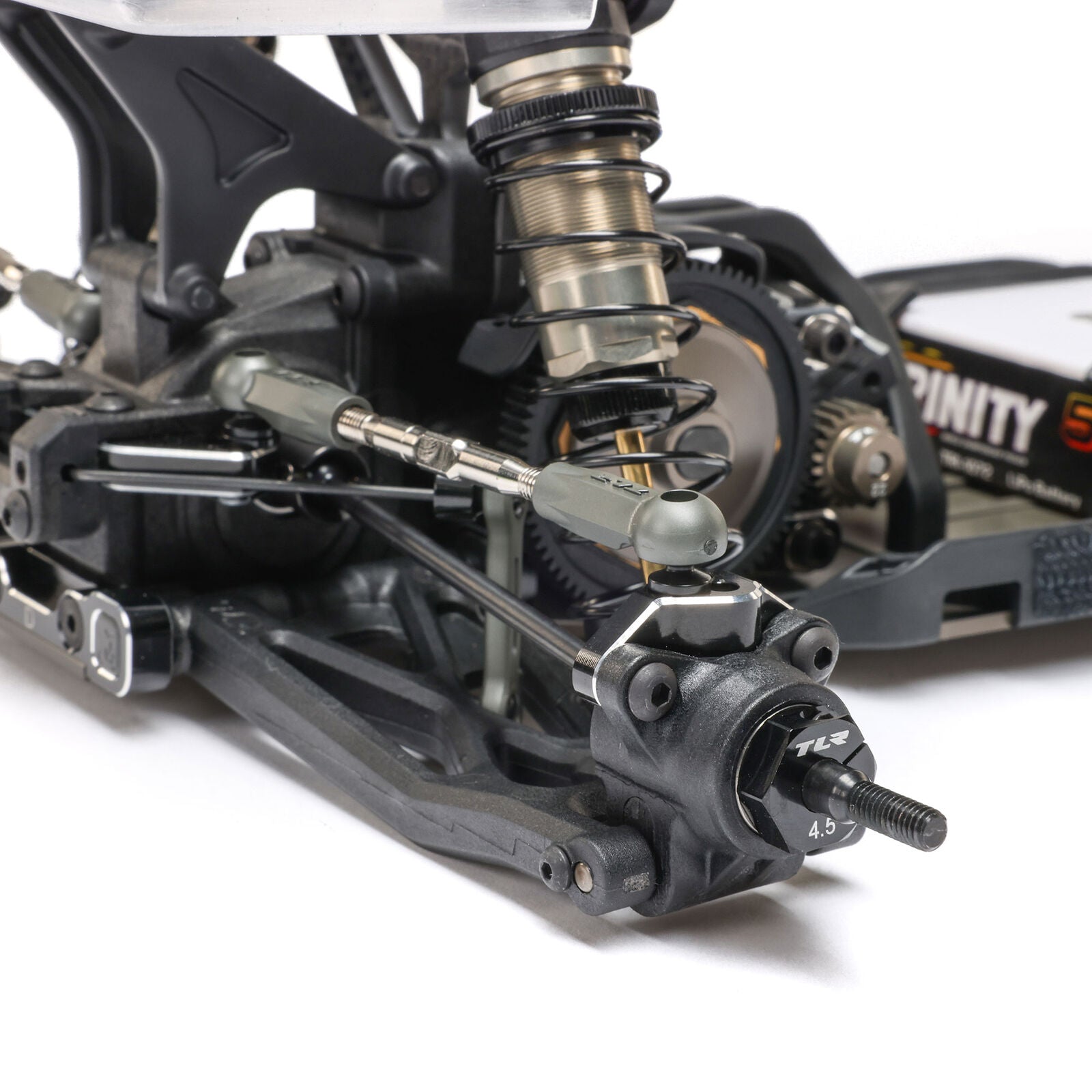

  • Variable Height Axle (VHA) rear hubs and adjustable rear pivots for anti-squat and toe tuning
  • Super Heavy Duty Slipper (SHDS) layout updated for improved vehicle balance

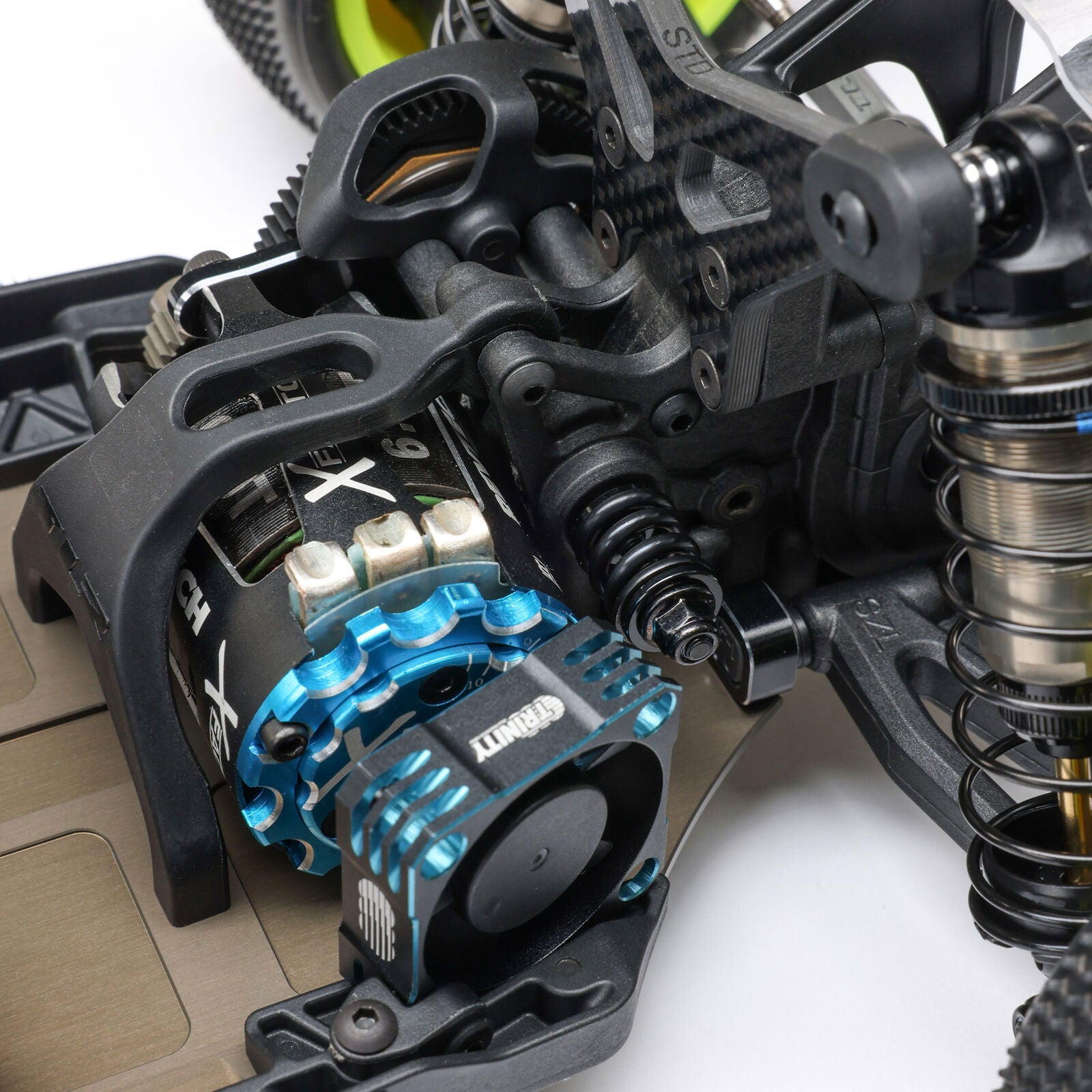

  • Built-in mount for 30 × 30 mm motor fans

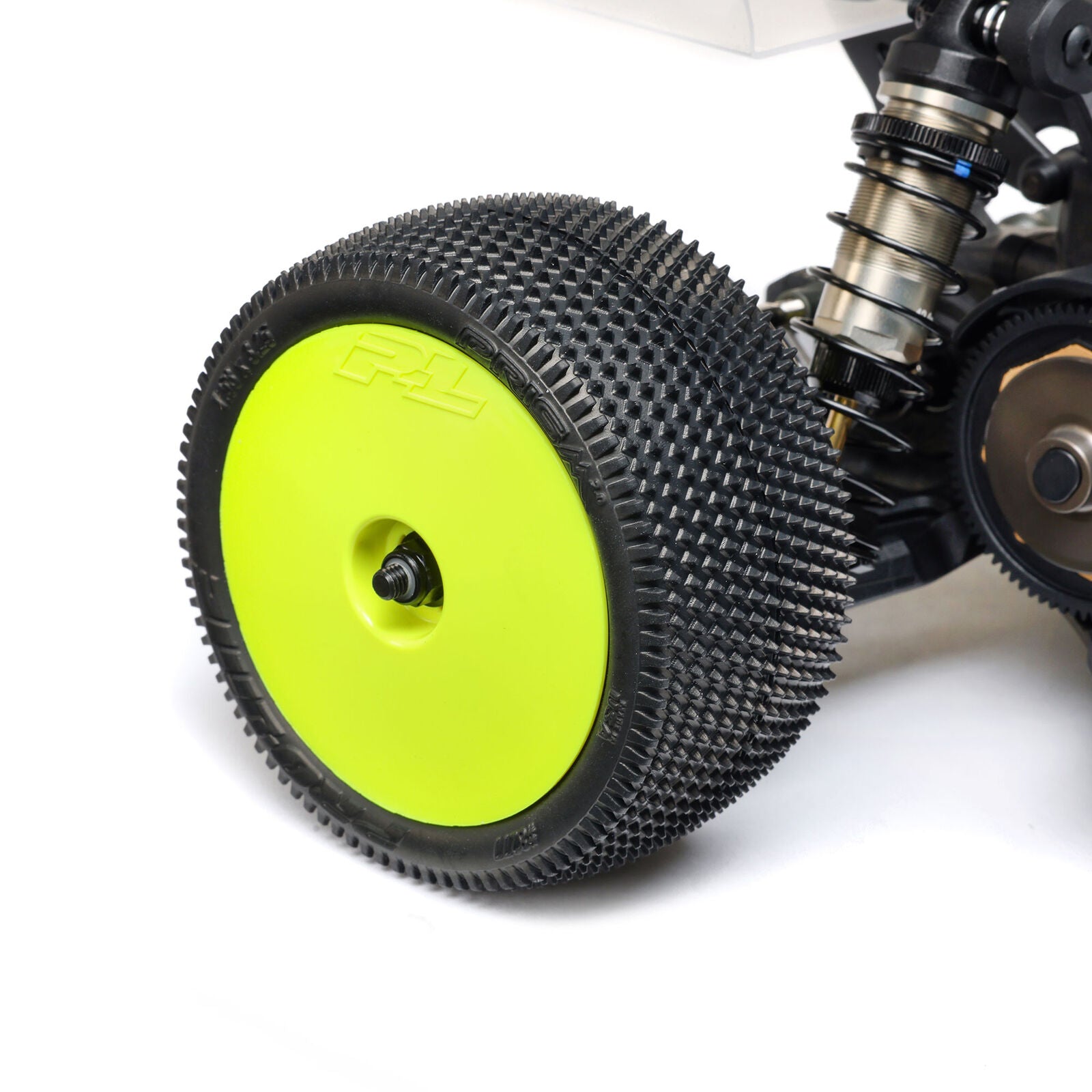

  • Industry-standard 2.2 in front wheel offset for broad wheel/tyre compatibility

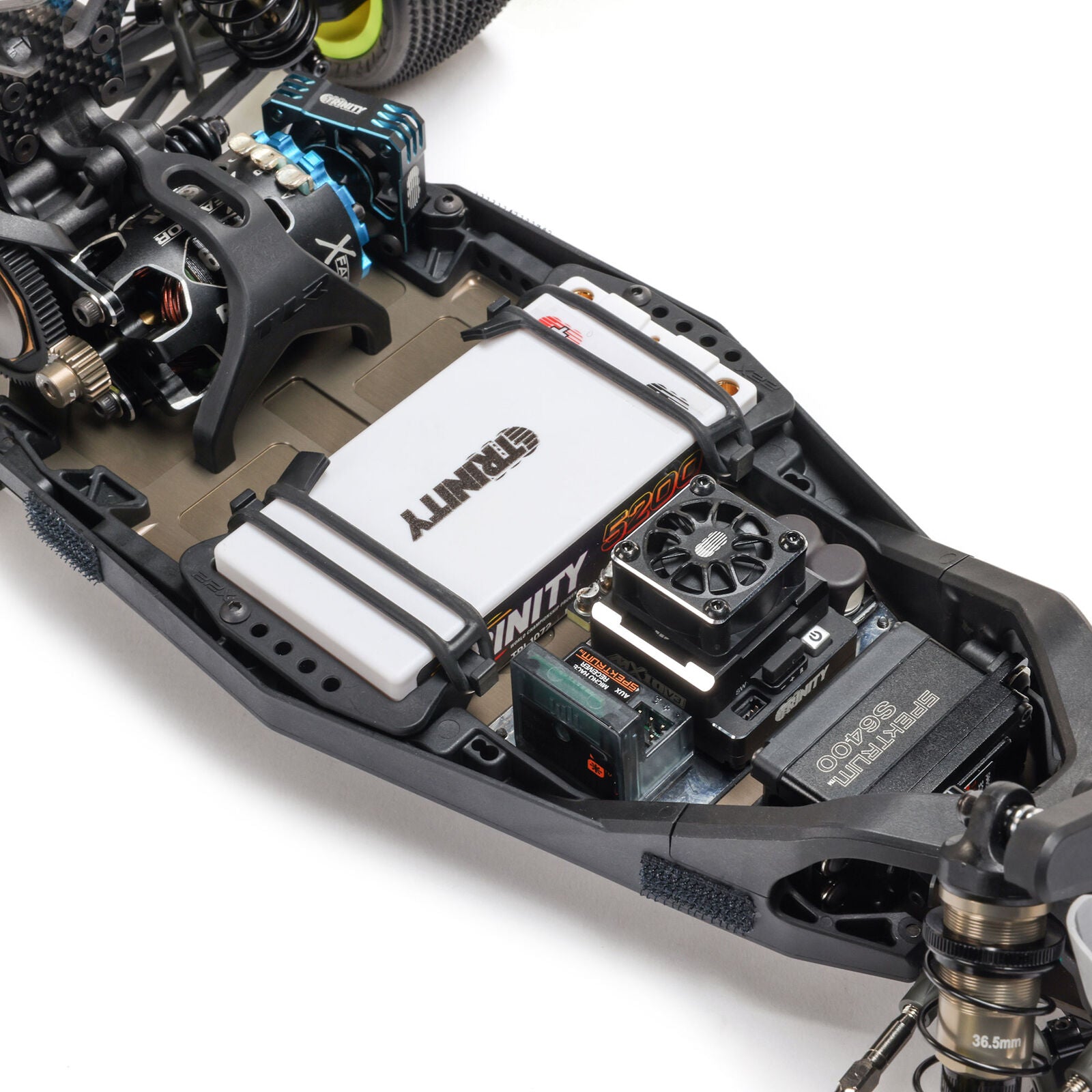

  • Adjustable battery mount and numerous lightweight aluminium components throughout

What’s Included

  • 22X AC 1/10 scale 2WD race buggy kit

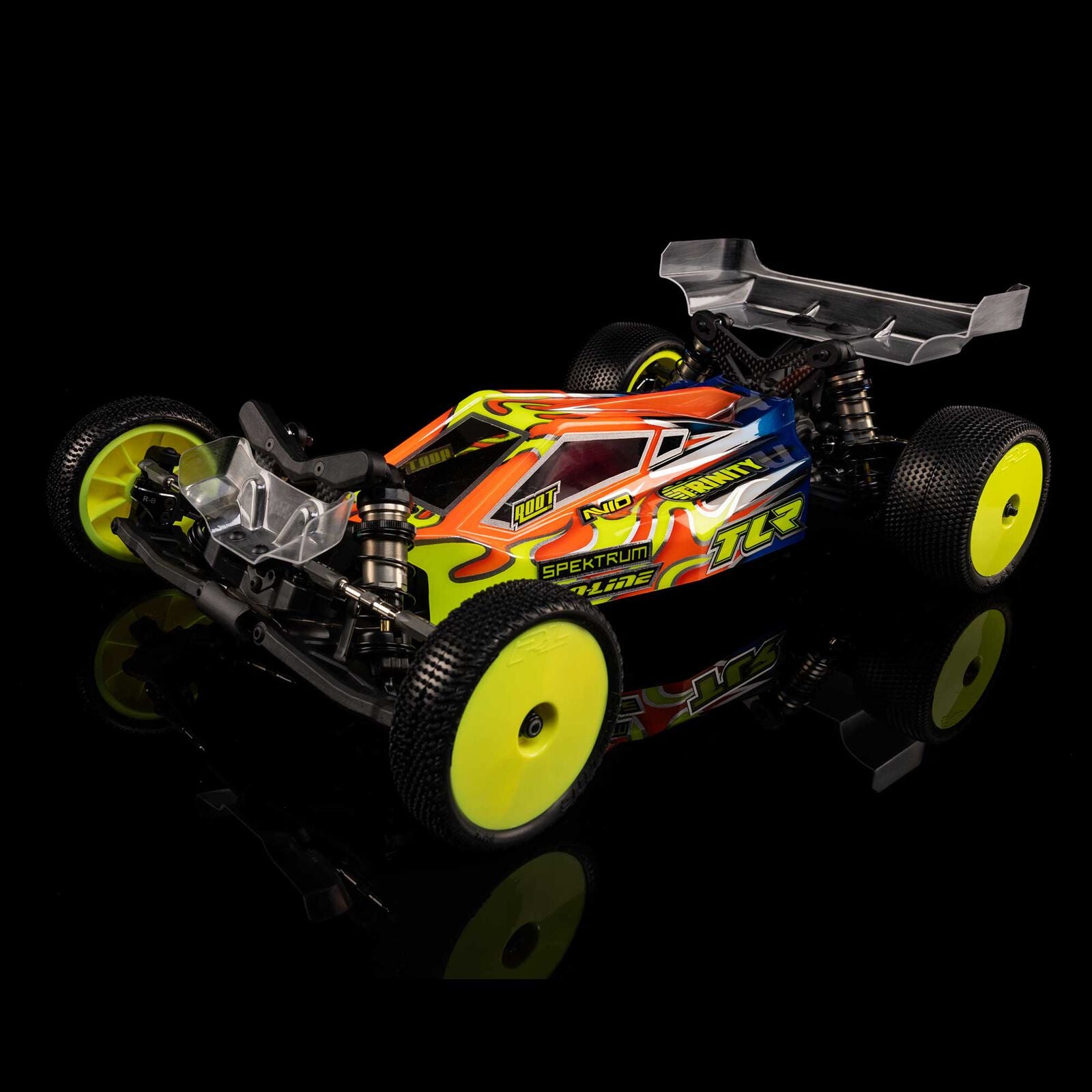

  • Pro-Line Sector 22X body (pre-cut)
  • Pro-Line Air Force 178 mm (7 in) rear wing
  • Pro-Line front wing
  • Product manual

What You’ll Need

  • ESC and 540-size motor
  • 2S LiPo shorty battery and LiPo charger
  • Receiver and transmitter
  • Steering servo (25T spline horn included in kit)
  • 48-pitch pinion gear
  • 30 × 30 mm motor fan (optional)
  • 2.2 in buggy wheels (2WD fronts and rears) and tyres
  • Polycarbonate paint

Specifications

  • Scale: 1/10
  • Drivetrain: 2WD
  • Completion Level: Kit (assembly required)
  • Approximate Assembly Time: 3–5 hours

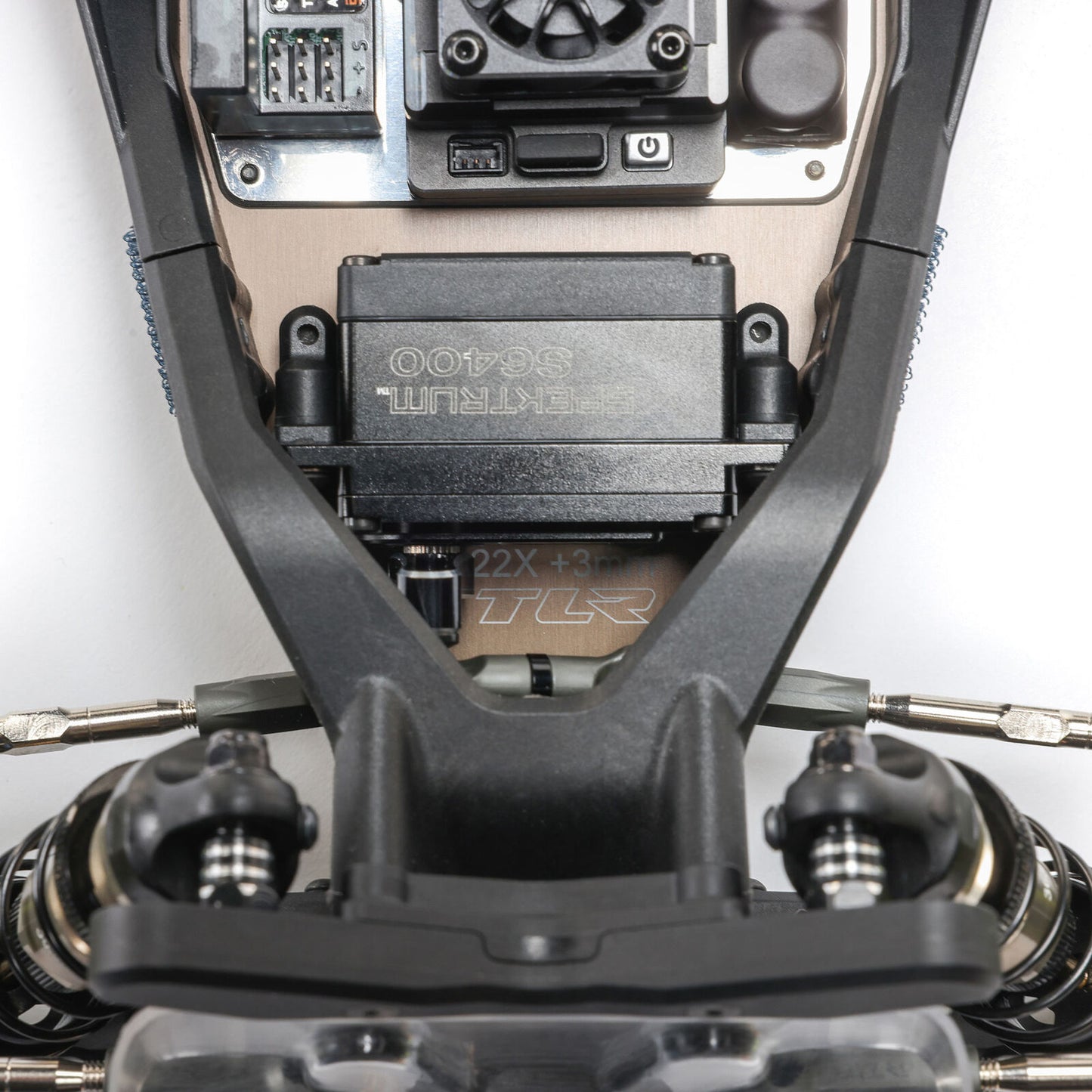

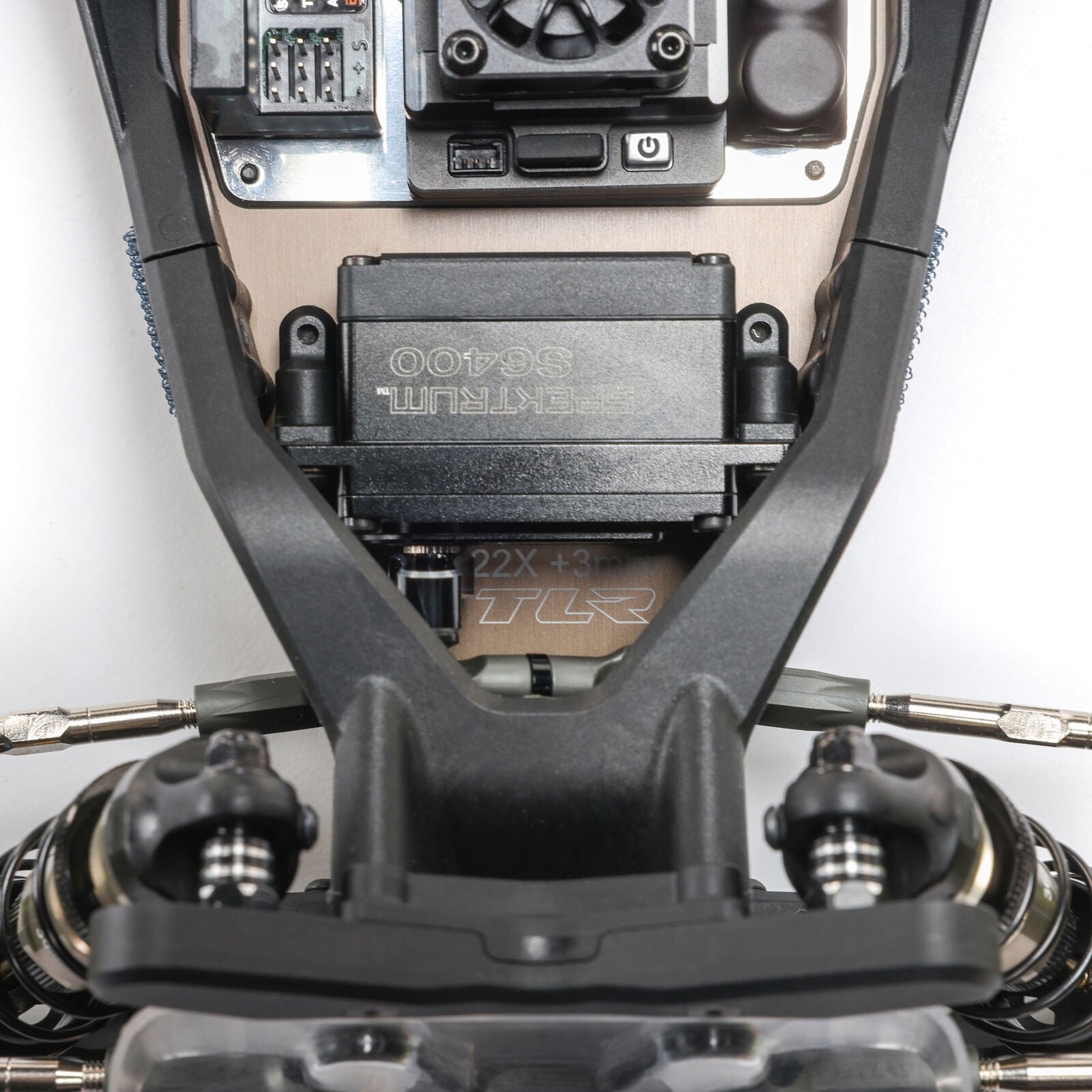

  • Chassis: 2 mm 7075-T6 aluminium milled plate
  • Internal Gear Ratio: 2.6:1
  • Gear Pitch: 48-pitch (spur 78T)
  • Wheel Hex: 12 mm (0.47 in)
  • Front/Rear Track: 250 mm (9.8 in)
  • Wheelbase: 290 mm (11.4 in)
  • Length: 376 mm (14.8 in)
  • Height: 147 mm (5.8 in)
  • LiPo Compatibility: 2S
  • Max Battery Size: 25.1 × 47 × 96 mm (0.99 × 1.85 × 3.78 in)
  • Power Type: Electric
View full details
