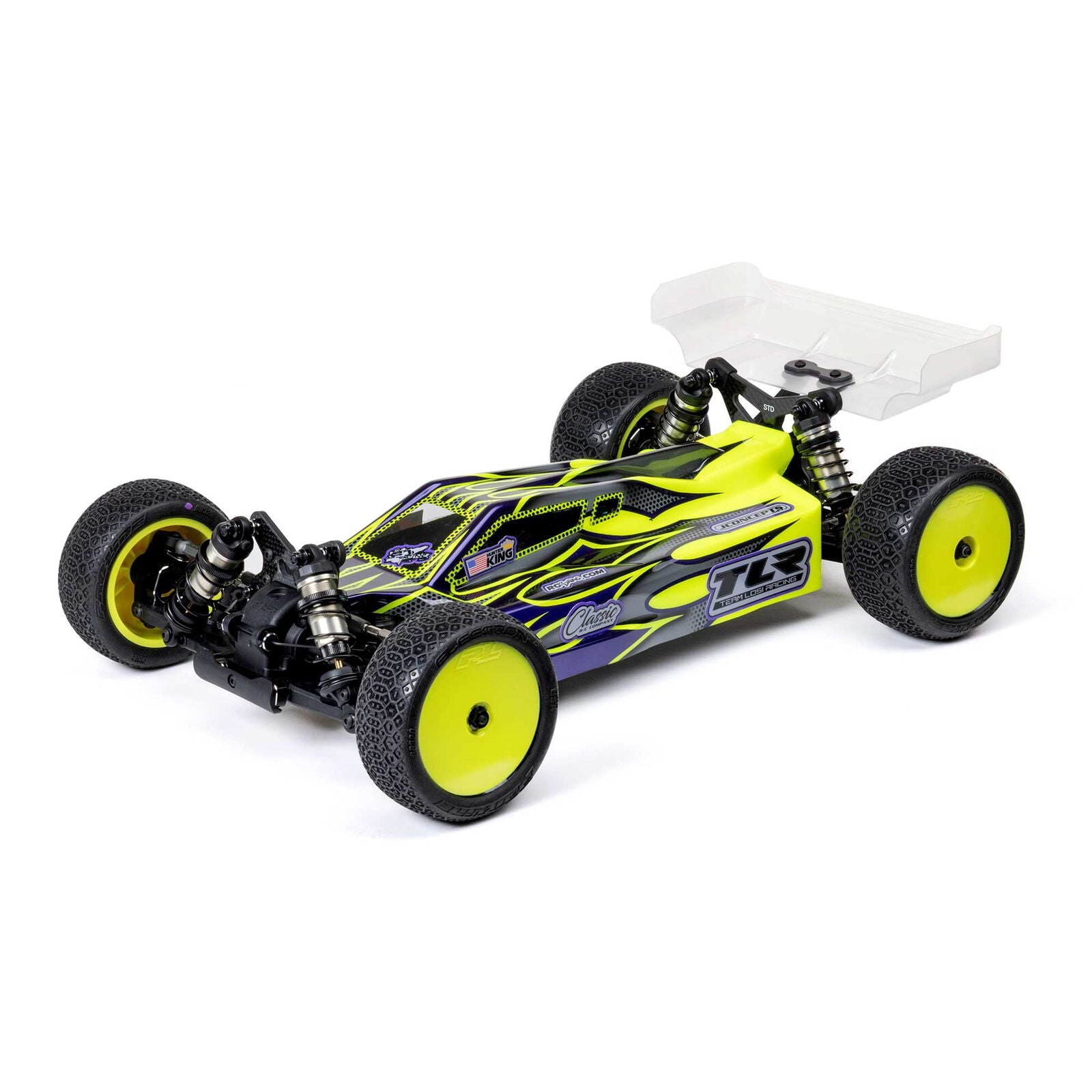

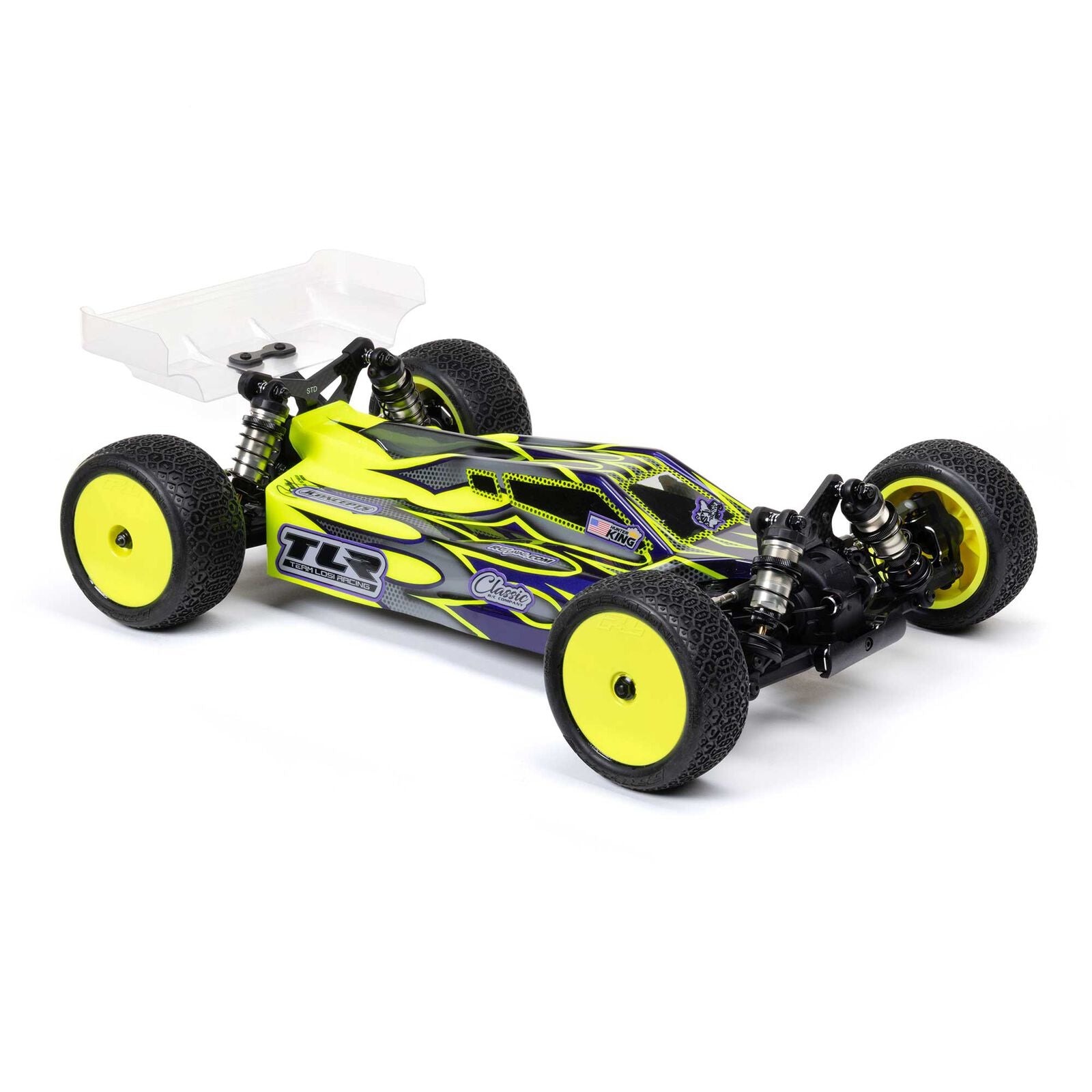

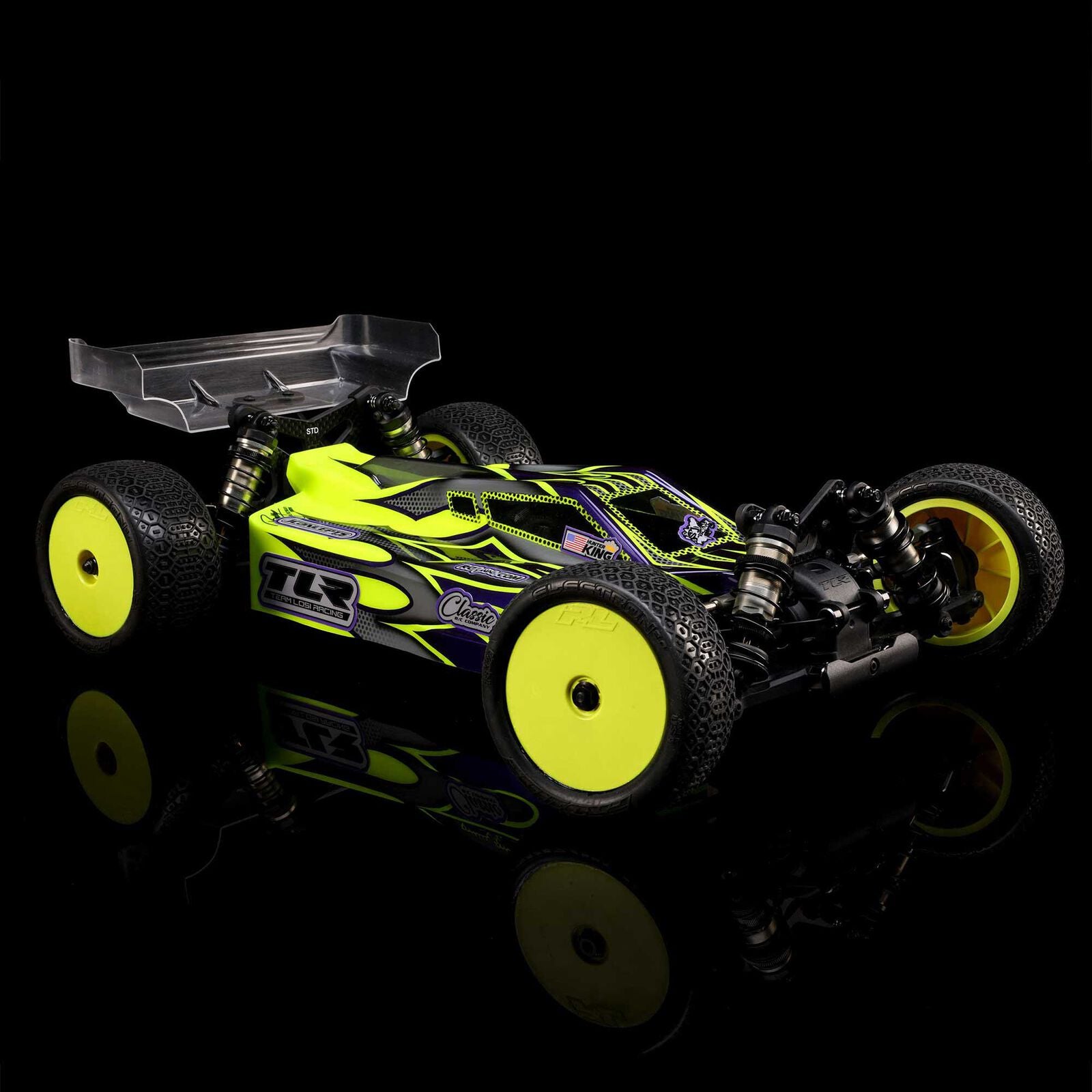

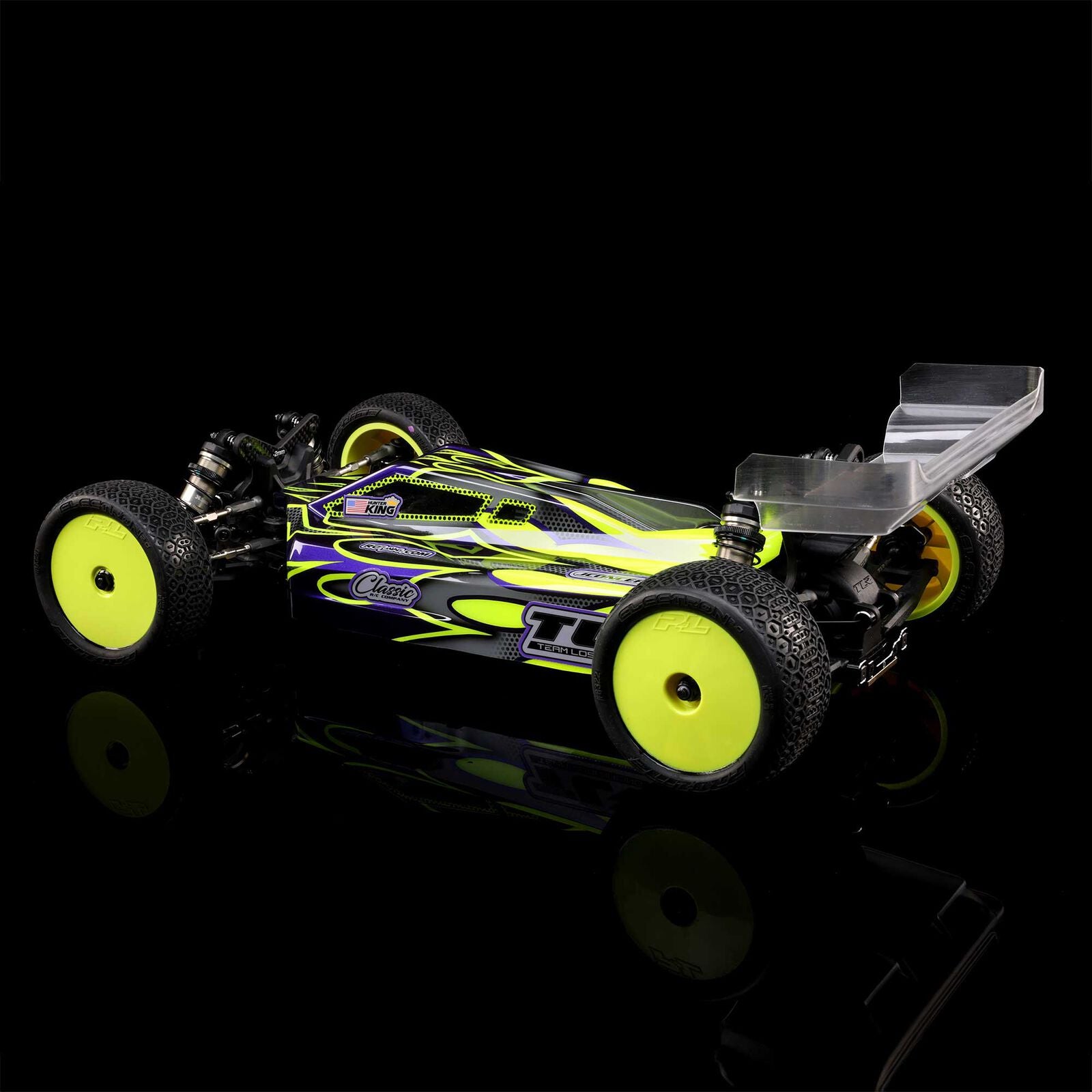

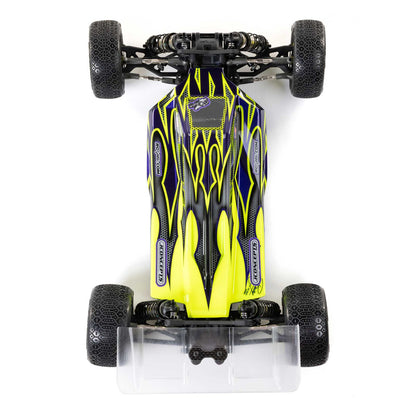

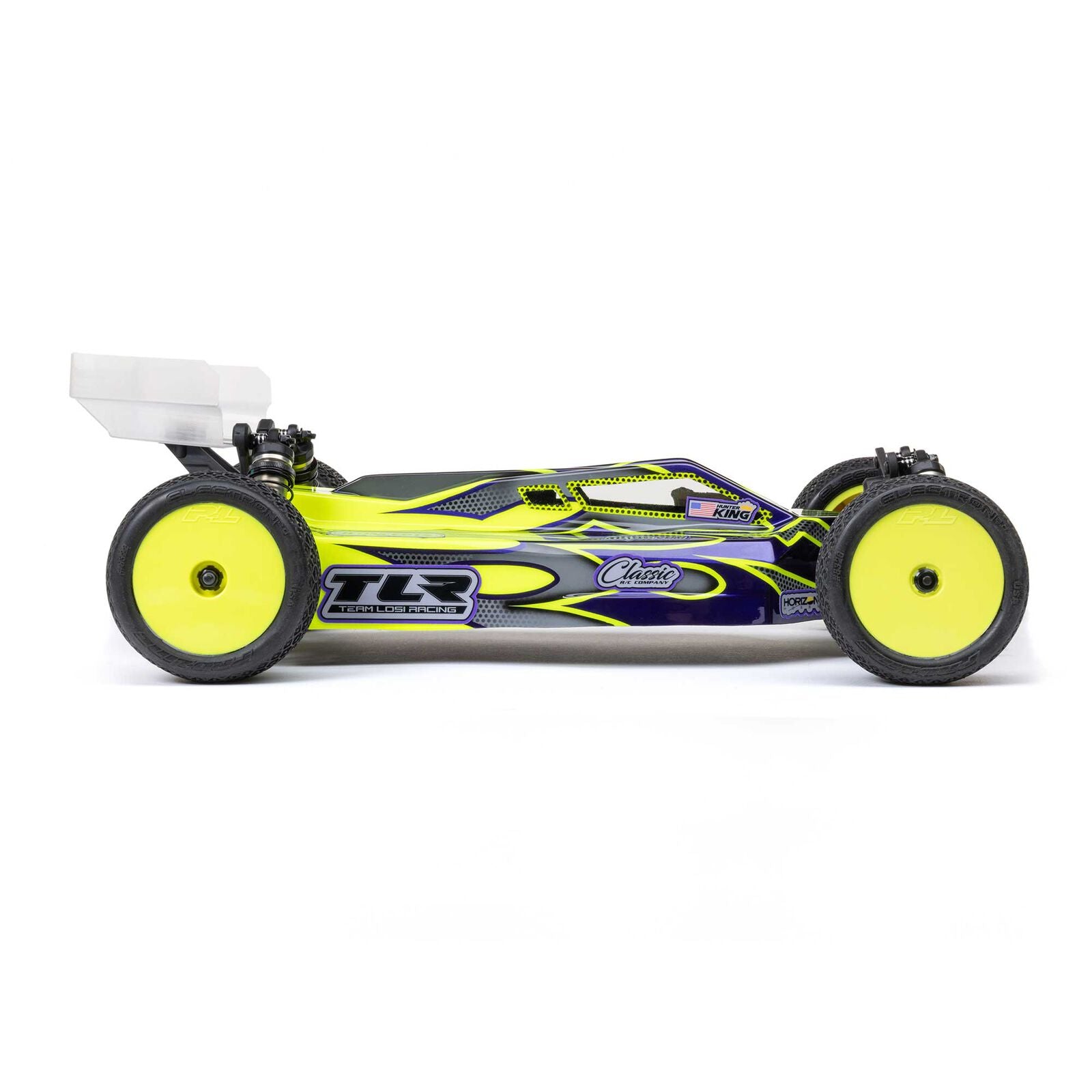

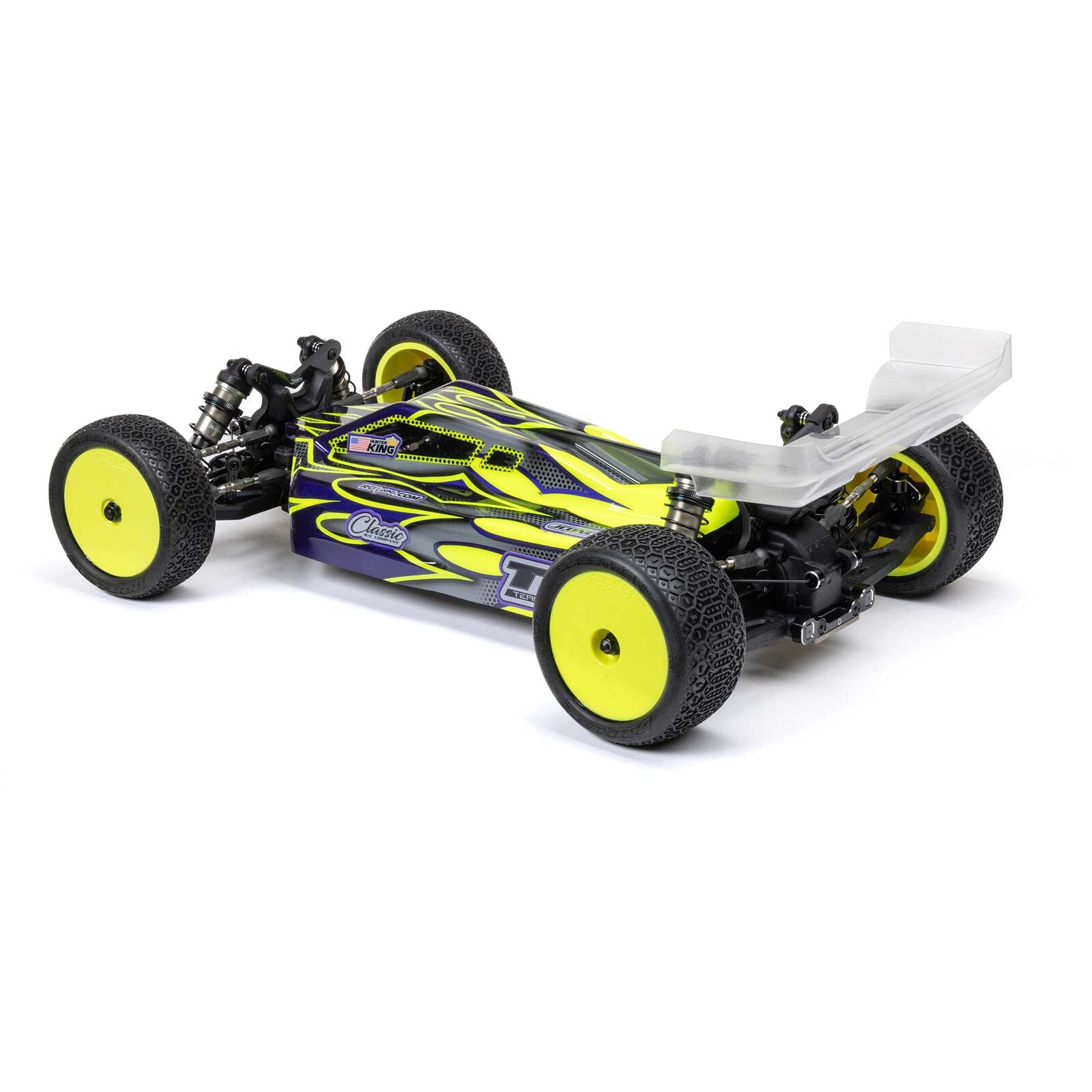

TLR takes the lessons of its revolutionary 22 series and launches the next era of electric racing dominance with the 22X-4 2.0 DC 4WD kit featuring next generation design with more adjustability for higher speed capabilities on today’s high grip dirt and clay surfaces.
In the Box
Team Losi Racing 1/10 22X-4 2.0 DC 4WD Buggy Race Kit Dirt/Clay x1 Pro-Line Sector 22X-4 2.0 Body x1 Pro-Line Air Force 7 in Wing x1 Tuning Parts Bag x1 Spare Hardware Bag x1 22X-4 2.0 Decal Sheet x1 Product Manual x1
Needed to Complete
Transmitter and Receiver x1 Steering Servo x1 2S LiPo Shorty Battery x1 Compatible LiPo Battery Charger x1 48P Pinion Gear x1 Motor x1 ESC x1 Tyre Glue x1 2.2 in Buggy Wheels 4WD Front and Buggy Rear x4 2.2 in Buggy Tyres 4WD Front and Buggy Rear x4 Polycarbonate Paint Tools Please reference the manual for more details
Features

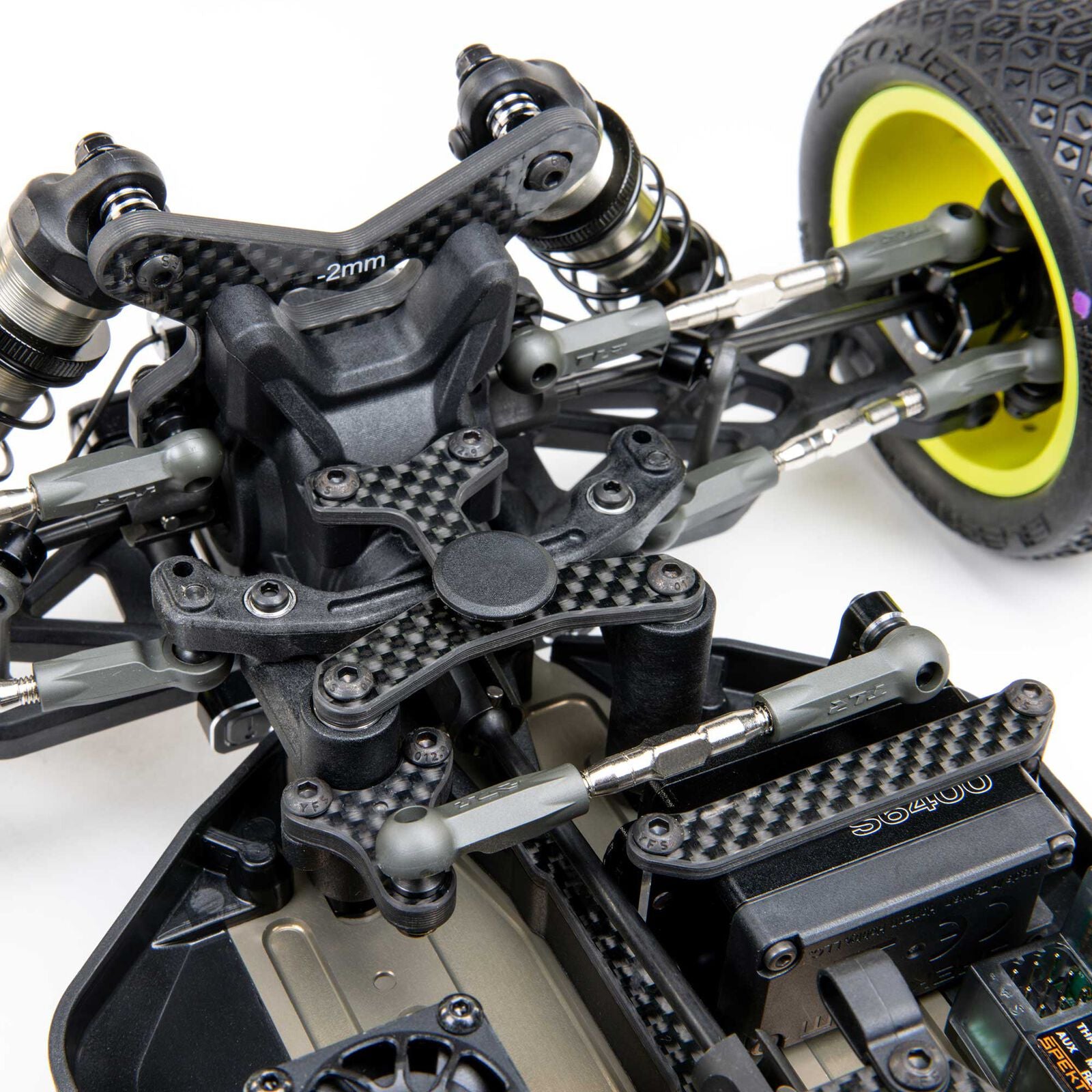

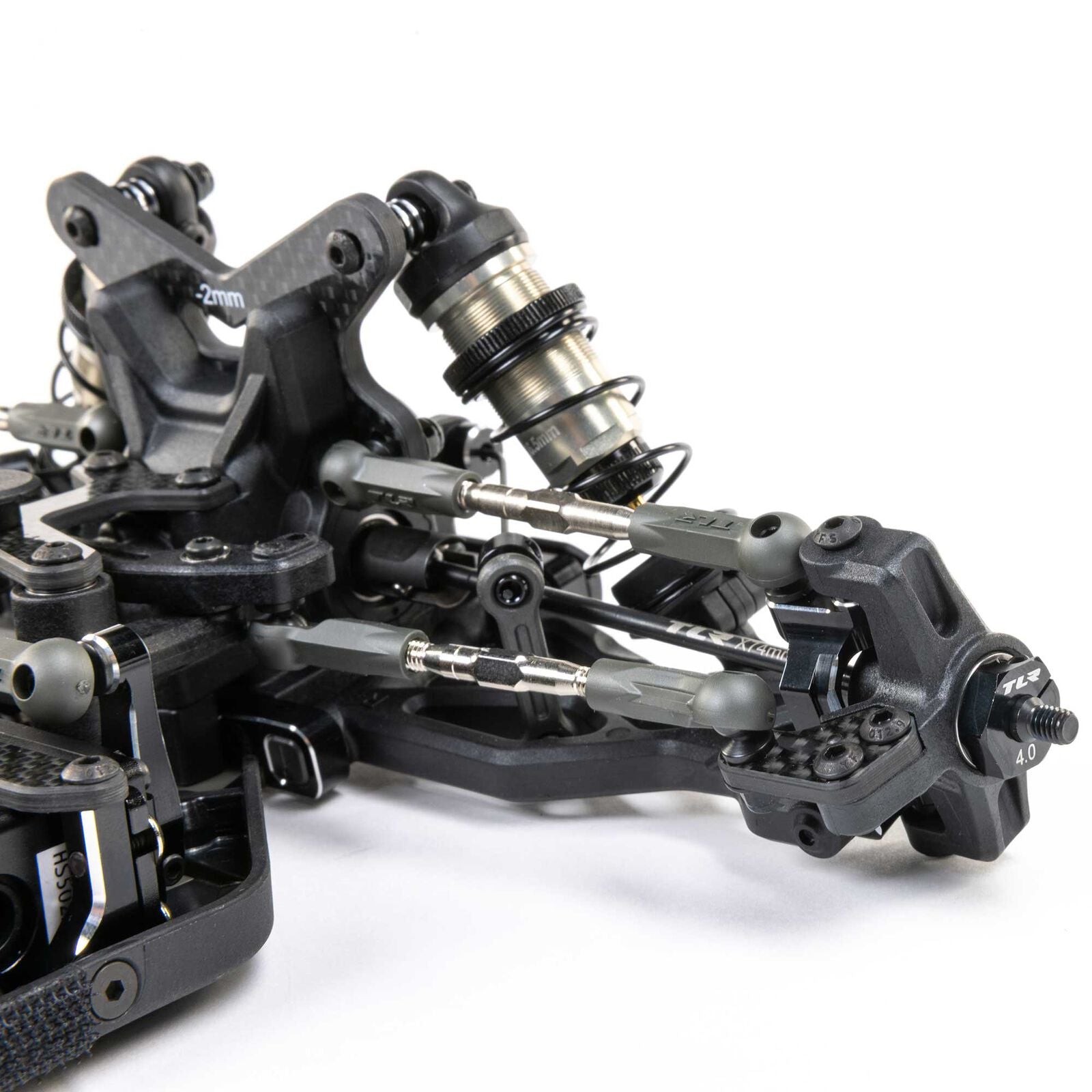

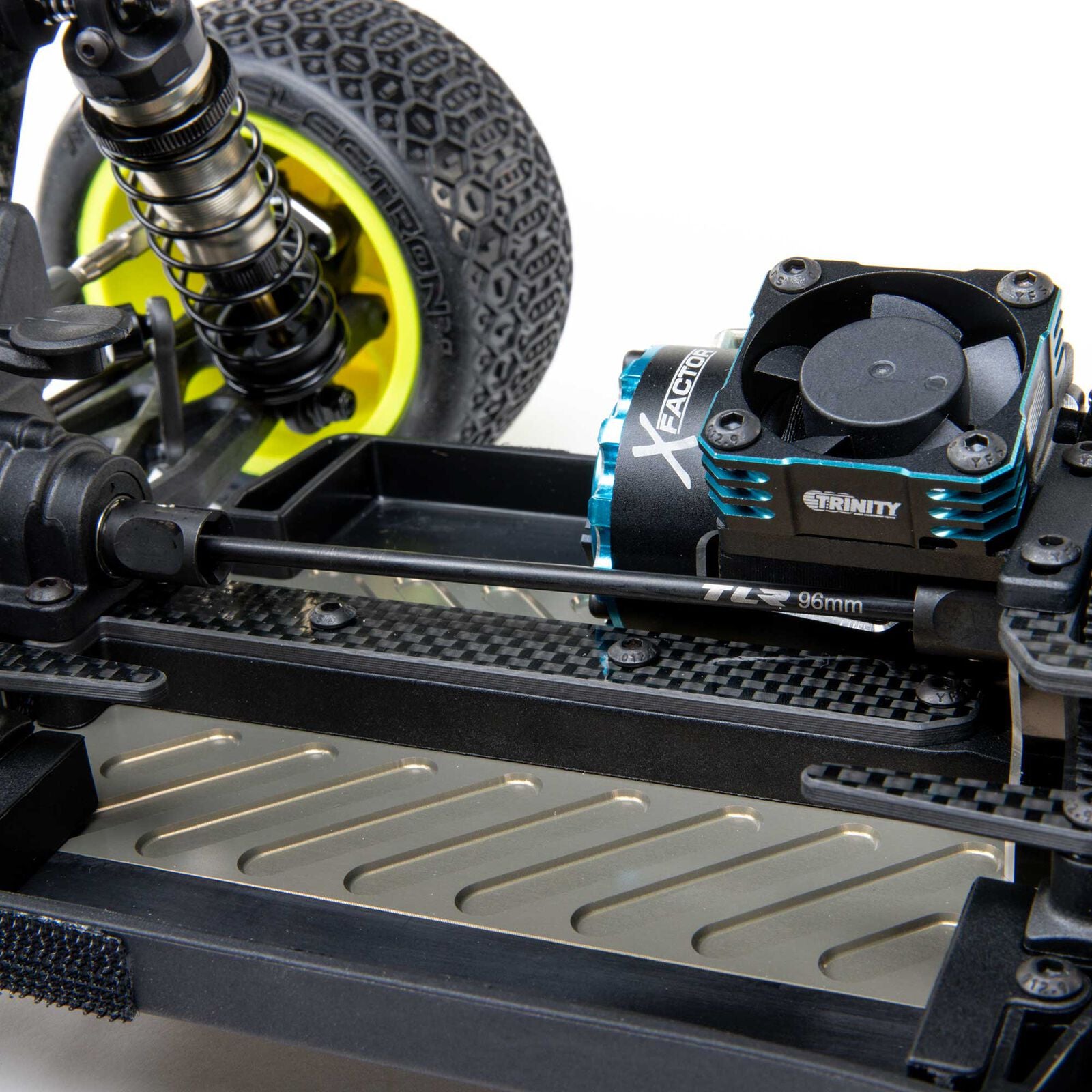

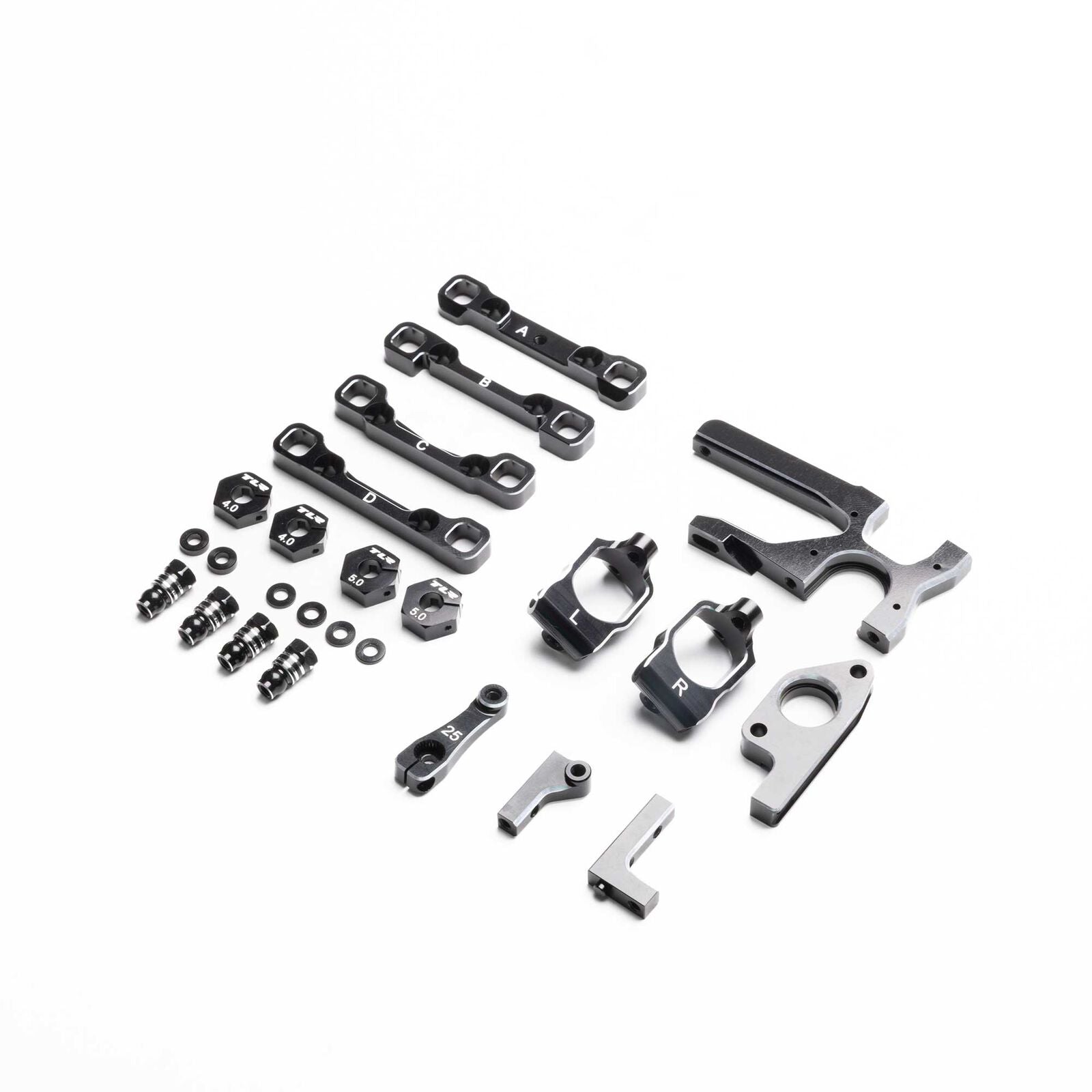

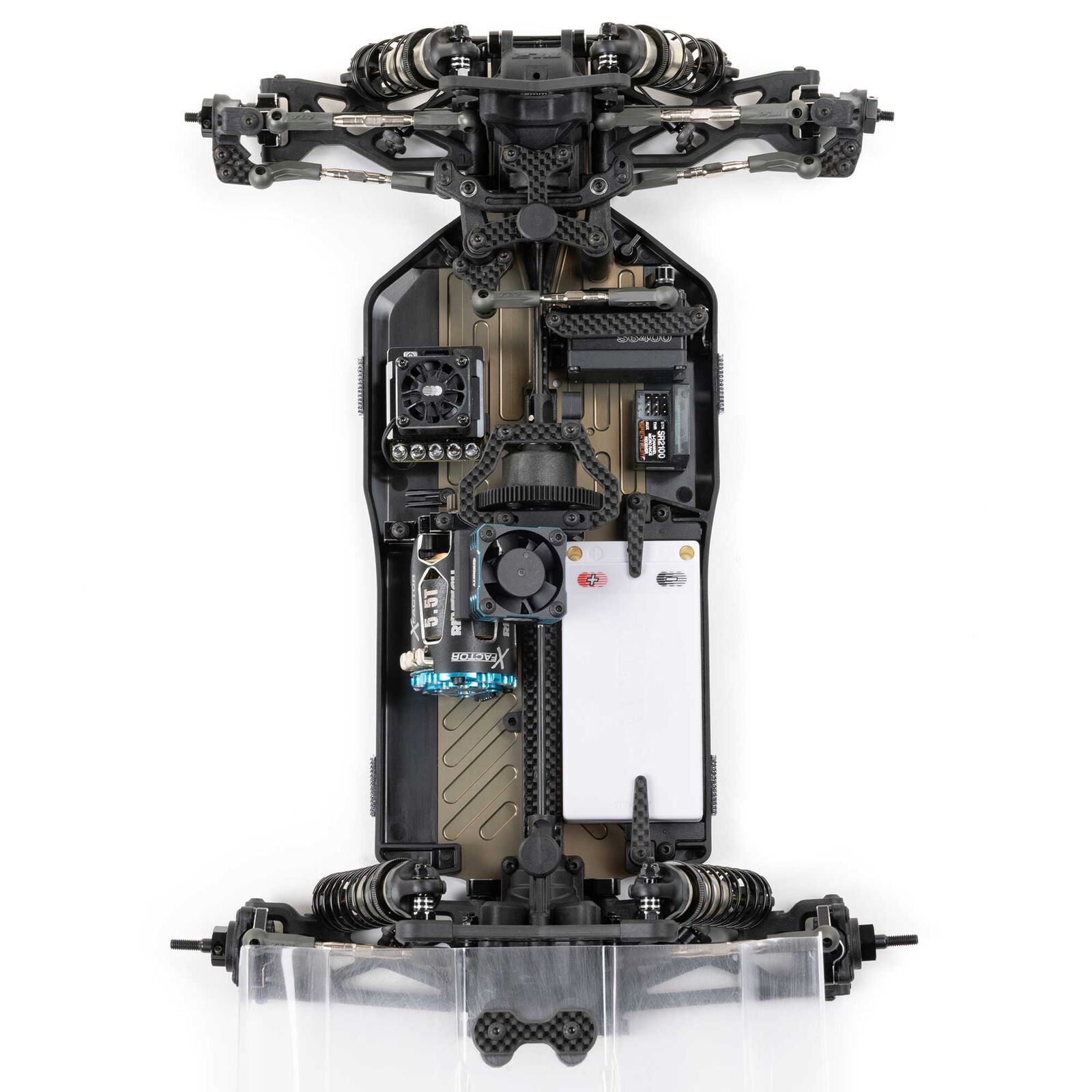

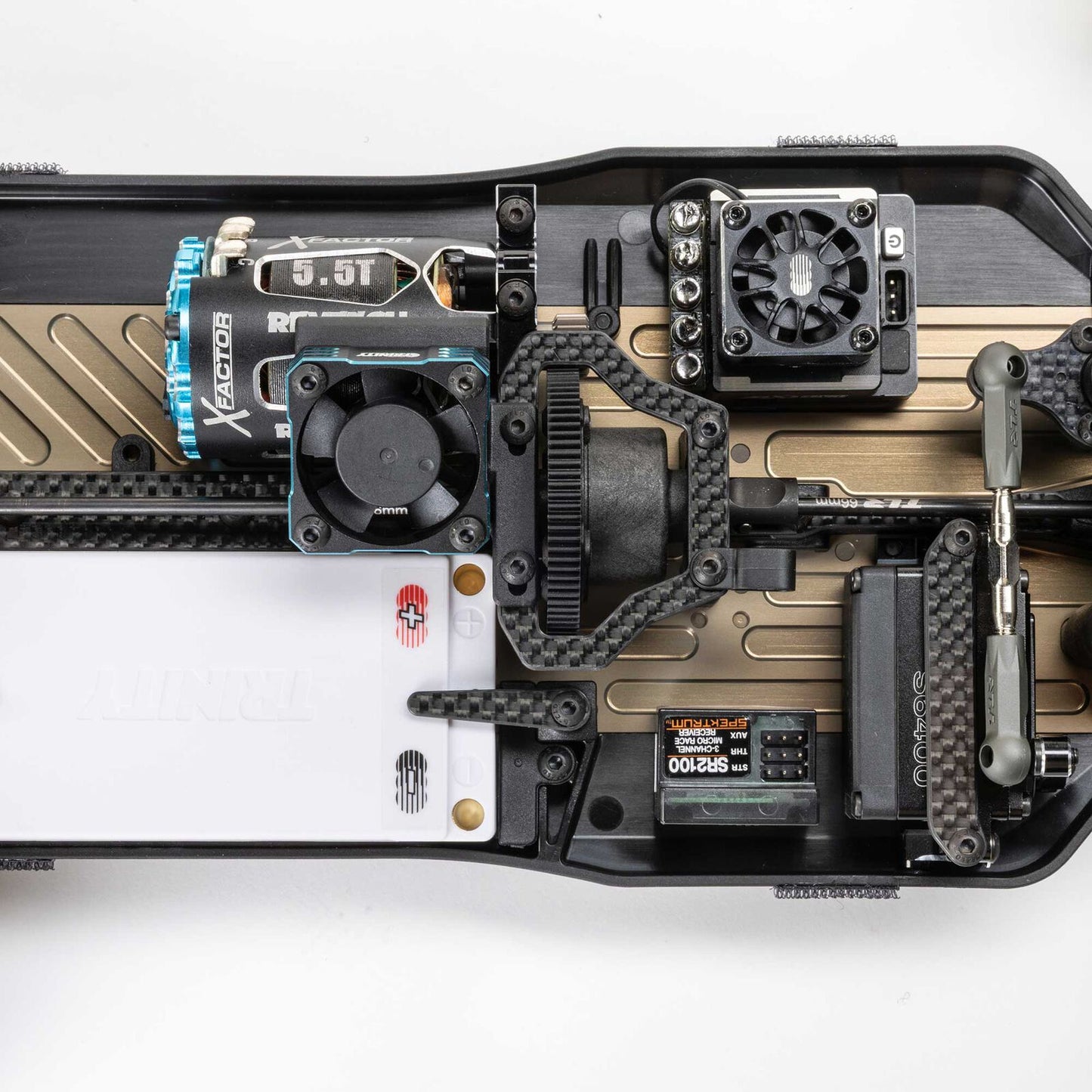

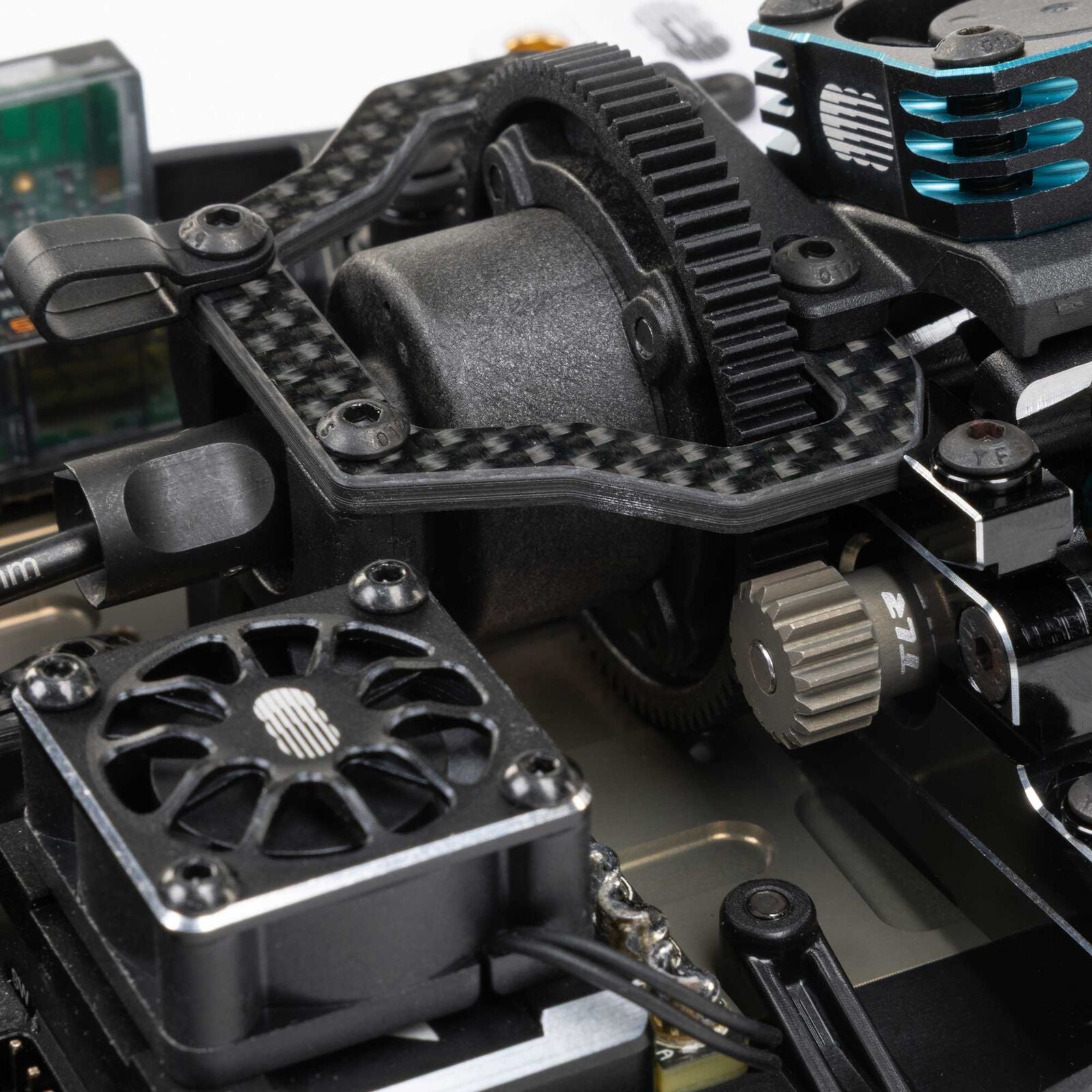

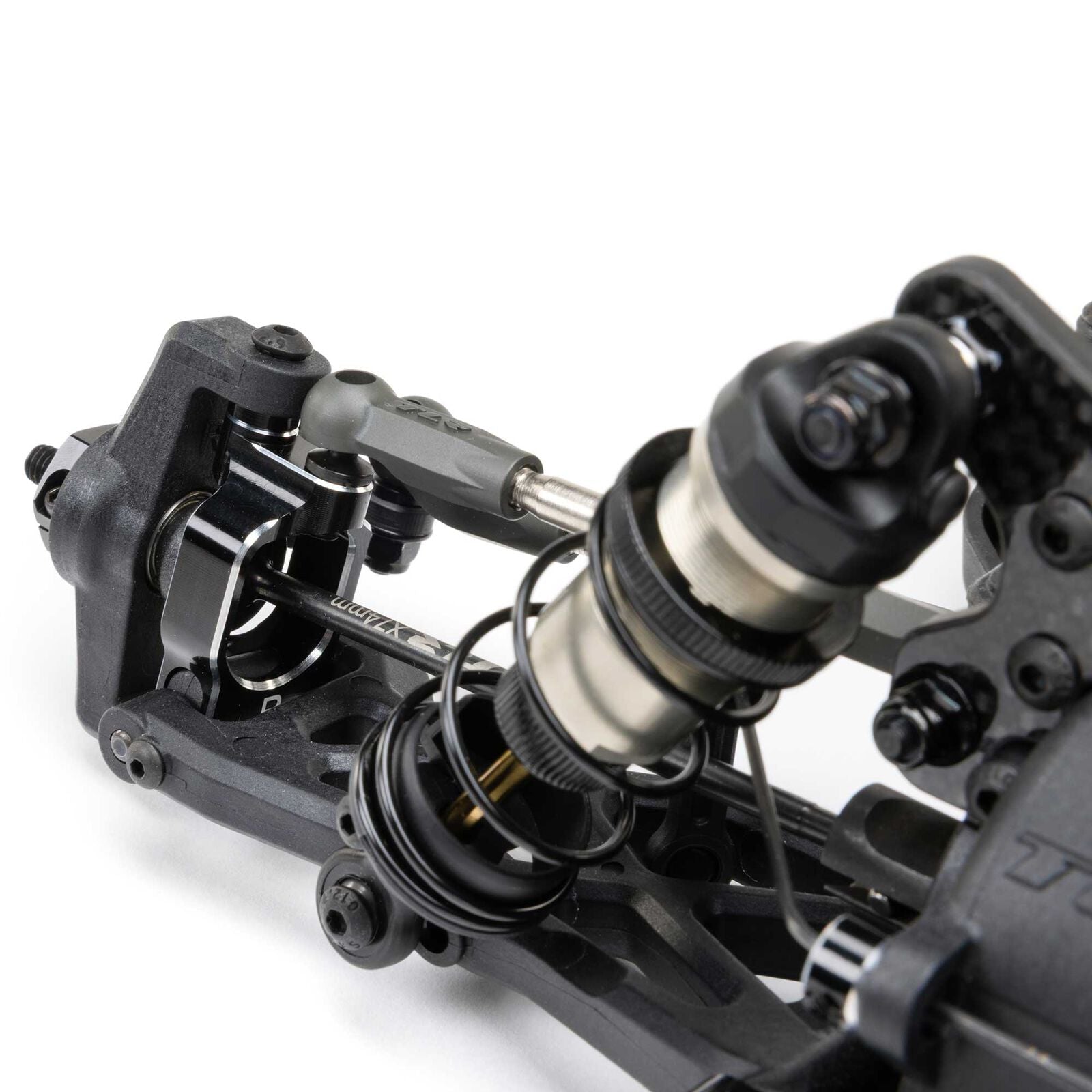

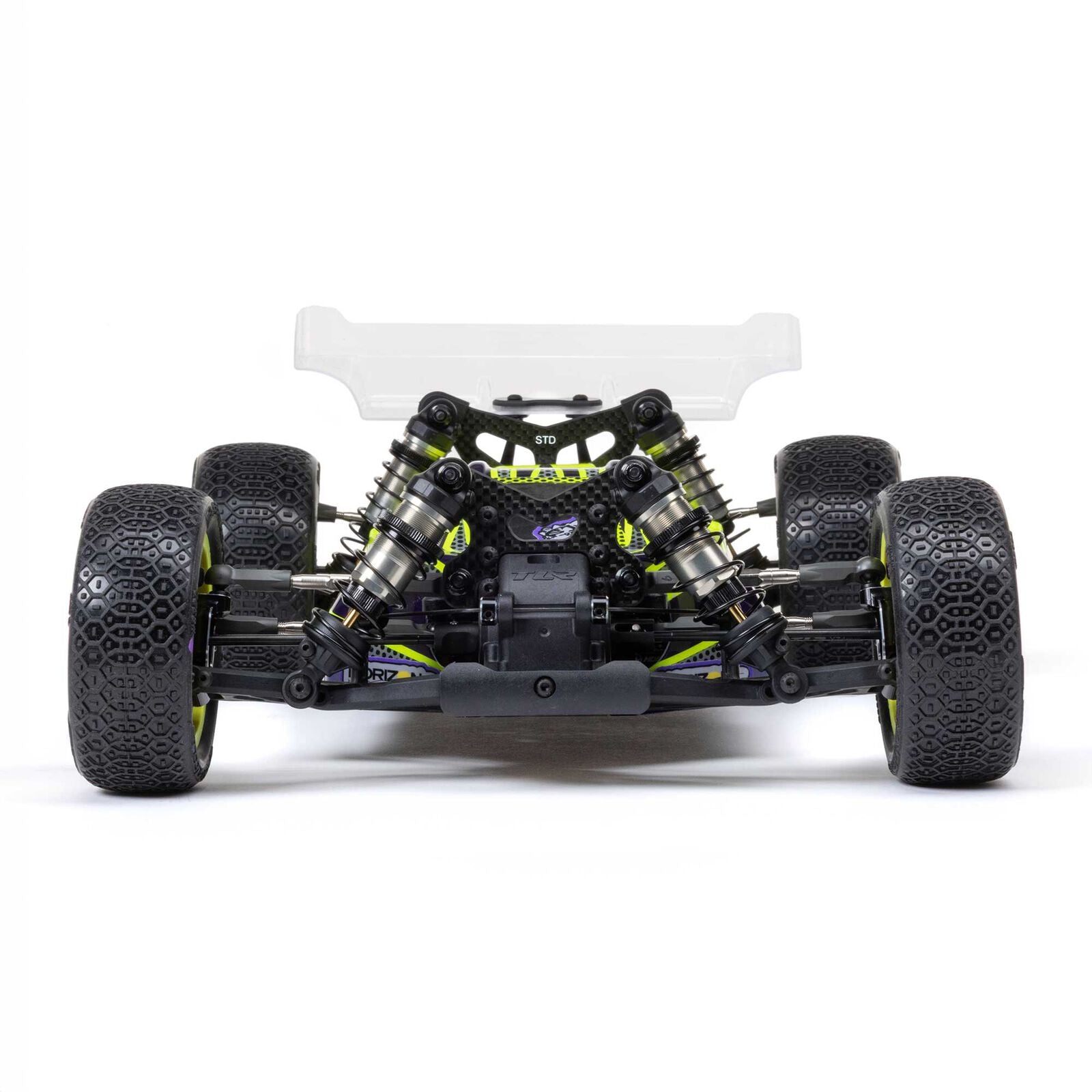

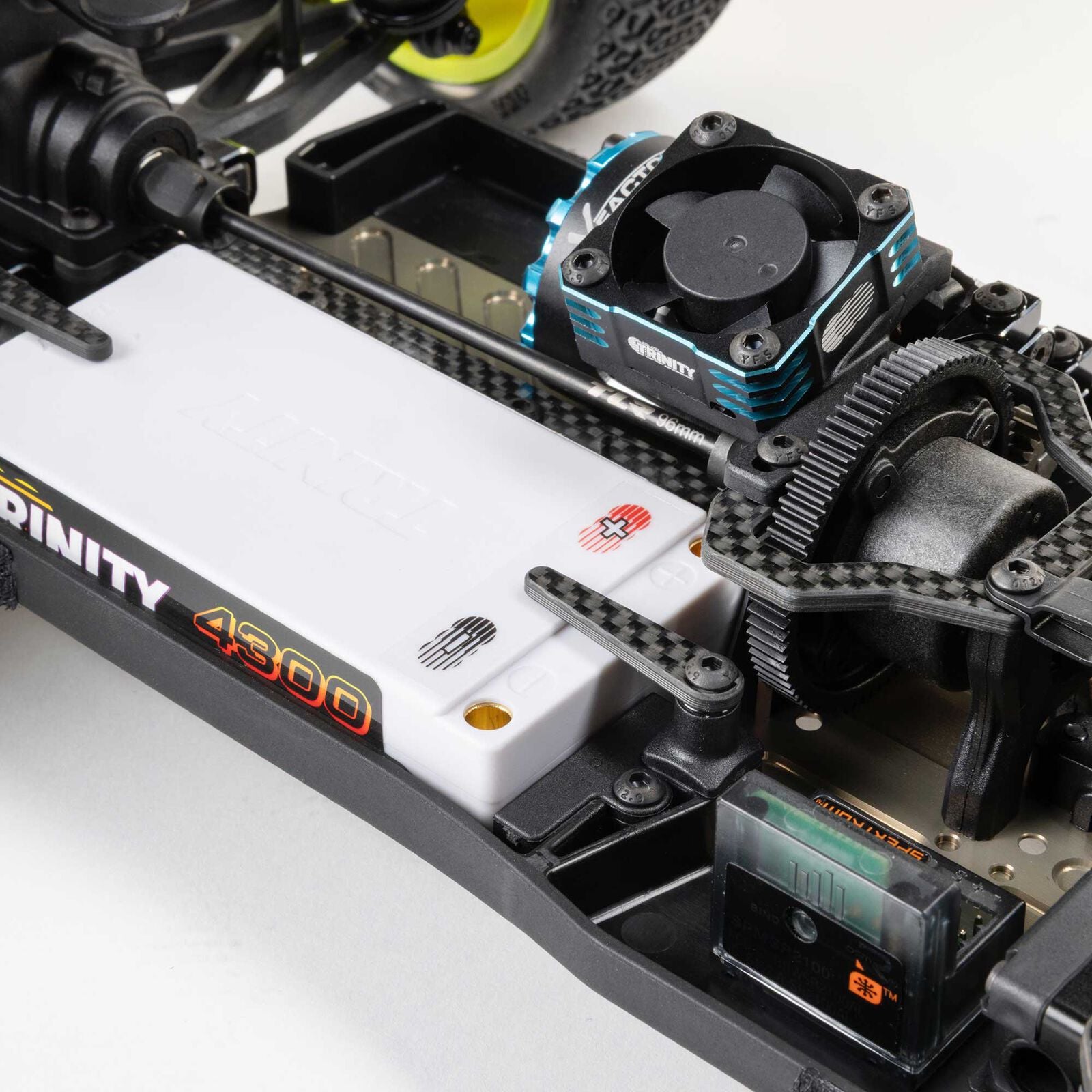

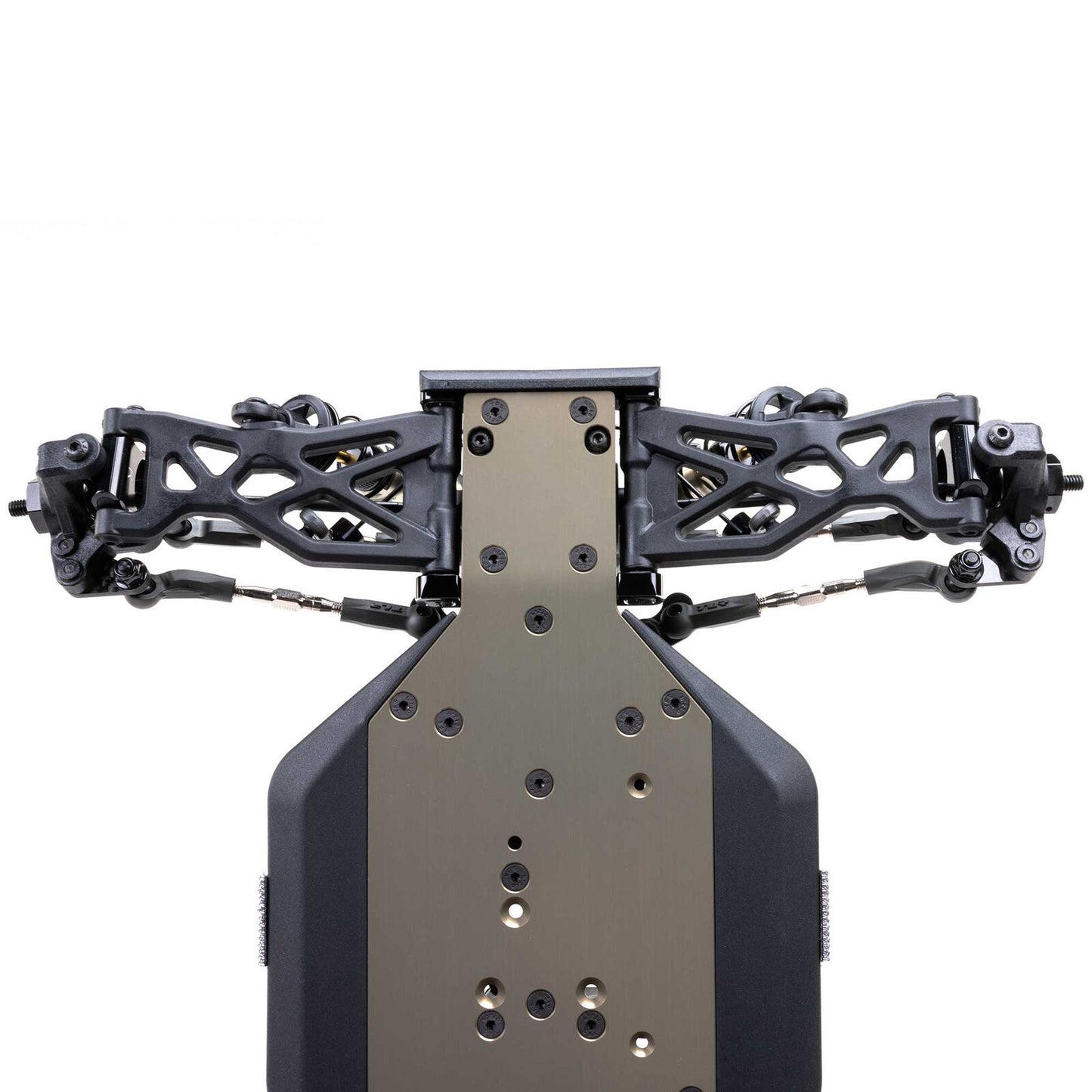

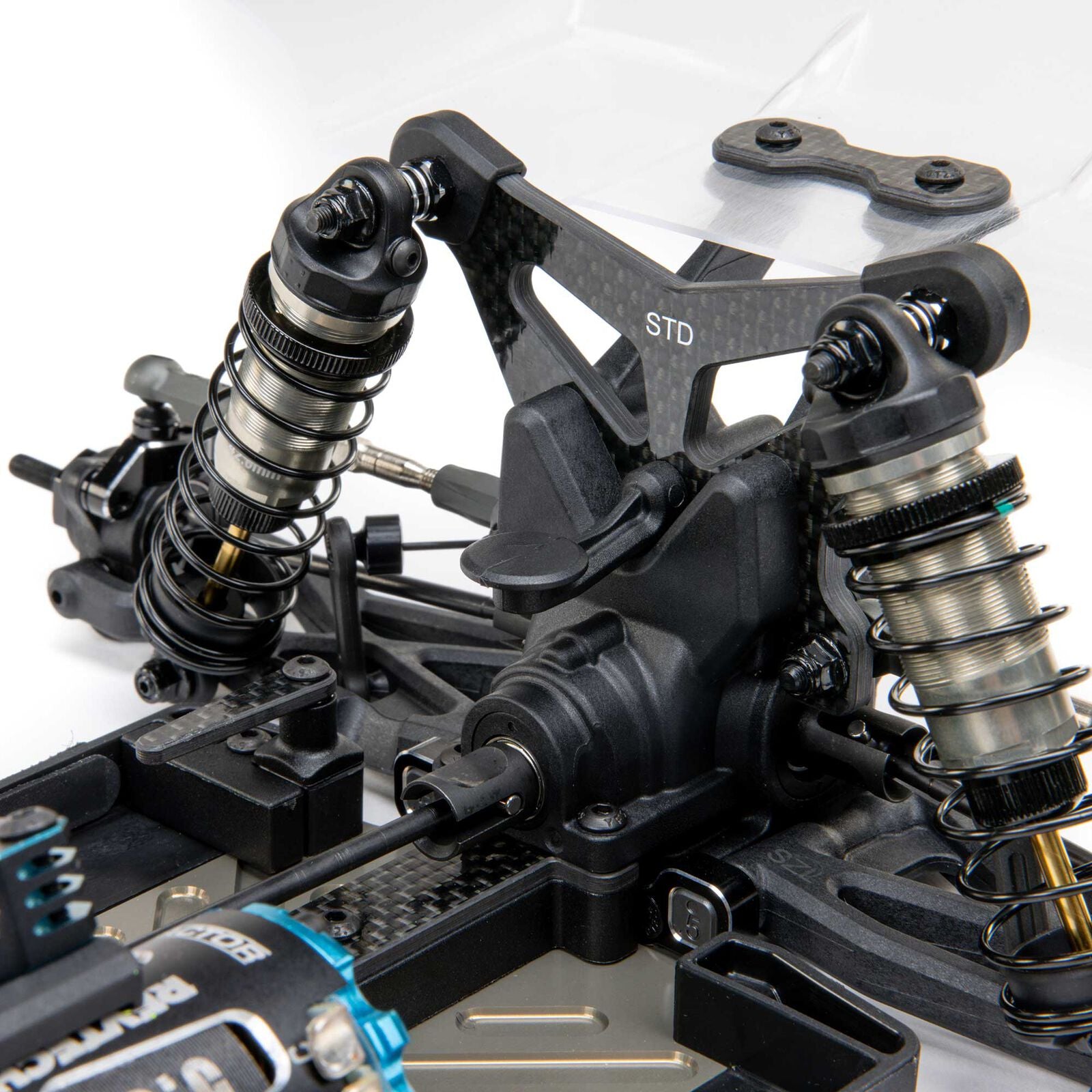

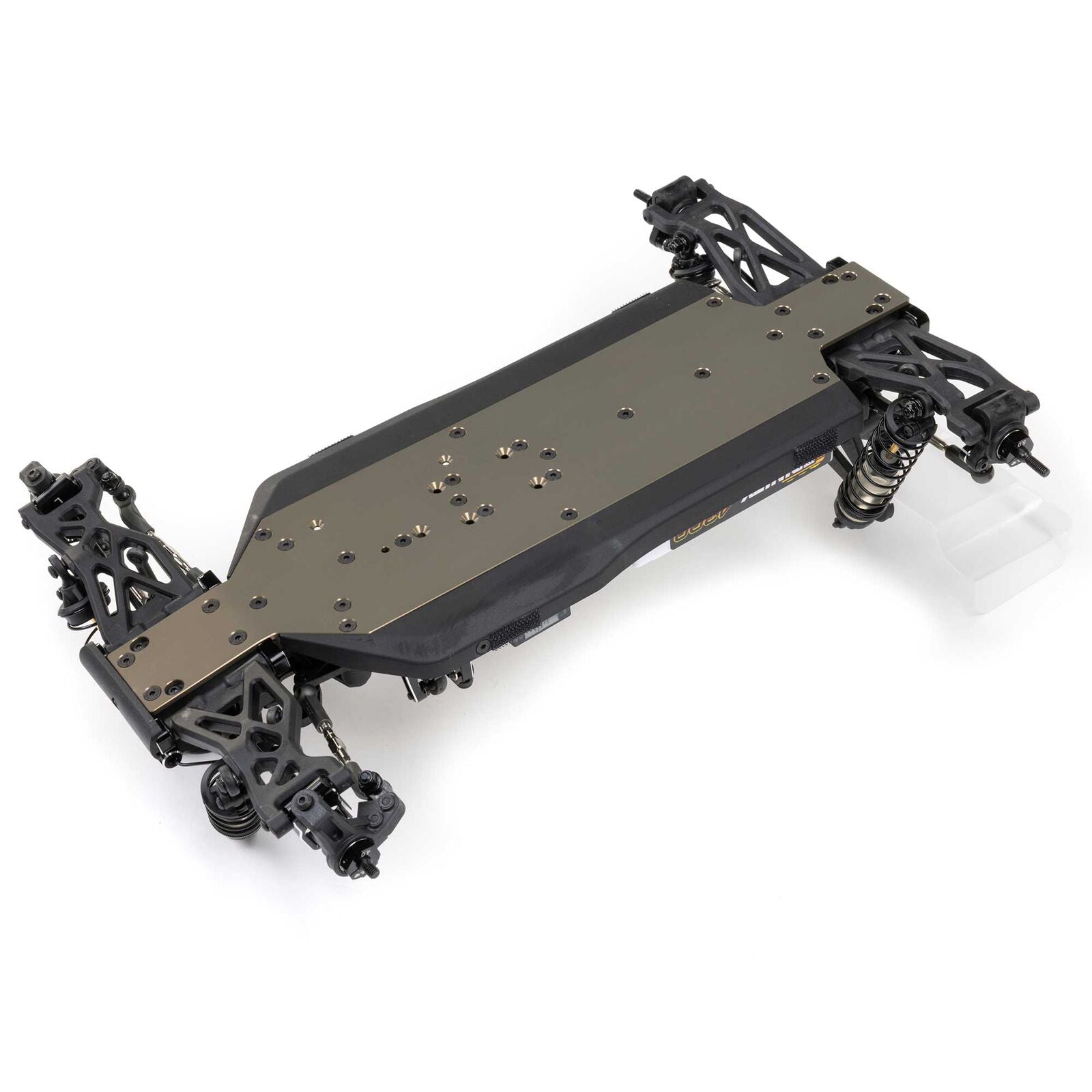

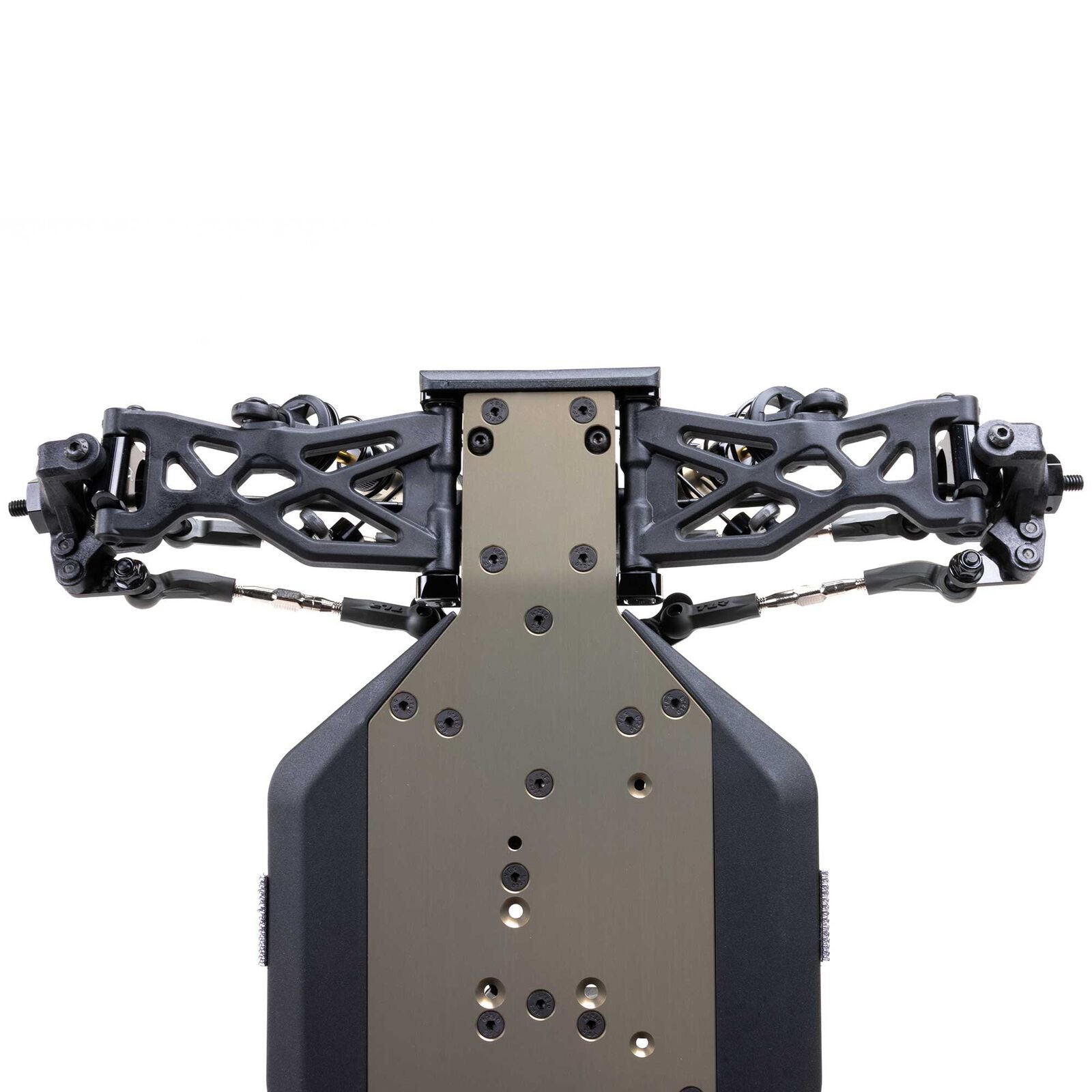

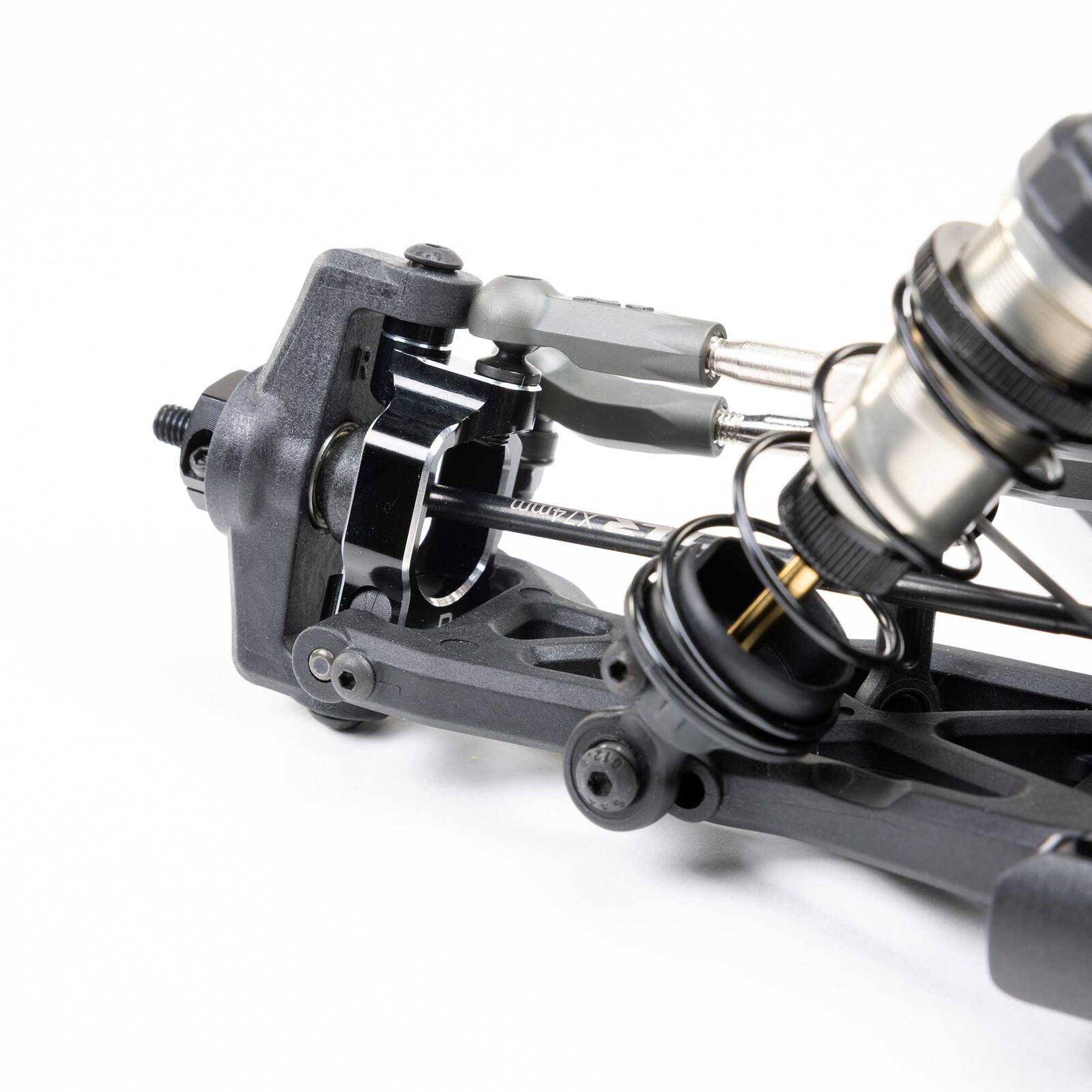

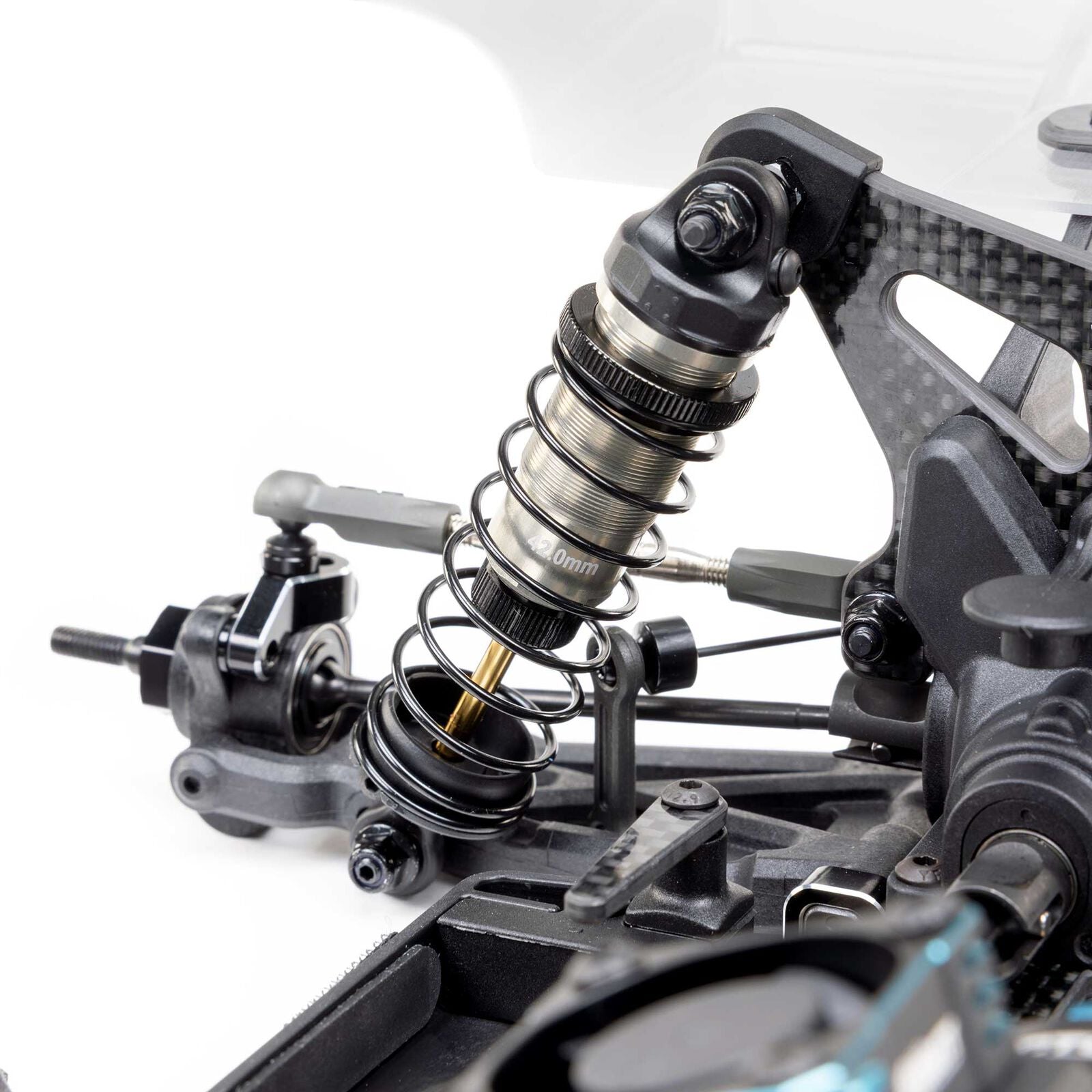

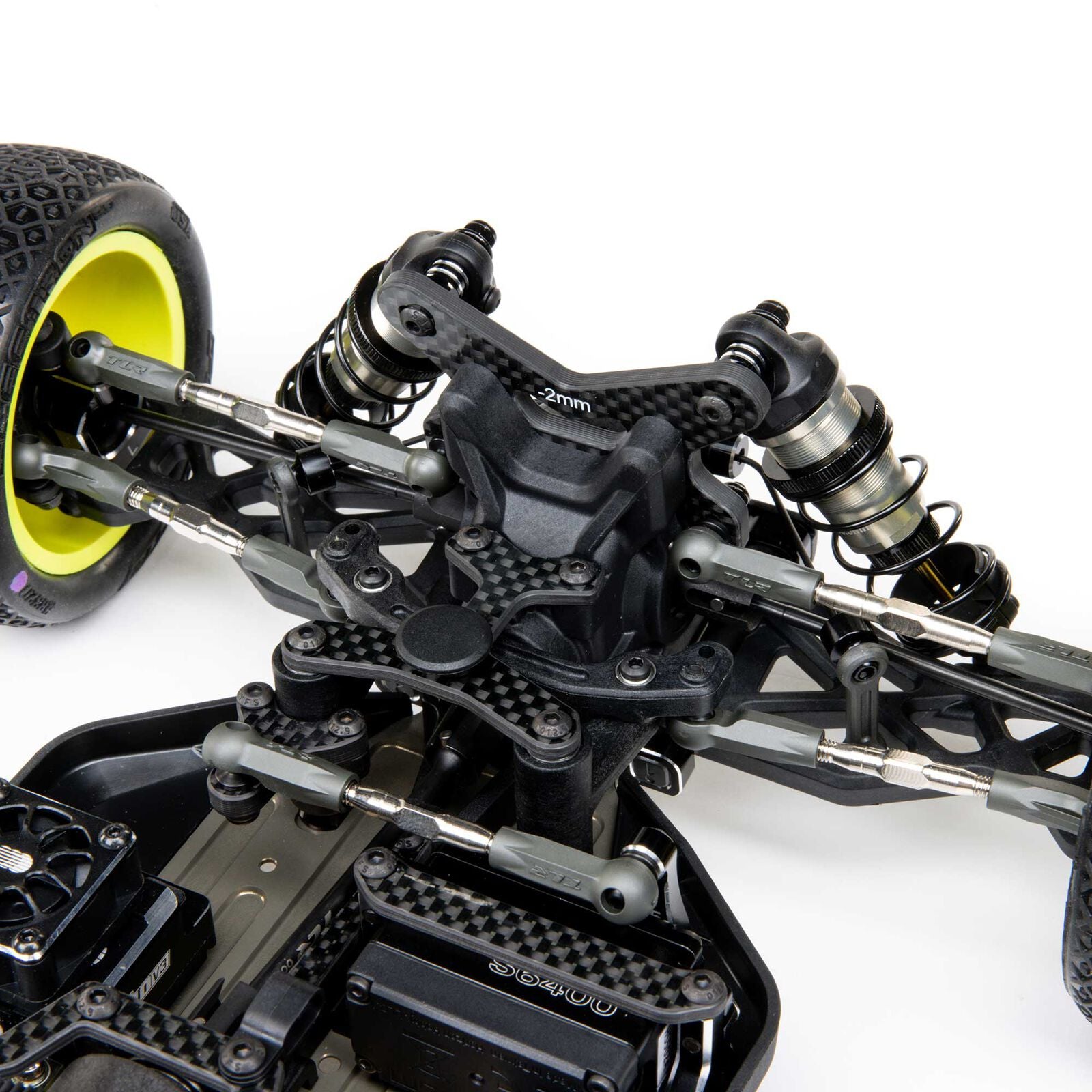

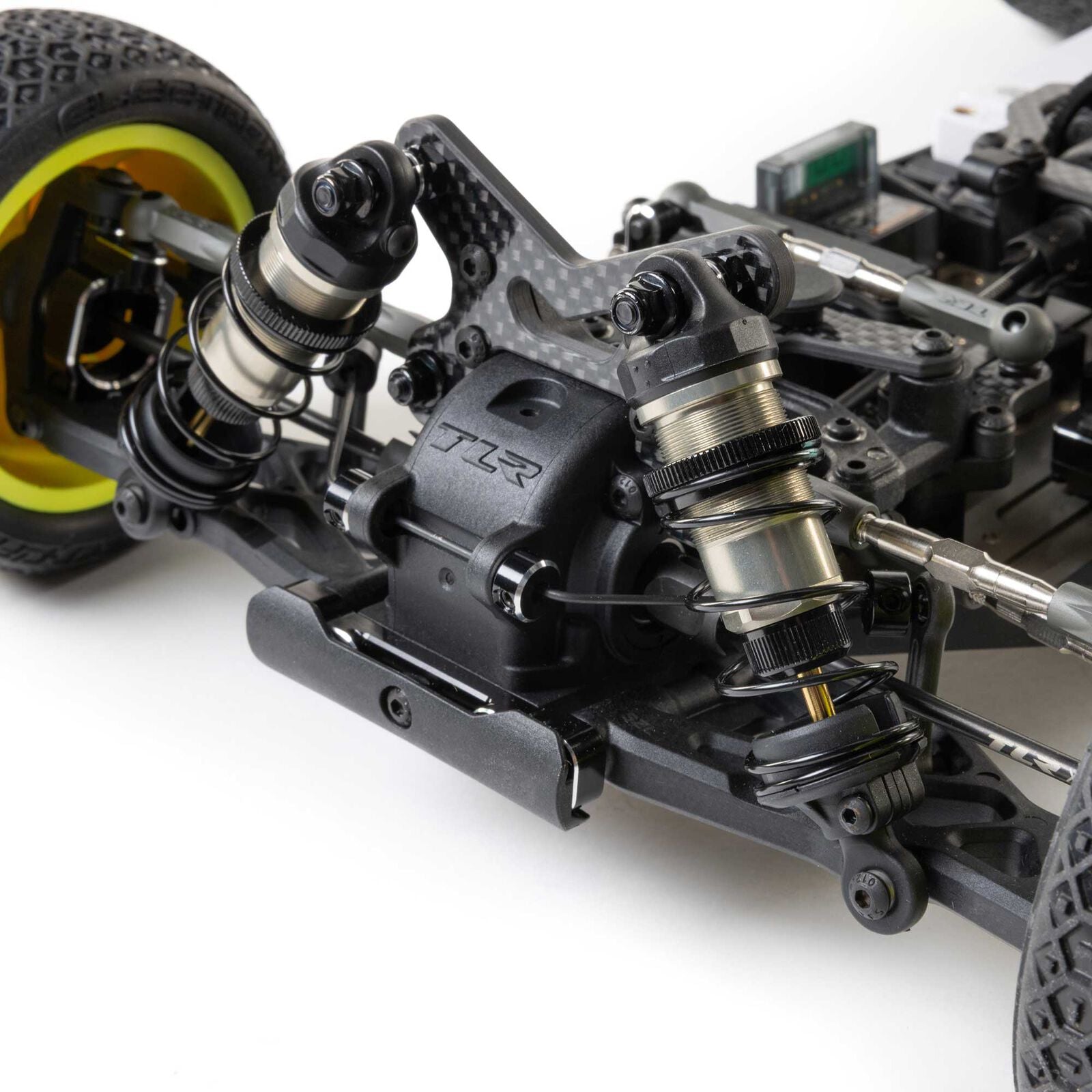

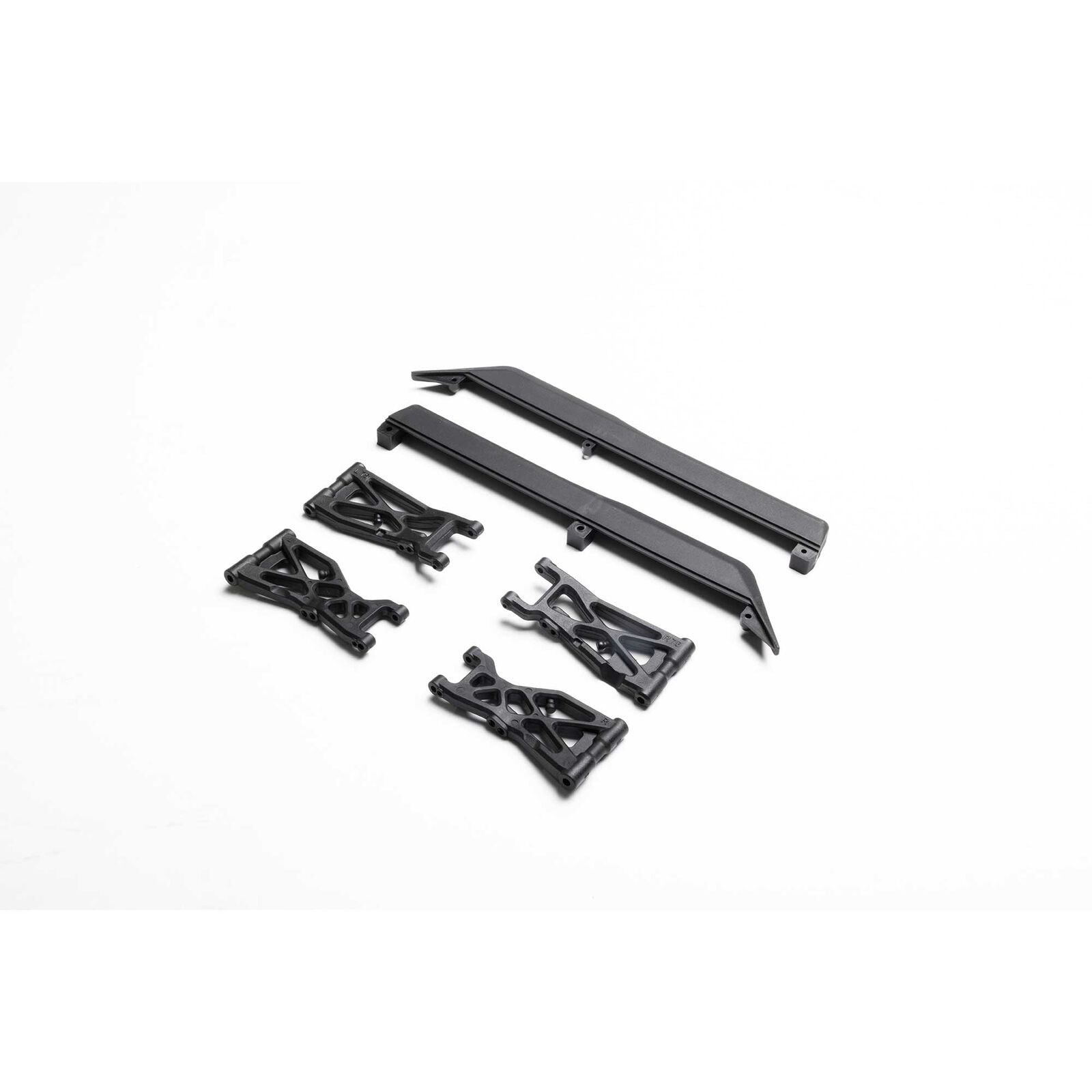

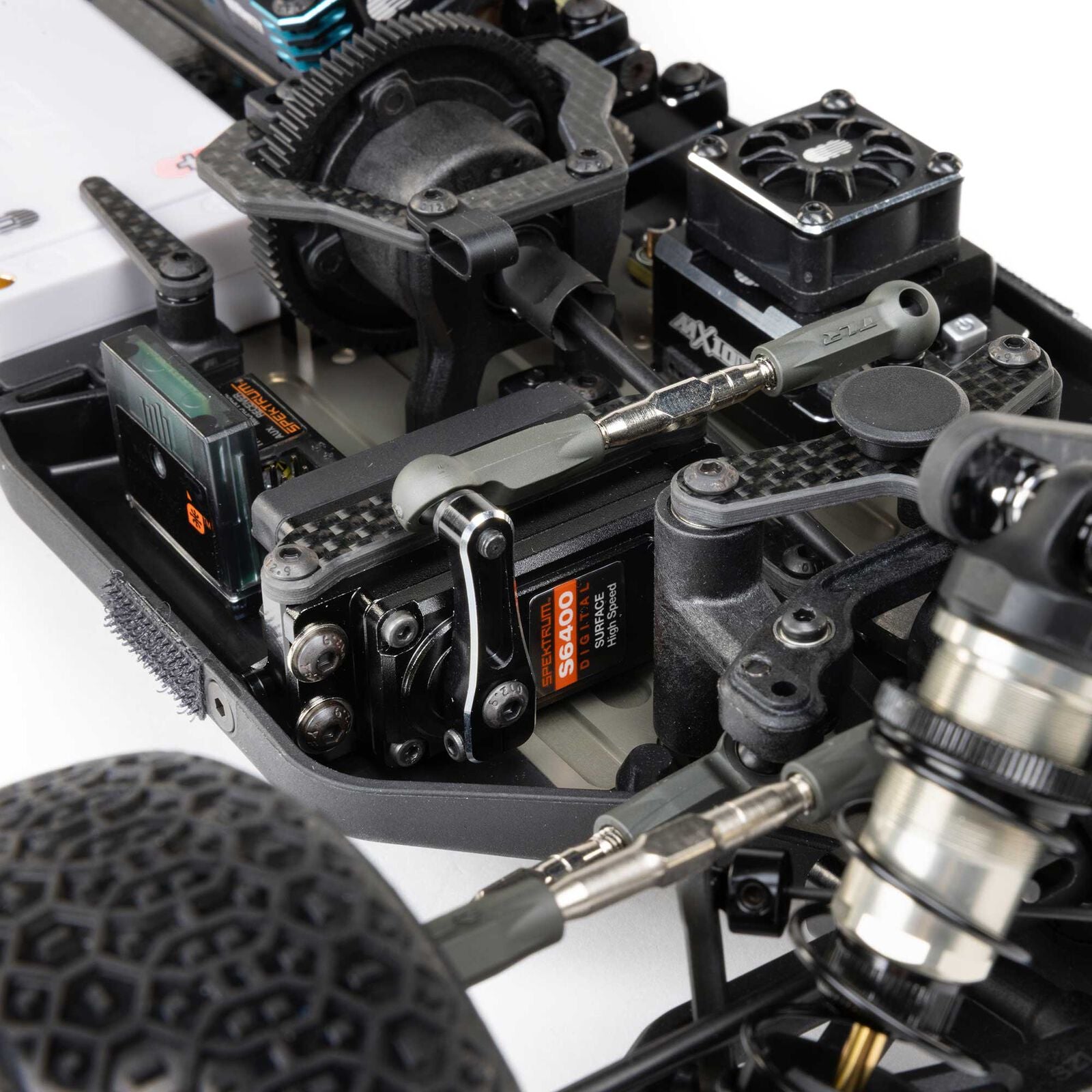

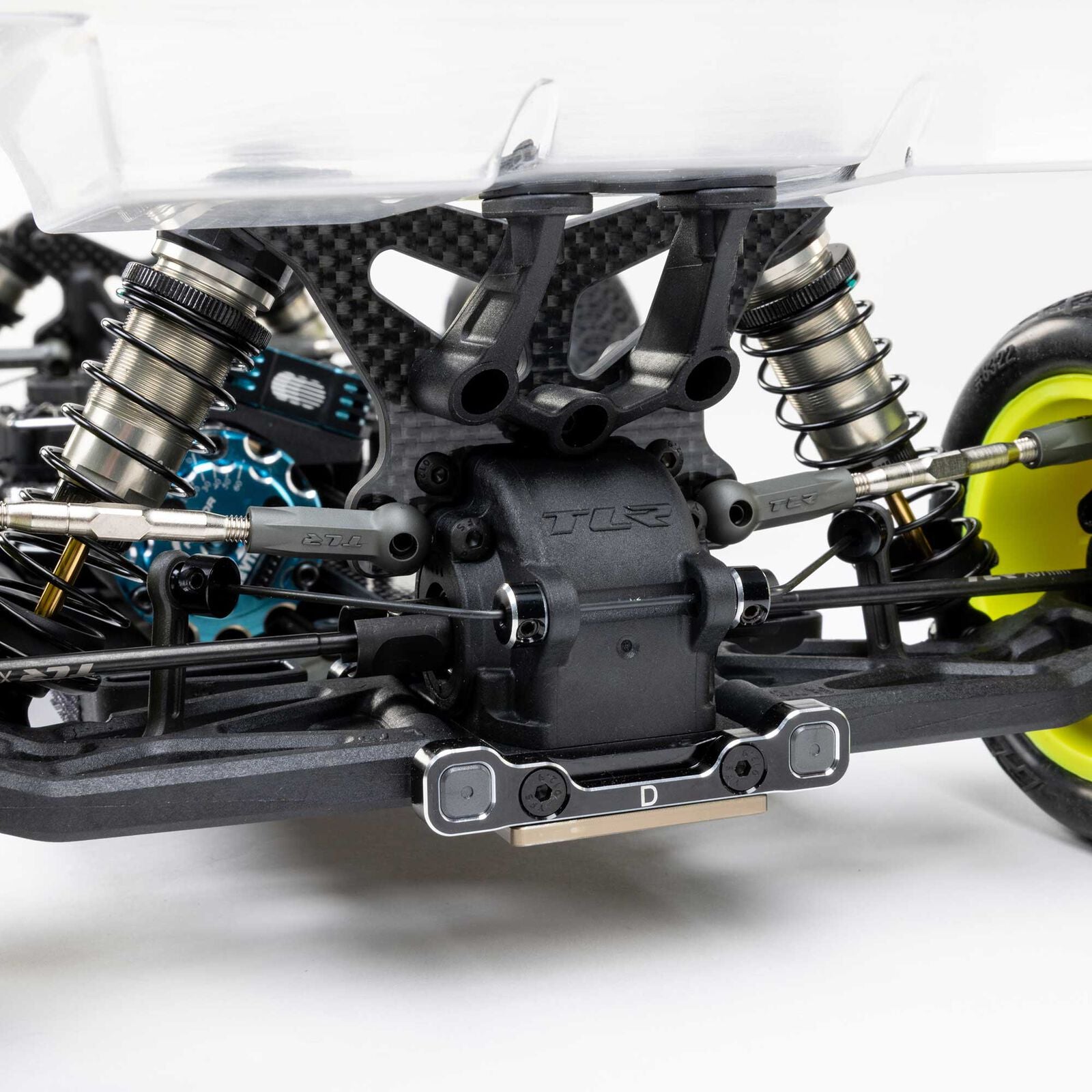

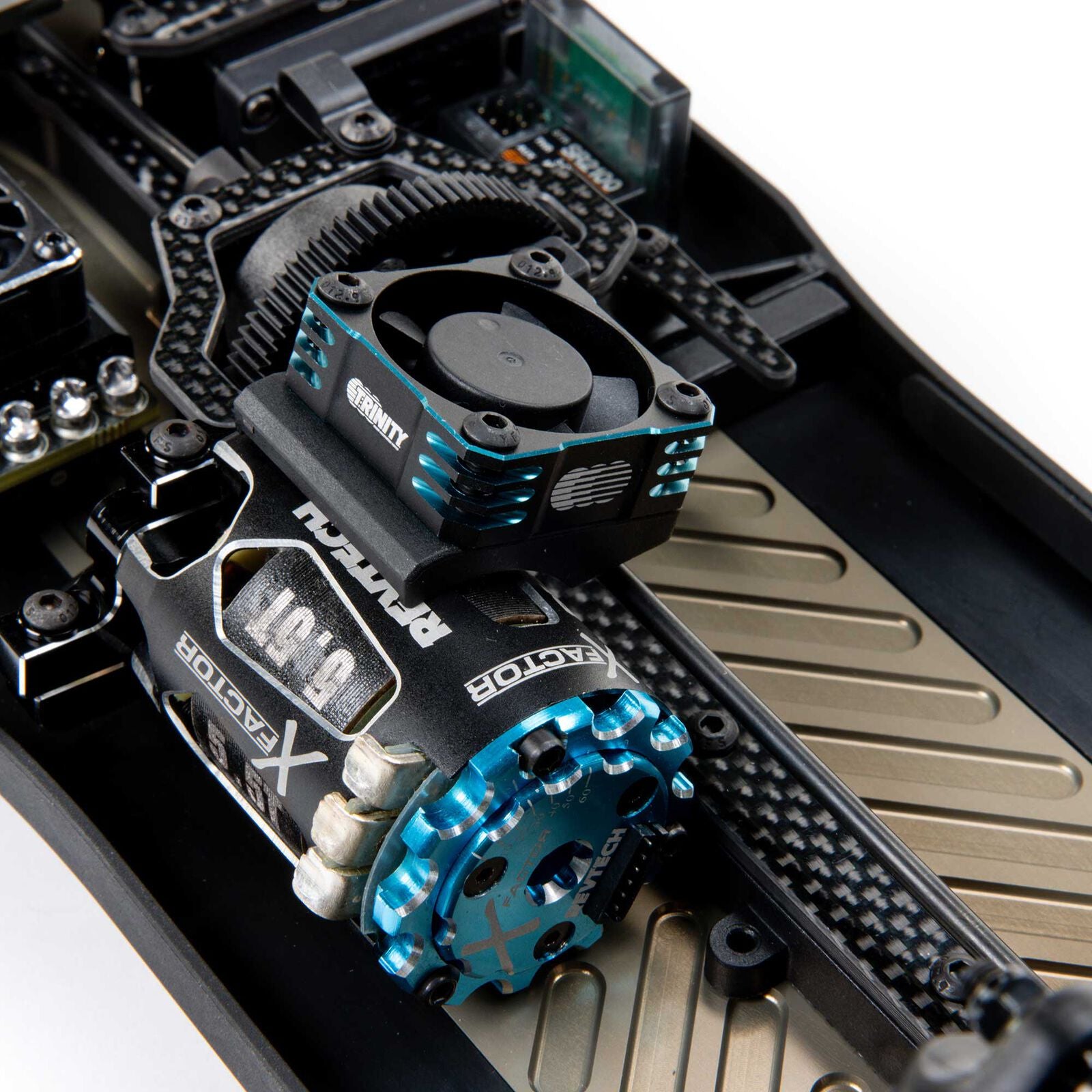

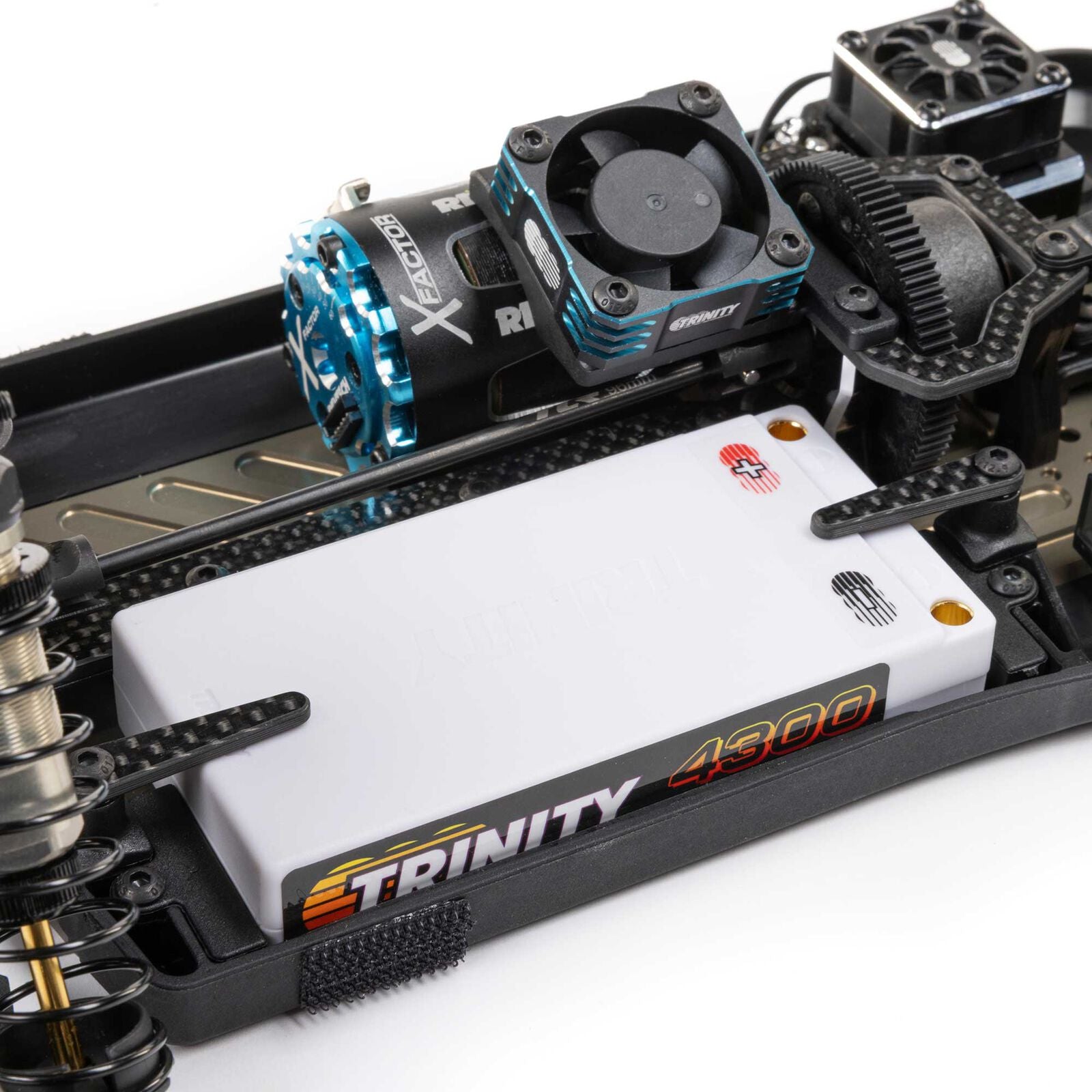

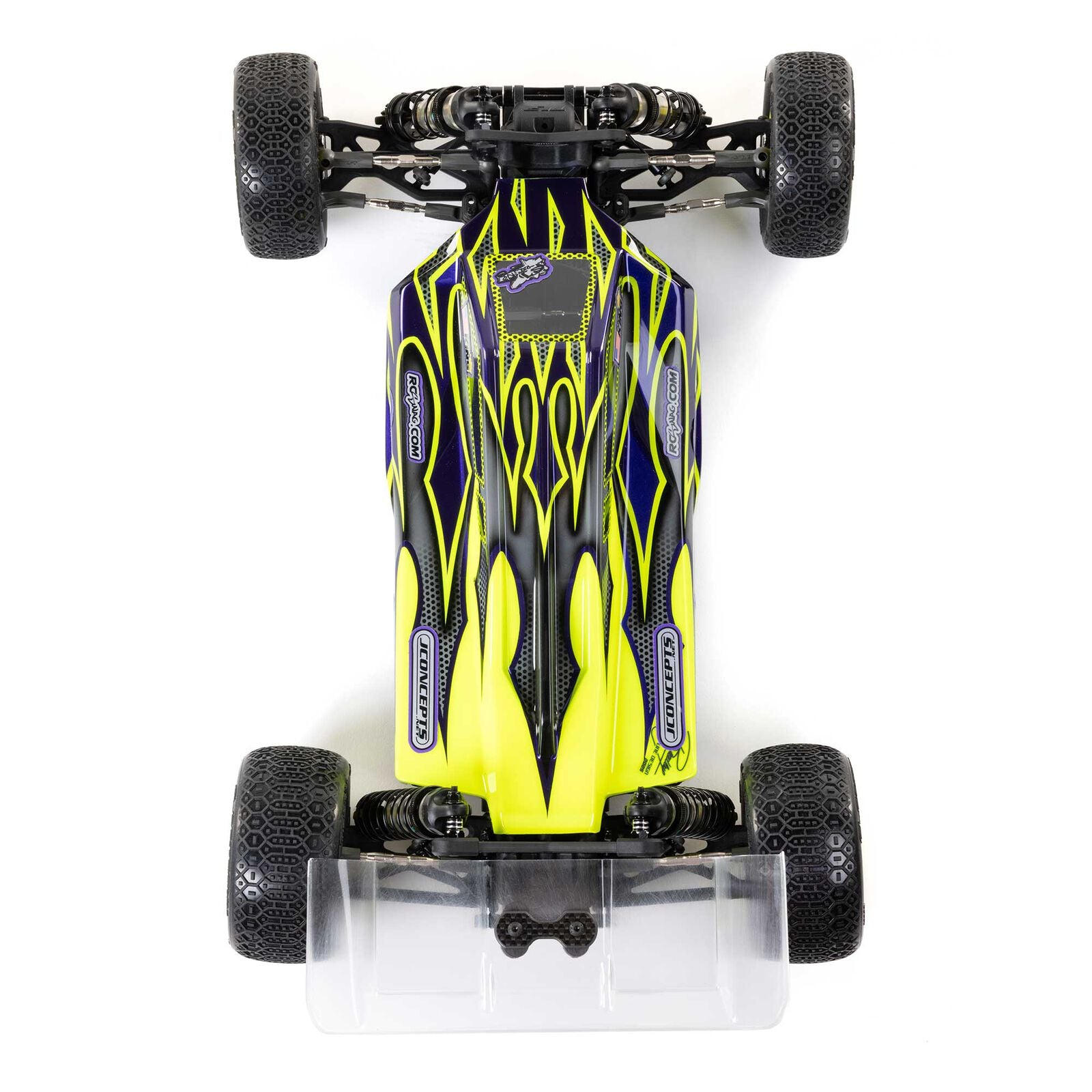

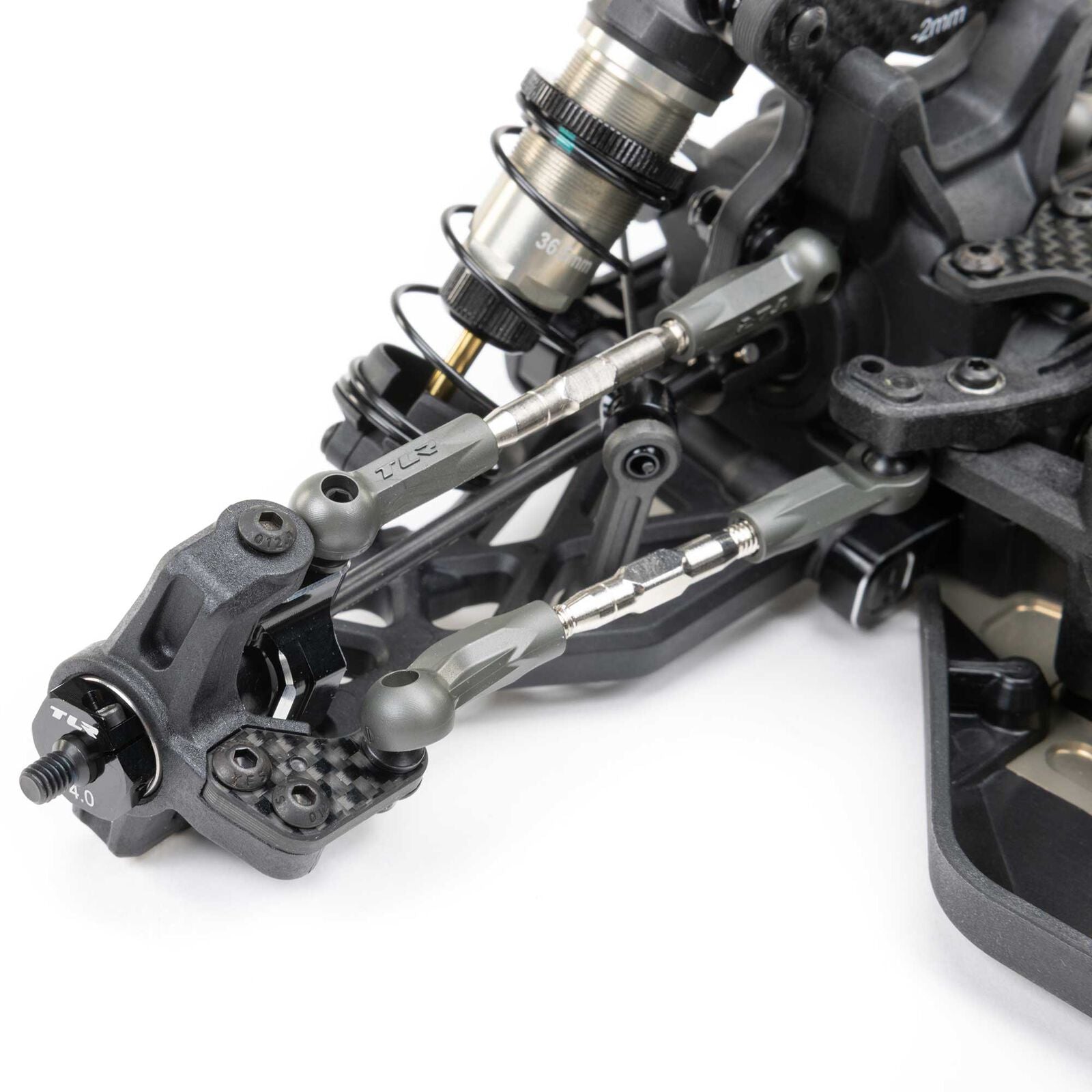

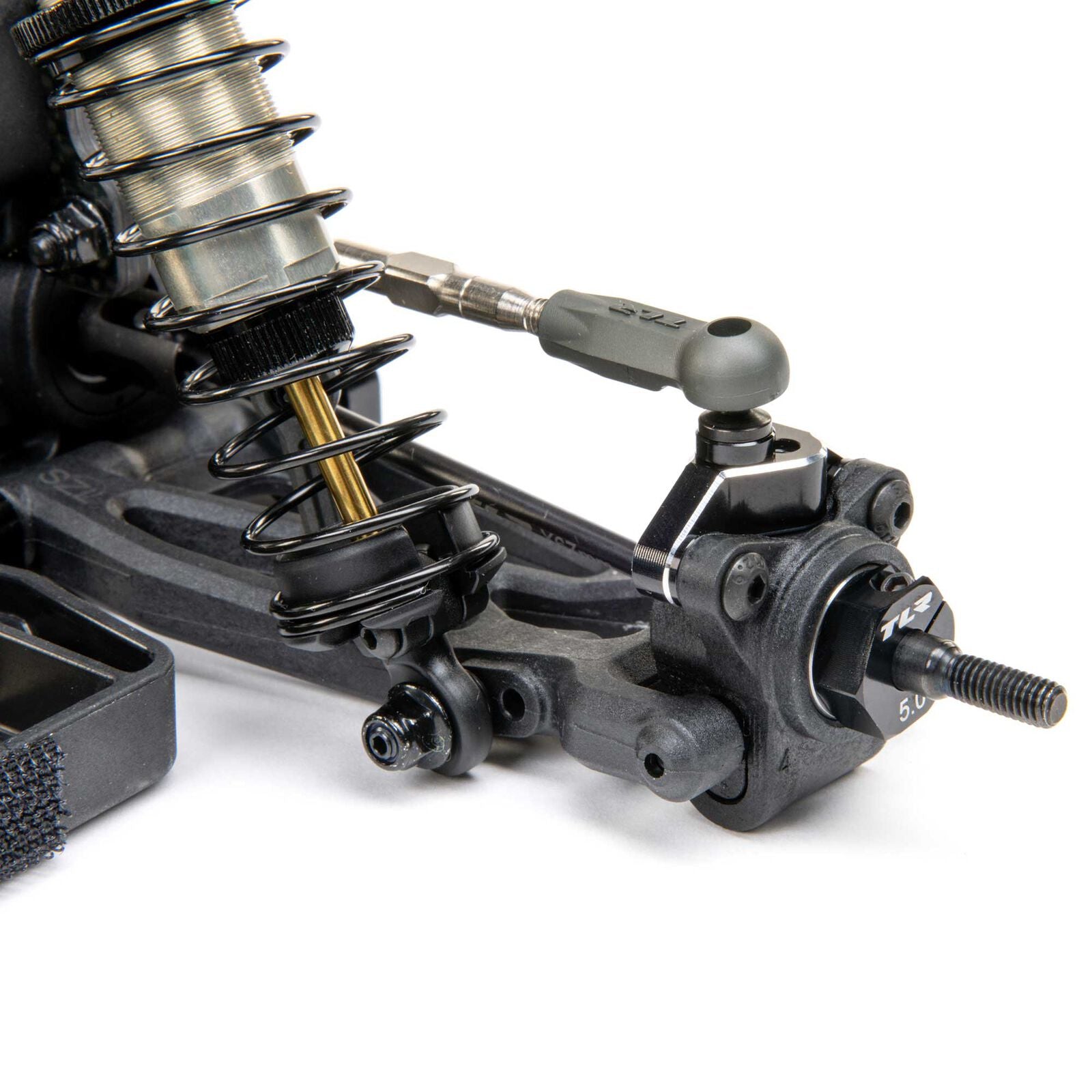

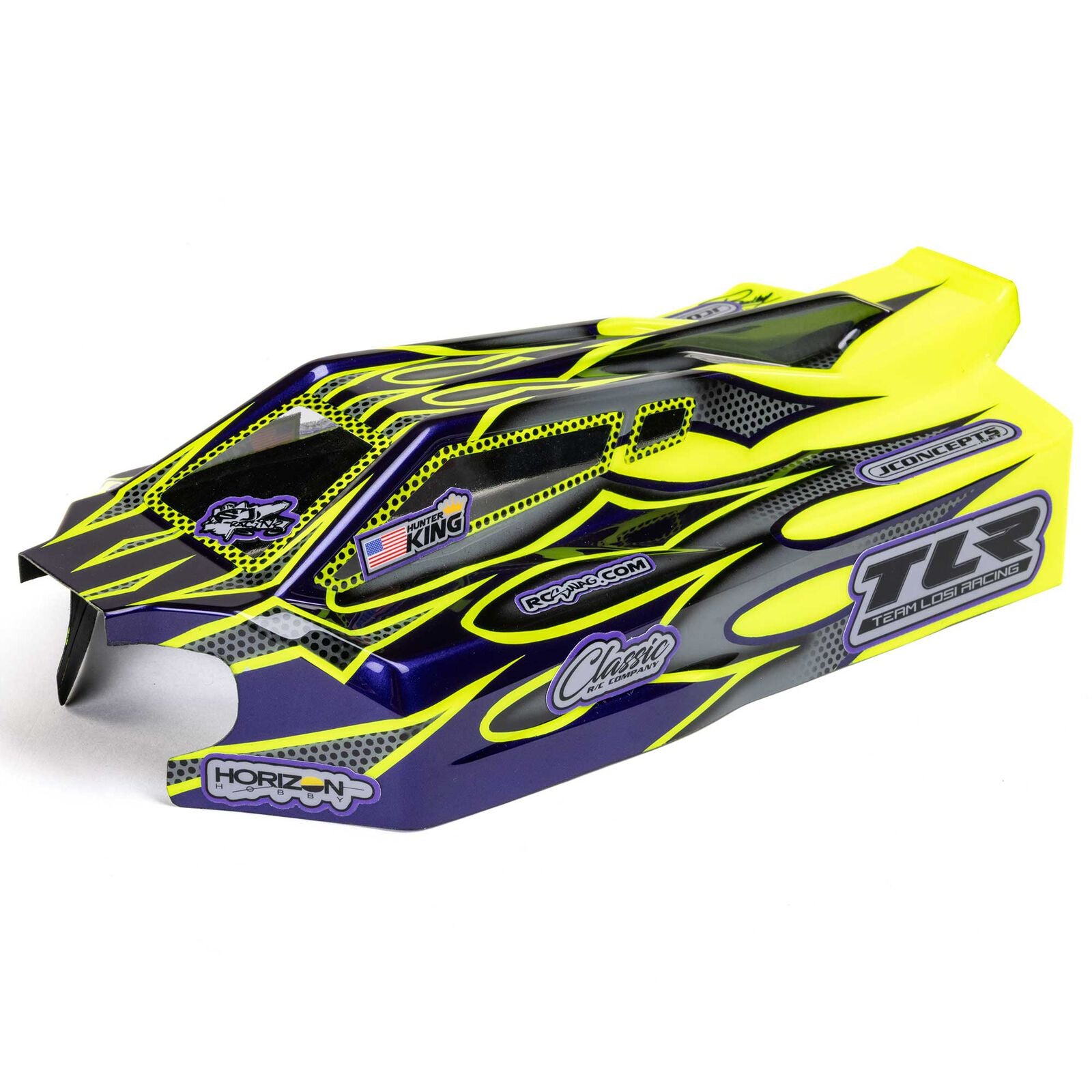

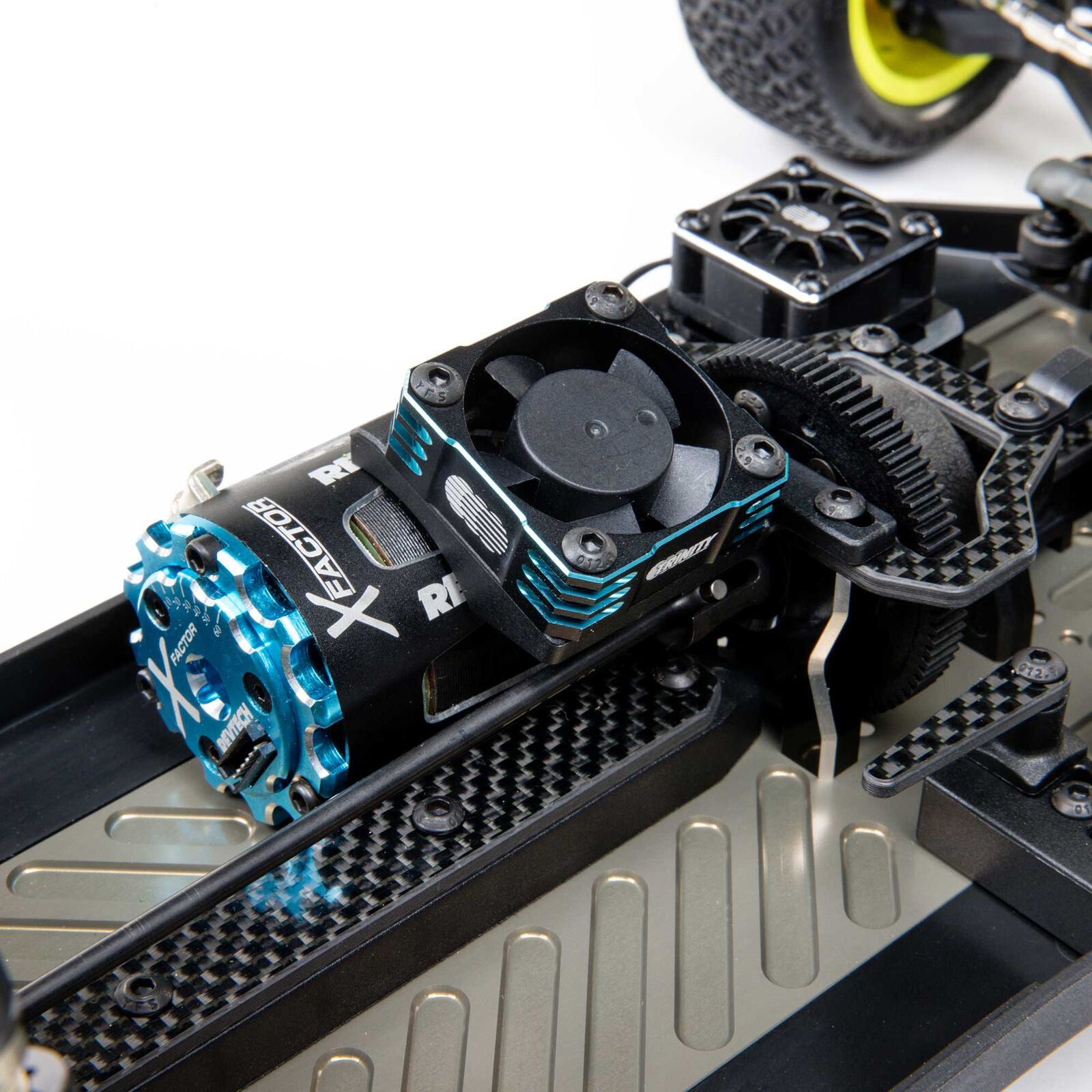

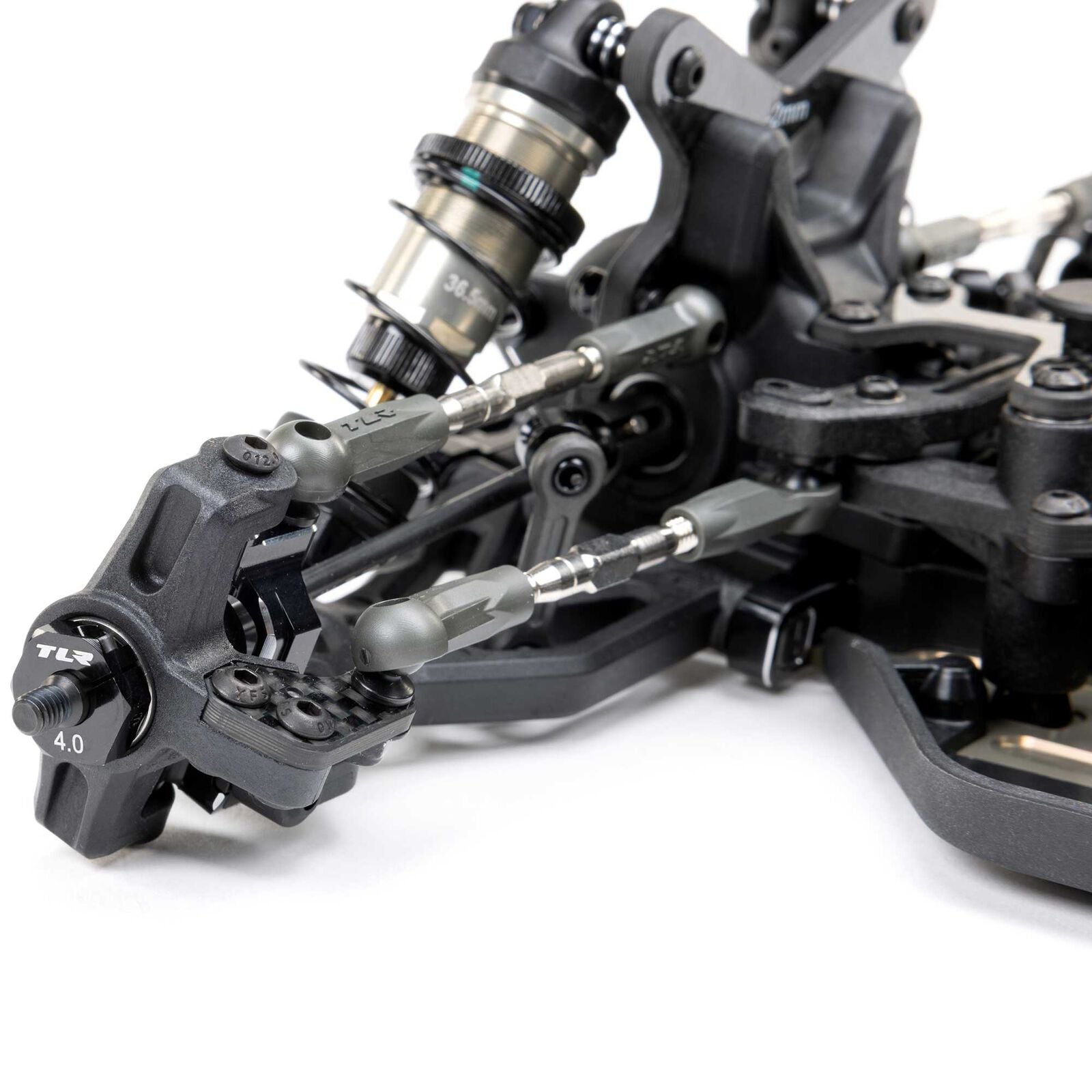

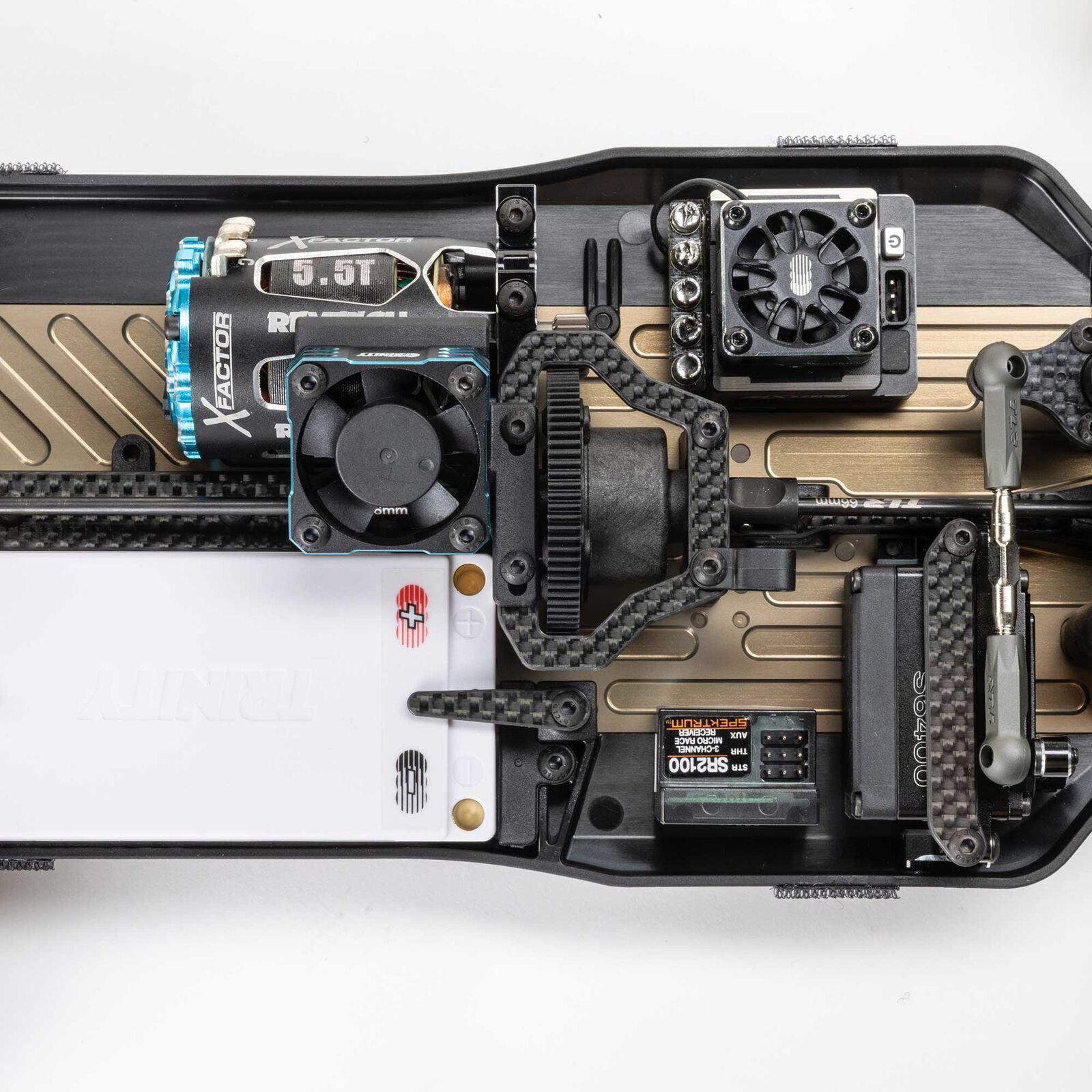

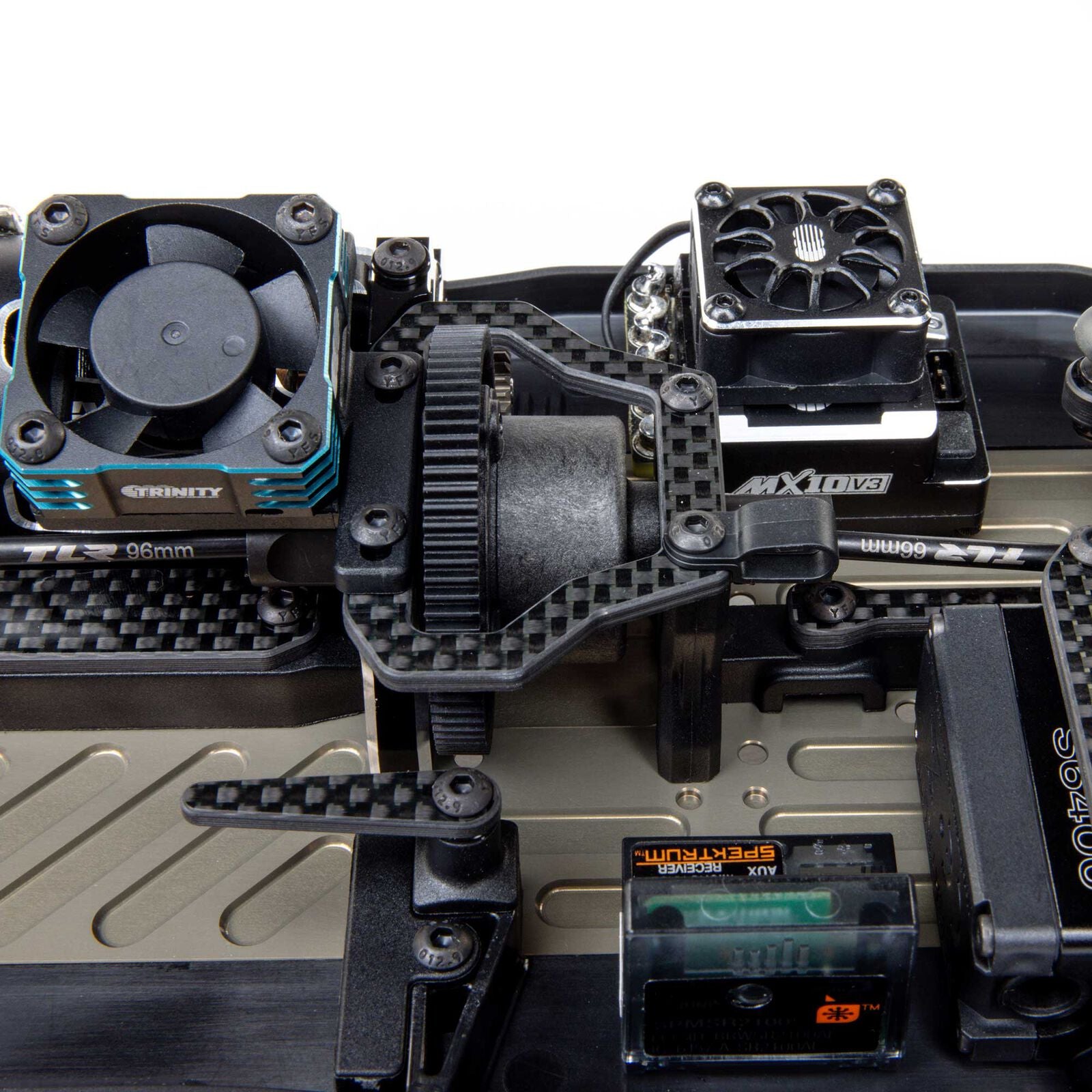

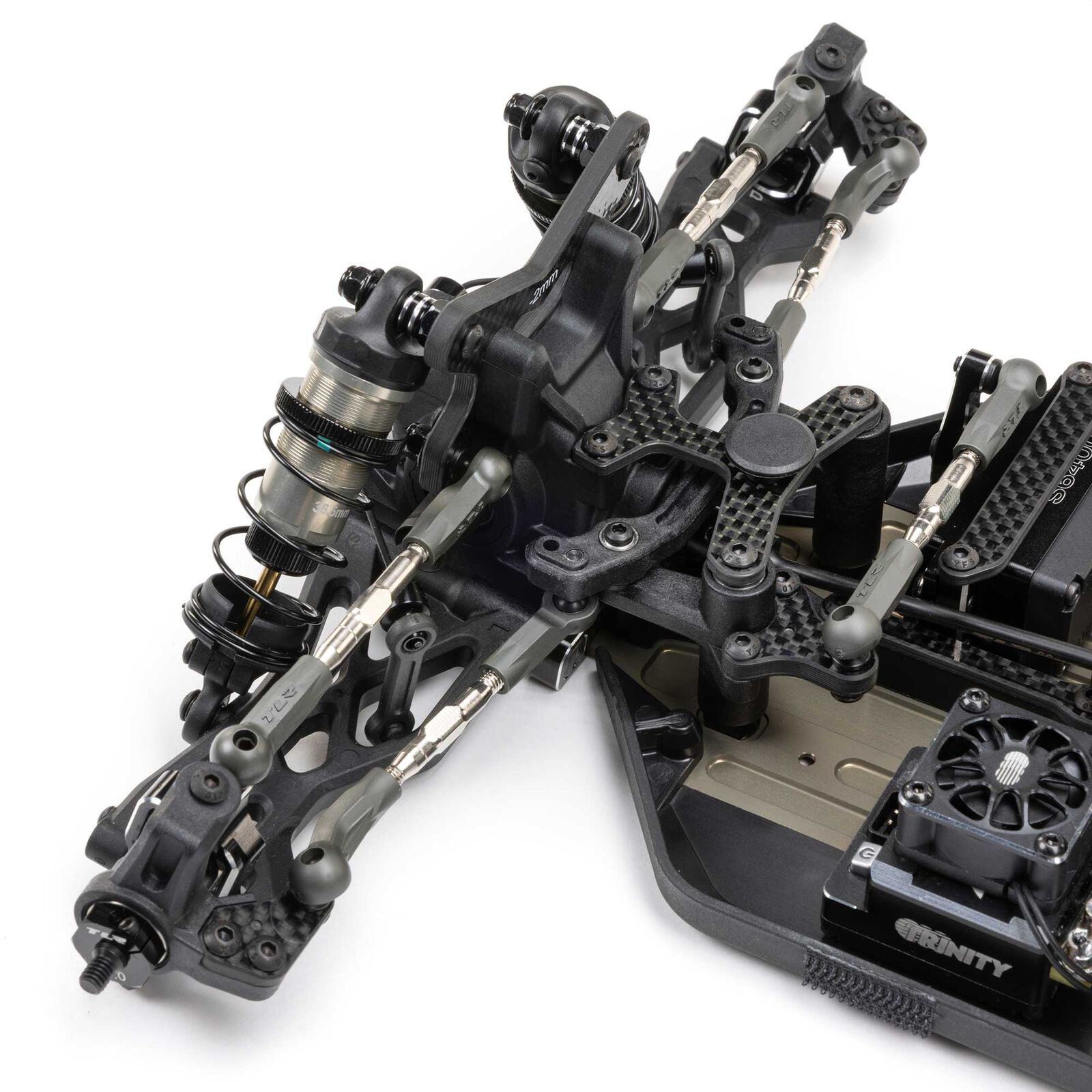

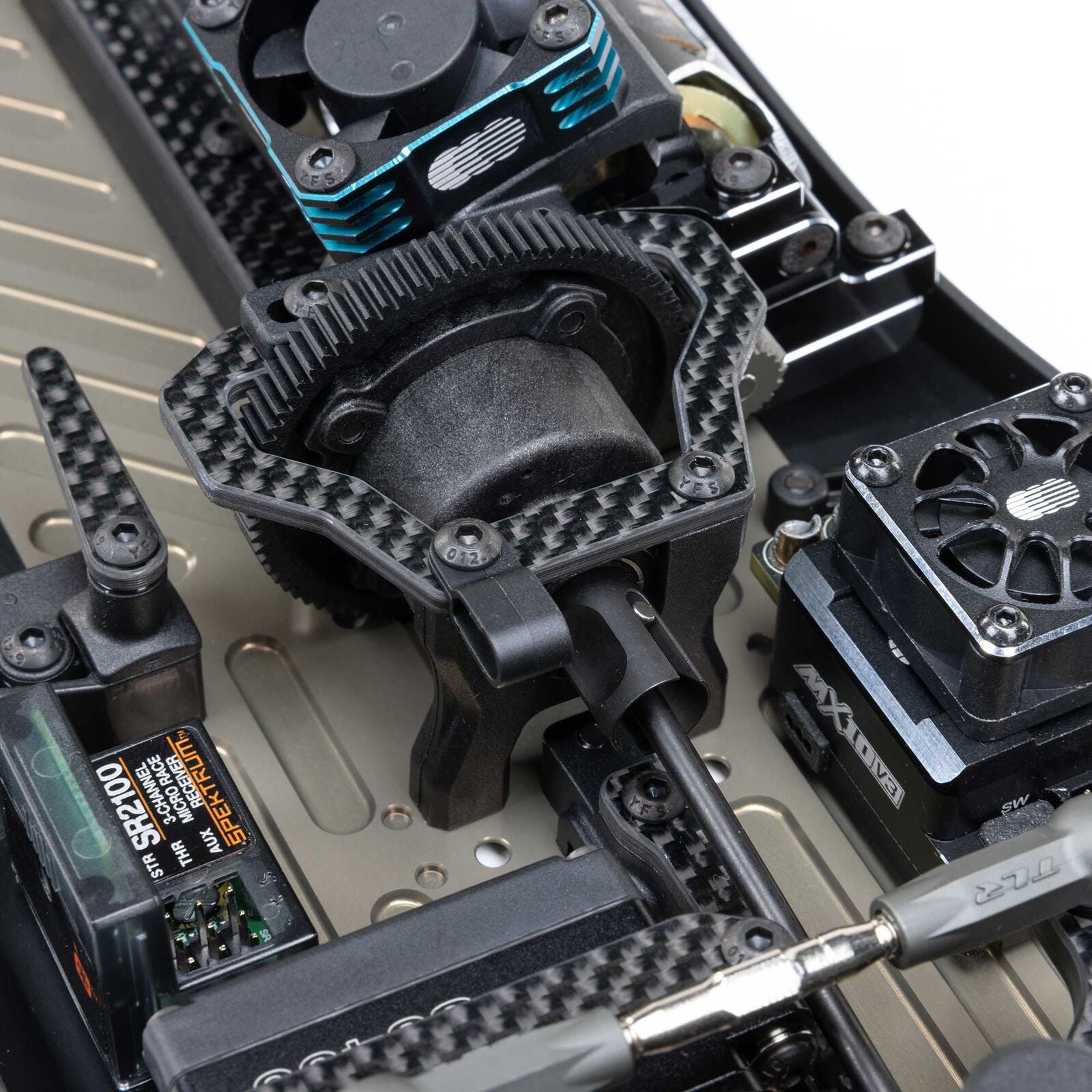

Hard anodised 2 mm machined 7075-T6 aluminium chassis Larger 13 mm big bore shocks for optimal handling and cornering Larger 13 mm shock springs for proper support Adjustable caster from 6 to 12 degrees in 1 degree increments Industry standard offset front wheels Durable 4 mm woven carbon fibre front and rear shock towers New 5.8 mm ball studs and rod ends for interference free movement Lightweight Pro-Line Sector 22X-4 body Pro-Line Air Force 7 in clear rear buggy wing Glass filled composite parts in multiple stiffnesses available for tuning flex characteristics Proven Variable Height Axle VHA rear hubs with easy bite and roll adjustment Adjustable inner pivots for anti squat and rear toe refinement Decoupled slipper included for adjusting brake bias to increase steering and stability under braking Built in motor fan mount for 30 mm x 30 mm fans Maximum tunability out of the box with no need to buy extra parts Optimised shock mounting locations Rear shock tower covers to protect track surfaces Adjustable motor and battery positions Multiple aluminium parts including chassis, motor mount, servo mount, caster blocks, shock stand offs, suspension pivots, ball stud washers, front and rear clamping hexes, 25T clamping servo horn
More Information
In 2010, Team Losi Racing introduced the revolutionary 22 platform, which jump started the electric buggy racing scene, launching a series of TLR 22 2WD and 4WD vehicles with top level performance.

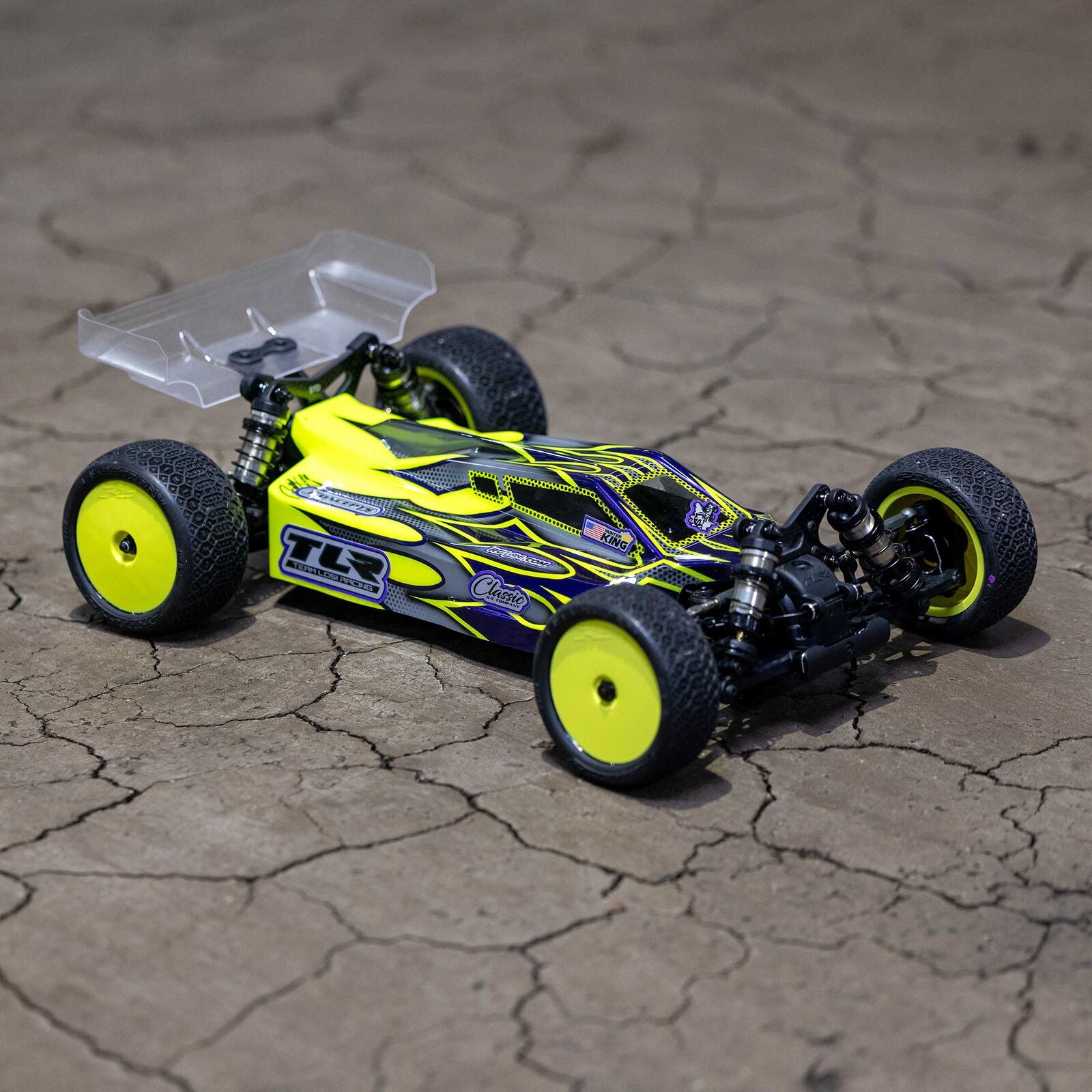

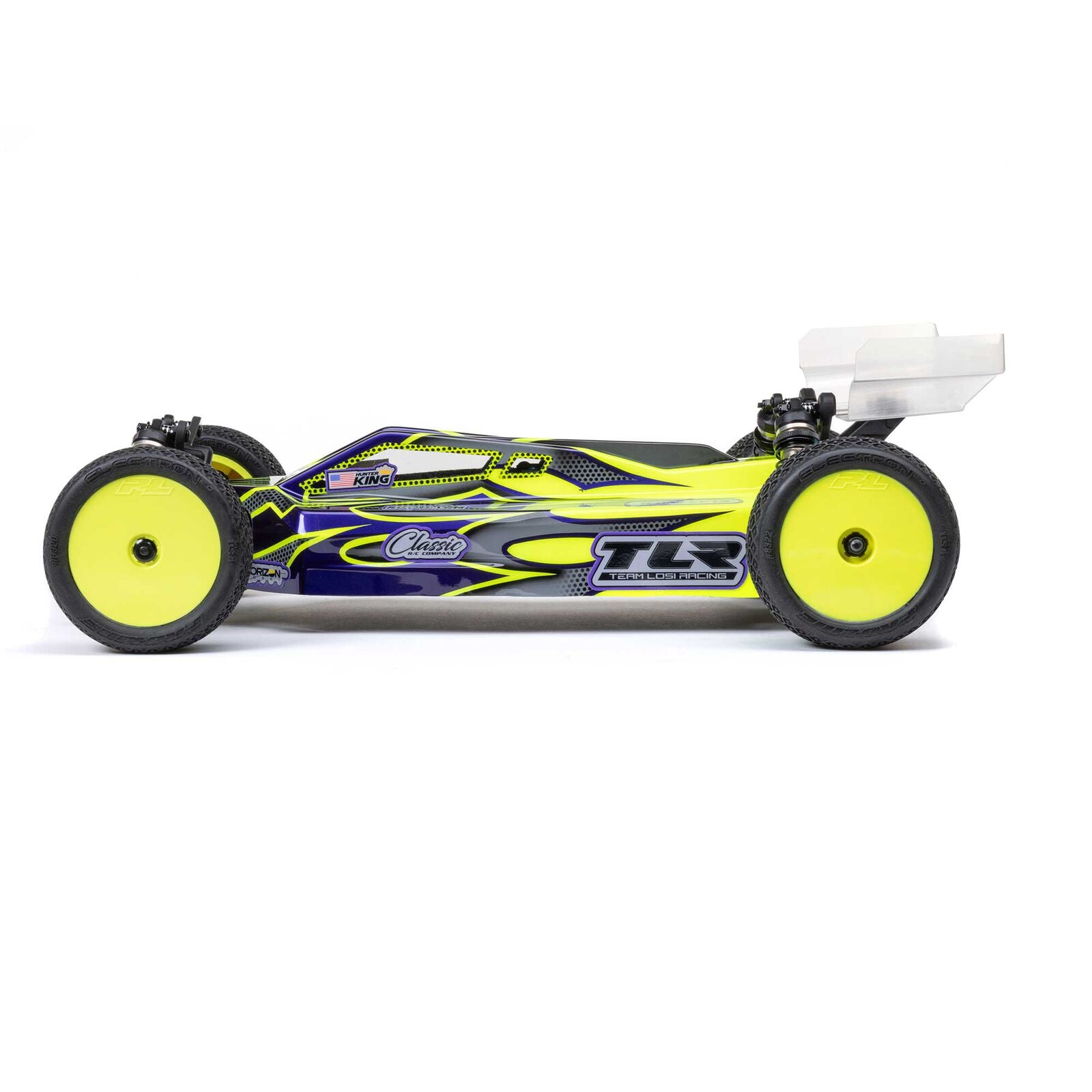

The evolution of the champion continues with the 1/10 scale 22X-4 2.0 DC 4WD Race Buggy Kit. TLR started with lessons learned from the World Championship winning 22, and from years of further 22 platform development plus valuable racer feedback. The result is an updated buggy design that is easier to tune and comes optimised for dirt and clay tracks, with a high level of adjustability that makes it easier to drive faster on today’s high grip surfaces.
If you are ready for the podium, the 22X-4 2.0 DC 4WD kit is equipped to take you there. The kit includes popular option parts like an aluminium chassis, carbon fibre, aluminium, and composite parts, dogbone centre driveline, high volume differentials, and increased tuning options to lighten and optimise the 22X-4 2.0 DC to maximise performance.
Designed to win straight out of the box, the 22X-4 2.0 4WD Race Buggy Kit is a fully optimised evolution of a proven winner that is faster and easier to work on, with features and performance destined for the top of the podium.
Specifications
Approximate Assembly Time: 3 to 5 Hours Battery: Sold Separately Body: Pre-cut Chassis: 7075-T6 Aluminium Milled Plate 2 mm thick Completion Level: Kit Differential: Gear Drivetrain: 4WD Gear Pitch: 48 Pitch Internal Gear Ratio: 2.5:1 LiPo Compatibility: 2S Max Battery Dimensions: 25.1 x 96 x 47 mm (0.94 x 3.78 x 1.85 in) Power Type: Electric Product Height: 147 mm (5.8 in) Product Length: 376 mm (14.8 in) Product Width: Front Track 250 mm (9.8 in) Rear Track 250 mm (9.8 in) Radio: Sold Separately Receiver: Sold Separately Scale: 1/10 Shock Type: Larger 13 mm big bore shocks Spur Gear: 78T 48 Pitch Vehicle Size: Standard Vehicle Type: Buggy Wheel Hex Size: 12 mm Wheelbase: 287 mm (11.3 in)
