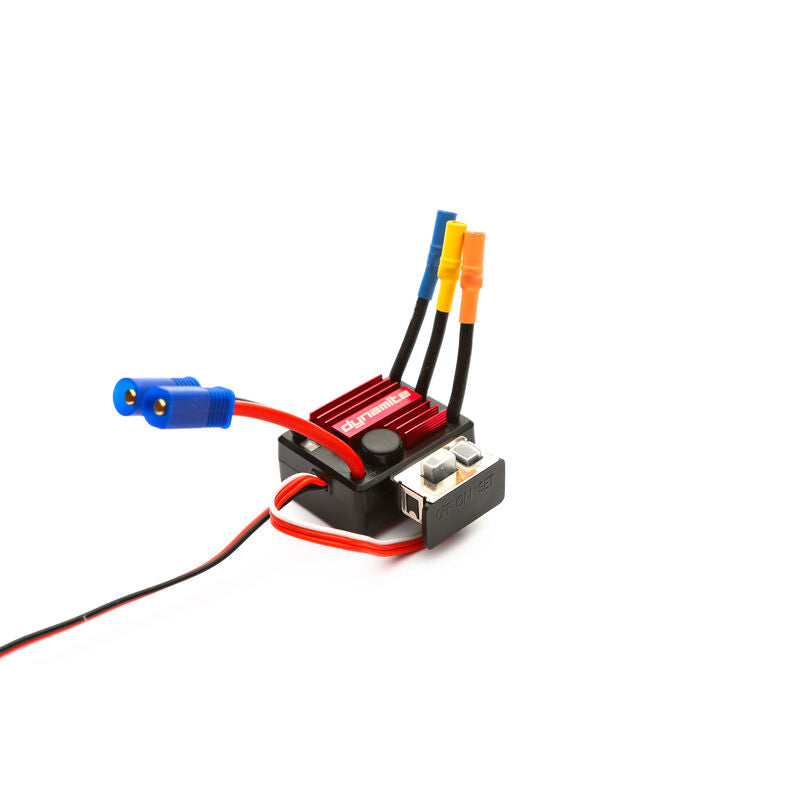

Tazer 25A Mini Brushless Waterproof ESC

The Dynamite Tazer Mini 25 A Waterproof Brushless ESC offers rugged, programmable performance for 1/10-scale RC vehicles. Built to withstand wet and rough conditions, it features a compact, waterproof design and full directional control (forward, brake, and reverse).

Features

• Water-resistant housing—for reliable performance in wet or muddy conditions
• 25 A continuous current capacity, with up to 90 A peak power for short bursts
• Supports forward, brake, and reverse modes—with programmable time-delay braking
• Built-in 6 V BEC (1 A) to power servos and receiver without separate battery
• Overload protection, autot-cutoff for low voltage, and adjustable timing ensure system safety and customization
• Standard EC3 battery connector and 3.5 mm bullet motor output for easy compatibility

What’s Included

• Dynamite Tazer Mini 25 A Waterproof ESC (model DYNS1425)

Needed to Complete

• Sensorless brushless motor (suitable for 1/10-scale applications)
• 2–3 S LiPo (or 6–9 cell NiMH/NiCd) battery pack

Specifications

• Continuous Current: 25 A
• Peak Current: 90 A (momentary)
• Input Voltage: 7.4–11.1 V LiPo; 7.2–12.6 V NiMH/NiCd
• BEC: 6 V / 1 A switch-mode
• Connectors: EC3 (battery), 3.5 mm bullet (motor)
• Dimensions: ~36 × 28 × 21 mm
• Weight: ~38 g
• Resistance: approx. 0.005 Ω
