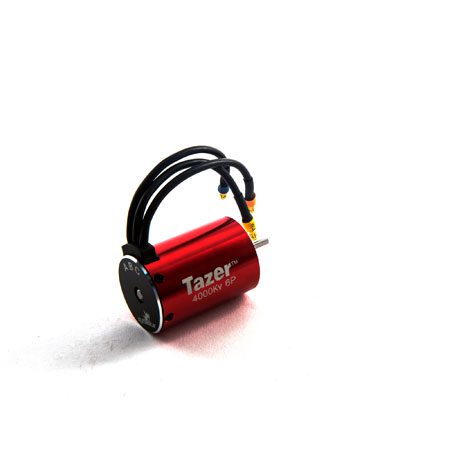

Tazer 1/10 6-Pole Brushless Motor 4000Kv SCT

The Dynamite Tazer 540-size 6-pole brushless inrunner motor (4000 Kv, V2, model DYNS1501) pushes the limits of 1/10-scale car and truck performance with its refined rotor and stator design. This high-power motor delivers blazing acceleration and exceptional efficiency for serious racers.

Features

• 540-size inrunner with 6-pole design—for amplified torque and smoother power delivery
• Upgraded rotor and stator architecture—for enhanced power output and higher efficiency
• Pre-wired with bullet-plug connectors—for quick and reliable installation
• Built with ball bearings—for low drag and long operational life
• Sensorless design—compatible with most 1/10-scale sensorless brushless ESCs

What’s Included

• Dynamite Tazer 540-size brushless motor (4000 Kv, model DYNS1501)

Needed to Complete

• 45 A or higher sensorless brushless ESC
• 2–3 S LiPo battery and appropriate gearing setup

Specifications

• Motor Type: Brushless inrunner (540-size)
• Kv Rating: 4000 Kv
• Idle Current: 3.5 ± 0.5 A @ 7.2 V
• Max Burst Current: 130 A
• Supported Cells: 4–9 cell NiMH/NiCd or 2–3 S LiPo
• Recommended ESC: 45 A
• Weight: 198 g (6.9 oz)
• Dimensions: Ø 35.8 mm × length 52 mm
• Shaft Diameter: 1/8 in (3.175 mm), Shaft Length: 17 mm
