Spektrum

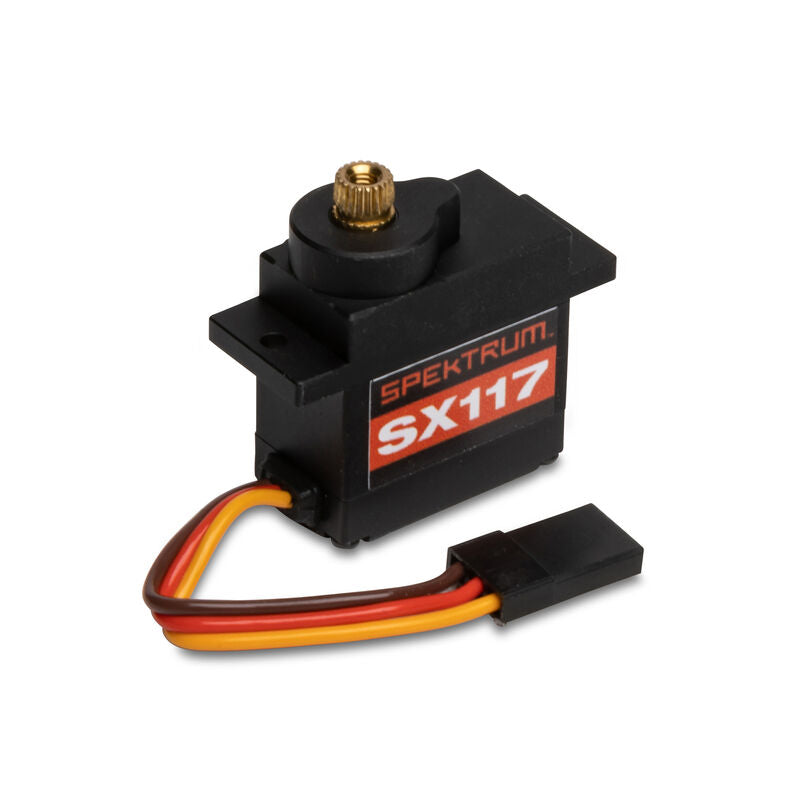

SX117 Micro Metal Gear Case Servo
SX117 Micro Metal Gear Case Servo
SKU:SPMSSX117
Share
Spektrum SX117 Micro Metal Gear / Case Servo is a high-voltage mini coreless surface servo for 1/18 mini vehicles and Axial SCX10 dig/shift applications. It uses metal gears, an all-metal case, a 20-tooth output spline and a short 57 mm (2.25 in) lead wire, with rated performance up to 55 oz-in torque and 0.05 sec/60° transit speed at 8.4 V.
Included
(1) SX117 Micro Metal Gear / Case Servo
(1) Mounting hardware set
(1) Servo arm set
Features
Mini coreless surface servo
Metal gears
Waterproof design
All-metal case
High-voltage 4.8–8.4 V operation
20-tooth output spline
57 mm (2.25 in) lead wire
Suitable as an upgrade servo for 1/18 mini vehicles and Axial SCX10 dig/shift vehicles
Specifications
Application: Surface
Servo Size Category: Mini
Connector Type: Servo
Gear Type: Metal
Operating Voltage: 4.8–8.4 V
Spline Count: 20-tooth
Programmable: No
Length: 23 mm (0.90 in)
Width: 12 mm (0.49 in)
Height: 27 mm (1.06 in)
Weight: 19.8 g (0.70 oz)
Torque: 30 oz-in at 4.8 V, 41 oz-in at 6.0 V, 55 oz-in at 8.4 V
Maximum Servo Torque: 55 oz-in at 8.4 V
Maximum Servo Speed: 0.09 sec/60° at 4.8 V, 0.07 sec/60° at 6.0 V, 0.05 sec/60° at 8.4 V
