Spektrum

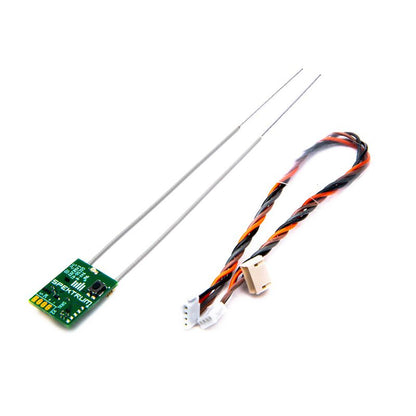

SRXL2 DSMX Serial Micro Receiver
SRXL2 DSMX Serial Micro Receiver
SKU:SPM4650
Share

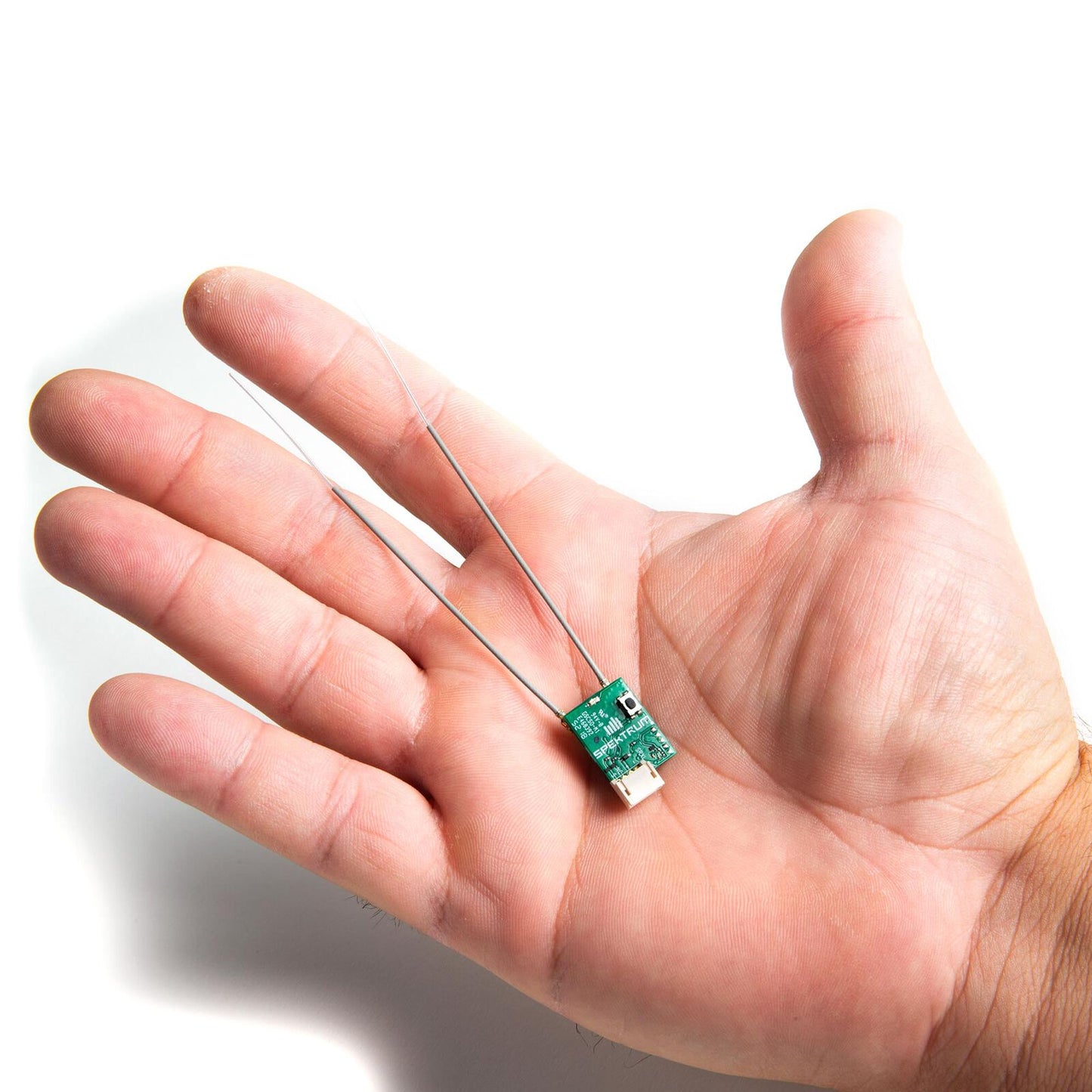

The Spektrum SRXL2 DSMX Serial Micro Receiver is an ultra-compact receiver designed for multirotors, helicopters and compact aircraft, providing high-speed serial communication and integrated telemetry. It uses SRXL2 protocol for fast, bidirectional data transfer with up to 20 channels over a single connection, allowing direct communication with flight controllers and flybarless systems. The lightweight design and dual antenna diversity system ensure reliable signal performance even in installations affected by carbon fibre or electronic interference.

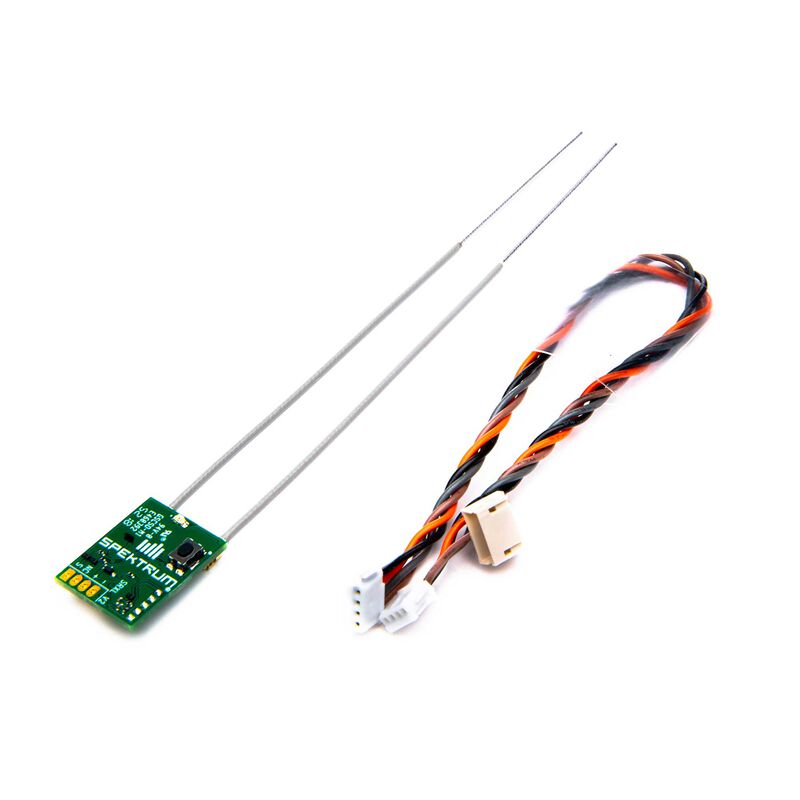

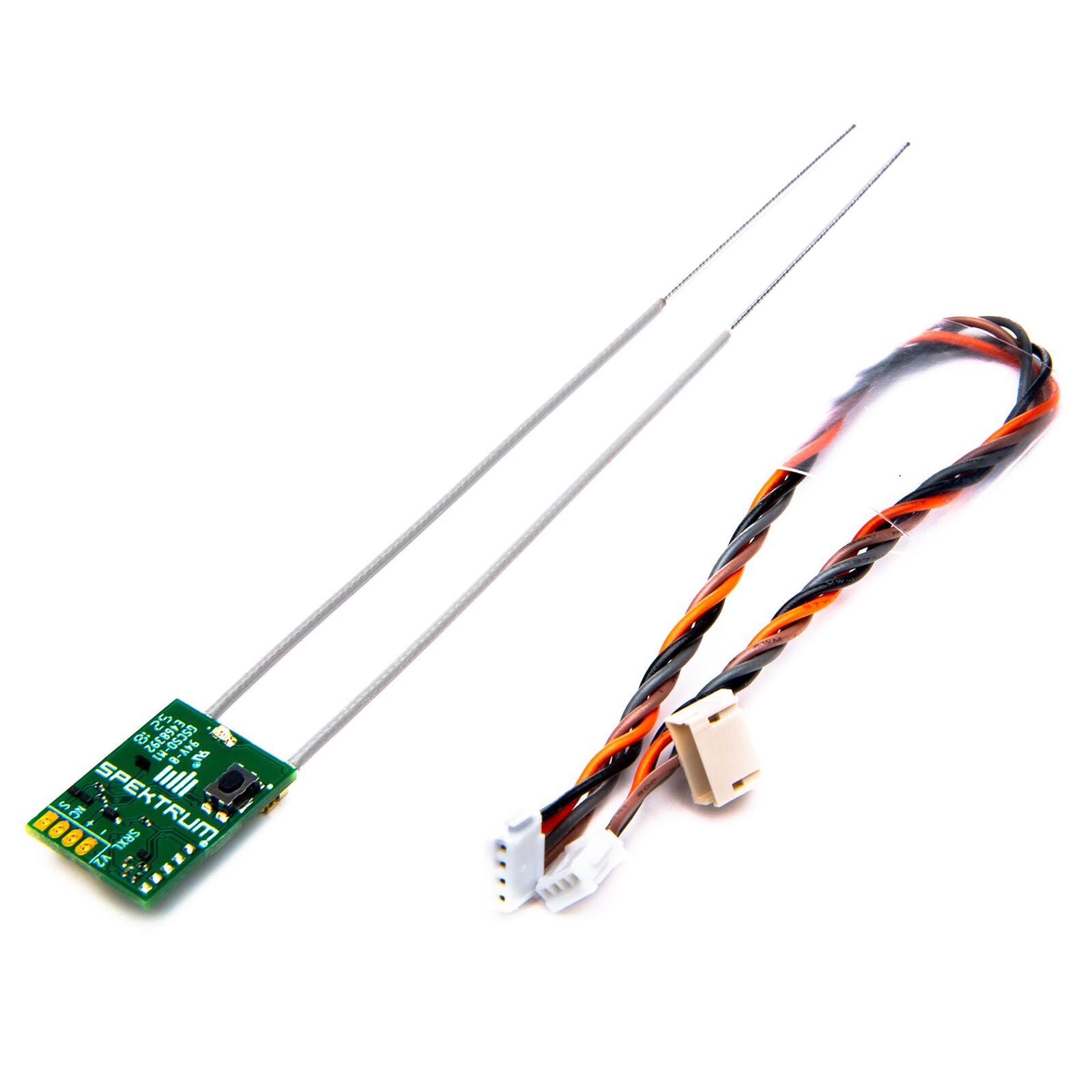

Included
Spektrum SRXL2 DSMX Serial Micro Receiver x1
U.FL antennas x2
Receiver extension cable 150mm x1
4-pin connector x1
Heat shrink wrap x1
Product manual x1
Features
SRXL2 protocol provides fast bidirectional communication with up to 20 channels.
Integrated telemetry allows real-time data and forward programming support.
DSMX 2.4GHz technology ensures reliable signal performance and interference resistance.

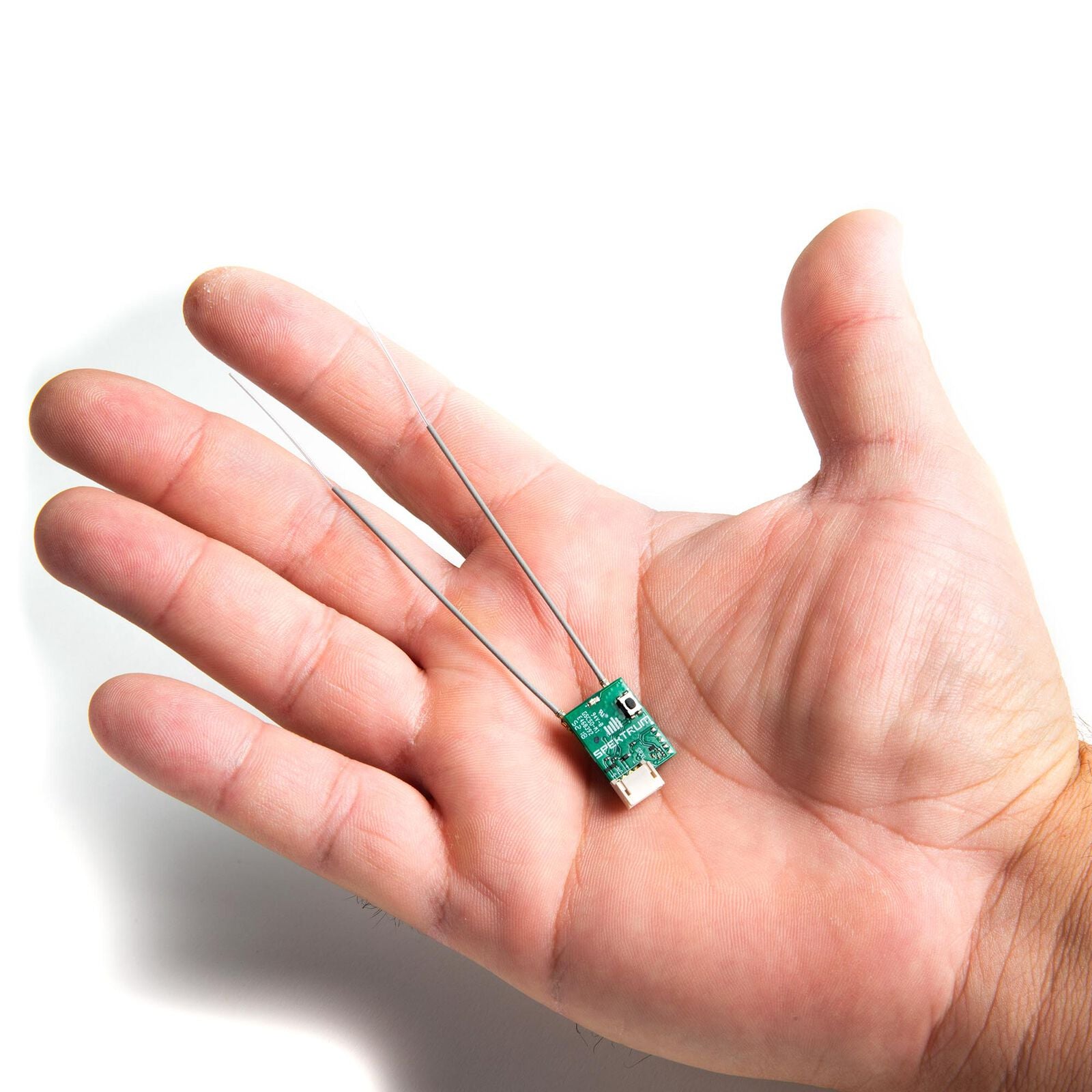

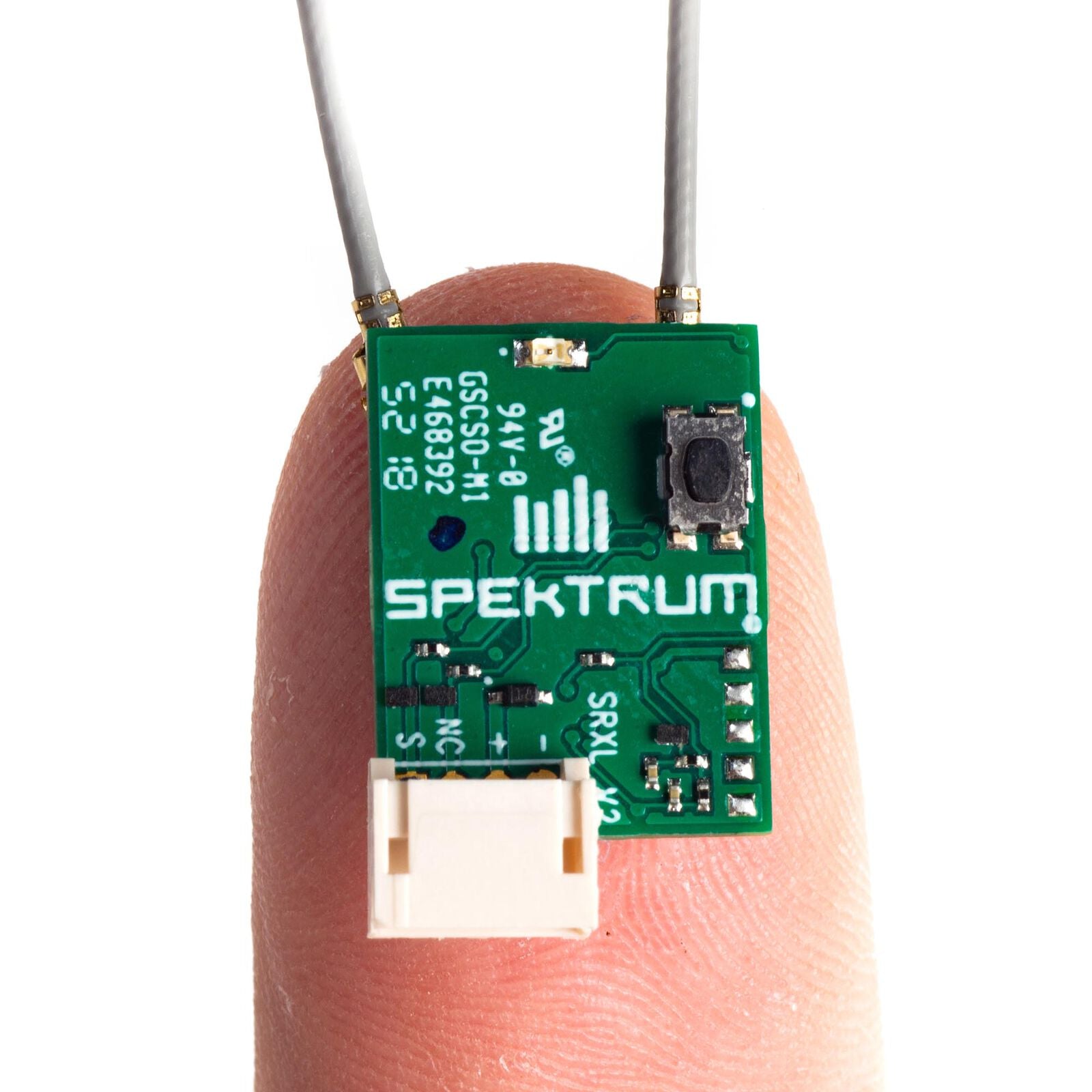

Ultra-compact and lightweight design suits small aircraft and multirotor builds.

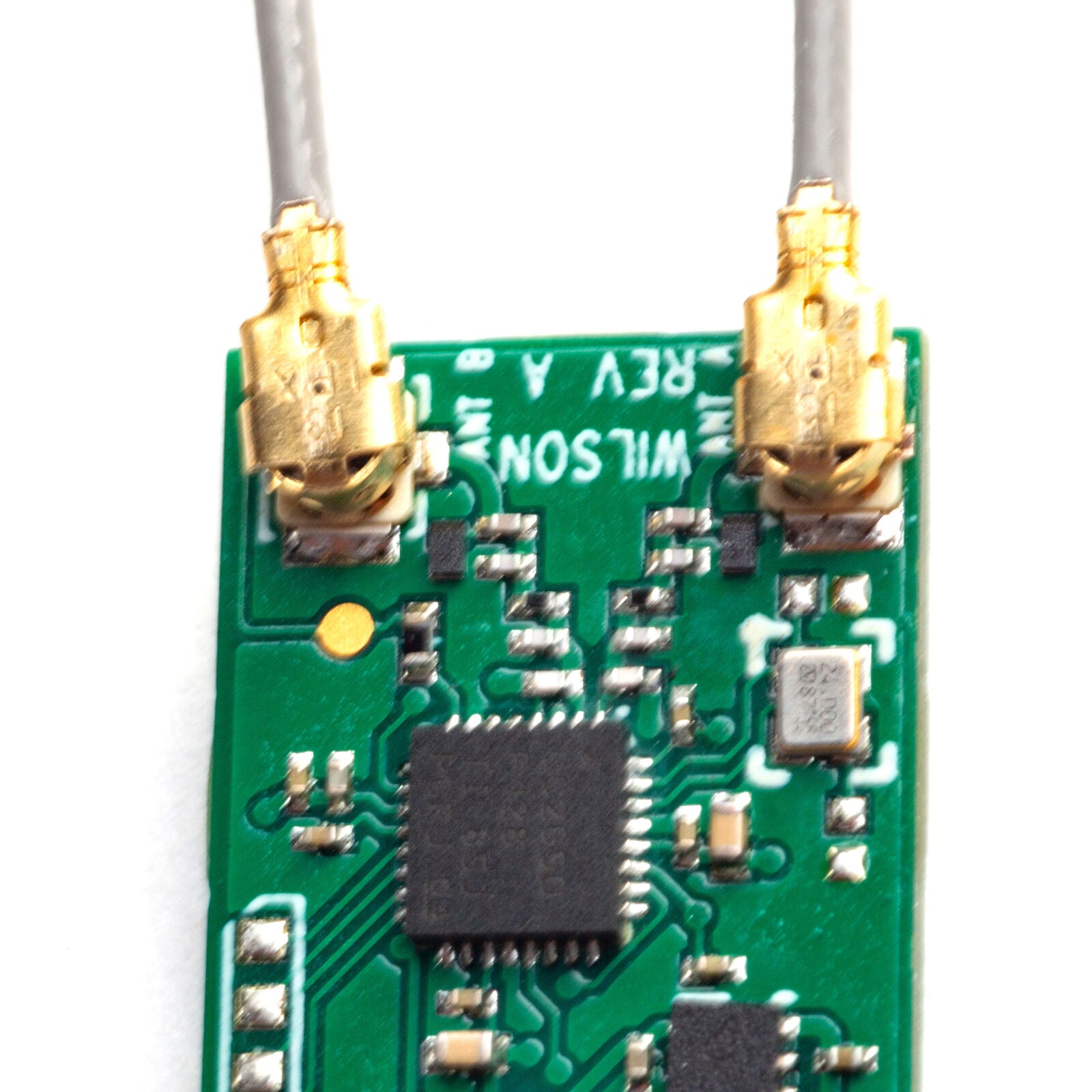

Dual diversity antennas improve signal strength and coverage in difficult installations.
Wide input voltage range supports flexible power configurations.

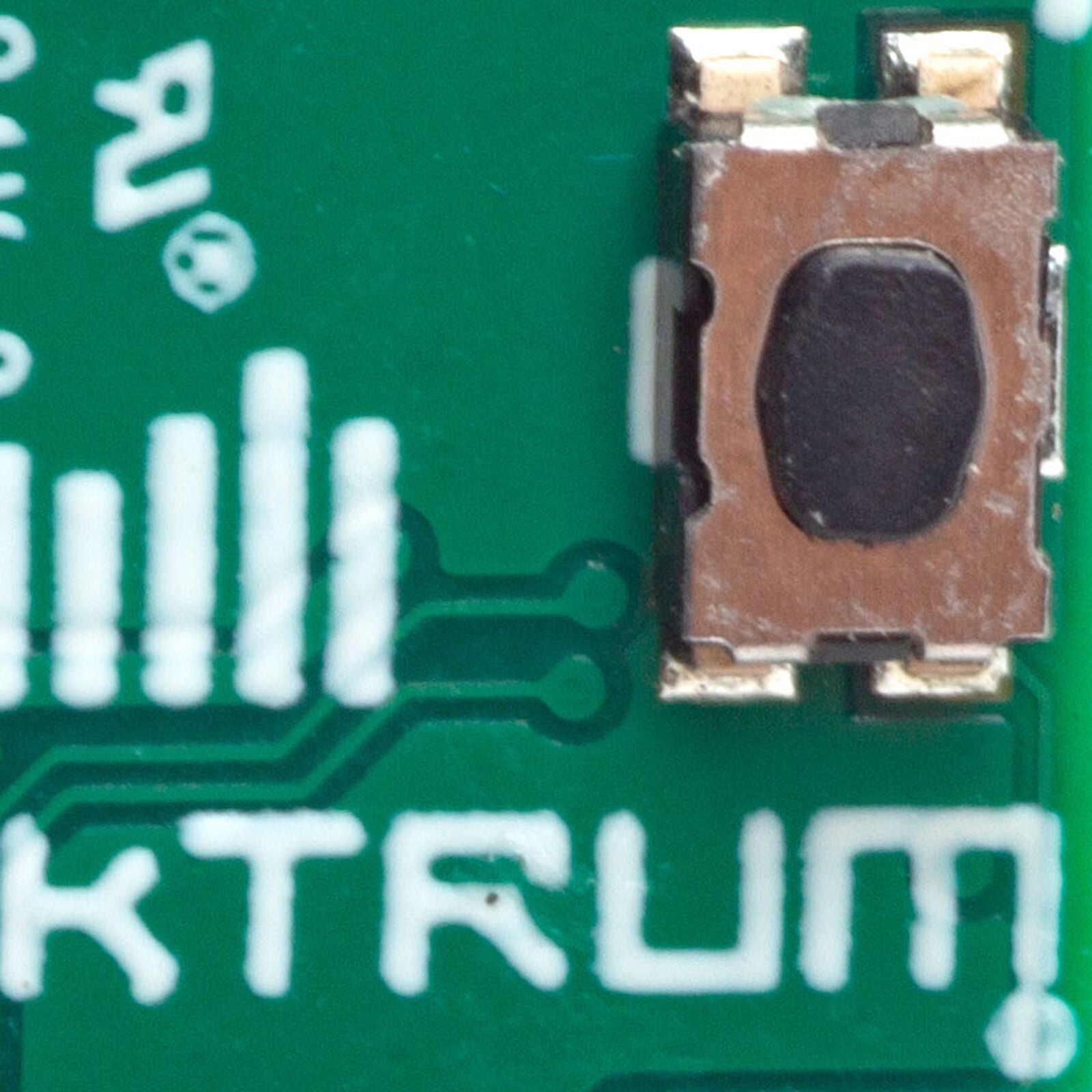

Bind button allows simple setup without a bind plug.

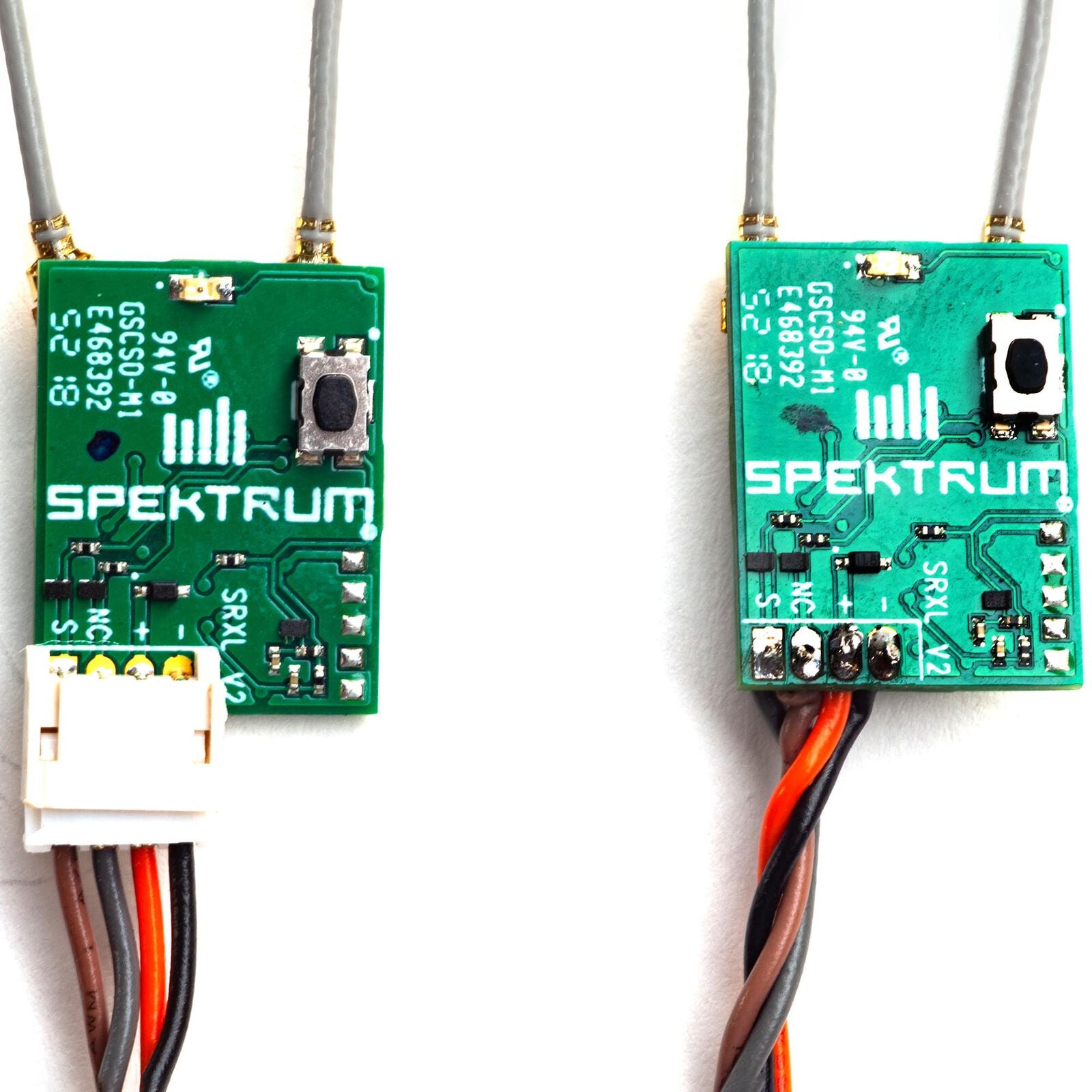

Single-wire serial connection simplifies wiring and installation.
Specifications
Input Voltage: 3.3–8.4V
Channels: 20
Frequency Band: 2.4GHz
Technology: DSMX
Telemetry: Yes
Length: 17mm
Width: 13mm
Height: 5mm
Weight: 1.4g
