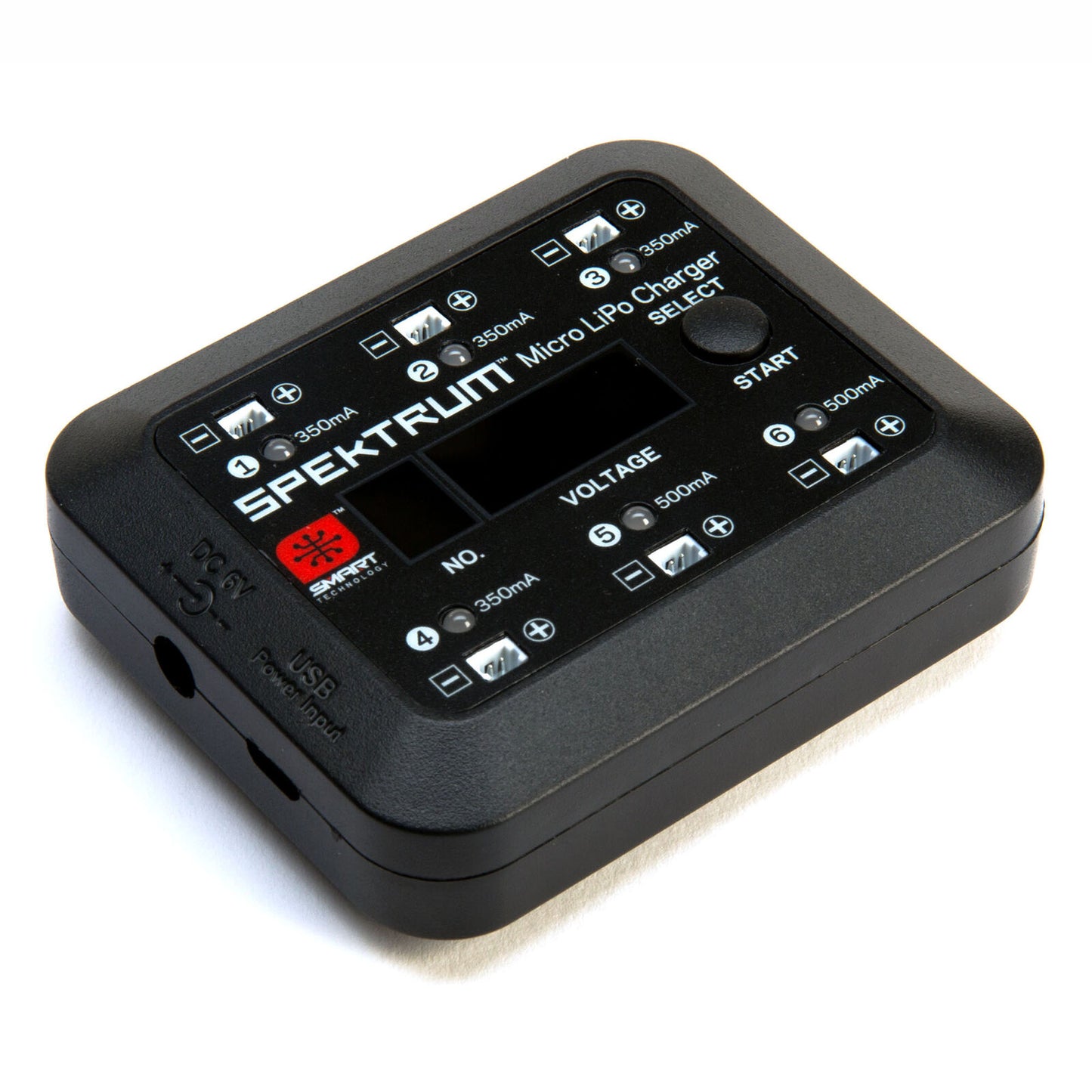

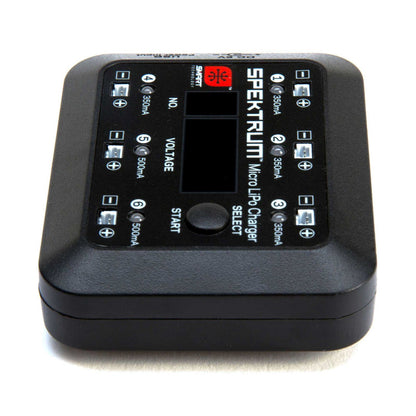

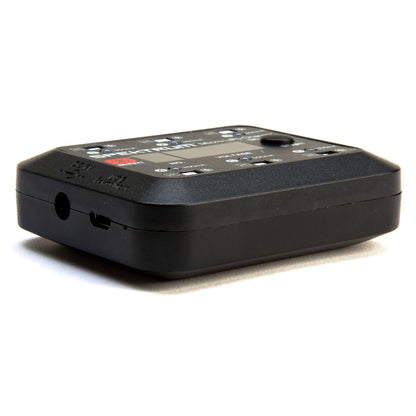

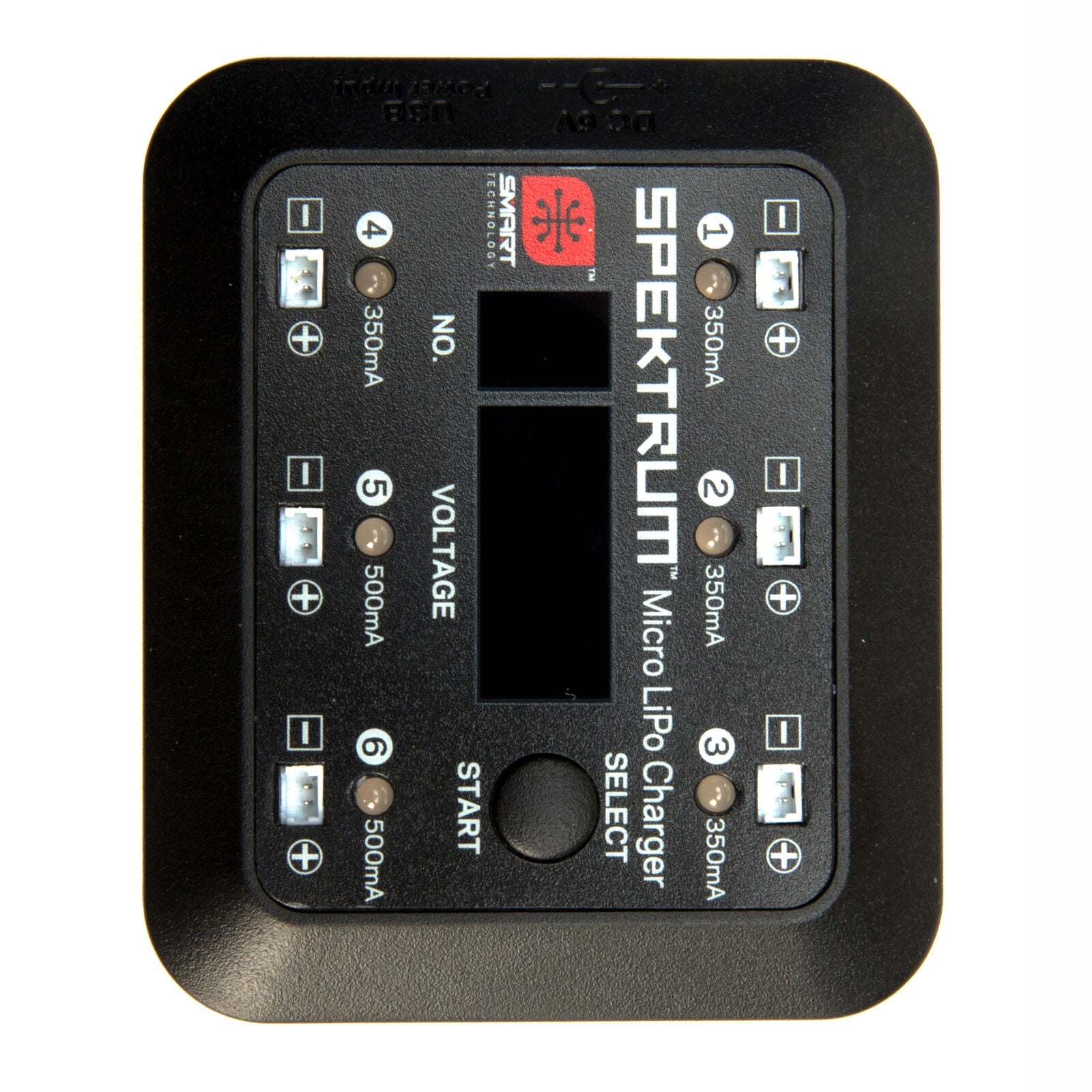

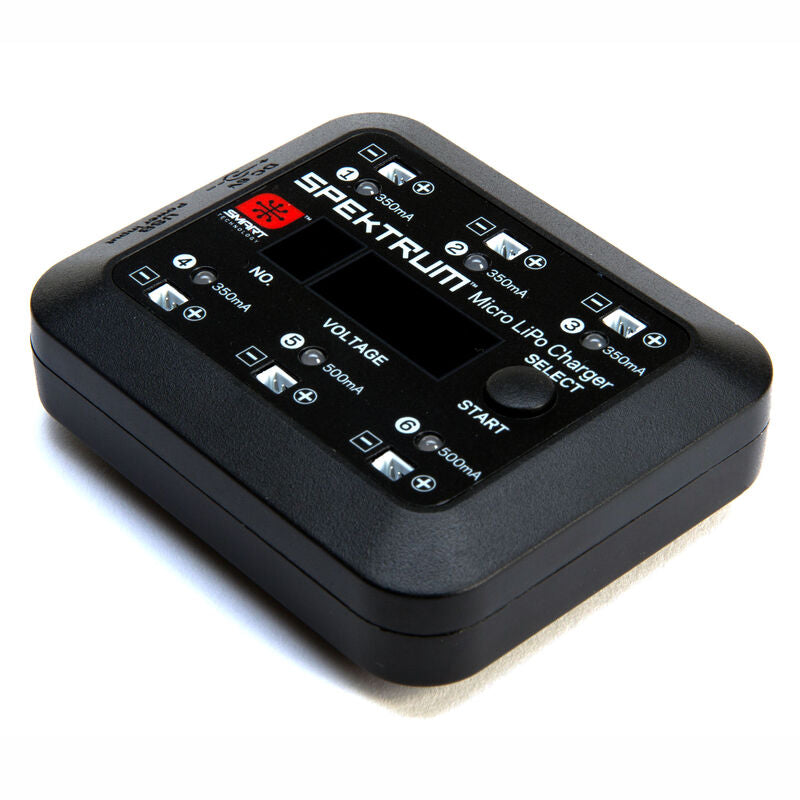

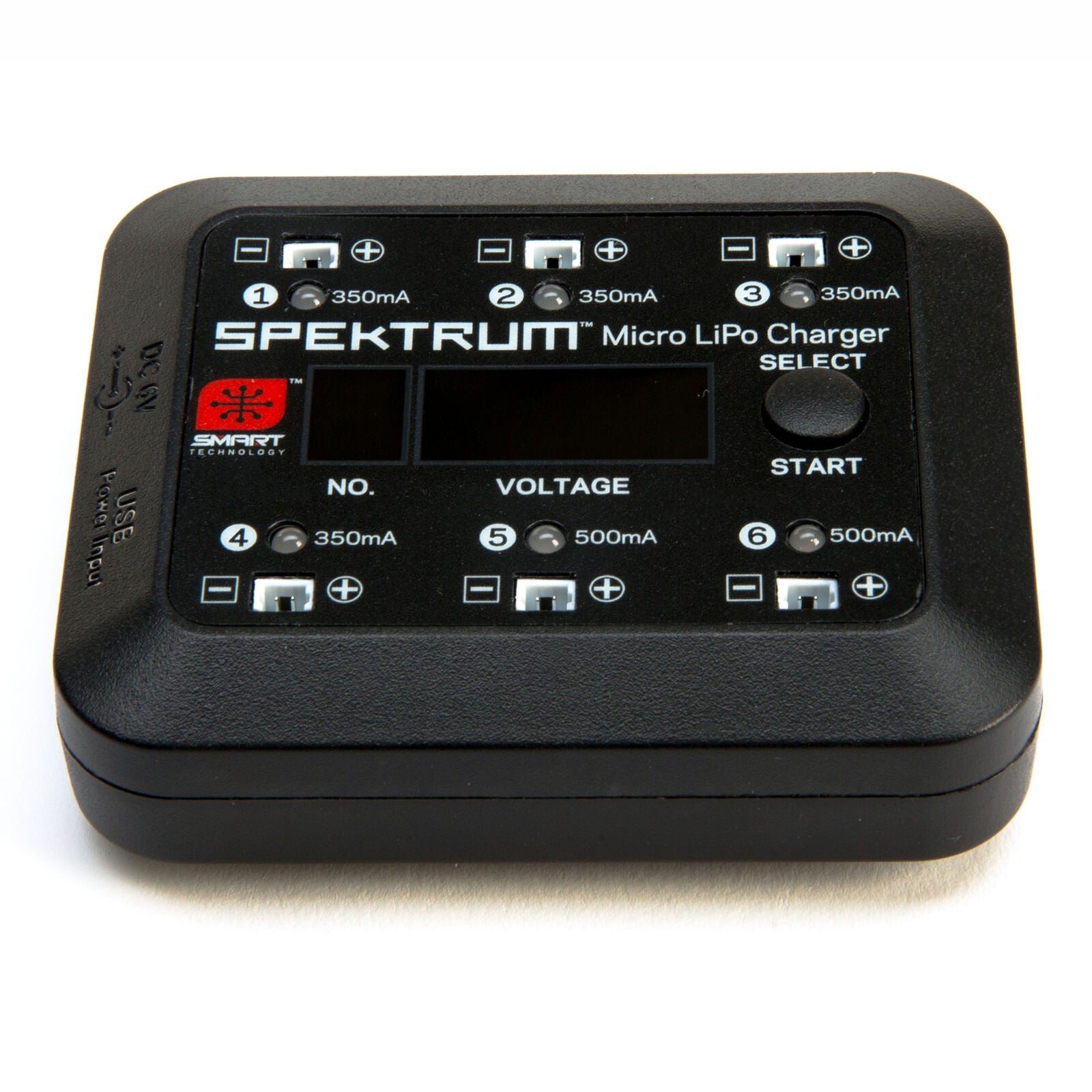

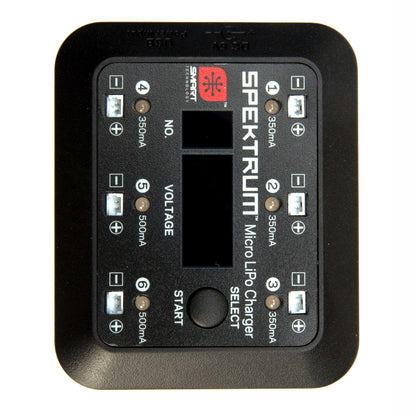

The Spektrum S63 Micro 6-Port DC/USB 1-cell LiPo Charger is a compact tool for managing your ultra-micro LiPo battery fleet. With six independent output ports, you can charge or check voltages on up to six single-cell batteries simultaneously using USB or a 6 V power source.
Features
Six output ports for 1-cell LiPo batteries—each works independently
Ports 1-4 provide approx 350 mA for 1S packs up to ~350 mAh; ports 5-6 offer higher current for packs up to ~750 mAh

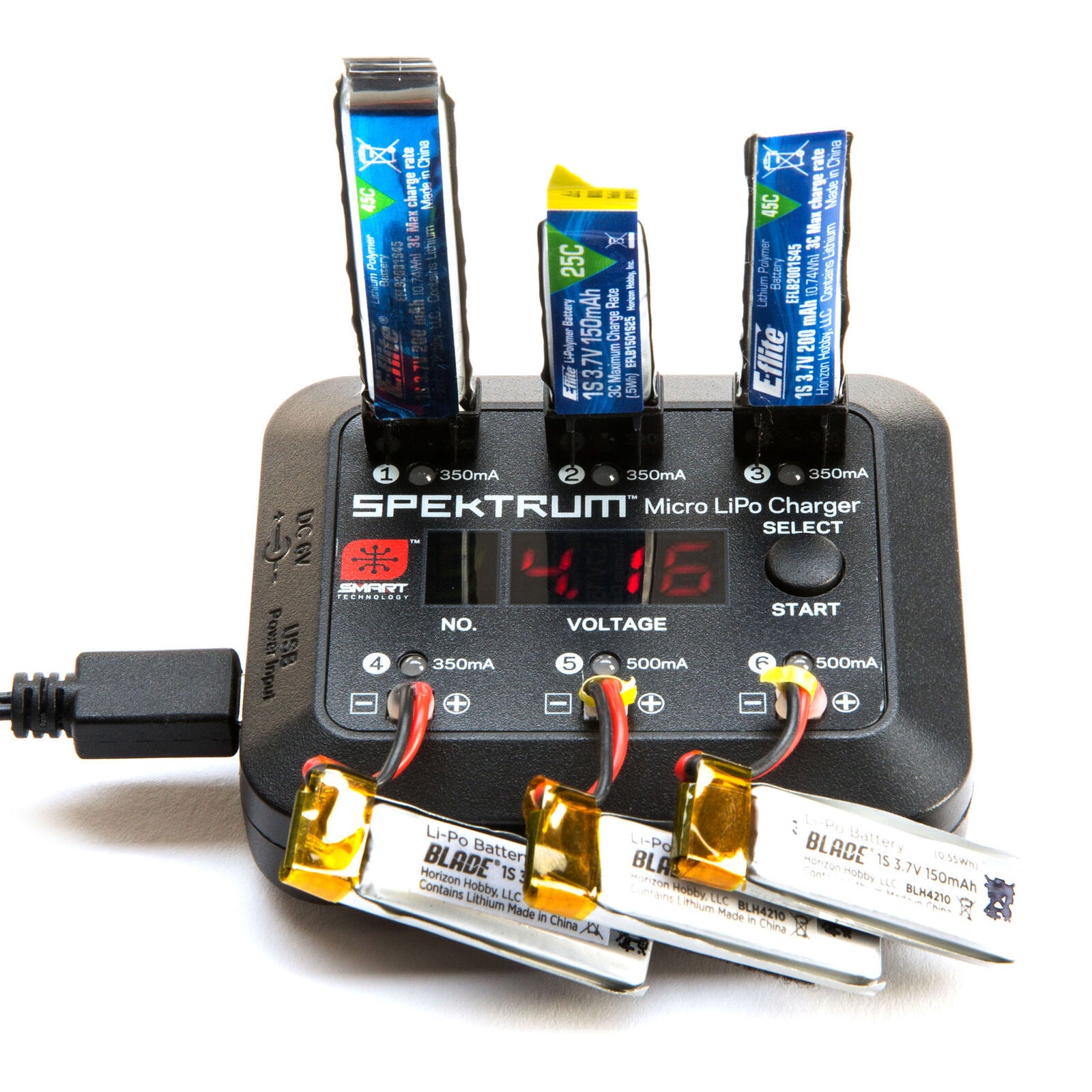

LED display shows voltage of each battery as it charges
One-touch start/stop control for ease of use
Voltage-check function to monitor battery health ± with status LEDs (red = charging, green = full)
Included
Spektrum S63 charger unit with six ports
Mini USB cable for USB-powered operation
Product manual
What You’ll Need
USB-C or USB-A host capable of 5 V output, or a 6 V DC power source
Appropriate 1-cell LiPo batteries with PH 1.25 connector
Specifications
Battery Type: 1-cell LiPo (1S)
Maximum Charge Current: approx 350 mA (Ports 1-4), approx 500 mA (Ports 5-6)

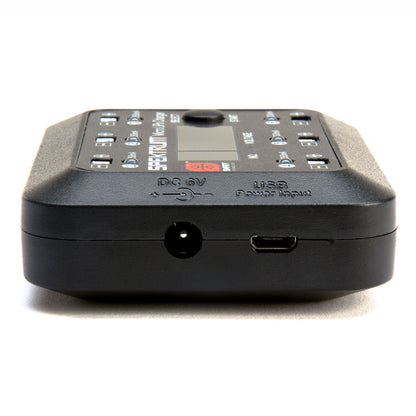

Input Voltage: 5 V DC via USB; also works with 6 V DC power source
Connector Type (output): PH 1.25
Display: LED (voltage readout and port indicators)
Dimensions (L × W × H): approx 76 mm × 63 mm × 22.8 mm
