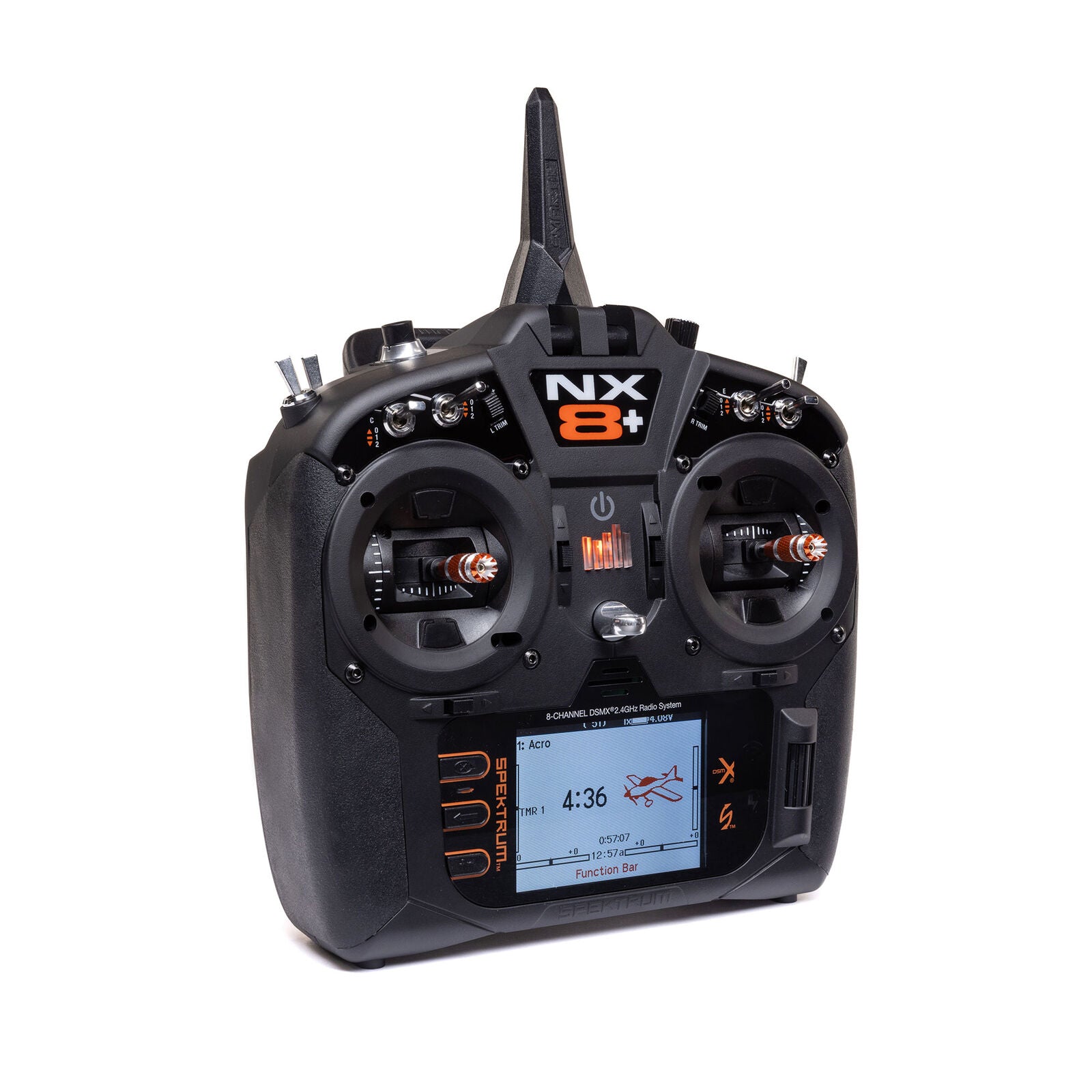

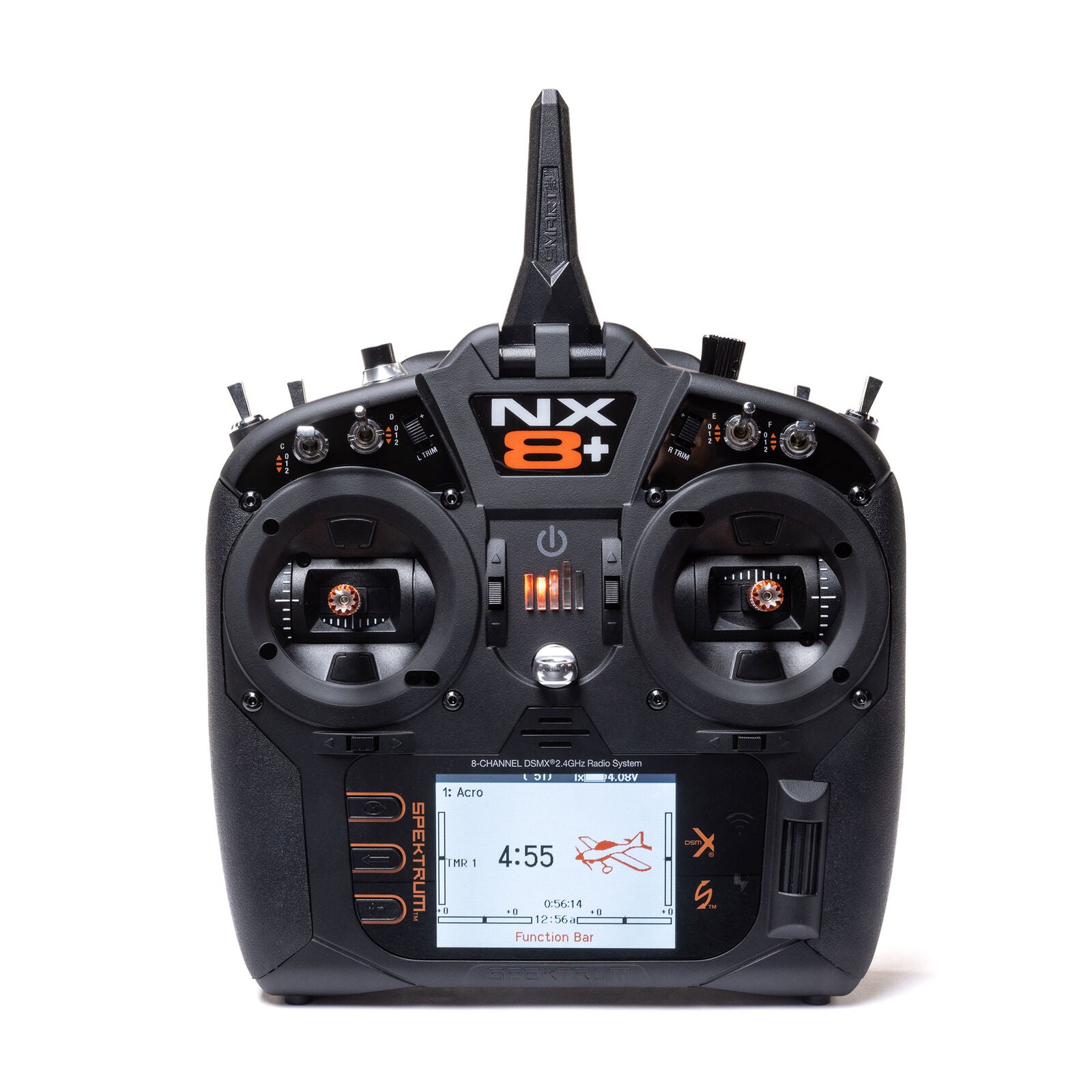

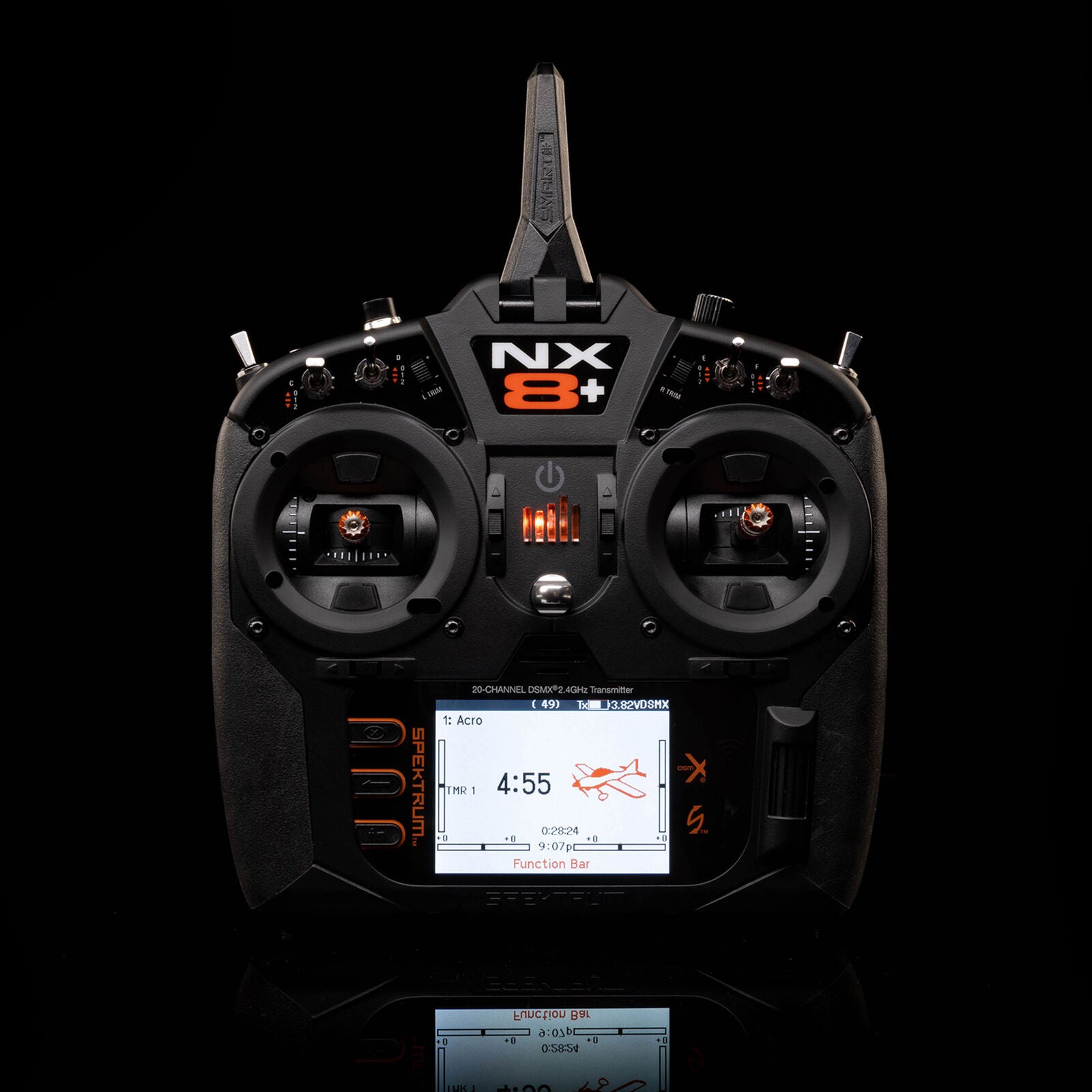

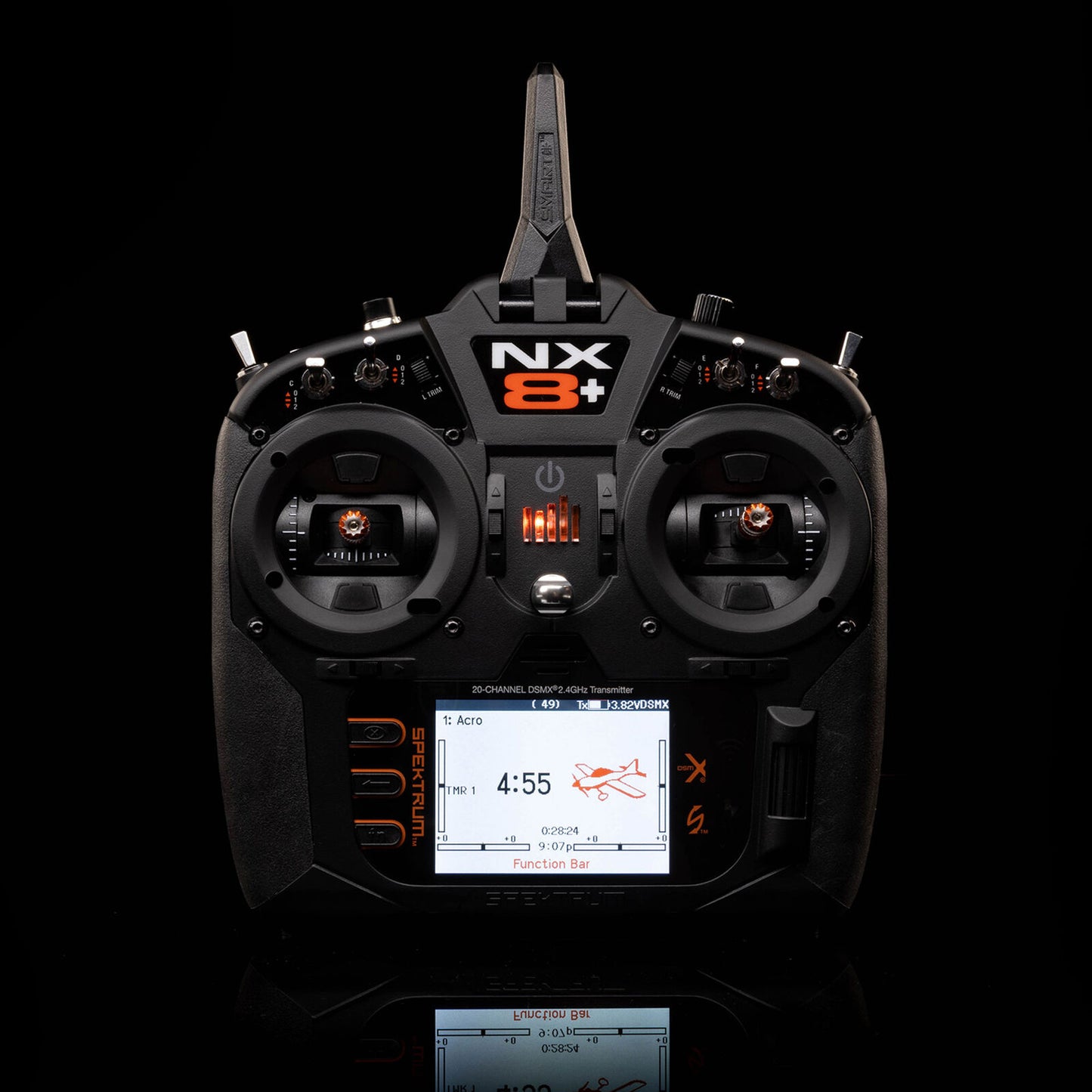

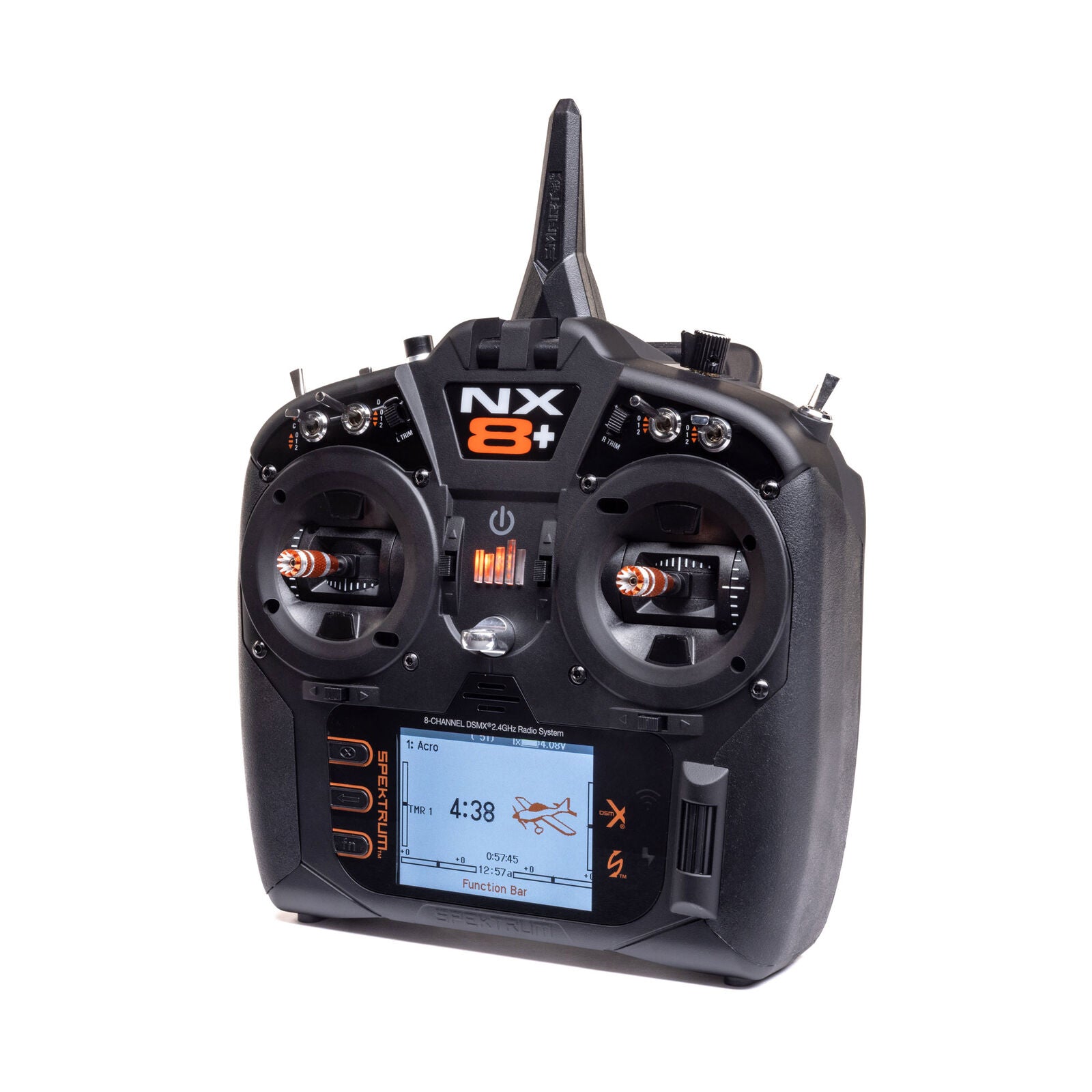

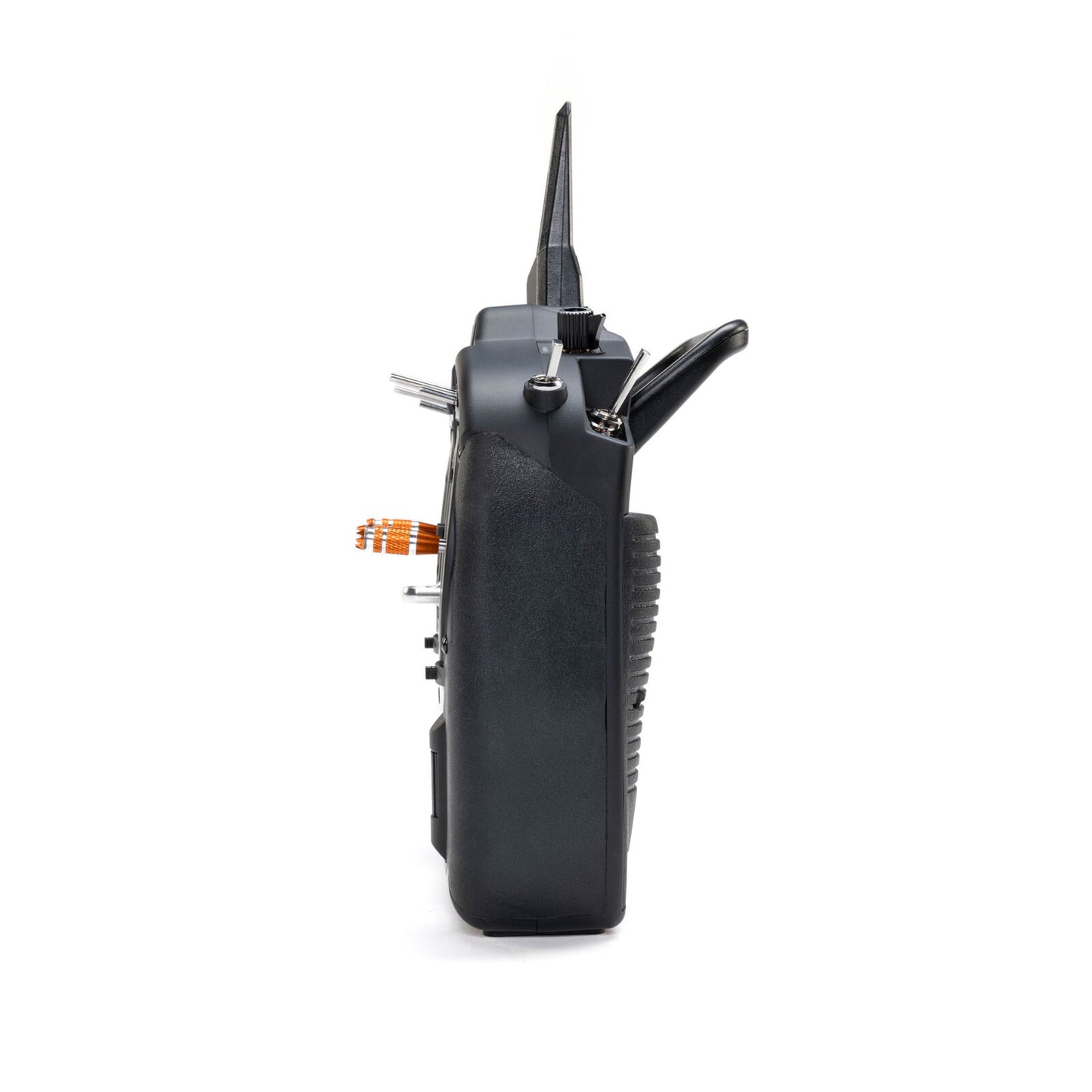

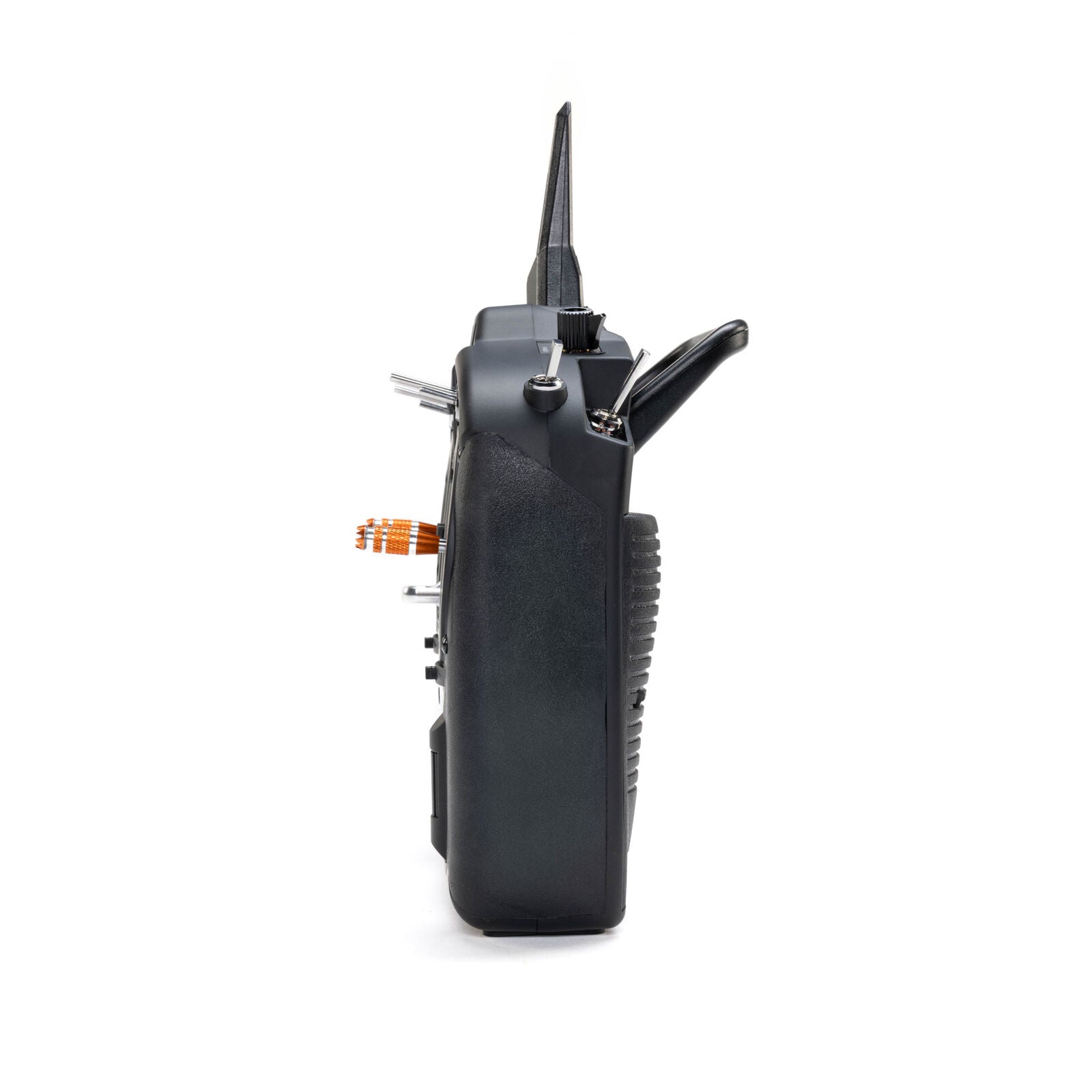

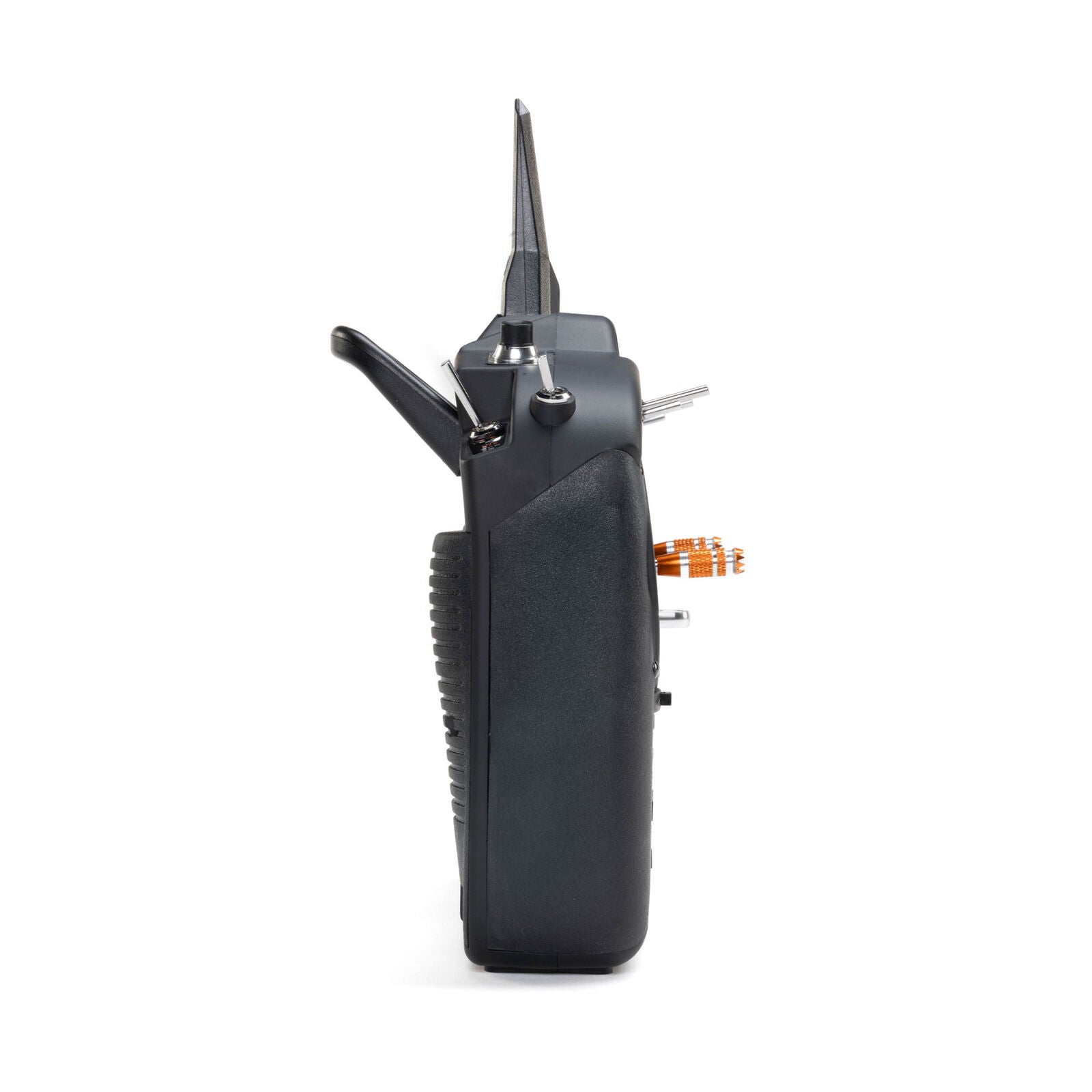

Spektrum NX8+ 20-Channel DSMX Transmitter

With the Spektrum NX8+, you'll enjoy the 20-channel versatility needed to operate your models to their fullest potential and to fly complex aircraft such as EDF jets. And that's just where its next-generation "NX" series advantages begin. The NX8+ also incorporates many of the latest exclusive Spektrum innovations for a level of ease, efficiency and performance discerning pilots demand. Now with USB-C.

In the Box

Spektrum NX8+ 20-Channel DSMX Transmitter x1
2200mAh Li-ion Transmitter Battery and Cable for USB Charging x1
NX8+ Transmitter Neck Strap x1
NX8+ Sticker Sheet x1
Product Manual x1

Needed to Complete

Compatible Spektrum Receiver x1

Features

Custom sound support and voice alerts
Logic switches
Easy roller-wheel scrolling interface with Clear, Back and Function buttons
Aeroplane, sailplane, multirotor and helicopter programming
24 programmable mixes, 8 sequencers and up to 10 different flight modes
250-model memory
Superb ergonomics optimised for comfort and precise, fatigue-free control
Integrated serial port for supporting third-party modules. Note: Does not provide power; an external power source is required

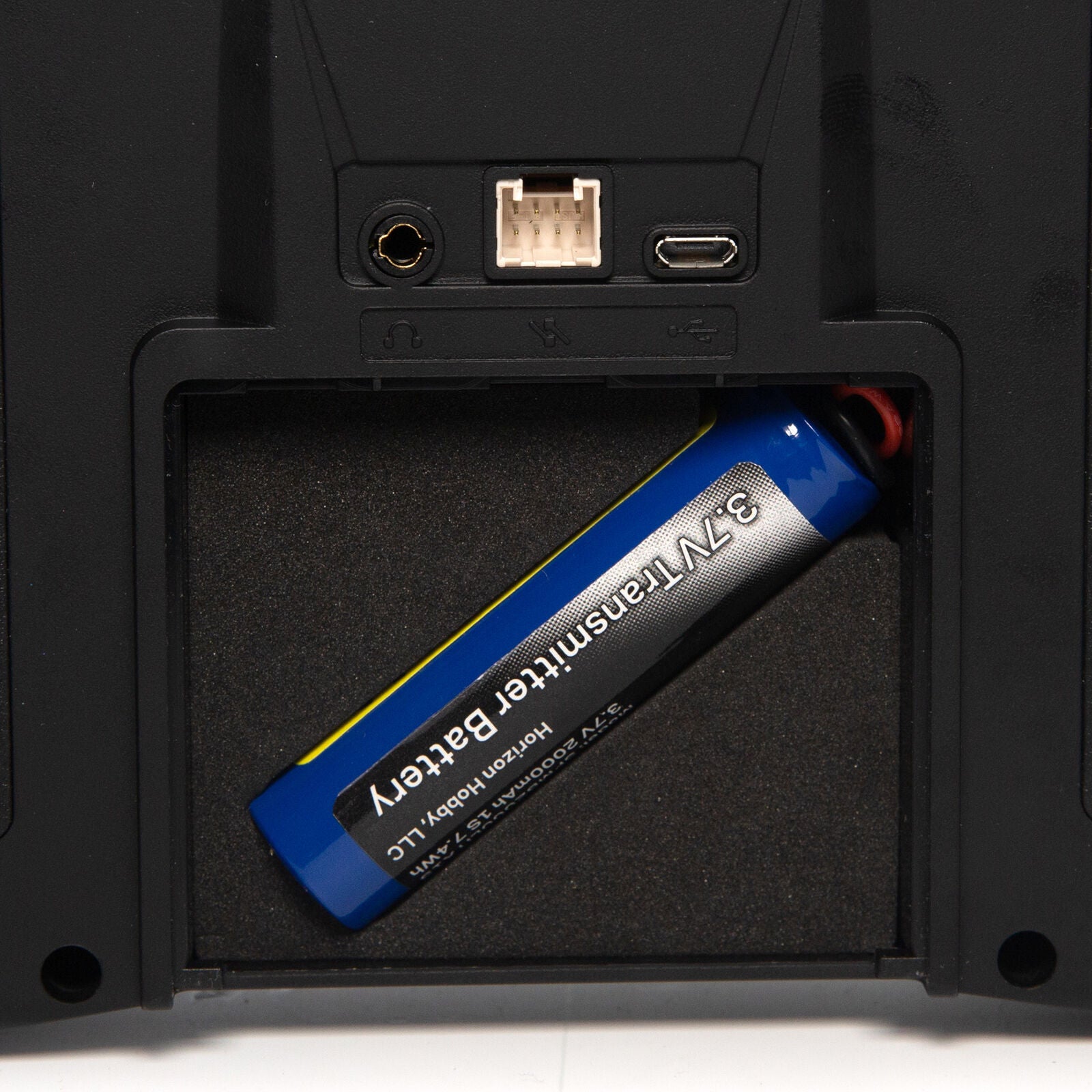

3.7V 2200mAh 1S lithium-ion transmitter battery and a USB cable for convenient USB charging

More Information

Out of the box, the NX8+ is compatible with Smart Technology. It comes ready to support your Spektrum Smart batteries and Smart Avian ESCs so you can receive essential telemetry data right at your fingertips in real time. The NX8+ radio's Wi-Fi connectivity adds even more convenience. In addition to completing product registration straight from the transmitter, you'll be able to download firmware updates instantly. Additionally, the transmitter features new programming such as Logic switches, AS3X+ forward programming and innovative Smart Model File loading from the receiver. It's a totally modern user experience.

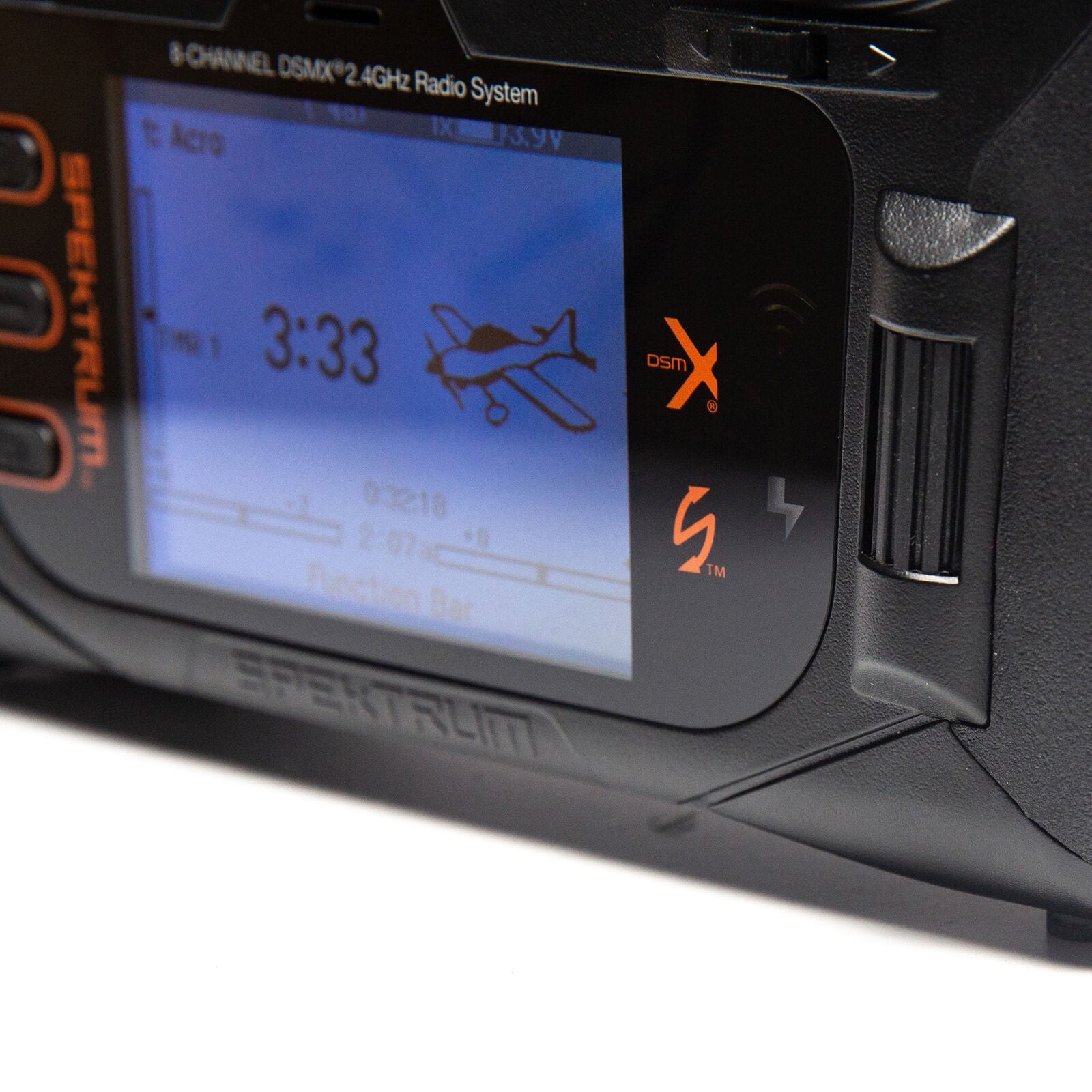

More proven Spektrum radio expertise can be found in the NX8+ transmitter's ergonomic design. The contours, balance and control positions combine to increase the accuracy of your inputs and provide unparalleled comfort. An easy-to-use roller wheel interface and easy-to-read menus simplify programming. The large 81 mm (3.2") colour display also presents telemetry information in crisp, clear, high-resolution detail and lets you choose from multiple colour palettes — or create your own. Even a long-lasting, rechargeable 1S 2200mAh Li-ion transmitter battery and USB cable for convenient USB charging are included.

Specifications

Application: Airplane/Helicopter/Sailplane/Multirotor
Audio: Alarms and Tones, Preconfigured Callouts
Band: 2.4GHz
Battery: Included
Channels: 20
Colour Screen: Yes
Data Port: Yes
Failsafe: Yes
Flight Log Compatible: Yes
Frame Rate: 22ms, 11ms
Gimbal Type: Quad-Bearing Potentiometer
Input Voltage: 3.7V
Left/Right-Hand Operation: No
Model Memory: 250
Modes: User-Selectable Modes 1–4
Modulation: DSMX
Operating System: Spektrum Airware
Programmable: Yes
Range: Full
Rate Positions: 3 POS
Receiver: Sold Separately
Resolution: 2048
SD Card/Airware Capable: Yes
Serial Port: No
Technology: Voice Alerts, Smart Transmitter File
Telemetry: Yes
Touchscreen: No
Transmitter Battery Type: 3.7V 1S 2200mAh Li-ion
Wi-Fi: Yes
