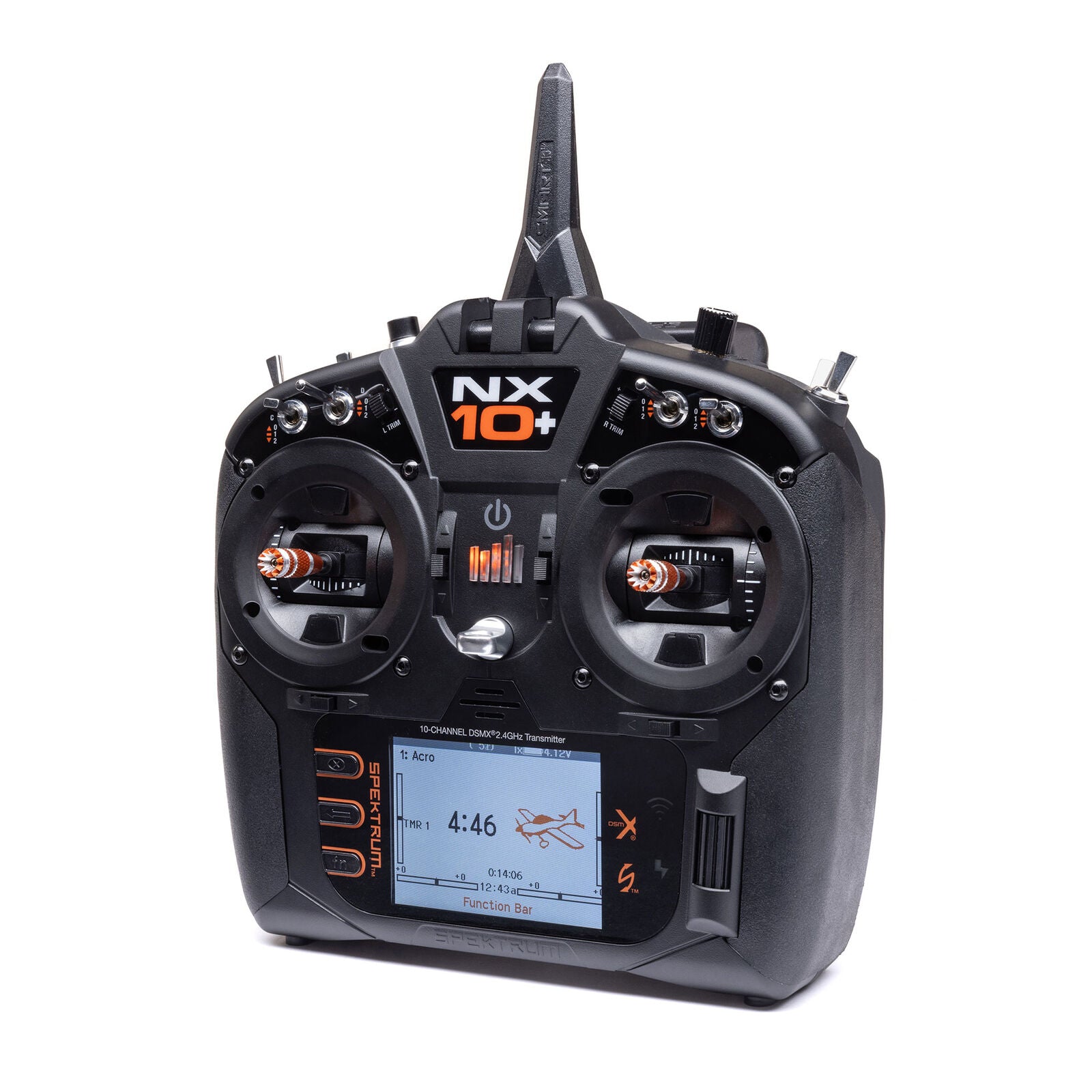

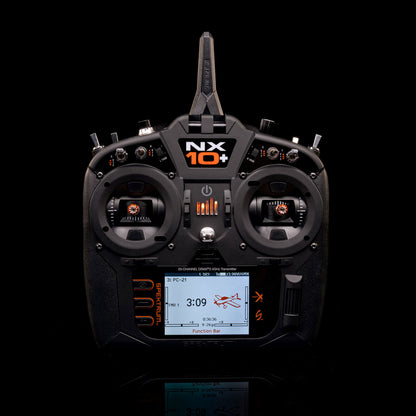

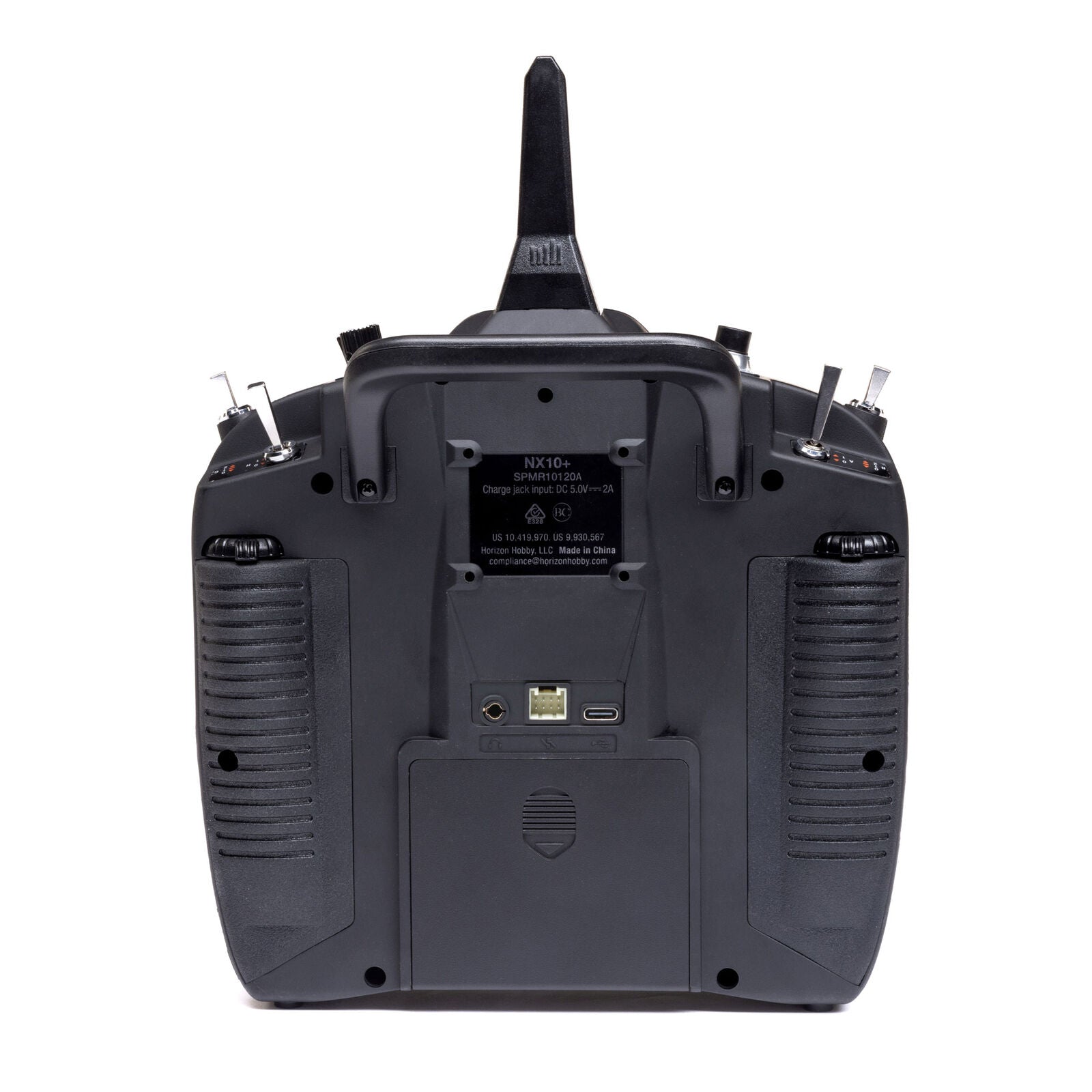

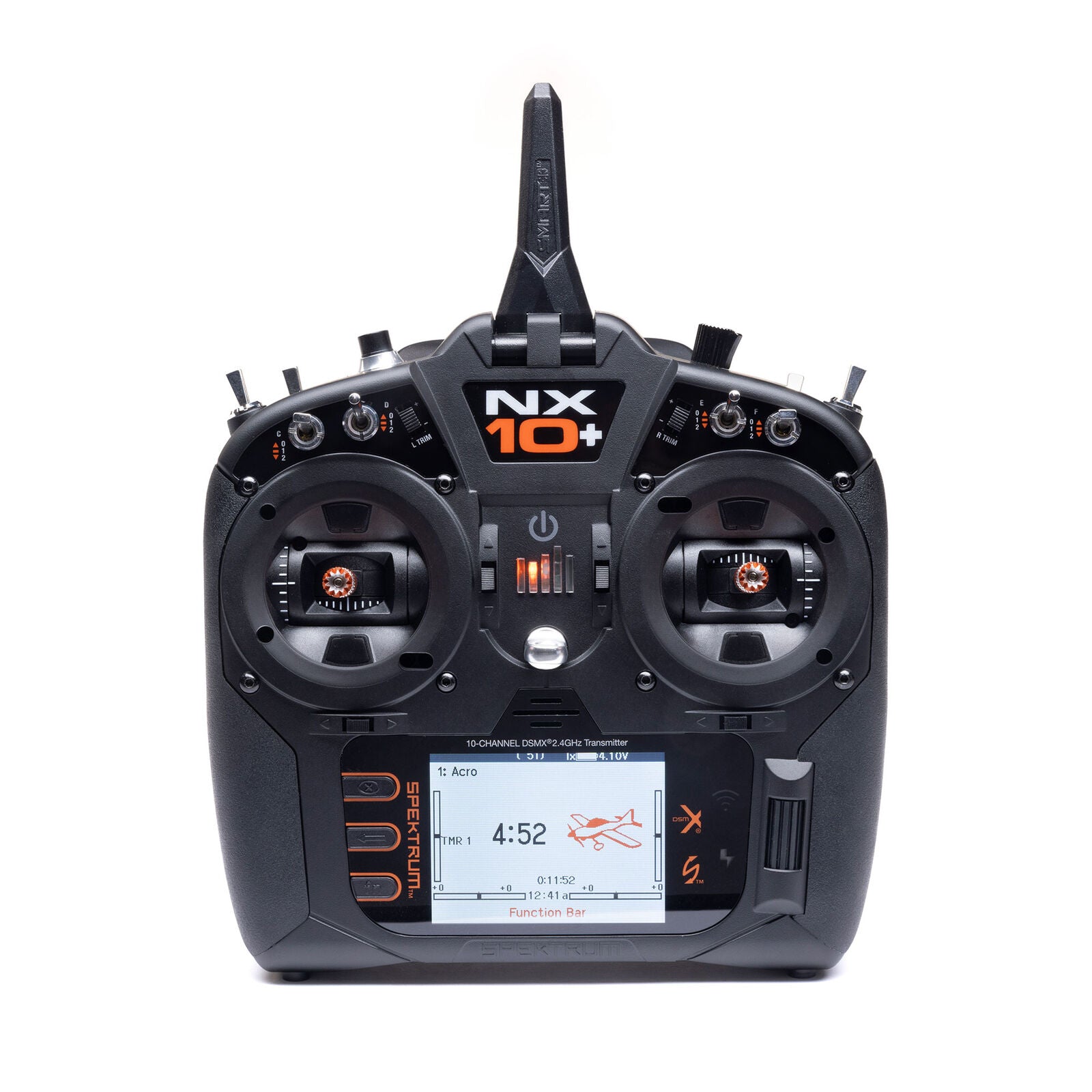

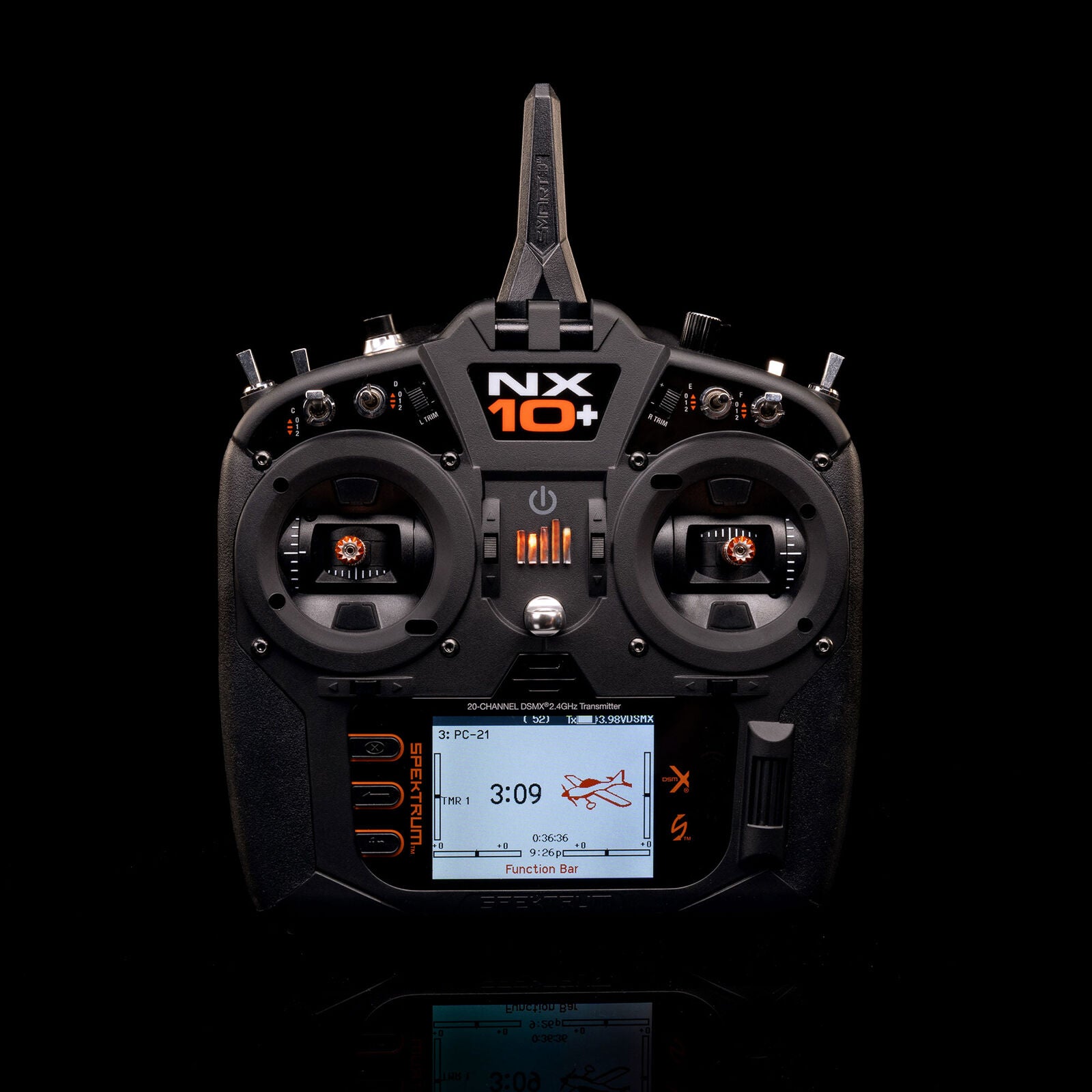

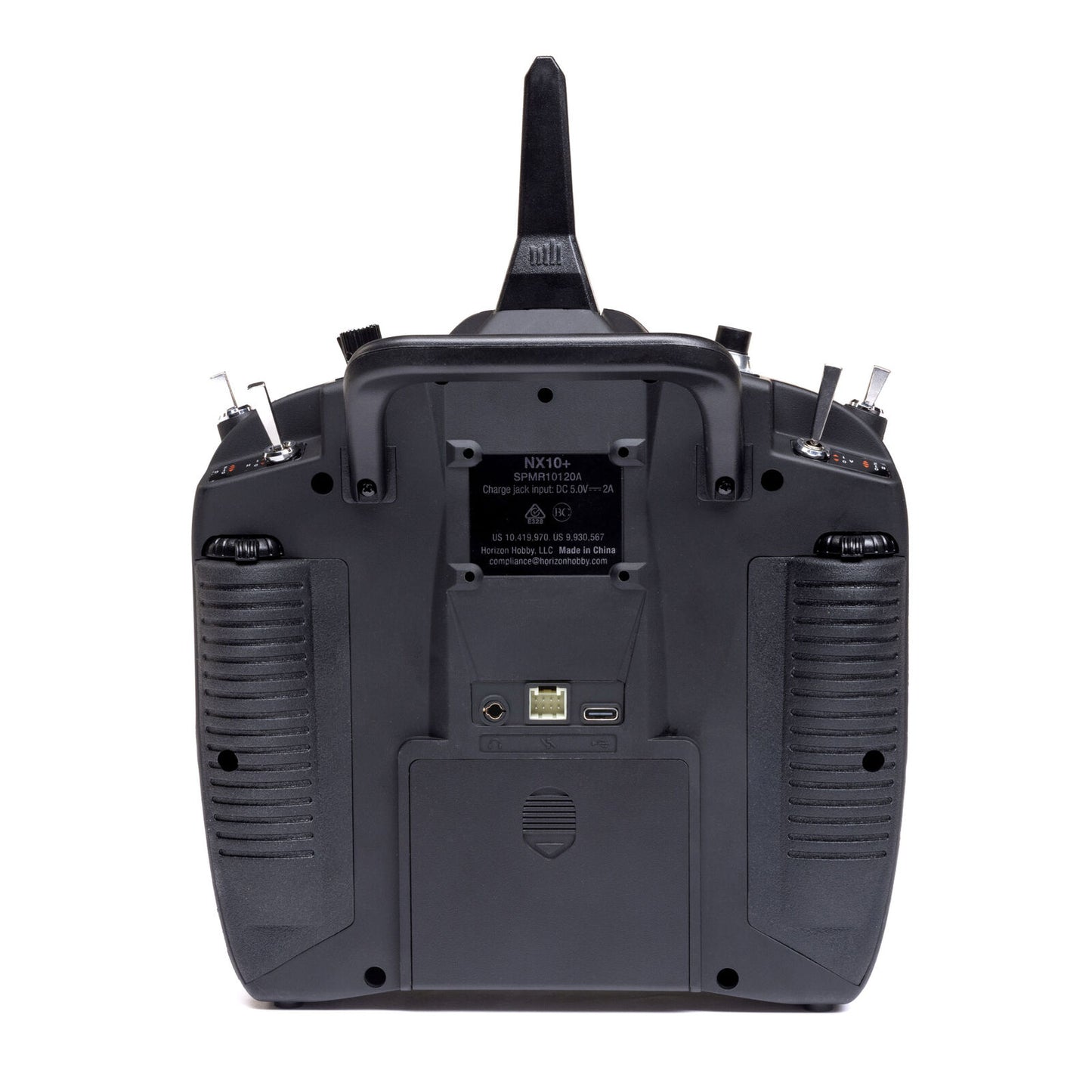

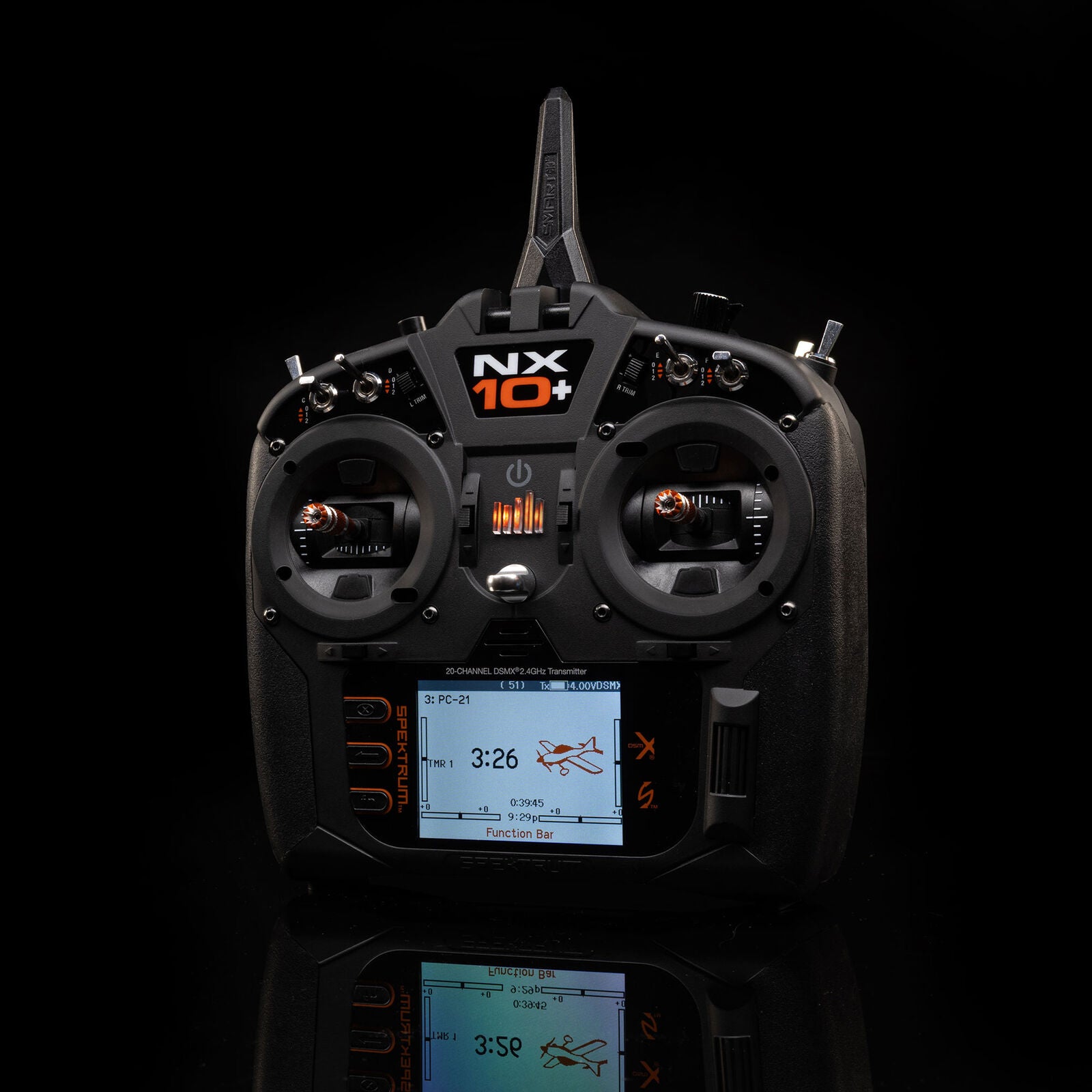

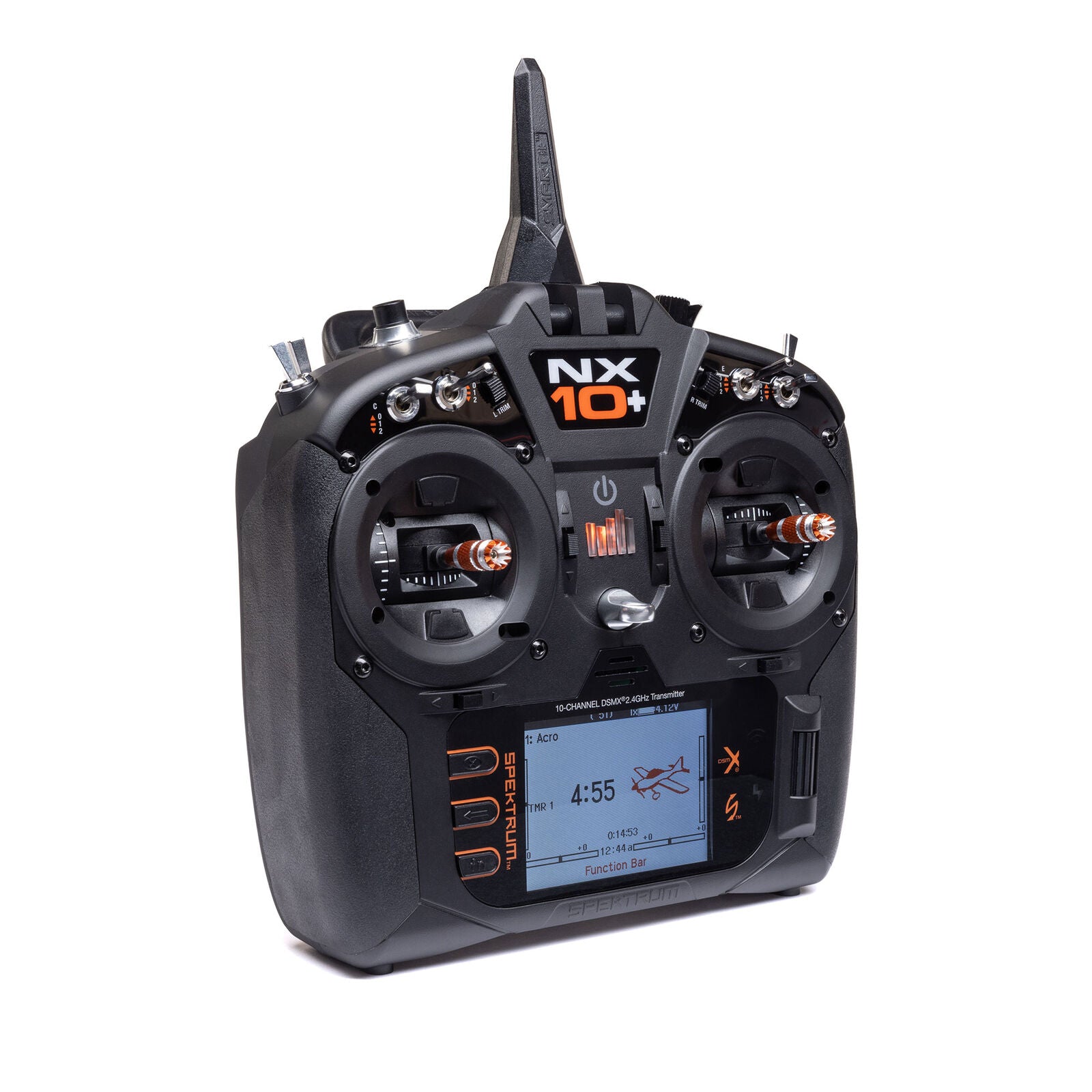

Spektrum NX10+ 20-Channel DSMX Transmitter

Spektrum is proud to introduce the latest leap forward in Spektrum RC technology — the NX+ Series of aircraft transmitters. These transmitters are currently equipped with the greatest Spektrum RC flight innovations, new features, and advances that will take you into the next generation of radio control. With the Spektrum NX+ series, you'll enjoy the versatility needed to operate your models to their fullest potential and to fly complex aircraft like EDFs and giant-scale balsa aeroplanes. That's just where the next-generation NX10+ advantage begins. The NX10+ also incorporates many of the latest exclusive Spektrum innovations for a level of ease, efficiency, and performance that discerning pilots demand. Now with USB-C.

In the Box

Spektrum NX10+ 20-Channel DSMX Transmitter x1
6600mAh Li-ion Transmitter Battery with a Magnetic USB Cable and USB-C Adaptor for USB Charging x1
NX10 Transmitter Neck Strap x1
NX10+ Sticker Sheet x1
Product Manual x1

Needed to Complete
Compatible Spektrum receiver x1

Features

Hall-effect gimbals
Custom sound support and voice alerts
Logical Switches, High Precision Mixing, Combo Switch, Origin Mixing and Multi-Engine Support
Easy roller-wheel scrolling interface with Clear, Back and Function buttons
USB port for battery charging, USB data transfer and simulator control
Superb ergonomics optimised for comfort and precise, fatigue-free control
Integrated serial port for supporting third-party modules
3.7V 6600mAh 1S lithium-ion transmitter battery and a USB cable for convenient USB charging

More Information

Out of the box, the NX10+ is compatible with Smart Technology. It comes ready to support your Spektrum Smart batteries and Smart Avian ESCs so you can receive essential telemetry data at your fingertips in real time. The NX10+ radio's Wi-Fi connectivity adds even more convenience. In addition to completing product registration straight from the transmitter, you can download firmware updates instantly. Additionally, the transmitter features AS3X+ forward programming and the latest innovative Smart Model File loading from the receiver. It's a modern user experience.

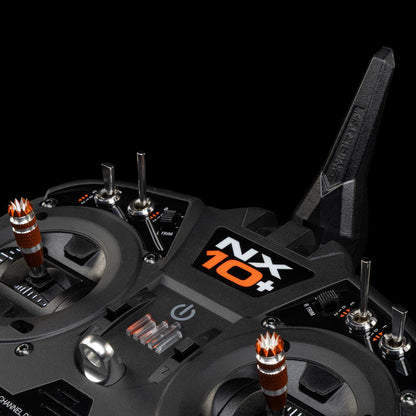

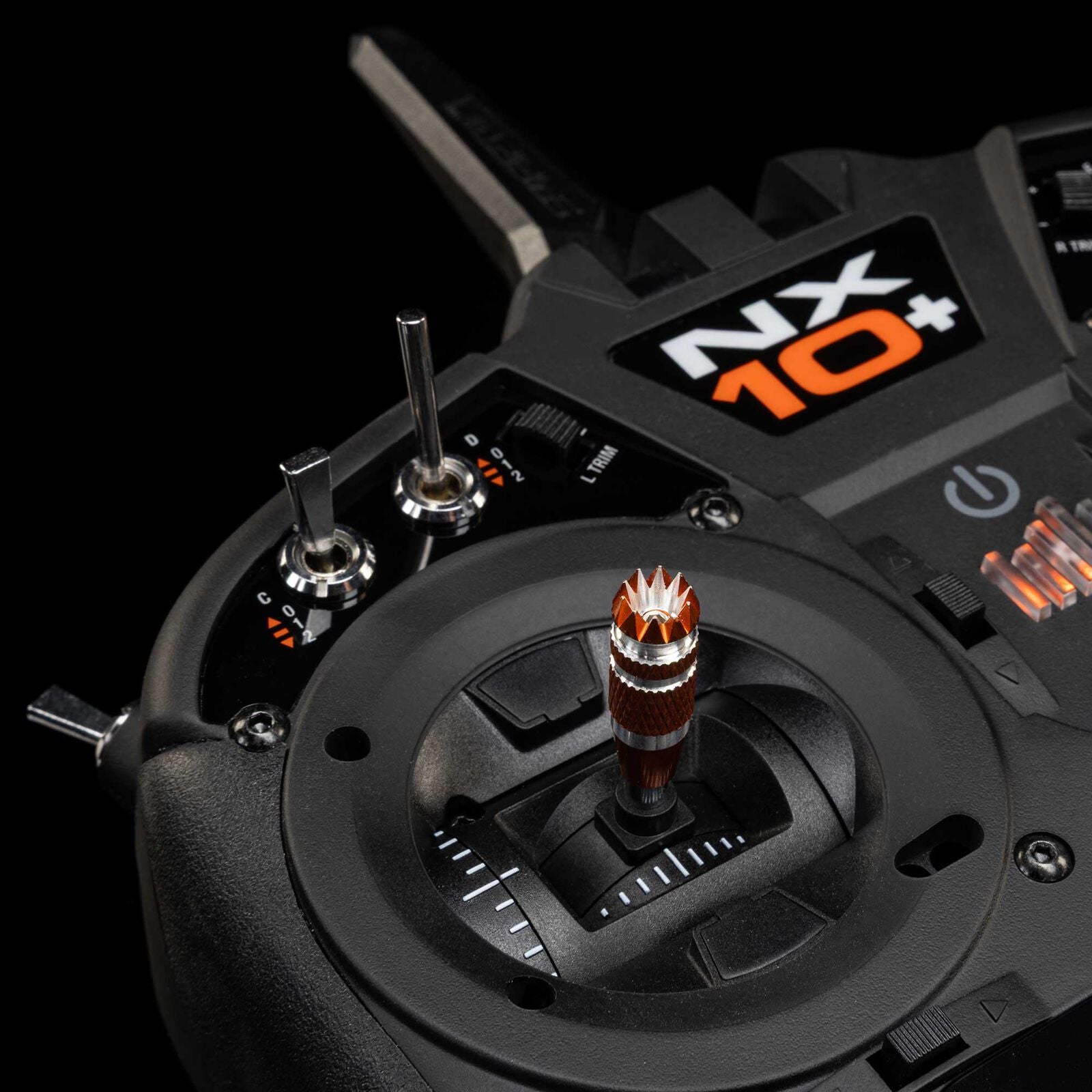

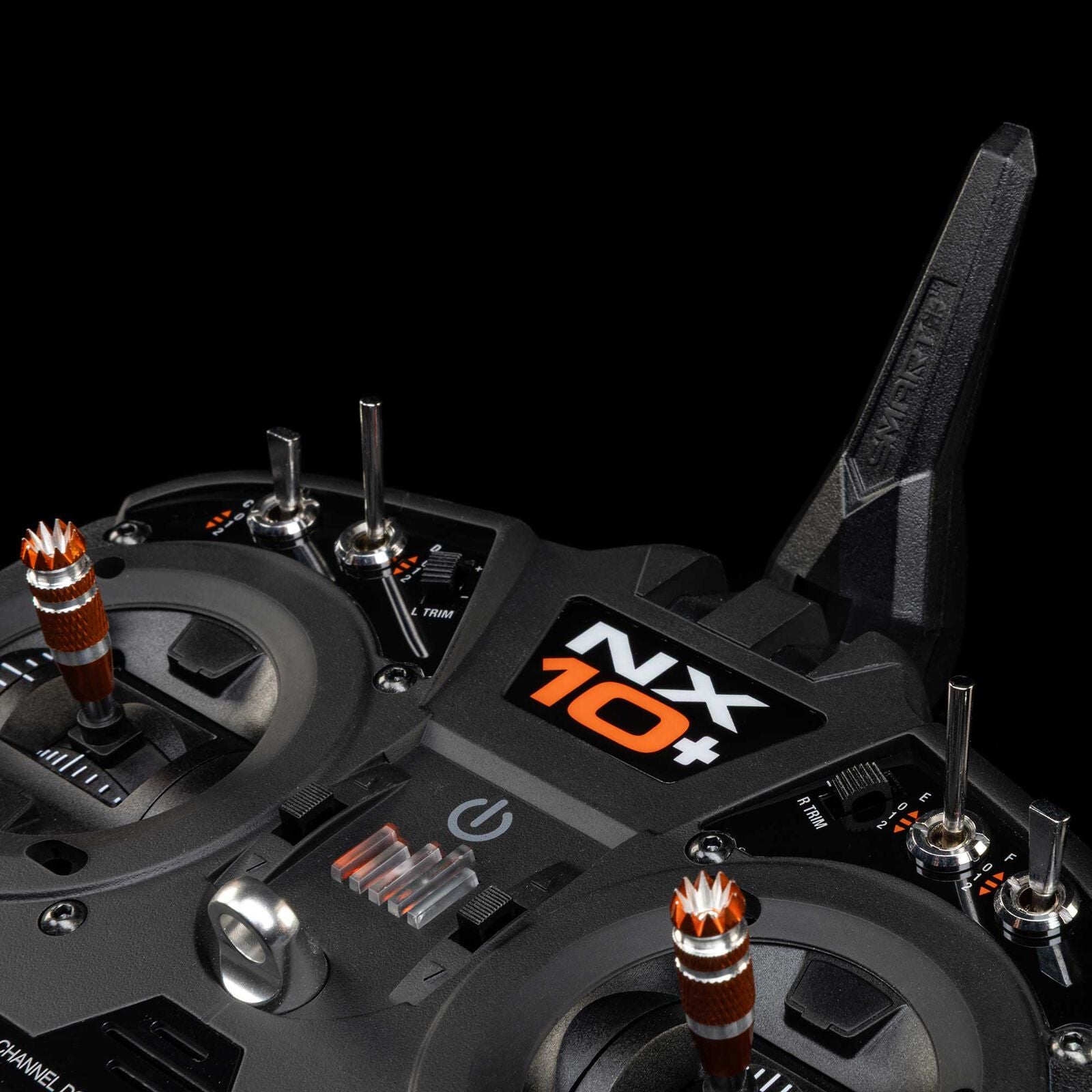

More proven Spektrum radio expertise can be found in the NX10+ transmitter's ergonomic design. The contours, balance and control positions combine to increase the accuracy of your inputs and provide unparalleled comfort. Hall-effect sensor gimbals offer long-lasting precision with an ultra-smooth feel that's adjustable from the front of the transmitter. An easy-to-use roller wheel interface simplifies programming, with a large 81 mm (3.2") colour display to make menus easy to read. Even a rechargeable 1S 6600mAh Li-ion transmitter battery, magnetic USB cable and USB-C adaptor for convenient USB charging are included.

From its brilliantly designed display to the Wi-Fi connectivity plus built-in Smart Technology support, the NX10+ gives experienced pilots access to a wide array of Spektrum-exclusive advantages and innovations. Fly your aircraft with next-level control — choose the 20-channel NX10+ transmitter from Spektrum.

Specifications

Application: Airplanes, Helicopters, Sailplanes, Multirotors
Audio: Alarms and Tones, Preconfigured Callouts
Band: 2.4GHz
Bind Method: Bind Button
Channels: 20
Data Port: Yes
Failsafe: Yes
Flight Log Compatible: Yes
Frame Rate: 11ms, 22ms
Gimbal Type: Hall Effect
Input Voltage: 3.7V
Model Memory: 250
Modes: User-Selectable Modes 1–4
Modulation: DSMX
Operating System: Spektrum Airware
Product Height: 140 mm (5.5")
Product Length: 305 mm (12")
Product Weight: 454 g (16 oz)
Product Width: 236 mm (9.3")
Programmable: Yes
Receiver: Sold Separately
Resolution: 2048
SD Card/Airware Capable: Yes
Technology: Smart, Voice Alerts, Smart Transmitter File
Telemetry: Yes
Transmitter Battery Type: 3.7V 6600mAh Li-ion
Wi-Fi: Yes
