Spektrum

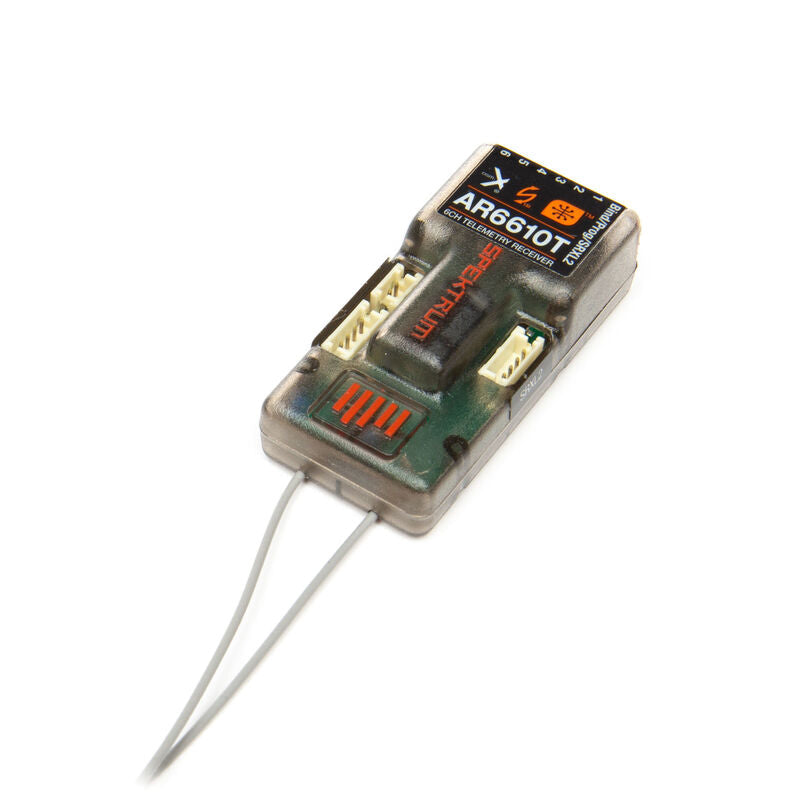

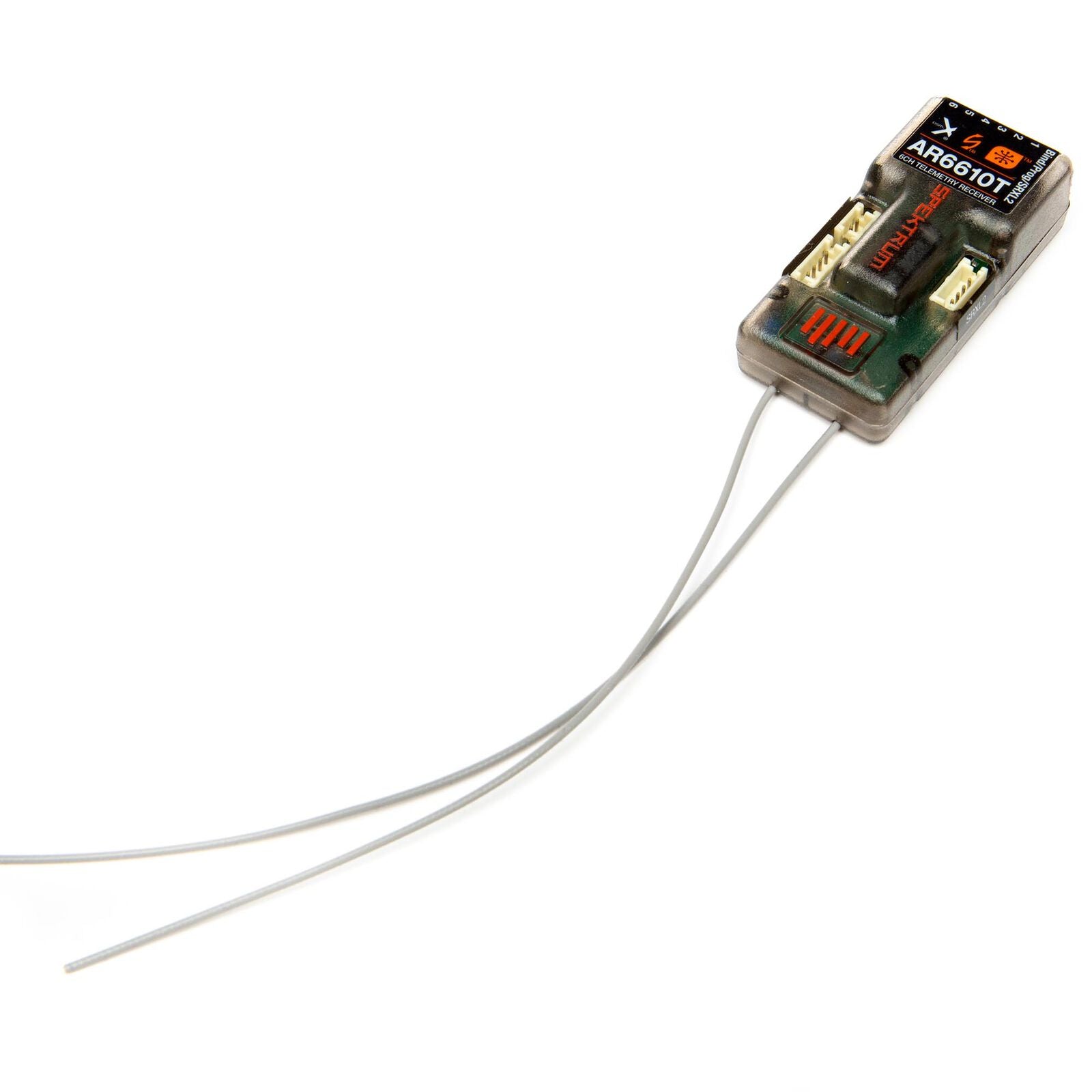

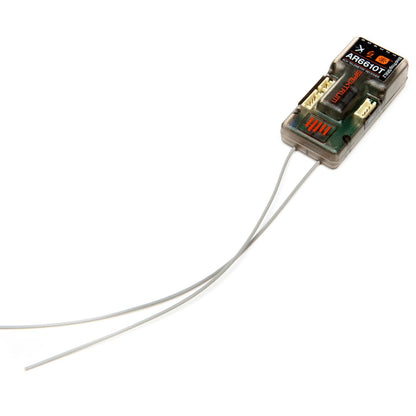

Spektrum AR6610T DSMX 6-Channel Telemetry Receiver
Spektrum AR6610T DSMX 6-Channel Telemetry Receiver
SKU:SPMAR6610T
Share
The Spektrum AR6610T is a sleek, full-range 6-channel DSMX/DSM2 telemetry receiver designed for high-performance aircraft. With integrated barometric altitude/variometer telemetry, Smart Throttle capability, SRXL2 redundancy, and dual external antennas, it combines cutting-edge features into a compact footprint suitable for park flyers to high-performance models.
Features
- Full-range telemetry with built-in barometer for altitude and variometer data
- Smart Throttle support—ESC can send voltage and current data via the throttle port
- Compatible with Spektrum DSMX and DSM2 transmitters
- Dual diversity external antennas (155 mm and 186 mm) for reliable signal coverage
- SRXL2 port enables optional remote receiver for RF path redundancy
- Forward Programming allows configuration directly from a compatible transmitter
- Bind button lets you bind without needing a plug
- High-speed input-to-output response—great for 3D and high-performance models
What's Included
- AR6610T 6-Channel Telemetry Receiver
- Product Manual
Needed to Complete
- Spektrum telemetry-capable DSMX/DSM2 transmitter
- Servo extension(s) if the bind button is hard to access
Specifications
- Application: Aircraft
- Band: 2.4 GHz (DSMX / DSM2)
- Channels: 6
- Input Voltage: 3.5–9 V
- Telemetry: Full range – integrated barometric variometer/altitude
- Smart Features: Smart Throttle via throttle port
- Remote Receiver Port: SRXL2
- Forward Programming: Yes
- Bind Method: Button
- Resolution: 2048
- Range: Full
- Antenna Lengths: 155 mm and 186 mm
- Dimensions (L × W × H): 49.8 × 23.3 × 15.0 mm
- Weight: 12 g
- Failsafe: Yes
