Spektrum

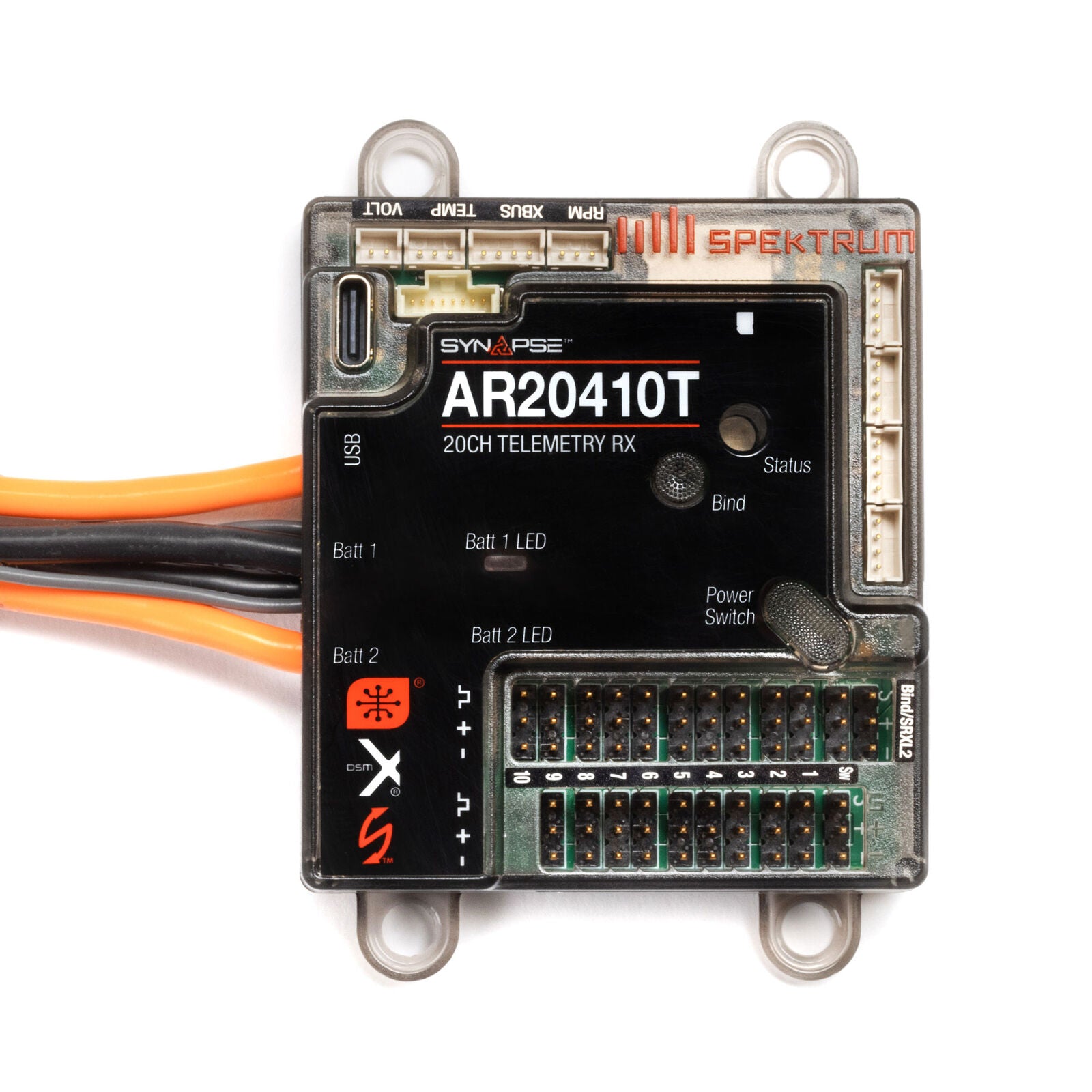

AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ SAFE
AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ SAFE
SKU:SPMAR20410TS
Share
The Spektrum AR20410T 20-Channel PowerSafe receiver with Synapse AS3X+ and SAFE stabilisation module is a full-range aircraft receiver designed for large and high-performance models, including turbine and giant-scale aircraft. It features a redundant dual battery PowerSafe system for reliable high-current operation and integrates advanced AS3X+ stabilisation with SAFE functionality through the Synapse module. Full telemetry support provides real-time data including voltage, altitude and system performance, with additional expansion options for sensors and logging.

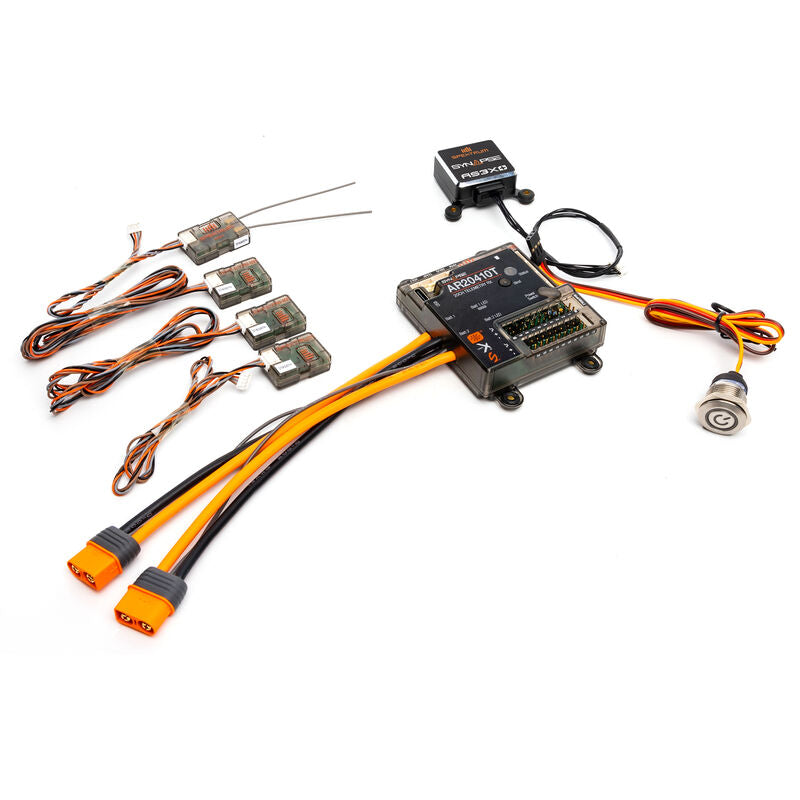

Included
Spektrum AR20410T 20-Channel PowerSafe Receiver x1

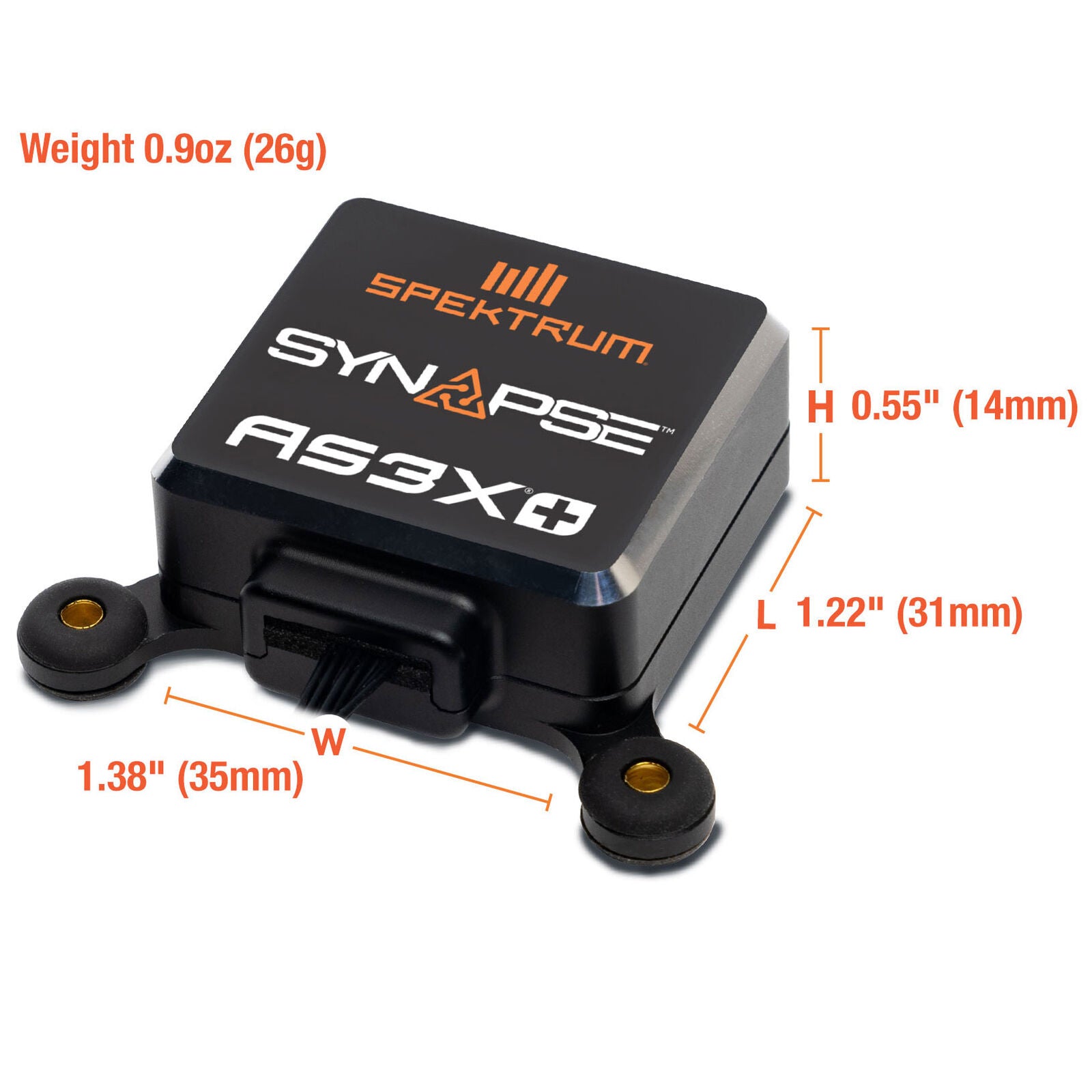

Synapse AS3X+ and SAFE Stabilisation Module x1
SPM4651T SRXL2 Remote Serial Telemetry Receiver x1
SPM9747 SRXL2 DSMX Remote Receivers x3
SRXL2 Remote Receiver Extension 152mm x1
SRXL2 Remote Receiver Extension 305mm x1
SRXL2 Remote Receiver Extension 610mm x1
SRXL2 Remote Receiver Extension 914mm x1
IC3 Battery Connectors x2
Charge Receptacles x2
Aircraft Telemetry Voltage Sensor x1
Soft Switch x1
Mounting screws x3
Instruction manual x1
Features
20-channel full-range DSMX receiver for large aircraft applications.
PowerSafe dual battery redundancy system supports high current loads up to 35A continuous.
Integrated AS3X+ stabilisation via Synapse module improves flight stability and response.
SAFE technology provides flight envelope protection and recovery assistance.
Full telemetry including voltage, altitude, variometer and mAh consumption.
Integrated barometer provides altitude and vertical speed data without additional sensors.
Forward programming enables wireless setup and adjustment from compatible transmitters.
USB-C connectivity allows firmware updates and configuration.
Black box logging stores telemetry data to micro SD card for analysis.
Sleep mode allows remote power control from the transmitter.
Supports multiple remote receivers for improved signal redundancy and coverage.
Specifications
Input Voltage: 4–12.6V
Channels: 20
Frequency Band: 2.4GHz
Technology: DSMX
Telemetry: Yes
Length: 61mm
Width: 69mm
Height: 19mm
Weight: 80g
