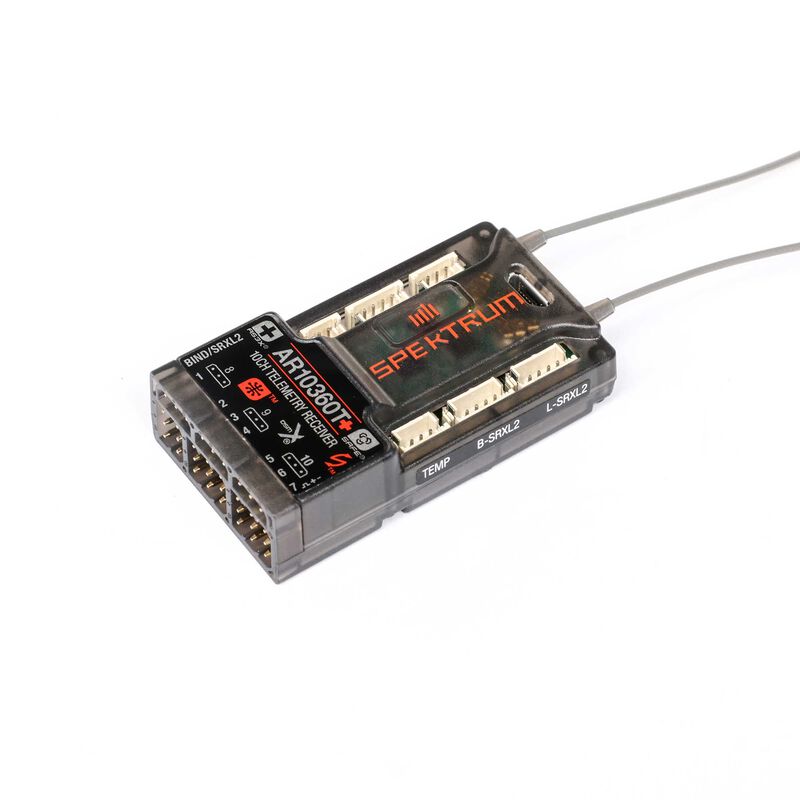

Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
SKU:SPM-1034
The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. This receiver is full-range with built-in AS3X+® and SAFE® stabilization.
In The Box
- (1) Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver

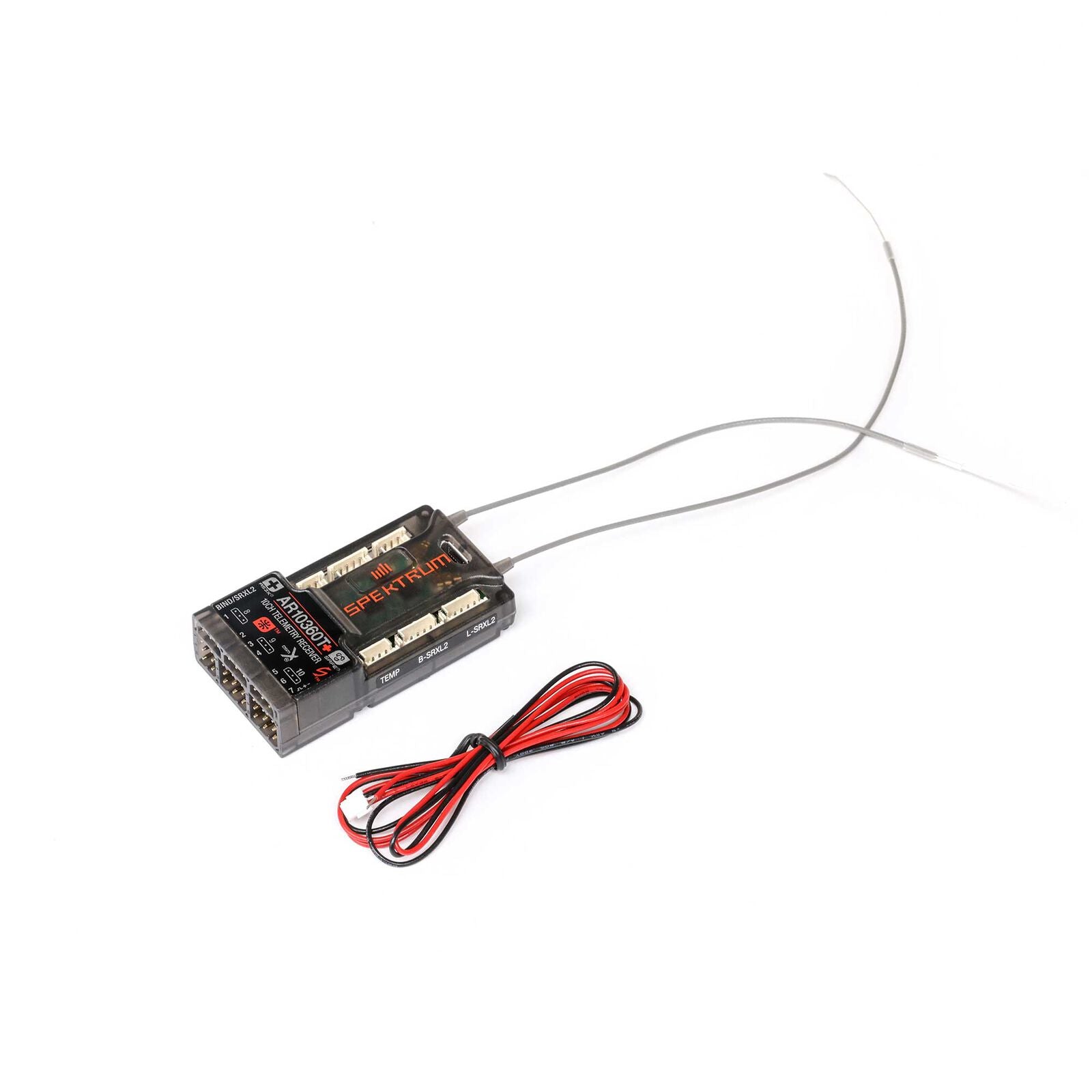

- (1) Spektrum Flight Pack Voltage Sensor
- (1) Product Manual
Needed to Complete
- (1) Telemetry Capable DSMX Transmitter
- Servo Extension(s) May Be Required
Built-in AS3X+ stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro
Exclusive flight control software tuned by expert RC pilots
Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase
Smart Transmitter Model File Download support
Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application
Downloads
Setup Sheet
Spektrum Smart Receiver Preset Download
Features
- Compatible with all Spektrum DSM2 and DSMX transmitters
- AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
- Compact footprint fits most parkflyer size, sport class, and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need for additional sensors

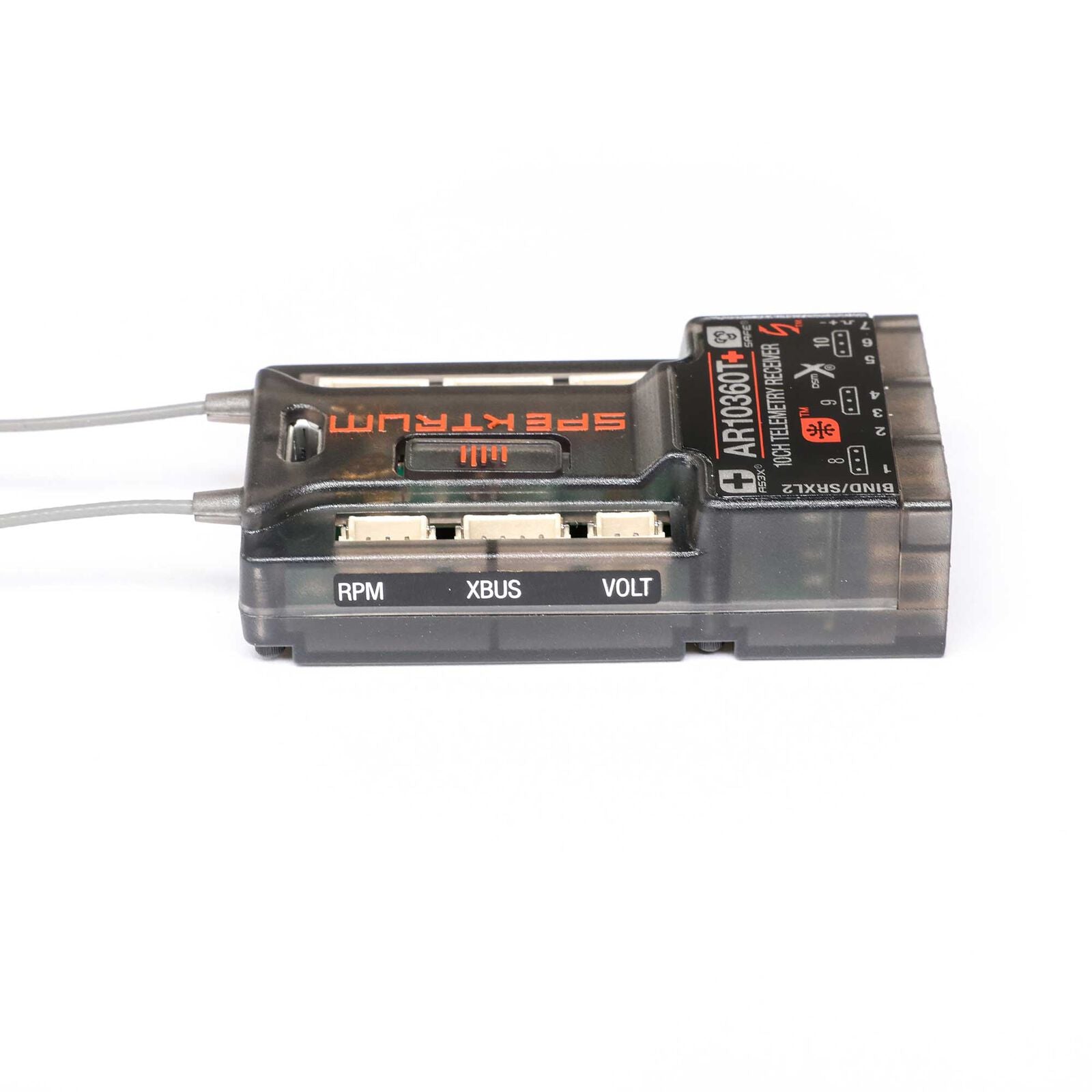

- VOLT, RPM, and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
- XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy, and more
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
- End pin output pins for easy and compact installation
- Forward Programming capable of setting individual failsafe parameters per channel, programming AS3X+ and SAFE parameters, and more
- Micro USB port for firmware updating and model setup sharing capability
NEXT GENERATION IN FLIGHT STABILIZATION
The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes, including the first flight tuning.
Key AS3X+ improvements include:
- Stop Lock and Release Rate parameters
- Heading Hold improvements
- Improved gryo filtering
- Canard and Thrust Vectoring Support
SMART TRANSMITTER MODEL FILES SUPPORT
Smart Transmitter Model Files is a new feature on the AR10360T+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.
Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.
FORWARD PROGRAMMING
You can fully configure the AR10360T+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments. Setup everything from AS3X+ and SAFE to individual failsafe parameters right from your fingertips.
SAFE® TECHNOLOGY
SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.
SMART TELEMETRY
Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.
SAFE® PANIC RECOVERY
Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

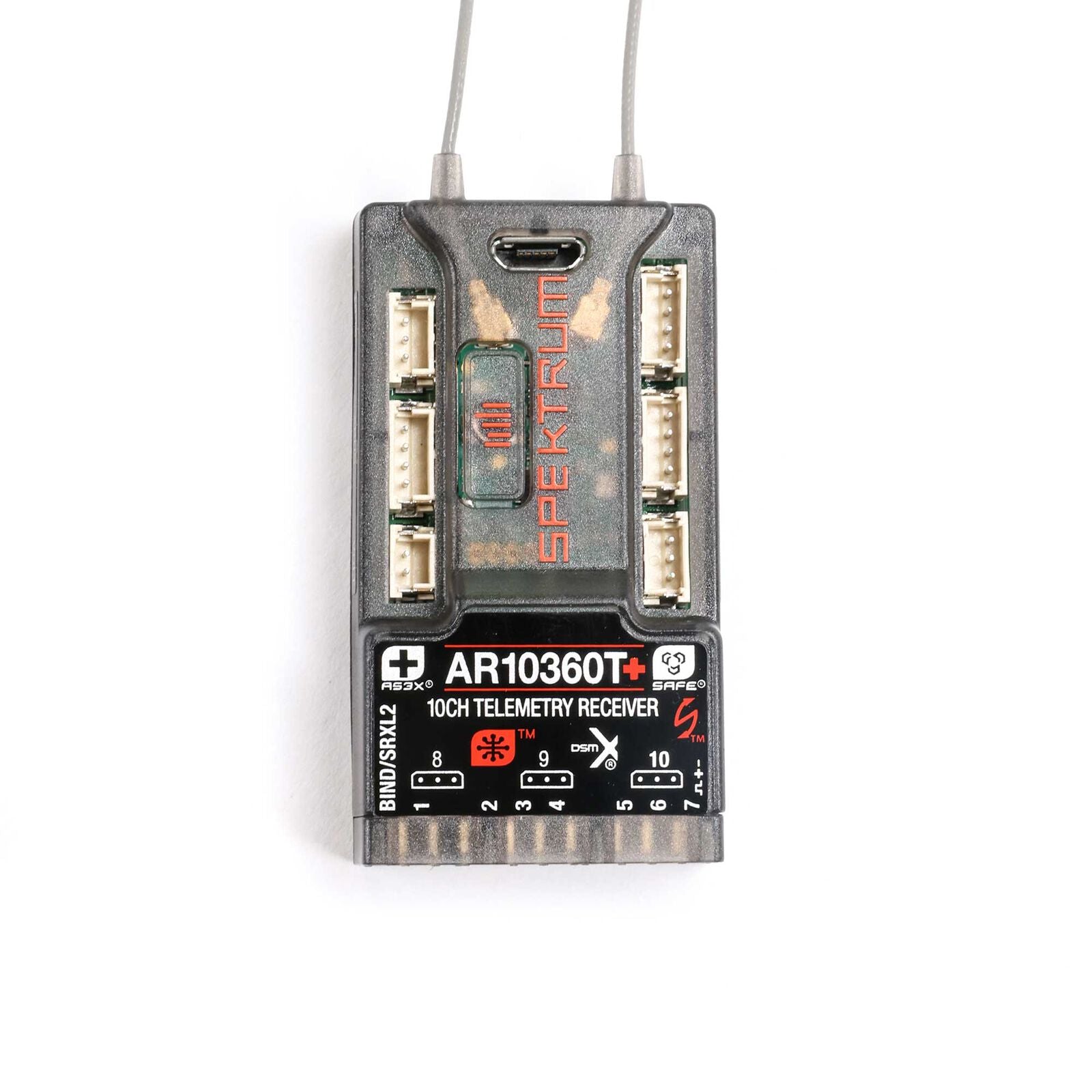

MICRO USB PORT
The AR10360T+ features a convenient Micro USB port for updating and model setup sharing. Using a common Micro USB Cable (not included) and the latest version of the Spektrum PC Programmer, users can update the main receiver and any remote receivers currently attached to it. Also, with the AR10360T+, pilots can easily export, share, and upload AS3X+ and SAFE-enabled model presets.
The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T+ is a full-range 10-channel receiver with built-in AS3X+® and SAFE® stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.

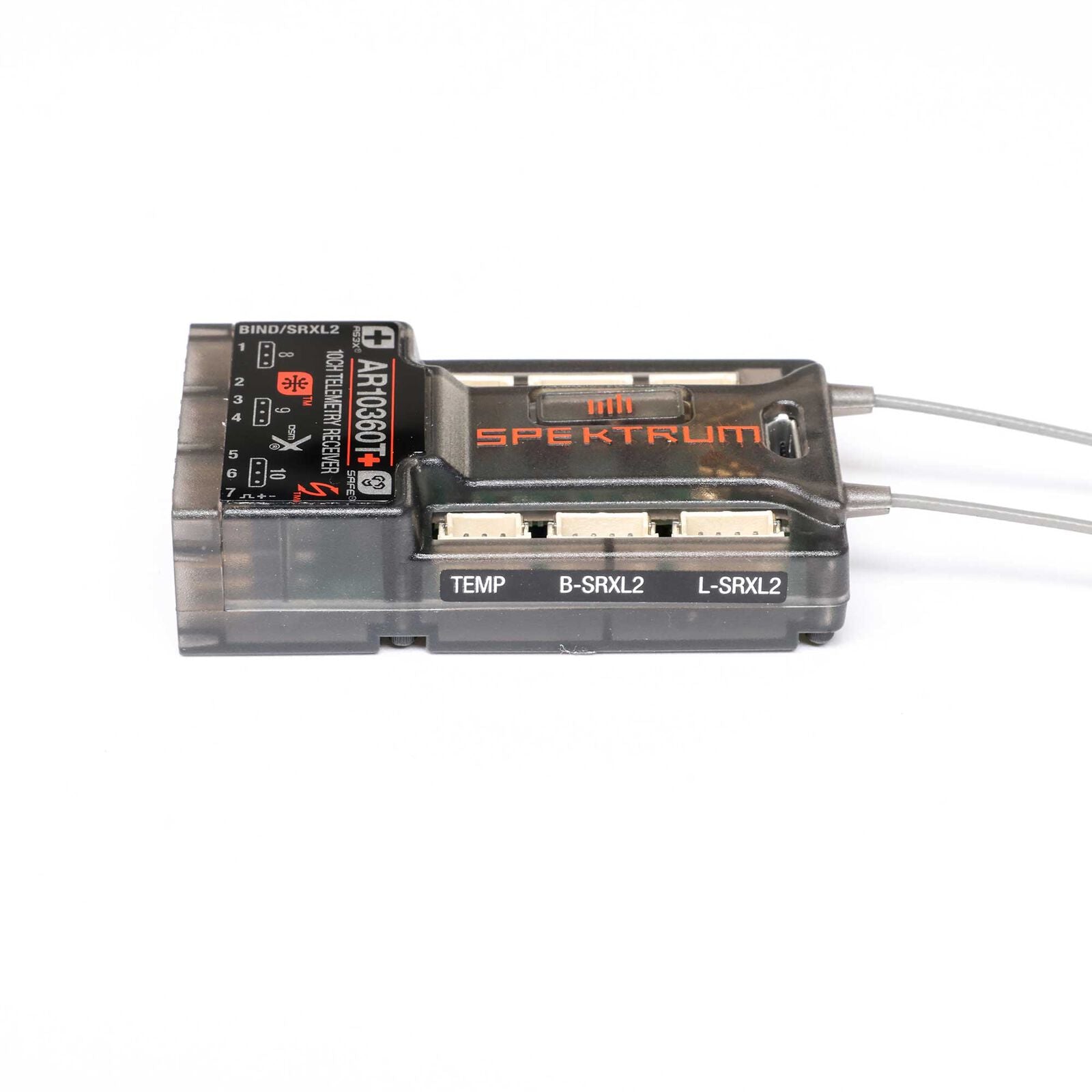

The AR10360T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features two SRXL2 ports for SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plus, or connect a battery. The AR10360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Model Files allows BNF models to be stored on the receiver to automatically set the model at bind. The AR10360T+ also features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application.
Go to www.spektrumrc.com for the latest receiver updates.
