S7110 Low Profile Servo Winch 1/10 Rock Crawlers
S7110 Low Profile Servo Winch 1/10 Rock Crawlers
SKU:SPMSS7110
Share

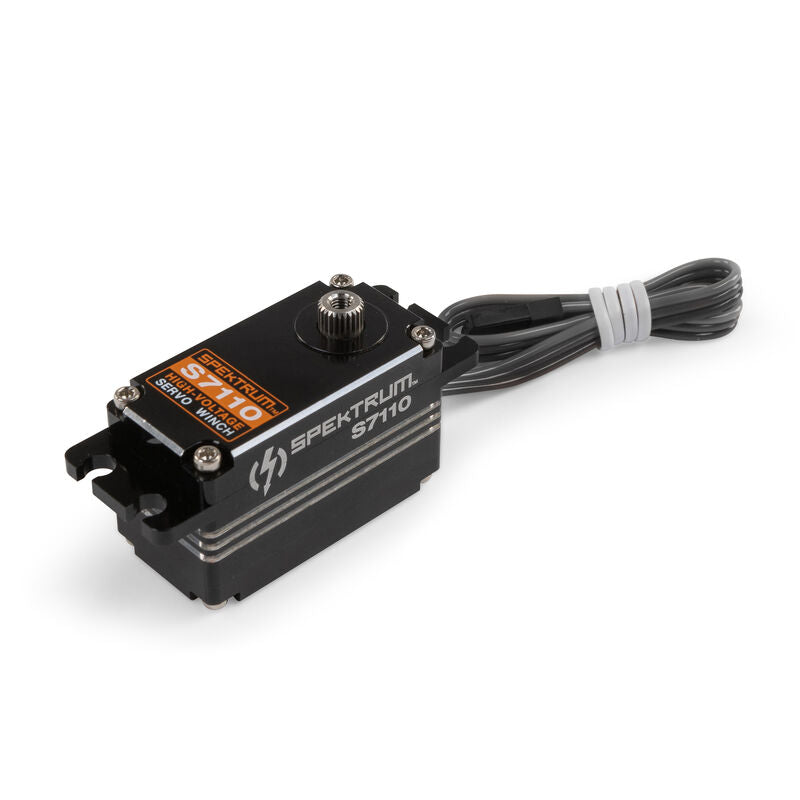

Spektrum S7110 Low Profile Servo Winch is a digital high-voltage servo winch for 1/10 scale rock crawlers and scalers. It uses a brushless motor, metal gears, ball bearing support, an aluminium case and a 25-tooth output shaft, with 360-degree continuous rotation and rated torque up to 13.0 kg-cm (180 oz-in) at 8.4 V.
Included
(1) S7110 High Voltage Servo Winch
(1) Scale recovery hook
(1) Aluminium spool
(1) 2.13 m (7 ft) fibre line
Features
Designed for 1/10 scale rock crawlers and scalers
Brushless motor
Metal internal gears
Ball bearing supported drivetrain
Aluminium servo case for heat dissipation
Built-in brushless controller
Waterproof design
25-tooth output shaft
Includes fibre line and scale recovery hook
Specifications
Application: 1/10 rock crawler winch
Servo Type: Digital
Servo Size Category: Low Profile
Operating Voltage: 6.0–8.4 V
Input Voltage: 6.0–8.4 V
Gear Type: Metal
Bearing: Ball bearing
Connector Type: Universal
Connector Wire Length: 190 mm (7.48 in)
Spline Count: 25-tooth
Rotation Range: 360-degree continuous
Programmable: No
Wire Gauge: 22 AWG
Length: 40 mm (1.59 in)
Width: 20 mm (0.80 in)
Height: 25 mm (0.99 in)
Weight: 57 g (2.0 oz)
Torque: 9.4 kg-cm (130 oz-in) at 6.0 V, 11.5 kg-cm (160 oz-in) at 7.4 V, 13.0 kg-cm (180 oz-in) at 8.4 V
Maximum Servo Speed: 123 rpm at 6.0 V, 155 rpm at 7.4 V
Idle Current Draw: 2 mA
Stall Current Draw: 1.6 A at 6.0 V, 1.8 A at 7.4 V, 2.0 A at 8.4 V
