Spektrum

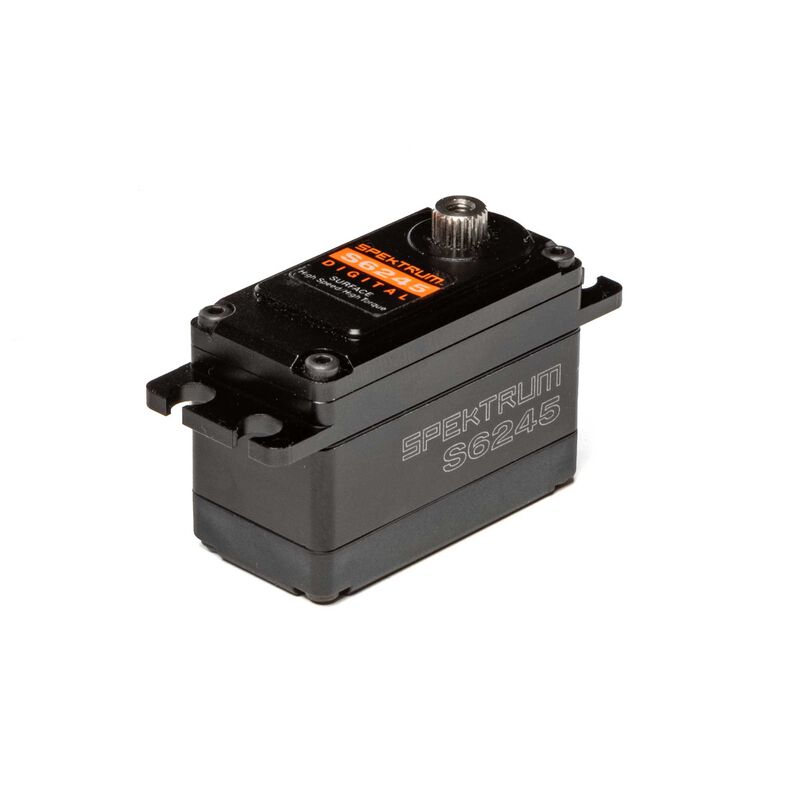

S6245 Low Profile Digital High Speed High Torque Surface Servo
S6245 Low Profile Digital High Speed High Torque Surface Servo
SKU:SPMSS6245
Share
Spektrum S6245 Low Profile Digital High Speed High Torque Surface Servo is a digital high-voltage low-profile surface servo for 1/10 scale vehicle applications. It uses a 23-tooth output shaft, a 7075 hard anodised aluminium output shaft and main gear, steel internal gears, dual main output shaft bearings and a black anodised aluminium case, with rated performance of 19.2 kg-cm (266 oz-in) torque and 0.06 sec/60° transit speed at 7.4 V.
Included
(1) Low Profile Digital High Speed High Torque Surface Servo
Features
Digital high-voltage surface servo
Designed for 1/10 scale vehicle applications
Low-profile design for space-saving installation
Black anodised aluminium case for heat dissipation
7075 hard anodised aluminium output shaft and main gear
Steel internal gears
Dual main output shaft bearings
Robust aluminium mounting tabs
23-tooth output shaft
Removable wire harness
Includes 51 mm (2 in) extension
Waterproof design
Specifications
Application: Surface
Servo Type: Digital
Servo Size Category: Low Profile
Gear Type: Metal
Material: Metal
Bearing: Dual
Operating Voltage: 6.0–7.4 V
Connector Wire Length: 51 mm (2.0 in)
Spline Count: 23-tooth
Programmable: No
Length: 41 mm (1.61 in)
Width: 20.8 mm (0.82 in)
Height: 30 mm (1.18 in)
Weight: 62.37 g (2.2 oz)
Torque: 14.8 kg-cm (206 oz-in) at 6.0 V, 19.2 kg-cm (266 oz-in) at 7.4 V
Maximum Servo Speed: 0.08 sec/60° at 6.0 V, 0.06 sec/60° at 7.4 V
