Spektrum

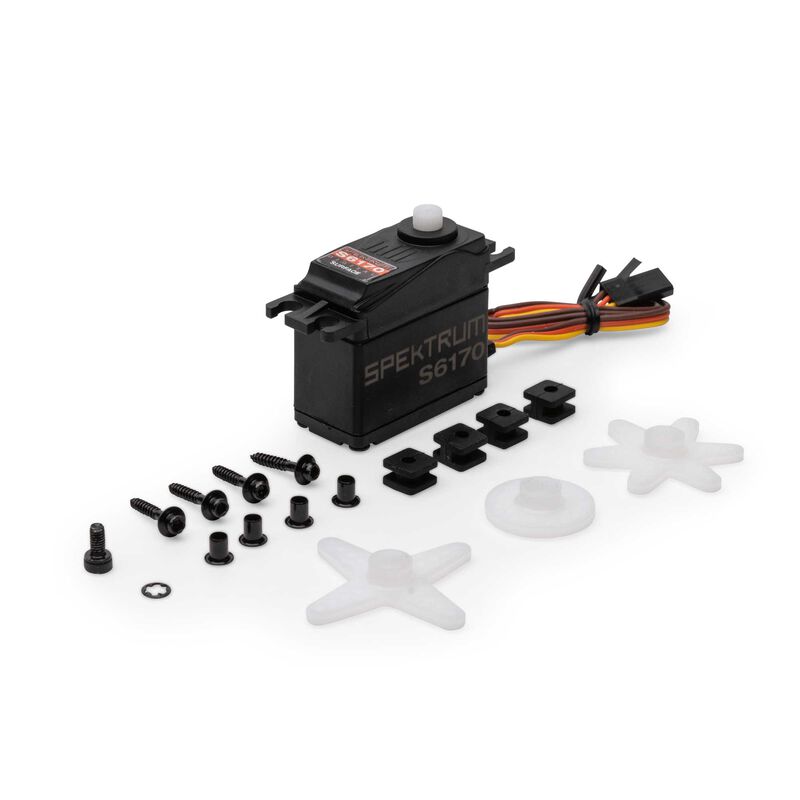

S6170 Standard Digital Surface Servo
S6170 Standard Digital Surface Servo
SKU:SPMSS6170
Share
Spektrum S6170 Standard Digital Surface Servo is a standard-size digital servo for most 1/10 2WD surface vehicle applications. It uses nylon gears, a brushed motor, a single ball bearing and a 23-tooth output spline, with rated performance of 5.8 kg-cm (80 oz-in) torque and 0.14 sec/60° transit speed at 6.0 V.
Included
(1) Spektrum S6170 Standard Digital Surface Servo
Features
Standard-size digital surface servo
Suitable for most 1/10 2WD vehicle applications
Nylon gears
Brushed motor
Single ball bearing
23-tooth output spline
Waterproof case design
Long lead for use in larger chassis
Specifications
Servo Type: Digital
Size Category: Standard
Application: 1/10 2WD surface vehicles
Gear Type: Nylon
Motor Type: Brushed
Bearing: Single ball bearing
Output Spline: 23-tooth
Operating Voltage: 4.8–6.0 V
Torque at 4.8 V: 5.0 kg-cm (70 oz-in)
Torque at 6.0 V: 5.8 kg-cm (80 oz-in)
Speed at 4.8 V: 0.17 sec/60°
Speed at 6.0 V: 0.14 sec/60°
Length: 38.4 mm (1.51 in)
Width: 18.5 mm (0.73 in)
Height: 34.5 mm (1.36 in)
Weight: 32 g (1.20 oz)
Connector Type: Universal
