Spektrum

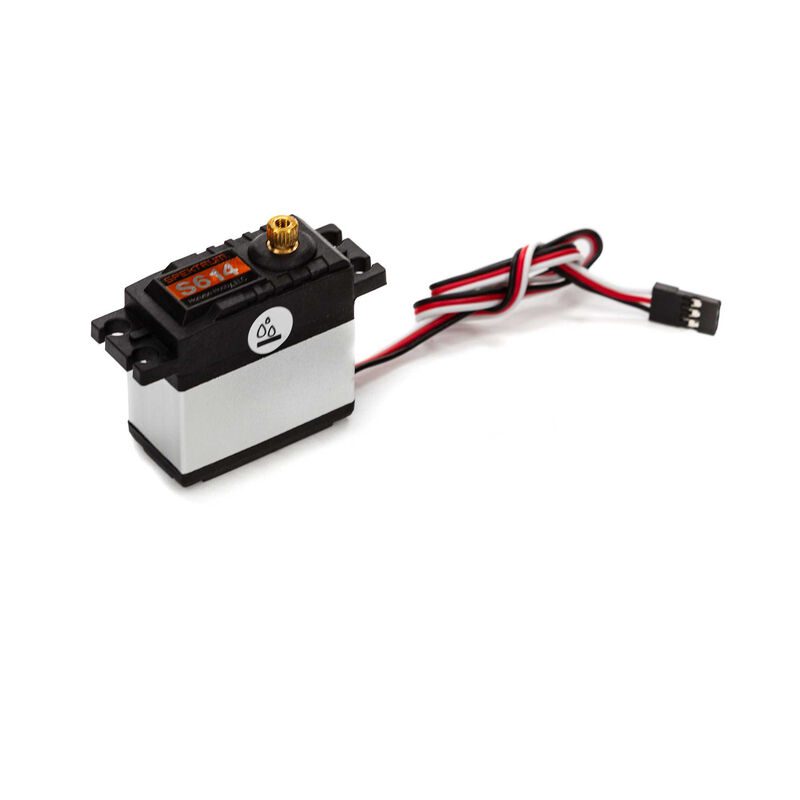

S614 Waterproof Metal Gear Surface Servo 23T
S614 Waterproof Metal Gear Surface Servo 23T
SKU:SPMS614
Share
Spektrum S614 Waterproof Metal Gear Surface Servo 23T is a standard-size digital surface servo for RC vehicle applications. It uses a brushed motor, brass metal gears, dual bearings, a universal connector and a 23-tooth output spline, with 6.0 V operation and rated torque of 14.5 kg-cm (201.4 oz-in) at 6.0 V.
Included
(1) S614 Waterproof Metal Gear Surface Servo 23T
Features
Standard-size digital surface servo
Water-resistant design
Brushed motor
Brass metal gears
Dual bearing support
Universal connector
23-tooth output spline
264 mm (10.4 in) connector wire length
Specifications
Application: Surface
Servo Type: Digital
Servo Size Category: Standard
Motor Type: Brushed
Gear Type: Metal
Gear Material: Brass
Bearing: Dual
Connector Type: Universal
Connector Wire Length: 264 mm (10.4 in)
Operating Voltage: 6.0 V
Input Voltage: 6.0 V
Spline Count: 23-tooth
Programmable: No
Overload Protection: No
Length: 46 mm (1.8 in)
Width: 20 mm (0.8 in)
Height: 41 mm (1.6 in)
Weight: 62 g (2.2 oz)
Torque: 14.5 kg-cm (201.4 oz-in) at 6.0 V
