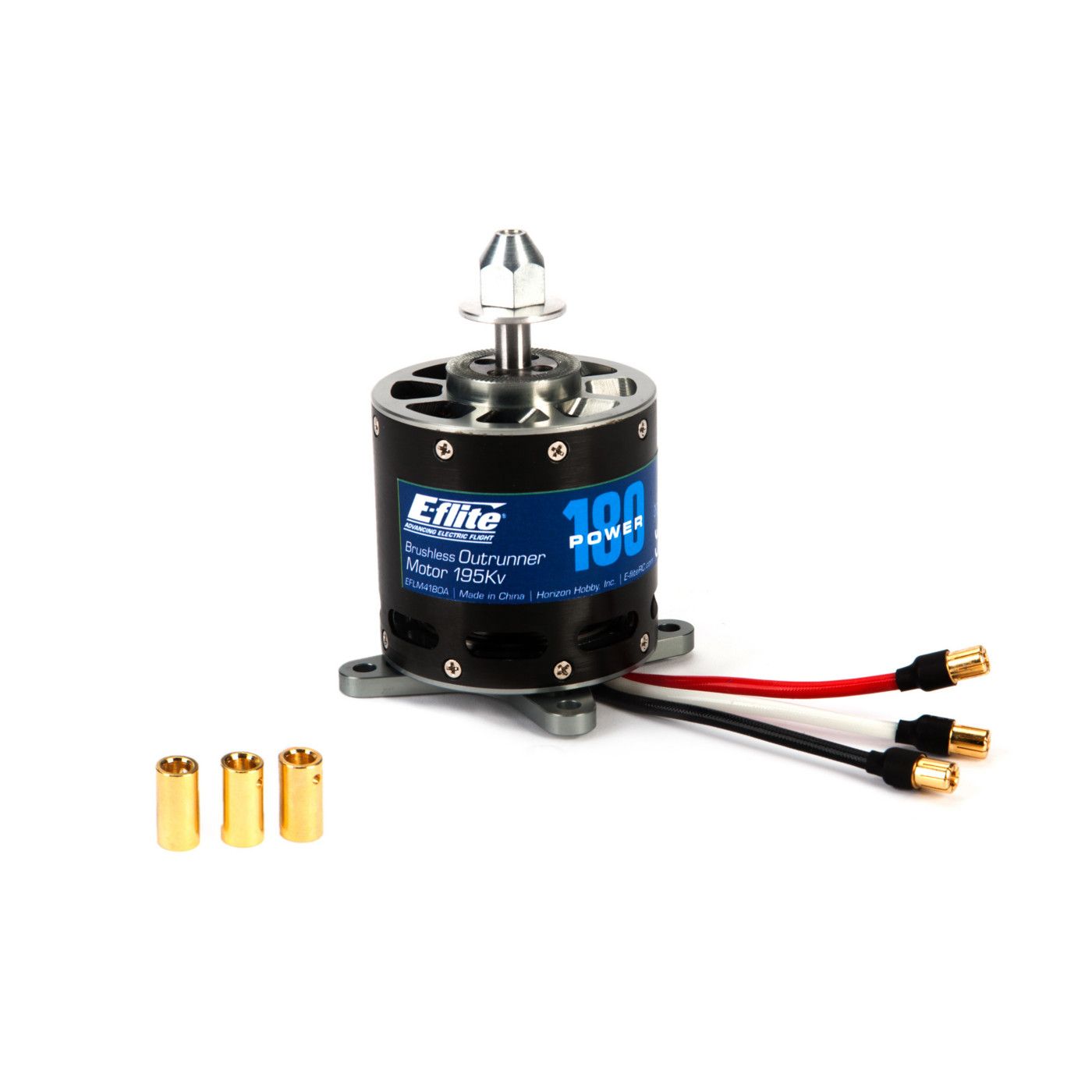

Power 180 Brushless Outrunner Motor 195Kv

The E-flite Power 180 brushless outrunner motor delivers clean, quiet power on par with a 180-size 2-stroke glow engine. Rated at 195 Kv, it’s perfectly suited for sport, scale, and 3D aircraft weighing between 6 to 9 kg and requiring up to 3 kW of input power.

Features

• High-torque outrunner design with an external 14-pole rotor for enhanced cooling and performance :contentReference[oaicite:1]{index=1}
• Hardened 10 mm steel shaft and high-quality ball bearings for durability
• Includes X-mount, prop nut, prop washer, and 6.5 mm bullet connectors for versatile setup options
• Developed in collaboration with aerobatic champion Quique Somenzini

What’s Included

• Power 180 195 Kv brushless motor with X-mount hardware and bullet connectors

Needed to Complete

• High-voltage brushless ESC (80–100 A recommended)
• 10S LiPo battery (up to 42.5 V)

Specifications

• Type: Brushless outrunner motor
• Kv (RPM per Volt): 195 Kv
• Maximum Input Power: 3 kW
• Continuous Current: 65 A
• Peak Burst Current: 80 A (15 s max in 3D flight) :contentReference[oaicite:2]{index=2}
• Cells Supported: 10S LiPo
• Idle Current: 1.5 A @ 30 V
• Resistance (Ri): 0.042 Ω
• Outer Diameter: 63.5 mm
• Length: 82 mm
• Shaft Diameter: 7.8 mm | Shaft Length: 11.5 mm
• Recommended Prop Size: 20 × 12 to 22 × 11
• Wire Gauge: 13 AWG
• Weight: 642 g
