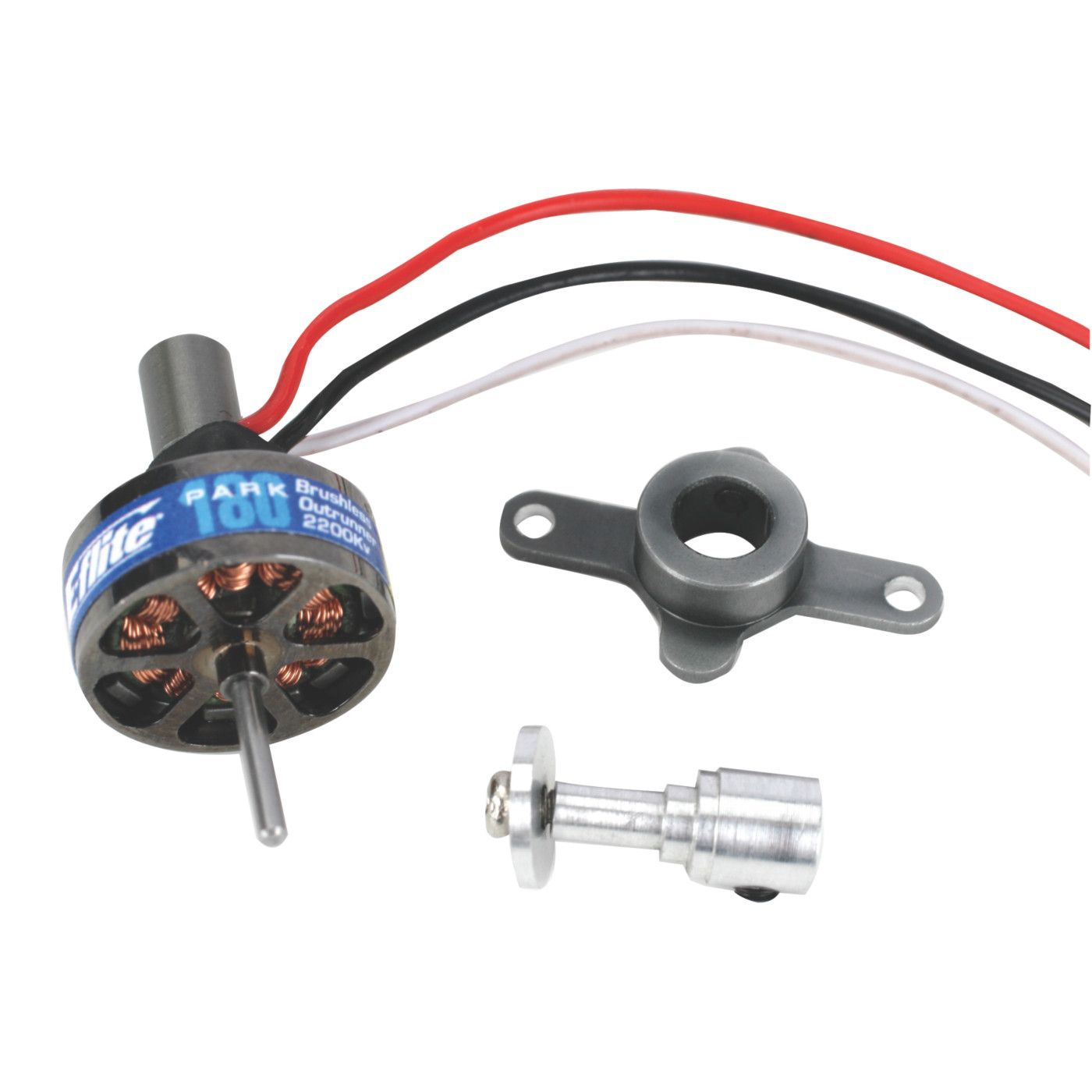

Park 180 Brushless Outrunner Motor 2200Kv

The E-flite Park 180 (2200 Kv) Brushless Outrunner Motor delivers ultra-light performance for 3D park flyers (55–85 g) and sport/scale models (85–170 g). Exceptionally quiet and weighing just 8.5 g, it’s engineered for smooth, precise power in compact builds.

Features

• High-torque, direct-drive 2 200 Kv outrunner—no gearbox needed
• Designed for indoor or outdoor aerobatic park flyers
• Extremely lightweight and quiet—just 8.5 g
• Includes motor mount, prop adapter, mounting hardware, and 2 mm gold bullet connectors
• High-quality construction with ball bearings and hardened steel shaft

Ideal For

• 3D park flyers (55–85 g / 2–3 oz)
• Sport and scale park models (85–170 g / 3–6 oz)
• Power-limited models up to ~30 W

In the Box

• Park 180 motor (2 200 Kv, model EFLM1120)
• Mounting plate, prop adapter, hardware, and 2 mm bullet connectors

What You’ll Need

• 4–6 A brushless ESC
• 2–3 S LiPo or 4–8 cell NiMH/NiCd battery
• Propeller: 3 × 3 direct-drive (2S) or 4 × 4 / 4.5 × 3 (3S)

Specifications

• Type: Brushless outrunner
• Kv Rating: 2 200 Kv
• Voltage: 4.8–11.4 V (2–3 S LiPo or 4–8 cell NiMH/NiCd)
• Idle Current: ~0.30 A @ 8 V
• Internal Resistance: ~0.91 Ω
• Outer Diameter: 16 mm
• Length: 20 mm
• Shaft Diameter: 1.5 mm
• Weight: 8.5 g
• Max Power: ~30 W
