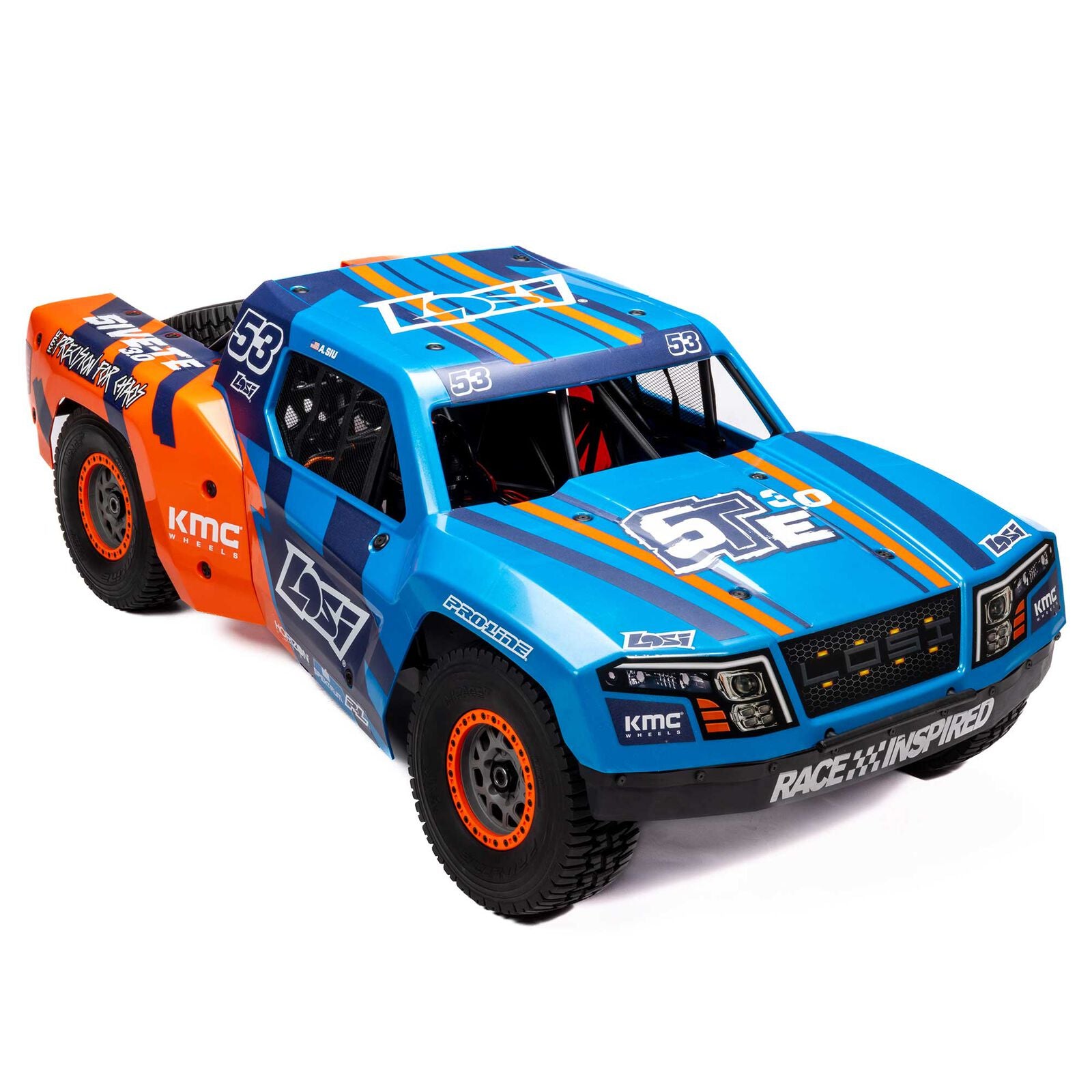

Losi 1/5 5IVE-TE 3.0

More Information

When Losi introduced the 5IVE-T in 2011, it revolutionised large-scale RC by giving enthusiasts what they didn't even know they wanted: a 4x4 large-scale truck built with the same legendary engineering DNA as the dominant 1/8-scale 8IGHT platform. Easy to work on, powerful, and proven, the 5IVE-T immediately set the benchmark for large-scale performance. Now, over a decade later, Losi raises that benchmark to unprecedented heights with the all-new 5IVE-TE 3.0.

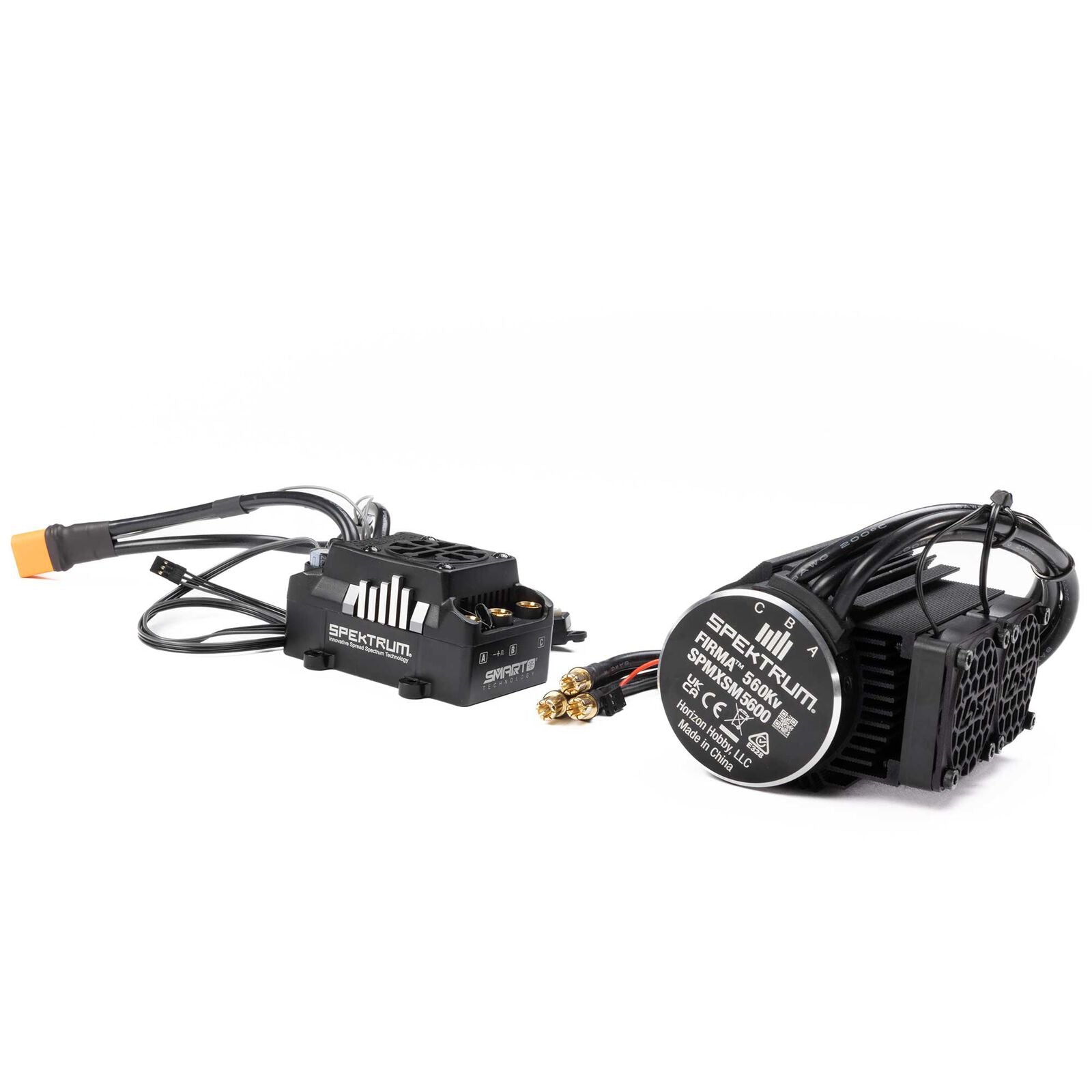

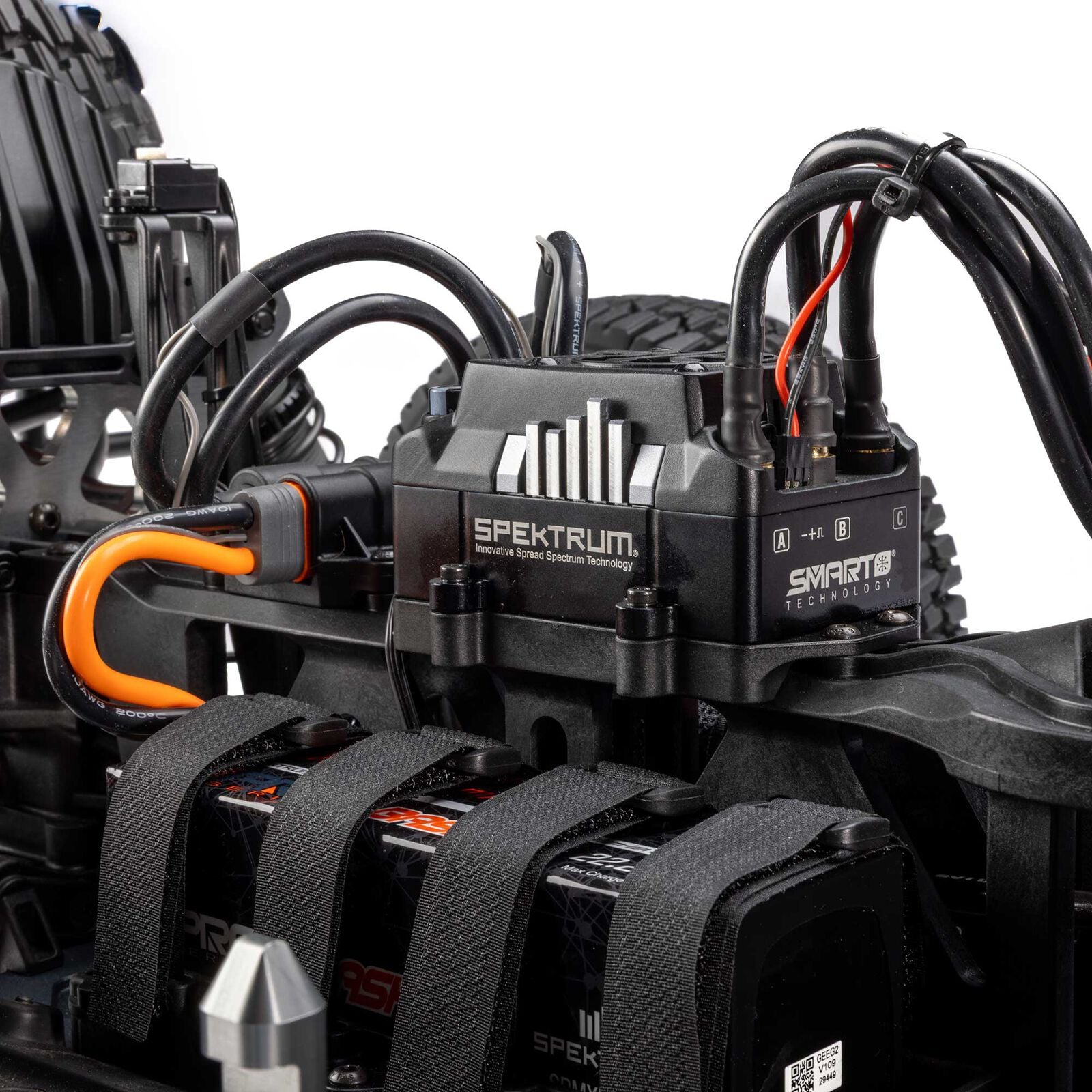

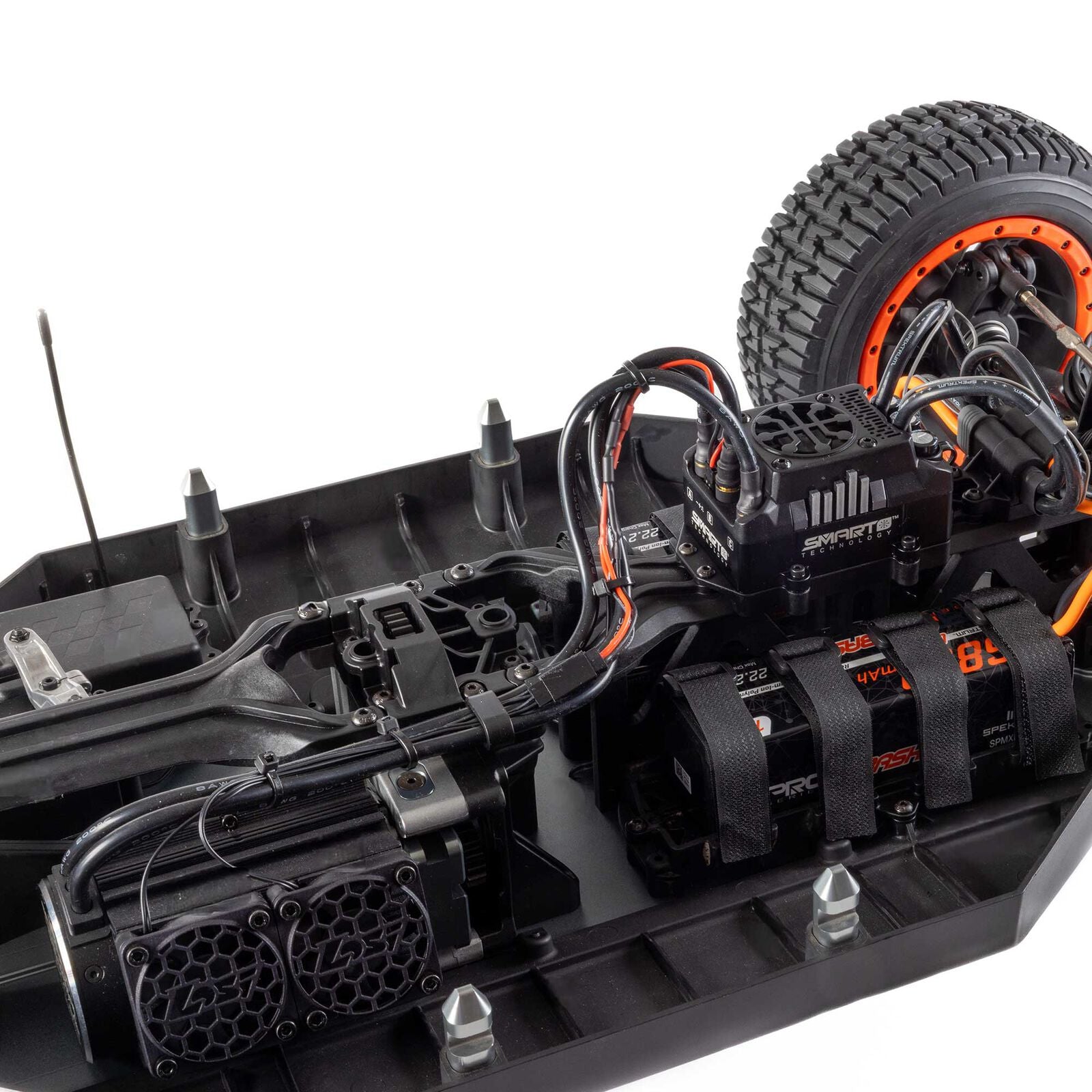

The 5IVE-TE 3.0 is built around one astonishing centrepiece, the new 12S Spektrum power system. This is the most powerful factory-installed system Spektrum has ever created for a surface vehicle. The massive 560Kv 70120 brushless motor combines with a purpose-built 250-amp Smart ESC to deliver blistering 80+ km/h (50+ mph) speeds on 12S LiPo power. Dual 40 mm fans cool the motor and an aluminium heatsink manages the incredible 50.4 volts of raw power. For a more comfortable experience, simply run 8S batteries for thrilling 56+ km/h (35+ mph) performance.

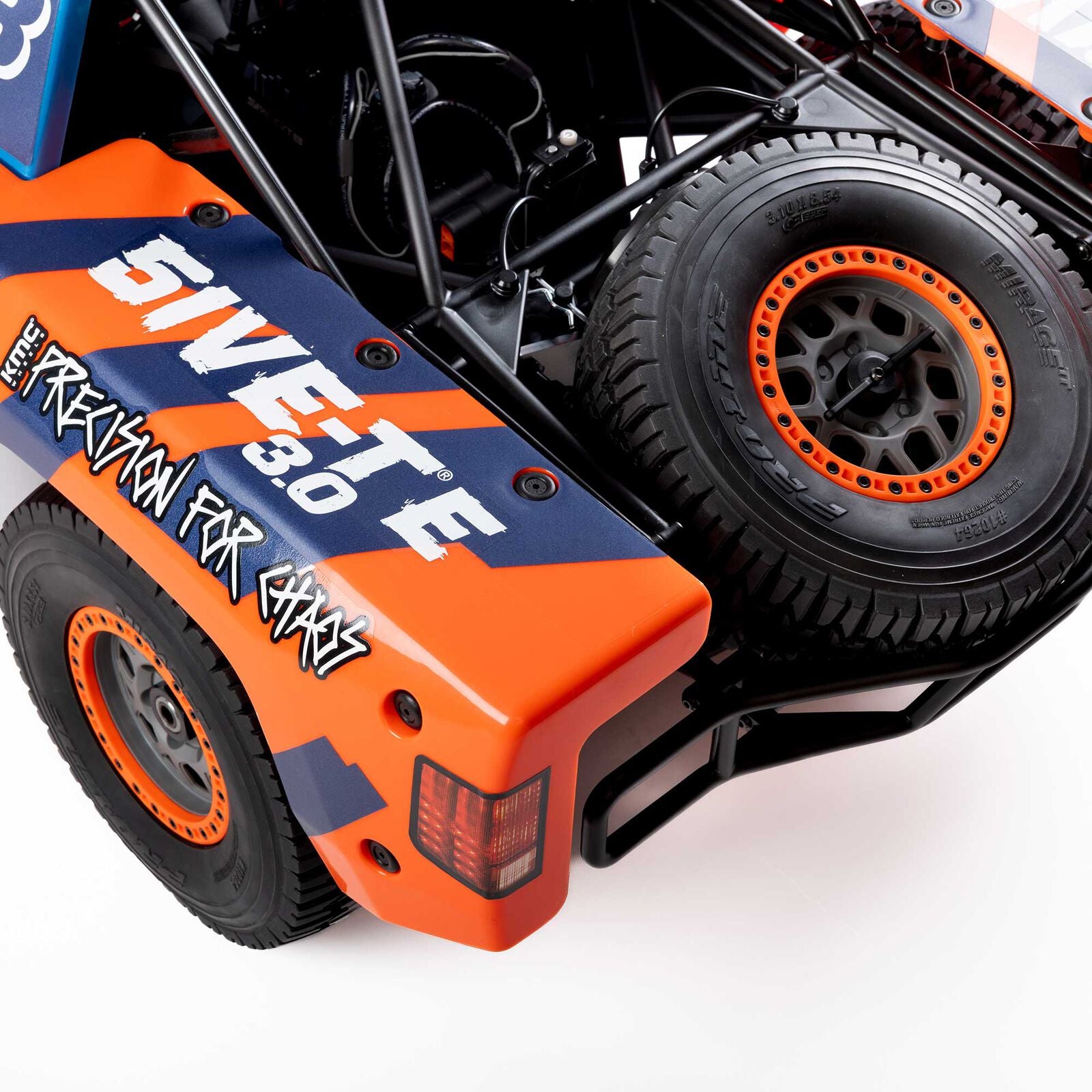

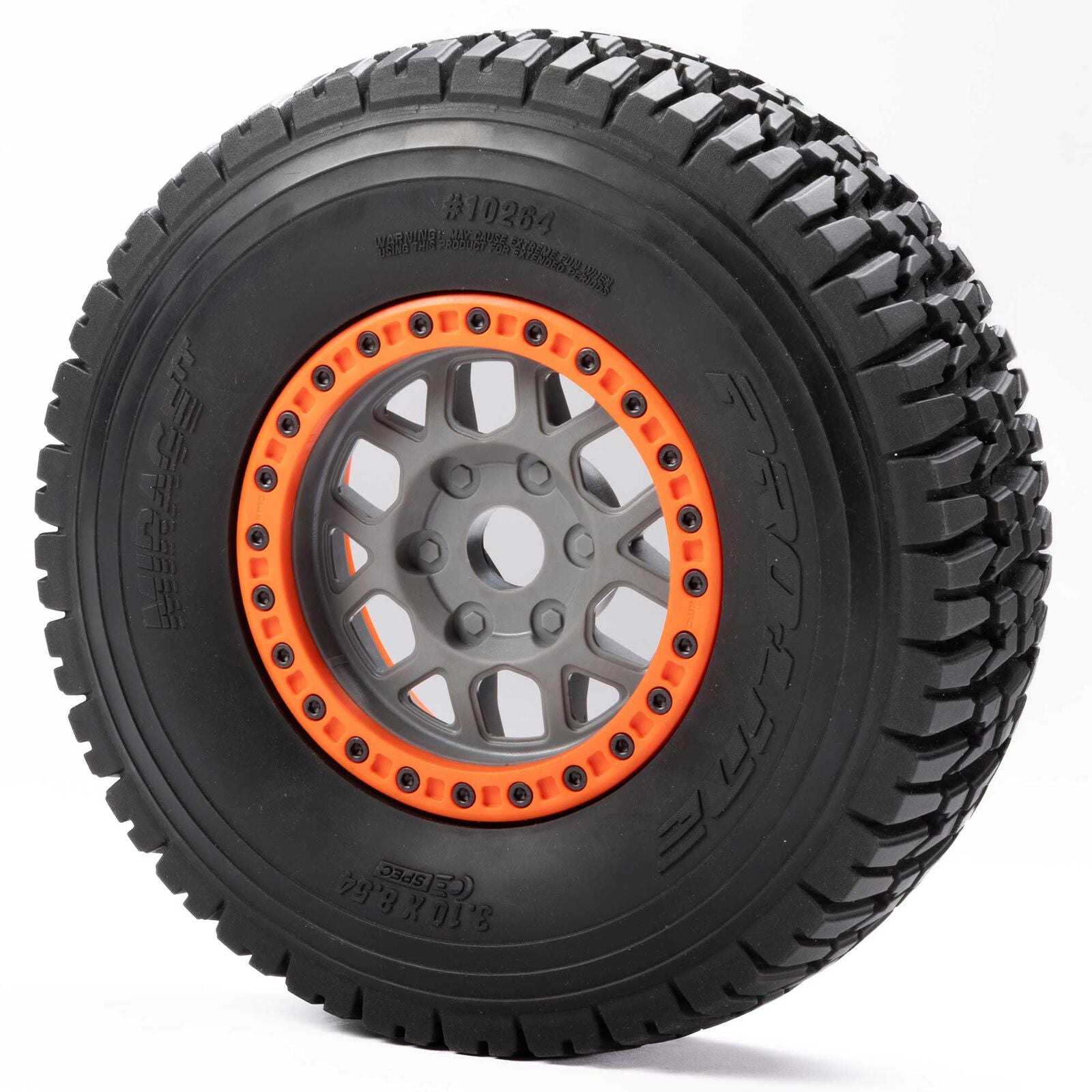

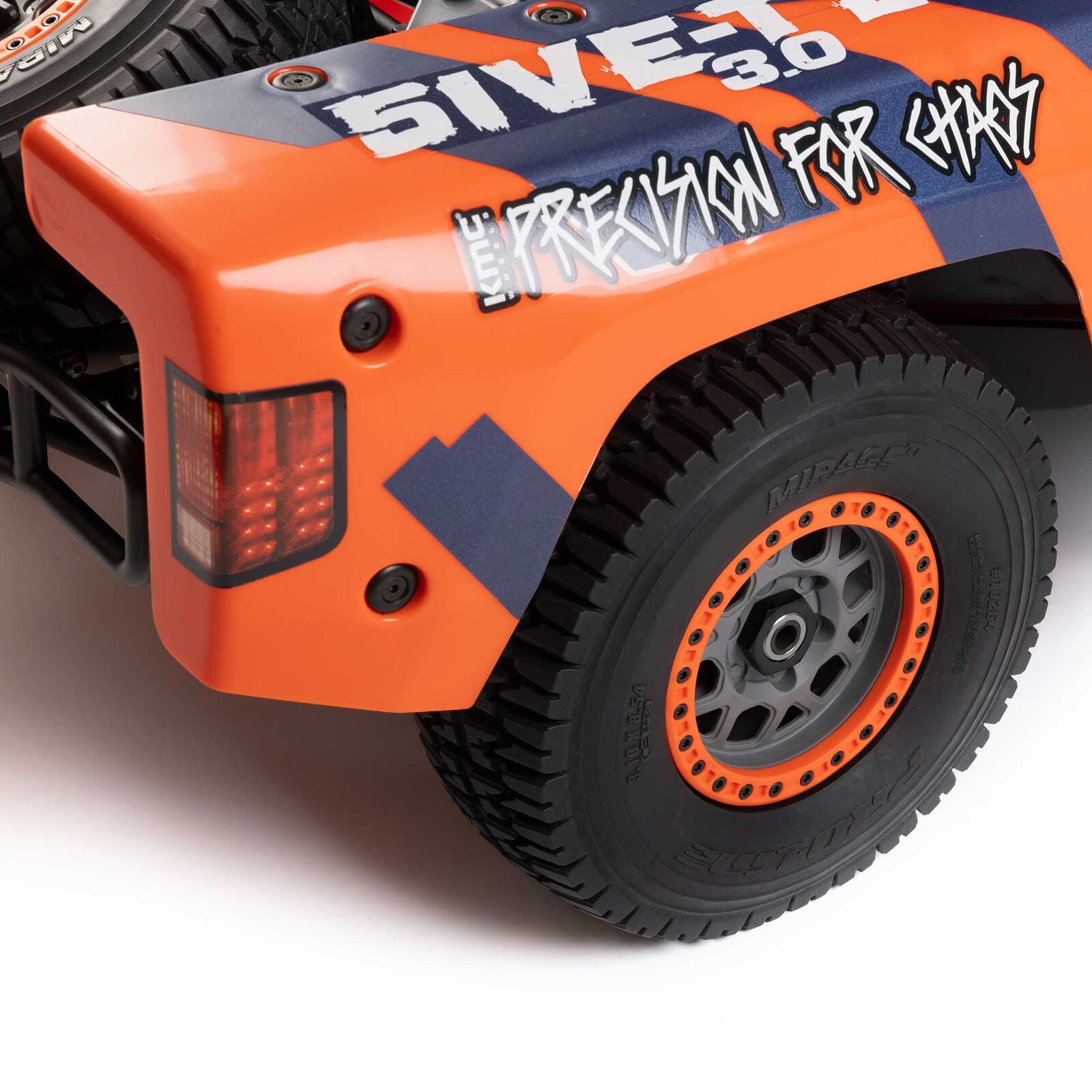

The 5IVE-TE 3.0 rides on visually striking, officially licensed KMC KM549 wheels that showcase modern, scale-correct proportions. Innovative Pro-Line Racing Pro-Loc bead lock system technology makes tyre changes effortless and saves you money in the long term, as you only need to replace tyres, not entire wheel-and-tyre combinations. Wrapped around these wheels are massive 216 mm (8.5-inch) Pro-Line Mirage TT tyres featuring an aggressive, realistic tread design with desert truck-style sidewall ribs for exceptional support and control across varied terrain.

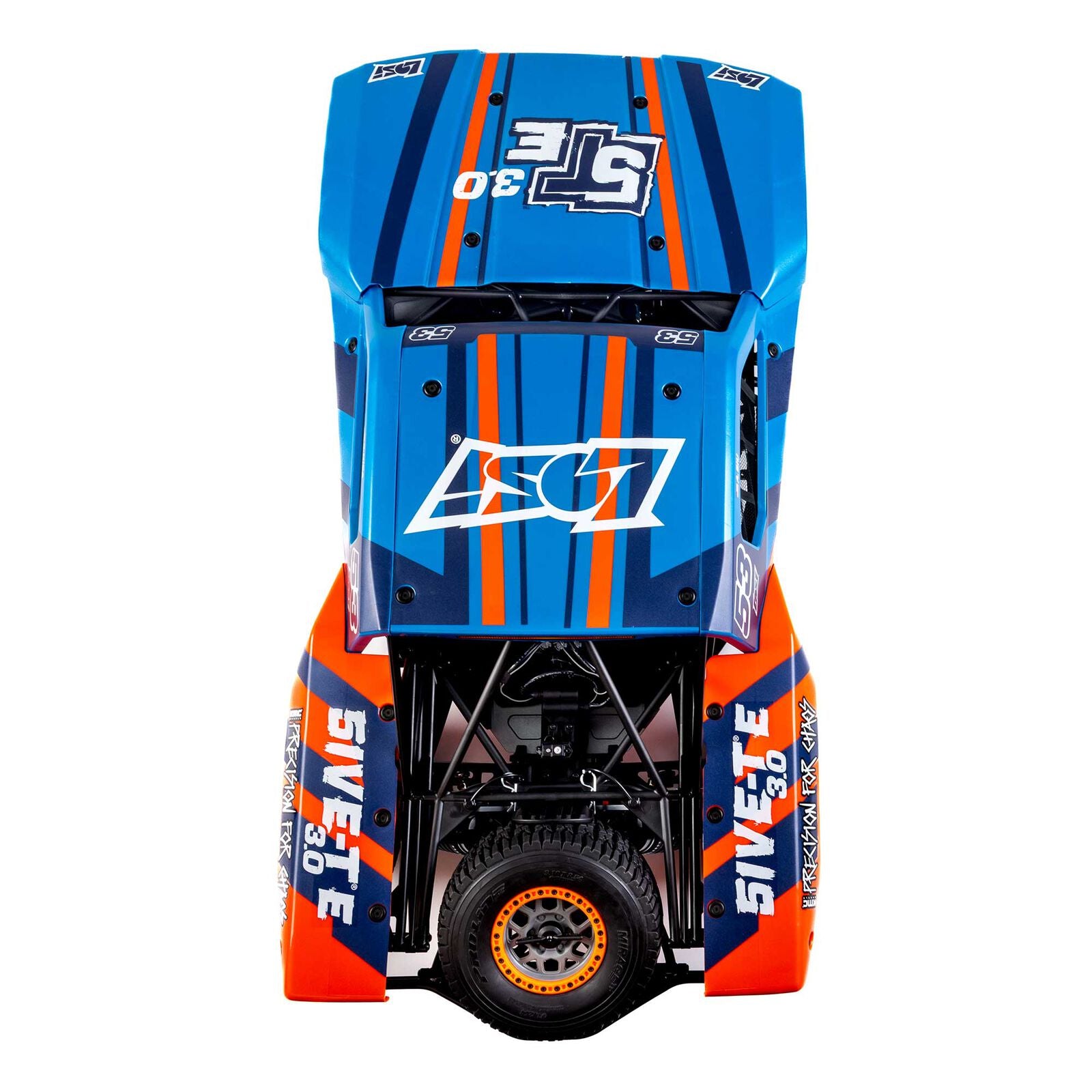

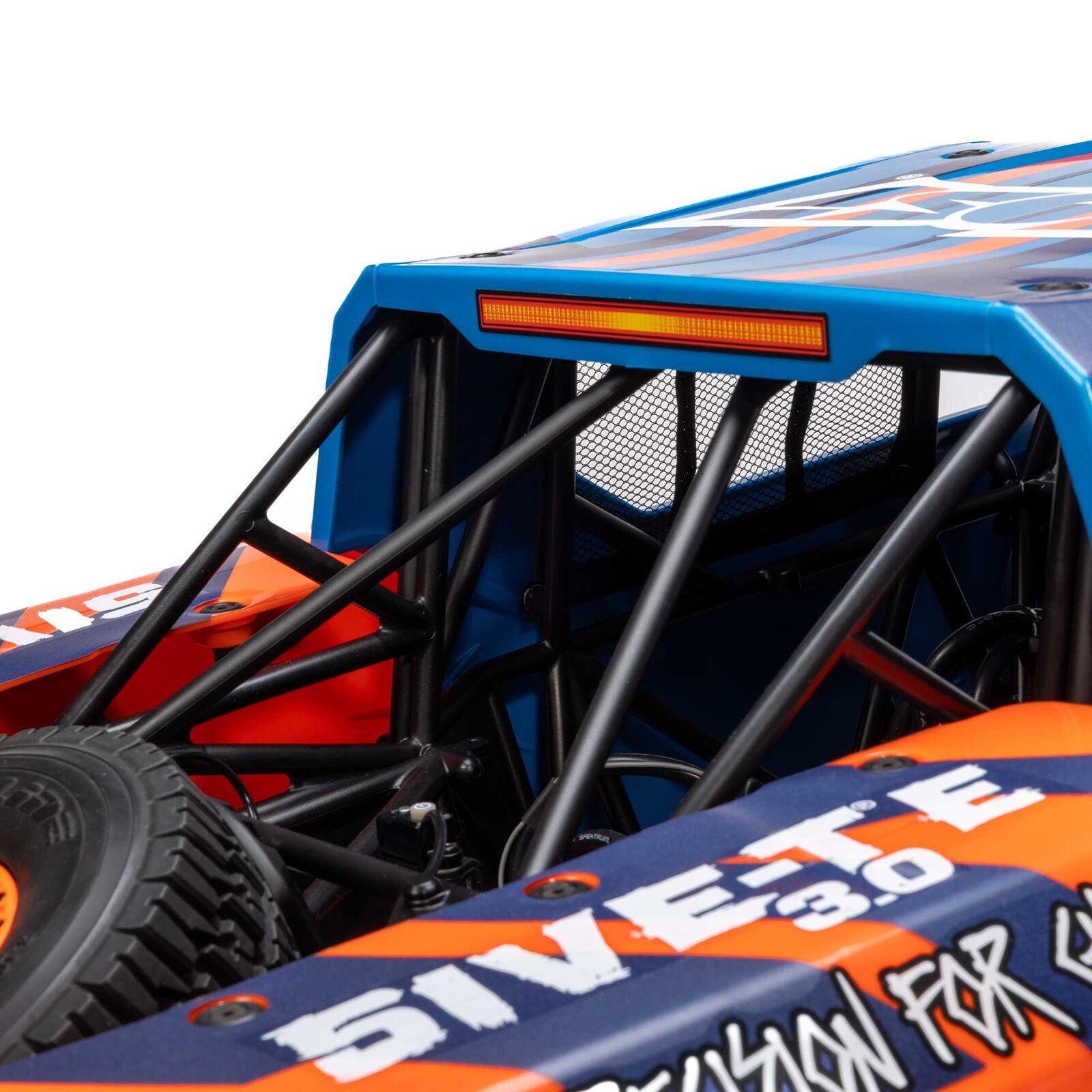

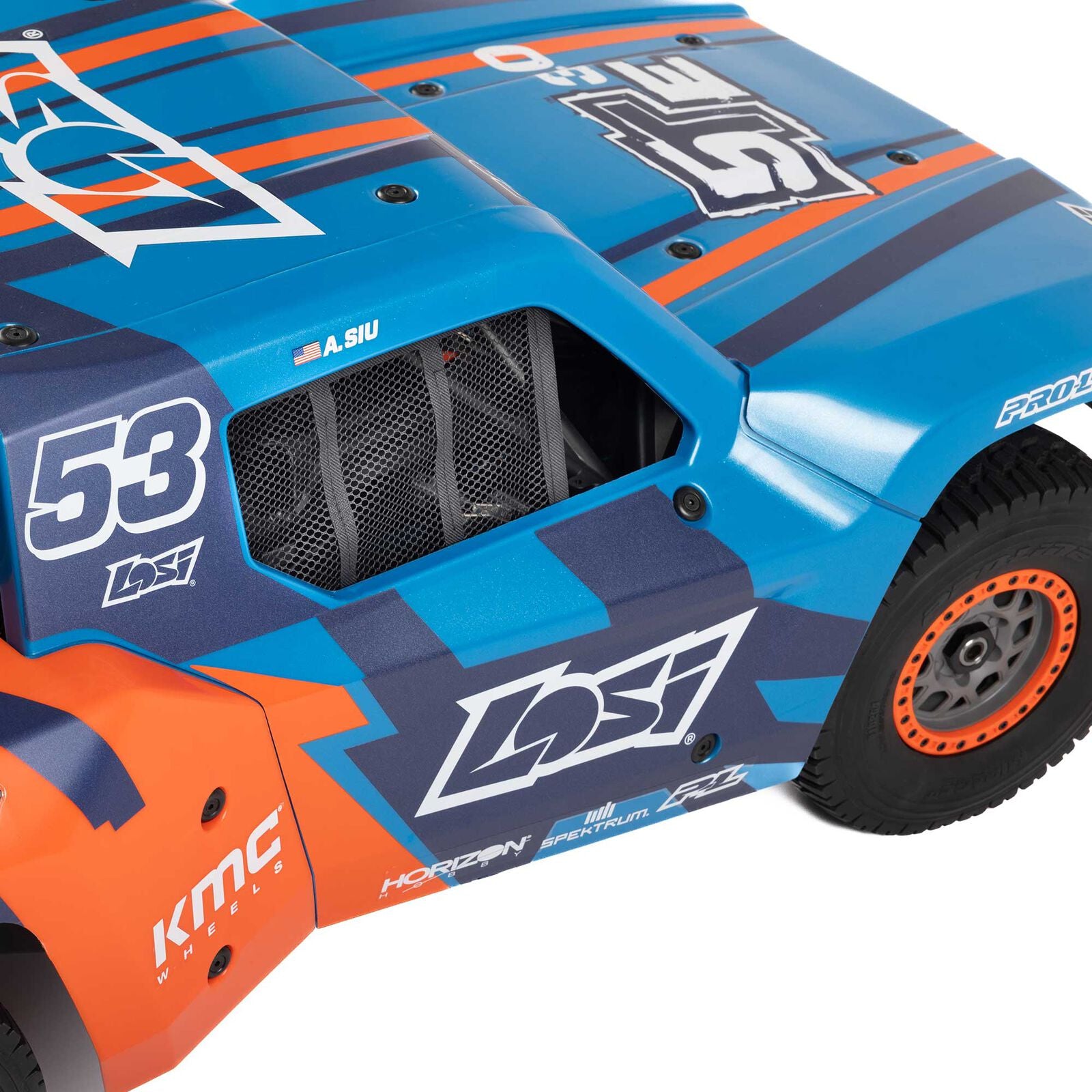

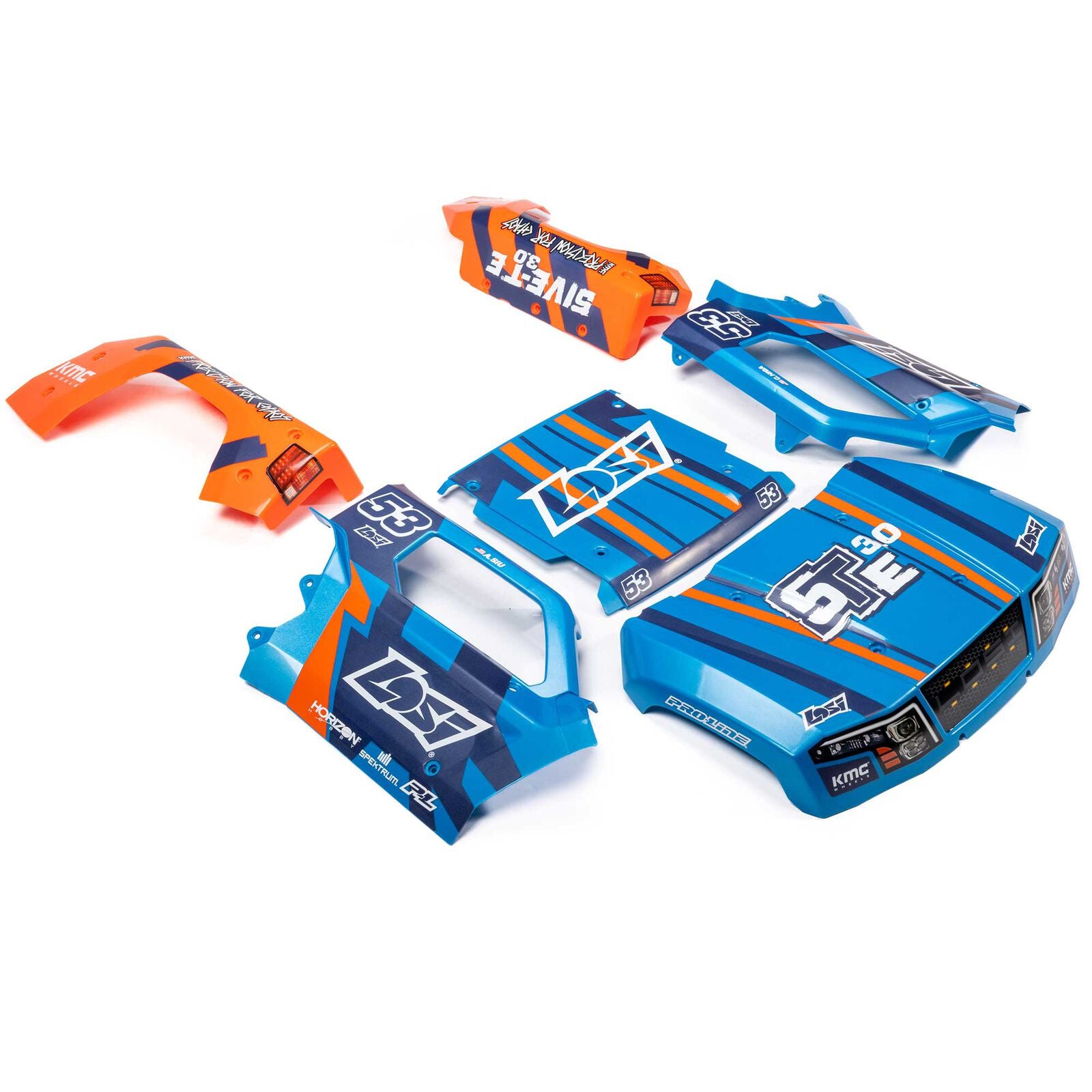

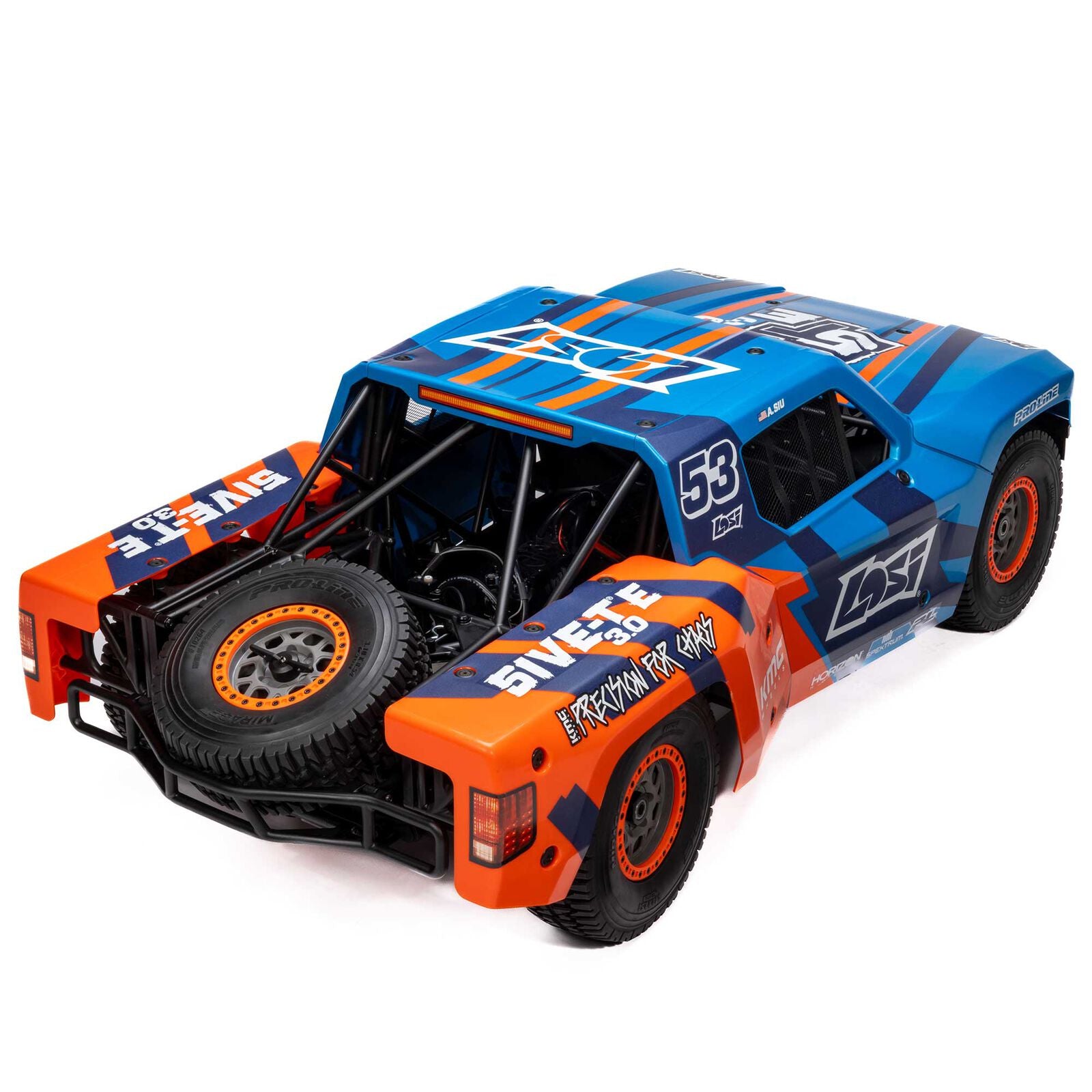

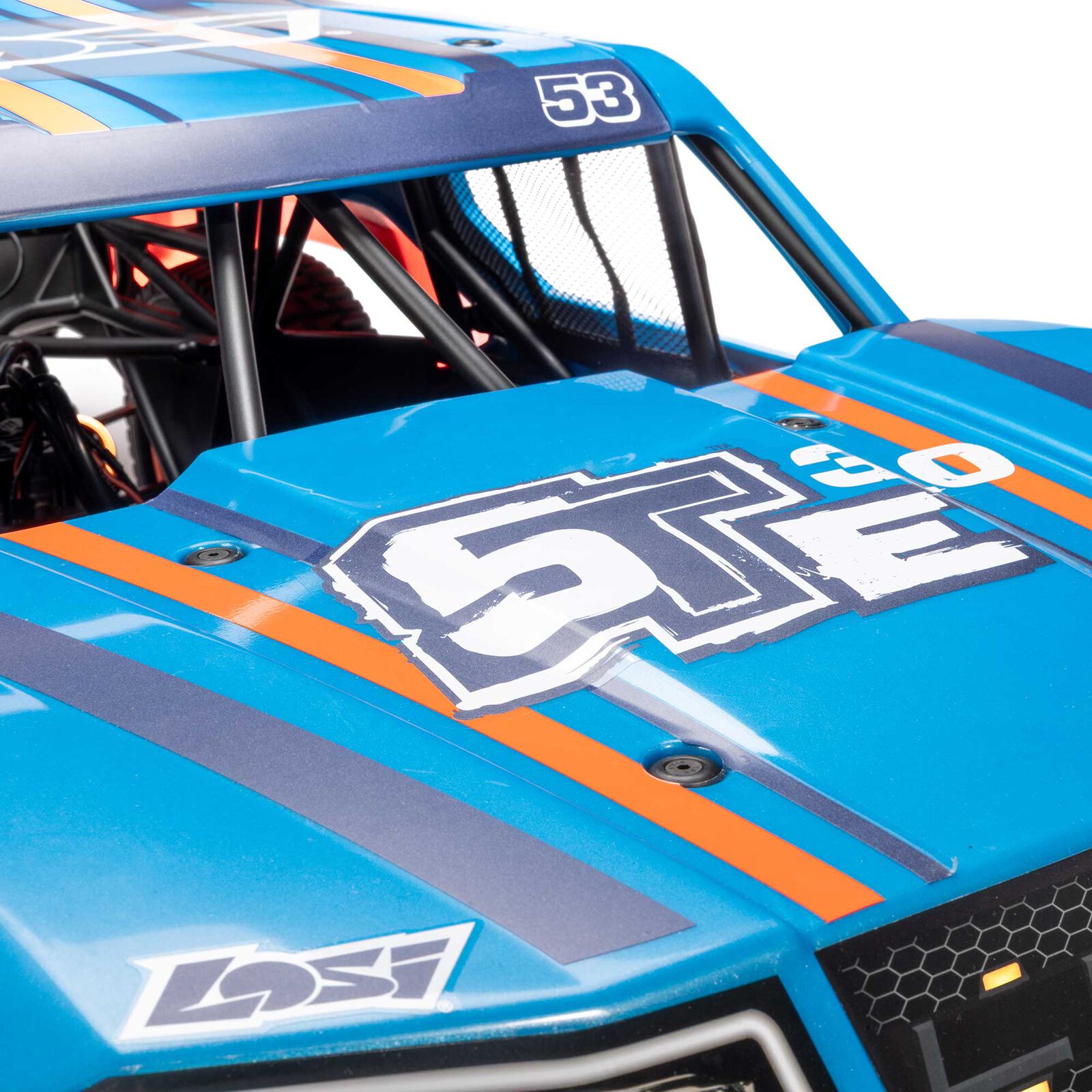

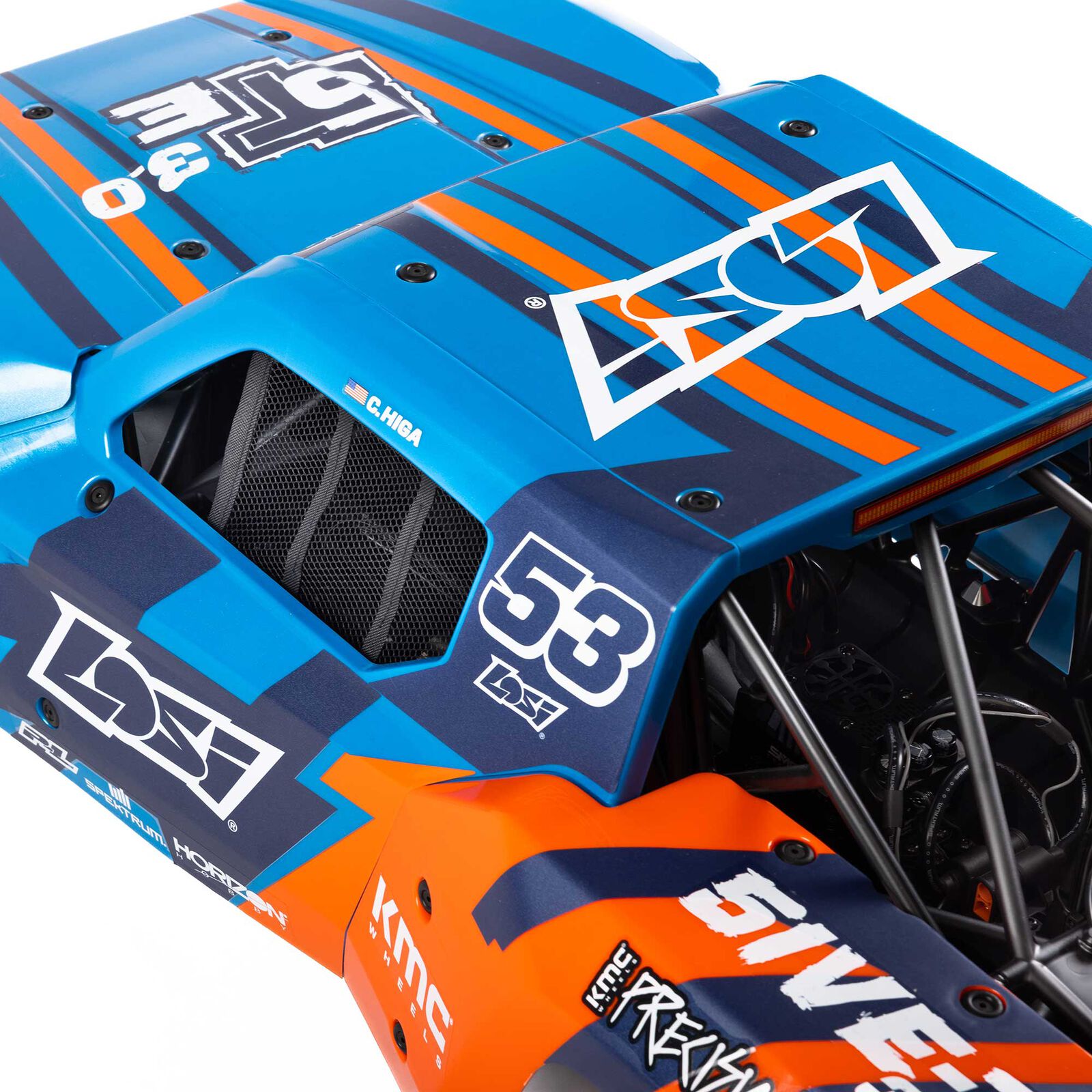

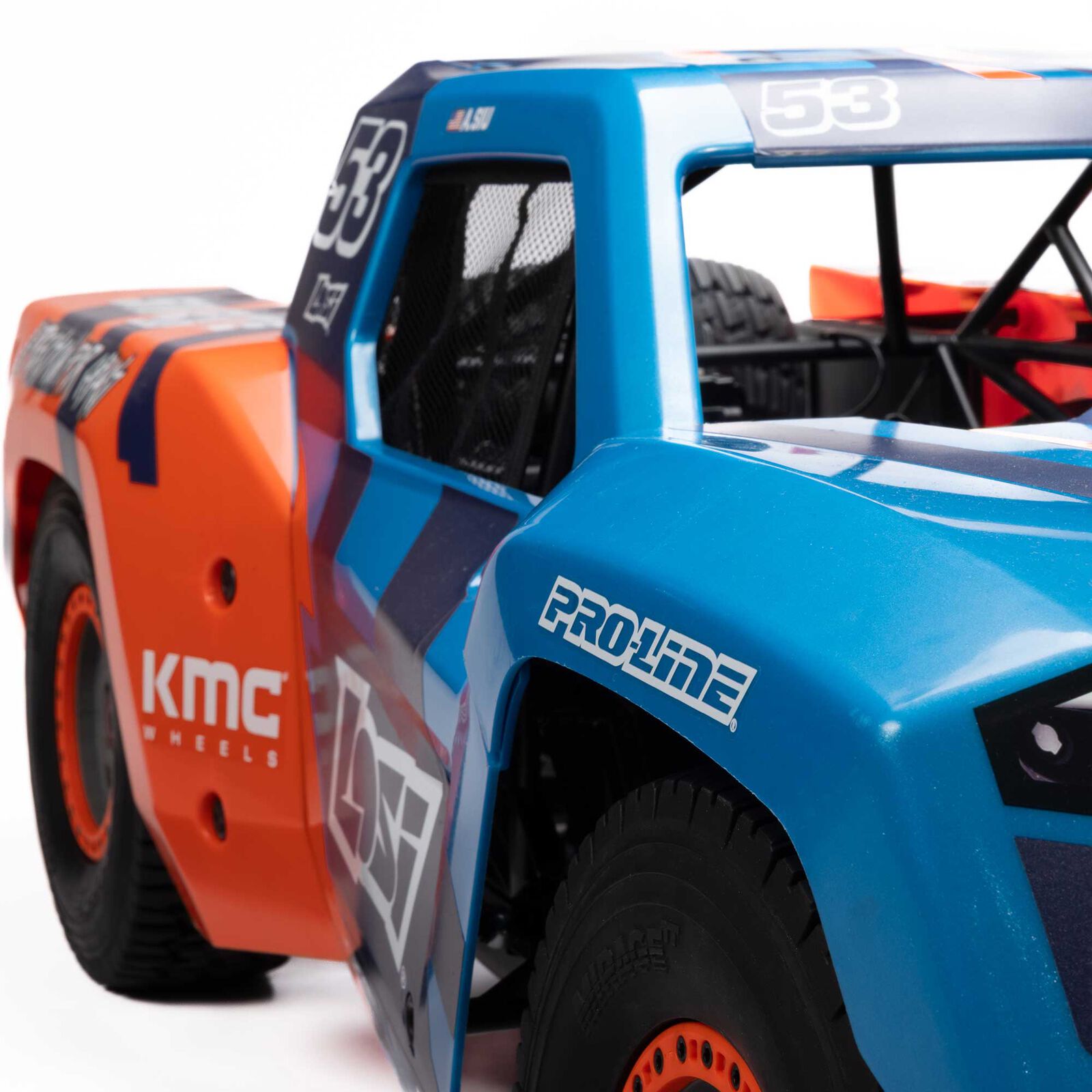

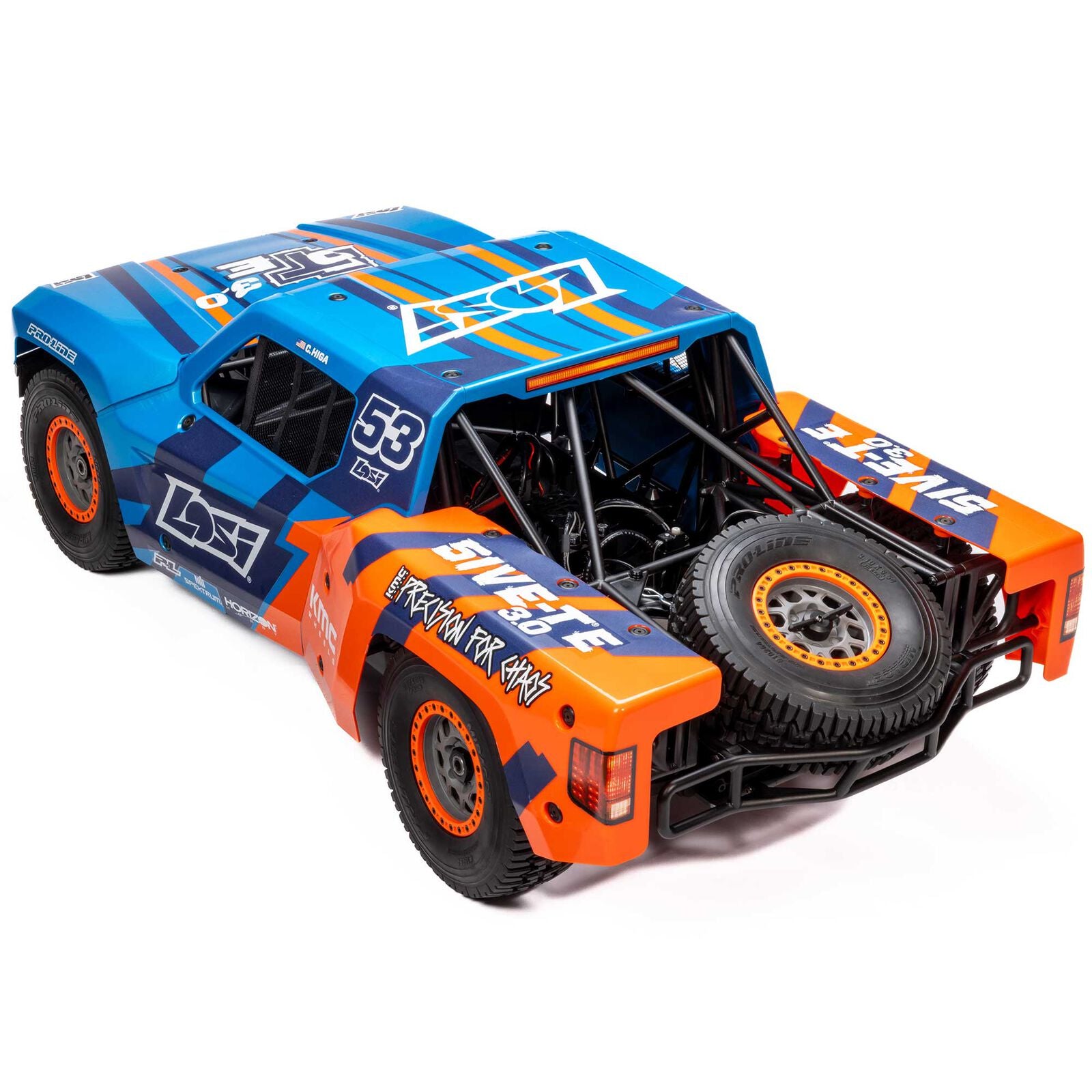

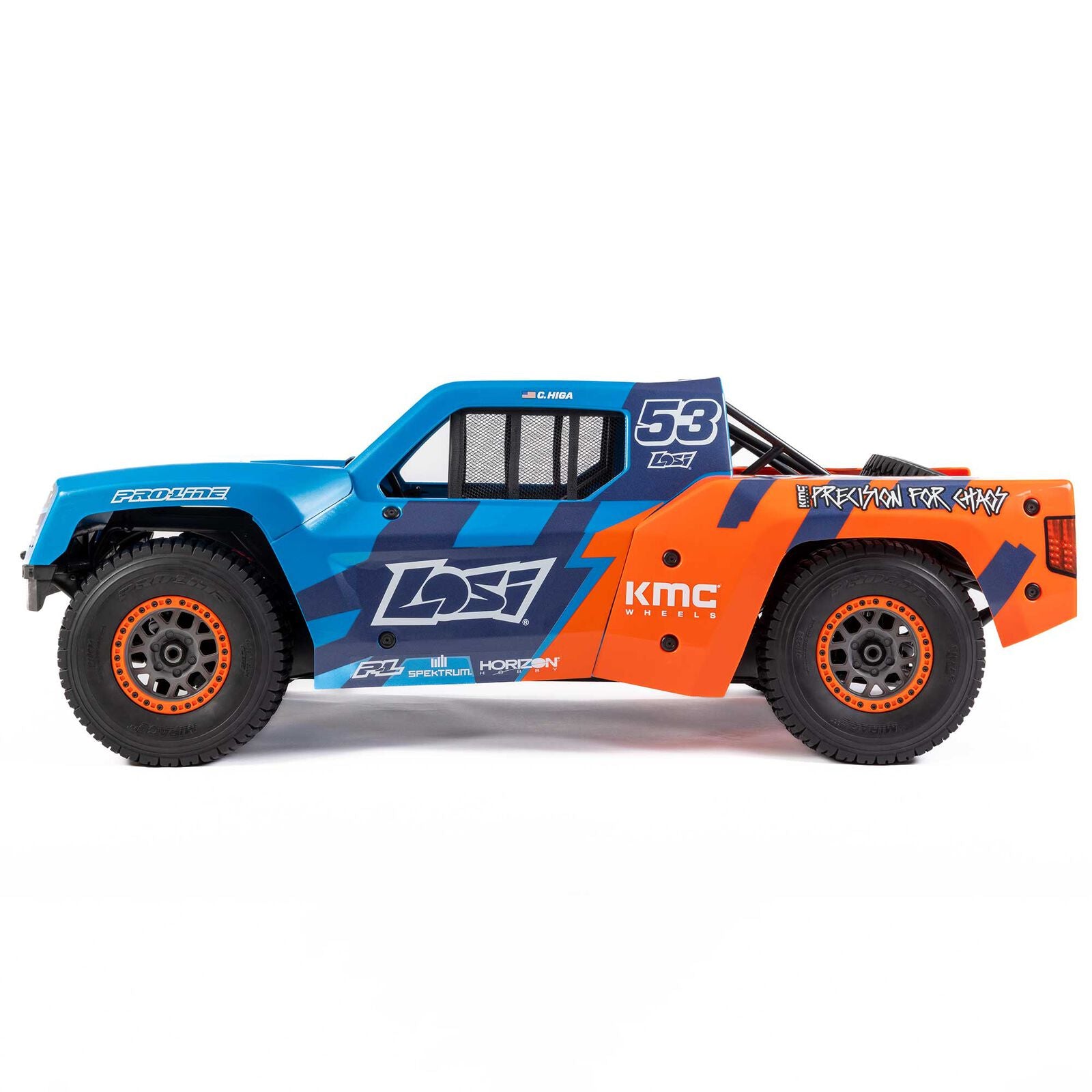

To handle the punishment that 12S power and aggressive driving deliver, Losi engineered an entirely new body design. Unlike traditional polycarbonate bodies, the 5IVE-TE 3.0 features injection-moulded polypropylene panels, which are the same ultra-durable material used on Losi's Promoto-MX and Sprint Car platforms. These six body panels flex to absorb impacts, maintain uniform thickness to eliminate weak spots, and make replacement far more manageable and affordable.

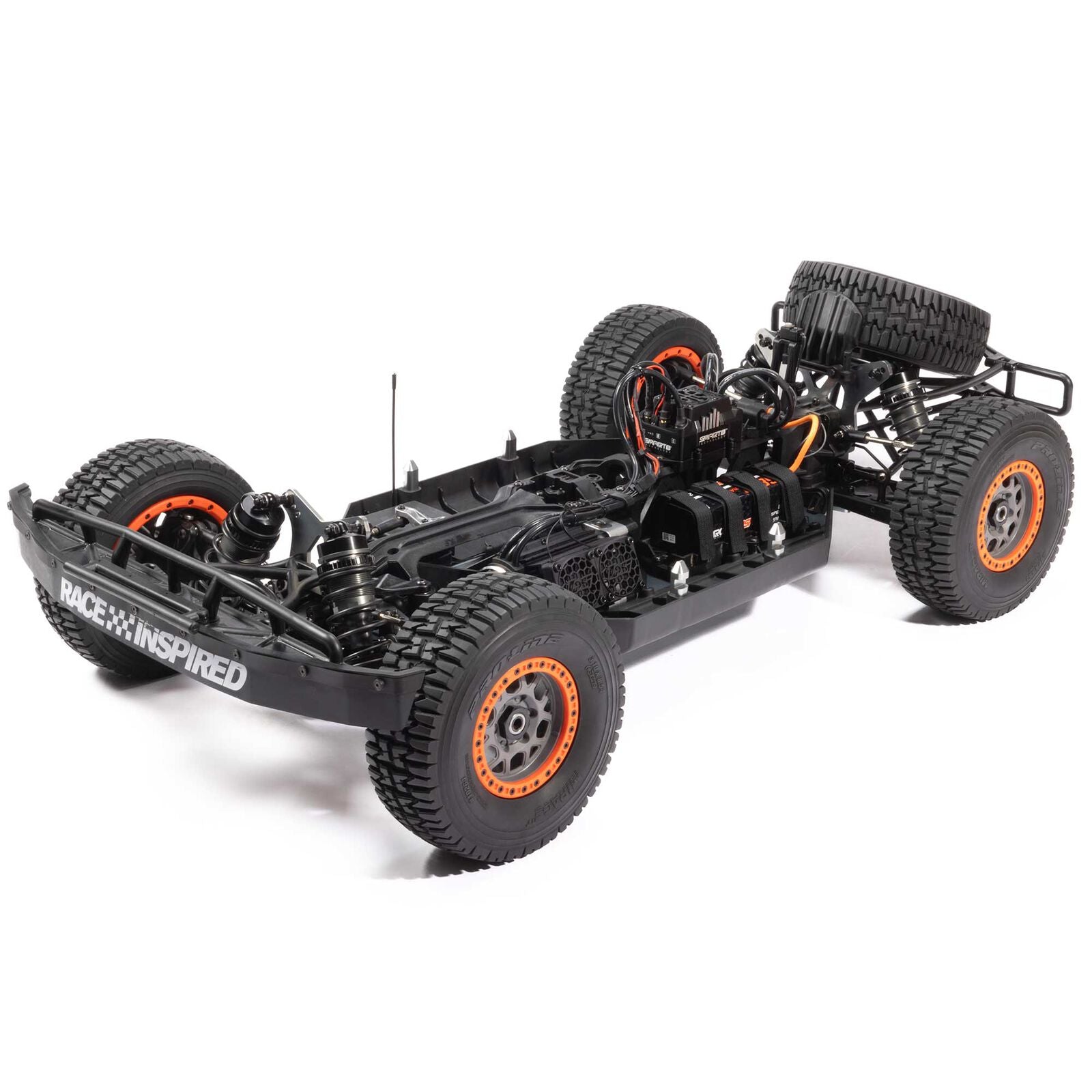

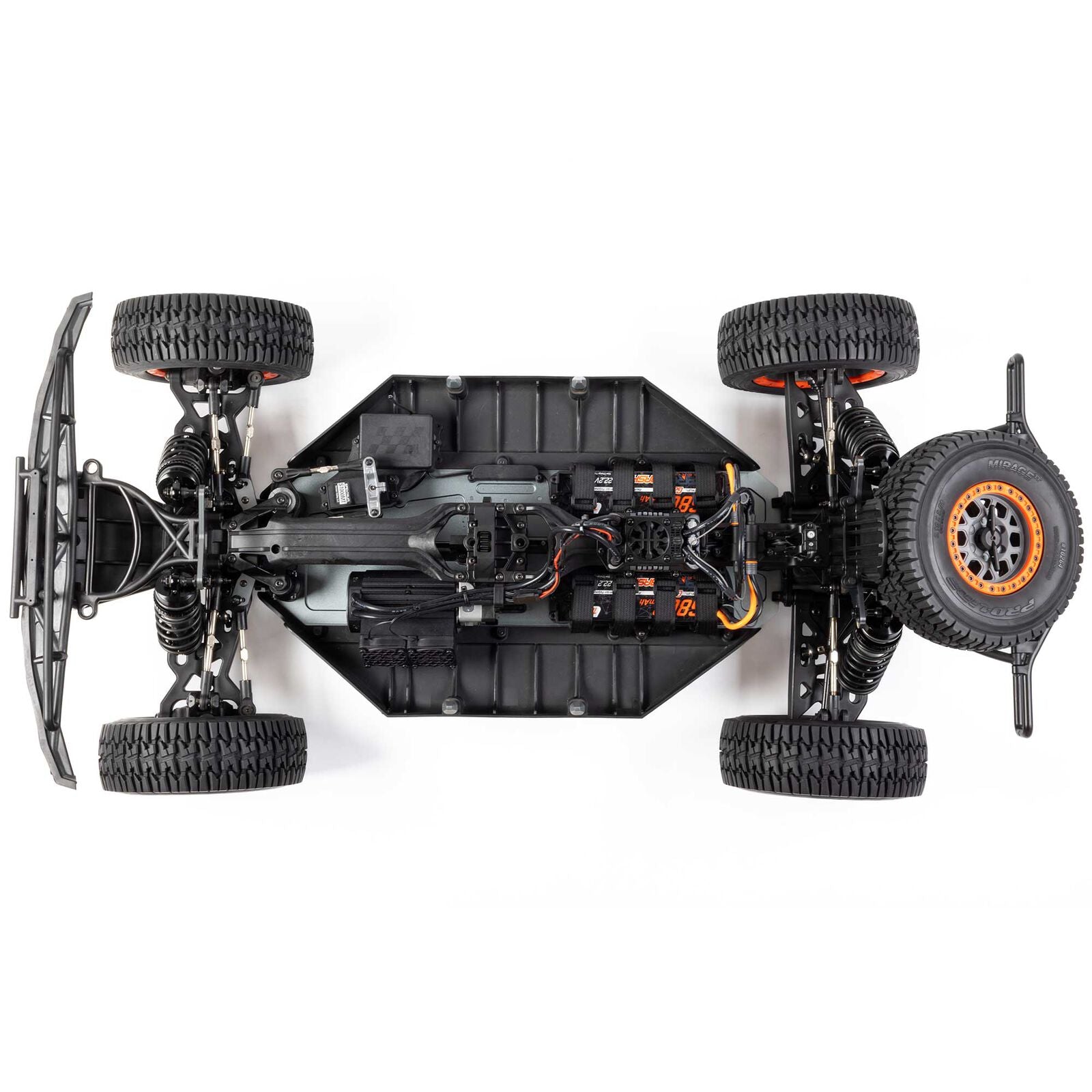

A longer wheelbase maintains the massive wheels, tyres, and body in perfect visual proportion, while also dramatically improving straight-line stability at speed. The drivetrain enhances strength, efficiency, and driveshaft durability. Optimised gearing, featuring a new 43/12 ring and pinion with a 67-tooth spur, transforms how this beast accelerates and performs with its increased size and tyre diameter.

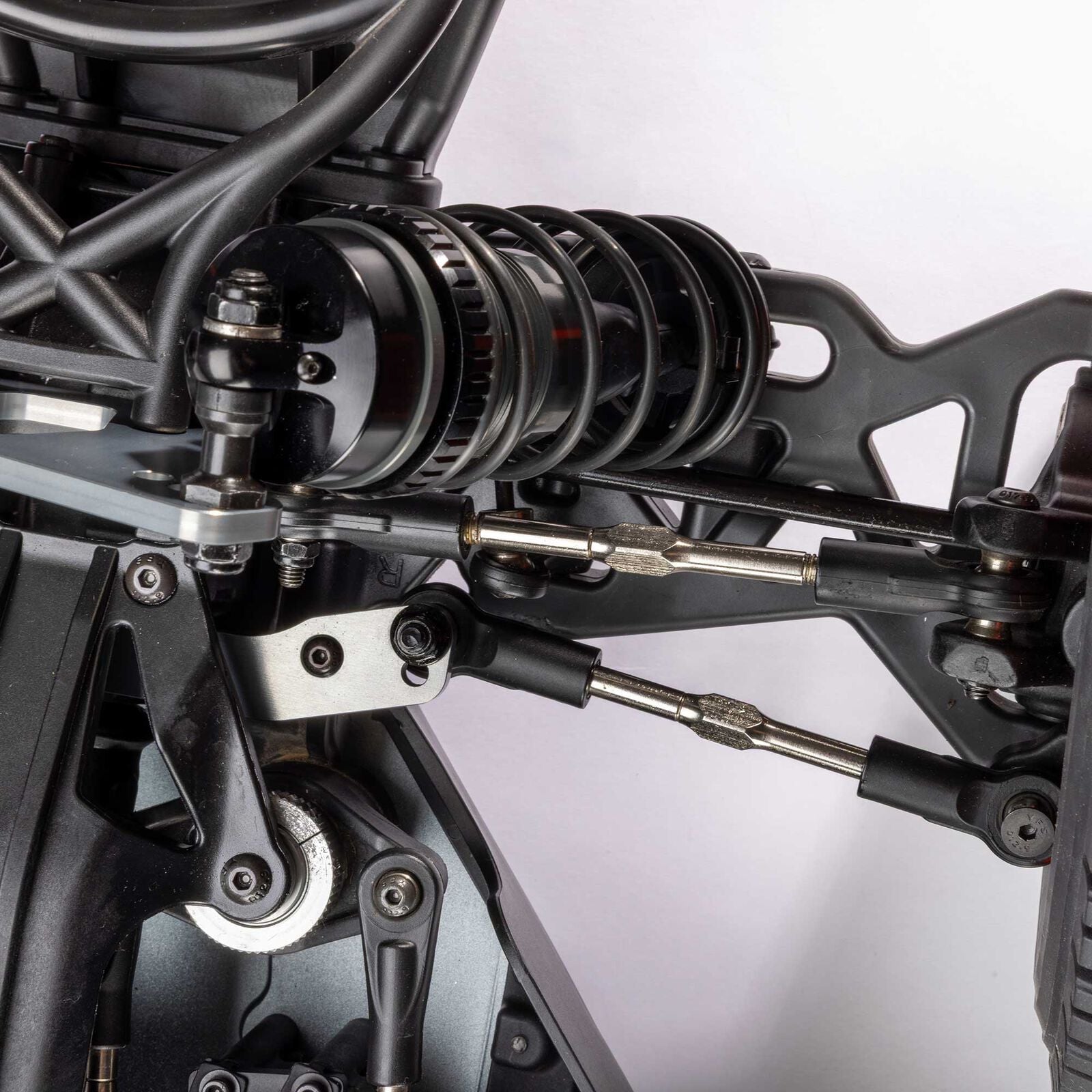

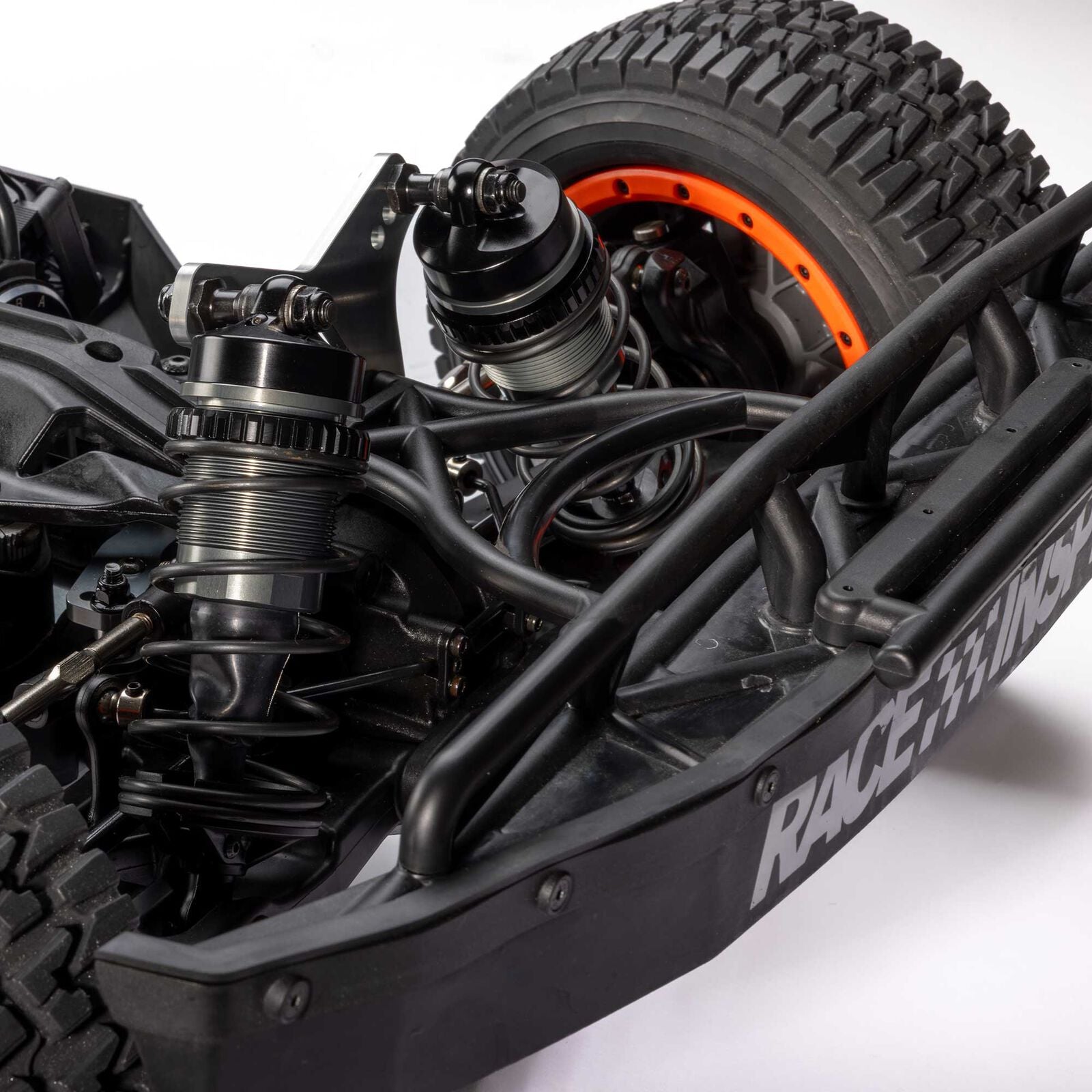

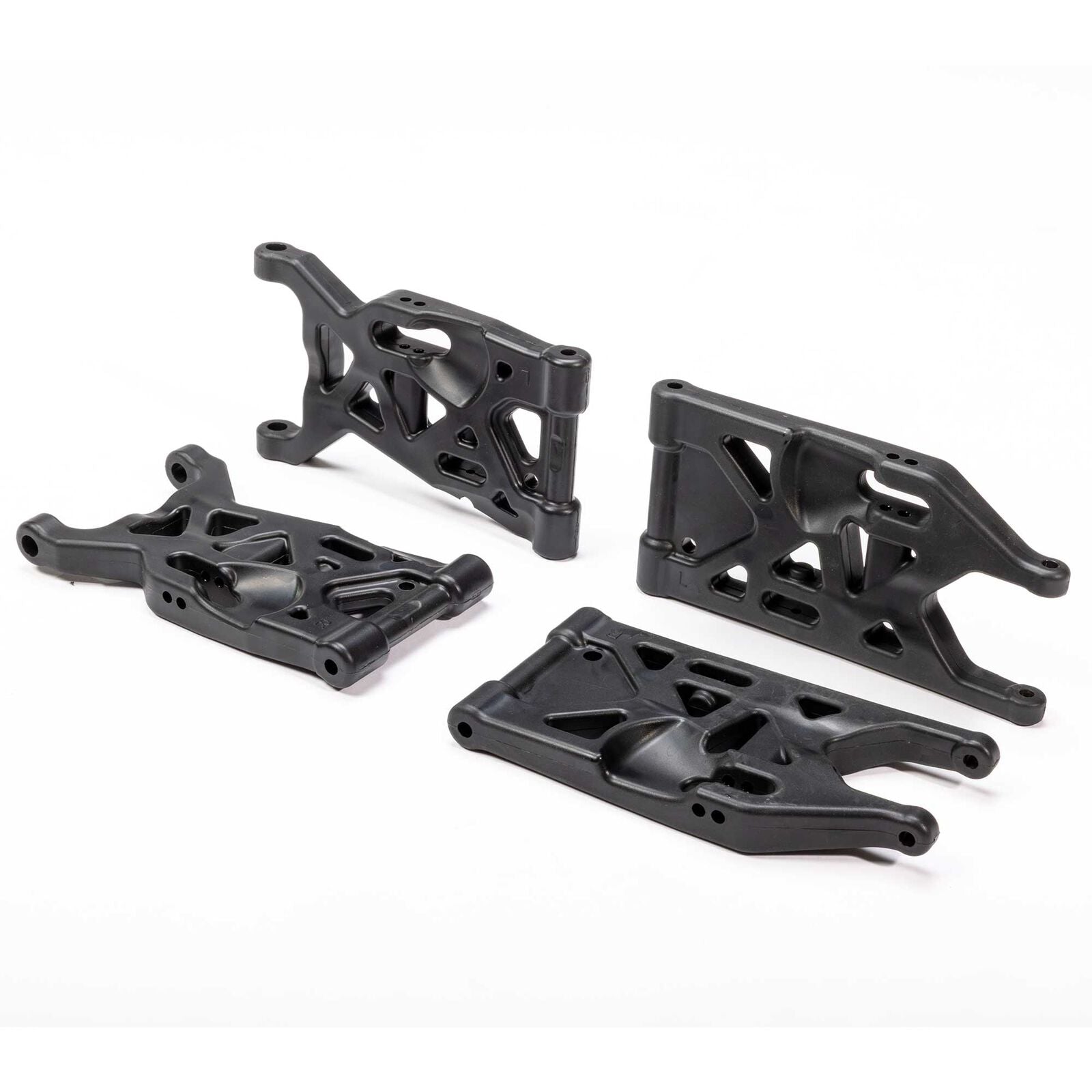

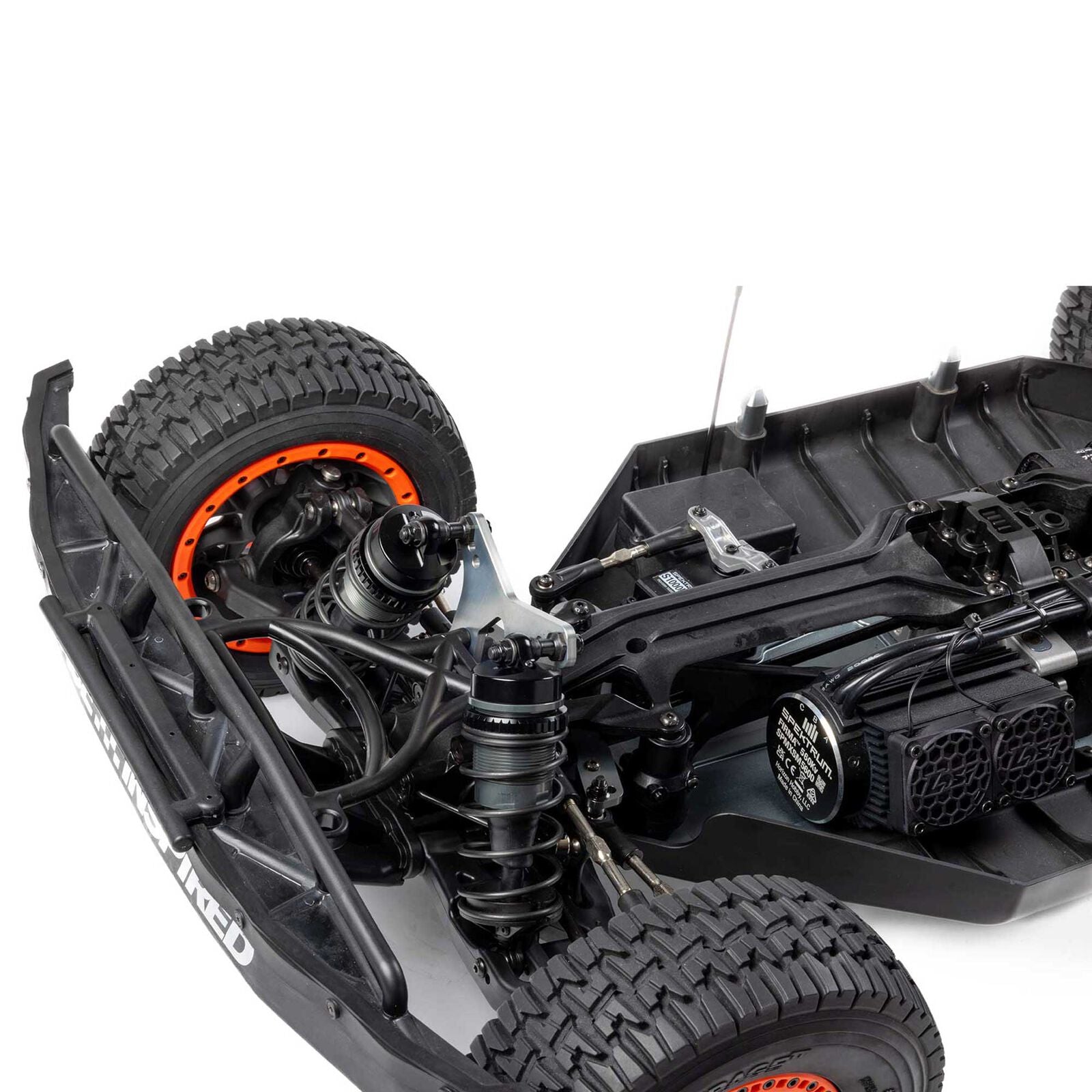

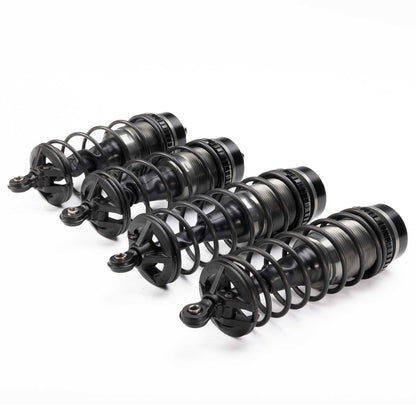

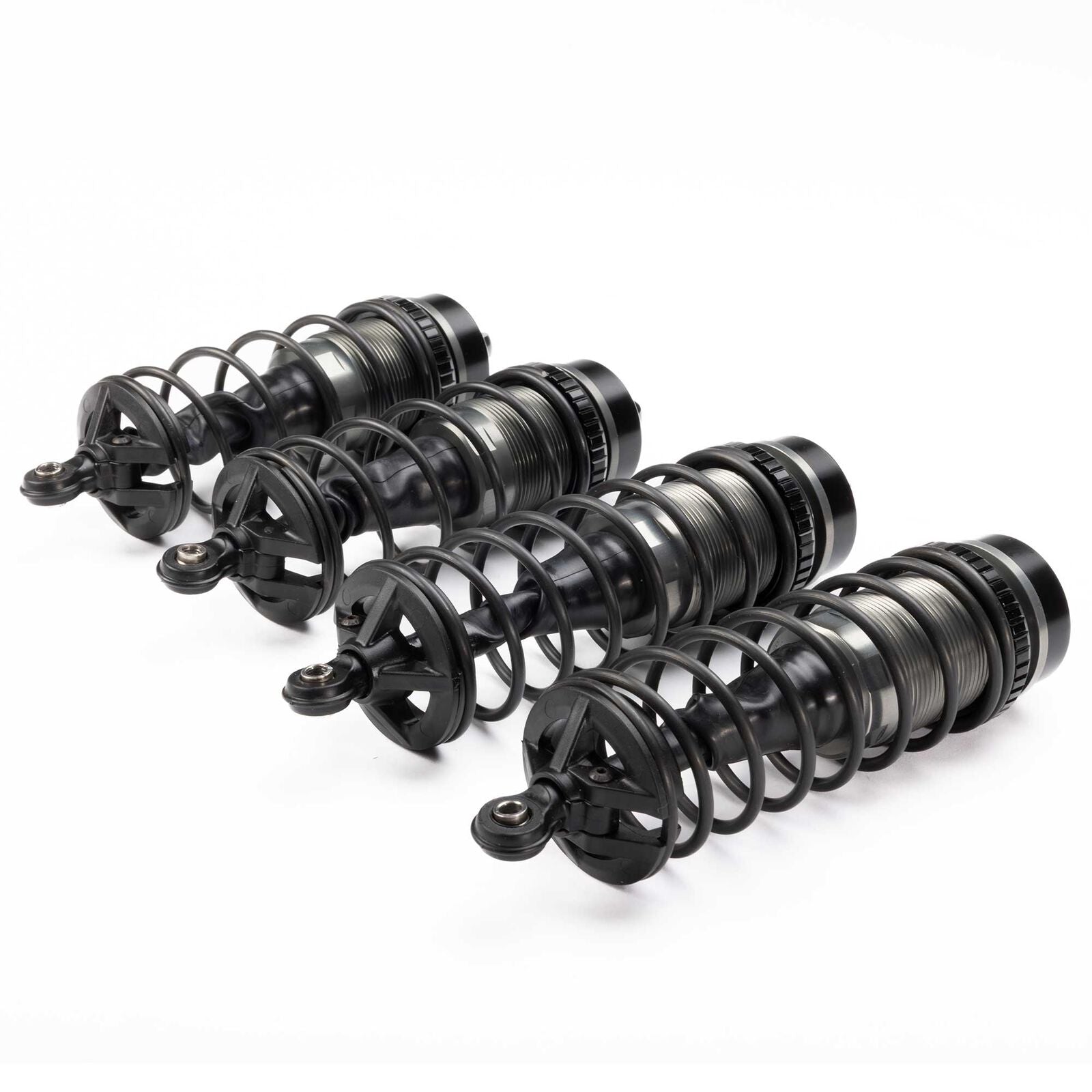

The suspension receives equally impressive upgrades. New 32 mm big-bore shocks handle significantly more oil volume for improved damping performance under the weight and forces of the larger platform. Tapered pistons increase pack while creating a more controlled, quicker rebound for superior traction. Redesigned front and rear suspension arms feature material added around shock mounting locations for uniform thickness and enhanced durability. Additionally, corrected shock geometry optimises shock angles from the tower to the arm.

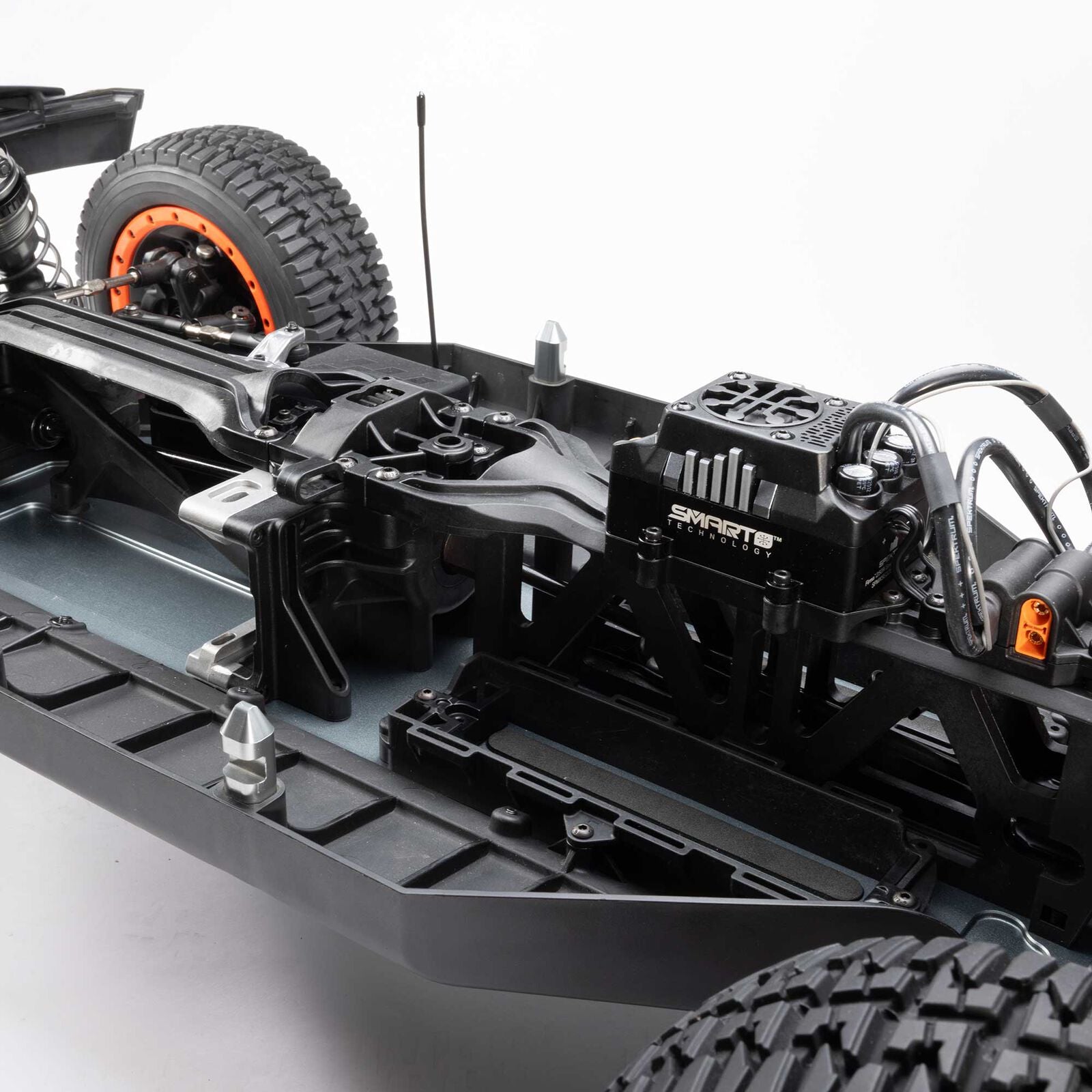

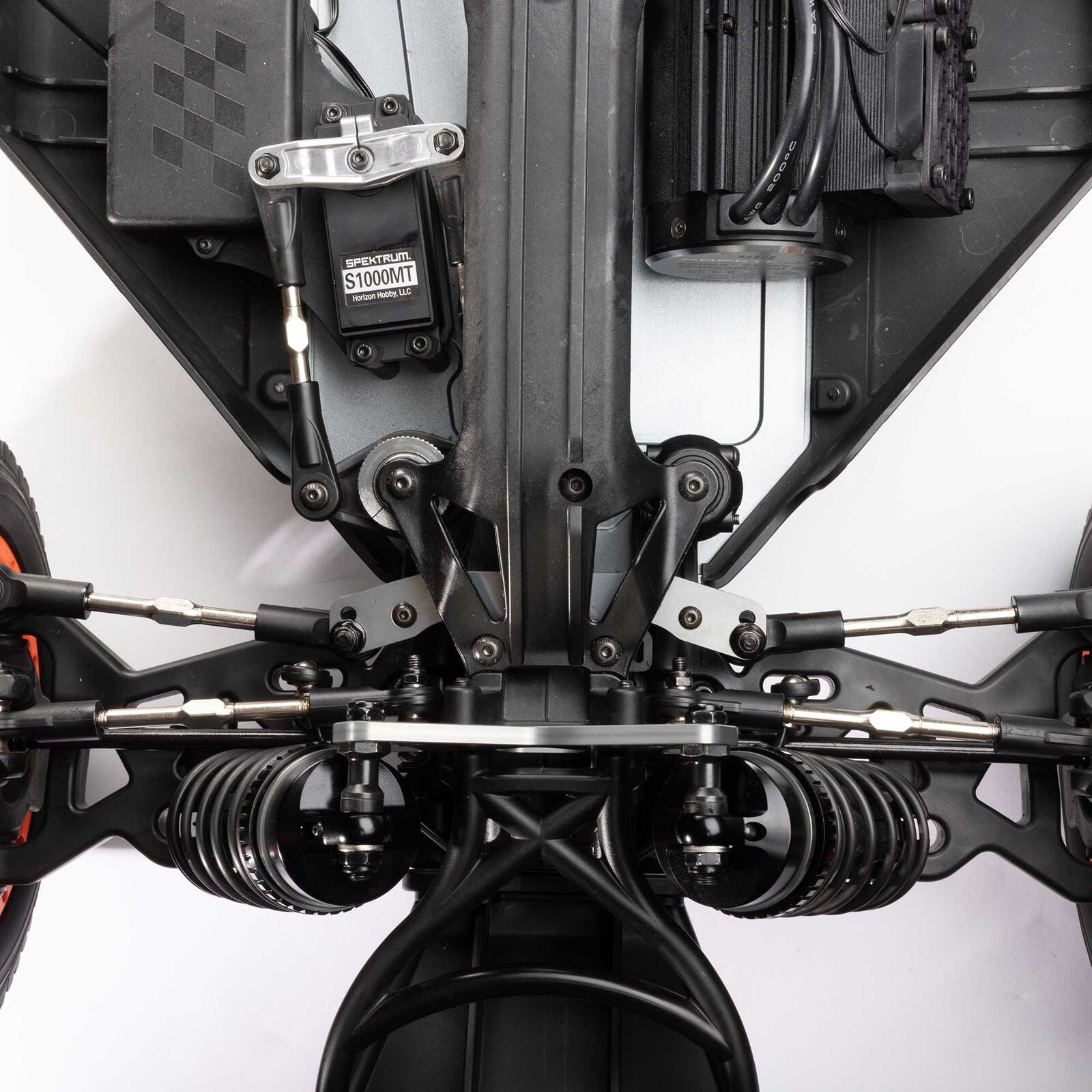

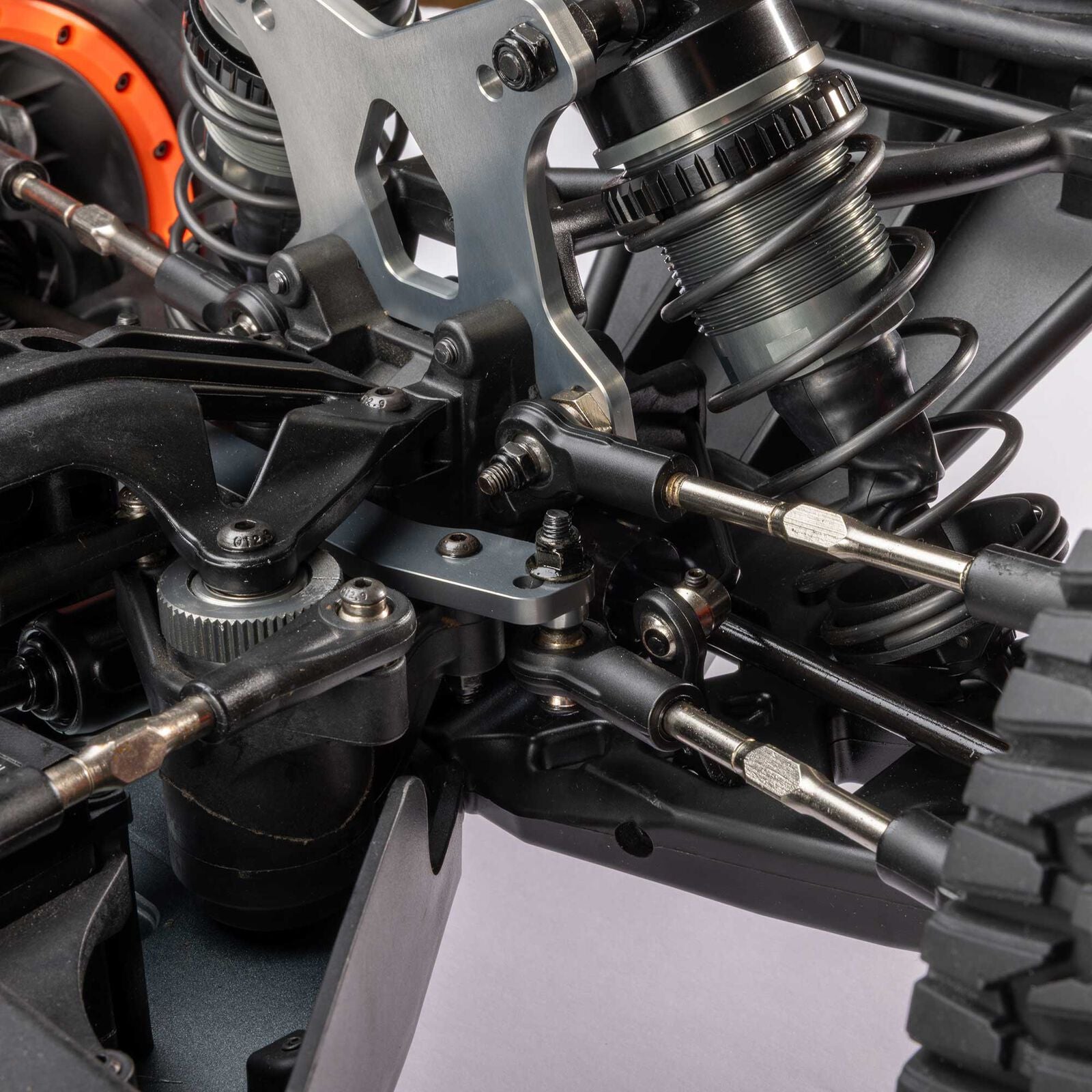

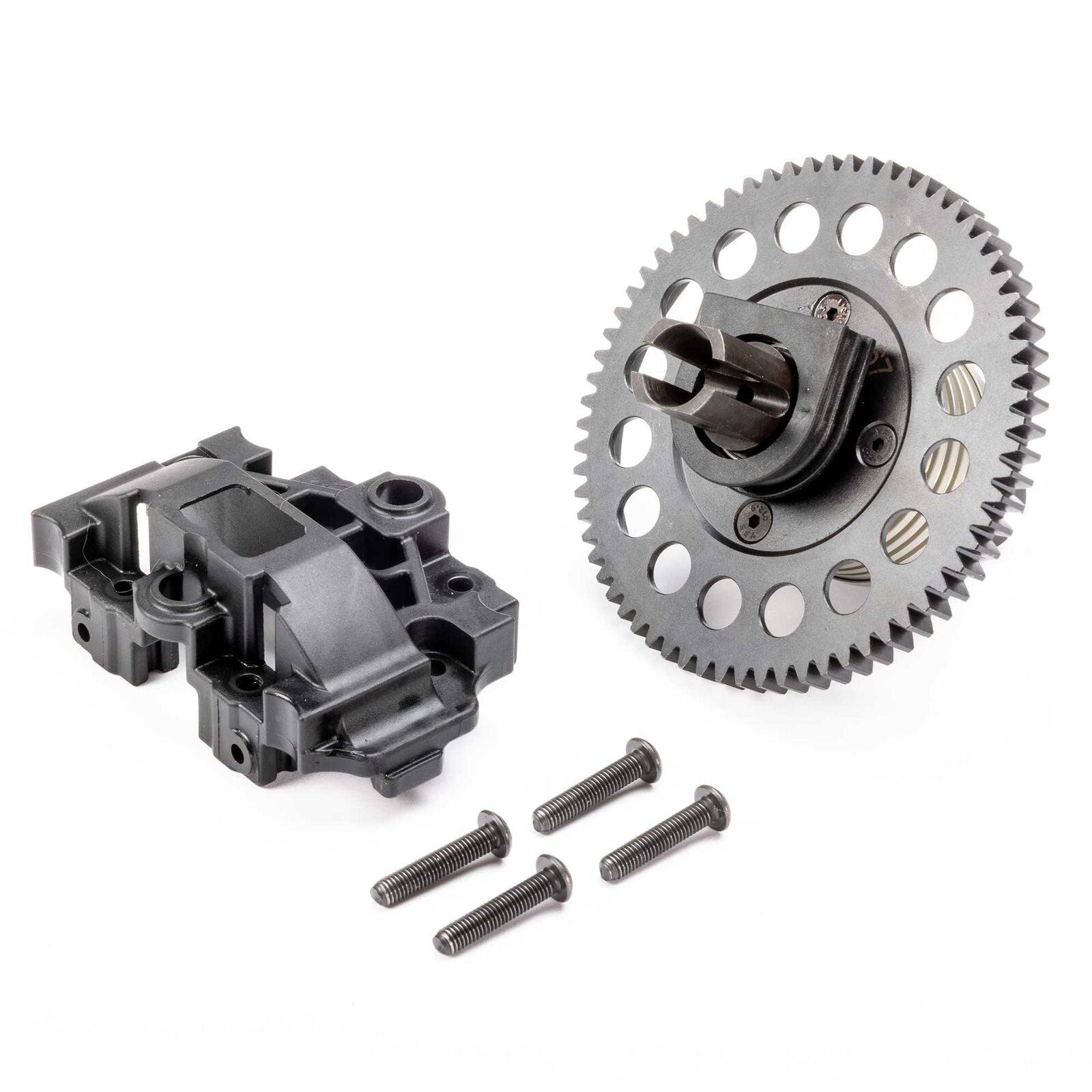

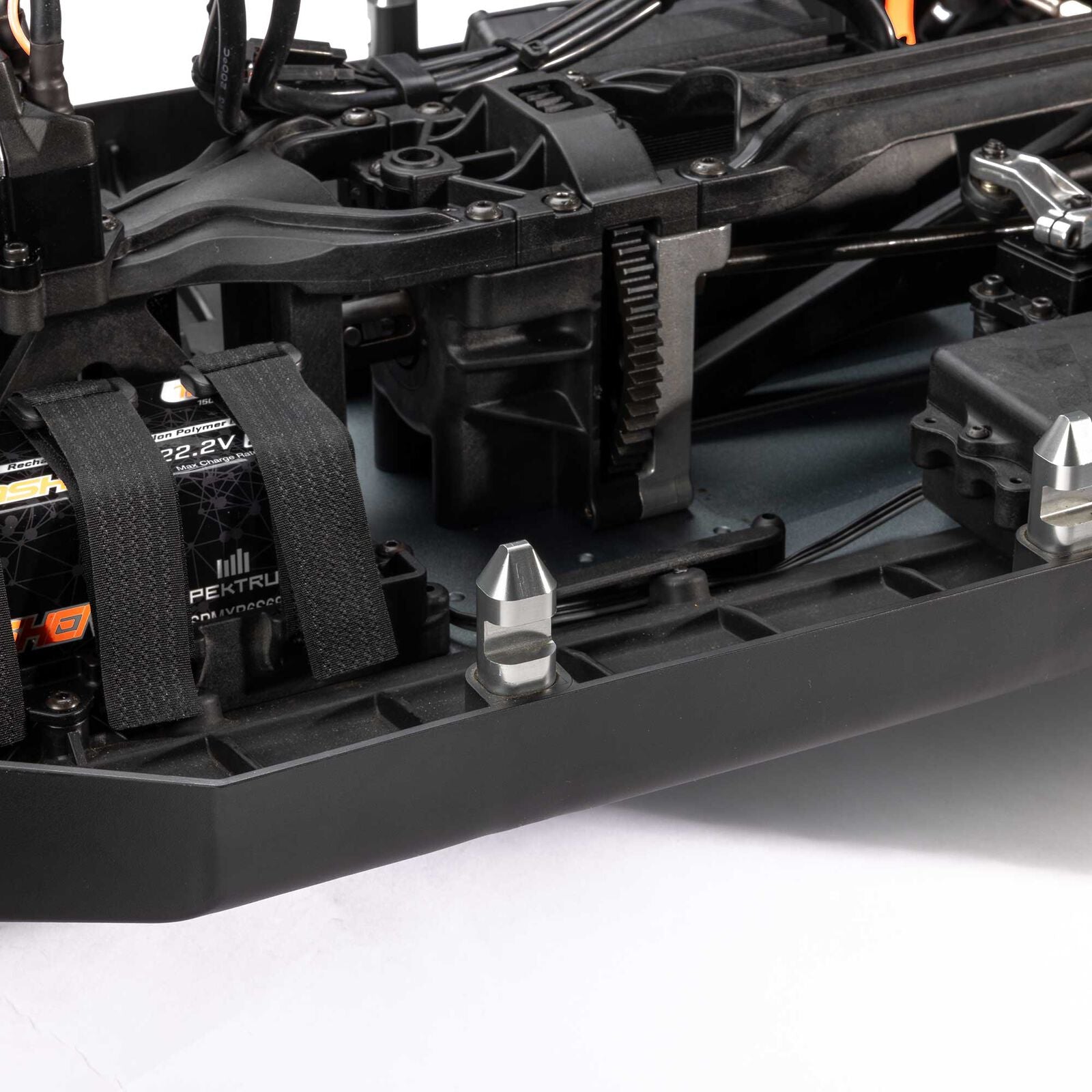

An all-new easy-access centre differential mount simplifies maintenance. Spektrum's new metal-top large-scale servo delivers an astounding 1,000 oz/in of torque, keeping this massive truck pointed precisely where you want it. The metal top case keeps gears perfectly aligned while acting as a heatsink to draw heat away from the servo motor, enhancing both performance and longevity.

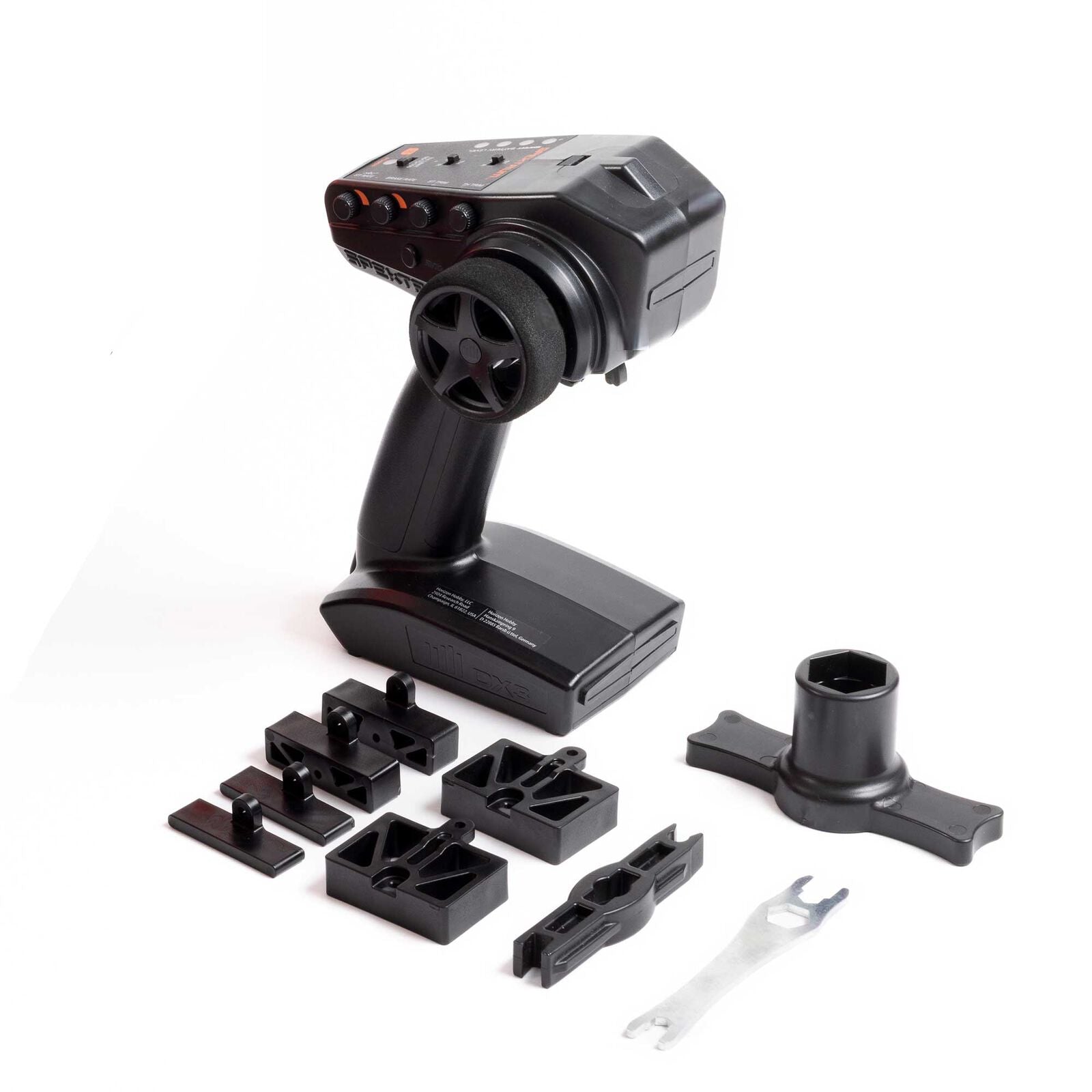

The included Spektrum DX3 Smart transmitter meets the needs of both newcomers and experienced large-scale enthusiasts. Its throttle limiting function allows novice drivers to restrict the top speed to 50% or 75% until they're ready to experience the 5IVE-TE 3.0's full potential. When using Smart batteries, the transmitter's battery level indicator shows real-time capacity, so you'll always know when it's time to swap in a fresh pack. The SR6200A DSMR receiver includes AVC (Active Vehicle Control) technology to increase stability on challenging terrain, while Smart Technology compatibility provides real-time telemetry data.

The Losi 5IVE-TE 3.0 is ready to dominate right out of the box. Add your choice of 8S or 12S battery packs, pick a compatible charger, and prepare to experience the largest, fastest, and most powerful 5IVE-T to date.

Specifications

Approximate Assembly Time: Less than 1 hour
Battery: Sold Separately
Charger: Sold Separately
Chassis: 6061-T6 Aluminium
Completion Level: Ready-To-Run
Connector Type: IC5
Differential: Gear
Drivetrain: 4WD
Final Drive Ratio: 14.12
Internal Gear Ratio: 3.58
LiPo Compatibility: 8S, 12S
Max Battery Dimensions: 180 x 52 mm
Motor Size: 560Kv
Motor Type: Brushless
Pinion: 17T
Power Type: Electric
Product Height: 391 mm (15.4")
Product Length: 1090 mm (42.9")
Product Weight: Without Battery: 23.3 kg (51.4 lbs) / With Recommended 2 6S 7200mAh Battery: 25.3 kg (55.7 lbs)
Product Width: 538 mm (21.2")
Radio: Included
Receiver: Included
Scale: 1/5
Servos: Included
Shock Type: Big Bore Oil-Filled
Spur Gear: 67T
Tyre Tread: Mirage TT tyre
Top Speed: 80+ km/h (50+ mph)
Vehicle Type: Desert Truck
Wheel Hex Size: 24 mm
Wheelbase: 660 mm (26")
