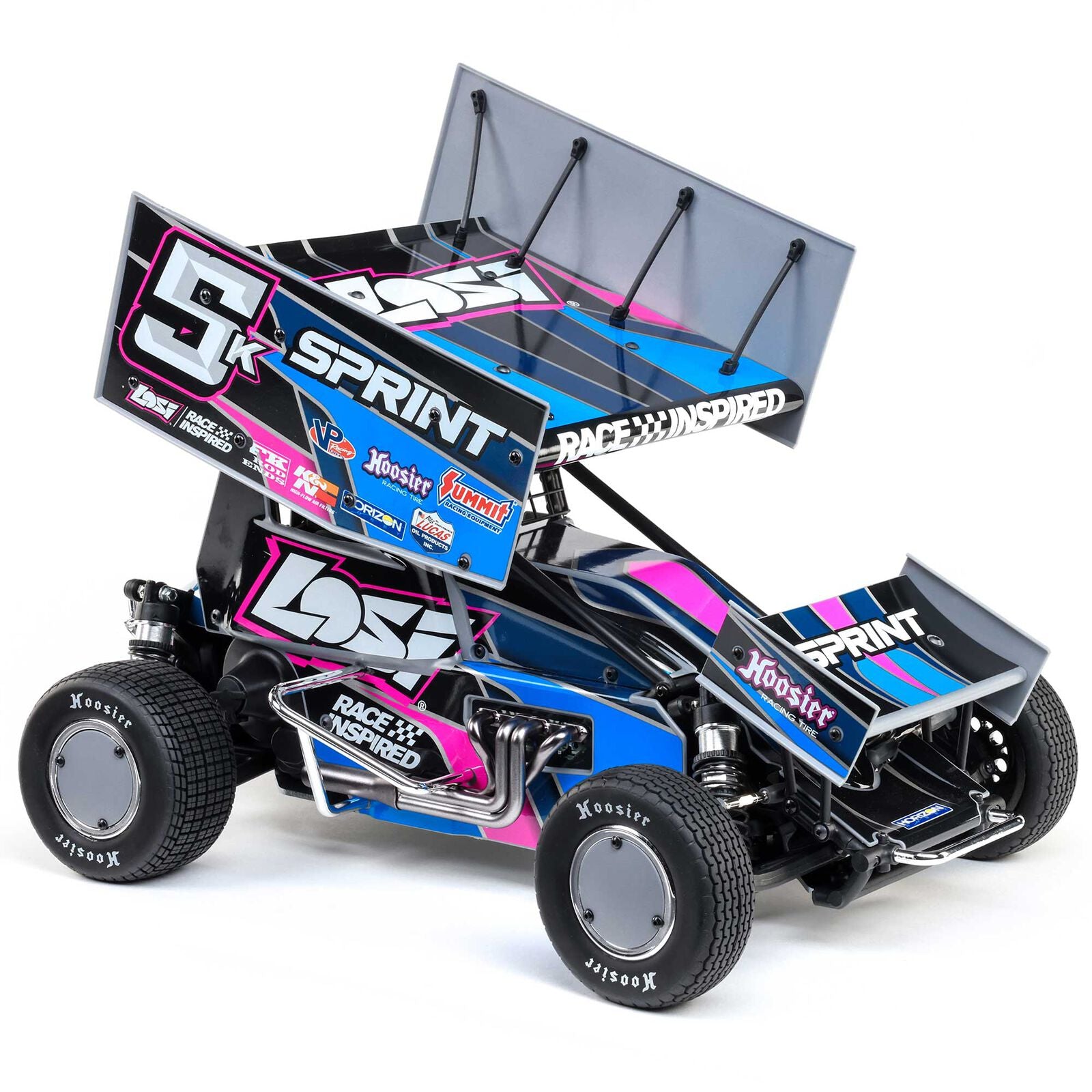

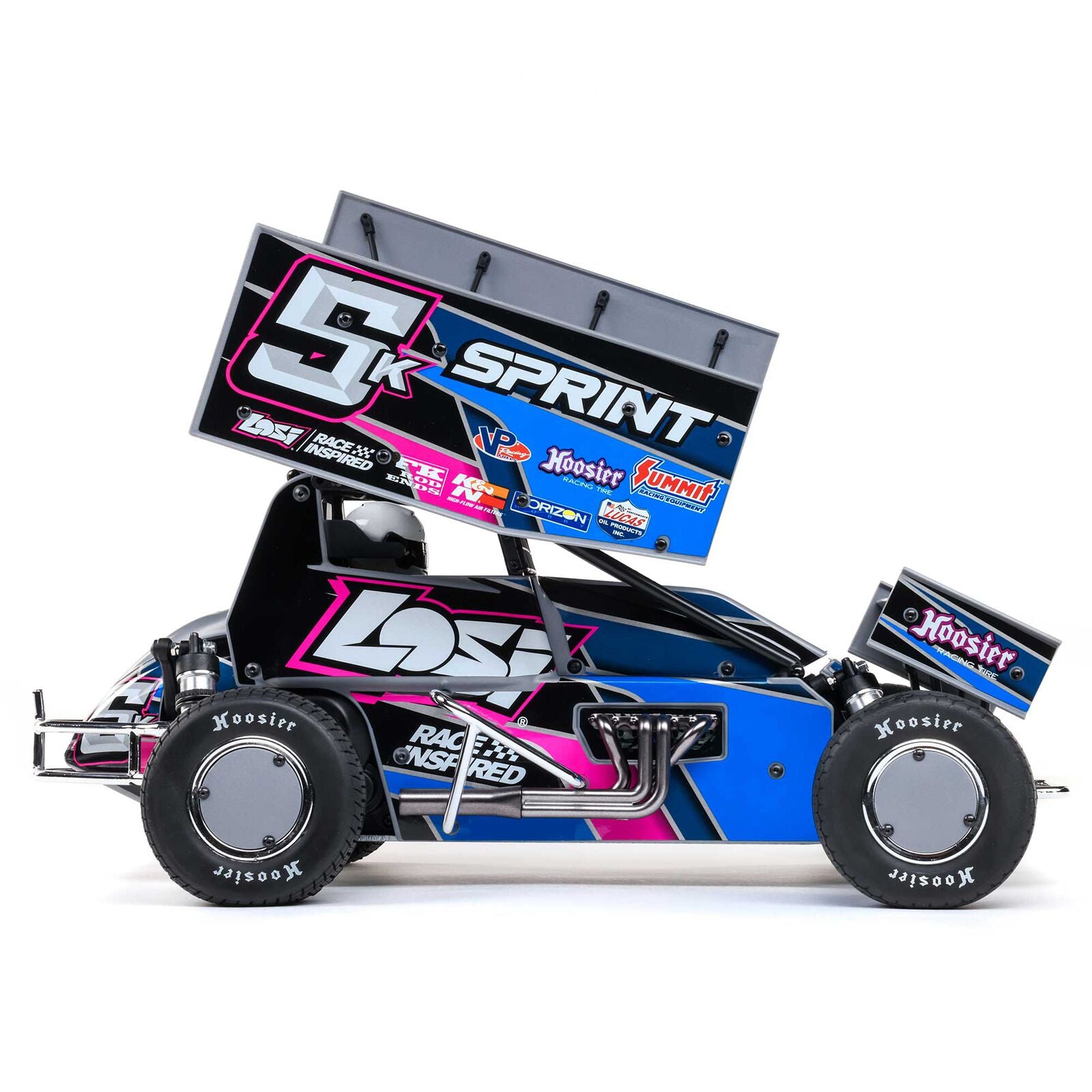

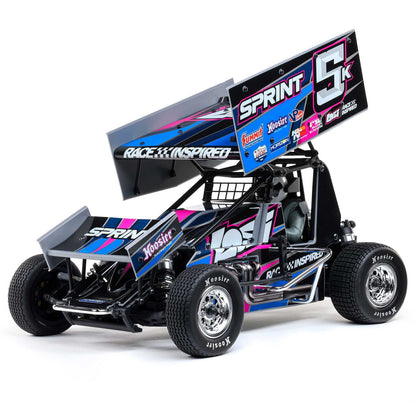

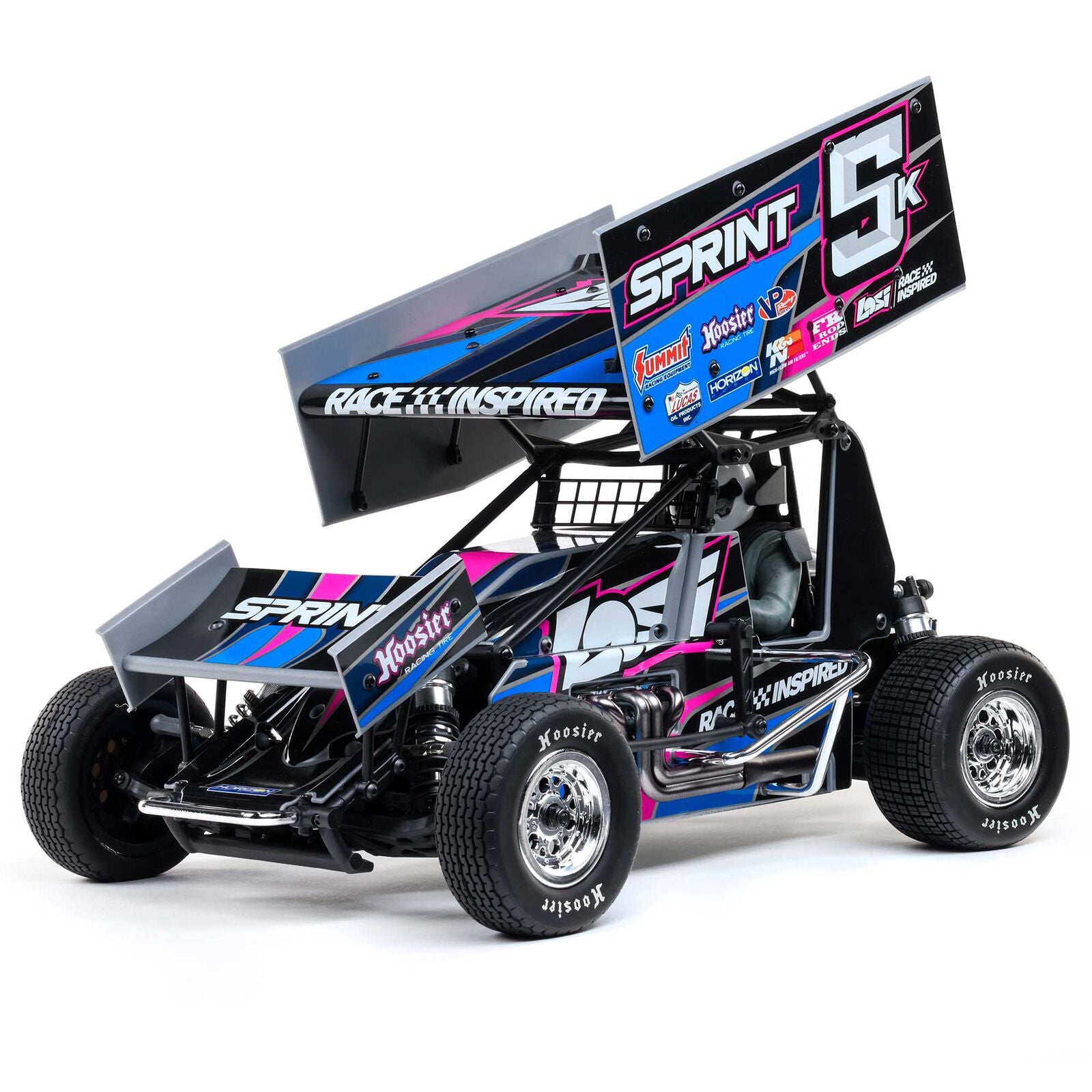

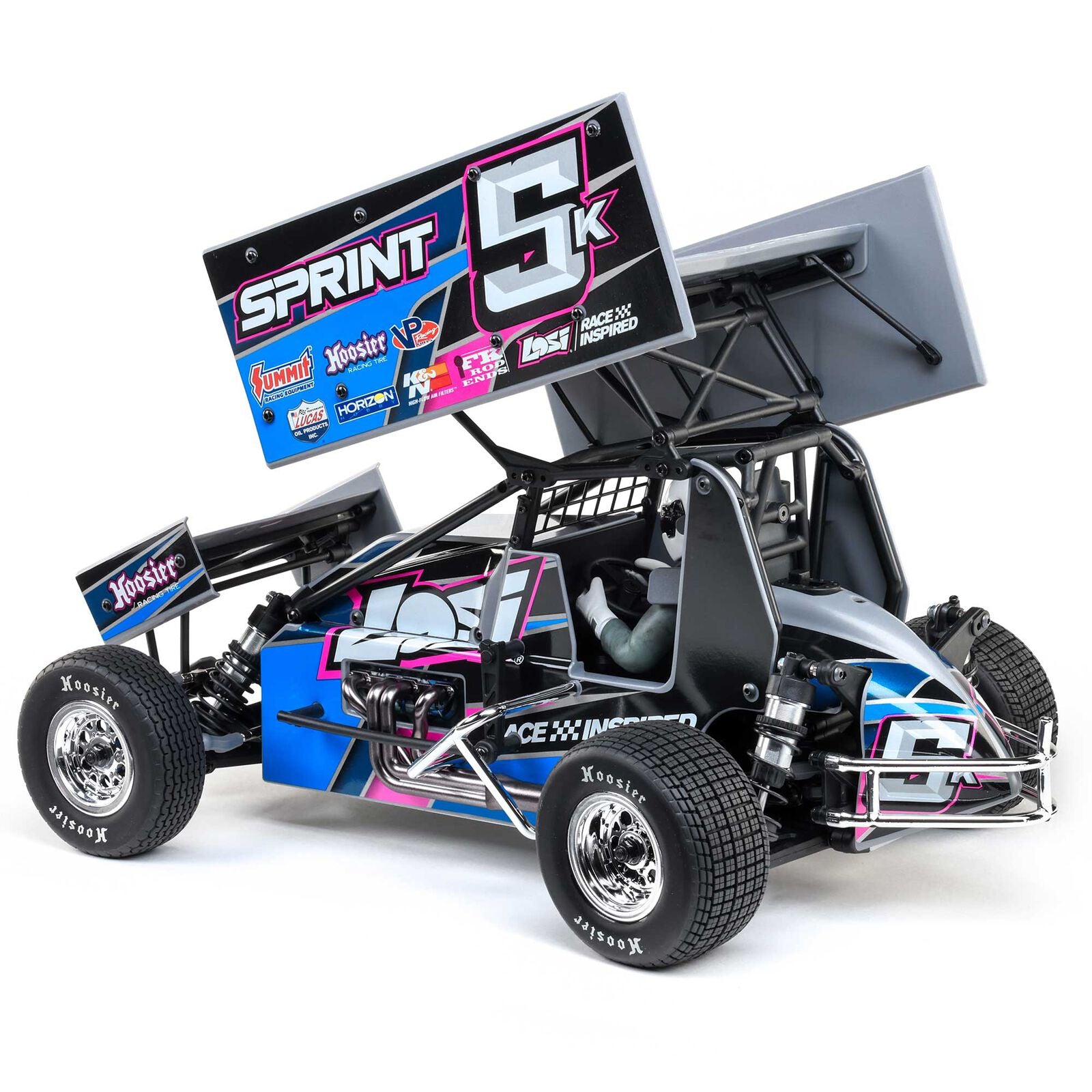

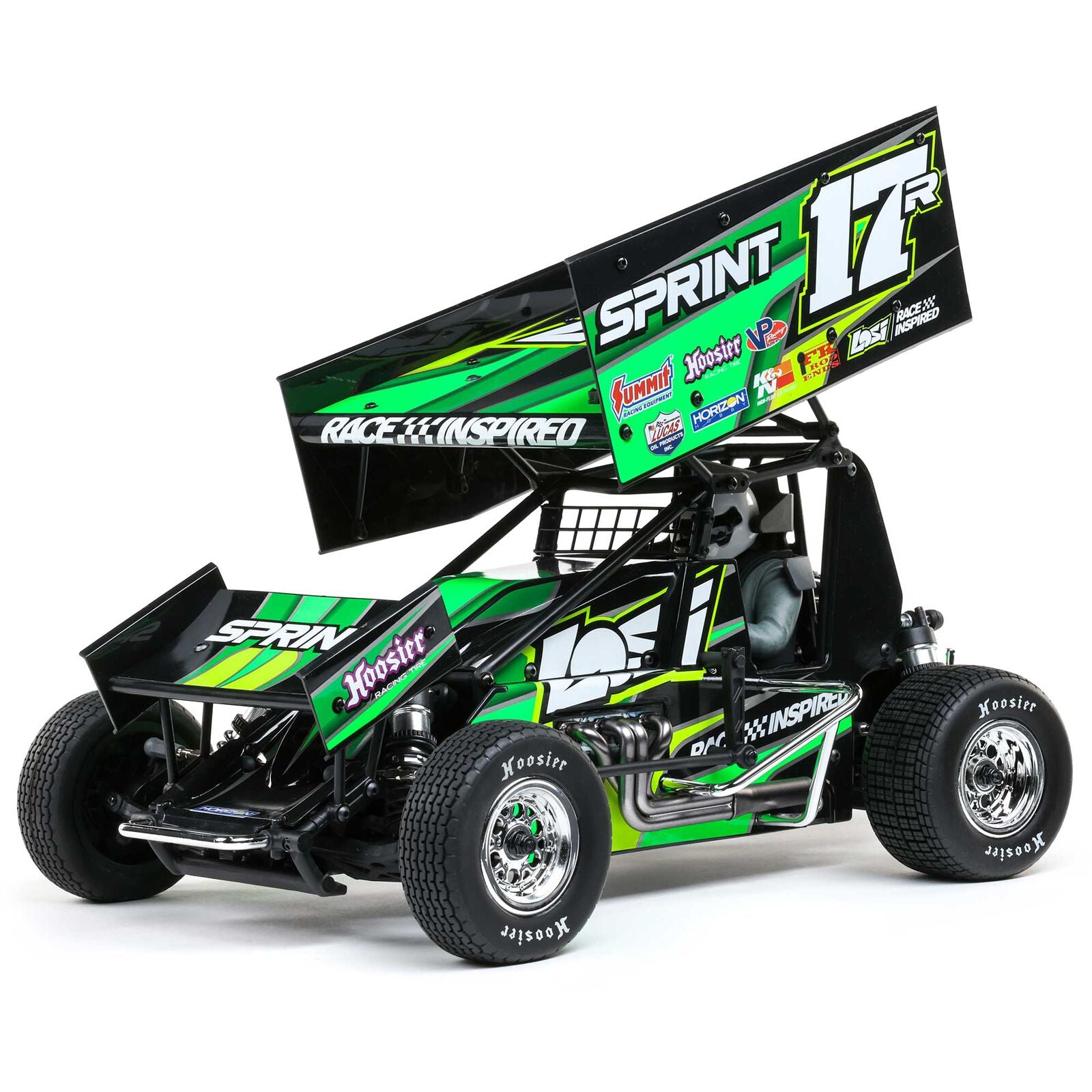

Losi 1/10 22S Sprint

Out of the box, the 22S Sprint looks and drives like a real sprint car. It features proven race geometry, a race-ready brushless power system, and removable top and front wings for authentic setup changes. Compatible with Losi and TLR option parts, it’s the game-changing way to get on track and into the race!

In the Box

Losi 22S Sprint Car 1/10 Scale 2WD RTR x1
Spektrum SLT2 2-Channel 2.4GHz Transmitter x1
Spektrum SR215 DSMR 2-Channel Sport Receiver x1
Spektrum Firma 45A Brushless Smart Lite ESC x1
Spektrum Firma 3650 3300Kv Brushless Motor x1
Spektrum S684 25T Waterproof Metal Gear Servo x1
AA Transmitter Batteries x4
Metal 4-Way Nut Driver x1
Composite Shock Body & Shock Cap Tools x1
Instruction Manual x1

Needed to Complete

2S LiPo battery with IC5 connector x1
Compatible charger x1

Features

Race-ready brushless power system

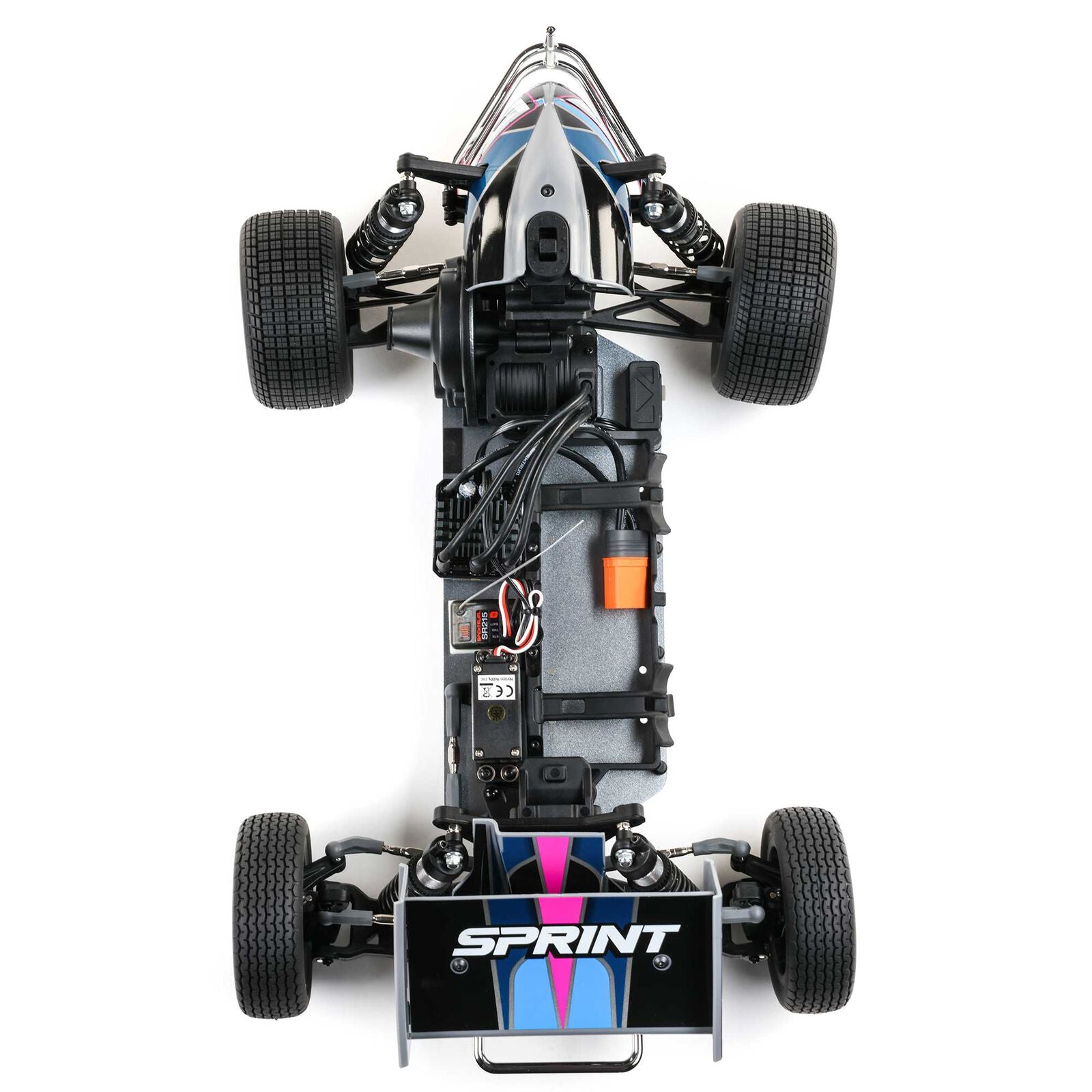

Clipless body and cage mounting for easy chassis access
Ready to run (battery and charger required)

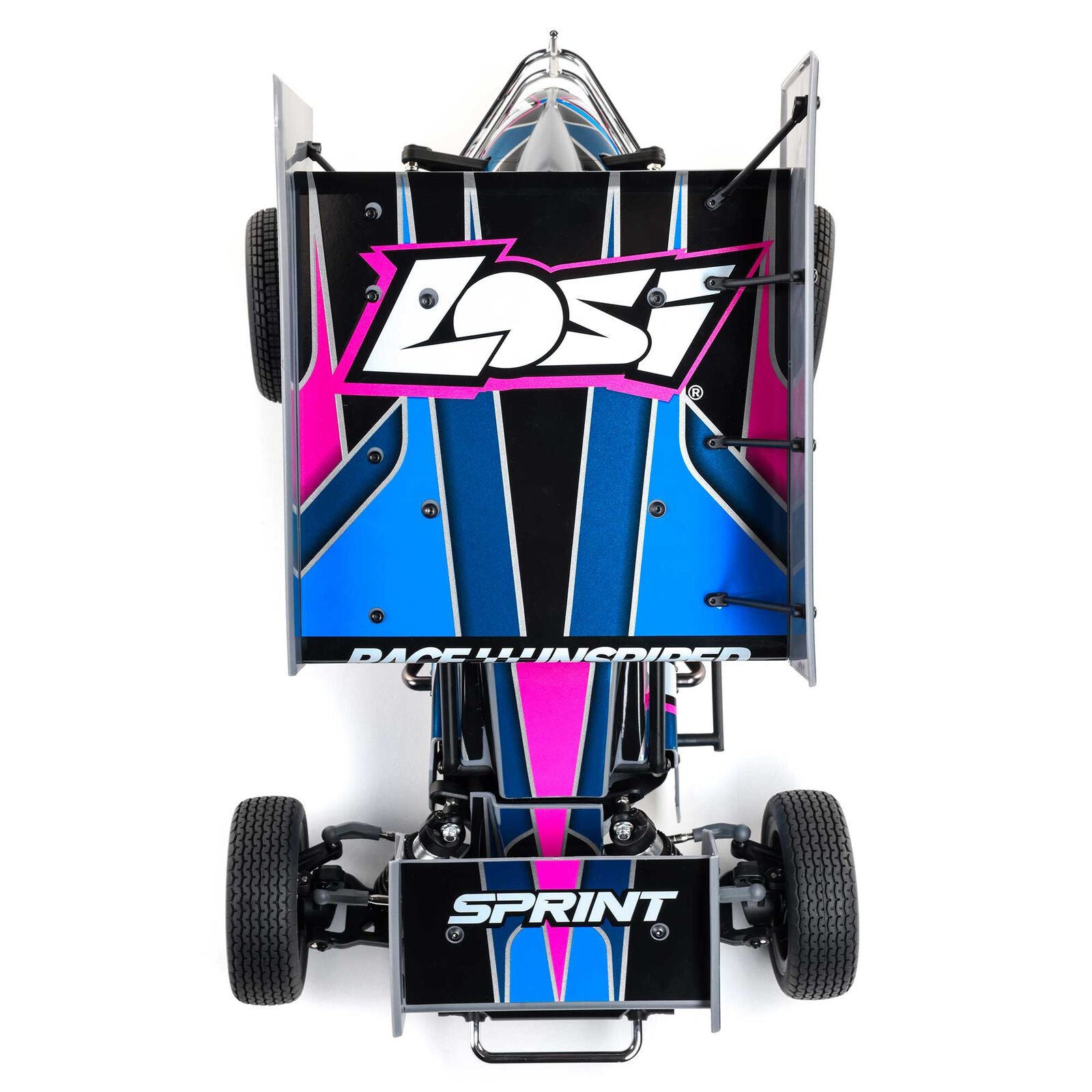

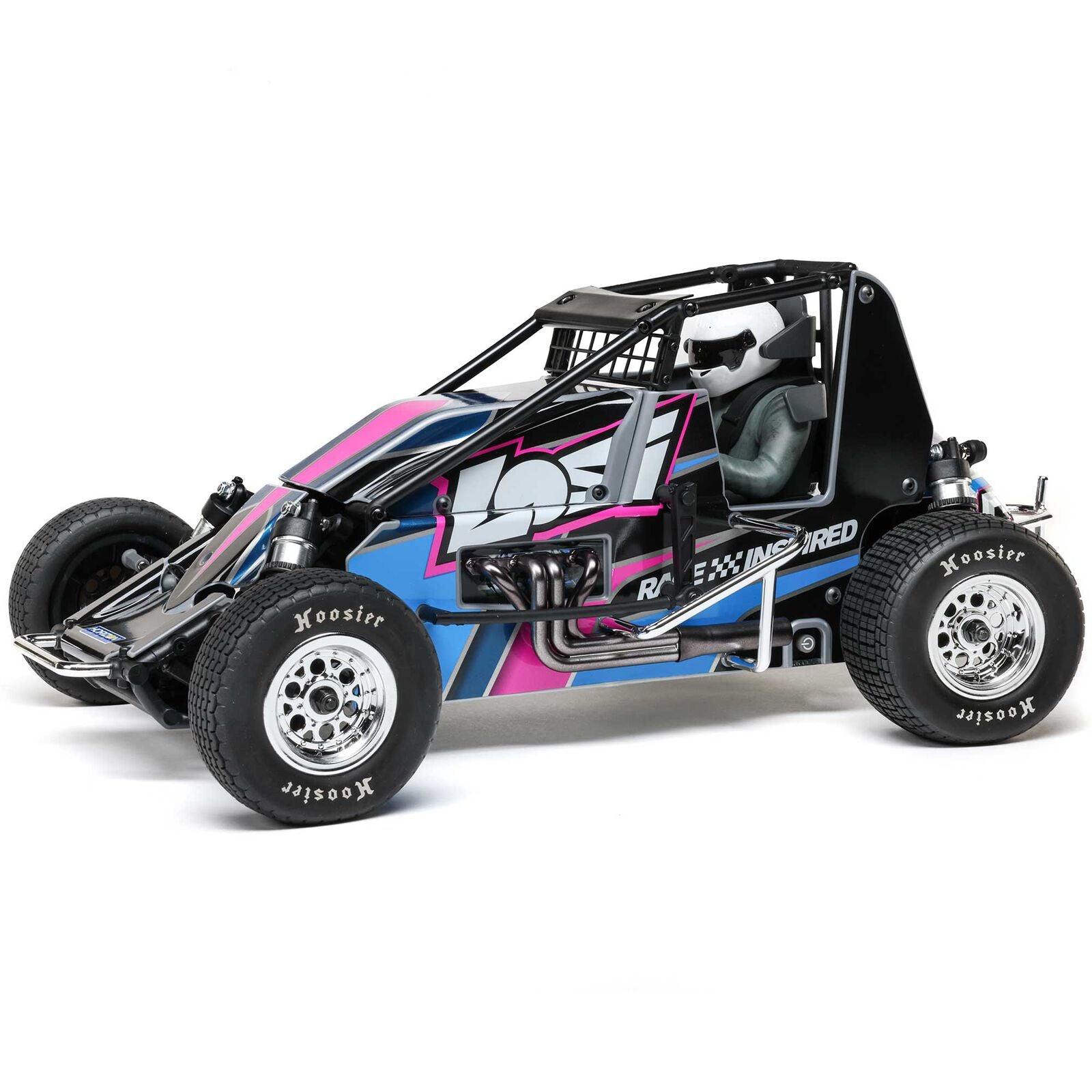

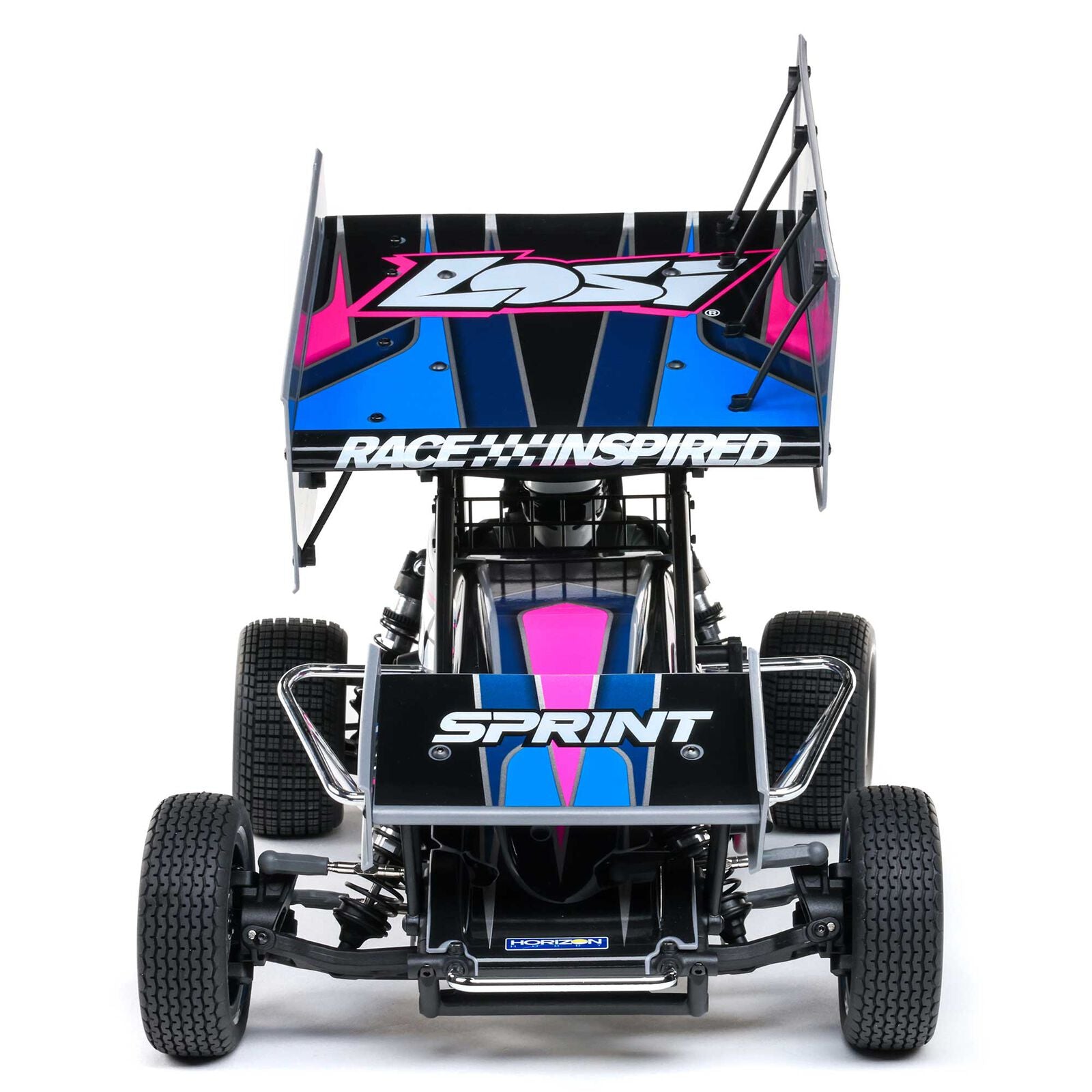

Removable top and front wings
2.5mm 6061-T6 aluminium chassis
Threaded aluminium shock bodies
Adjustable steel turnbuckles
All-metal transmission
Adjustable dual slipper clutch
Sealed gear differential pre-filled with diff fluid
Battery tray with easy elastomer straps
Adjustable stops for full-length or shorty batteries
Accepts existing Losi and TLR option parts
Based on competition-proven TLR 22 geometry
Downloadable templates for body panels
Clipless roll cage, body, and top wing mounting

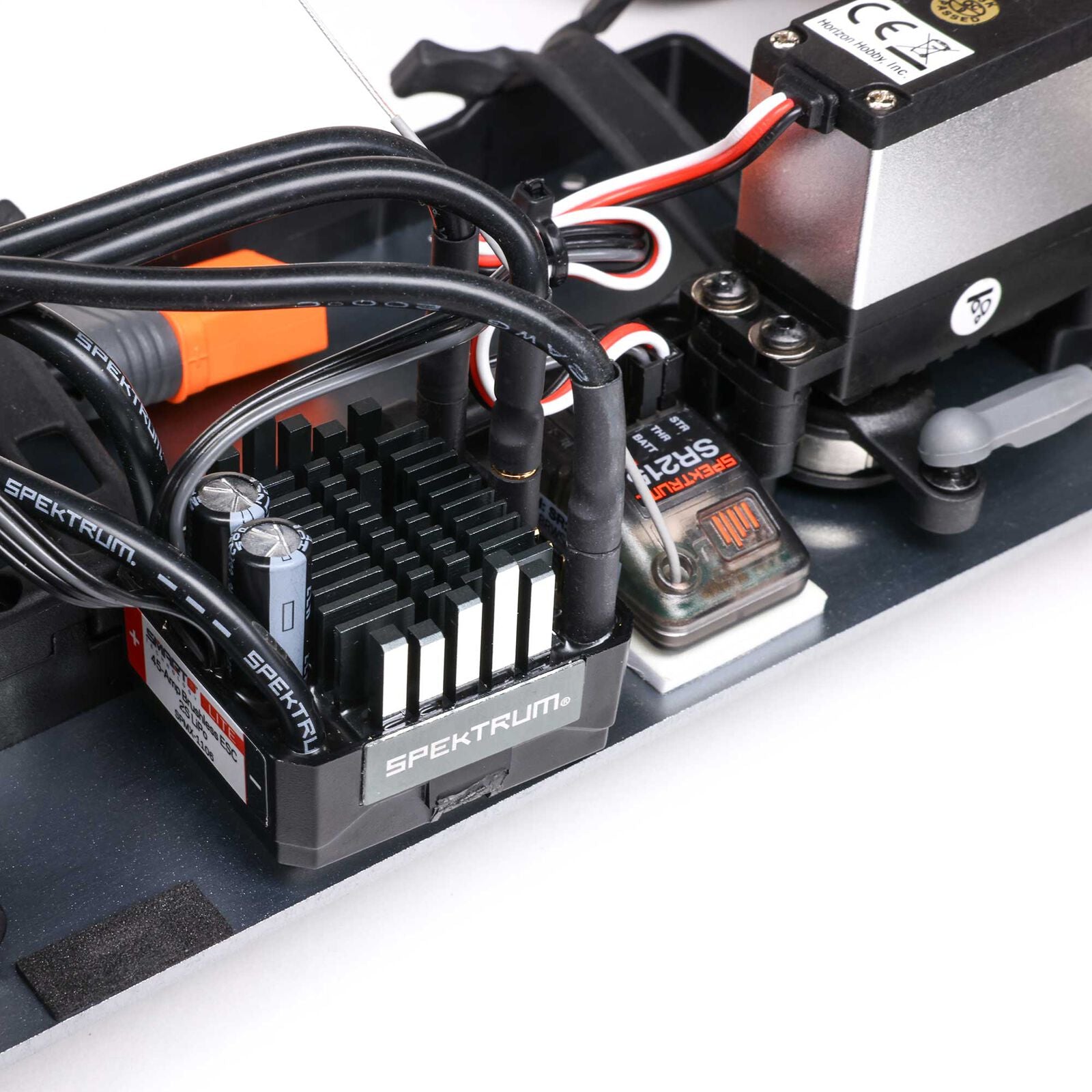

Spektrum brushless power system
Spektrum SLT2 2.4GHz transmitter
Spektrum SR215 DSMR 2-channel receiver
Spektrum S684 25T waterproof metal gear steering servo

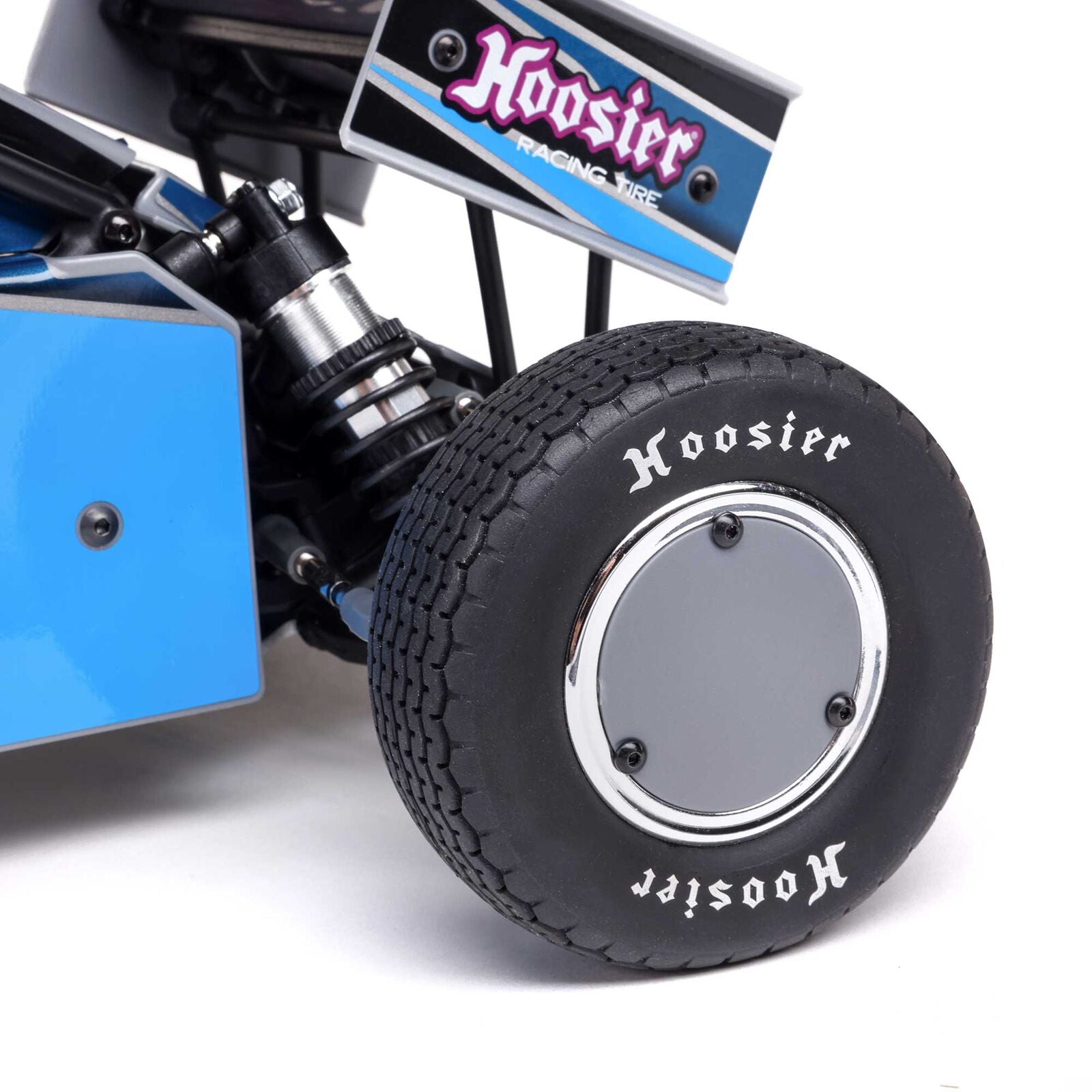

Officially licensed Hoosier tyres

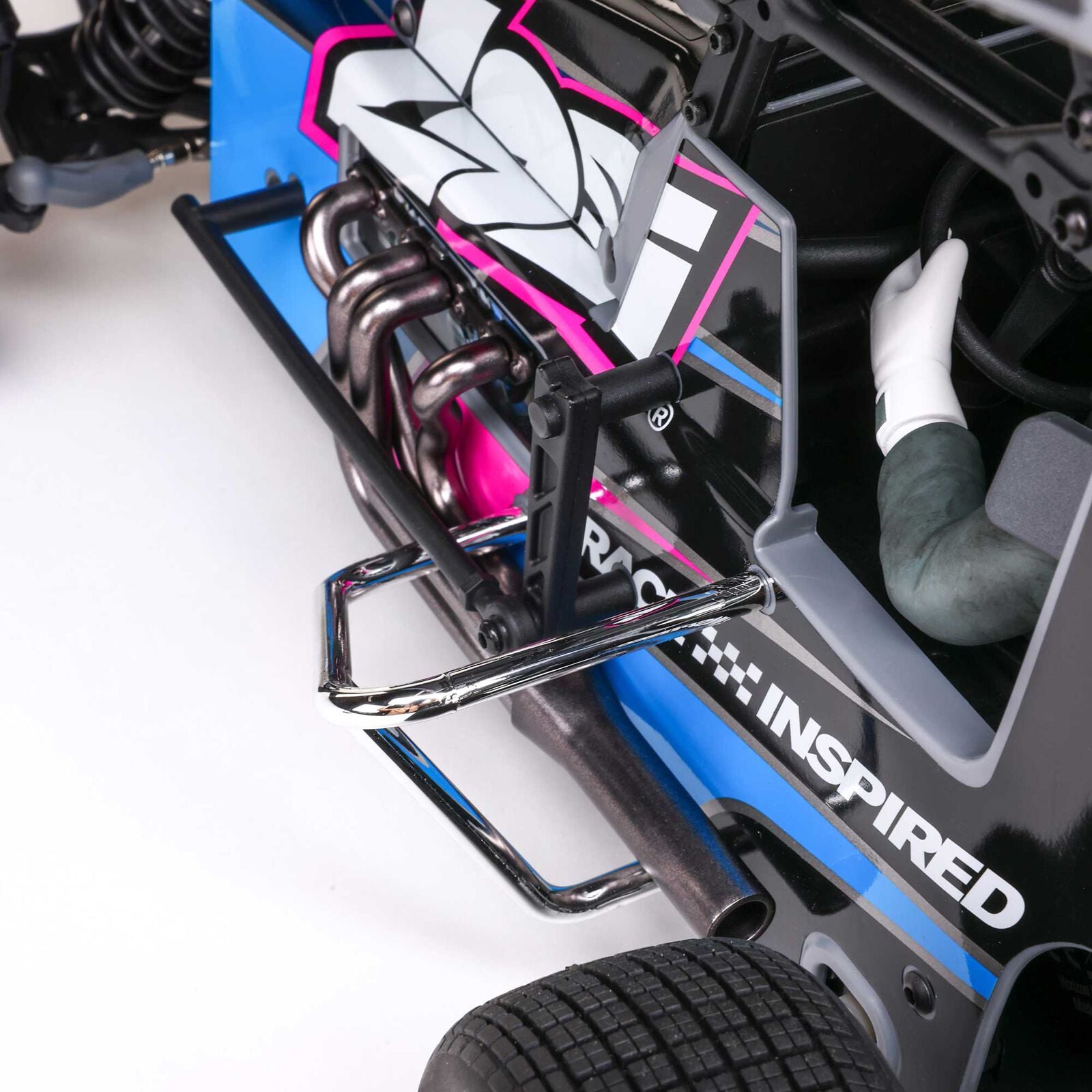

Moulded and electroplated exhaust

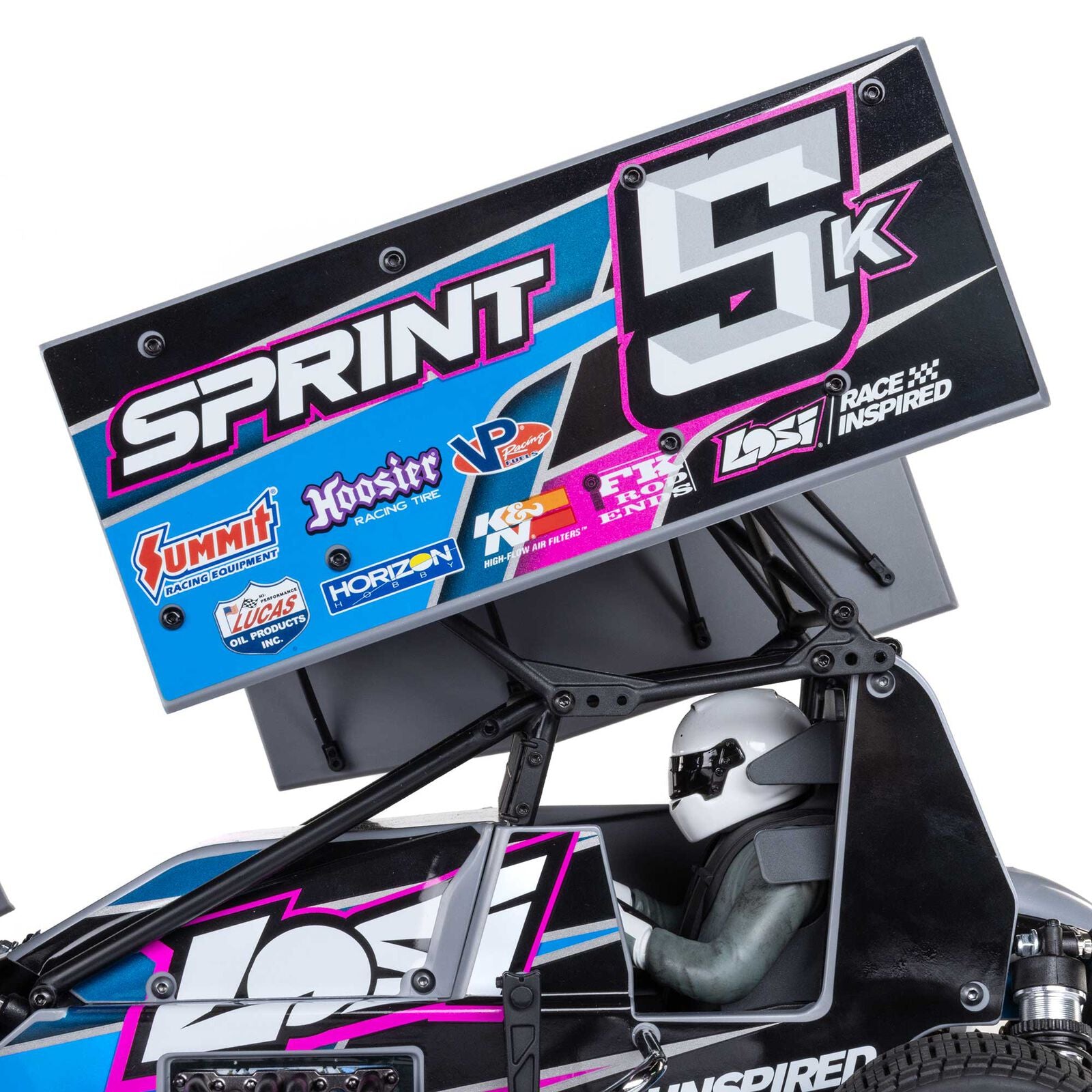

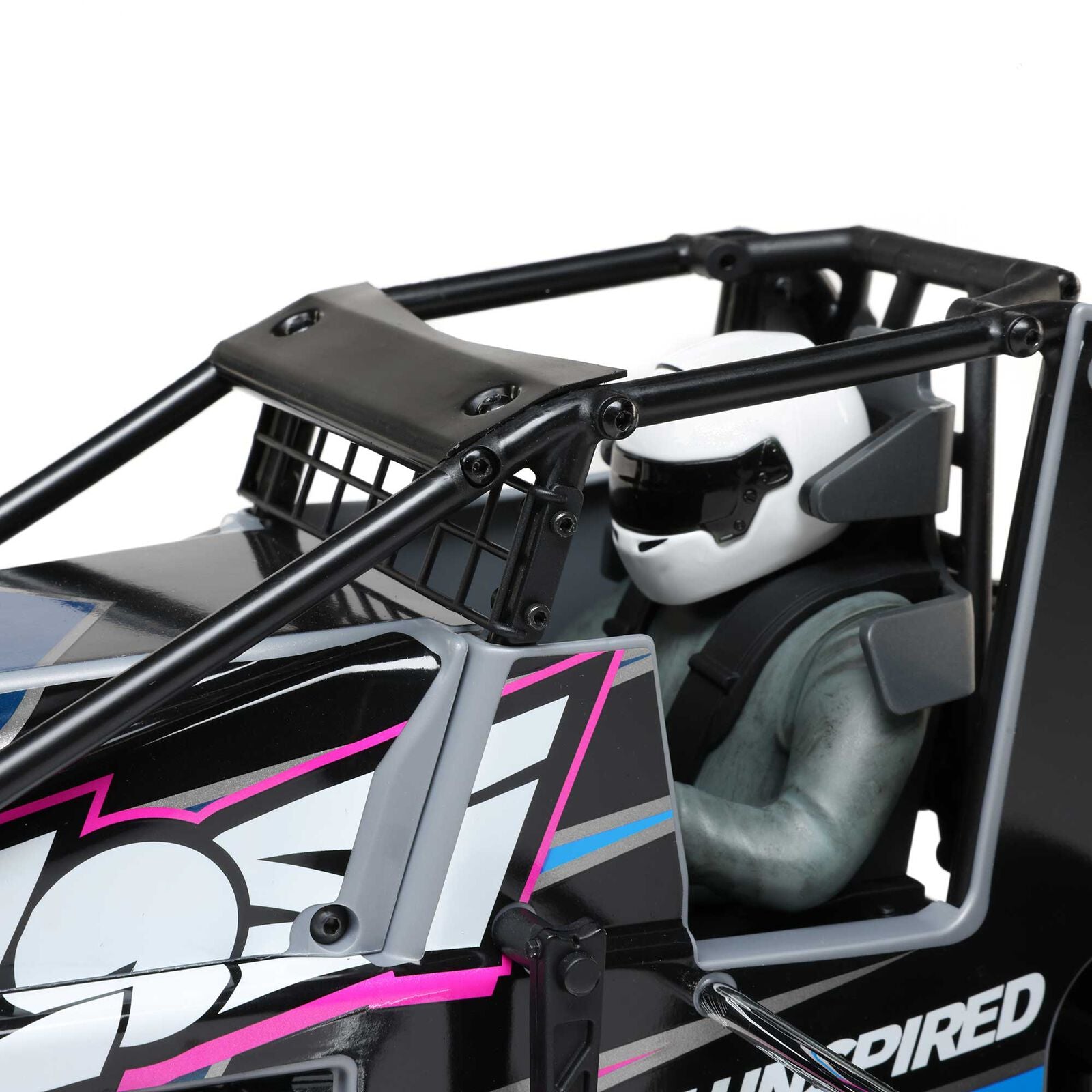

Hand-painted driver figure with post anchor device and race seat
Steering wheel and scale steering box interior
Faux Pitman arm and steering linkage
Metal 4-way nut driver
Composite shock body and shock cap tools
AA transmitter batteries (x4)
Decal sheets with custom numbers and number boards (x2)

More Information

With the 1/10 scale, ready-to-run 22S Sprint 2WD, Losi takes the lead among all RC manufacturers in providing the best RC dirt oval racing experience right out of the box.

One of the most popular forms of American full-scale motorsports, dirt oval racing might at first seem somewhat simple. But anyone who’s passionate about racing knows that there’s much more to it than making left turns. To get out of the stands and into the race, you need skill, commitment, and – perhaps most of all – a capable vehicle.

The Losi 22S Sprint delivers superior performance and accurate scale looks at a fraction of the cost, with time-saving, ready-to-run ease. Based on championship-winning Team Losi Racing TLR 22 geometry, it’s filled with the features that experienced racers respect.

An aluminium chassis, steel turnbuckles, and all-metal transmission provide the durability to survive intense competition on a crowded dirt oval course. The sealed gear differential is pre-filled with diff fluid for optimal performance. A customisable battery tray increases your battery options, with adjustable stops for using full-length or shorty packs. The installed Spektrum 2S brushless system powers the 22S Sprint around the oval, hitting 25+ mph down the chutes.

Numerous scale details take its realism to the next level – moulded and electroplated exhaust, a hand-painted driver figure with a post anchor device and race seat, steering wheel and scale steering box interior, and much more. It comes out of the box as a winged sprint car, but the front and rear wings can easily be removed to race in another class. The officially licensed Hoosier tyres feature a soft compound that’s ideal for most tracks. If you race often on high-traction, high-wear surfaces, a hard compound version is available separately.

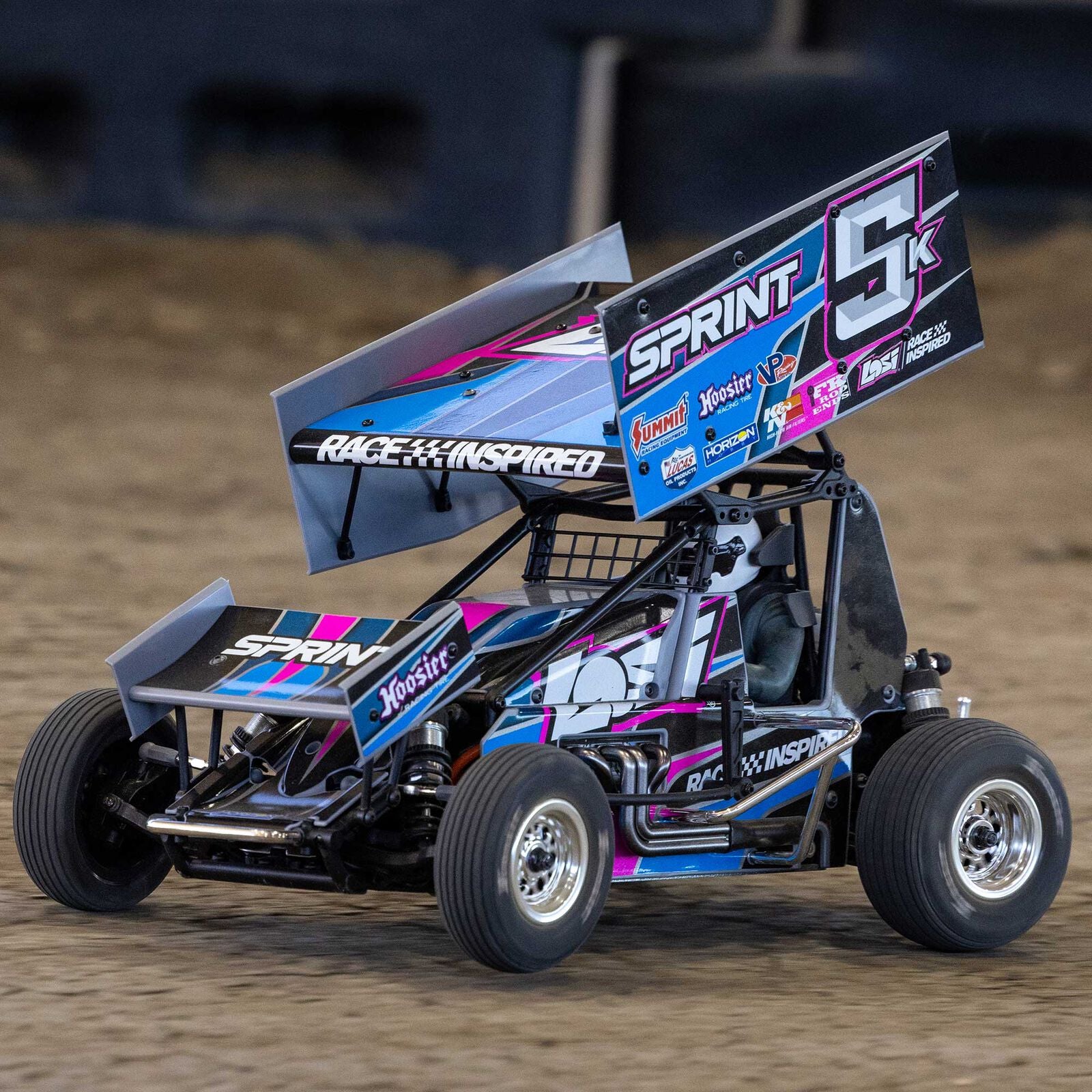

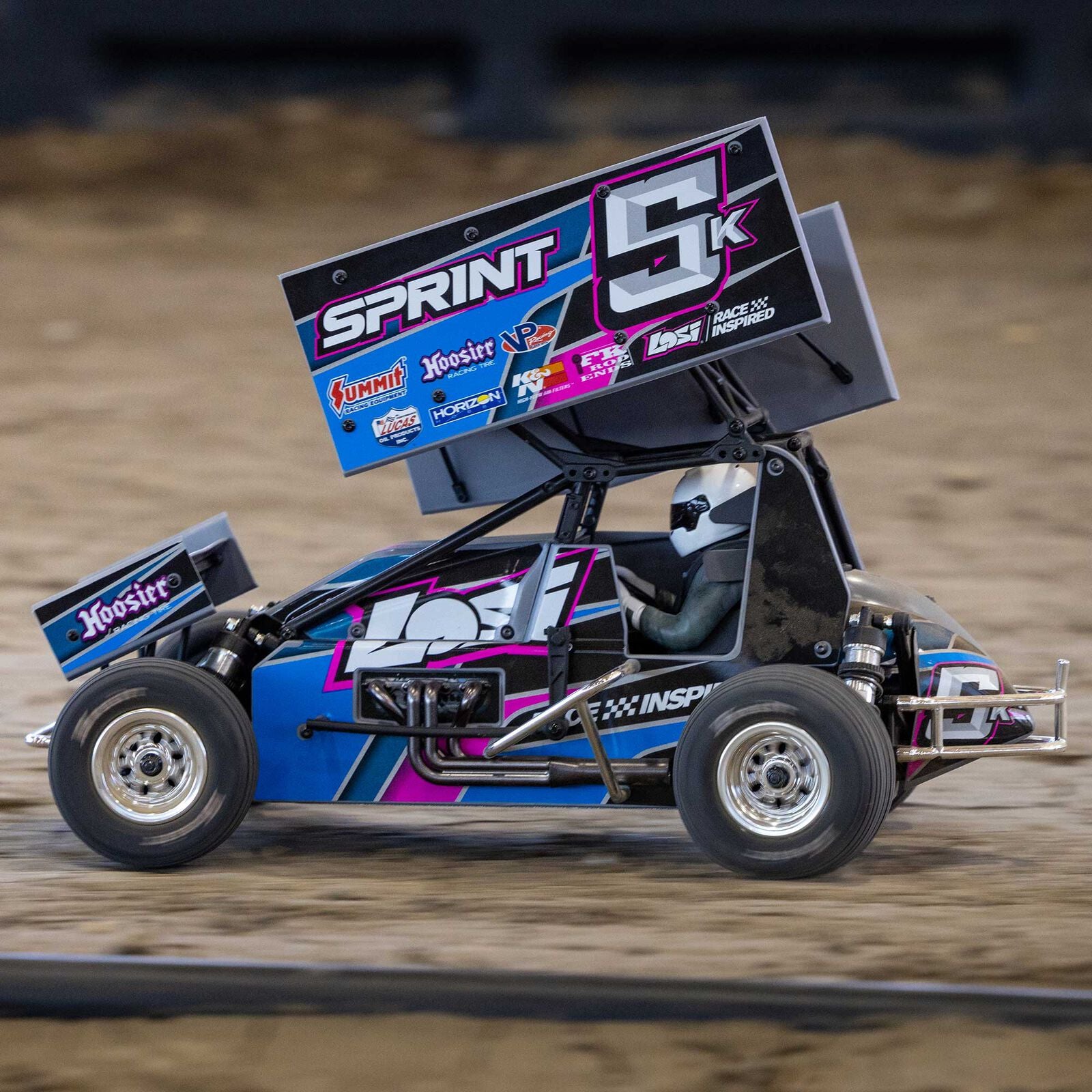

The Losi 22S Sprint really shines on a true RC dirt oval track with proper clay dirt, banks, and corners. But even on a simple oval made with cones in a driveway or dirt lot, it’s a blast to drive.

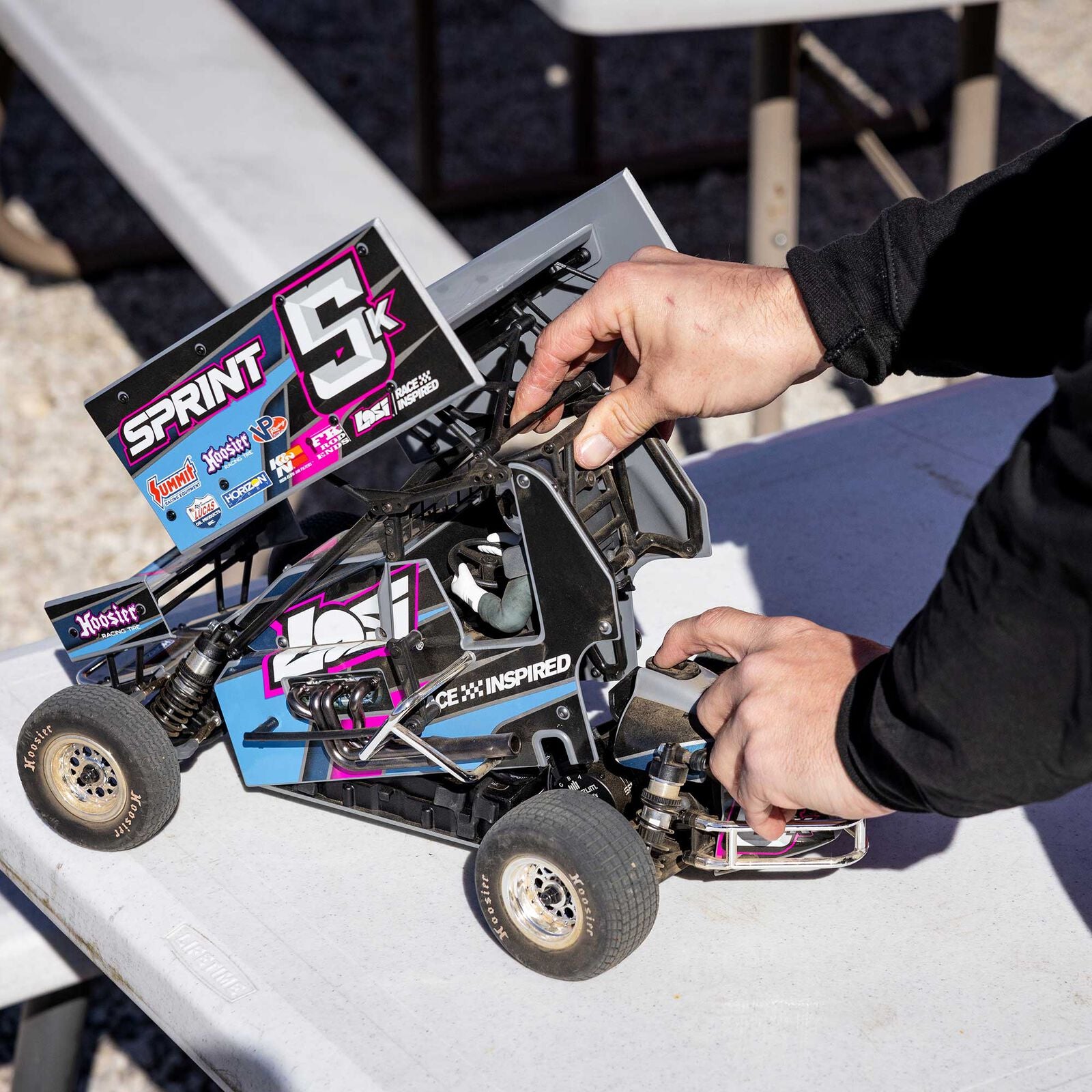

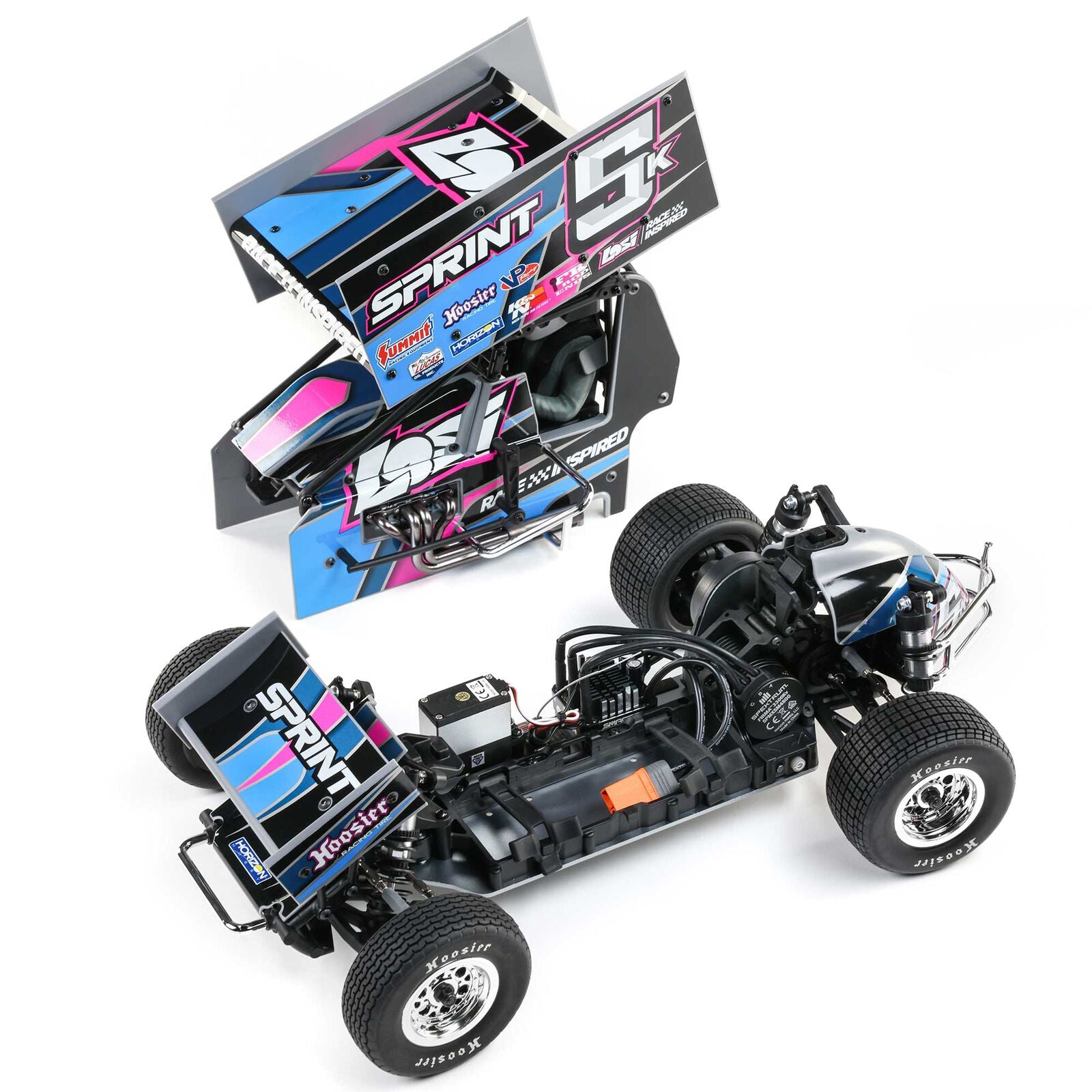

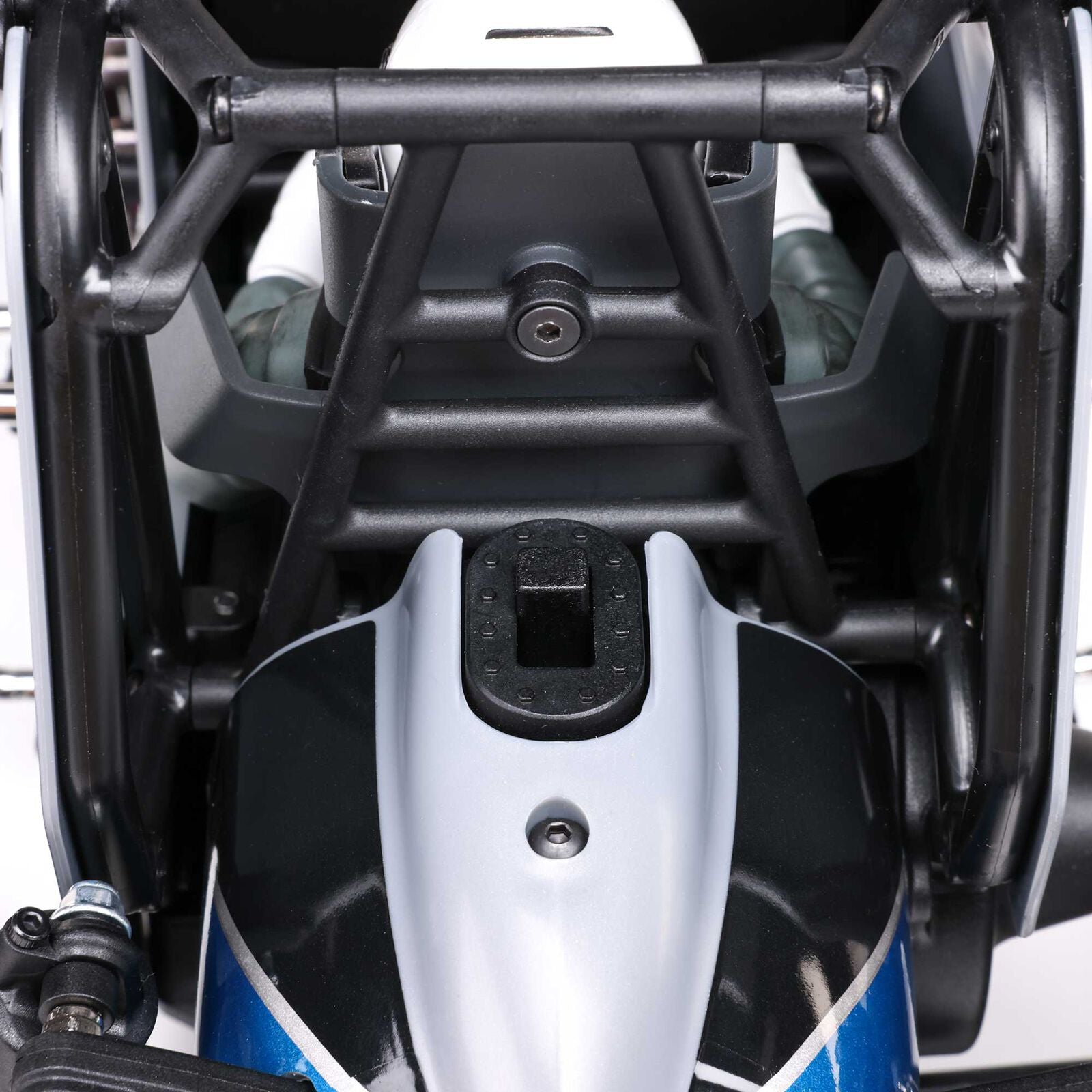

RC vehicles with scale roll cages can be challenging to work on. Sometimes the cage must be disassembled before accessing the chassis for maintenance, repairs, and upgrades. On the Losi 22S Sprint, you just disengage one spring-loaded clip to lift and remove the cage, body, and top wing assembly from the chassis. It’s so easy, it’s almost unbelievable.

Specifications

Approximate Assembly Time: Less than 1 Hour
Battery: Sold Separately
Charger: Sold Separately
Chassis: Aluminium
Completion Level: Ready-To-Run
Connector Type: IC5
Differential: Diff Oil: 3,000wt
Drivetrain: 2WD
Final Drive Ratio: 10.21:1
Internal Gear Ratio: 2.43:1
LiPo Compatibility: 2S
Max Battery Dimensions: H 30mm (1.18") x L 140mm (5.51") x W 47mm (1.85")
Motor Type: Brushless
Power Type: Electric
Product Height: 305mm (12")
Product Length: 432mm (17")
Product Weight: Without Battery: 2.25kg (4.95 lb) / With Recommended Battery: 2.25kg (4.95 lb)
Product Width: 249mm (9.8")
Scale: 1/10
Shock Type: Shock Oil: Front: 30wt, Rear: 35wt
Spur Gear: Included: 84
Top Speed: 40+ km/h (25+ mph)
Vehicle Type: Sprint Car
Wheel Hex Size: 12mm
Wheelbase: 260mm (10.25")
