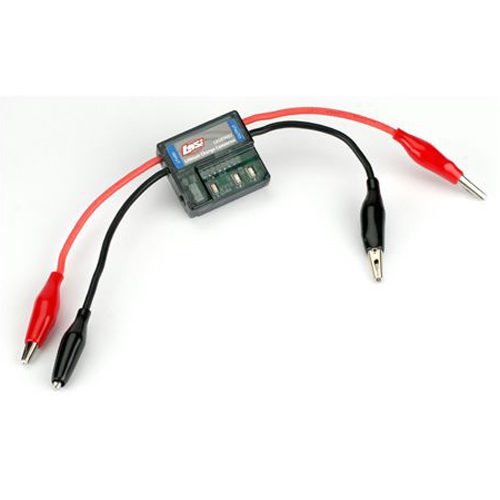

Lithium Charge Converter

The Lithium Charge Converter lets you use a compatible NiCd or NiMH charger to charge approved lithium battery packs. Select the battery chemistry, set the cell count, connect the converter, and start charging—turning a familiar charger into a lithium-compatible unit.

Features

• Adapter (not a charger) for use with approved NiCd/NiMH chargers
• Supports both LiPo (≈3.7 V nominal per cell) and M1 (≈3.3 V nominal per cell) lithium battery types
• Can handle up to 6 LiPo cells or up to 8 M1 cells
• LED indicators for cell count, battery type, and charge status
• Maximum current supported: 8.0 A
• Compact form factor for easier transport and packing

Included

• Lithium Charge Converter device
• User manual / instruction sheet

What You’ll Need

• An approved NiCd or NiMH charger listed as compatible with the converter
• An approved lithium battery pack of supported type (LiPo or M1)
• Correct cell count and chemistry settings manually selected before charging
• A safe charging environment to monitor LEDs and ensure correct setup

Specifications

• Maximum current: 8.0 A
• Supported LiPo cells: up to 6
• Supported M1 cells: up to 8
• LED indicators: 8 yellow LEDs showing cell count; blue LED for battery type (on for M1, off for LiPo); green LED for charge status
• Safety Timeout: approx 1.5 hours
• Overheat protection: thermal sensor triggers error if MOSFET sensor exceeds 80 °C
• Charge efficiency: up to 90% of full charge capacity under correct settings

Compatibility / Notes

• Must only be used with chargers approved by the manufacturer (listed in manual)
• User must correctly set battery cell count and type; misuse may cause overheating or fire
• Not a full charger—current output still limited by the external charger used
• Only certain battery packs are approved for use with this converter
