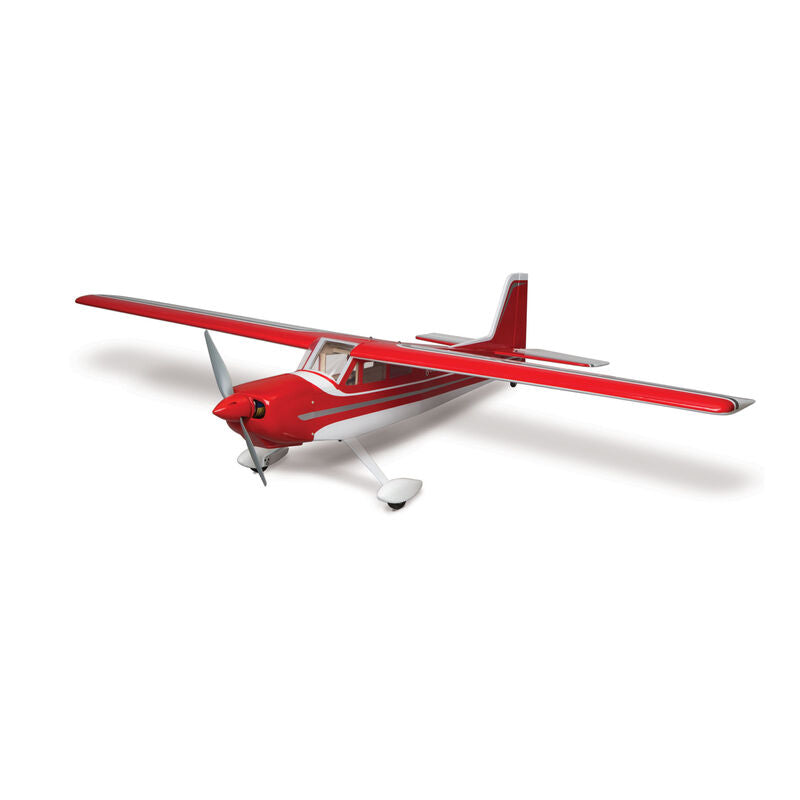

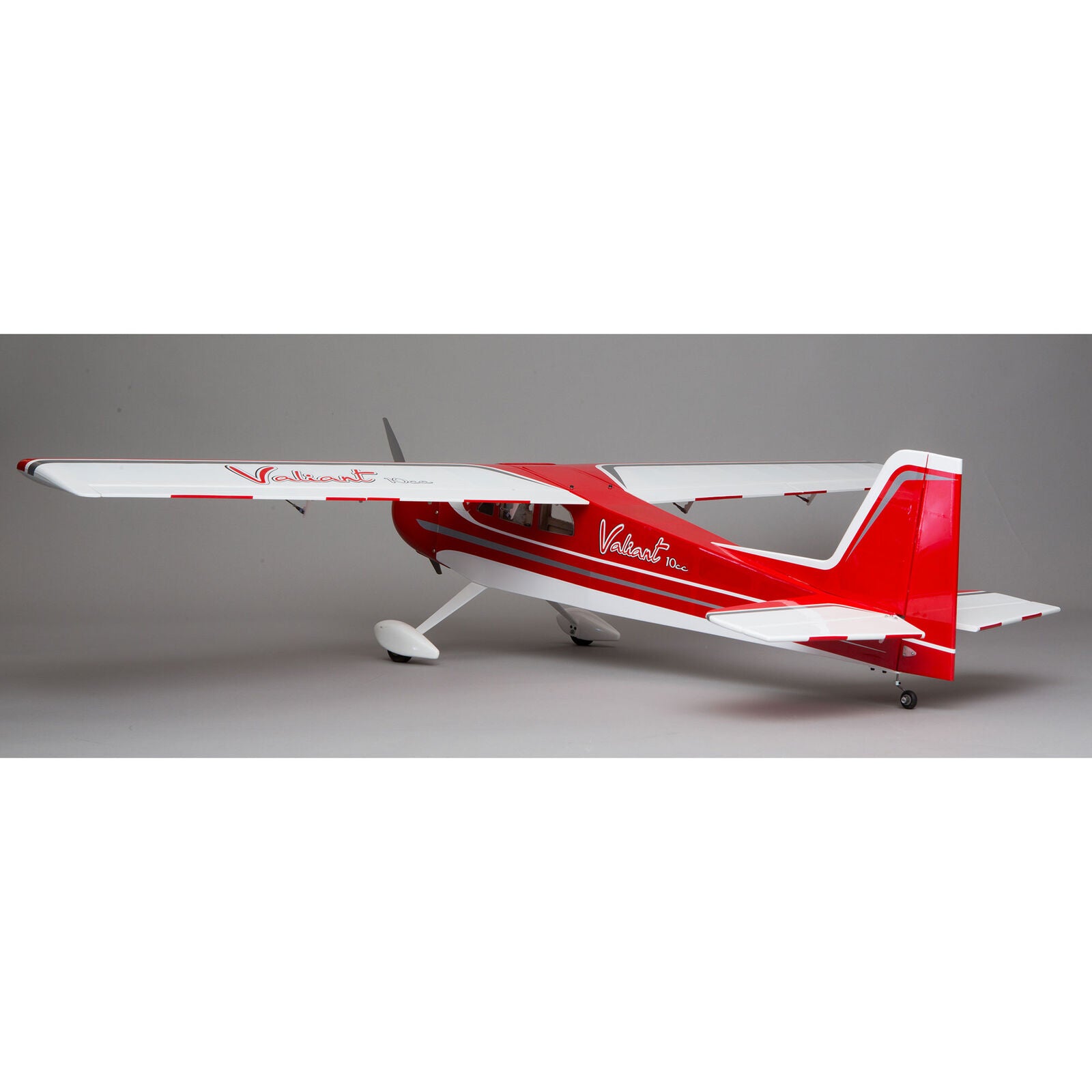

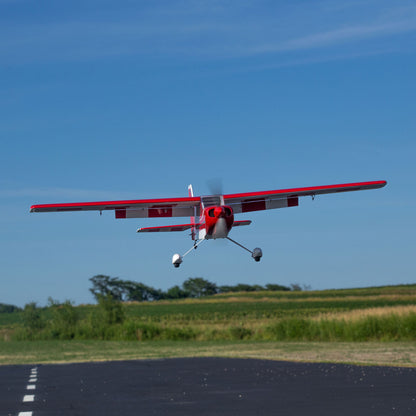

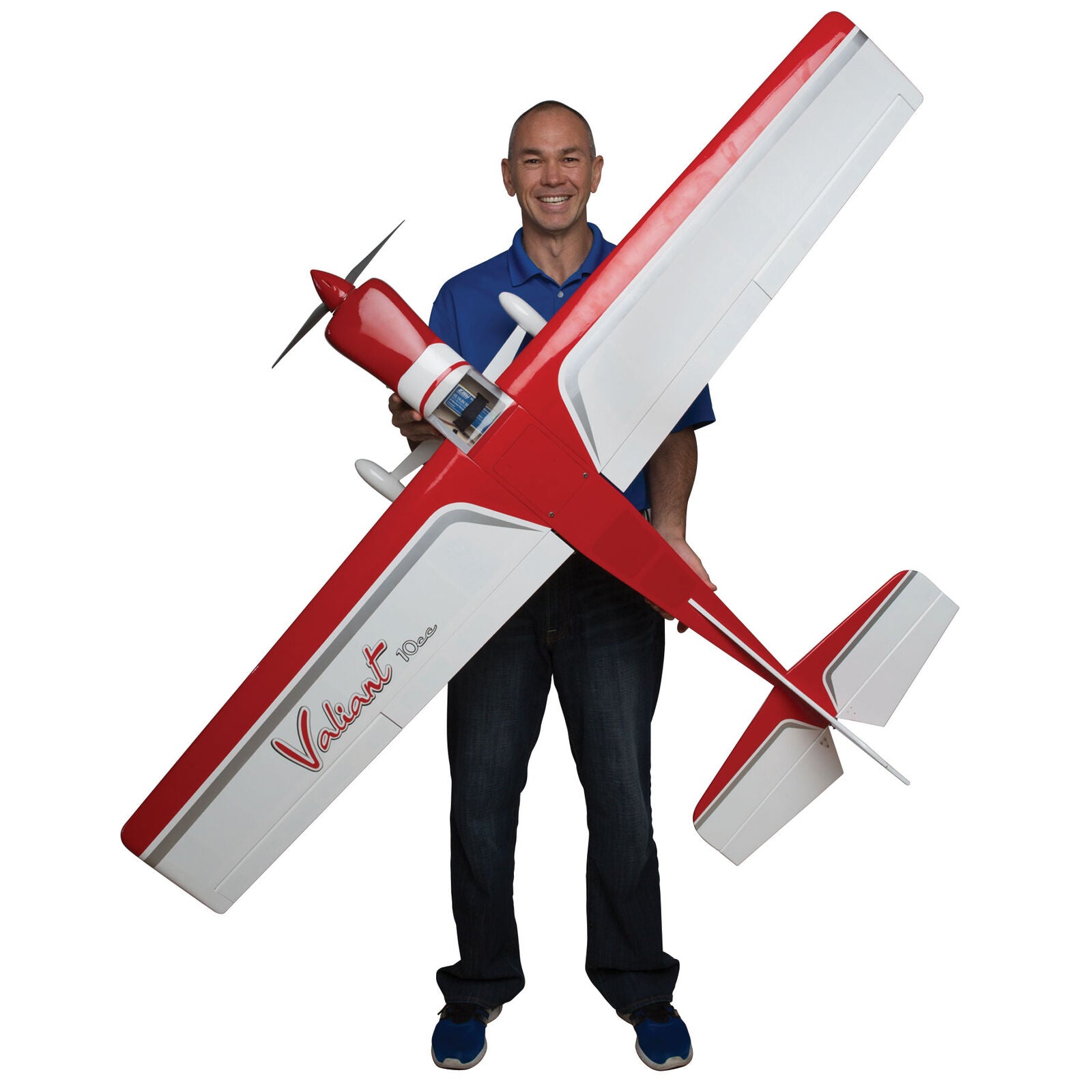

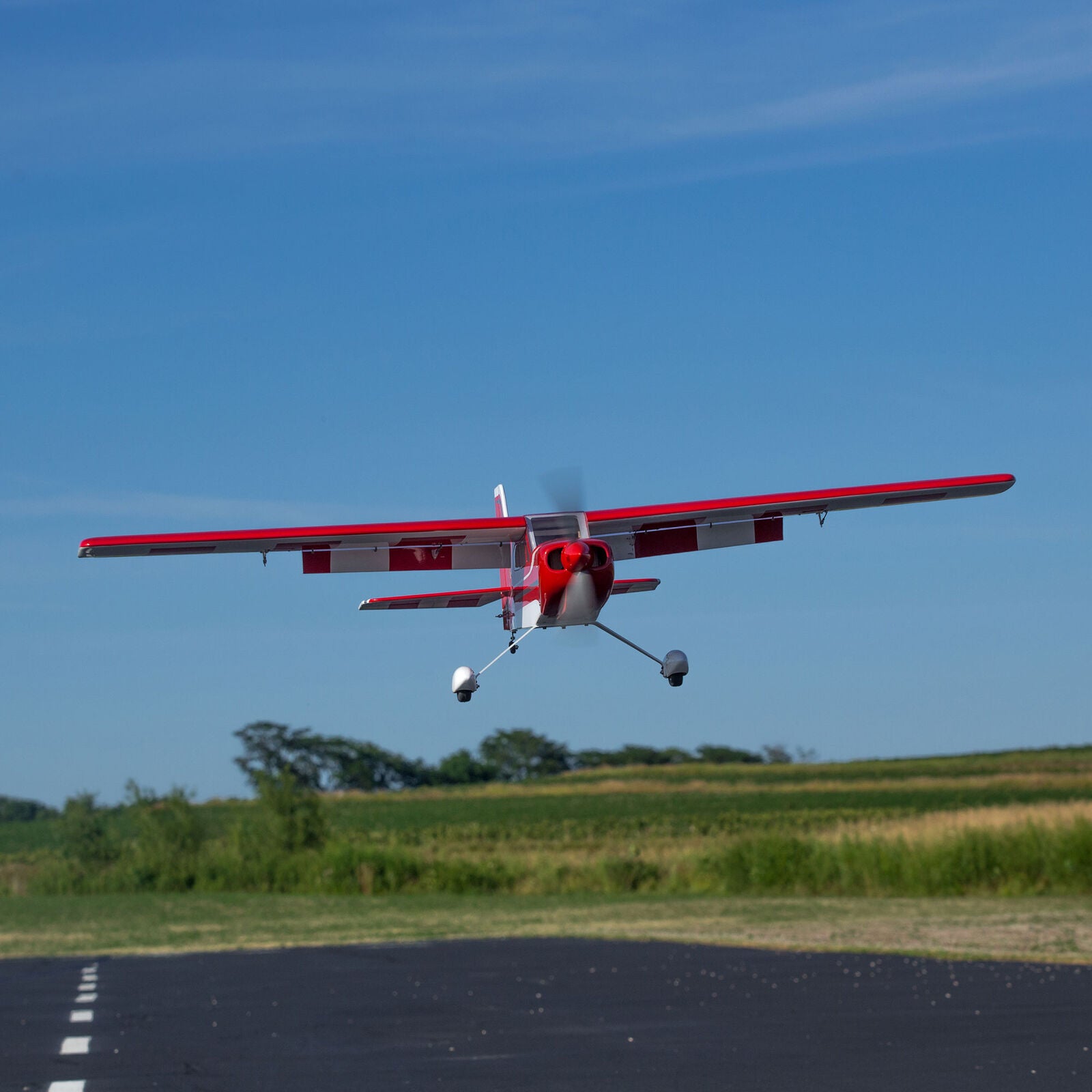

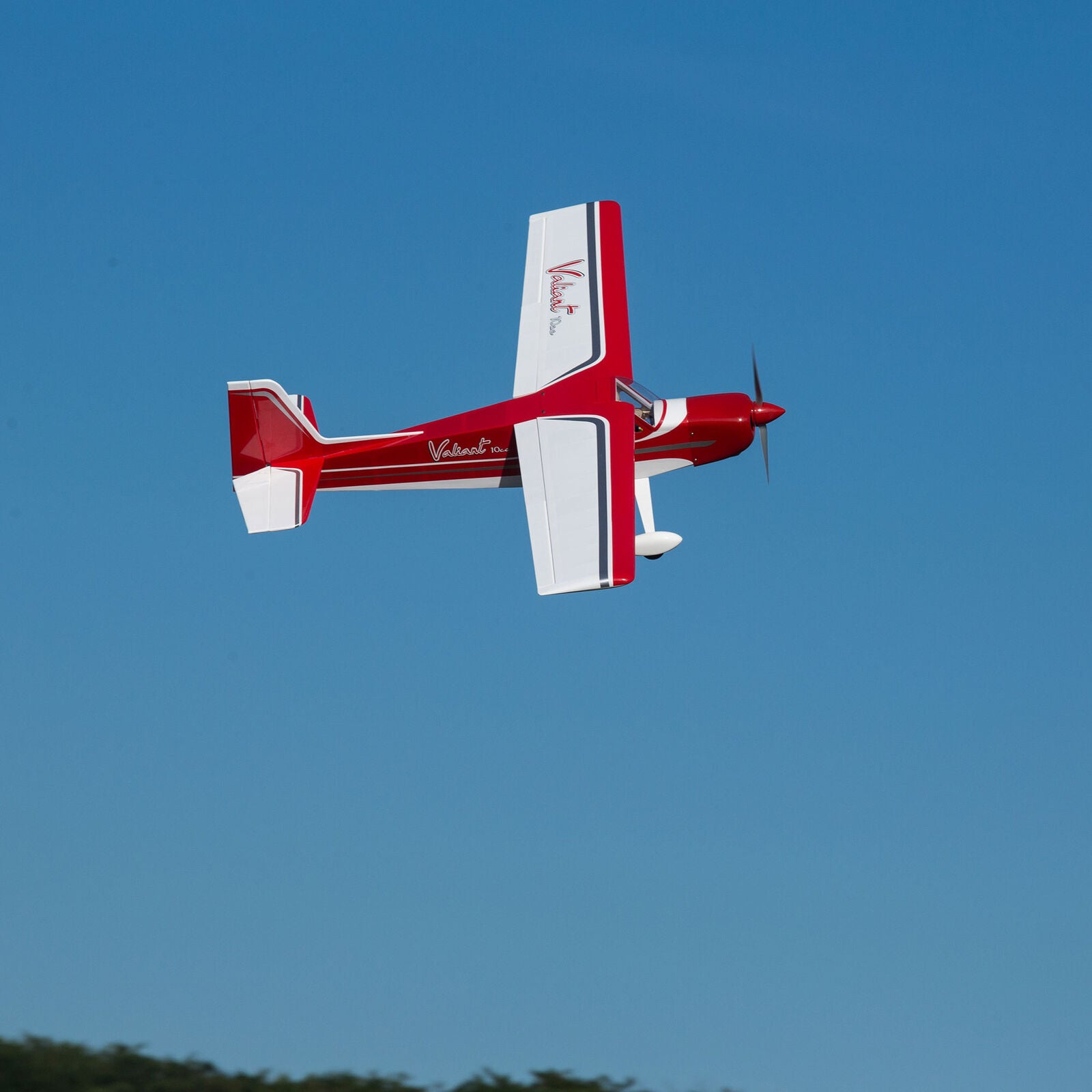

Hangar 9 Valiant 10cc ARF 1.8m

The Hangar 9 Valiant 10cc aeroplane delivers versatile sport performance with petrol or brushless electric power, lightweight balsa and plywood construction, operational flaps, easy assembly and optional float compatibility for confident flying from grass or water.

In the Box

Hangar 9 Valiant 10cc ARF Aeroplane x1
User Manual x1

Needed to Complete

10cc two- or four-stroke petrol engine or equivalent electric motor system x1
Full-range, 6+ channel transmitter and receiver x1
Standard-size servos (6 for the electric power option) x7
Batteries for receiver and engine ignition (for the petrol power option) x2
Prop: 12 x 6 - 13 x 8 x1

Features

Expertly constructed with lightweight, laser-cut balsa and plywood
Two-piece, cantilevered plug-in wing makes field assembly fast

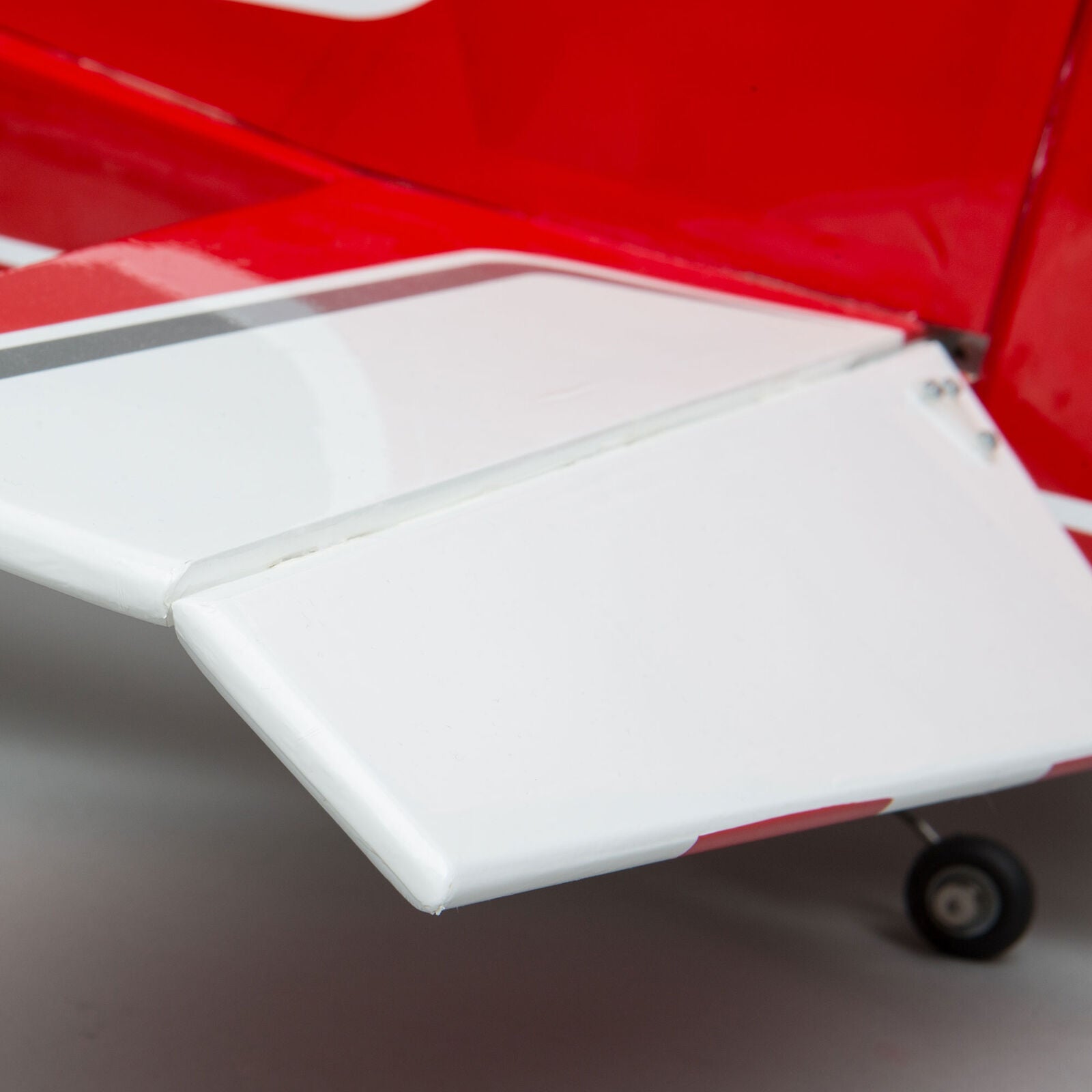

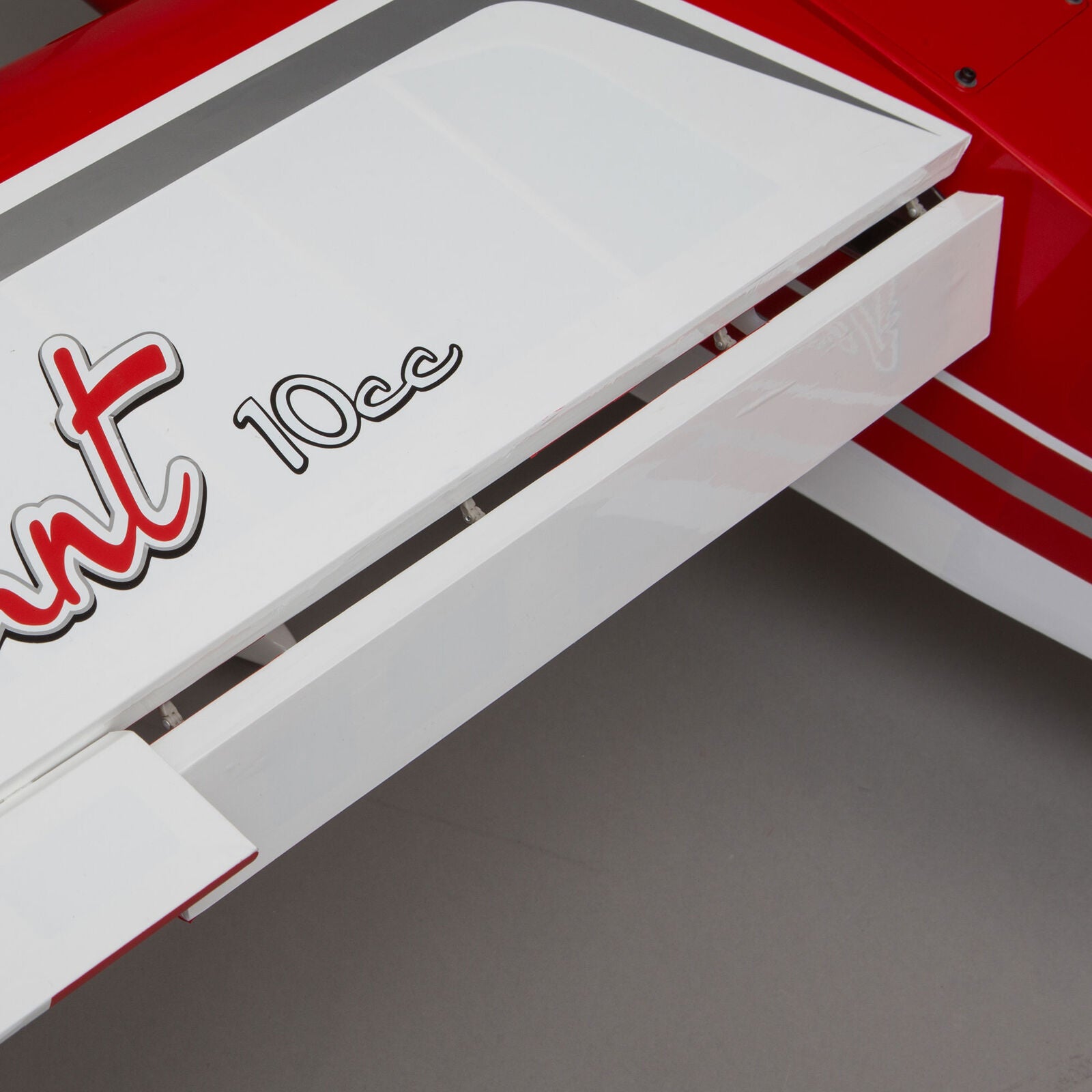

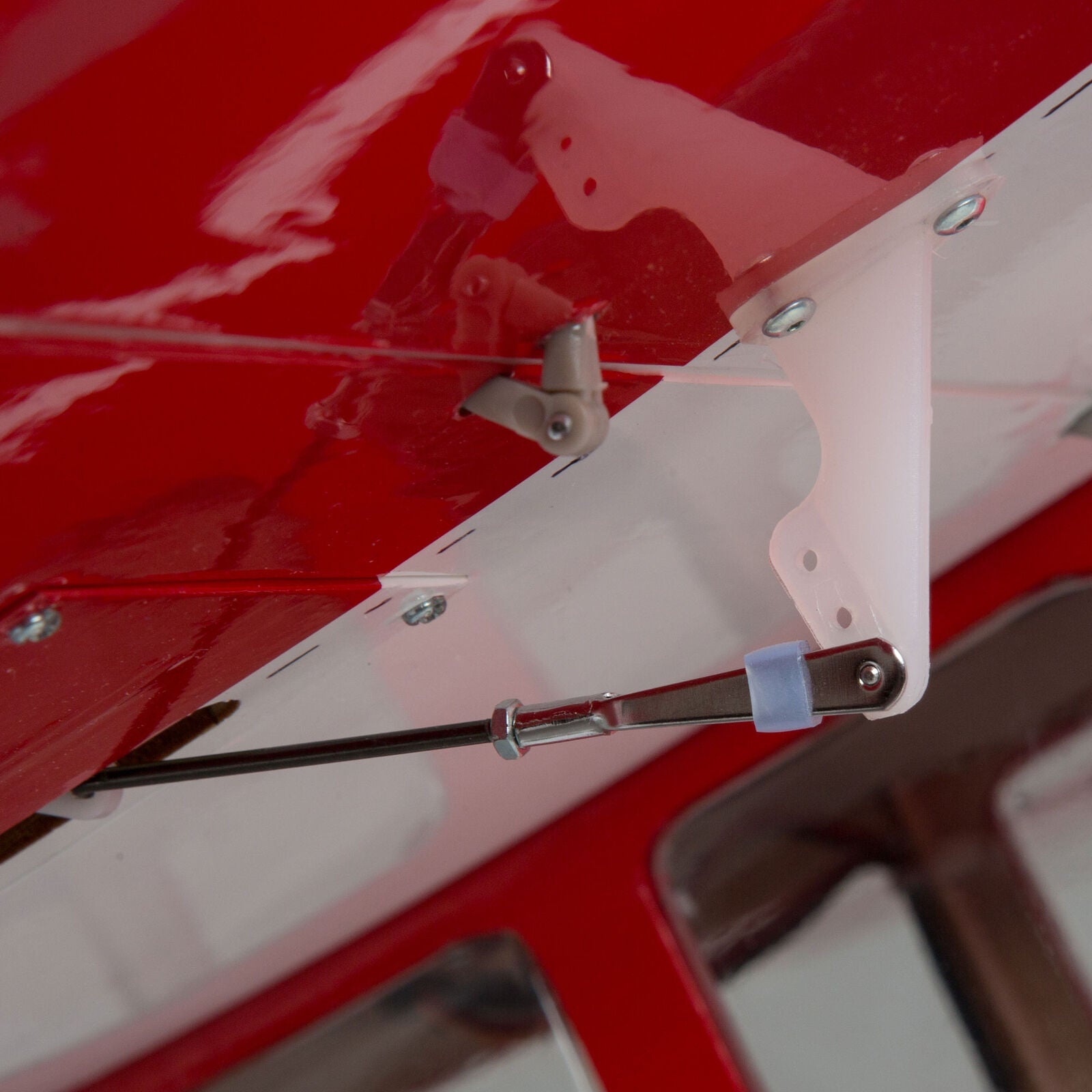

Functional flaps expand the flight envelope and add STOL capability
Wide-track, painted aluminium landing gear for outstanding ground handling

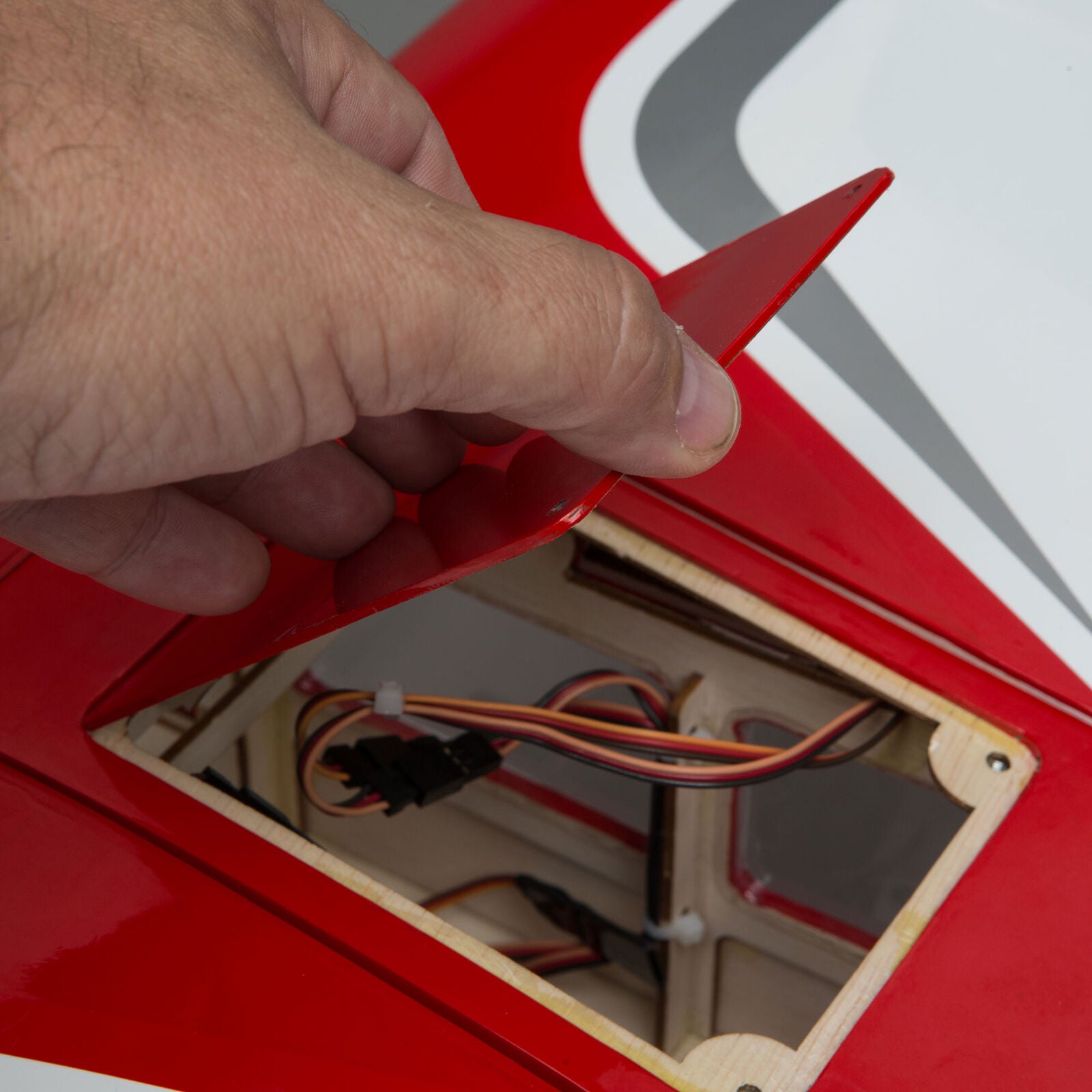

Large front hatch provides easy access and fast flight battery changes

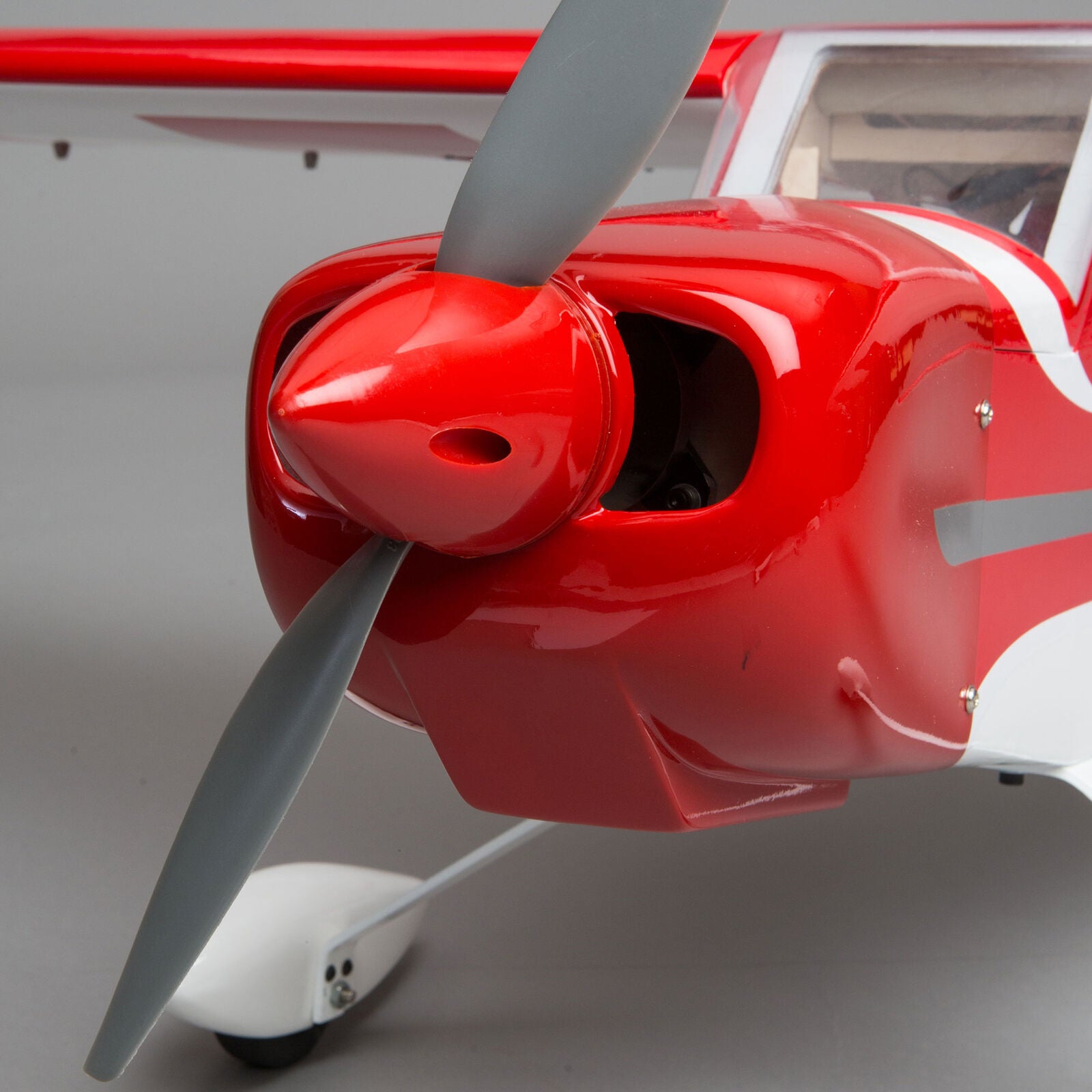

Painted fibreglass cowl and wheel pants

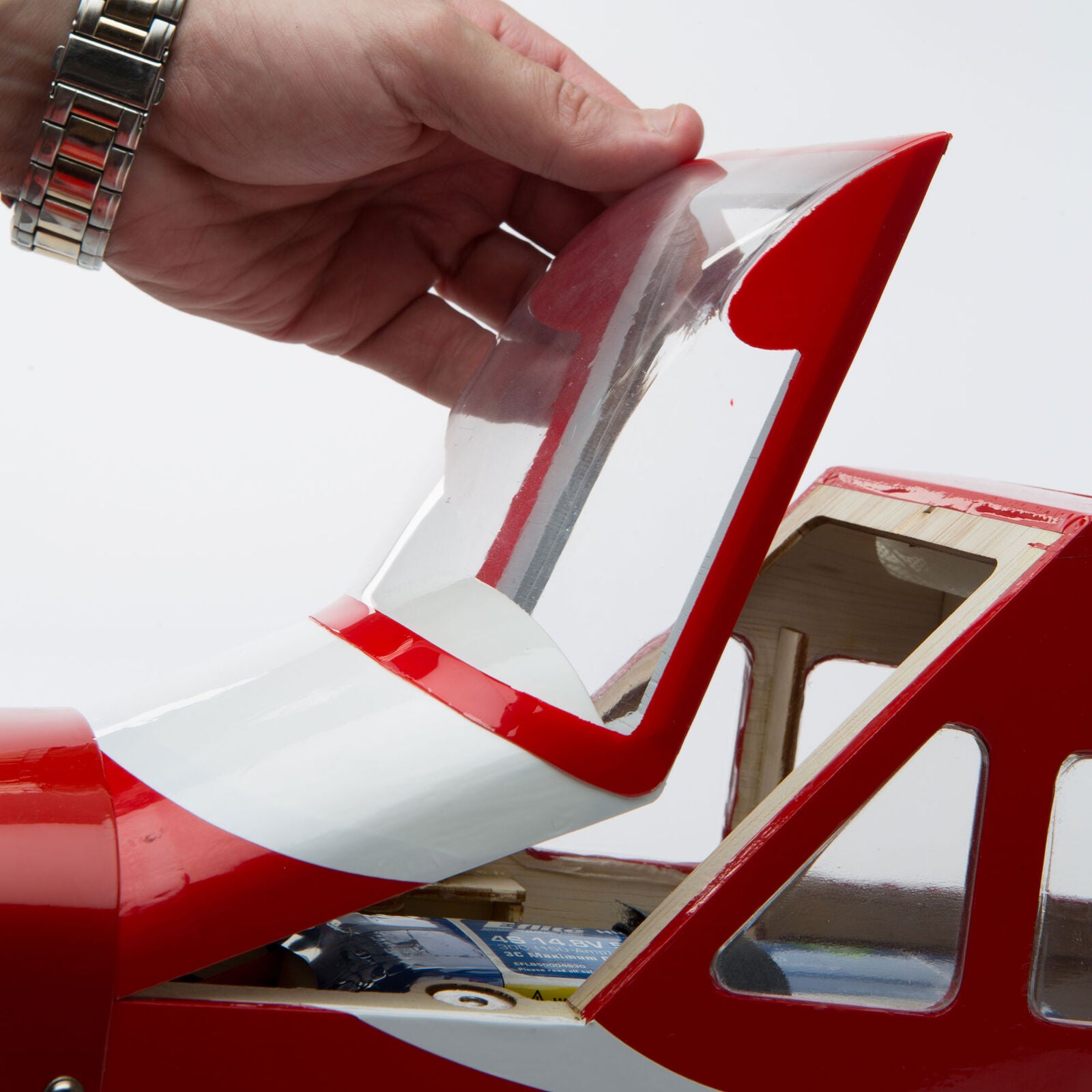

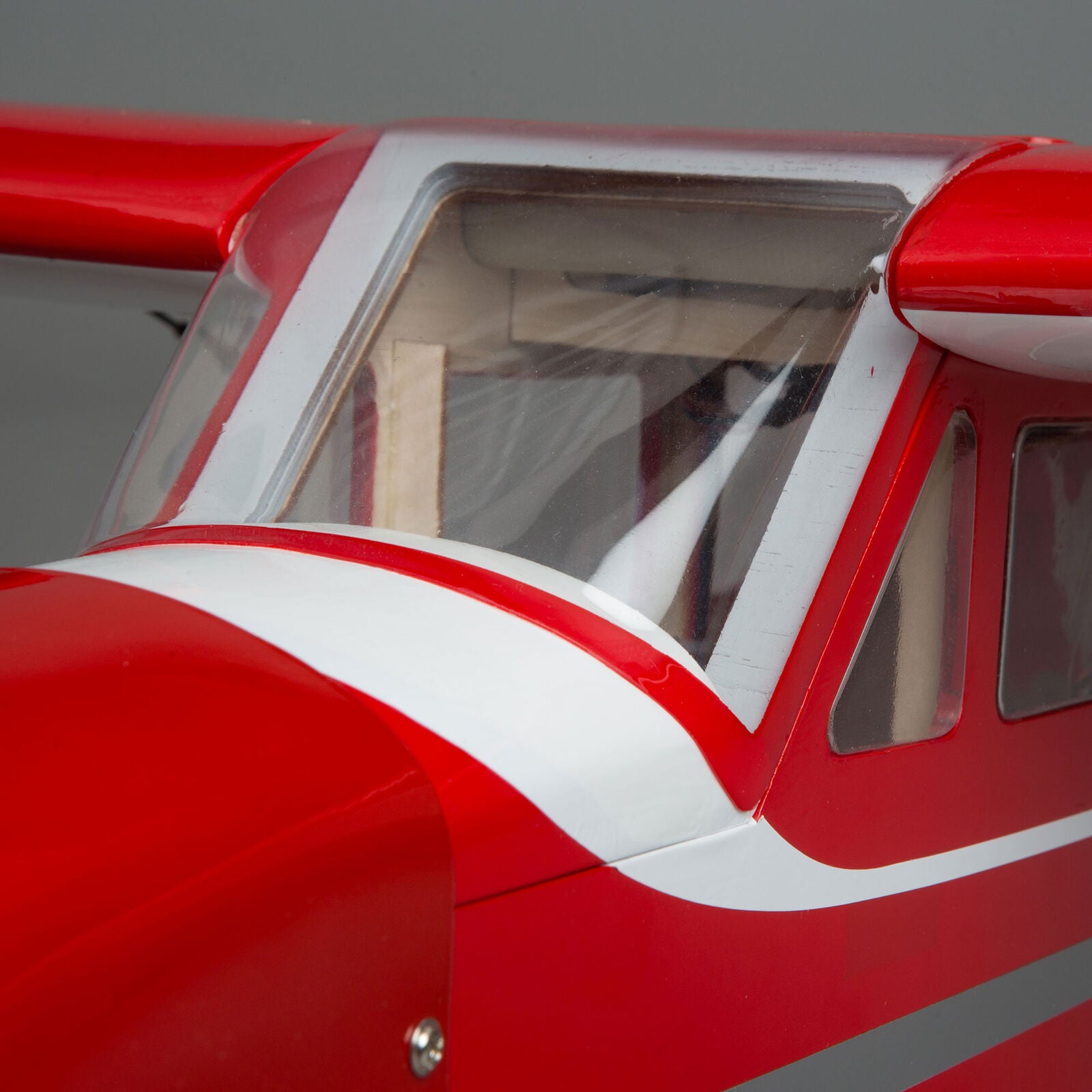

Crystal-clear canopy and side windows
Ready to fly from water with the recommended float accessories (sold separately)
Easy to maintain, genuine Hangar 9 UltraCote covering
Designed around the Evolution 10cc petrol engine
Electric motor mount included makes EP installation simple
Complete hardware kit includes a matching spinner

More Information

Whether you love the giant-scale version or want a Hangar 9 classic on the lighter side, your next dream machine has arrived. The new Hangar 9 Valiant 10cc aeroplane is everything that made the larger version famous in a size engineered to take full advantage of smaller engines. It will also accept brushless electric power systems too—no modifications necessary. With a 10cc petrol engine such as the easy-to-use Evolution 10GX, you can expect to get long flights with a small 222 ml (7.5-ounce) tank that costs pennies to fill. The large front hatch makes access from the top convenient and electric flight battery changes simple.

Count on the laser-cut, lightweight balsa/ply construction to stand the test of time while the genuine UltraCote covering makes its classic lines shine through. The two-piece, cantilever wing design eliminates the need for wing struts and gives way to a stylish look that makes field setup simple. You won't be labouring over the basic build for long either. Except for the glue-in horizontal stab, vertical fin, and control surfaces, a majority of assembly is bolt-together. All hinge slots and holes, including those for the flaps, are factory made so that your time at the bench can be more enjoyable. The wheel pant accessorised undercarriage completes the sleek appearance with the rugged ability to operate from average grass runways. Also on the underside are factory installed hard points so that the optional lightweight float set can mount up with the turn of a few screws.

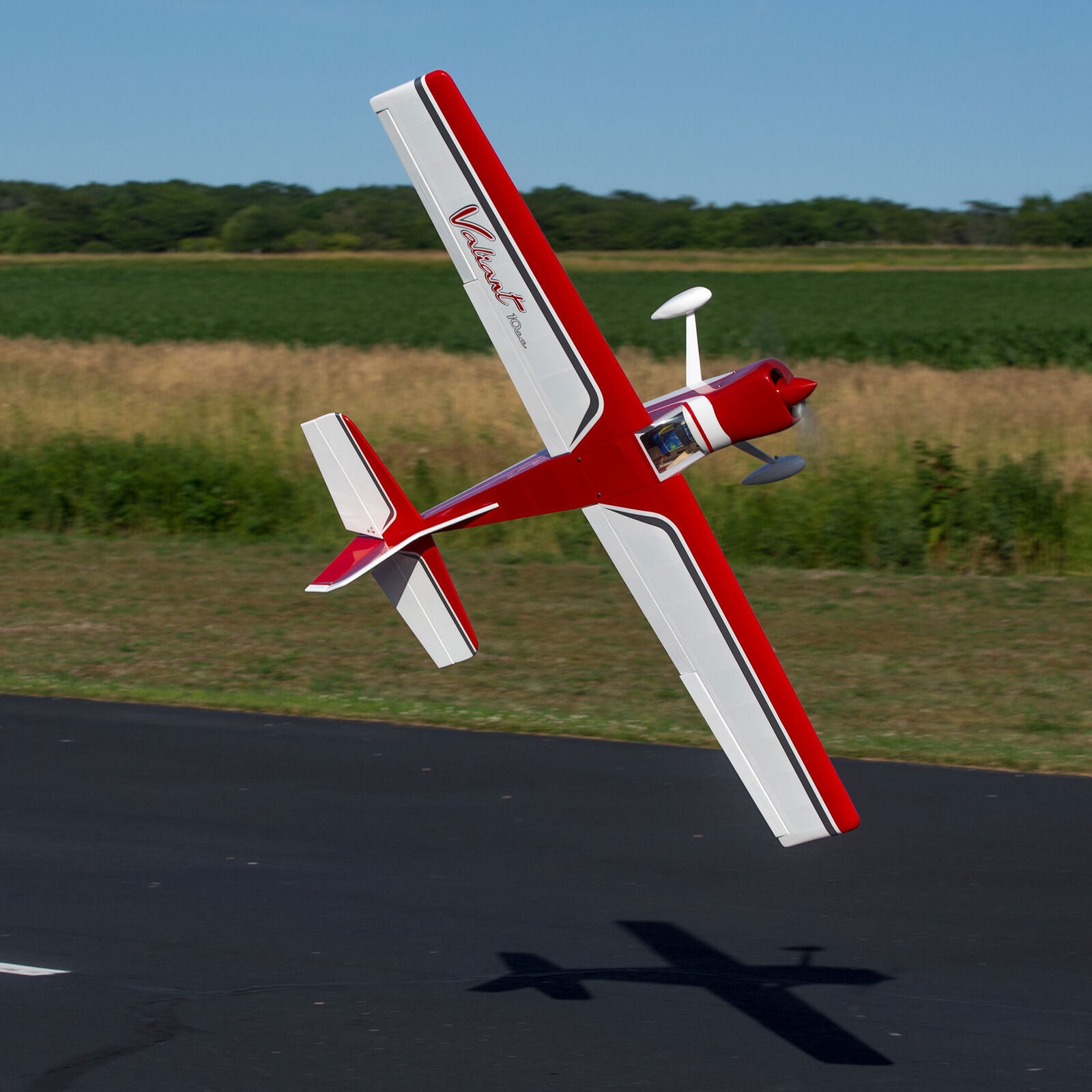

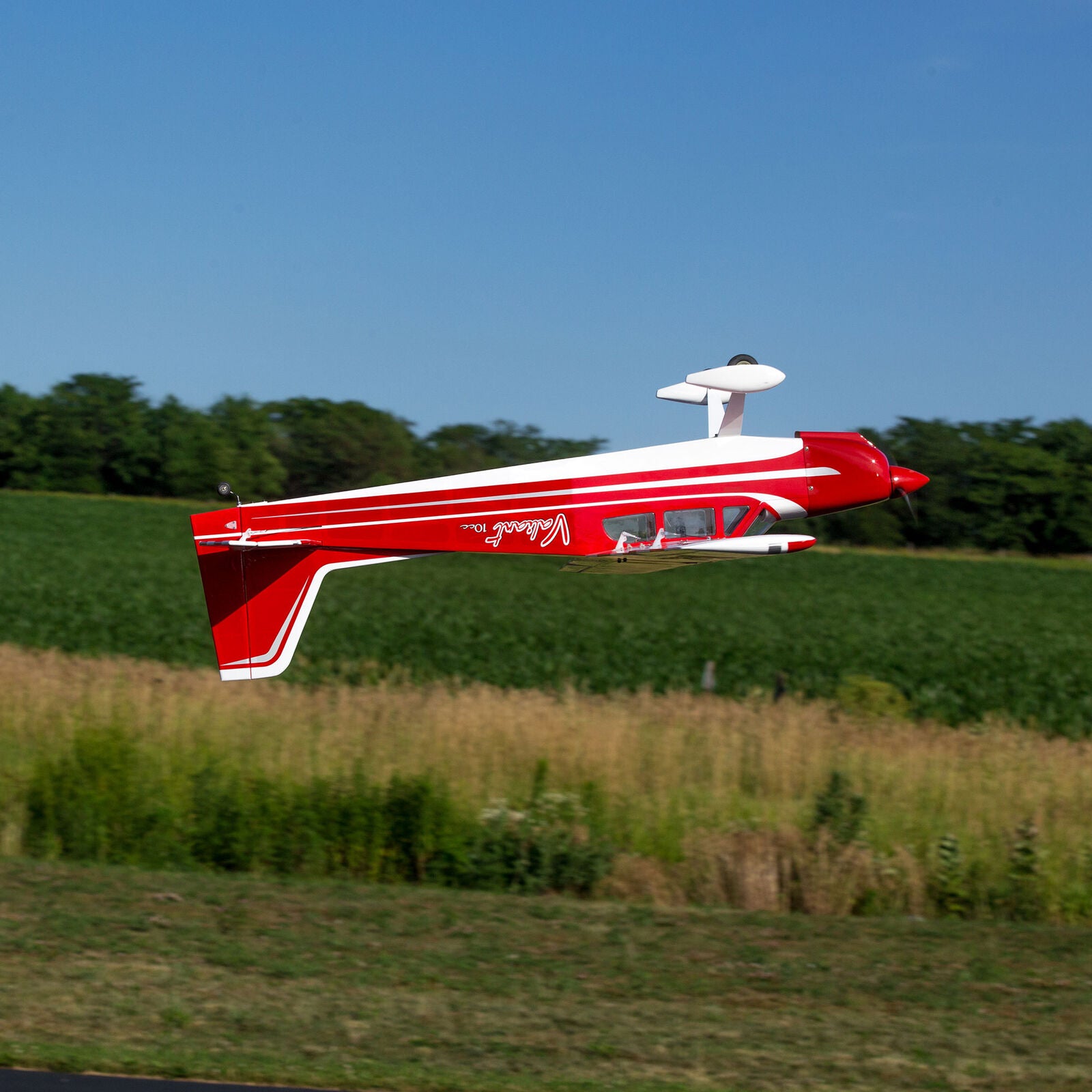

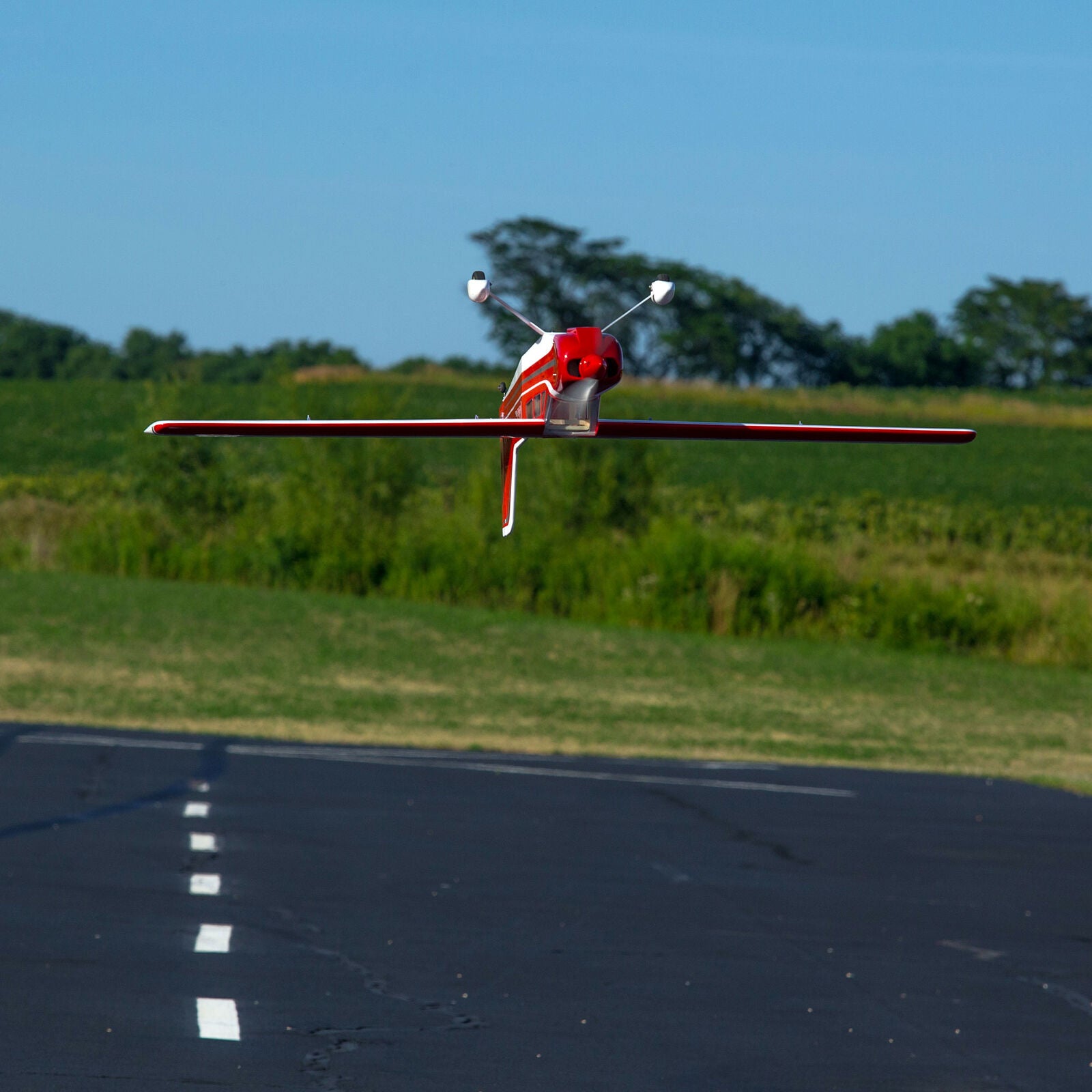

The Valiant design has proven versatility and virtuous flying manners. A semi-symmetrical aerofoil provides outstanding stability and good wind penetration so you can be comfortable flying even when the air currents are less than ideal. Operational flaps can make take-off and landing super-short, while a touch of flap makes cruising around at slow speeds more than a pleasure. Flaps up, the Valiant aeroplane is a sport aerobatics dream machine with dramatic loop capability from any attitude, crisp roll performance and enough rudder authority to do impressive knife edge passes—especially for a high-wing cabin model. Like its big brother, the Valiant 10cc presents with an overall rock-solid feel in the air, like a giant-scale model. As the namesake implies, the Valiant 10cc is sure to become a hero around your club field as the model to have, no matter what flying occasion may rise.

Lightweight Construction

Laser-cut, lightweight balsa and plywood construction is utilised to bring the Valiant 10cc to life as a durable sport model that's expertly built to exacting standards. Genuine Hangar 9 UltraCote covering provides an easy-to-maintain finish that looks great.

Wide Flight Envelope

The light wing loading and semi-symmetrical aerofoil combine with an abundant power source to offer exceptionally friendly flight performance. Operational flaps allow its versatile flight envelope to open even wider into the world of Short Take-off and Landing (STOL) capability.

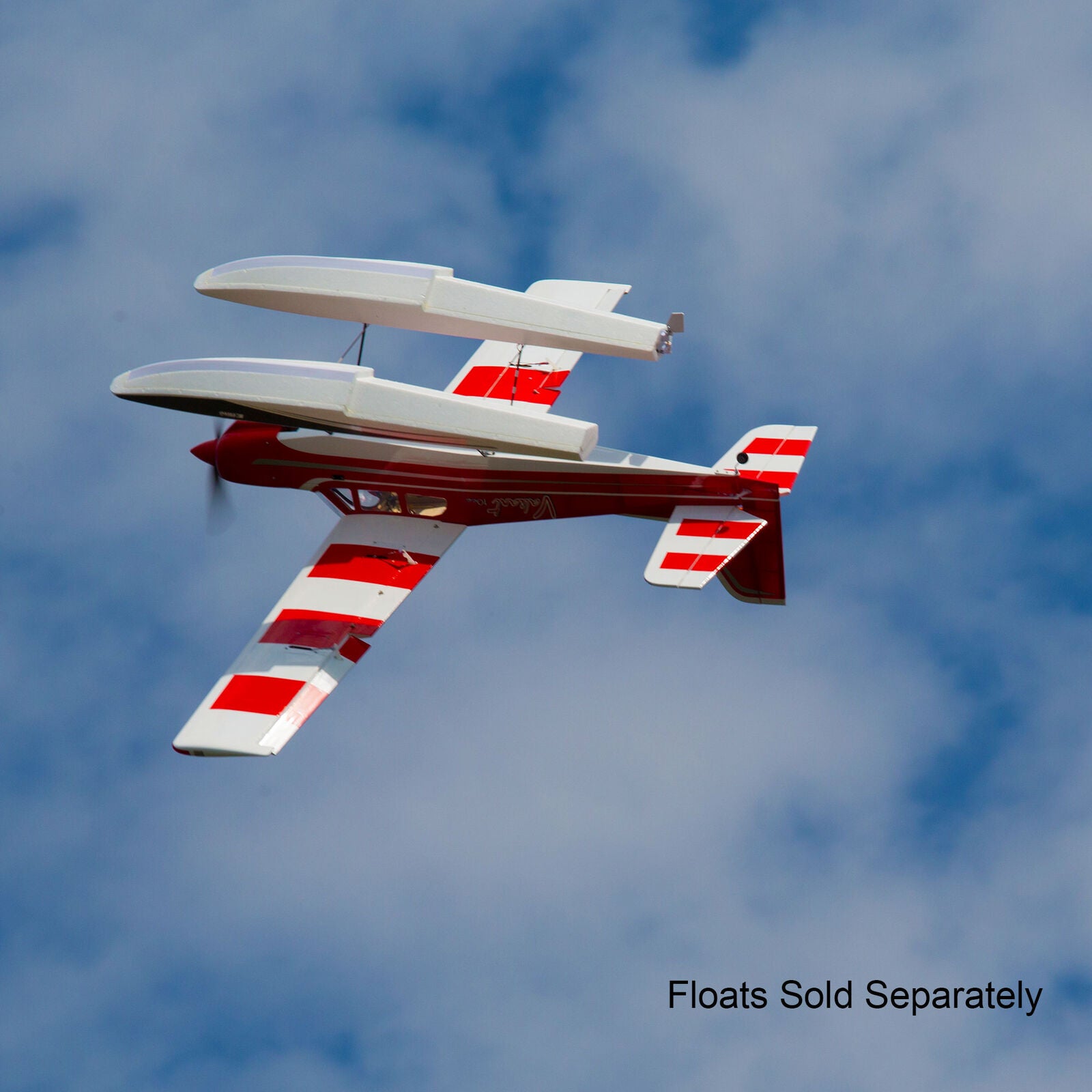

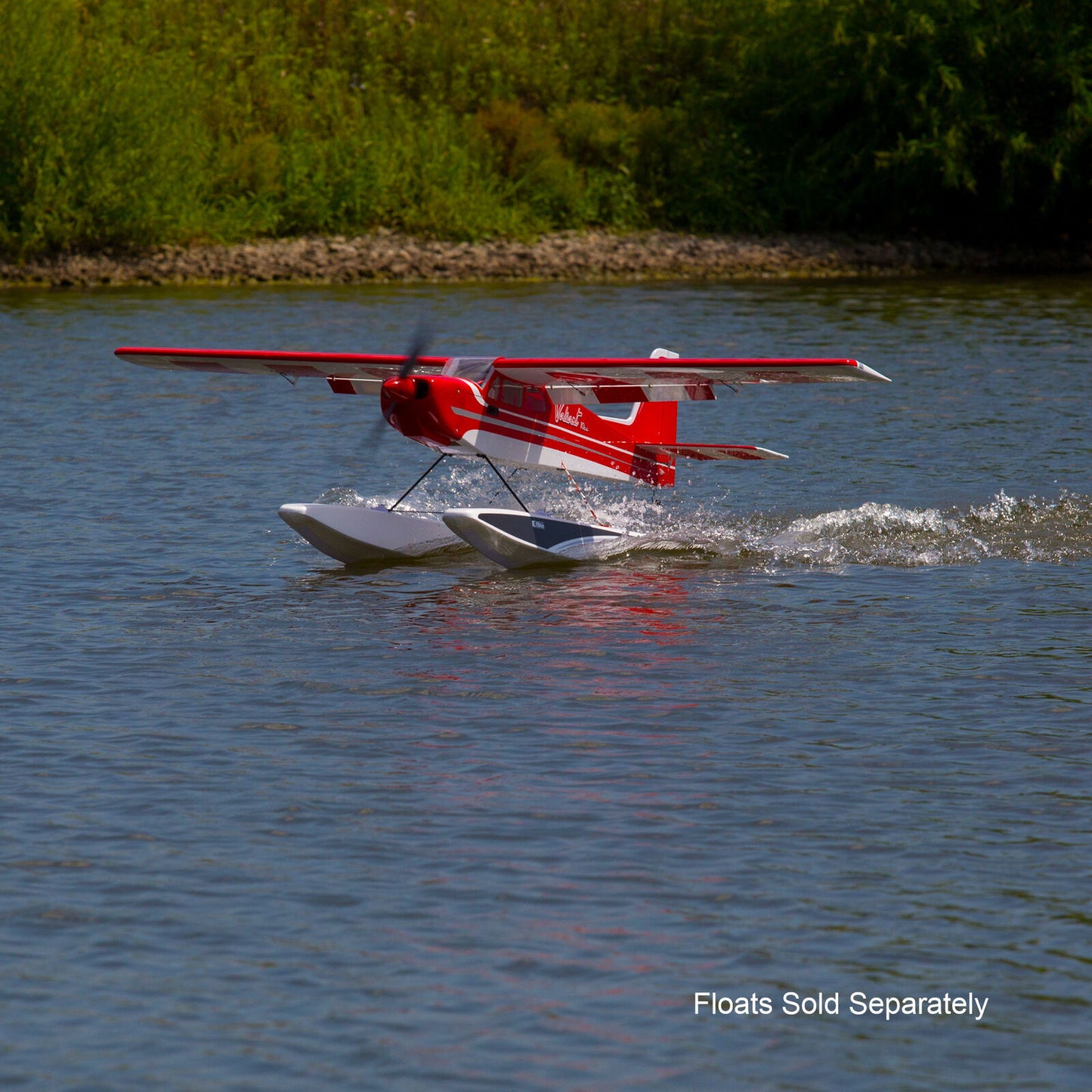

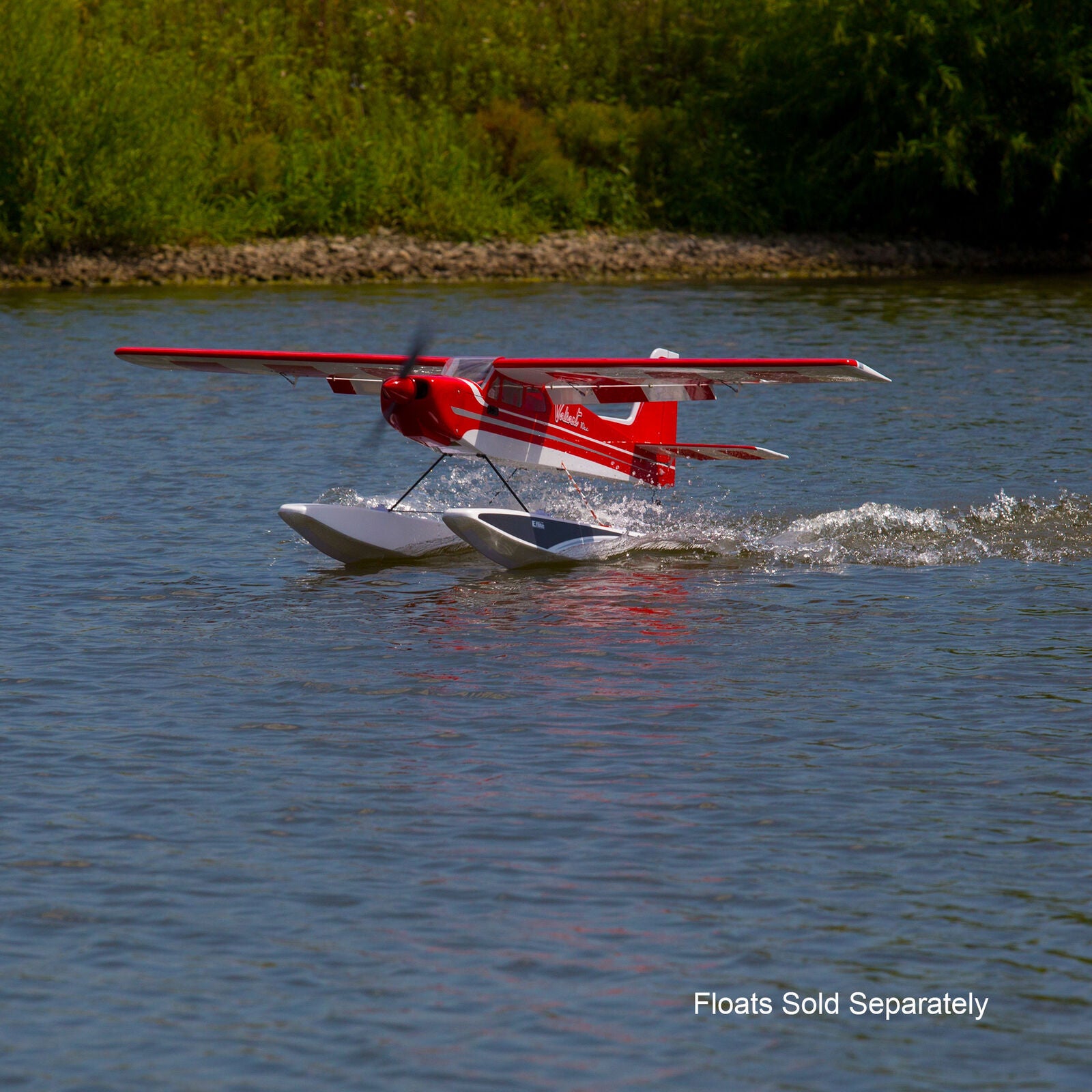

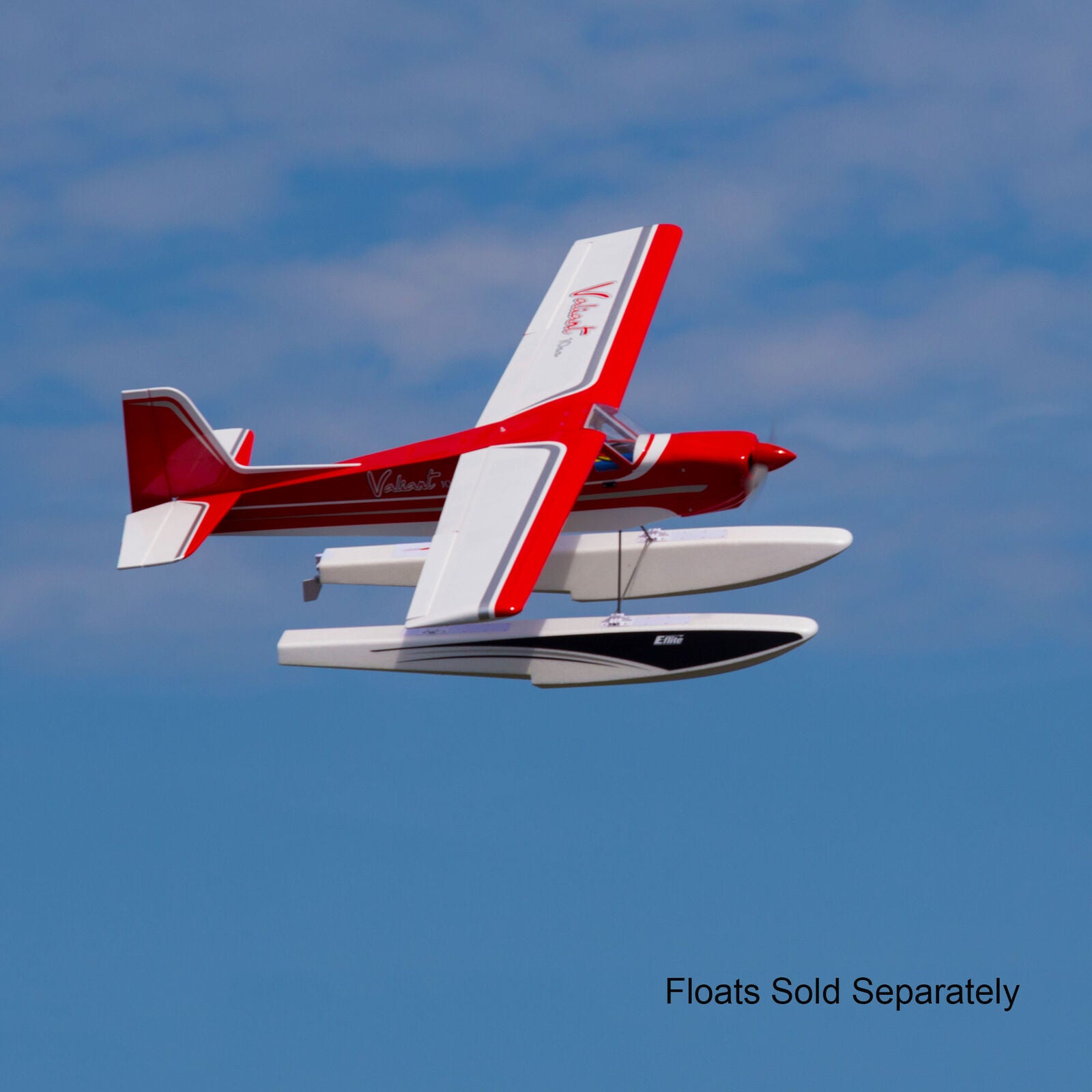

Ready for Floats

The optional Carbon-Z float set and wire mounting strut set exactly fit into the factory installed hard points located in the belly of the Valiant 10cc aeroplane. Once assembled, conversion to a float plane takes only minutes to complete.

Power It the Way You Want It

The Valiant 10cc is designed to accept the Evolution 10GX, 10cc petrol engine, an 11cc four-stroke or brushless electric power plant equivalents. Hardware for both options is included along with an electric motor mount so you can get in the air faster.

Specifications

Airfoil Shape: Semi-symmetrical
Approximate Assembly Time: 10–15 hours
Approximate Flight Time: 6–8 mins
Battery: Sold Separately
CG (Centre of Gravity): 64 mm to 83 mm (2.5" to 3.25") back from the leading edge
Charger: Sold Separately
Engine Size: 10cc Glow/Petrol (sold separately)
Flaps: Yes
LiPo Compatibility: 4S
Material: Wood
Minimum Required Radio: 6-Channel (sold separately)
Motor Size: Power 46 Brushless Outrunner Motor, 670Kv (sold separately)
Outer Diameter: 16 mm (0.63")
Power Type: Electric/Petrol
Product Length: 1251 mm (49.25")
Propeller Size: 305 x 152 mm (12 x 6 inches)
Radio: Sold Separately
Receiver: Sold Separately
Recommended Motor Battery: 14.8V 4S 4000mAh LiPo (sold separately)
Servos: Sold Separately
Skill Level: Level 4
Speed Control: Sold Separately
Spinner Size: 57 mm (2.25")
Trim Scheme Colours: UltraCote (HANU870) White, (HANU881) Silver, (HANU866) True Red
Wing Area: 41.3 sq dm (640 sq inches)
Wing Loading: 0.76 kg/sq m (25oz/sq ft)
Wingspan: 1753 mm (69")
