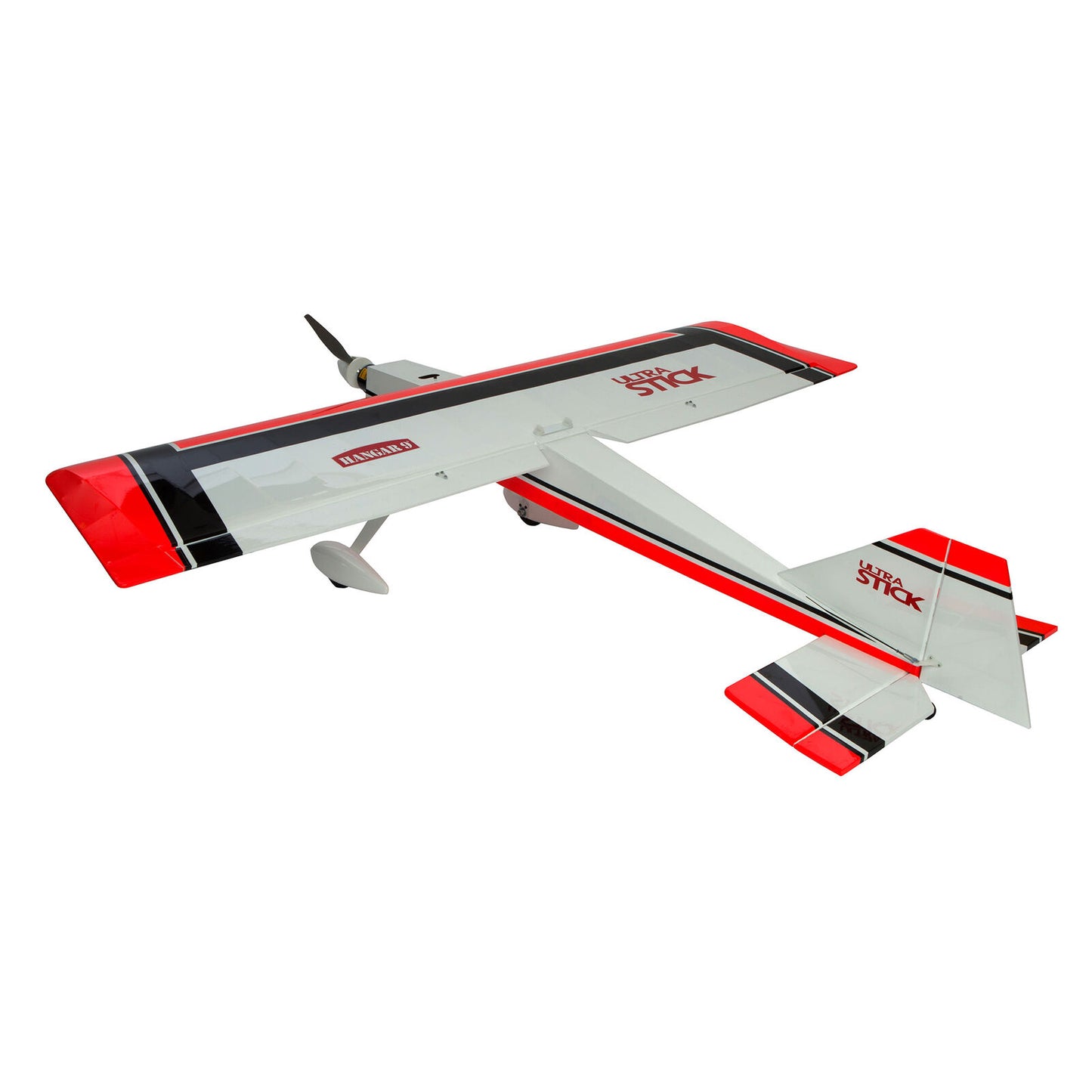

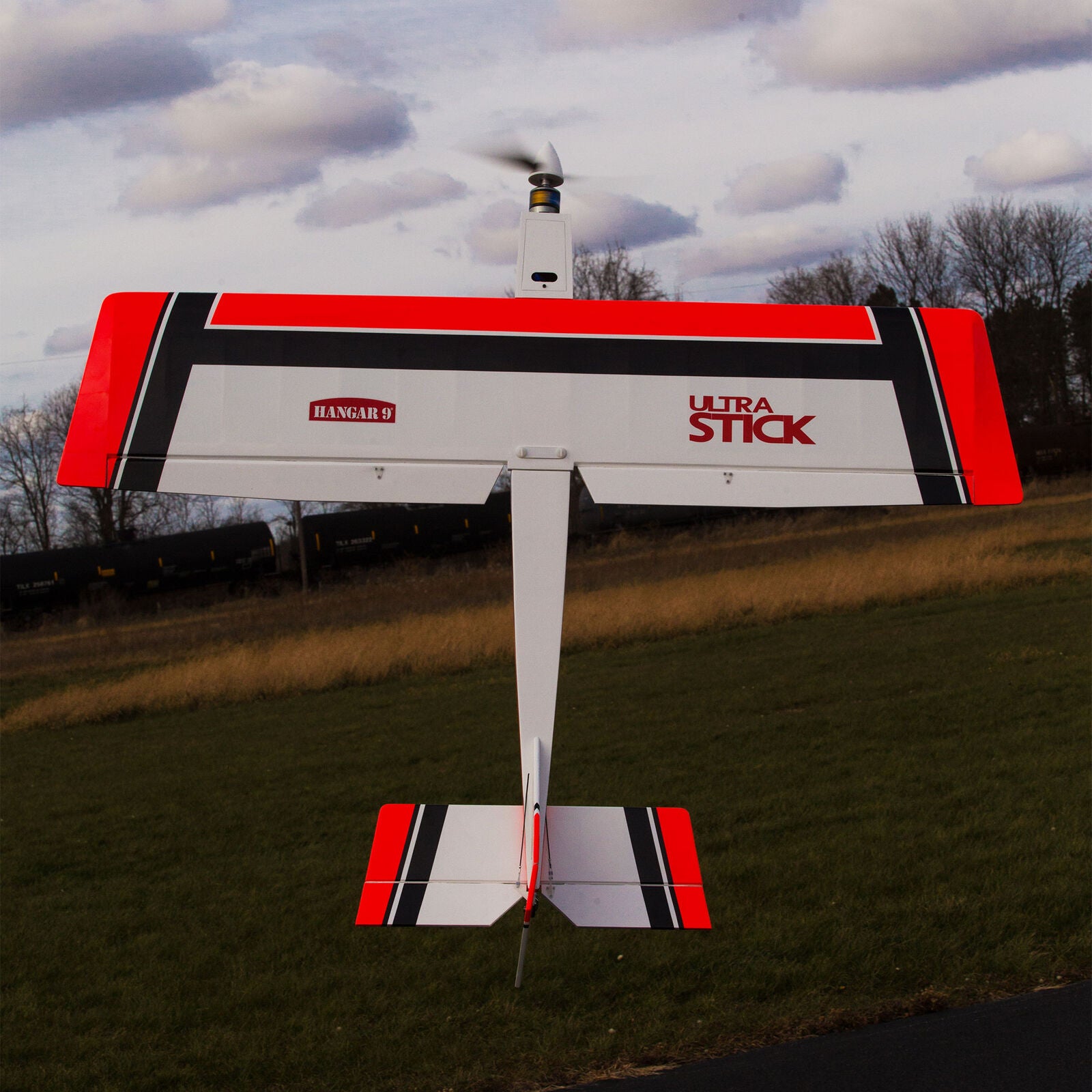

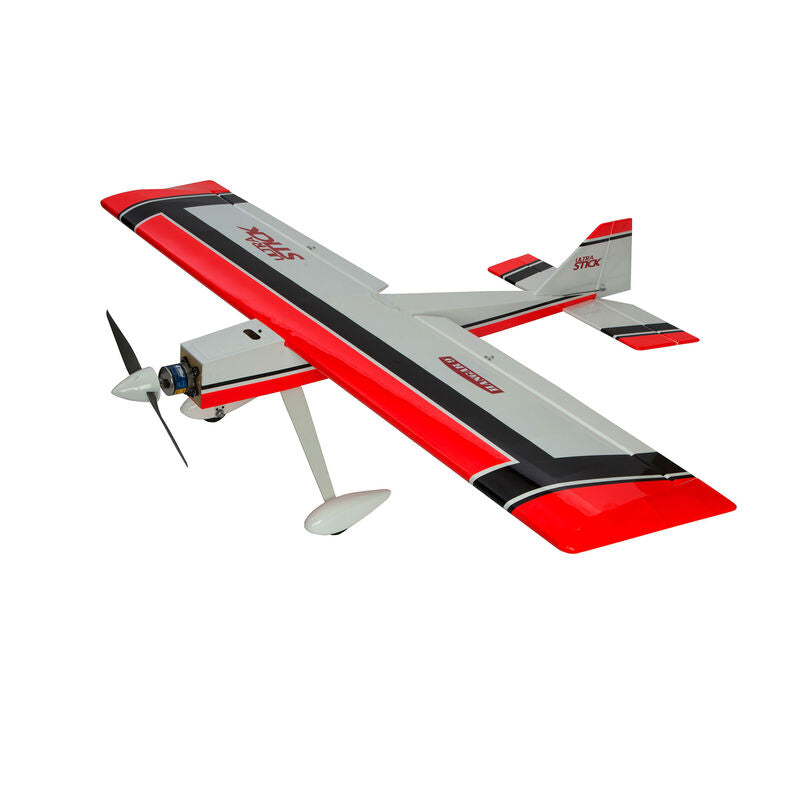

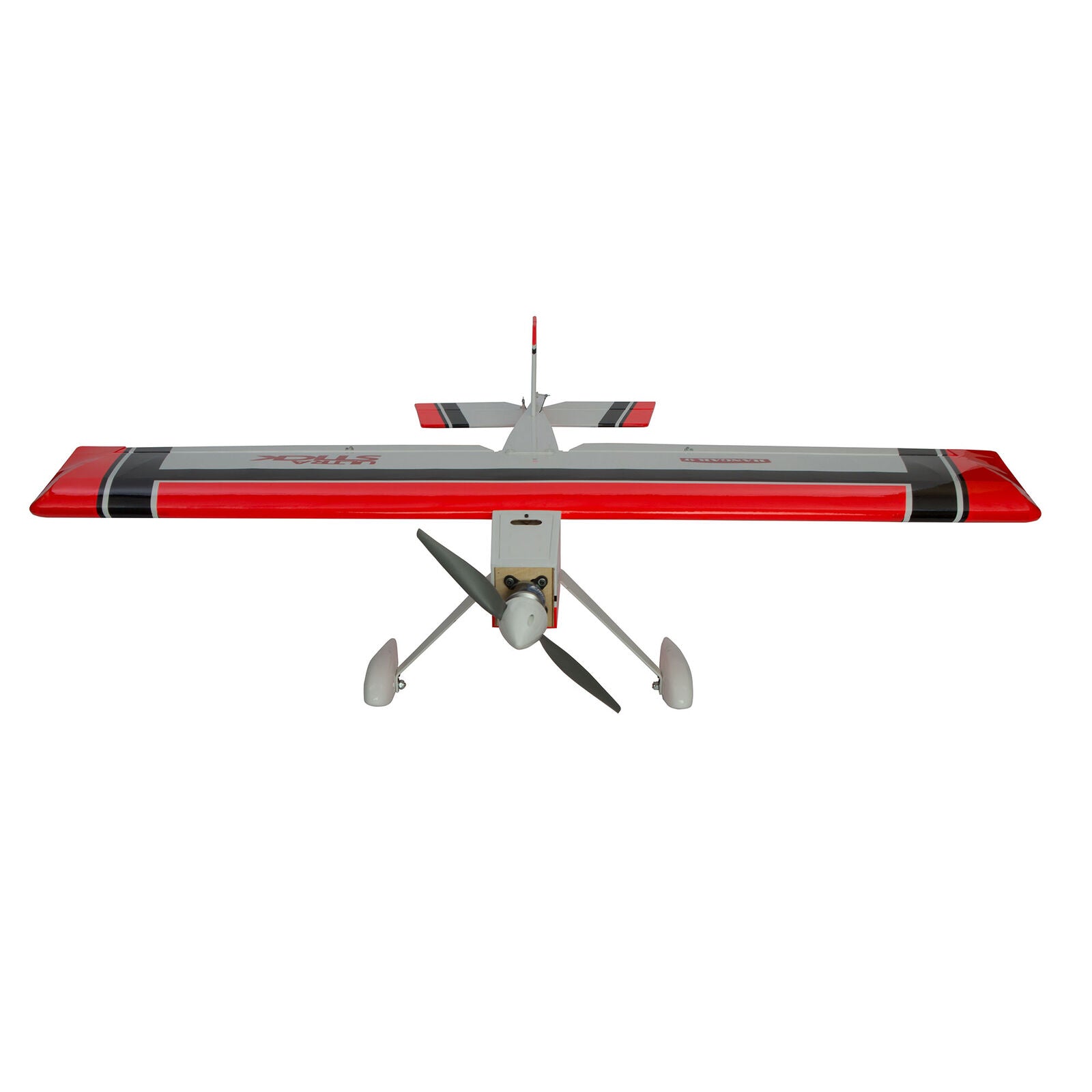

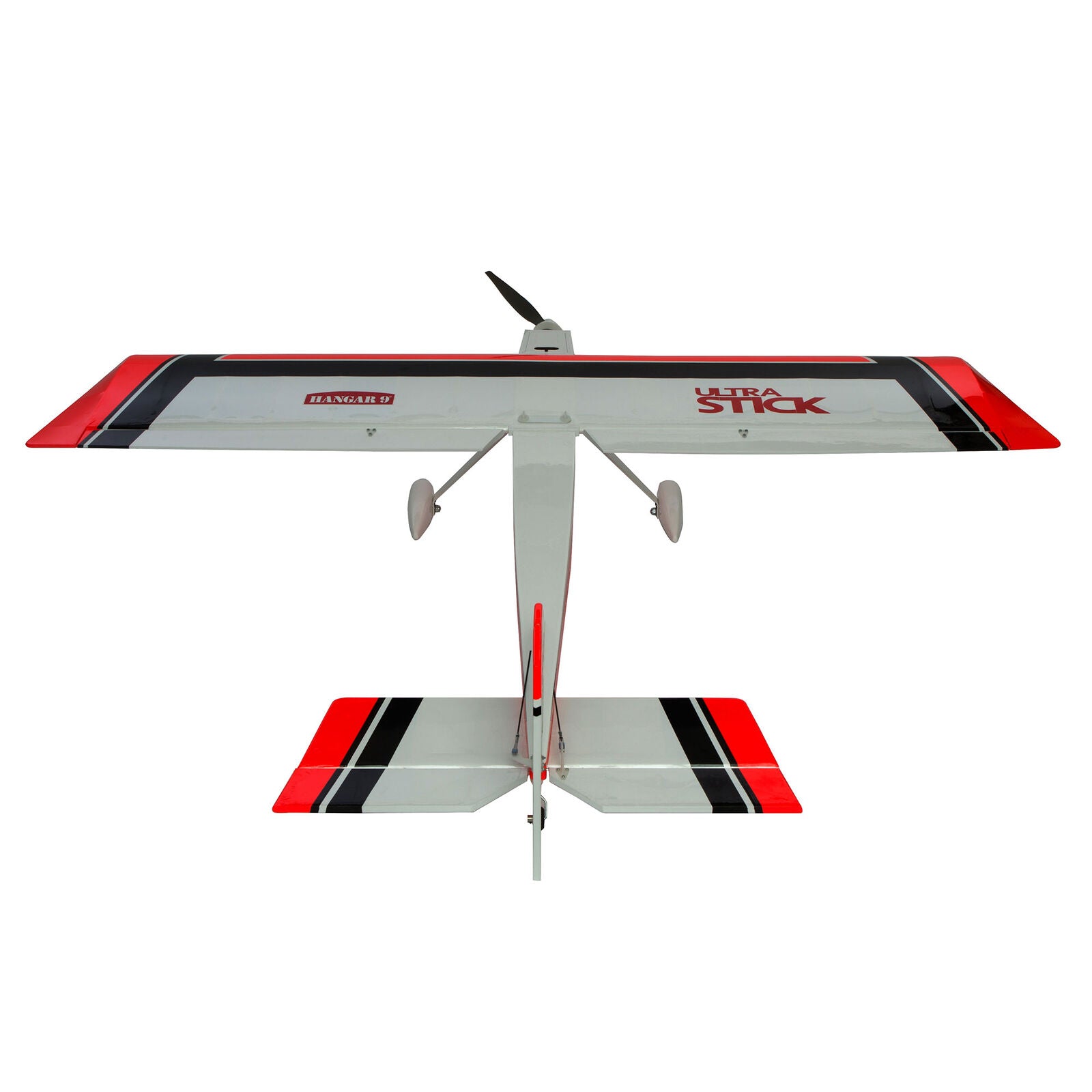

Hangar 9 Ultra Stick 10cc ARF 1.5m

A must-have for any RC pilot, the Ultra Stick sport plane is widely popular for its unmatched versatility and simplicity. The design makes it possible to choose from a wide range of power systems, from electric to internal combustion, without compromising its rock-solid handling or ability to perform a wide variety of tasks. The Hangar 9 Ultra Stick 10cc sport plane is simply a joy to fly. This compact version takes full advantage of any power system in its class and allows you to fly from one extreme to the other—fly crazy 3D flight one minute then hand the transmitter over to your buddy in the same flight who wants touch-and-go practice. Nothing compares with an Ultra Stick.

In the Box

Hangar-9 Ultra Stick 10cc ARF x1
User Manual x1

Needed to Complete

10cc two- or four-stroke petrol engine or equivalent electric motor system x1
Full-range, 6+ channel transmitter and receiver x1
Standard-size servos (6 for the electric power option) x7
Batteries for receiver and engine ignition (for the petrol power option) x2
Prop: 305 x 152 mm (12 x 6") - 356 x 216 mm (14 x 8.5") x1

Features

Lightweight Construction: Laser-cut balsa and plywood construction delivers exceptional durability.
Wide Flight Envelope: Low wing loading and large control surfaces help grow your flying skills.

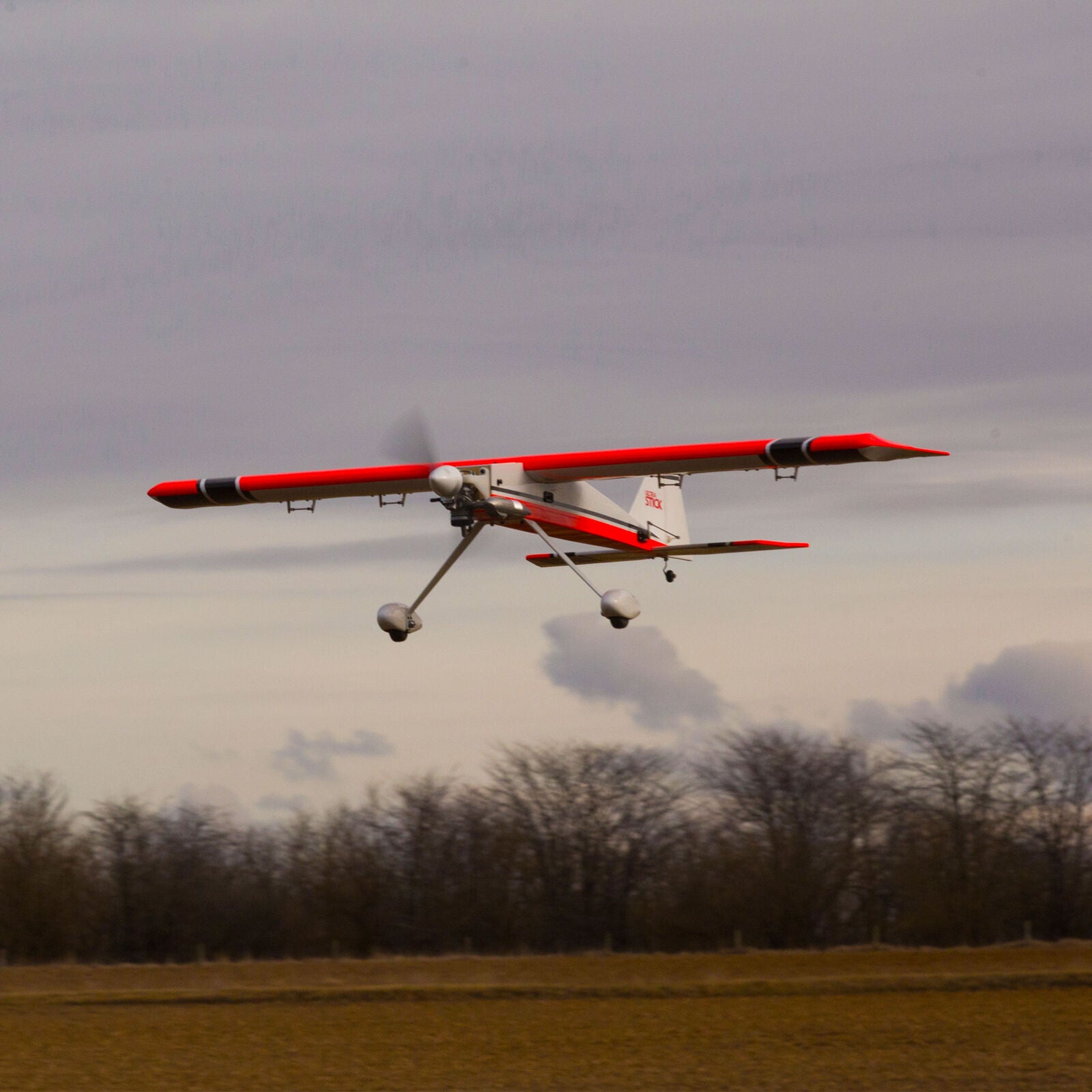

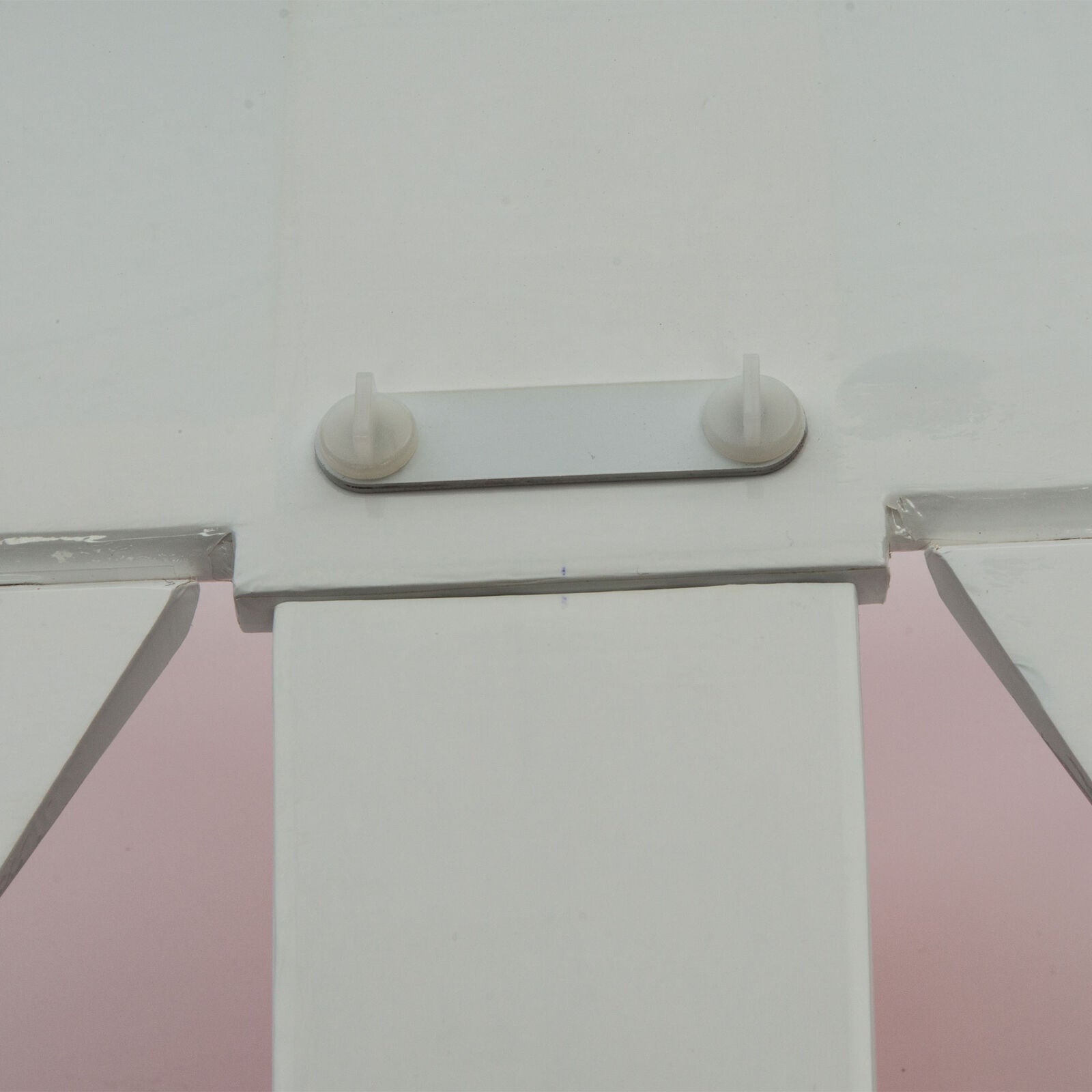

Ready for Floats: Factory-installed hard points make float conversion quick and easy.
Dressed to Impress: Big wheels and wheel pants handle rough fields and look great.

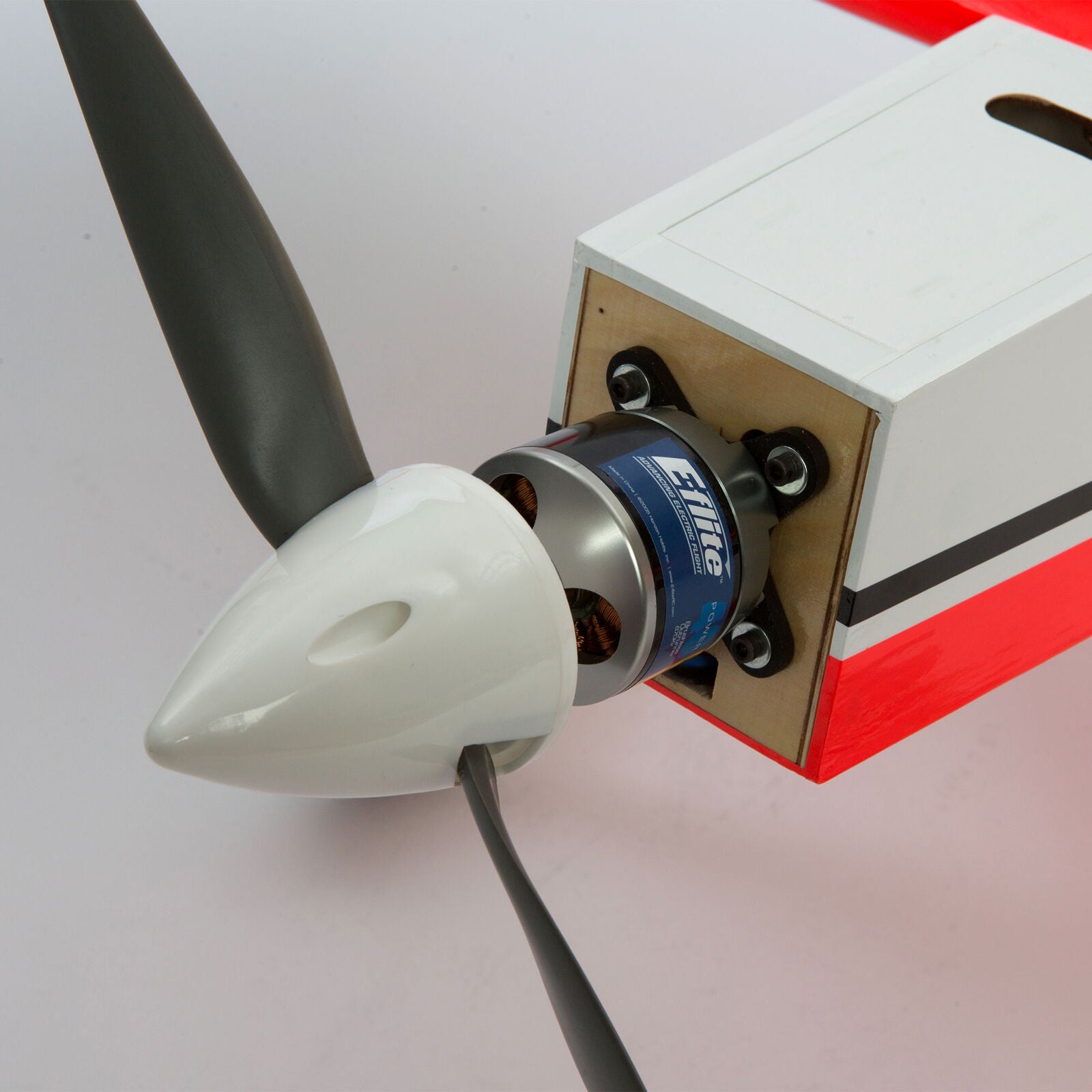

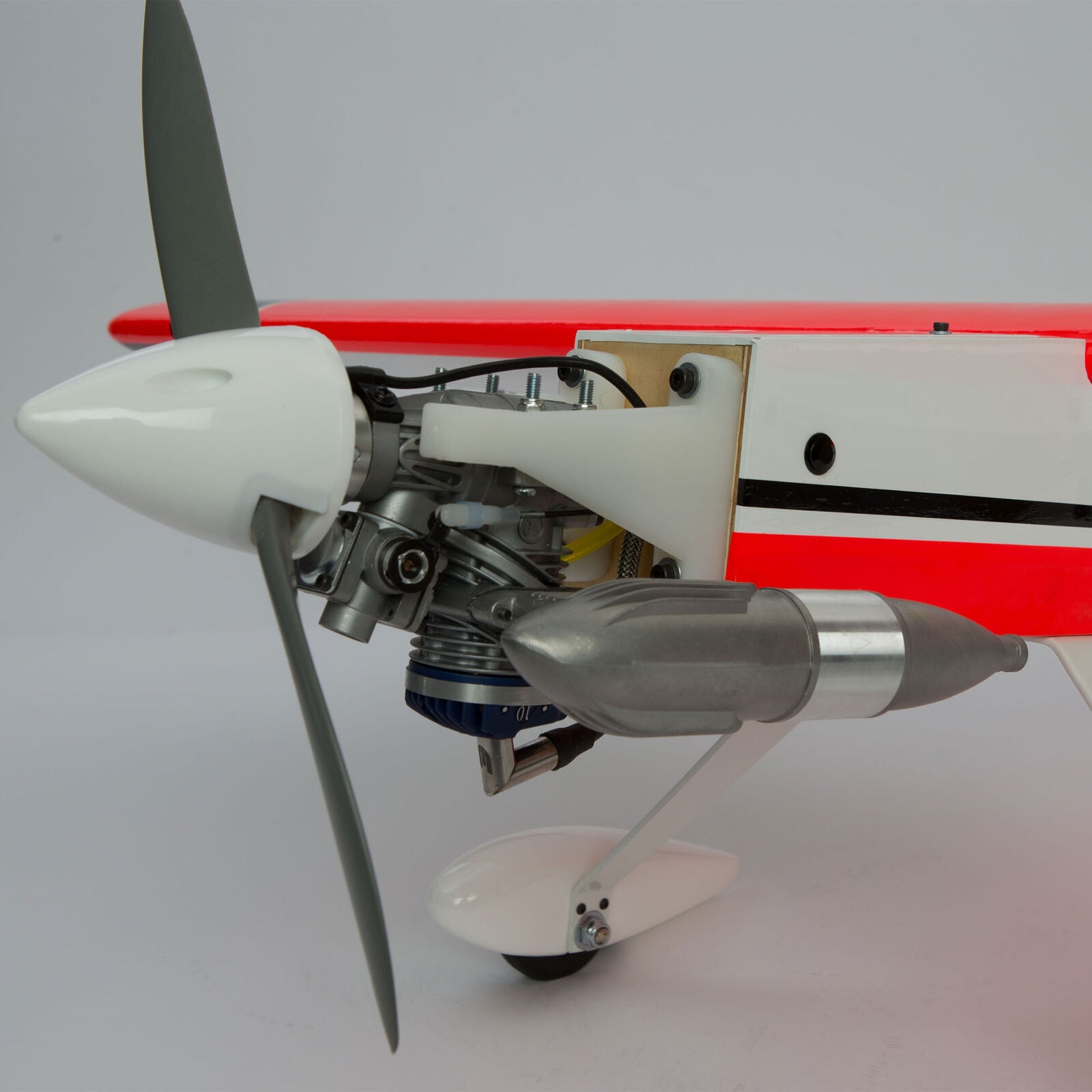

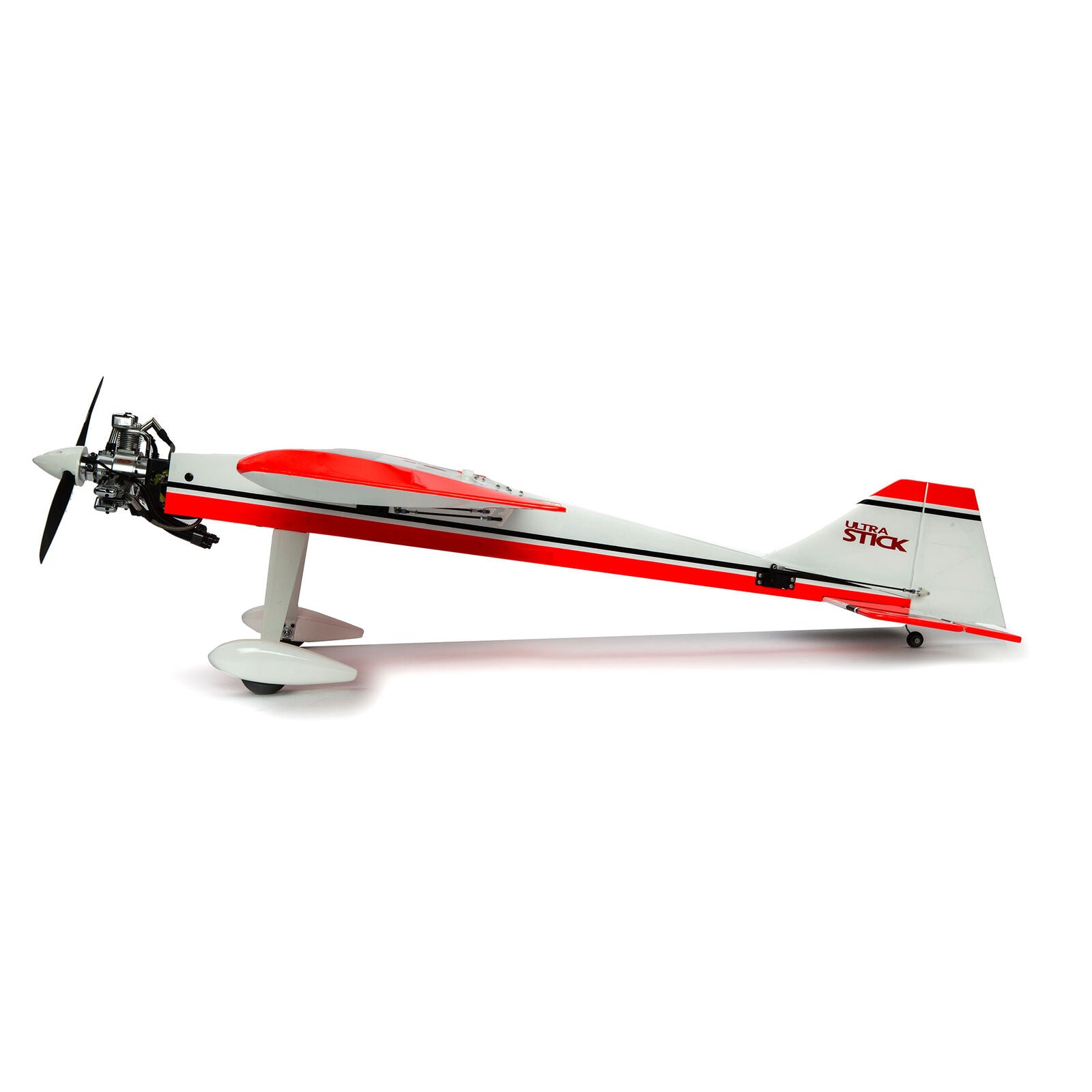

Power It the Way You Want It: Accepts petrol, four-stroke or brushless electric power systems.

More Information

A must-have for any RC pilot, the Ultra Stick sport plane is widely popular for its unmatched versatility and simplicity. The design makes it possible to choose from wide range of power systems, from electric to internal combustion, without compromising its rock-solid handling or ability to perform a wide variety of tasks. The Hangar 9 Ultra Stick 10cc sport plane is simply a joy to fly. This compact version takes full advantage of any power system in its class and allows you to fly from one extreme to the other—fly crazy 3D flight one minute then hand the transmitter over to your buddy in the same flight who wants touch-and-go practice. Nothing compares with an Ultra Stick.

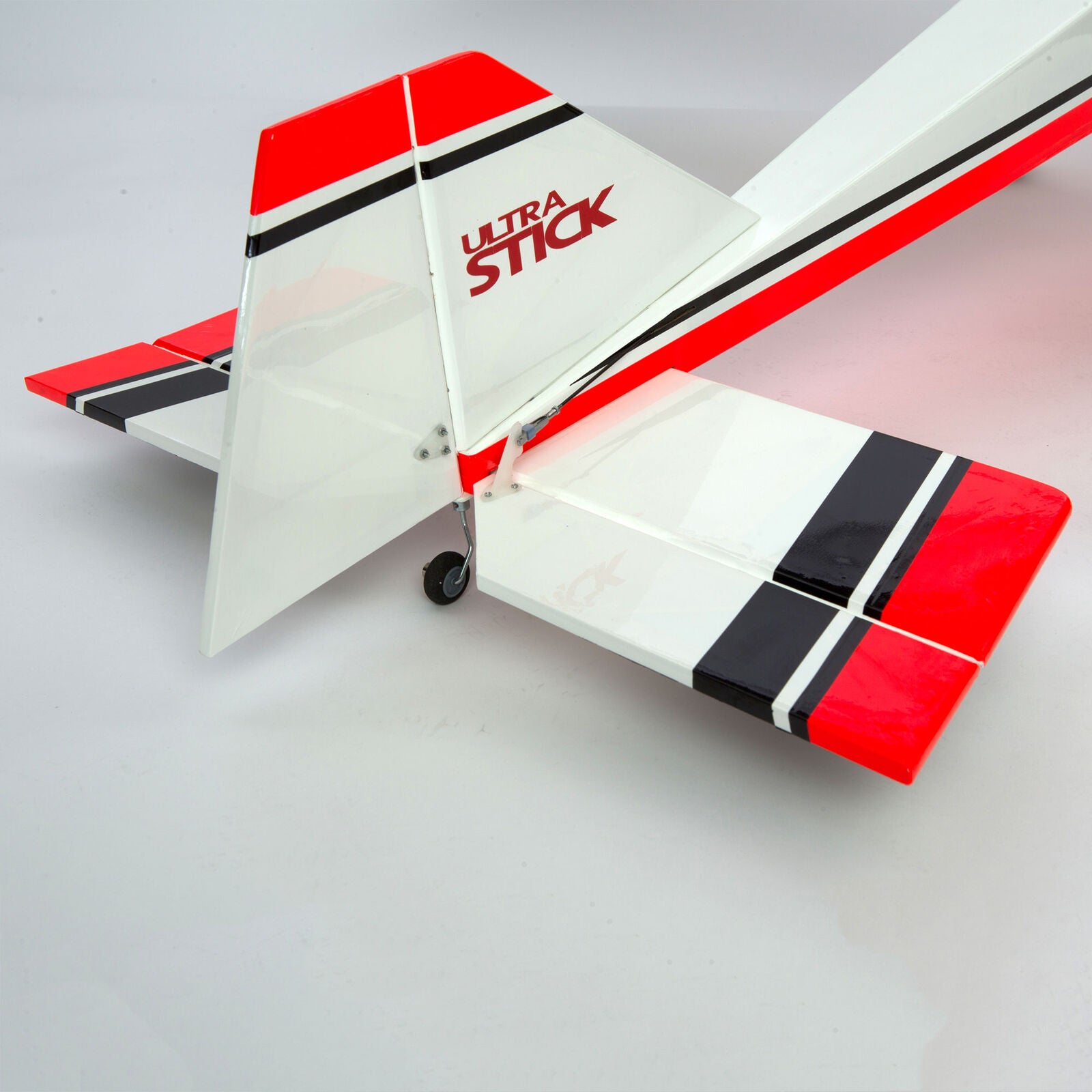

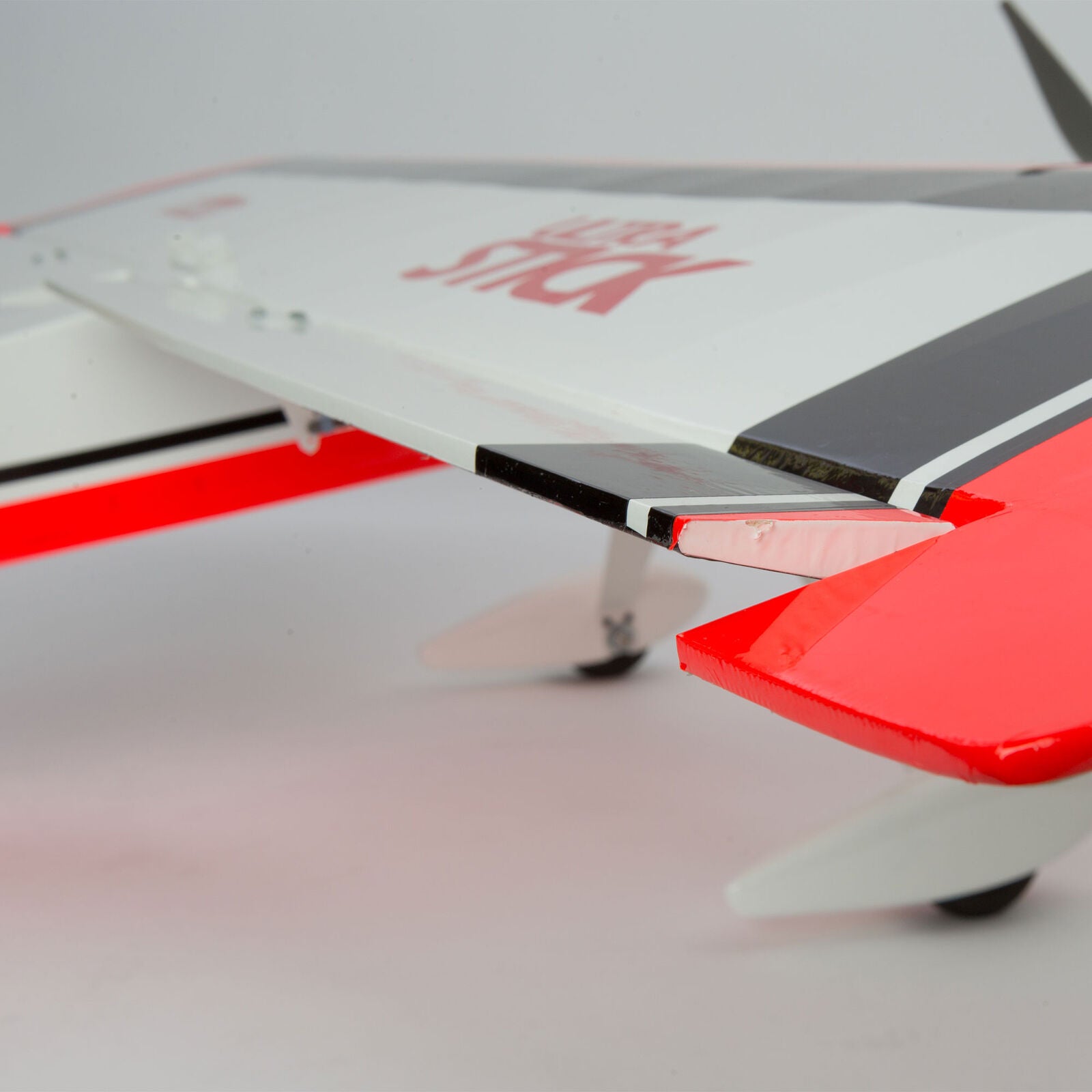

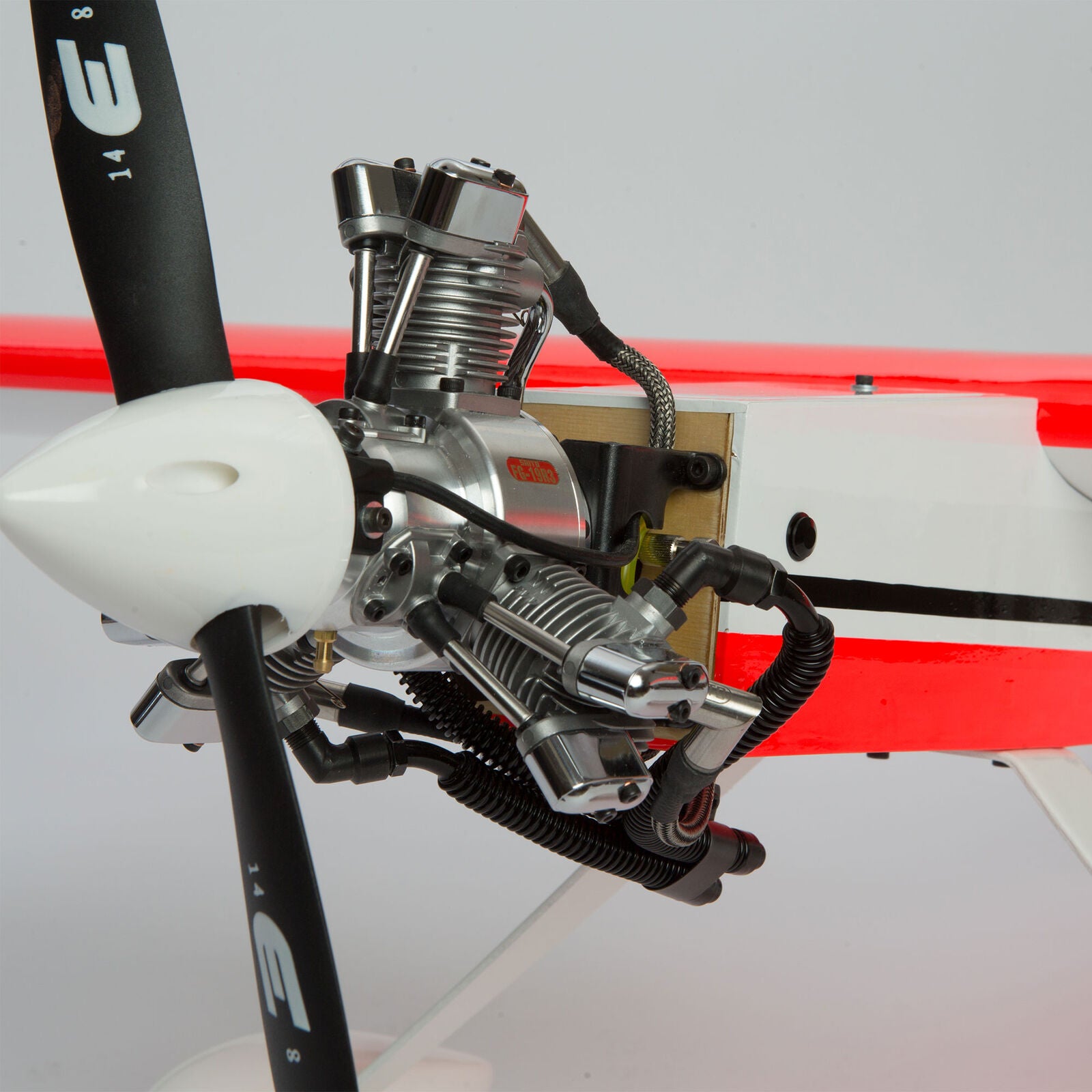

The proven design delivers a robust platform that uniquely combines simplicity and versatility with modern updates that include top-shelf materials, quality craftsmanship and superior engineering. At the bench, final assembly is the pleasure you deserve. A special firewall template helps you mount any of the recommended power systems with precision whether it's petrol, glow, two-stroke, four-stroke or electric. All the hardware you need is included so nothing can keep you from getting the build done. Large, double-bevel hinged control surfaces allow the Ultra Stick to explore a wide range of manoeuvres while the fully symmetrical wing offers excellent penetration in wind and a stable platform across a wide speed range. Quad-surface wing controls change the game by making blinding roll and loop rates possible. Landings are so predictable you'll rush to get up into the air again.

Specifications

Airfoil Shape: Symmetrical
Approximate Assembly Time: 7–10 Hours
Approximate Flight Time: 6–8 mins
CG (Centre of Gravity): 89–108 mm (3-1/2"–4-1/4") back from the leading edge of wing
Completion Level: Almost Ready-To-Fly
Engine Size: 10cc (sold separately)
Flaps: Yes
LiPo Compatibility: 6S
Minimum Required Radio: 4+ Channel (sold separately)
Motor Size: Power 52 (sold separately)
Power Type: Electric/Petrol
Product Length: 1448 mm (57")
Receiver: Sold Separately
Recommended Motor Battery: 14.8V 4000mAh 30C 4S LiPo (sold separately)
Skill Level: Level 4
Speed Control: Sold Separately
Spinner Size: 57 mm (2.25")
Trim Scheme Colours: White (HANU870), Fluorescent Red (HANU890), Black (HANU874)
Wing Area: 52.3 dm² (810 sq inches)
Wing Loading: 60.7 g/dm² (19.9oz/sq ft)
Wingspan: 1524 mm (60")
