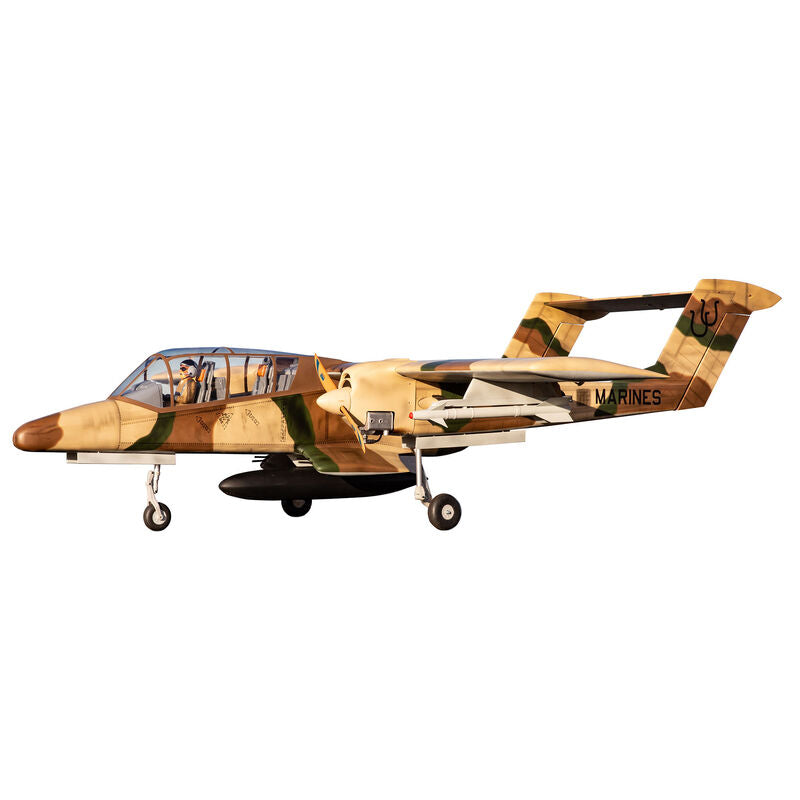

Hangar 9 OV-10 Bronco 30cc ARF 2.7m

Designed for giant-scale warbird enthusiasts and experienced balsa pilots, the Hangar 9 OV-10 Bronco is one of the largest giant-scale warbirds available. It combines detailed scale features with the strong flight performance expected from Hangar 9 models.

In the Box

Hangar 9 OV-10 Bronco 30 cc ARF x 1
Product manual x 1

Needed to Complete

30 cc two/four-stroke petrol engine or equivalent power system x 2
Full-range 12+ channel transmitter and receiver x 1
Batteries for electronic ignition (for petrol option) and 1 for receiver x 2
Standard digital HV high-torque metal-geared servo x 1
Standard digital HV high-torque high-speed servos x 9
Propellers x 2
Hangar 9 OV-10 scale retract set x 1

Features

Finely detailed satin-finish printed covering with panel lines, rivets and weathering
Expertly constructed with laser-cut balsa and plywood
Fully painted fibreglass cowlings with scale detailing including weathering
Pre-painted plastic spinners
3-piece plug-in wing with centre-section landing gear support for easier transport and field assembly
Designed to fit 30–35 cc petrol engines or equivalent electric power systems
Large top hatch with dual spring latch system
Cockpit details include one painted pilot figure, two seats and a 3D instrument panel
Includes mounts for both petrol and electric power options
Functional 4-panel flaps with internal linkages
Additional scale details include guns, Sidewinder missiles and centreline drop tank
Painted plastic front turret for added realism
Compatible with the optional Hangar 9 OV-10 Bronco electric retract set with shock-absorbing scale struts (sold separately)
Includes number decals for customisation and spare covering for repairs
Complete hardware set included

Specifications

Airfoil shape: Semi-symmetrical
Approximate assembly time: 20+ hours
Approximate flight time: Approximately 6 minutes
Battery: Sold Separately
Centre of gravity: 165 mm (6.5 in)
Charger: Sold Separately
Completion level: Almost Ready-To-Fly
Engine size: 30 cc petrol engine required
Flaps: Yes
Material: Wood
Minimum required radio: 12 channel full-range
Minimum speed control: 100 A
Motor design: Outrunner
Motor size: 120–180 required
Motor type: Brushless
Power type: Electric/Gas
Product length: 2870 mm (113 in)
Product weight: 18,100–19,050 g (40–42 lb)
Prop range: 432–508 mm (17–20 in)
Propeller size: 457 × 305 mm (18 × 12 in)
Radio: Sold Separately
Receiver: Sold Separately
Recommended motor battery: 6–12S 5000–10000 mAh
Retracts: Sold Separately
Servos: Sold Separately
Skill level: Level 4
Speed control: Sold Separately
Spinner size: 95 mm (3.75 in)
Steering: Yes
Trim scheme colours: Printed covering
Wing area: 101.7 sq dm (1575 sq in)
Wing loading: 130.2 g/sq dm (42.66 oz/sq ft)
Wingspan: 2743 mm (108 in)
