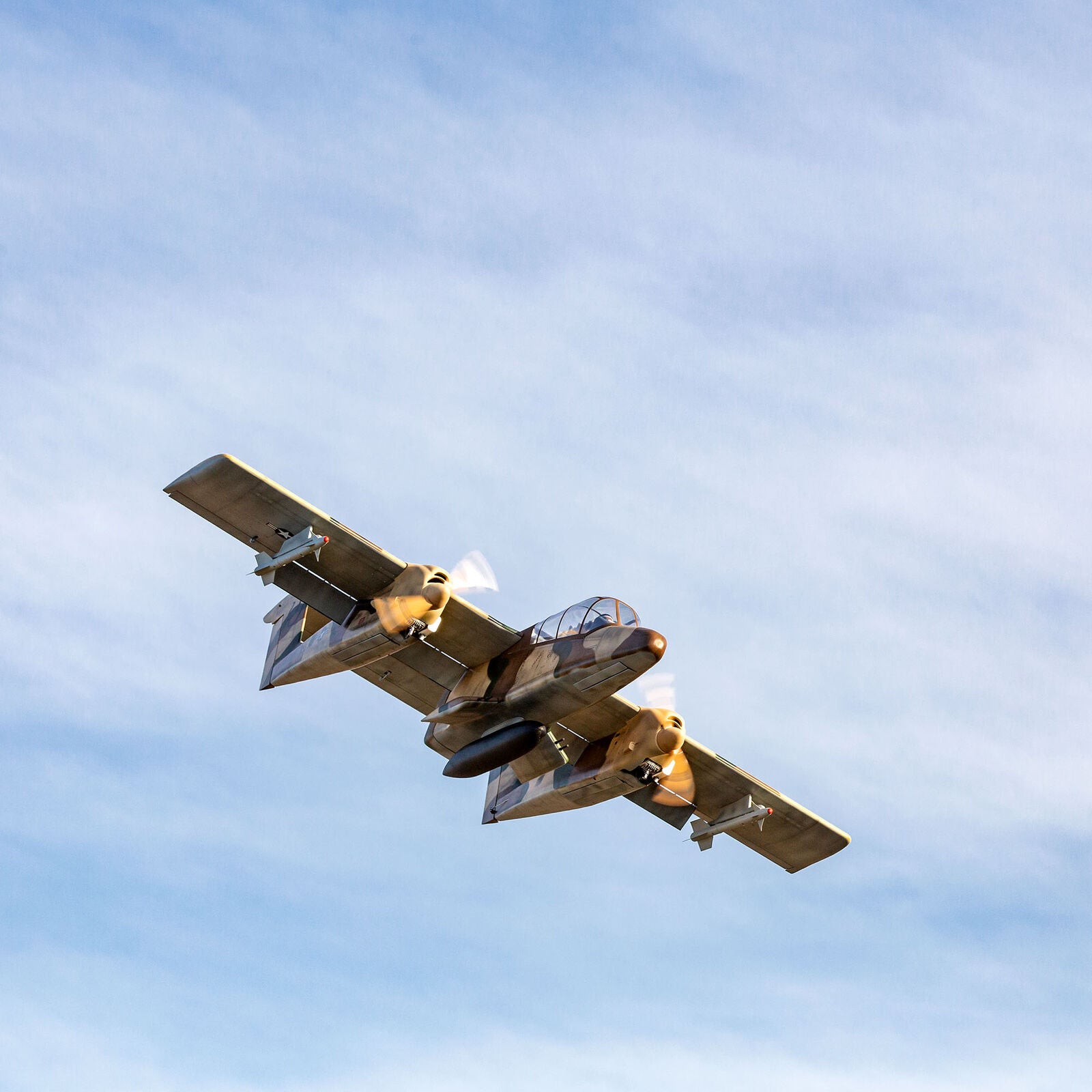

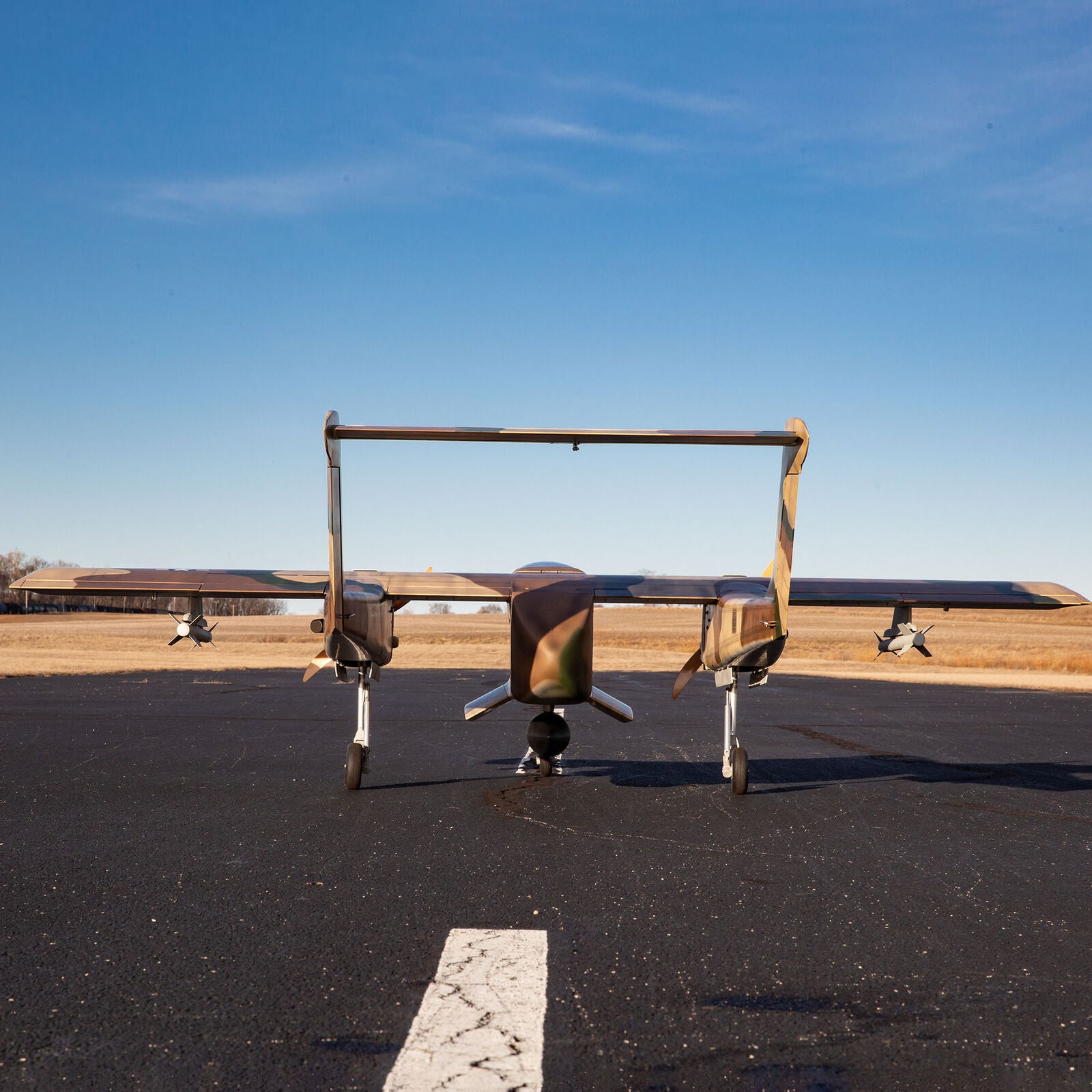

Hangar 9 OV-10 Bronco 30cc ARF 108" with Landing Gear Set

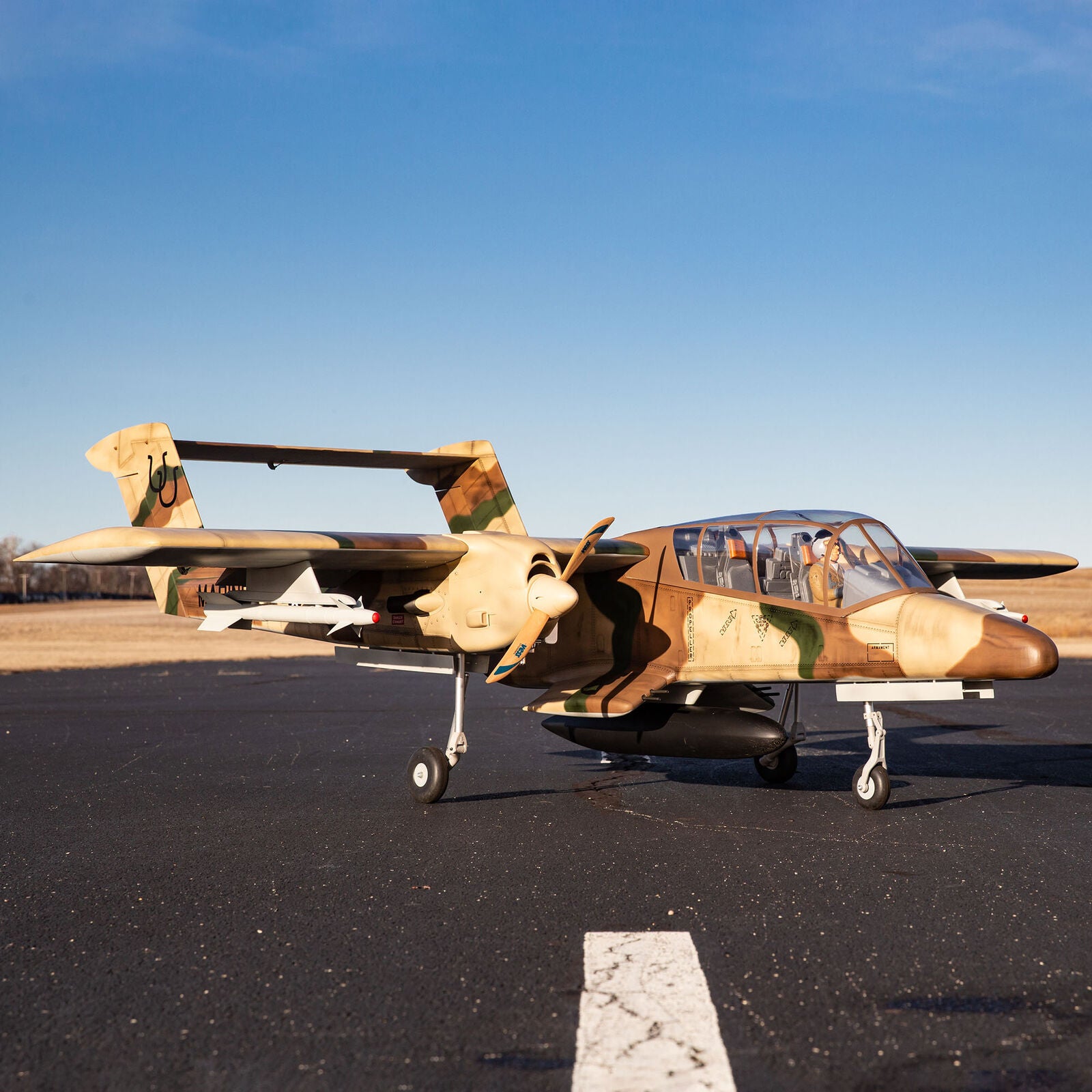

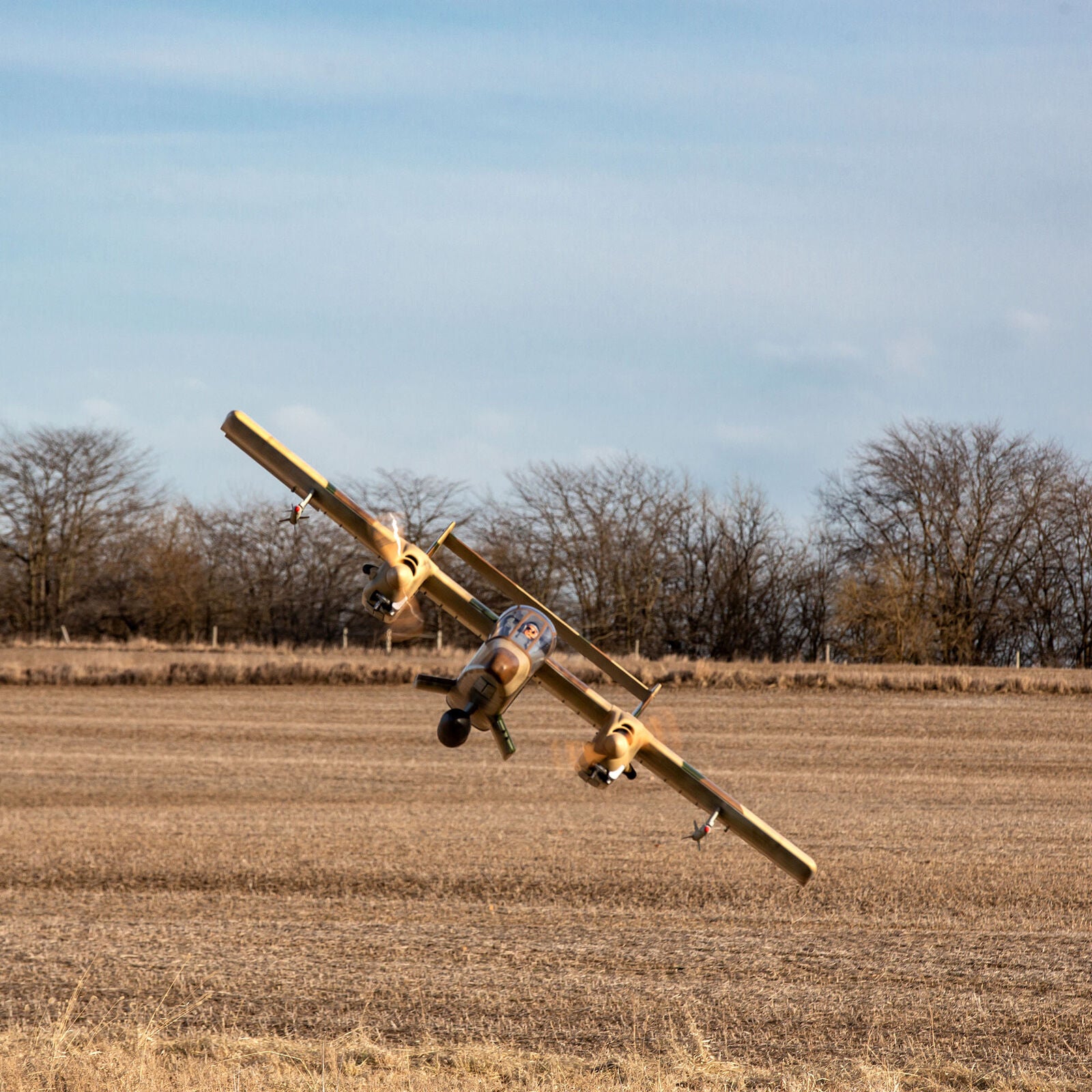

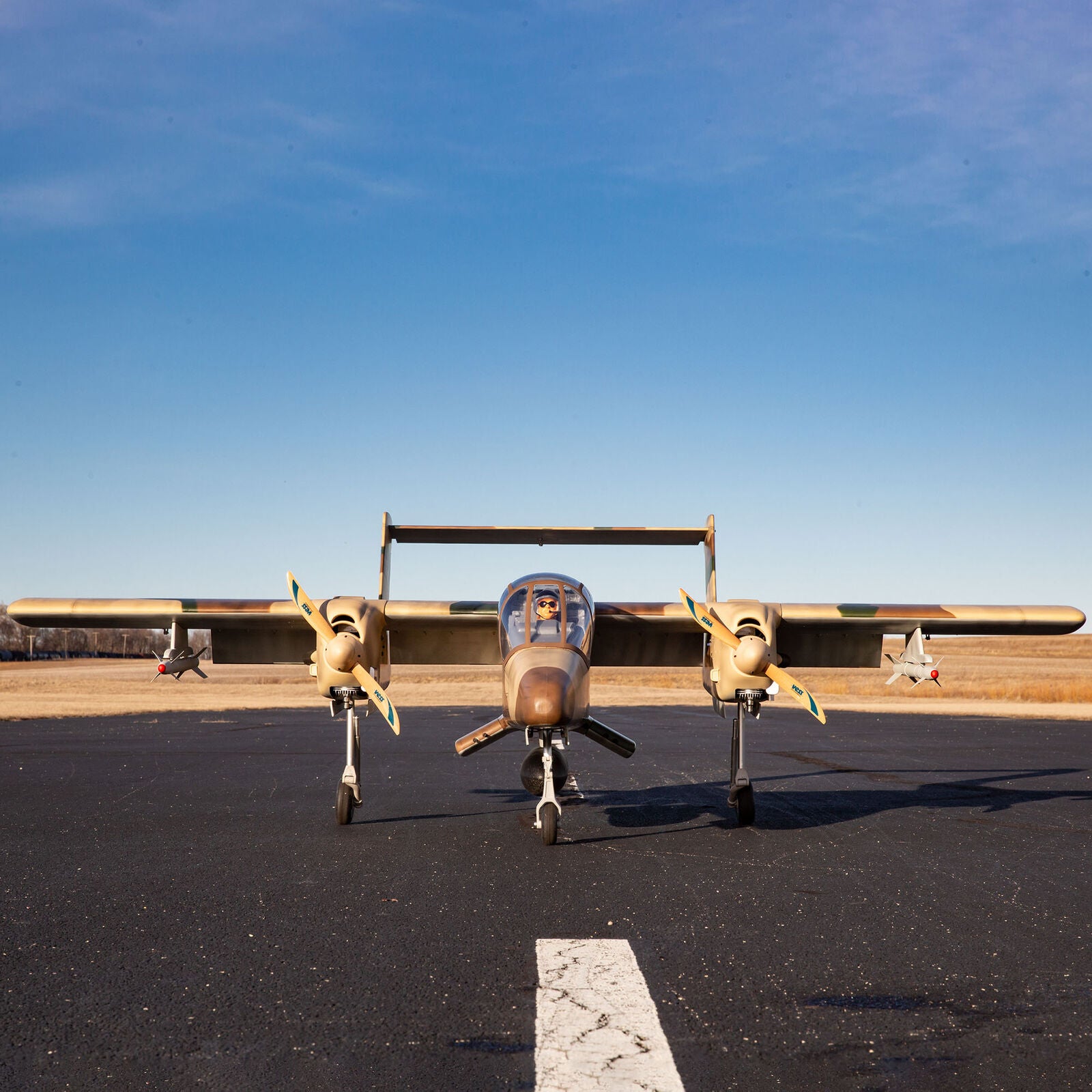

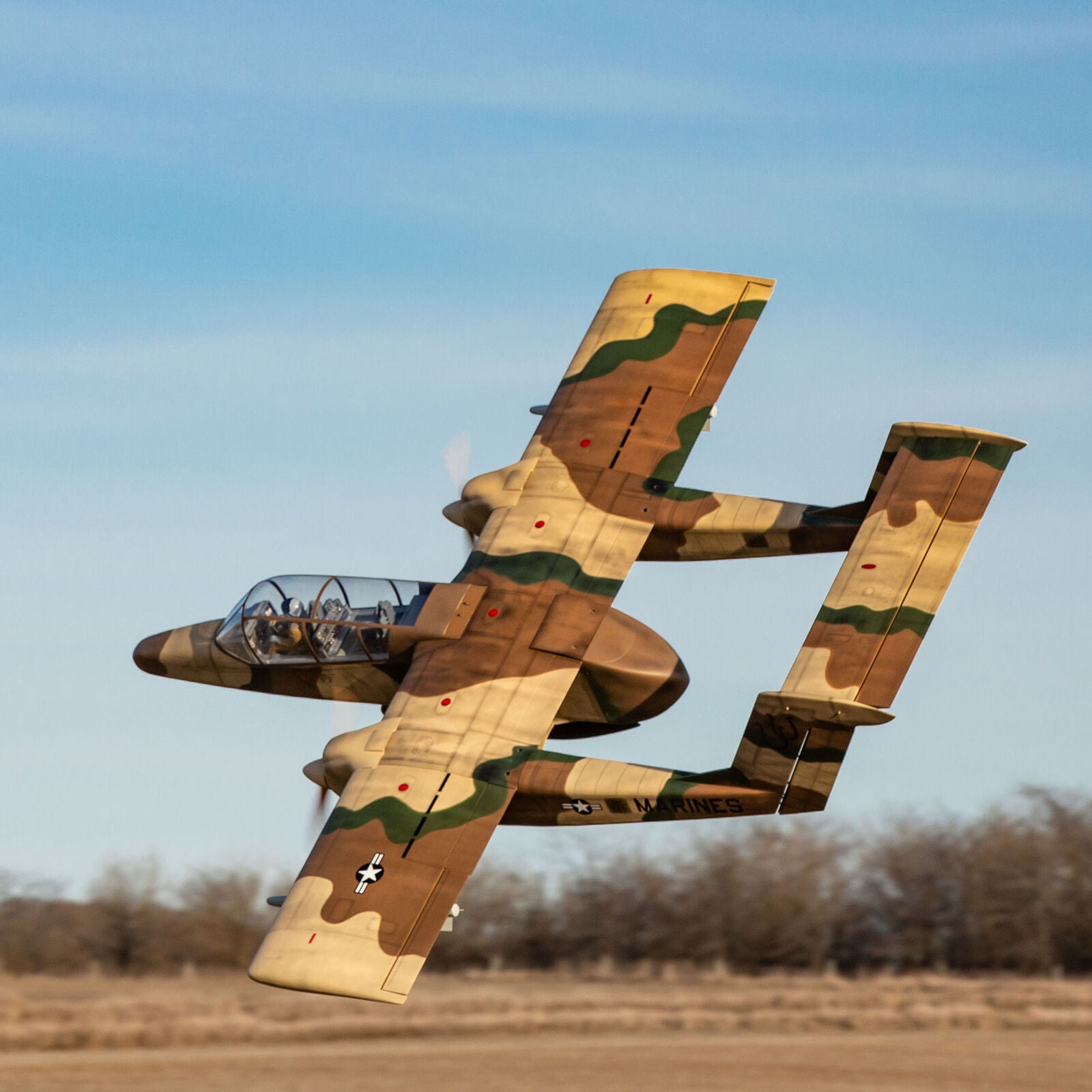

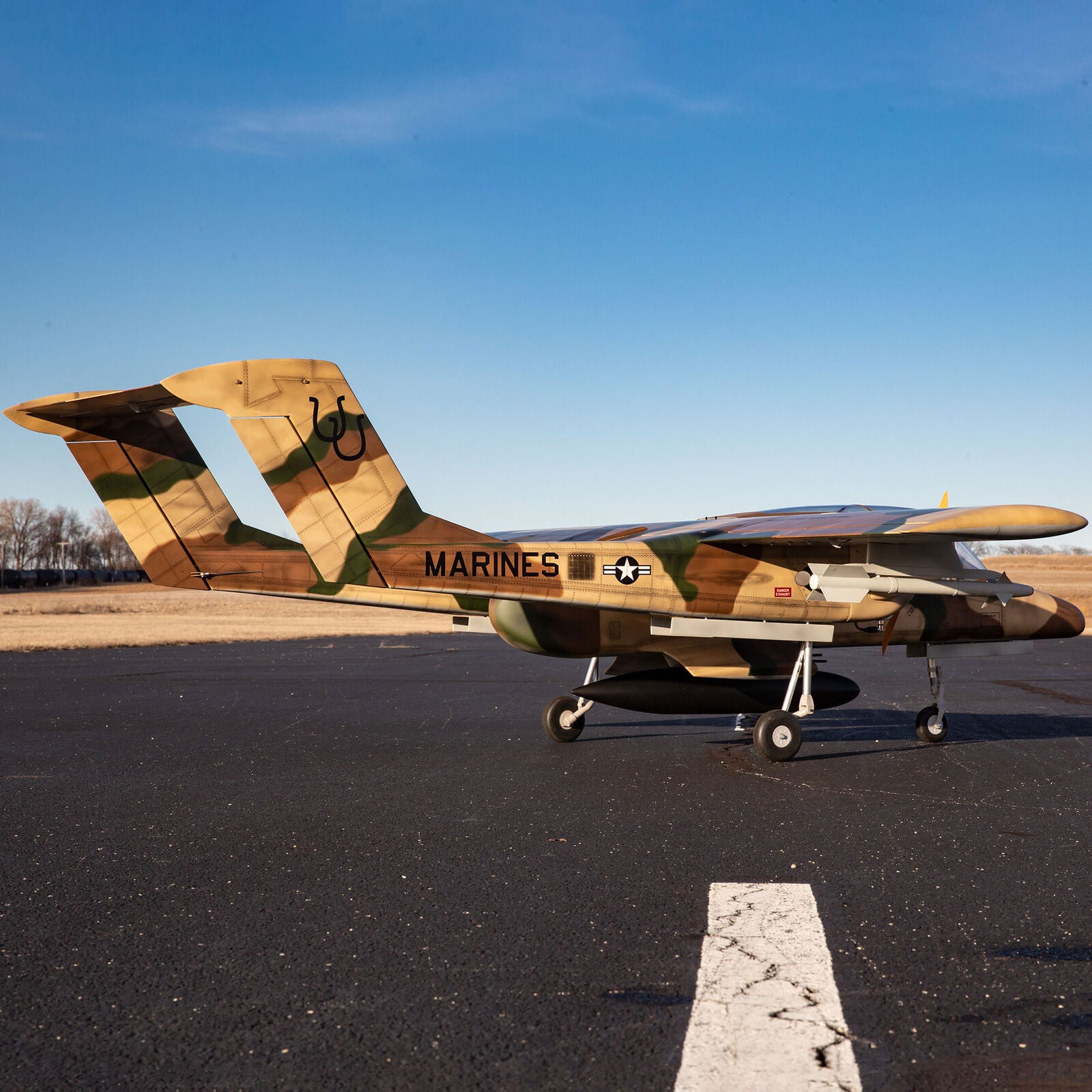

The Hangar 9 OV‑10 Bronco 30 cc ARF 108″ with Landing Gear Set is the largest giant‑scale warbird from Hangar 9. Built with laser‑cut balsa and plywood construction, detailed printed covering, and electric retracts, it offers unmatched realism and flexibility for both petrol and electric power configurations.

Features

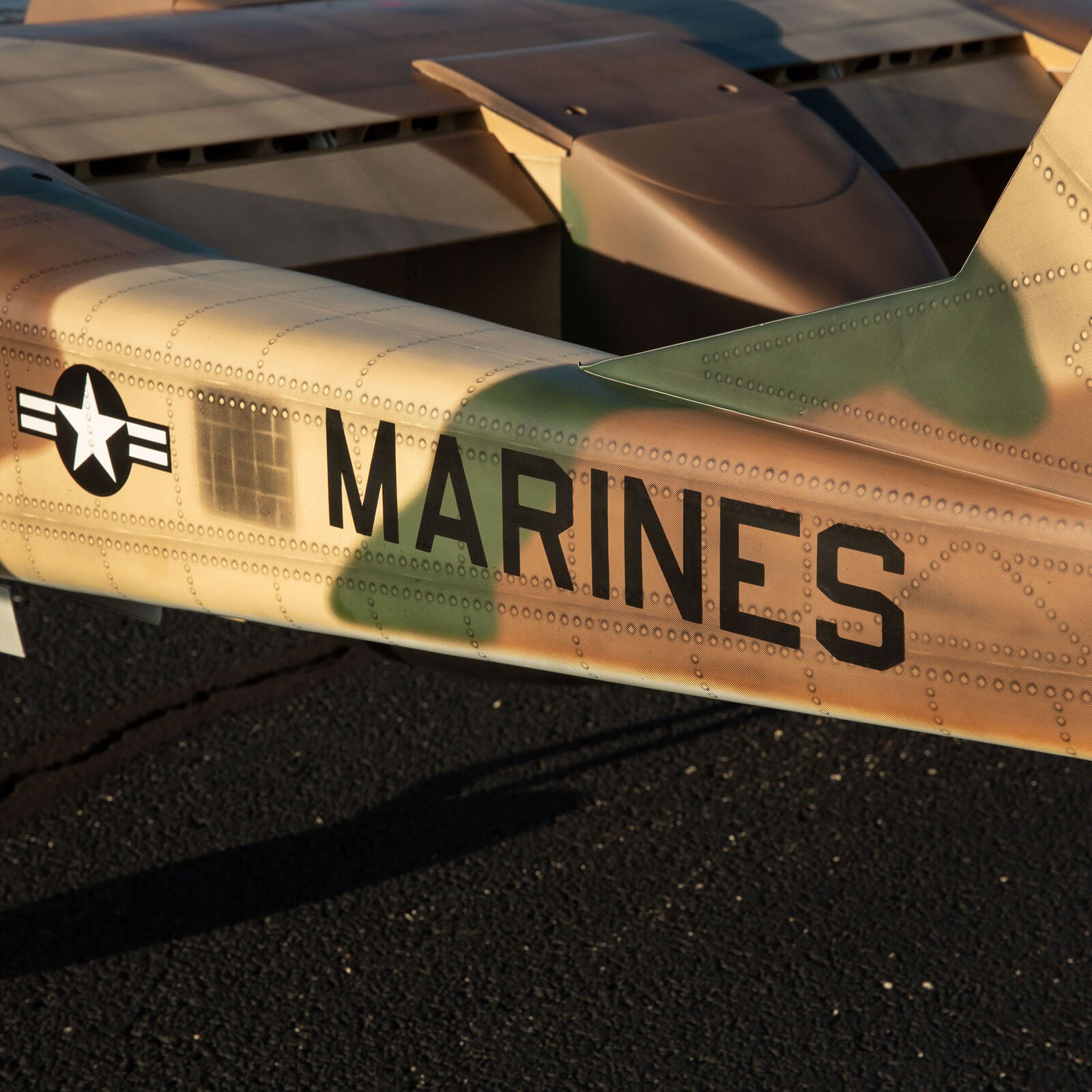

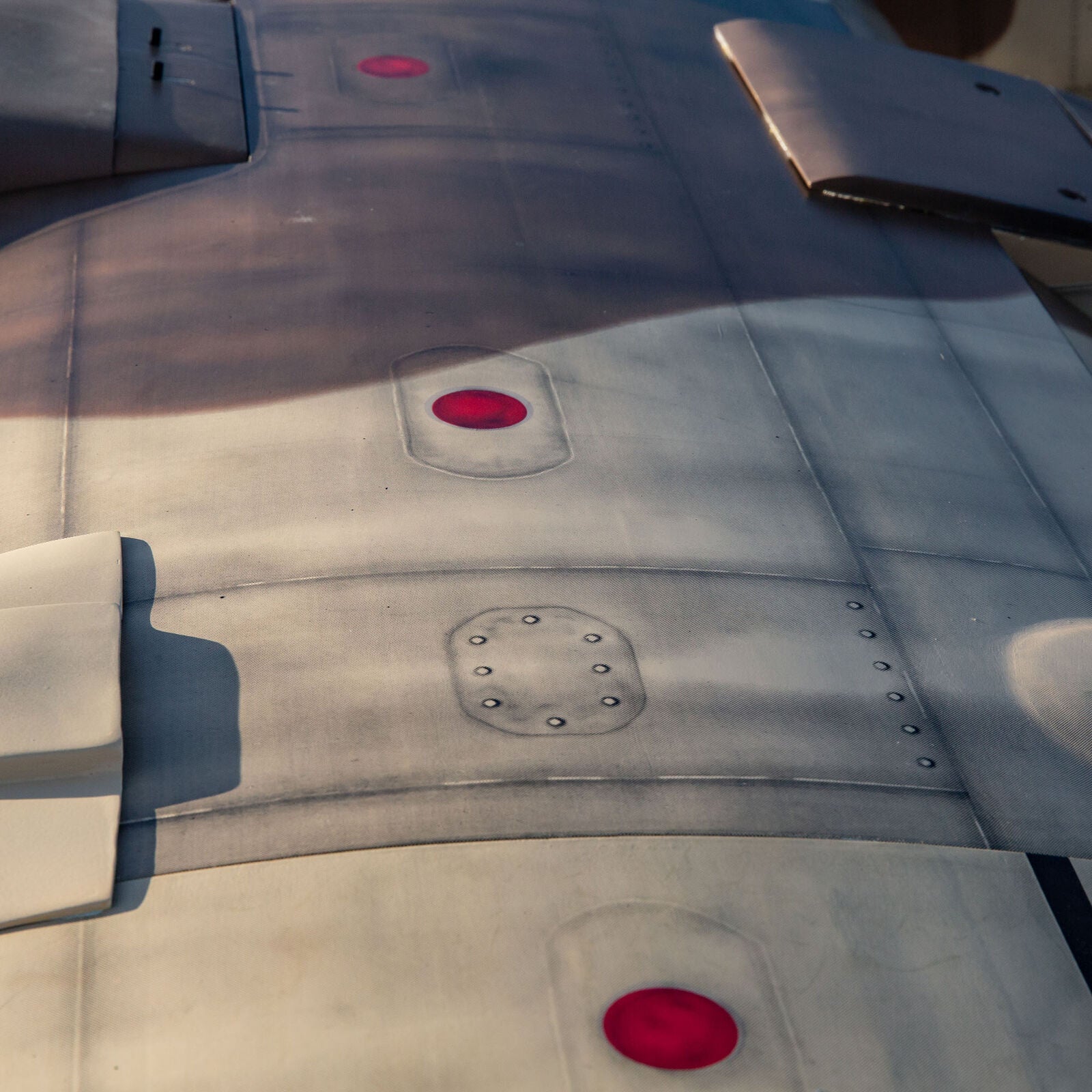

• Satin‑finish printed covering with panel lines, rivets and weathering detail

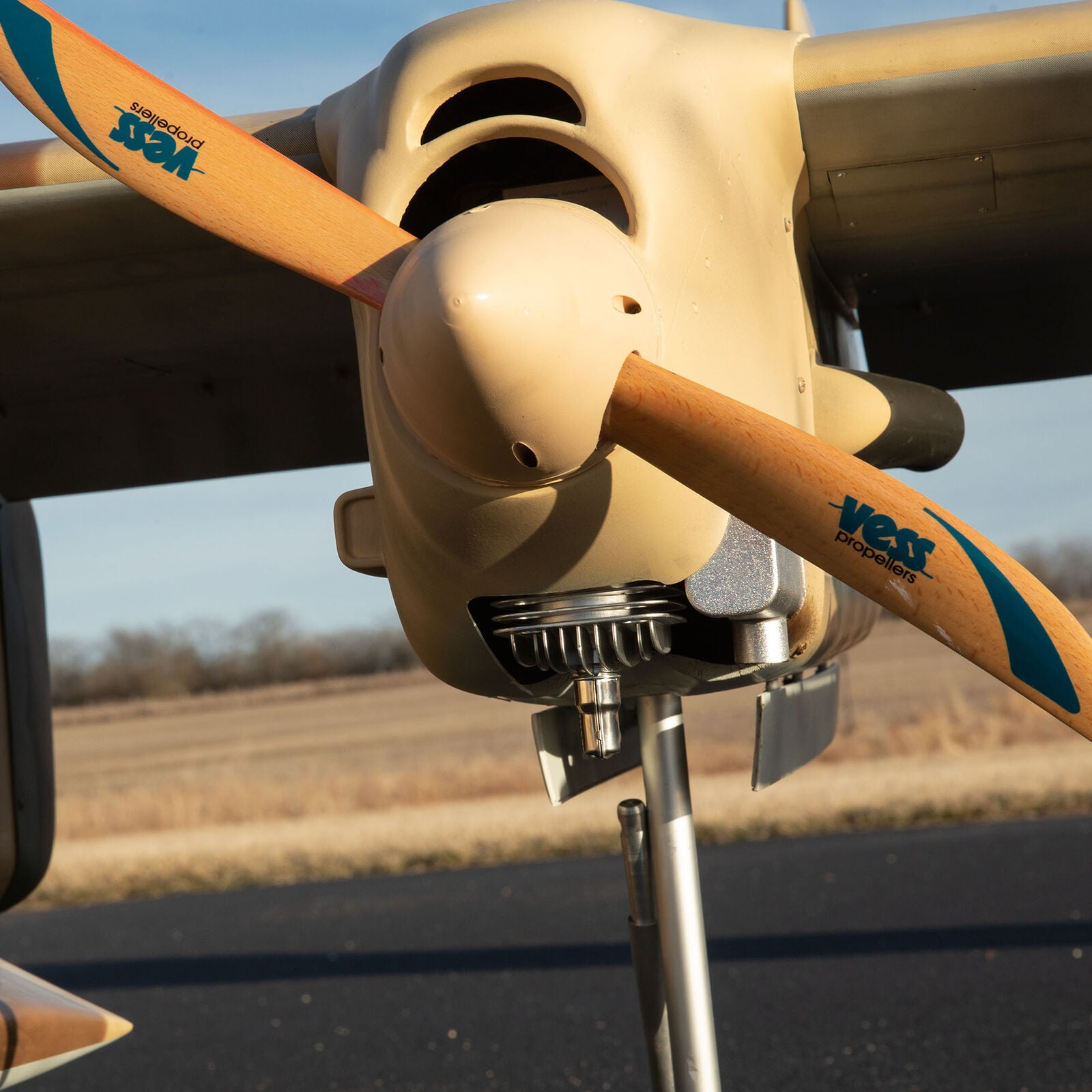

• Laser‑cut balsa and plywood construction with painted fibreglass cowlings and clear plastic canopy
• 3‑piece plug‑in wing with centre section landing‑gear support for easy transport and assembly
• Designed to accept 30–35 cc gas engines or equivalent electric systems—power Mounts included

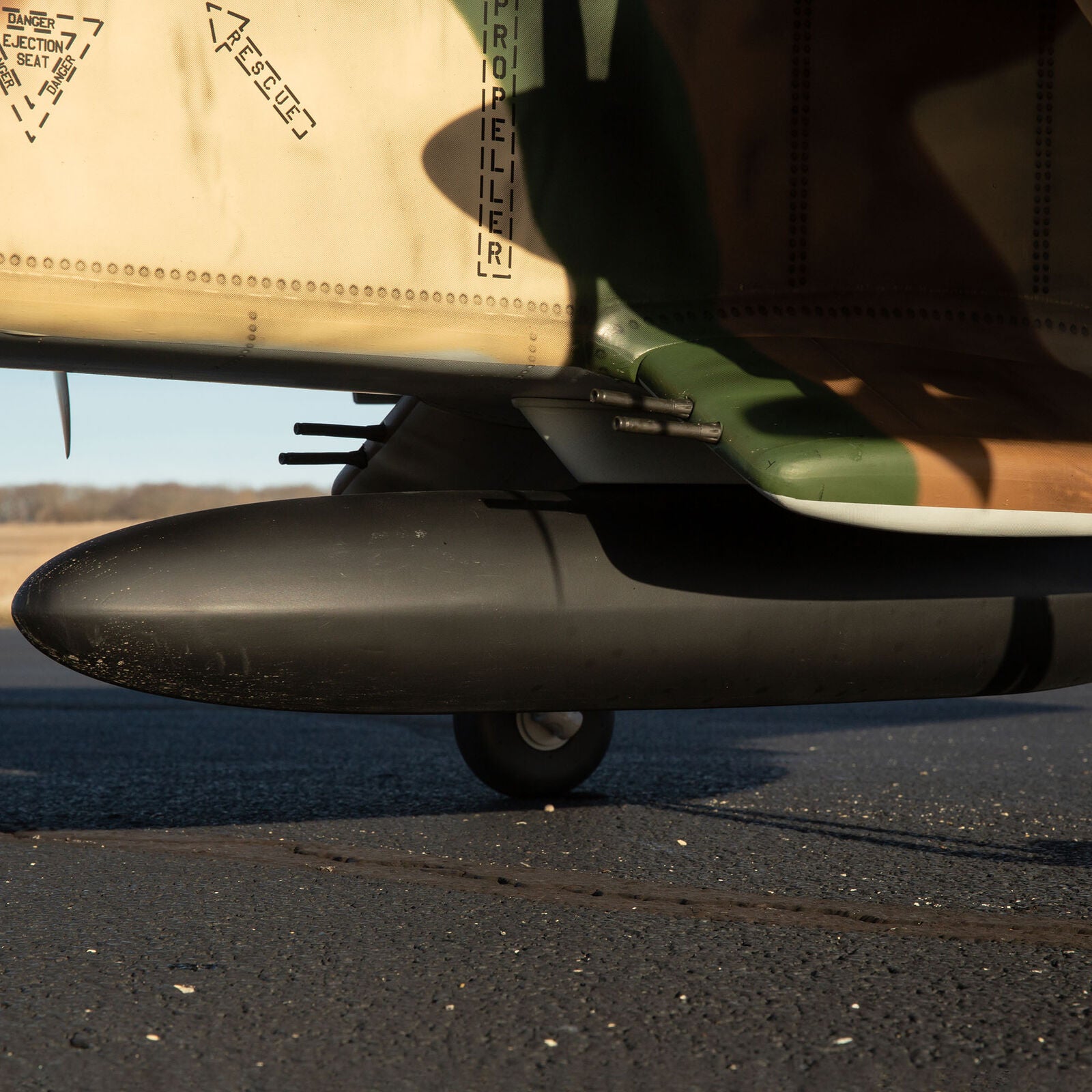

• Scale features include guns, Sidewinder missiles, centre‑line drop tank and front turret
• Functional 4‑panel flaps and oversized scale wheels fitted to electric retracts

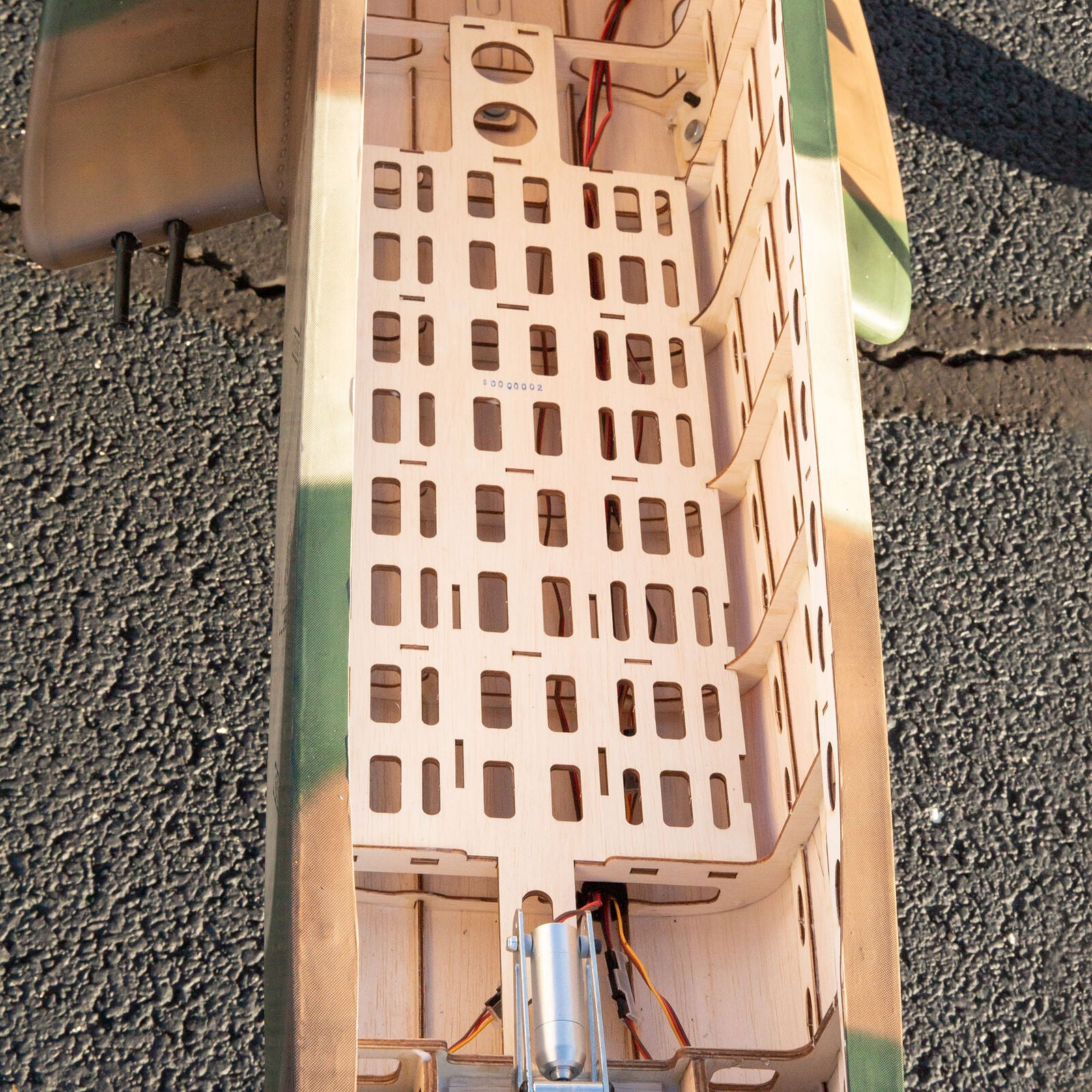

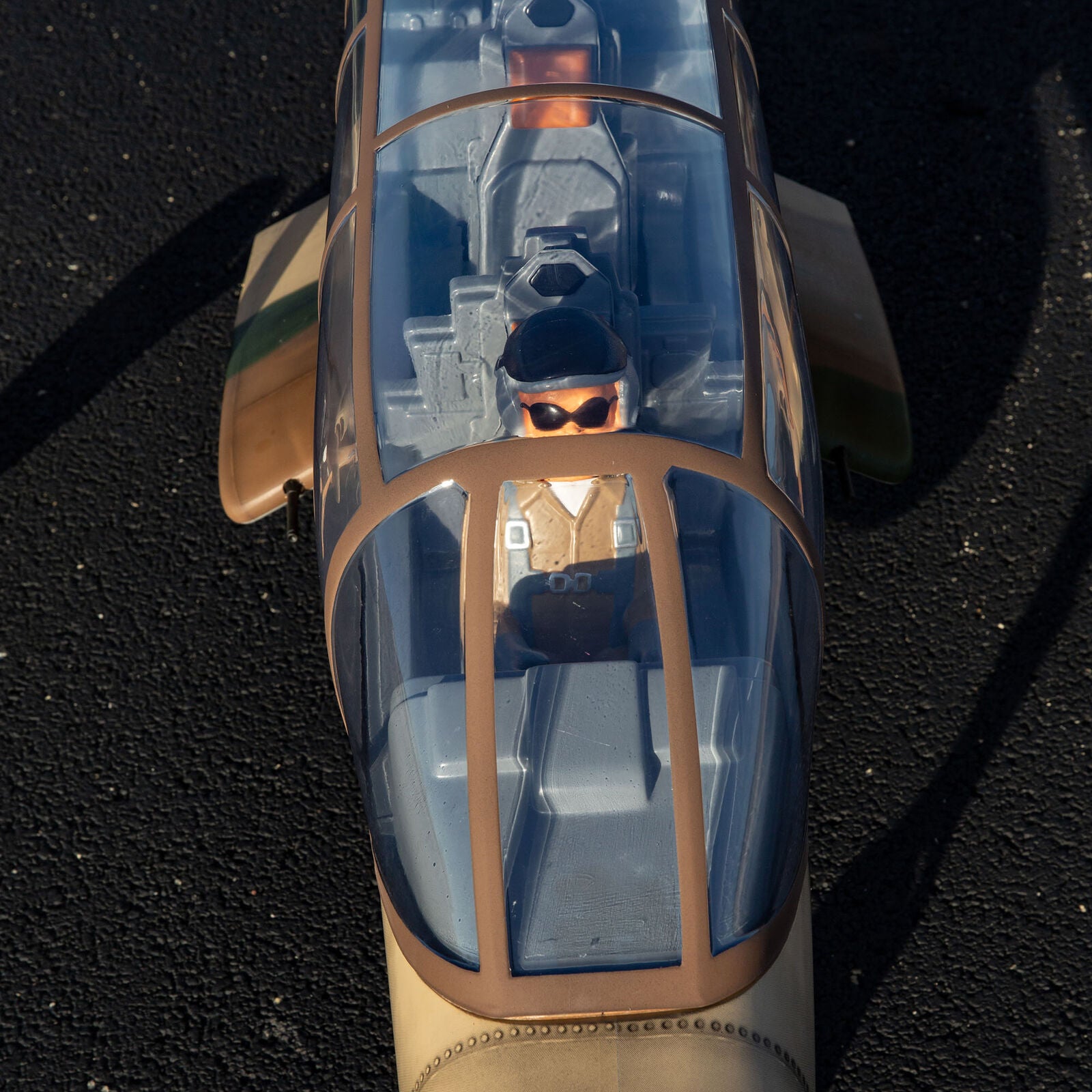

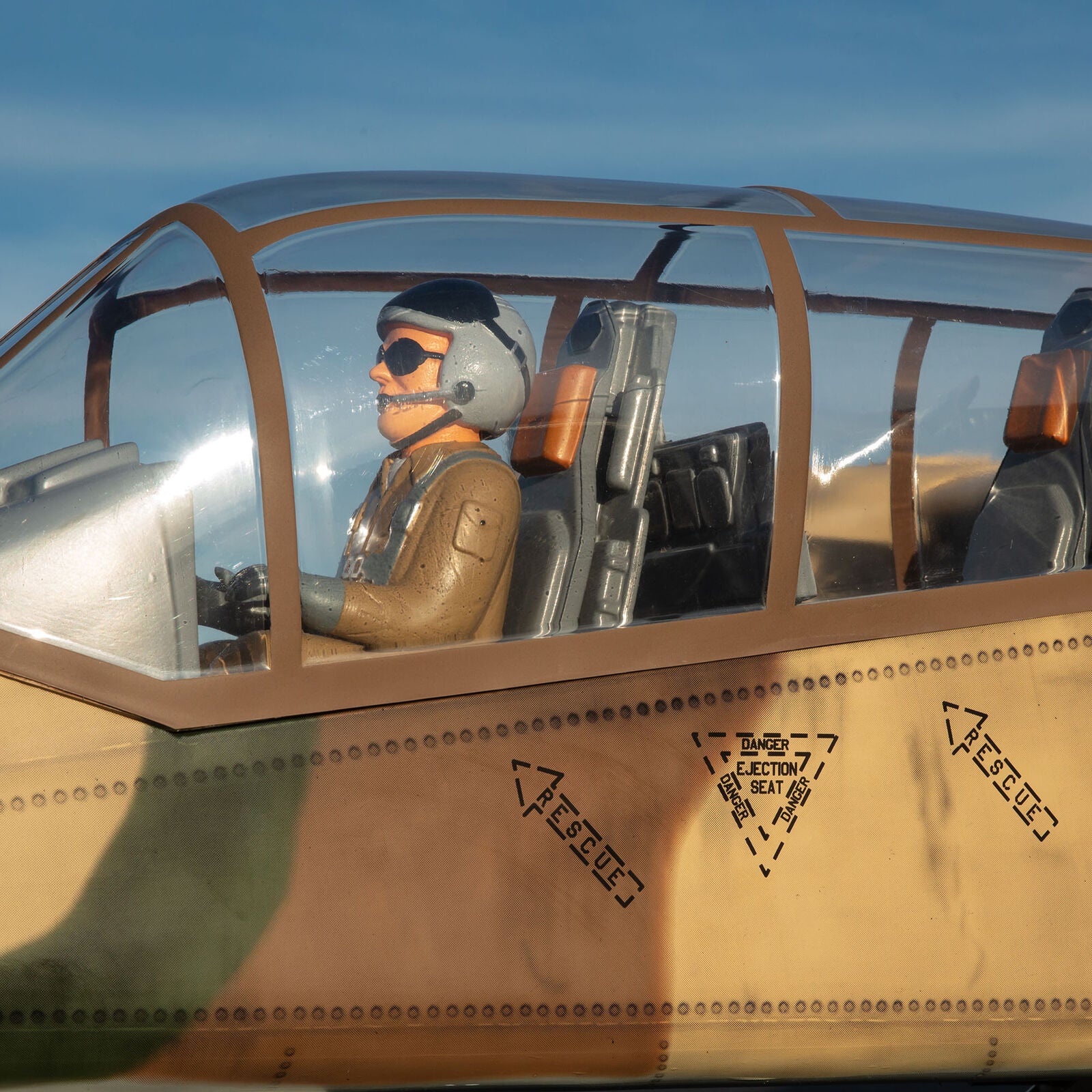

• Large top hatch with spring‑latch access; cockpit includes pilot figure and 3D instrument panel

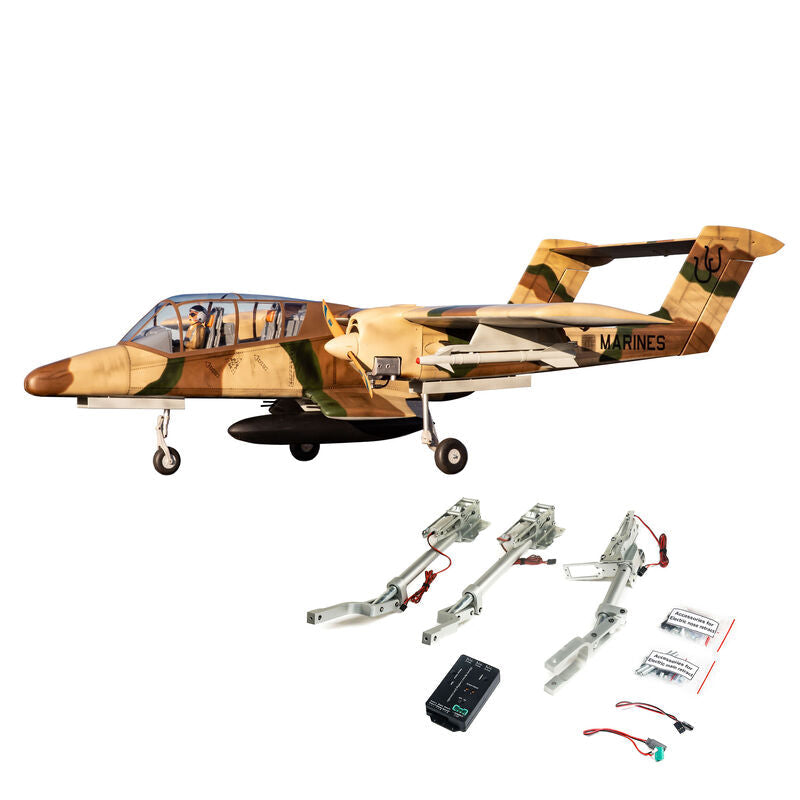

• Combo includes Hangar 9 scale retract set with shock‑absorbing, metal gear struts
• Comprehensive hardware package including decal sheet, spinner, horns and control linkages

What’s in the box

• OV‑10 Bronco 30 cc ARF airframe (108″ wingspan)
• Hangar 9 scale retract set (electric retracts installed)
• Product manual

Needed to complete

• Two 30 cc two‑ or four‑stroke gasoline engines or equivalent electric systems
• Full‑range 12+ channel transmitter and receiver
• Two ignition battery packs (if gasoline) plus one receiver battery
• One standard high‑torque digital metal‑gear servo + nine high‑speed versions
• Two suitable propellers

Specifications

• Wingspan: 2 743 mm (108″)
• Length: 2 870 mm (113″)
• Wing area: 15.75 ft² (~1.017 dm²)
• Wing loading: Approx 42.66 oz/ft² (~130 g/dm²)
• Flying weight: Approx 18.1–19.05 kg (40–42 lb)
• Engine size: 30 cc petrol required (stored mounts for 30–35 cc)
• Power capability: Also compatible with electric systems (120–180 size motors)
• Minimum ESC: 100 A
• Flaps: Yes—operational 4‑panel configuration
• Landing gear: Electric retracts with scale struts (included)
• Material: Laser‑cut wood with satin‑finish printed covering
• Completion level: Almost Ready‑To‑Fly (ARF)
• Minimum radio channels: 12+
• Skill level: Level 3 (Experienced/intermediate pilot)
• Propeller size: 18 × 12E typical (17–20″ range)
• Spinner size: 95 mm (3.75″)
• Centre of gravity (CG): 165 mm (6.5″) behind leading edge of wing
• Assembly time: Approx 20+ hours
• Approximate flight time: ~6 minutes (gas configuration)
