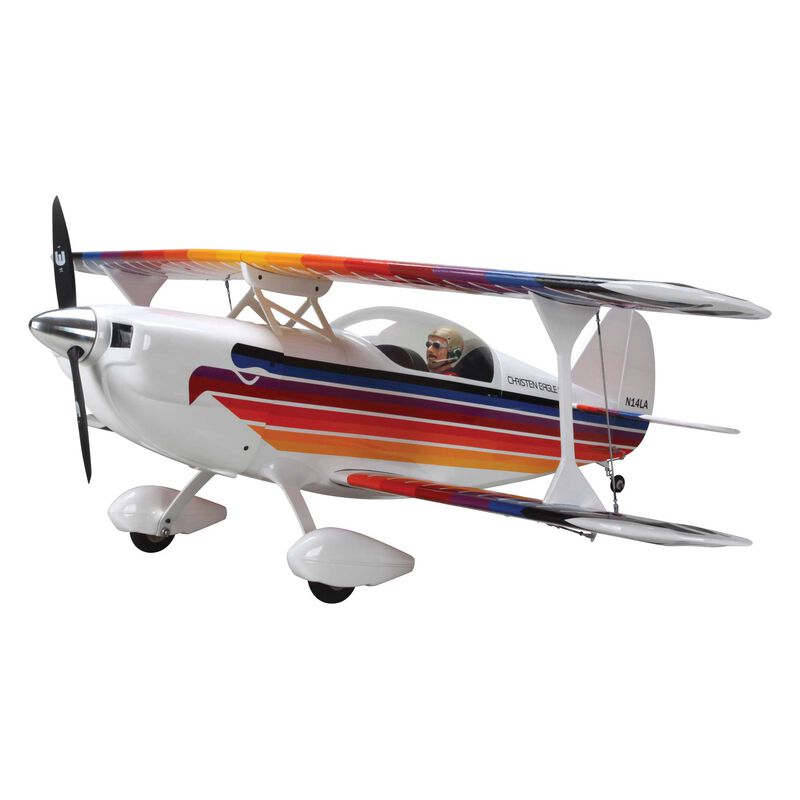

Hangar 9 Christen Eagle II 90 ARF 1.4m

The Hangar 9 Christen Eagle II 90 ARF is a sport-scale aerobatic model inspired by the classic aircraft designed by Frank Christensen. Built from high-quality balsa and lightweight plywood, it delivers strong performance with both glow and brushless electric power options, capable of a wide range of aerobatic manoeuvres. With its detailed scale finish and versatile flight characteristics, it’s well suited to sport pilots stepping up to more advanced aircraft as well as experienced pilots looking for a capable and enjoyable aerobatic model.

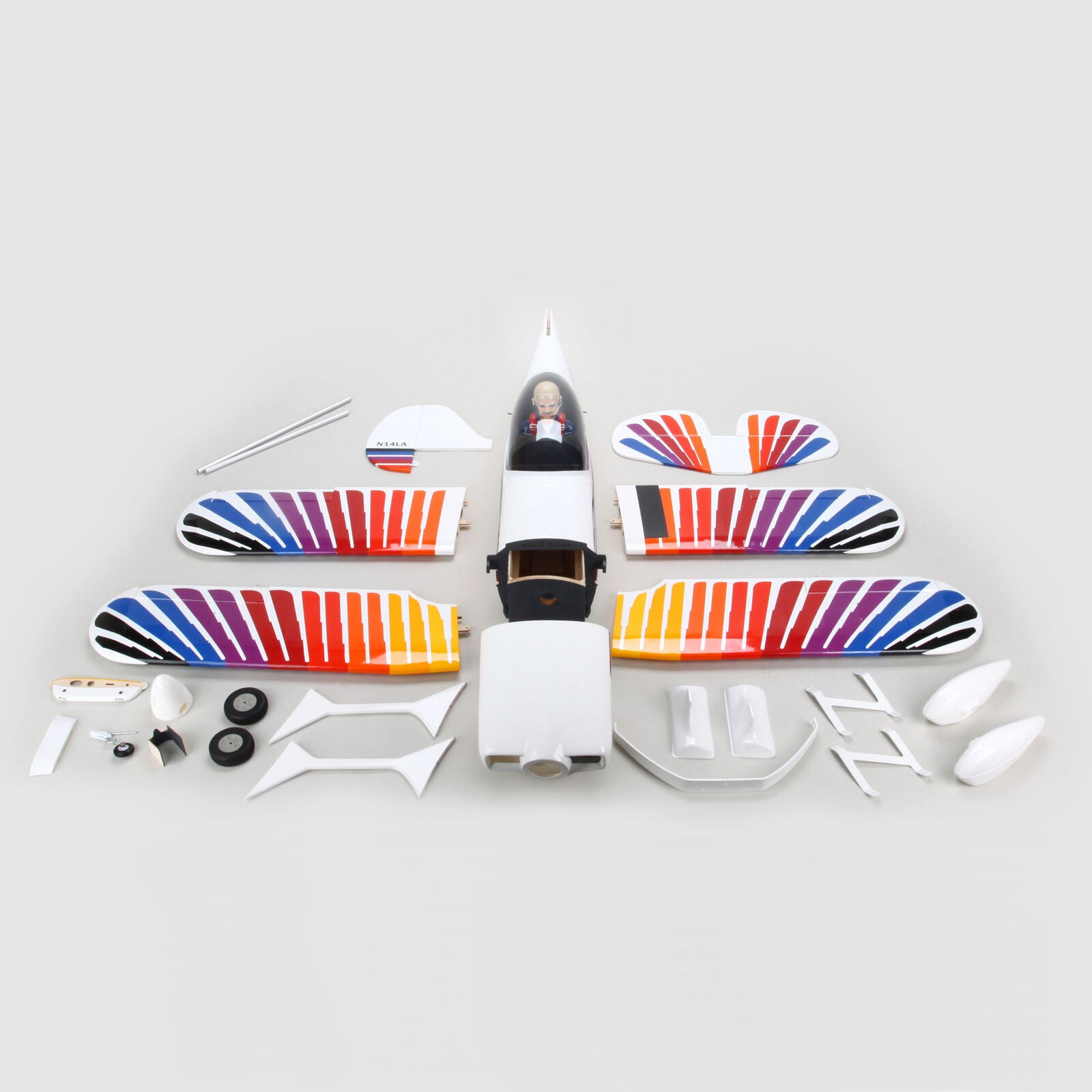

In the Box

Christen Eagle II 90 ARF x 1
Christen Eagle II 90 ARF instruction manual x 1

Needed to Complete

4+ channel transmitter and receiver x 1
Standard high-torque servos x 4

Electric:
60-size brushless power system x 1
6S 22.2 V 5000 mAh LiPo battery x 1
Suitable electric propeller x 1

Glow:
0.75–0.91 2-stroke engine x 1
or
1.15–1.25 4-stroke engine x 1
Standard servo for throttle x 1
Suitable receiver battery x 1
Suitable glow propeller x 1

Tools, adhesives and building supplies
Please see manual for complete assembly guide

More Information

Introduced in 1977, the Christen Eagle II was the brainchild of aerobatic pilot and entrepreneur Frank Christensen. His aim was to offer a refined aerobatic kit aircraft that almost anyone could build. The sporty two-seater proved so successful that a slightly modified single-seat version became the aircraft of choice for one of the most recognised aerobatic demonstration teams of all time — The Eagles aerobatic team, featuring Charlie Hillard, Tom Poberezny and Gene Soucy. The team flew the aircraft from 1979 to 1995, performing for audiences at air shows around the world.

The Hangar 9 Christen Eagle II 90 ARF captures the character of this aircraft. Built from high-quality balsa and lightweight plywood, it is capable of extreme aerobatic performance similar to the full-size version, using either glow or brushless electric power systems. It also features a high level of scale detail that sets it apart from typical sport models.

Suitable for sport pilots moving into more advanced aircraft, as well as experienced aerobatic pilots looking for a capable and enjoyable sport-scale model, the Christen Eagle II 90 offers strong performance and versatility.

Specifications

Approximate assembly time 10–15 hours
Battery Sold Separately
Centre of gravity 127–140 mm (5–5.5 in) behind leading edge of upper wing at centre
Charger Sold Separately
Completion level Almost Ready-To-Fly
Flaps No
LiPo compatibility 6S
Material Wood
Minimum required radio 4+ channel
Power type Glow/Electric
Product length 1290 mm (50.8 in)
Product weight 3850–4500 g (8.5–10.0 lb)
Radio Sold Separately
Receiver Sold Separately
Servos Sold Separately
Skill level Level 4
Speed control Sold Separately
Spinner size 70 mm (2.75 in)
Trim scheme colours White (HANU870), Deep Blue (HANU873), Orange (HANU877), Black (HANU874), Smoke Purple (HANU868), Deep Red (HANU871), Flame Red (HANU883), Dark Yellow (HANU889), Bright Yellow (HANU872)
Wing area 56.7 sq dm (878 sq in)
Wing loading 67.9–79.3 g/sq dm (22.3–26.2 oz/sq ft)
Wingspan 1372 mm (54 in)
