Spektrum

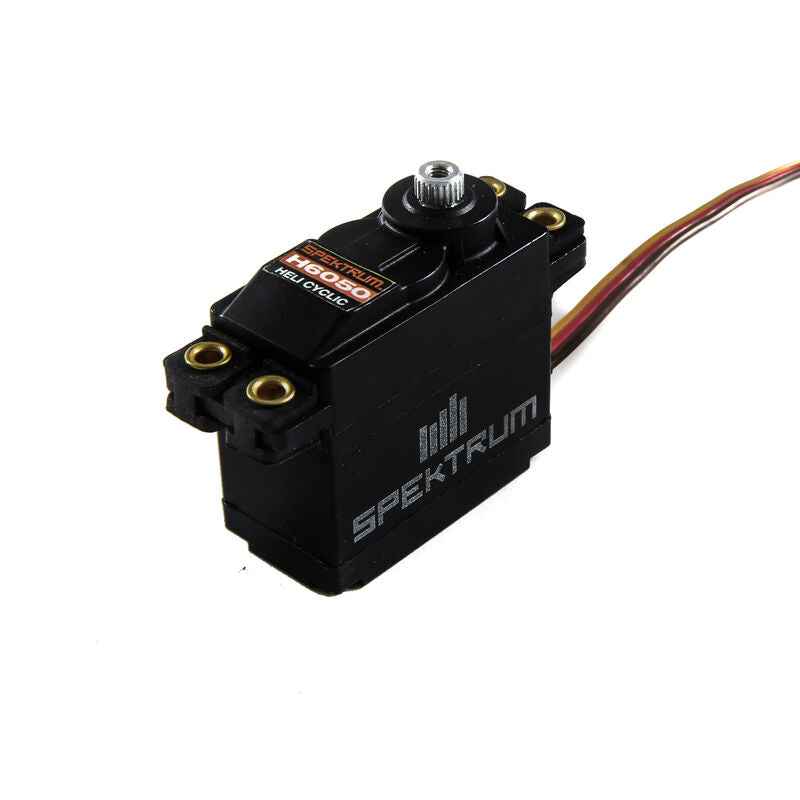

H6050 Digital High Torque Mid Speed Metal Gear Cyclic Servo
H6050 Digital High Torque Mid Speed Metal Gear Cyclic Servo
SKU:SPMSH6050
Share
Spektrum H6050 is a standard-size digital cyclic servo for RC helicopters up to 500 size. It uses a coreless brushed motor, full metal gear train, dual bearings and a 23-tooth output spline, with rated performance of 11.5 kg-cm (160 oz-in) torque and 0.103 sec/60° transit speed at 6.0 V.
Features
Digital helicopter cyclic servo
Coreless brushed motor
Full metal gear train
Dual bearings
23-tooth output spline
Bearing-supported output spline
255 mm (10 in) connector wire
Suitable for helicopter models up to 500 size
Specifications
Size Category: Standard
Application: Helicopter cyclic
Servo Type: Digital
Motor Type: Brushed
Gear Type: Metal
Bearings: Dual
Output Spline: 23T
Operating Voltage: 4.8–6.0 V
Torque: 11.5 kg-cm (160 oz-in) at 6.0 V
Speed: 0.103 sec/60° at 6.0 V
Length: 40.0 mm (1.57 in)
Width: 20.0 mm (0.79 in)
Height: 38.3 mm (1.51 in)
Weight: 62 g (2.2 oz)
Connector Type: Universal
Connector Wire Length: 255 mm (10 in)
Deadband: Less than 1 µs
Rotation Range: 120°
Programmable: No
