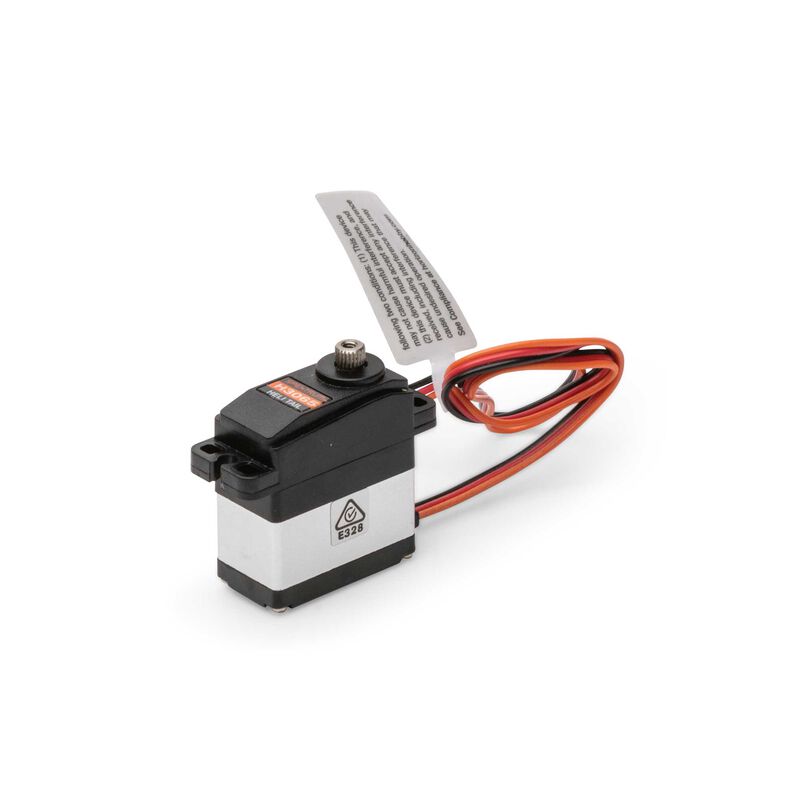

H3065 Digital Mid Torque Ultra Speed Metal Gear Tail Servo
H3065 Digital Mid Torque Ultra Speed Metal Gear Tail Servo
SKU:SPMSH3065
Share
Spektrum H3065 is a sub-micro digital tail servo for 250- to 450-size RC helicopters. It uses a coreless brushed motor, metal gears, a single ball bearing and a 24-tooth output spline, with rated performance of 1.1 kg-cm (15.75 oz-in) torque and 0.029 sec/60° transit speed at 6.0 V.
Features
Digital helicopter tail servo
Sub-micro size
Coreless brushed motor
Metal gears
Single ball bearing
24-tooth output spline
333 Hz operating frequency
Suitable for 250- to 450-size helicopter tail applications
Specifications
Size Category: Mini and Micro
Application: Helicopter tail
Servo Type: Digital
Motor Type: Coreless brushed
Gear Material: Metal
Bearings: Single ball bearing
Output Spline: 24T
Operating Voltage: 4.8–6.0 V
Torque: 0.9 kg-cm (12 oz-in) at 4.8 V
Torque: 1.1 kg-cm (15.75 oz-in) at 6.0 V
Speed: 0.036 sec/60° at 4.8 V
Speed: 0.029 sec/60° at 6.0 V
Frequency: 333 Hz
Length: 23 mm (0.91 in)
Width: 12 mm (0.47 in)
Height: 29.6 mm (1.17 in)
Weight: 12.9 g (0.46 oz)
Connector Type: Universal
