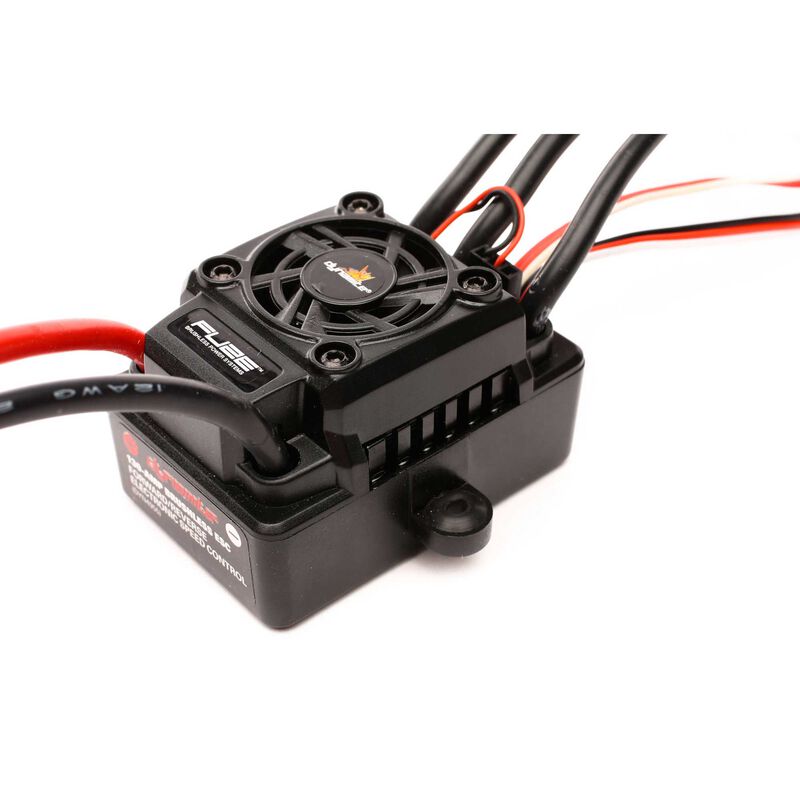

Fuze 130A Sensorless Brushless Waterproof ESC 4WD SCT 1/8

The Dynamite Fuze 130 A Sensorless Waterproof Brushless ESC (model DYN4955) delivers high-performance, programmable control for 1/8-scale 4WD SCT vehicles. Engineered for all-weather racing, it brings robust power handling, flexible programming, and reliable safety features in a compact, durable package.

Features

• 130 A continuous current with up to 760 A peak output for bursts
• Waterproof design—ideal for wet or muddy bashing conditions
• Forward, brake, and reverse modes with optional time-delay braking
• Integrated 6 V switch-mode BEC (5 A) powers servos and receiver
• Programmable via transmitter or optional program card—no computer needed
• Low resistance (.0004 Ω), EC3 battery connector, and silver-plated motor leads ensure efficiency

What’s Included

• Dynamite Fuze 130 A Waterproof ESC (model DYN4955)

Needed to Complete

• Sensorless-compatible brushless motor
• NiMH (6–12 cells) or LiPo (2–4 S) battery pack

Specifications

• Continuous Current: 130 A
• Peak Current: 760 A
• Input Voltage:
  • NiMH/NiCd: 6–12 cells
  • LiPo/LiFe: 2–4 S
• BEC Output: 6 V / 5 A switch-mode
• Connectors:
  • Battery: Ec3
  • Motor: Silver-plated leads
• Resistance: 0.0004 Ω
• Dimensions: ~53.5 × 36 × 36 mm
• Weight: ~79 g
• PWM Frequency: 8 kHz
