Spektrum
Firma 85A Brushless Smart ESC 2S-3S
Firma 85A Brushless Smart ESC 2S-3S
SKU:SPMXSE1085
Share

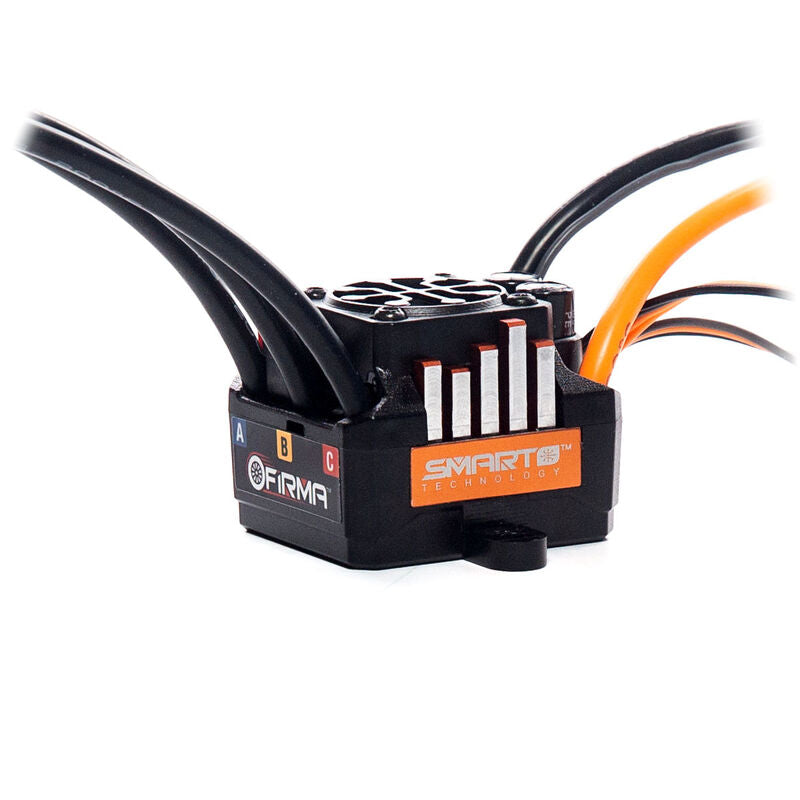

Spektrum Firma 85A Brushless Smart ESC 2S-3S is a brushless electronic speed control for surface RC vehicles. It is suited to 2WD and 4WD 1/10 scale surface applications running 2S to 3S LiPo setups, with Spektrum Smart one-wire telemetry, an IC3 battery connector, 4 mm bullet motor connectors, a selectable 6 V or 7.4 V BEC and an IP67-rated waterproof case.
Included
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product manual
Features
Smart all-in-one telemetry with compatible Spektrum Smart equipment
32-bit ARM M4 processor for high-resolution signal input and motor output
IP67-rated waterproof design
Button, programming box and SmartLink app programming options
Over-current, automatic LiPo low-voltage cutoff, thermal and failsafe protection
Selectable 6 V or 7.4 V BEC output at 4 A
Compact plastic case with mounting tabs
Aluminium heat sink and cooling fan
IC3 battery connector with EC3 basic-operation compatibility
Firmware updatable through the Smart ESC programming box
Ready to install with no soldering required
Specifications
Application: Surface
ESC type: Brushless
Motor type: Sensorless brushless
Input voltage: 2S to 3S LiPo, 5 to 9-cell NiMH
Maximum input voltage: 11.1 V
Continuous current: 85 A
Maximum burst current: 550 A
BEC: Yes
BEC type: Switch mode
BEC voltage: 6 V or 7.4 V selectable
BEC continuous current: 4 A
BEC maximum burst current: 8 A
Battery input lead: IC3
Battery input lead length: 130 mm (5.12 in)
Wire gauge: 12 AWG
Output connector: 4 mm bullet
Forward: Yes
Reverse: Yes
Brakes: Yes
Time delay brake: Yes
Programmable: Yes
Programming options: Button, programming box, SmartLink app, on-screen text generation
Auto cutoff: Yes
Low-voltage cutoff programmable: No
Overload protection: Yes
Sensored: No
Technology: Smart
Telemetry: SRXL2 compatible Spektrum Smart technology
Waterproof rating: IP67
Length: 43.3 mm (1.70 in)
Width: 39.0 mm (1.54 in)
Width with tabs: 54.6 mm (2.15 in)
Height: 33.9 mm (1.33 in)
Weight: 116 g (4.1 oz)
