Spektrum
Firma 70120 560Kv Brushless Motor 8mm
Firma 70120 560Kv Brushless Motor 8mm
SKU:SPMXSM5600
Share

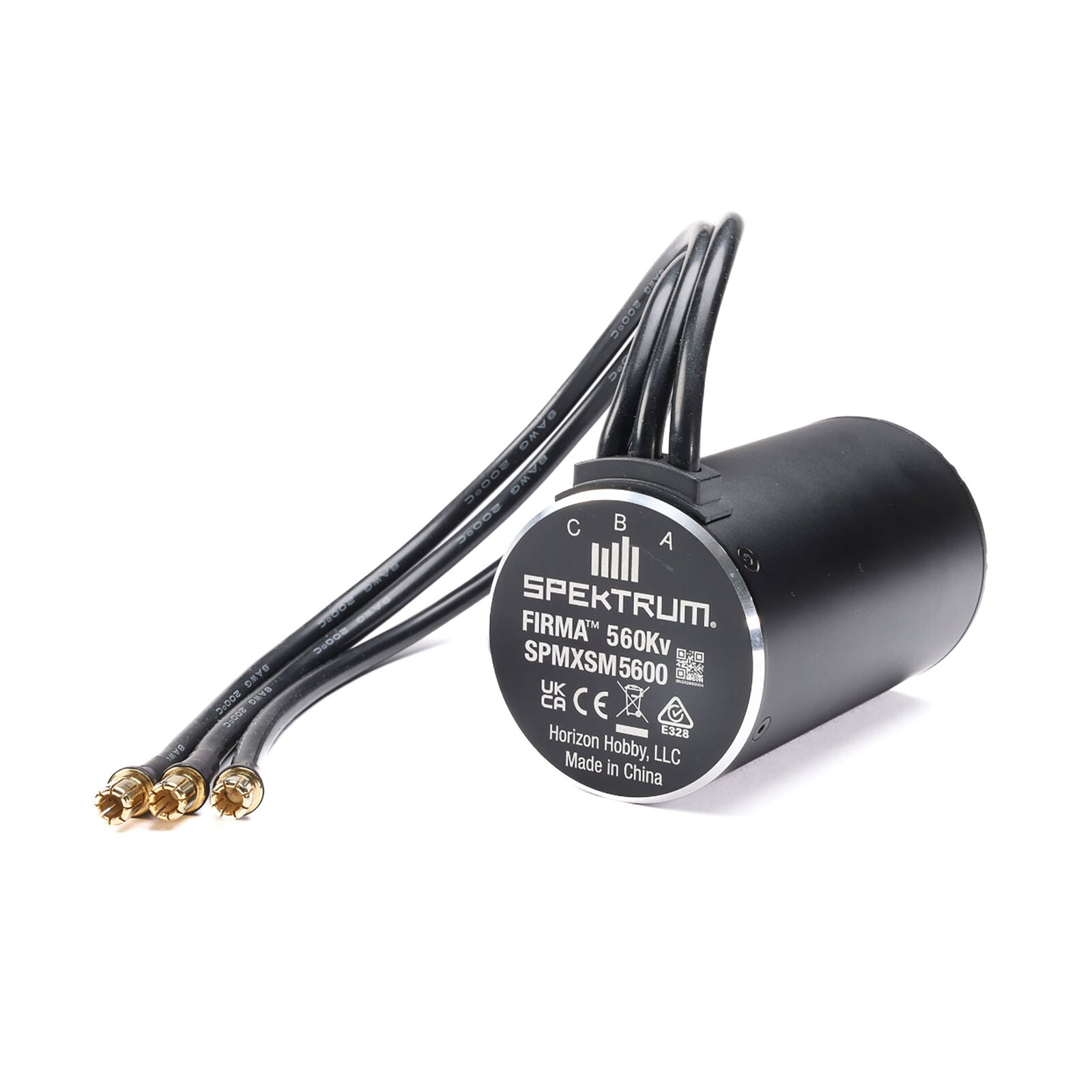

Spektrum Firma 70120 560Kv Brushless Motor 8 mm is a brushless motor for 1/5 scale off-road RC vehicles, including the Losi 5IVE-TE 3.0 1/5 Electric 4WD Desert Truck RTR. It uses a 70120 motor size, 560Kv rating, 4-pole rotor design, CNC-machined aluminium housing, insulated high-purity copper windings, precision bearings, an alloy steel output shaft and 8 mm bullet connectors.
Included
(1) Firma 70120 560Kv Brushless Motor, Smooth Can: 8 mm
Features
Brushless motor for 1/5 scale off-road vehicle applications
Suitable for the Losi 5IVE-TE 3.0 1/5 Electric 4WD Desert Truck RTR
Smooth can motor design
Low-cog 4-pole rotor design
CNC-machined aluminium housing
Insulated high-purity copper windings
Alloy steel output shaft
Precision bearings for smooth rotation
8 mm bullet connectors
Compatible with optional Spektrum motor heatsink
Specifications
Application: 1/5 scale off-road vehicle
Motor type: Brushless
Motor size: 70120
Kv rating: 560Kv
Number of poles: 4
Voltage: 48 V
Maximum continuous current: 250 A
Connector type: 8 mm bullet
Outer diameter: 66 mm (2.61 in)
Length: 120 mm (4.72 in)
Shaft diameter: 8 mm (0.314 in)
Shaft length: 30 mm (1.18 in)
Weight: 2245 g (4.95 lb)
