Spektrum

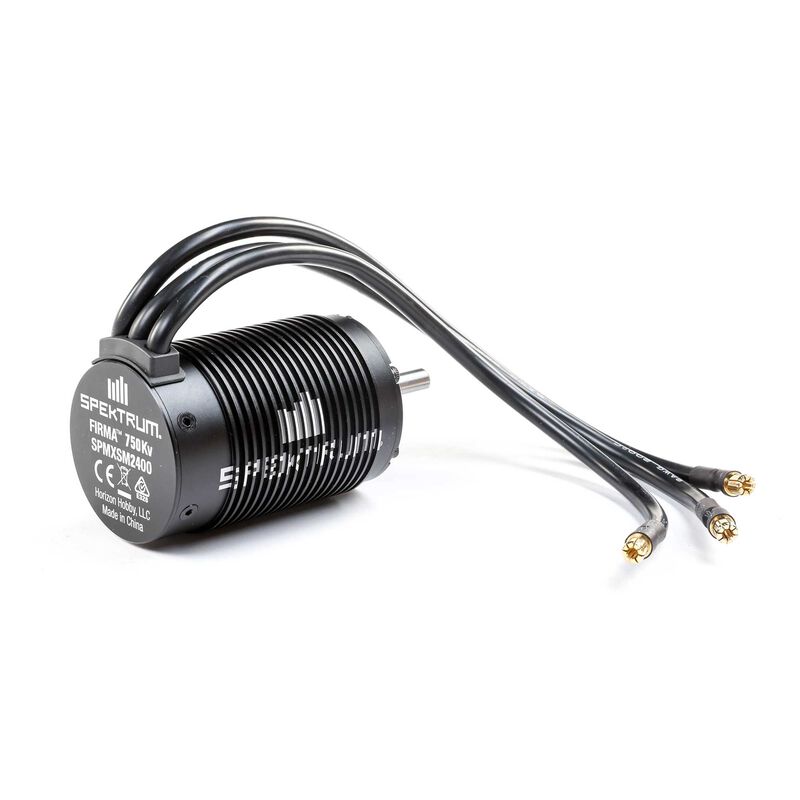

Firma 5687-750Kv 4-Pole Brushless Motor
Firma 5687-750Kv 4-Pole Brushless Motor
SKU:SPMXSM2400
Share
Spektrum Firma 5687-750Kv is a sensorless brushless inrunner motor for 1/6 scale buggies, truggies and monster trucks running on 3S to 8S LiPo power. It uses a 5687-size motor format, 4-pole rotor design, 750Kv rating, 8 mm (0.31 in) output shaft and pre-installed 6.5 mm gold-plated bullet connectors.
Included
(1) Firma 5687-750Kv 4-Pole Brushless Motor
Features
Sensorless brushless motor for 1/6 scale buggies, truggies and monster trucks
Compatible with 3S to 8S LiPo power
5687-size inrunner motor design
4-pole rotor design
750Kv rating
High-efficiency design
Precision bearing-supported construction
8 mm (0.31 in) output shaft
Pre-installed 6.5 mm gold-plated bullet connectors
Matched for use with the Spektrum Firma 150 Smart ESC
Specifications
Application: 1/6 scale buggies, truggies and monster trucks
Motor type: Sensorless brushless
Motor design: Inrunner
Motor size: 5687
Kv rating: 750Kv
Input voltage: 3S to 8S LiPo
Maximum continuous current: 80 A
Number of poles: 4
Connector type: 6.5 mm bullet
Recommended speed control: Spektrum Firma 150 Smart ESC
Efficiency: 87%
Output: 3950 W
Outer diameter: 56 mm (2.2 in)
Length: 87 mm (3.43 in)
Weight: 947 g (2.08 lb)
Shaft diameter: 8 mm (0.31 in)
