Spektrum
Firma 40A Brushed Smart 2-in-1 ESC and Receiver
Firma 40A Brushed Smart 2-in-1 ESC and Receiver
SKU:SPMXSE1040RX
Share

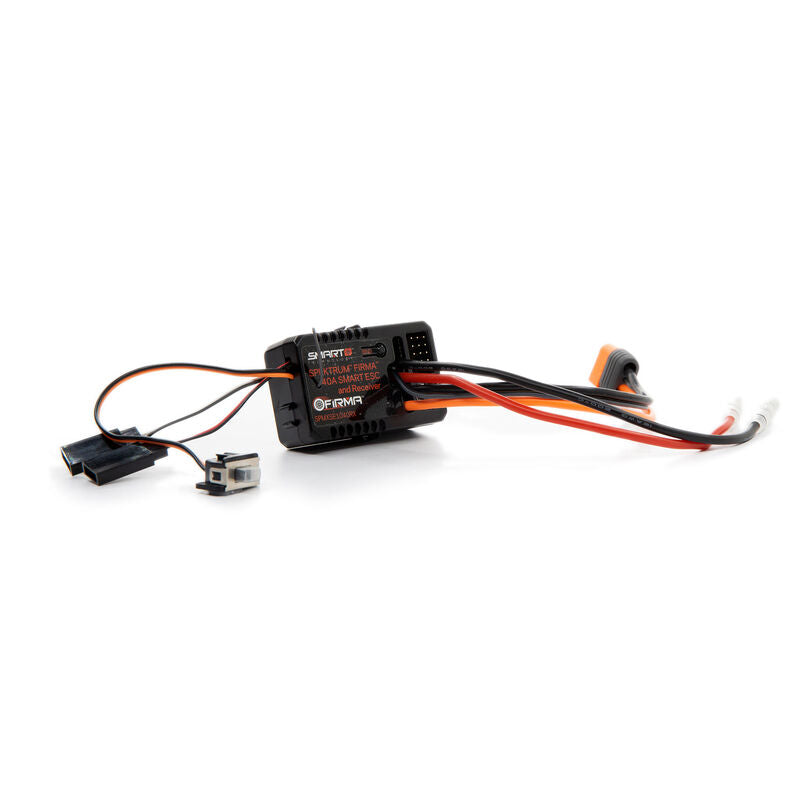

Spektrum Firma 40A Brushed Smart 2-in-1 ESC and Receiver is a combined brushed ESC and 4-channel DSMR/DSM2 receiver for crawler and scaler models. It has built-in Smart telemetry, a waterproof and dustproof design, IC3 battery input connector, 3.5 mm bullet motor connectors and 6 V/3 A servo output shared with auxiliary light connectors.
Included
(1) Firma 40A Brushed Smart 2-in-1 ESC and Receiver
Features
Combined brushed ESC and 4-channel receiver
Compatible with Spektrum DSMR and DSM2 surface transmitters
Built-in Smart telemetry for compatible Spektrum transmitters
Telemetry data includes battery voltage, current, ESC temperature and Smart battery data
Waterproof and dustproof design
Programmable using optional programming card
Three servo ports for steering, Aux 1 and Aux 2
Integrated throttle connection
IC3 battery input connector, compatible with EC3 battery connectors
3.5 mm bullet motor connectors
Specifications
ESC type: Brushed
Receiver type: DSMR/DSM2
Channels: 4
Maximum continuous current: 40 A
Maximum burst current: 180 A
Voltage range: 2S to 3S LiPo, 5 to 9 cell NiMH
Battery connector: IC3, EC3 compatible
Motor connector: 3.5 mm bullet
Servo output voltage: 6 V
Servo output current: 3 A
Telemetry: Battery voltage, current, ESC temperature, Smart battery data
Compatible motors: Brushed, down to 12T below 8.4 V and down to 30T below 12.6 V
Antenna length: 31 mm (1.22 in)
Length: 54 mm (2.13 in)
Width: 33.5 mm (1.32 in)
Height: 20.5 mm (0.81 in)
Weight: 68 g (2.4 oz)
