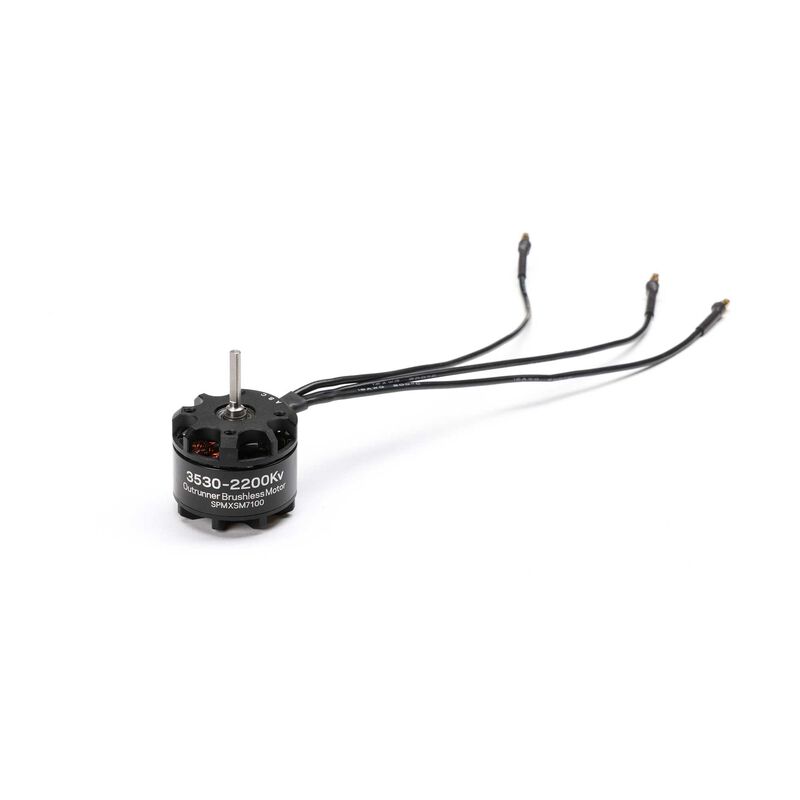

Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor 3.175mm
Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor 3.175mm
SKU:SPMXSM7100
Share
Spektrum Firma 3530-2200Kv is a sensorless brushless outrunner motor developed for 1/10 scale RC crawlers and scalers. It uses a 12-pole rotor design, 2200Kv rating, 3.175 mm (1/8 in) output shaft and pre-installed 3.5 mm bullet connectors, with 2S and 3S LiPo compatibility.
Included
(1) Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor, 3.175 mm
Features
Sensorless brushless outrunner motor for 1/10 scale crawlers and scalers
Compatible with 2S and 3S LiPo power systems
12-pole rotor design
CNC-machined aluminium housing
Insulated high-purity copper windings
Alloy steel 3.175 mm (1/8 in) output shaft
Pre-installed 3.5 mm gold-plated bullet connectors
Specifications
Motor type: Brushless outrunner
Kv rating: 2200Kv
LiPo compatibility: 2S, 3S
Voltage: 7.4 V to 11.1 V
Number of poles: 12
Connector type: 3.5 mm bullet
Connector wire length: 205 mm (8.07 in)
Outer diameter: 35 mm (1.37 in)
Length: 30 mm (1.18 in)
Weight: 100 g (3.53 oz)
Shaft diameter: 3.175 mm (1/8 in)
Shaft length: 18 mm (0.7 in)
