Spektrum

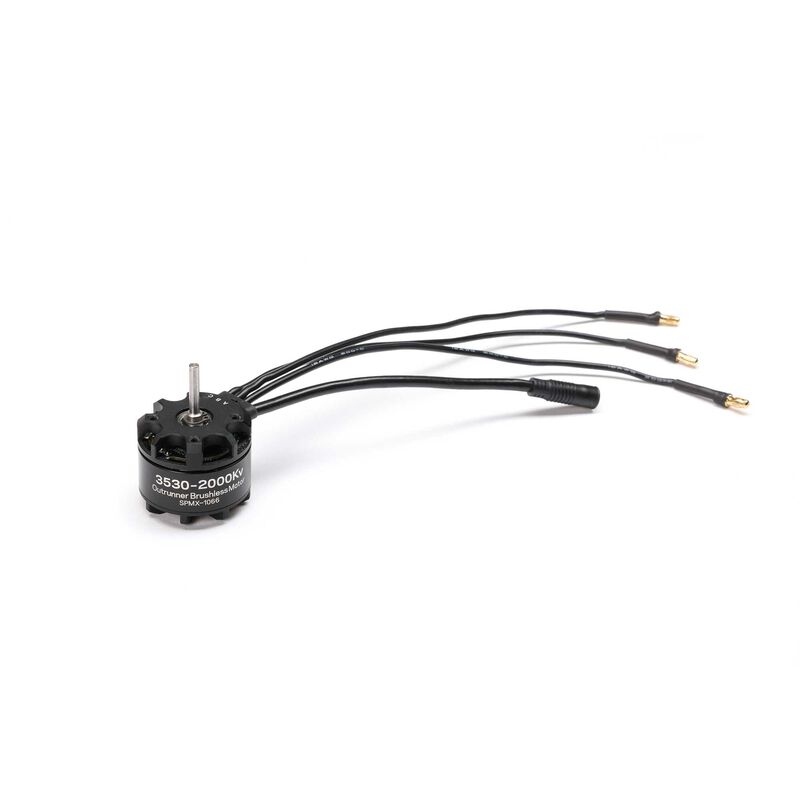

Firma 3530-2000Kv 14-Pole Sensored Outrunner Motor 3.175mm
Firma 3530-2000Kv 14-Pole Sensored Outrunner Motor 3.175mm
SKU:SPMX-1066
Share
Spektrum Firma 3530 2000Kv 14-Pole Sensored Outrunner Brushless Motor 3.175 mm is a sensored brushless outrunner motor for 1/10 scale crawlers and scalers running 2S to 3S LiPo power. It uses a 14-pole rotor design, CNC-machined aluminium housing, insulated high-purity copper windings, a 3.175 mm (1/8 in) output shaft and pre-installed 3.5 mm gold-plated bullet connectors.
Included
(1) Firma 3530 2000Kv 14-Pole Sensored Outrunner Brushless Motor
Features
Developed for 1/10 scale crawlers and scalers
2S to 3S LiPo compatible
Sensored brushless outrunner design
14-pole rotor design
CNC-machined aluminium housing
Insulated high-purity copper windings
Alloy steel 3.175 mm (1/8 in) output shaft
Pre-installed 3.5 mm gold-plated bullet connectors
Designed to pair with a compatible Spektrum Firma sensored crawler ESC
Specifications
Application: 1/10 scale crawlers and scalers
Motor type: Sensored brushless outrunner
Input voltage: 7.4 V to 11.1 V
LiPo compatibility: 2S to 3S
Kv rating: 2000Kv
Number of poles: 14
Connector type: 3.5 mm bullet
Connector wire length: 205 mm (8.07 in)
Outer diameter: 35 mm (1.37 in)
Length: 30 mm (1.18 in)
Shaft diameter: 3.175 mm (1/8 in)
Shaft length: 18 mm (0.72 in)
Weight: 95 g (3.35 oz)
