Spektrum

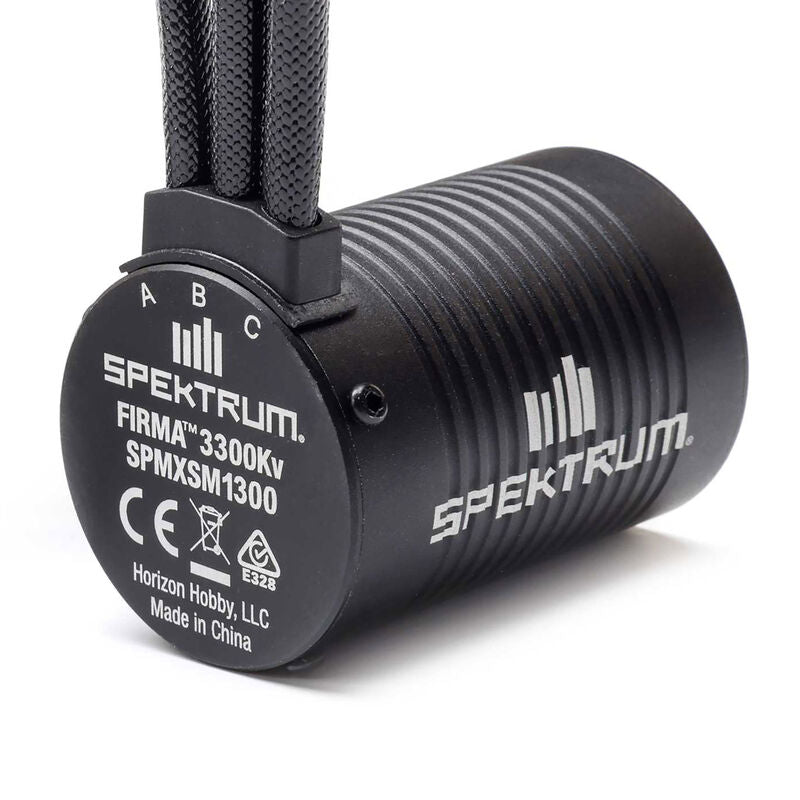

Firma 3300Kv Brushless Motor
Firma 3300Kv Brushless Motor
SKU:SPMXSM1300
Share
Spektrum Firma 3652-3300Kv is a sensorless brushless motor for 1/10 scale 4WD, 2WD and on-road models running on 2S to 3S LiPo power. It uses a 3652-size inrunner motor format, low-cog 4-pole 8-magnet rotor design, CNC-machined aluminium housing, insulated high-purity copper windings, precision bearings, a 3.175 mm (1/8 in) alloy steel output shaft and pre-installed 4 mm gold-plated bullet connectors.
Included
(1) Firma 3300Kv Brushless Motor
Features
Sensorless brushless motor for 1/10 scale 4WD, 2WD and on-road models
Compatible with 2S to 3S LiPo power
3652-size inrunner motor format
Low-cog 4-pole 8-magnet rotor design
CNC-machined aluminium housing
Insulated high-purity copper windings
Alloy steel 3.175 mm (1/8 in) output shaft
Precision ball bearings
Pre-installed 4 mm gold-plated bullet connectors
Recommended for use with the Spektrum Firma 85A Smart ESC
Specifications
Application: 1/10 scale 4WD, 2WD and on-road models
Motor type: Sensorless brushless
Motor design: Inrunner
Motor size: 3652
Kv rating: 3300Kv
Input voltage: 2S to 3S LiPo, 4 to 9 cell NiMH
Maximum continuous current: 33 A
Output: 430 W on 2S, 780 W on 3S
Efficiency: 82%
Number of poles: 4
Connector type: 4 mm male bullet
Recommended speed control: Spektrum Firma 85A Smart ESC
Bearing type: Bearing
Outer diameter: 36 mm (1.42 in)
Length: 52 mm (2.05 in)
Weight: 200 g (7.05 oz)
Shaft diameter: 3.175 mm (1/8 in)
Shaft length: 15 mm ± 0.5 mm (0.59 in ± 0.02 in)
Motor cable length: 120 mm ± 10 mm (4.72 in ± 0.39 in)
