Spektrum

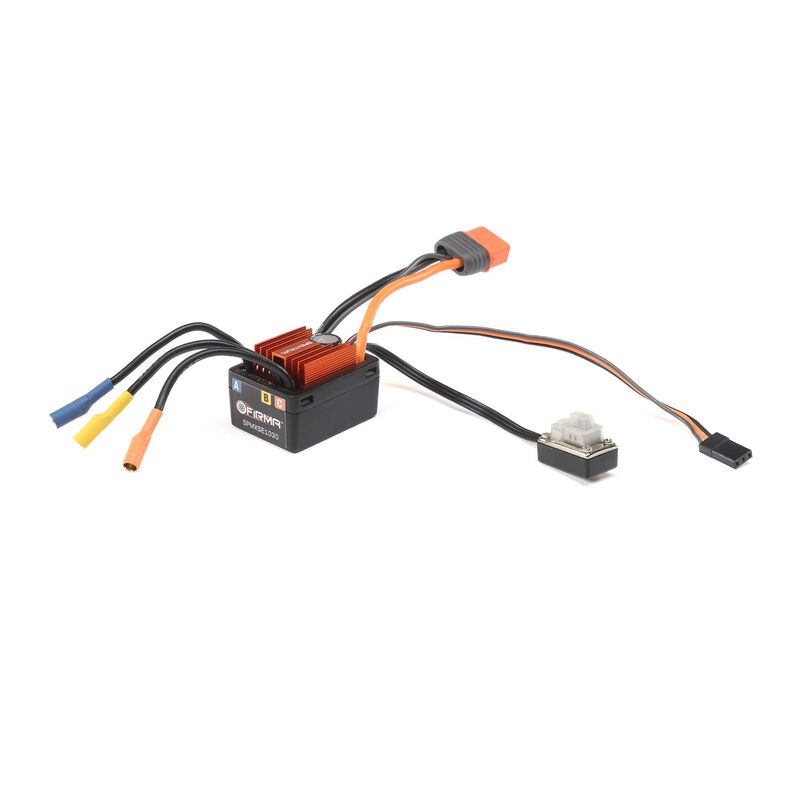

Firma 30A Brushless Smart ESC Minis
Firma 30A Brushless Smart ESC Minis
SKU:SPMXSE1030
Share
Spektrum Firma 30A Brushless Smart ESC Minis is a compact brushless electronic speed control for mini surface RC vehicles, including the Losi Mini-T, Mini-B, Mini Drag and Mini JRX2. It supports 2S to 3S LiPo or LiFe batteries and 5 to 9-cell NiMH or NiCd packs, with Spektrum Smart one-wire telemetry, an IC3 battery connector, 3.5 mm motor bullet connectors, a 32-bit ARM M4 processor and a water-resistant case.
Included
(1) Spektrum Firma 30A Brushless Smart ESC
(1) Product manual
Features
Smart all-in-one telemetry with compatible Spektrum Smart equipment
Designed for Losi Mini-T, Mini-B, Mini Drag and Mini JRX2 models
32-bit ARM M4 processor for high-resolution signal input and motor output
Water-resistant design for wet running conditions when maintained correctly
Button, Smart ESC programming box and SmartLink USB programming options
Over-current, automatic LiPo low-voltage cutoff, thermal and failsafe protection
Compact plastic case with mounting tabs
Aluminium heat sink and cooling fan
Adjustable 6 V or 7.4 V BEC output
IC3 battery connector with EC3 basic-operation compatibility
Ready to install with no soldering required
Specifications
Application: 1/18 and 1/16 on-road, off-road, buggy and monster truck
ESC type: Brushless
Motor type: Brushless
Input voltage: 2S to 3S LiPo or LiFe, 5 to 9-cell NiMH or NiCd
Maximum continuous current: 30 A
Maximum burst current: 100 A
BEC: Yes
BEC type: Linear mode
BEC voltage: 6 V or 7.4 V
BEC continuous current: 3 A
Connector type: IC3
Motor output lead: 3.5 mm female bullet
Recommended motor type: 2436 size or smaller
Forward: Yes
Reverse: Yes
Brakes: Yes
Drive type: Forward/reverse, forward/brake/reverse, forward/brake
Programmable: Yes
Programming options: Button, optional programming box, Text Gen with compatible Spektrum transmitter
Low-voltage cutoff programmable: Yes
Overload protection: Yes
Technology: Smart
Water-resistant: Yes
