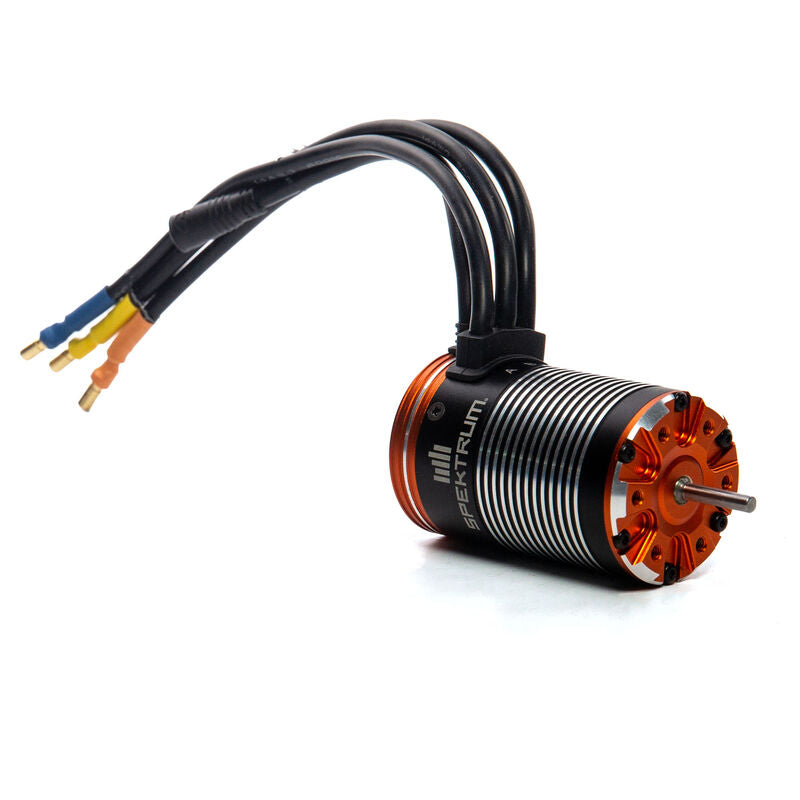

Firma 2800Kv Brushless Sensored Crawler Motor

The Spektrum Firma 2800 Kv Sensored Brushless Crawler Motor is designed for high‑torque crawling applications like rock racing, trailers and trail rigs. Featuring a precision 4‑pole rotor with 8 sintered magnets, FOC sensored control and waterproof wiring—this motor delivers smooth low‑speed power with reliable installation.

Features

• Low‑cog 4‑pole 8‑magnet rotor for smooth, controlled throttle response
• CNC‑machined aluminium housing with insulated high‑purity copper windings
• Hardened 3.175 mm (1/8″) alloy steel shaft and magnetic encoder for phase protection
• Pre‑installed 3.5 mm gold‑plated bullet motor connectors
• Waterproof sensor wire with locking plug and gasket

What’s in the box

• Firma 2800 Kv Sensored Brushless Crawler Motor (SPMXSM3002)
• Instruction manual

Needed to complete

• Spektrum Firma 60 A Sensored Brushless Smart Crawler ESC or equivalent
• 2S or 3S LiPo battery (7.4–11.1 V)
• Full‑range Spektrum-compatible transmitter (with support for crawler mode)

Specifications

• Application: 1/10 scale crawlers, rock racers and trailers using 2S–3S LiPo
• KV rating: 2800 Kv
• Max continuous current: approx. 50 A
• Input voltage: 7.4–11.1 V (2S–3S LiPo)
• Outer diameter: 36 mm (1.42″)
• Length: 58 mm (2.27″)
• Shaft diameter: 3.175 mm (1/8″)
• Connector type: 3.5 mm bullet
• Technology: Sensored FOC brushless motor with magnetic encoder
• Water resistance: Yes
• Reversing support: Yes (requires compatible sensored ESC)
