Spektrum
Firma 250A Brushless Smart ESC 6S-12S Dual IC5
Firma 250A Brushless Smart ESC 6S-12S Dual IC5
SKU:SPMXSE2250
Share

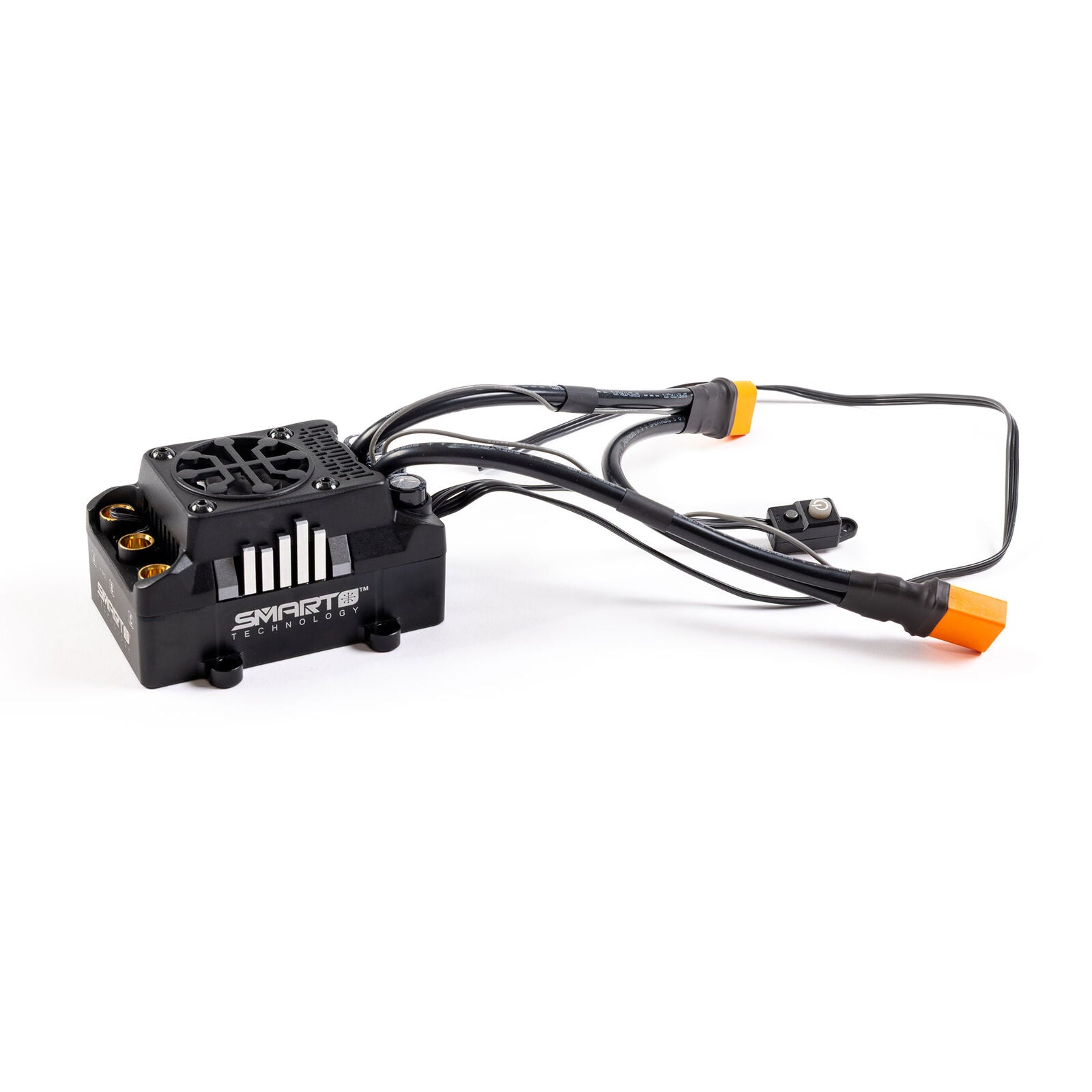

Spektrum Firma 250A Brushless Smart ESC 6S-12S is a sensorless brushless electronic speed control for 1/5 scale surface vehicles using 6S to 12S LiPo power. It uses Spektrum Smart one-wire telemetry, a 32-bit ARM M4 processor, dual IC5 battery connectors, 8 mm female bullet motor connectors, adjustable 6.0 V, 7.4 V or 8.4 V BEC output, an aluminium heat sink, cooling fan and waterproof case.
Included
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product manual
Features
Smart all-in-one telemetry with compatible Spektrum Smart equipment
Designed for 1/5 scale surface vehicles running 6S to 12S LiPo power
32-bit ARM M4 processor for high-resolution signal input and motor output
Waterproof ESC design
Button, Smart ESC programming box and SmartLink USB programming options
Over-current, automatic LiPo low-voltage cutoff, thermal and failsafe protection
Adjustable high-current BEC output at 6.0 V, 7.4 V or 8.4 V
Rugged plastic case with mounting tabs
Aluminium heat sink and installed cooling fan
Dual IC5 battery connectors with EC5 basic-operation compatibility
Firmware updatable through the Smart ESC programming box
Ready to install with no soldering required
Specifications
Application: 1/5 scale surface vehicles
ESC type: Sensorless brushless
Motor type: Sensorless brushless
Input voltage: 6S to 12S LiPo
Continuous current: 250 A
Peak current: 1600 A
BEC: Yes
BEC output: 6.0 V, 7.4 V or 8.4 V adjustable at 8 A
Battery connector: Dual IC5
Motor connector: 8 mm female bullet
Drive modes: Forward with brake, forward/reverse with brake, forward only
Programmable: Yes
Low-voltage cutoff programmable: Yes
Overload protection: Yes
Cooling method: Installed cooling fan
Technology: Smart
Water-resistant: Yes
Dimensions: 94.2 x 59.3 x 50.5 mm (3.71 x 2.33 x 1.99 in)
Weight: 496 g (17.5 oz)
