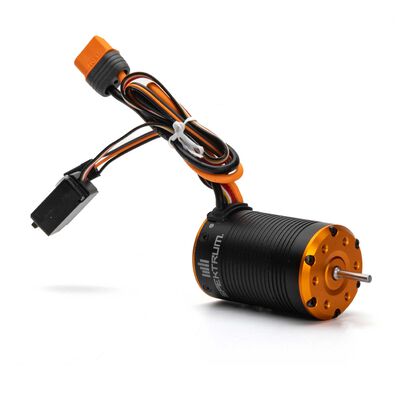

Firma 2-in-1 Brushless Crawler Motor/ESC 2300Kv
Firma 2-in-1 Brushless Crawler Motor/ESC 2300Kv
SKU:SPMXSEM1040B
Share
Spektrum Firma 2-in-1 Brushless Crawler Motor/ESC 2300Kv is a combined sensored brushless motor and 40A ESC system for 1/10 scale crawlers and scalers. It uses Field-Oriented Control, RPM/throttle matching, adjustable drag brake performance, a 550-size integrated layout, IC3 connector and adjustable 6 V or 7.4 V switch-mode BEC output.
Included
(1) Spektrum Firma Brushless Sensored 2-in-1 System 2300Kv
(1) Product Manual
Features
2-in-1 sensored brushless motor and ESC system for 1/10 scale crawlers and scalers
Integrated 40A ESC with 160A burst current
Field-Oriented Control for low-speed throttle precision
RPM/throttle matching enabled
Adjustable drag brake performance
Compatible with 2S to 3S LiPo or 6 to 9 cell NiMH power
Programmable with optional Spektrum ESC Programmer Box
Firmware updatable through Spektrum ESC Programming Box
Adjustable 6 V or 7.4 V BEC output
Water-resistant design
IC3 connector, compatible with EC3 battery connectors
Ready to install with no soldering required
Specifications
Application: 1/10 scale rock crawler
Motor type: Brushless
Motor size: 550-size
Kv rating: 2300Kv
Number of poles: 4
Sensored: Yes
Maximum continuous current: 40 A
Maximum burst current: 160 A
Input voltage: 2S to 3S LiPo, 6 to 9 cell NiMH
BEC: Yes
BEC type: Switch mode
BEC voltage: 6 V or 7.4 V adjustable
BEC continuous current: 4 A
Connector type: IC3
Auto cutoff: Yes
Overload protection: Yes
Forward: Yes
Reverse: Yes
Programmable: Yes
Water-resistant: Yes
Outer diameter: 37 mm (1.46 in)
Length: 58 mm (2.28 in)
Weight: 201 g (7.09 oz)
Shaft diameter: 3 mm (0.125 in)
Shaft length: 16 mm (0.63 in)
