Firma 2-in-1 Brushless Crawler Motor/ESC 1400Kv
Firma 2-in-1 Brushless Crawler Motor/ESC 1400Kv
SKU:SPMXSEM1040A
Share

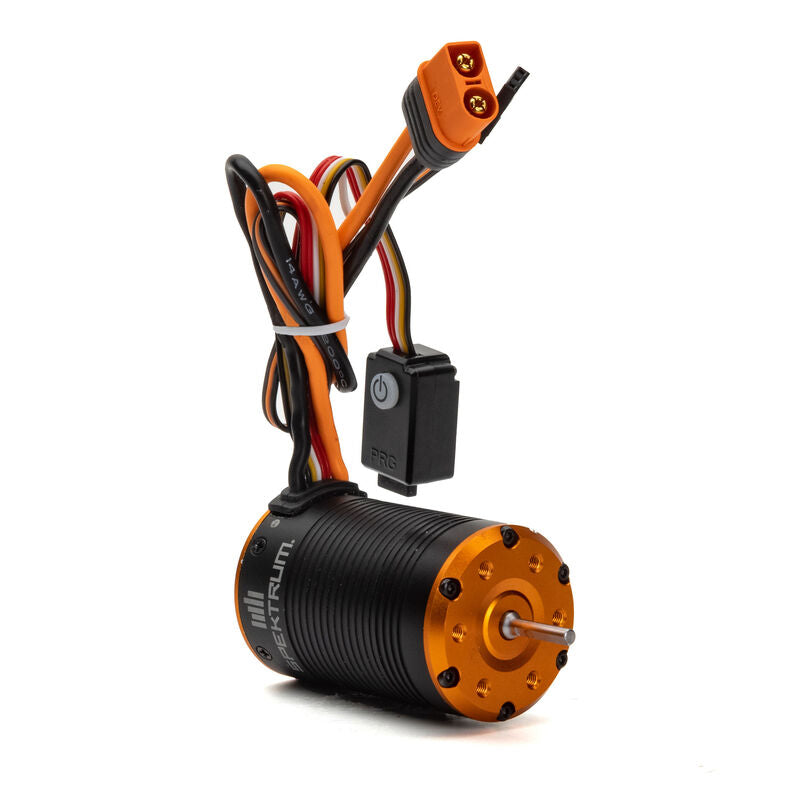

Spektrum Firma 2-in-1 Brushless Crawler Motor/ESC 1400Kv is a combined sensored brushless motor and 40A ESC system for 1/10 scale crawlers and scalers. It uses Field-Oriented Control, drag brake and torque control functions, a 550-size integrated layout, IC3 connector and adjustable 6 V or 7.4 V switch-mode BEC output.
Included
(1) Spektrum Firma Brushless Sensored 2-in-1 System 1400Kv
(1) Product Manual
Features
2-in-1 sensored brushless motor and ESC system for 1/10 scale crawlers and scalers
Integrated 40A ESC with 160A peak current
Field-Oriented Control for crawler drive control
Drag brake and torque control functions
Compatible with 2S to 3S LiPo or 6 to 9 cell NiMH power
Programmable with the Spektrum Smart ESC Programming Update Box
Adjustable 6 V or 7.4 V switch-mode BEC output
IC3 battery connector, compatible with EC3 battery connectors
Specifications
Application: 1/10 scale rock crawler
Motor type: Sensored brushless
Motor size: 550-size
Kv rating: 1400Kv
Number of poles: 4
Maximum continuous current: 40 A
Peak current: 160 A
Input voltage: 2S to 3S LiPo, 6 to 9 cell NiMH
BEC: Yes
BEC type: Switch mode
BEC voltage: 6 V or 7.4 V adjustable
BEC continuous current: 4 A
Connector type: IC3
Programmable: Yes
Outer diameter: 37 mm (1.46 in)
Length: 58 mm (2.28 in)
Weight: 201 g (7.09 oz)
Shaft diameter: 3.175 mm (1/8 in)
Shaft length: 16 mm (0.63 in)
