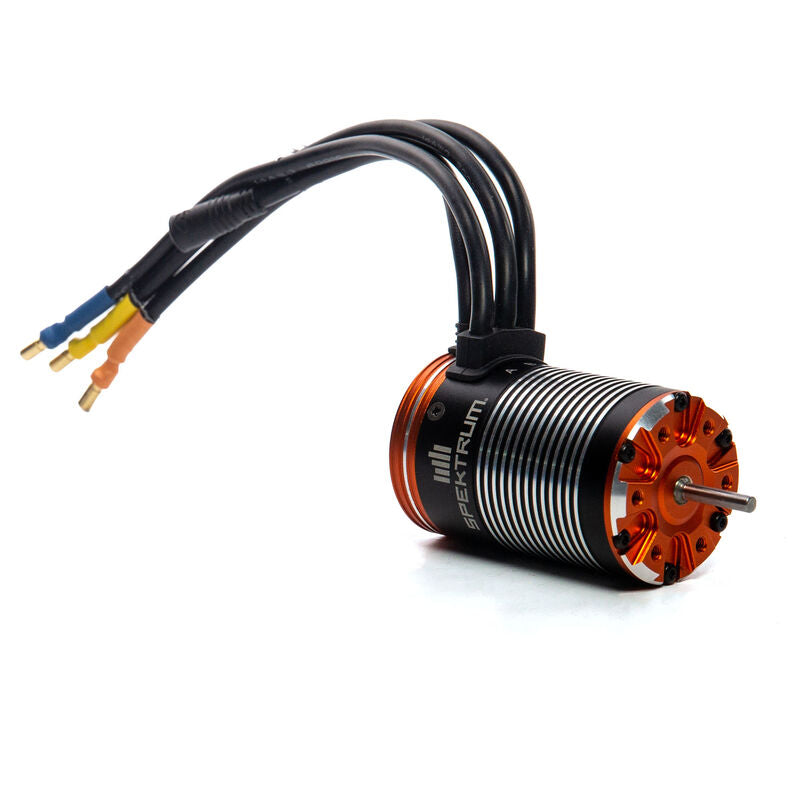

Firma 1400Kv Brushless Sensored Crawler Motor

The Spektrum Firma 1400 Kv Sensored Brushless Motor is purpose-built for 1/10 scale rock crawlers, scalers, and trailers. Featuring a precision 4‑pole 8‑magnet rotor, CNC-machined aluminium housing, FOC sensored control, and a 1/8″ hardened steel shaft, it's designed for smooth torque, scale control, and maximum traction.

Features

• Designed for extreme slow-speed, high-torque applications with advanced drag brake control
• CNC-machined aluminium can with insulated high-purity copper windings
• Butterfly 1/8″ (3 mm) hardened alloy steel shaft with polarity protection via magnetic encoder
• 3.5 mm gold-plated bullet motor connectors pre-installed
• Fully waterproof design suited for wet and dusty environments

What’s in the box

• Firma 1400 Kv sensored brushless crawler motor
• Product instruction manual

Needed to complete

• Spektrum Firma 60 A Sensored Brushless Smart ESC (SPMXSE1060) or compatible sensored ESC
• 2S or 3S LiPo battery with EC3 or IC3 connector
• Full-range Spektrum surface transmitter or compatible multi-protocol radio

Specifications

• Applications: 1/10 scale rock crawler, scaler, trailer
• KV rating: 1400 Kv
• Poles: 4 (8-magnet rotor)
• Maximum continuous current: approx. 25 A
• Input voltage: 2–3S LiPo (7.4–11.1 V)
• Connector type: 3.5 mm bullet
• Shaft diameter: 3 mm (1/8″)
• Outer diameter: 36 mm (1.42 in)
• Length: 58 mm (2.27 in)
• Weight: approx. 201 g (including wiring)
• Technology: Sensored FOC brushless motor with magnetic encoder
• Water resistance: Yes
• Reverse combatible ESC required
