Firma 130A Brushless Smart ESC/2250Kv Sensored Motor Combo
Firma 130A Brushless Smart ESC/2250Kv Sensored Motor Combo
SKU:SPMXSEMC21
Share

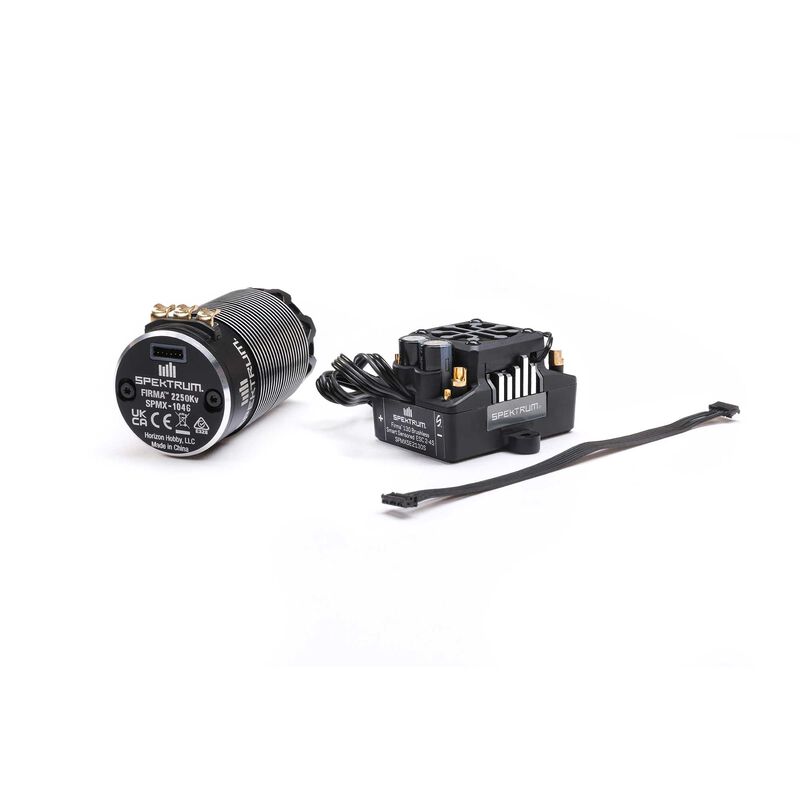

Spektrum Firma 130A Brushless Smart ESC and 2250Kv Sensored Motor Combo is a brushless power system for 1/8 scale truggies, including the 1/8 8IGHT-XT/XTE platform. The combo includes a Firma 130A Black Edition sensored brushless Smart ESC and a Firma 4274 2250Kv 4-pole sensored brushless motor with a 5 mm (0.19 in) output shaft, for use with 3S to 4S LiPo power.
Included
(1) Firma 130A Black Edition Sensored Brushless Smart ESC
(1) Firma 4274 2250Kv 4-Pole Sensored Brushless Motor
(1) Product Manual
Features
Sensored brushless ESC and motor combo for 1/8 scale truggies
Designed for the 1/8 8IGHT-XT/XTE and similar platforms
Compatible with 3S to 4S LiPo power
130A Black Edition sensored brushless Smart ESC
4274-size 2250Kv 4-pole sensored brushless motor
High-precision magnetic encoder and rotor position sensor
Smart all-in-one telemetry for compatible Spektrum systems
Fast 32-bit ARM M4 processor
Button, Smart ESC Programming Box and SmartLink USB programming options
Over-current, automatic LiPo low-voltage cutoff, thermal and failsafe protection
Adjustable 6 V or 7.4 V BEC output
Cooling fan and aluminium heat sink
Specifications
Application: 1/8 scale truggies
ESC type: Sensored brushless
Motor type: Sensored brushless
Technology: Smart
Maximum continuous current: 130 A
Maximum burst current: 760 A
Input voltage: 3S to 4S LiPo
BEC: Yes
BEC type: Adjustable
BEC voltage: 6 V or 7.4 V
BEC continuous current: 5 A
Battery connector: IC5
Motor output lead: Solder tabs
Motor size: 4274
Kv rating: 2250Kv
Number of poles: 4
Sensored: Yes
Bearing type: Bearing
Forward: Yes
Reverse: Yes
Brakes: Yes
Programmable: Yes
Motor outer diameter: 41 mm (1.6 in)
Motor length: 74 mm (2.9 in)
Motor weight: 360 g (12.7 oz)
Shaft diameter: 5 mm (0.19 in)
Shaft length: 19 mm (0.73 in)
