Spektrum
Firma 120A Sensored Brushless Smart Crawler ESC 2S-4S IC5
Firma 120A Sensored Brushless Smart Crawler ESC 2S-4S IC5
SKU:SPMXSE1080
Share

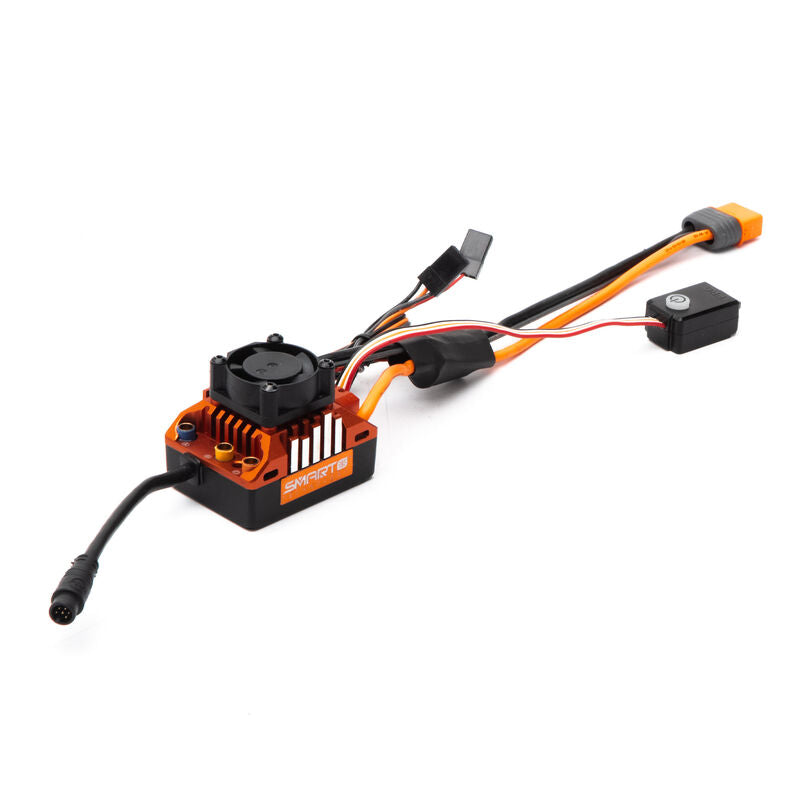

Spektrum Firma 120A Sensored Brushless Smart Crawler ESC 2S-4S is a sensored brushless electronic speed control for 1/6 scale crawlers and scalers, including the Axial SCX6 platform. It supports 2S to 4S LiPo power and uses Spektrum Smart telemetry, field-oriented control, adjustable drag brake performance, an IC5 battery connector and a waterproof case.
Included
(1) Spektrum Firma 120A Sensored Brushless Crawler ESC
(1) Product manual
(1) Sticker sheet and mounting tape
(1) Optional ESC fan
Features
Smart all-in-one telemetry with compatible Spektrum Smart equipment
Sensored brushless control for low-speed crawling
Field-oriented control with RPM and throttle matching
Adjustable drag brake performance
120 A power rating for large and heavy crawlers
2S to 4S LiPo compatible
32-bit ARM M4 processor
Waterproof ESC design
Waterproof sensor wire with locking plug and gasket
Multiple programming options through programming box, SmartLink app or on-screen text generation
Over-current, automatic LiPo low-voltage cutoff, thermal and failsafe protection
Adjustable 6 V or 7.4 V BEC output
Aluminium heat sink and optional cooling fan
IC5 connector with EC5 basic-operation compatibility
Ready to install with no soldering required
Specifications
Application: Crawling, surface
ESC type: Sensored brushless
Input voltage: 2S to 4S LiPo
Maximum input voltage: 14.8 V
Maximum continuous current: 120 A
Maximum burst current: 360 A
BEC: Yes
BEC type: Switchable
BEC voltage: 6 V or 7.4 V
BEC continuous current: 3 A
Connector type: IC5
Motor output lead: 3.5 mm
Output connector: 3.5 mm bullet
Forward: Yes
Reverse: Yes
Brakes: Adjustable drag brake force
Programmable: Yes
Programming options: Programming box, SmartLink app, on-screen text generation
Low-voltage cutoff programmable: Yes
Overload protection: Yes
Technology: Smart
Water-resistant: Yes
Length: 48 mm (1.9 in)
Width: 36 mm (1.4 in)
Height: 24 mm (0.96 in)
Weight: 82 g (2.89 oz)
