Spektrum
Firma 1100Kv 4-Pole Brushless Motor
Firma 1100Kv 4-Pole Brushless Motor
SKU:SPMXSM2500
Share

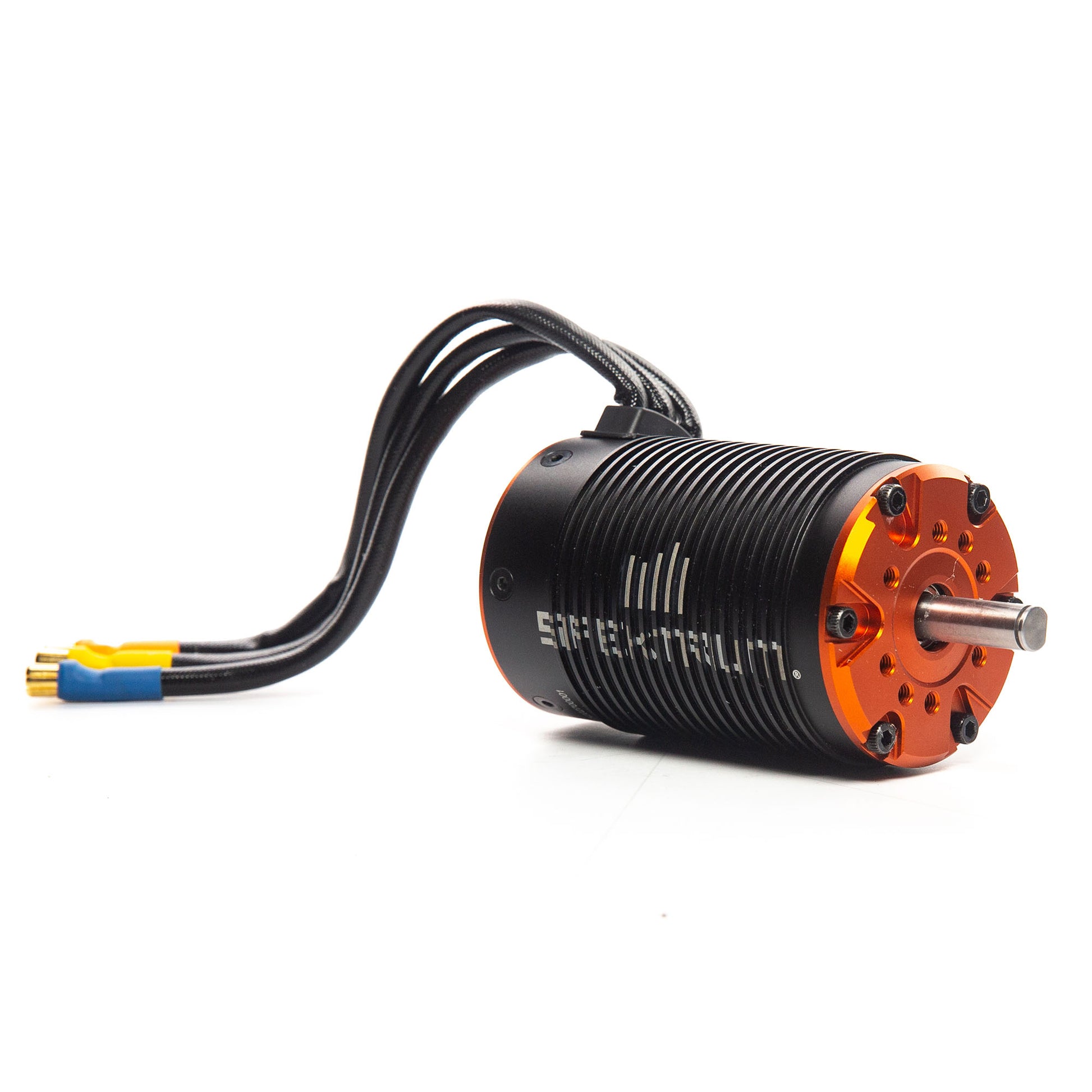

Spektrum Firma 1100Kv 4-Pole Brushless Motor is a sensorless brushless inrunner motor for ARRMA roller kits and 1/5 scale bashers and monster trucks using 3S to 8S LiPo power. It uses a 5687 motor size, 4-pole sintered rotor, CNC-machined aluminium housing, insulated high-purity copper windings, precision ball bearings, pre-installed 6.5 mm gold-plated bullet connectors and an 8 mm alloy steel output shaft.
Included
(1) Firma 1100Kv 4-Pole Brushless Motor
Features
Designed for ARRMA roller kits and 1/5 scale bashers and monster trucks
3S to 8S LiPo power capable
Sensorless brushless inrunner design
High-efficiency motor design
Low-cog 4-pole sintered rotor
CNC-machined aluminium housing
Insulated high-purity copper windings
Precision ball bearings
Hardened steel 8 mm output shaft
Safe-D shaft with c-clip locking point to help prevent pinion gear slip
Pre-installed 6.5 mm gold-plated bullet connectors
Matched for use with the Spektrum Firma 160A Brushless Smart ESC
Specifications
Application: ARRMA roller kits and 1/5 scale bashers and monster trucks
Motor type: Sensorless brushless
Motor design: Inrunner
Motor size: 5687
Input voltage: 11.1 V to 29.6 V, 3S to 8S LiPo
Kv rating: 1100Kv
Number of poles: 4
Maximum continuous current: 95 A
Output: 7900 W
Constant wattage: 3000 W or more
Efficiency: 86%
Resistance: 0.0041 ohms
Connector type: 6.5 mm bullet
Connector wire length: 190 mm (7.48 in)
Bushing or bearing: Bearing
Adjustable timing: No
Sensored: No
Recommended speed control: Spektrum Firma 160A Brushless Smart
Outer diameter: 56 mm (2.2 in)
Length: 86 mm (3.4 in)
Shaft diameter: 8 mm (0.315 in)
Shaft length: 22 mm (0.87 in)
Weight: 893 g (31.5 oz)
