Firma 100A Brushless Smart ESC/6500Kv Motor Combo No-Prep
Firma 100A Brushless Smart ESC/6500Kv Motor Combo No-Prep
SKU:SPMXSEMC13
Share

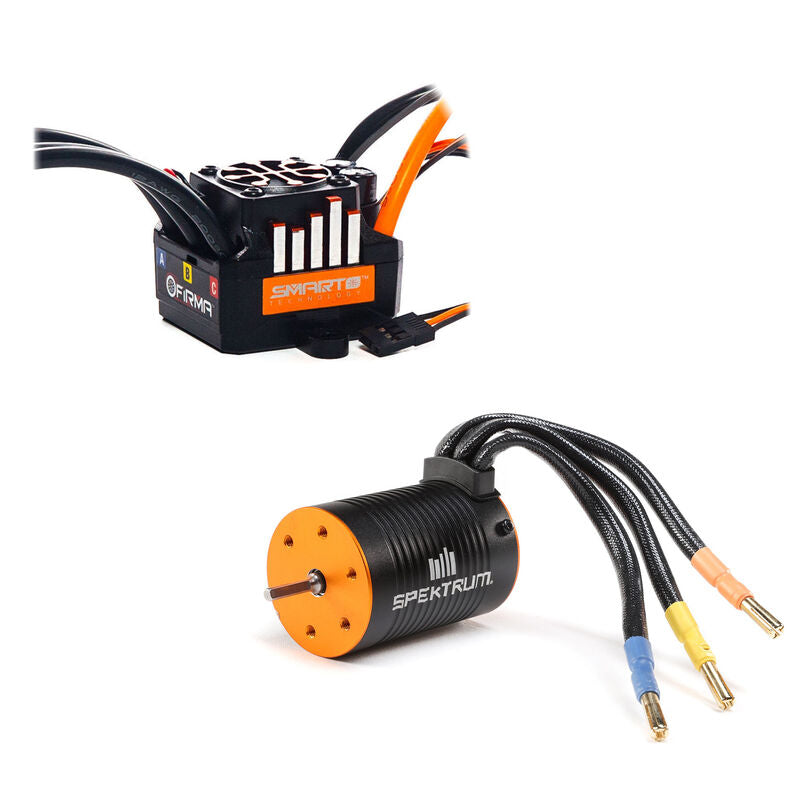

Spektrum Firma 100A Brushless Smart ESC and 6500Kv Sensorless Motor Combo is a brushless power system for 1/10 scale drag and speed run models using 2S LiPo power. The combo includes a Firma 100A brushless Smart ESC and a Firma 6500Kv sensorless brushless motor with a 4-pole 8-magnet rotor, 3.175 mm (1/8 in) output shaft and pre-installed 4 mm bullet connectors.
Included
(1) Spektrum Firma 100A Brushless ESC
(1) Spektrum Firma 6500Kv Brushless Motor
(1) Sticker Sheet and Mounting Tape
(1) Product Manual
Features
Brushless ESC and motor combo for 1/10 scale drag and speed run models
Designed for 2S LiPo power
100A brushless Smart ESC
6500Kv sensorless brushless motor
Smart all-in-one telemetry for compatible Spektrum systems
4-pole 8-magnet rotor design
CNC-machined aluminium motor housing
Insulated high-purity copper motor windings
Alloy steel 3.175 mm (1/8 in) motor output shaft
Precision motor bearings
Pre-installed 4 mm gold-plated bullet motor connectors
Water-resistant ESC design
Multiple programming options using Smart ESC Programming Box, SmartLink USB app or transmitter text generation
Over-current, automatic LiPo low-voltage cutoff, thermal and failsafe protection
IC5 battery connector, compatible with EC5 battery connectors
Specifications
Application: 1/10 scale drag and speed run models
ESC type: Brushless
Motor type: Sensorless brushless
Technology: Smart
Maximum continuous current: 100 A
Maximum burst current: 650 A
Input voltage: 2S to 3S LiPo, 5 to 9 cell NiMH
BEC: Yes
BEC voltage: 6 V or 7.4 V selectable
BEC continuous current: 4 A
Battery connector: IC5
Motor connector: 4 mm bullet
Kv rating: 6500Kv
Number of poles: 4
Rotor configuration: 8-magnet
Sensored: No
Adjustable timing: Yes
Auto cutoff: Yes
Low-voltage cutoff programmable: Yes
Overload protection: Yes
Forward: Yes
Reverse: Yes
Brakes: Yes
Programmable: Yes
Water-resistant: Yes
Motor outer diameter: 36 mm (1.41 in)
ESC length: 43 mm (1.7 in)
ESC width: 39 mm (1.53 in)
ESC height: 34 mm (1.33 in)
ESC weight: 136 g (4.9 oz)
