Spektrum
Firma 100A Brushless Smart ESC 3S
Firma 100A Brushless Smart ESC 3S
SKU:SPMXSE1100
Share

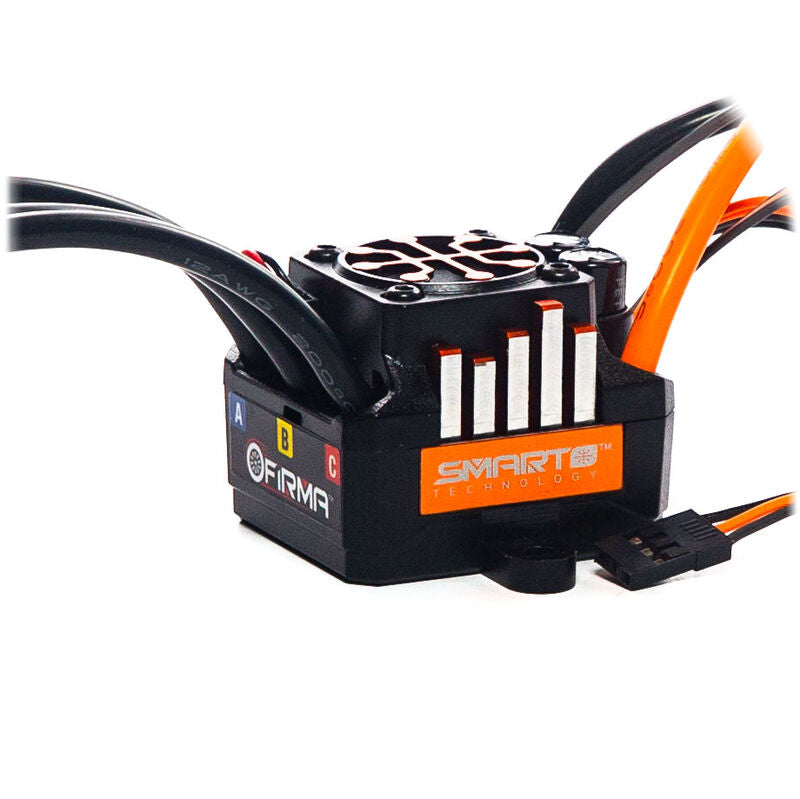

Spektrum Firma 100A Brushless Smart ESC 3S is a brushless electronic speed control for surface RC vehicles. It is suited to 4WD 1/10 to 1/8 scale surface applications running 3S LiPo setups, with Spektrum Smart one-wire telemetry, selectable 6 V or 7.4 V BEC output, an IC5 battery connector and 4 mm bullet motor connectors.
Included
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product manual
Features
Smart all-in-one telemetry with compatible Spektrum Smart equipment
32-bit ARM M4 processor
Waterproof IP67-rated design
Button, programming box and SmartLink app programming options
Over-current, LiPo low-voltage cutoff, thermal and failsafe protection
Selectable 6 V or 7.4 V BEC output at 4 A
Rugged plastic case with mounting tabs
Aluminium heat sink and cooling fan
IC5 battery connector with EC5 basic-operation compatibility
Firmware updatable through the Smart ESC programming box
Ready to install with no soldering required
Specifications
Application: Surface
ESC type: Brushless
Motor type: Sensorless brushless
Input voltage: 2S to 3S LiPo, 5 to 9-cell NiMH
Maximum input voltage: 11.1 V
Maximum continuous current: 100 A
Maximum burst current: 650 A
BEC: Yes
BEC voltage: 6 V or 7.4 V selectable
BEC continuous current: 4 A
Battery input lead: IC5
Connector type: IC5
Output connector: 4 mm bullet
Drive type: Forward/brake/reverse
Forward: Yes
Reverse: Yes
Brakes: Yes
Programmable: Yes
Programming options: Button, programming box, SmartLink app, on-screen text generation
Low-voltage cutoff: Programmable
Auto cutoff: Yes
Overload protection: Yes
Sensored: No
Technology: Smart
Telemetry: SRXL2 compatible Spektrum Smart technology
Waterproof rating: IP67
Length: 43 mm (1.7 in)
Width: 39 mm (1.53 in)
Height: 33.3 mm (1.31 in)
Width with tabs: 54.5 mm (2.15 in)
Weight: 139 g (0.306 lb)
