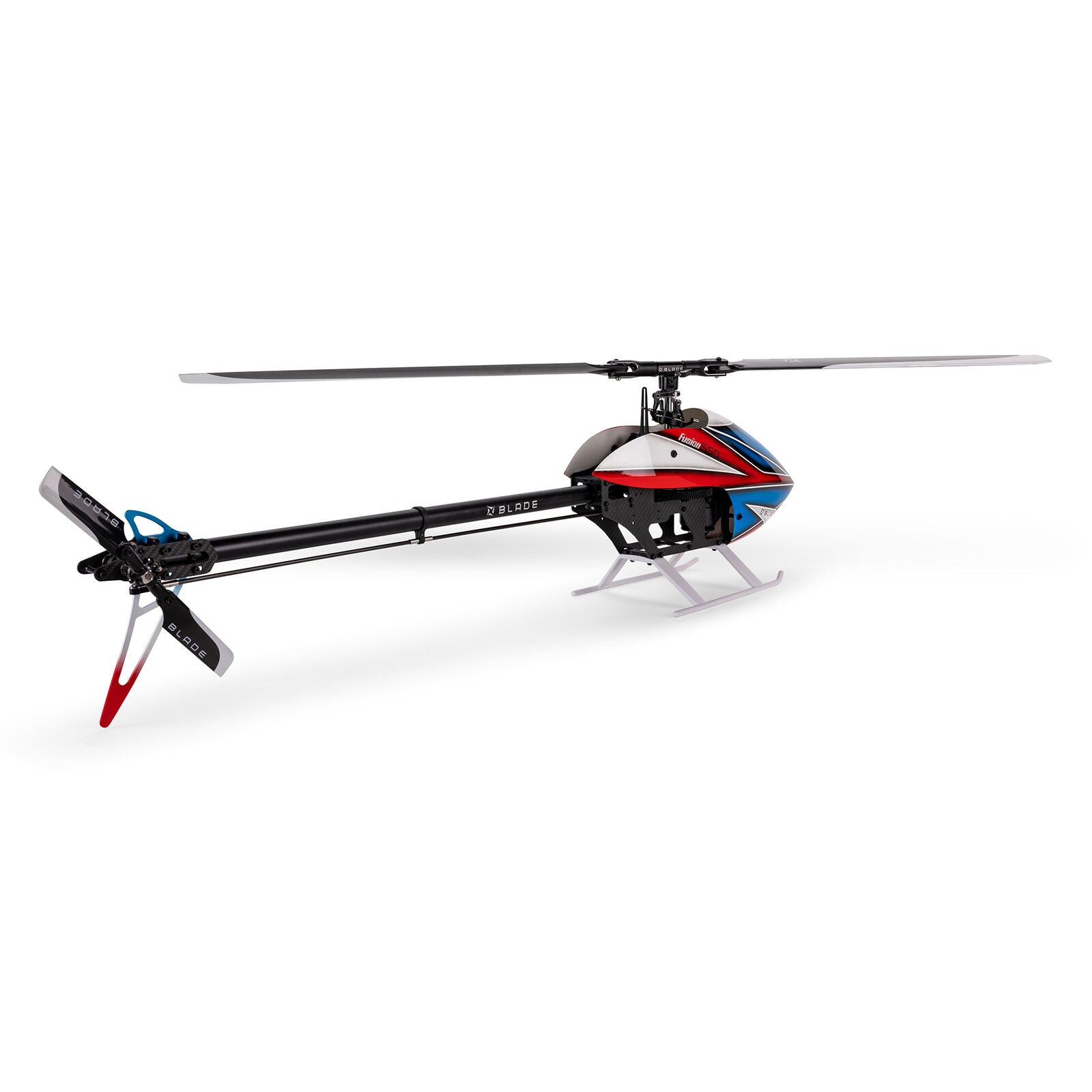

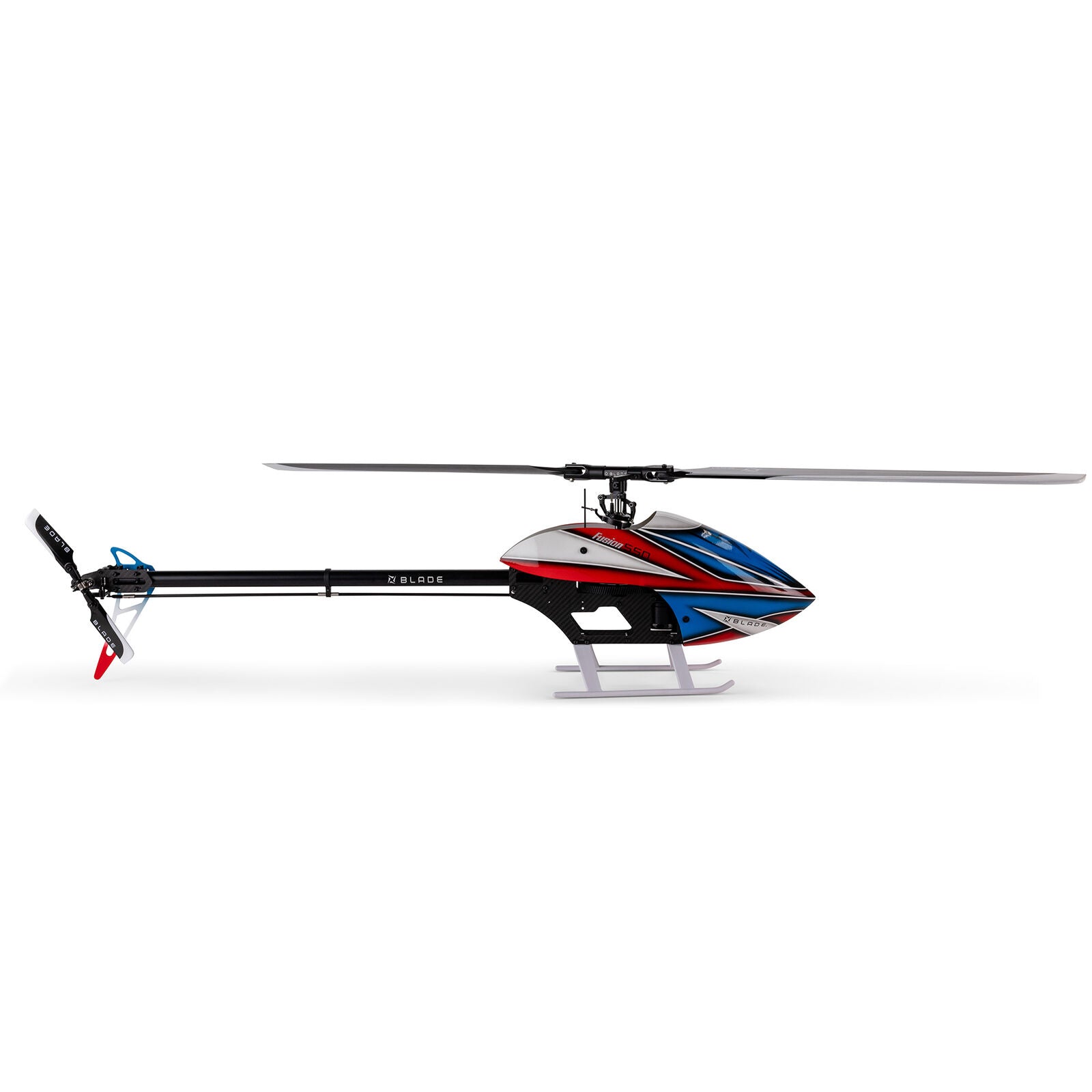

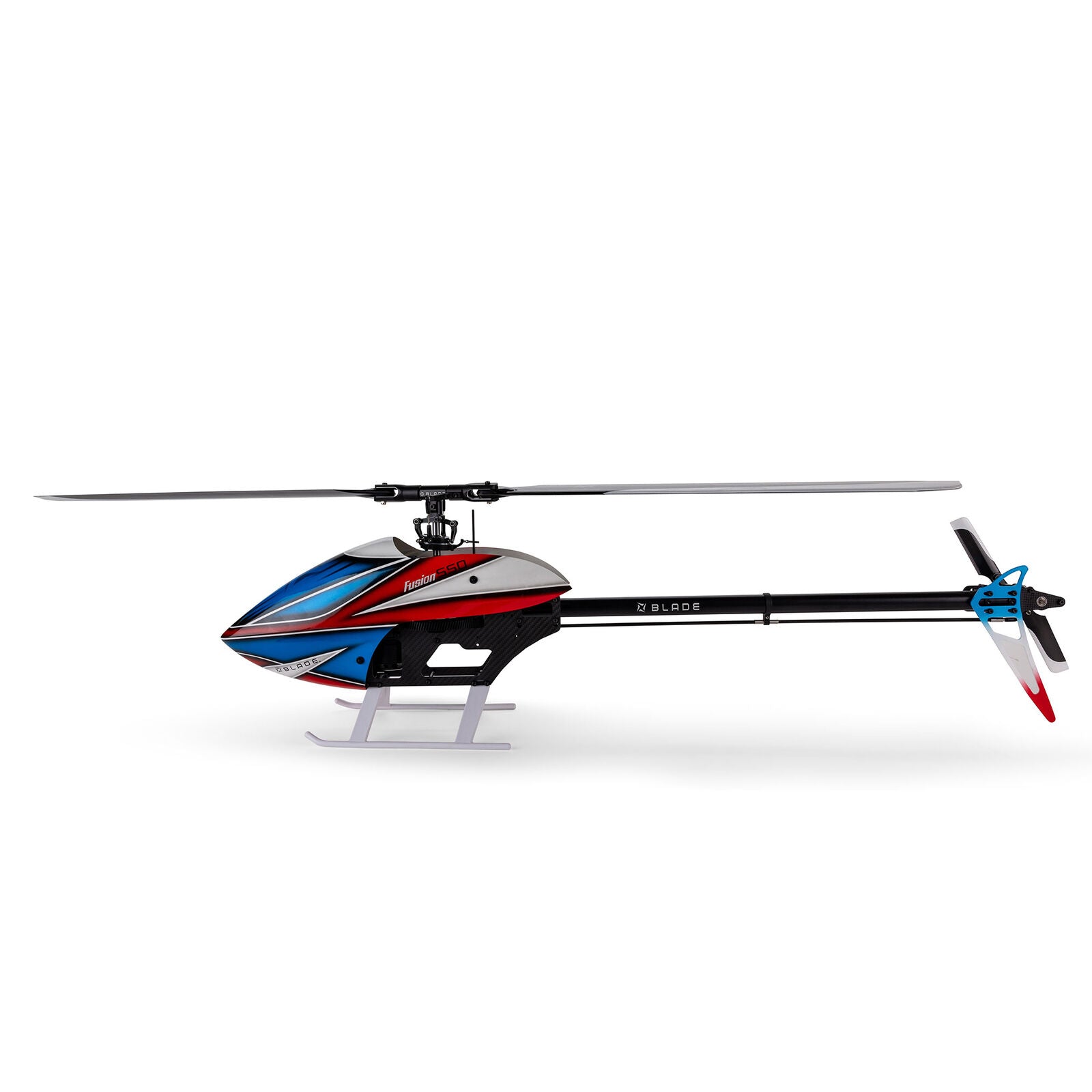

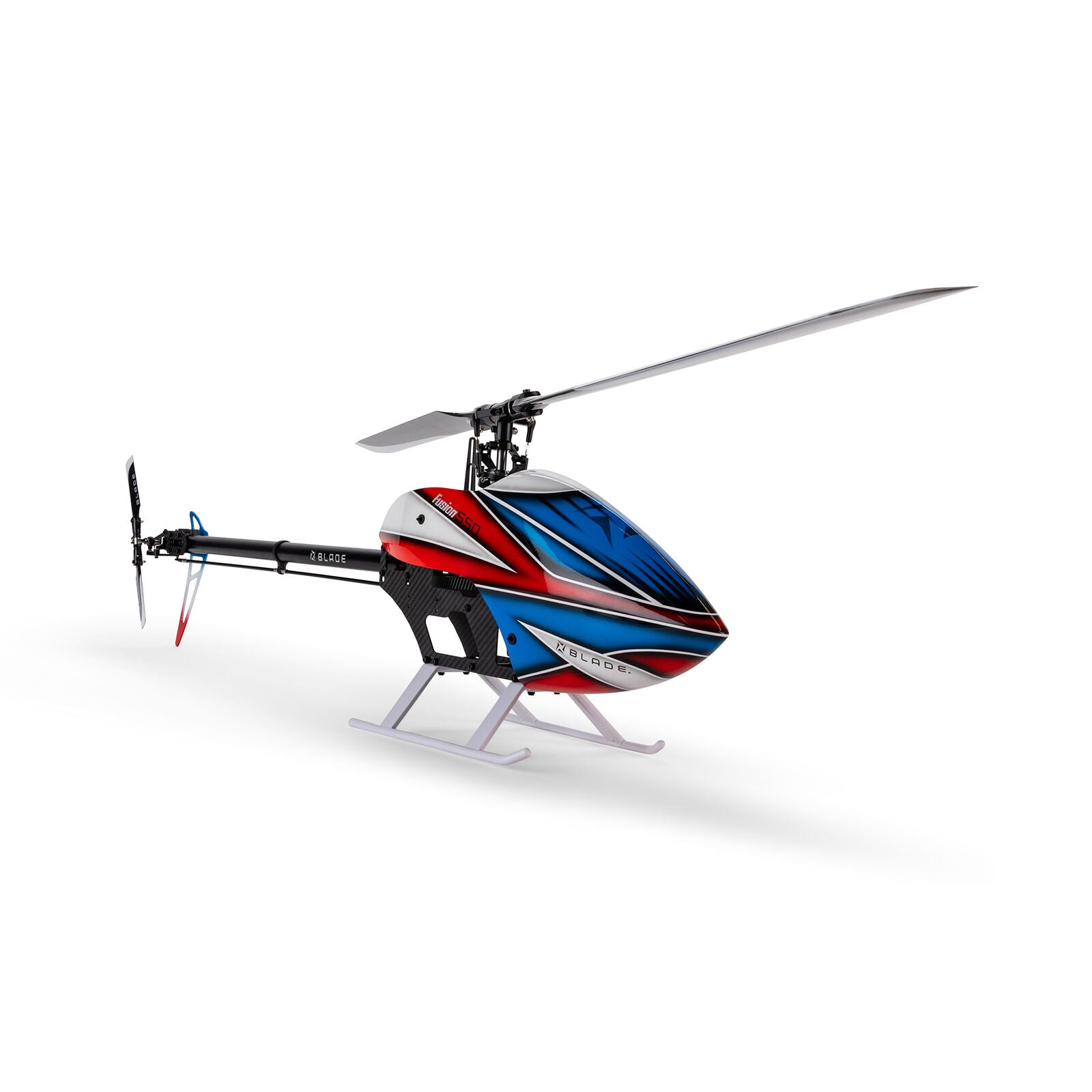

Blade Fusion 550 Quick Build Kit Super Combo

Based on the Blade Fusion 480 and stretch kit, the Fusion 550 Quick Build Kit offers a perfect fusion of convenience and performance with the included motor and blades.

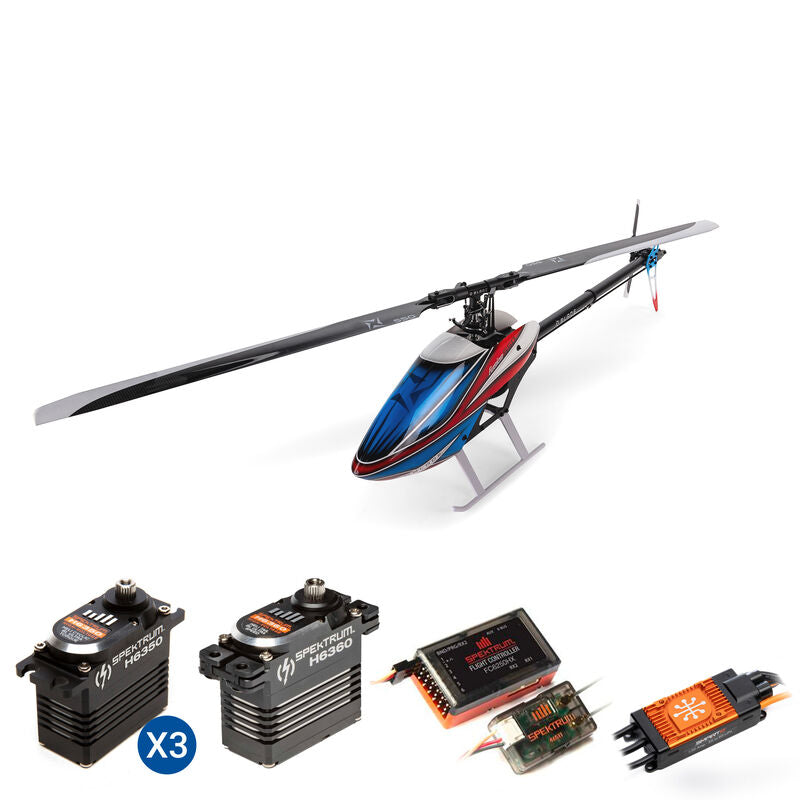

In the Box

Blade Fusion 550 Helicopter Quick Build Kit x1
Spektrum Avian 4320-1180Kv 10-Pole Brushless Outrunner Motor (included) x1
Spektrum Avian 130 Amp Brushless Smart ESC for 3S–6S with IC5 (included) x1
Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos (included) x3
Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo (included) x1
Spektrum FC6250HX Helicopter Flybarless Control System (included) x1
Spektrum DSMX Remote Receiver (included) x1
Blade 550 mm Carbon Fibre Main Rotor Blade Set (included) x1
Blade 95 mm Carbon Fibre Tail Rotor Blade Set (included) x1
Fusion 550 Helicopter Product Manual x1

Needed to Complete

Full-range 6+ channel Spektrum DSMX/DSM2 compatible computer transmitter x1
6S 22.2 V 4000–5000 mAh 30+C LiPo with EC5 or IC5 Connector x1
Compatible LiPo Charger x1

Features

Based on the extremely popular Fusion 480 and stretch kit for a perfect fusion of convenience and performance
Quick Build Kit with factory-finished assemblies so it can be ready to fly in less than half the time of typical kits
Includes the longer boom, belt, plus carbon fibre 550 mm main rotor and 95 mm tail rotor blades

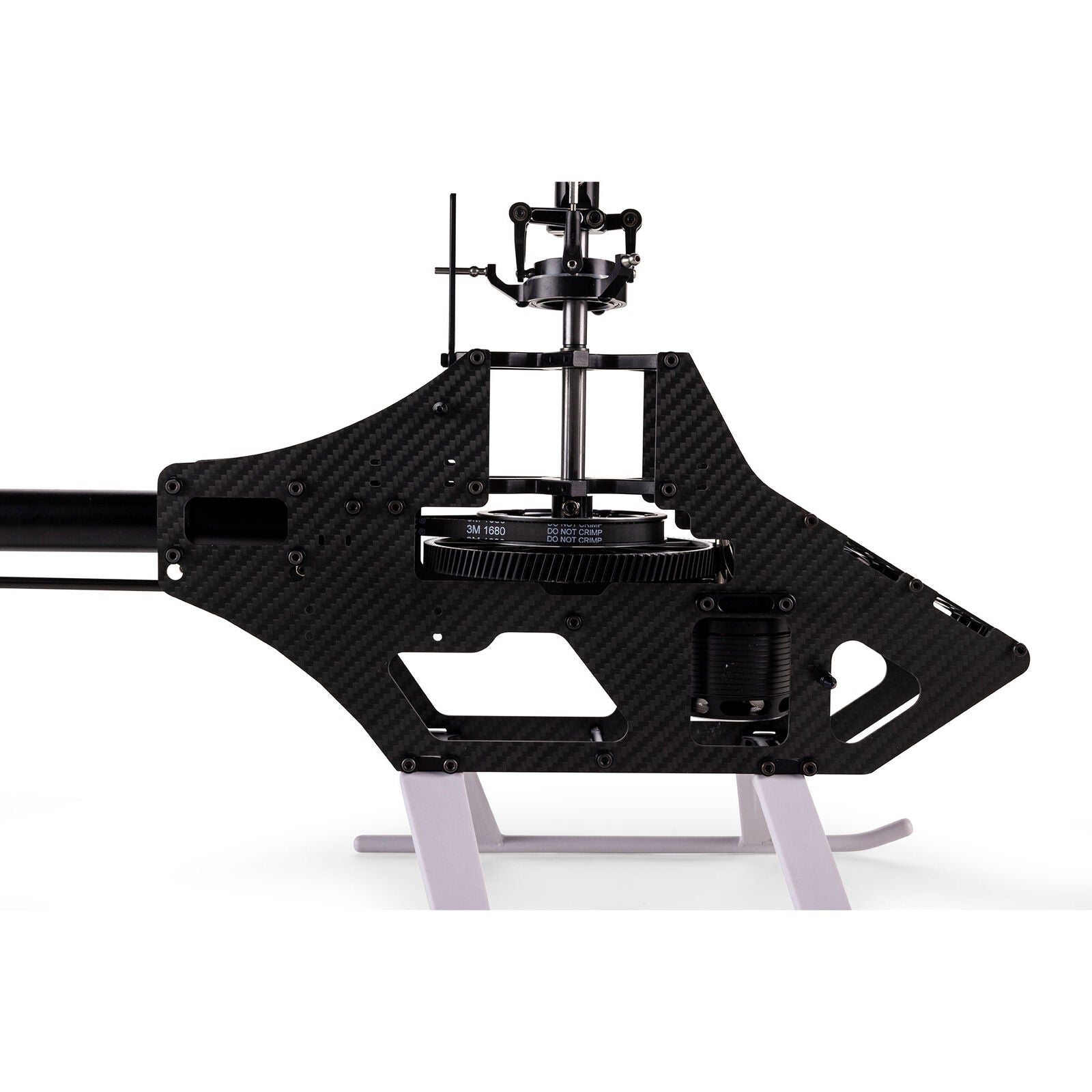

Lightweight yet extremely stiff and durable carbon fibre and aluminium airframe design
High-strength steel 10 mm main shaft and 8 mm spindle with metal head components

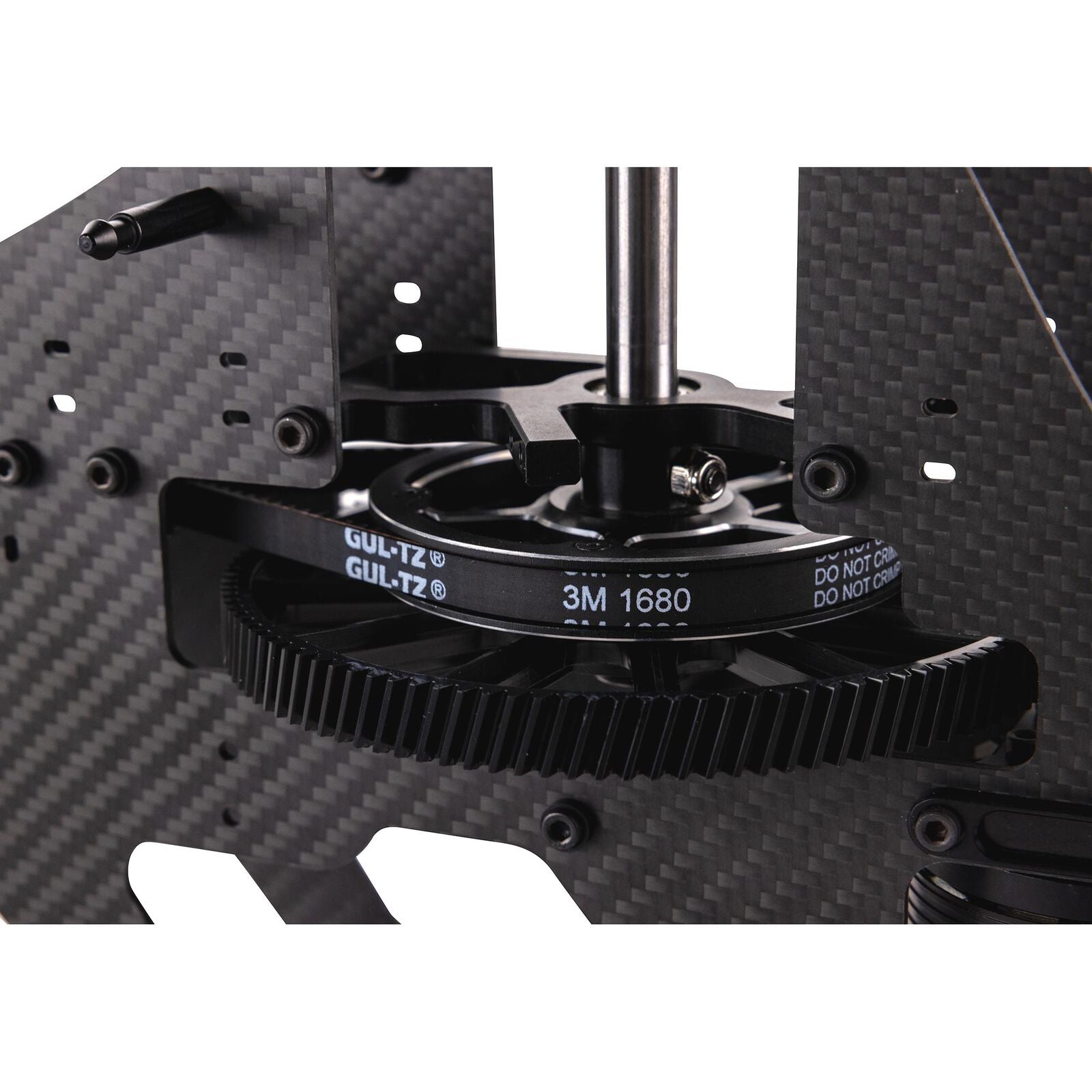

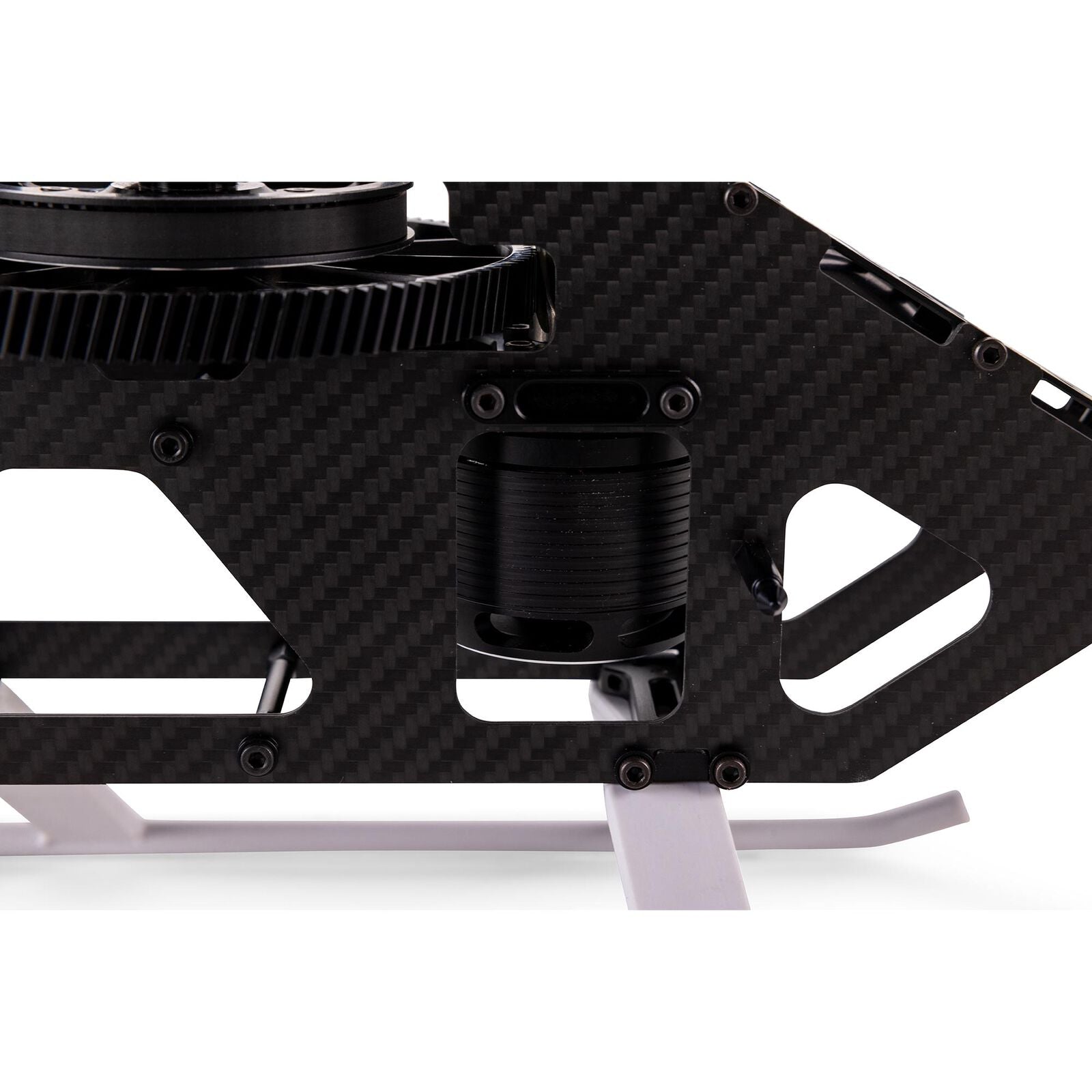

Efficient helical main gear paired with a steel pinion for quiet and reliable performance
Includes a 4320-1180Kv brushless outrunner motor that delivers incredible torque and power
Compatible with popular and common 6S 4000–5000 mAh 30+C LiPo batteries

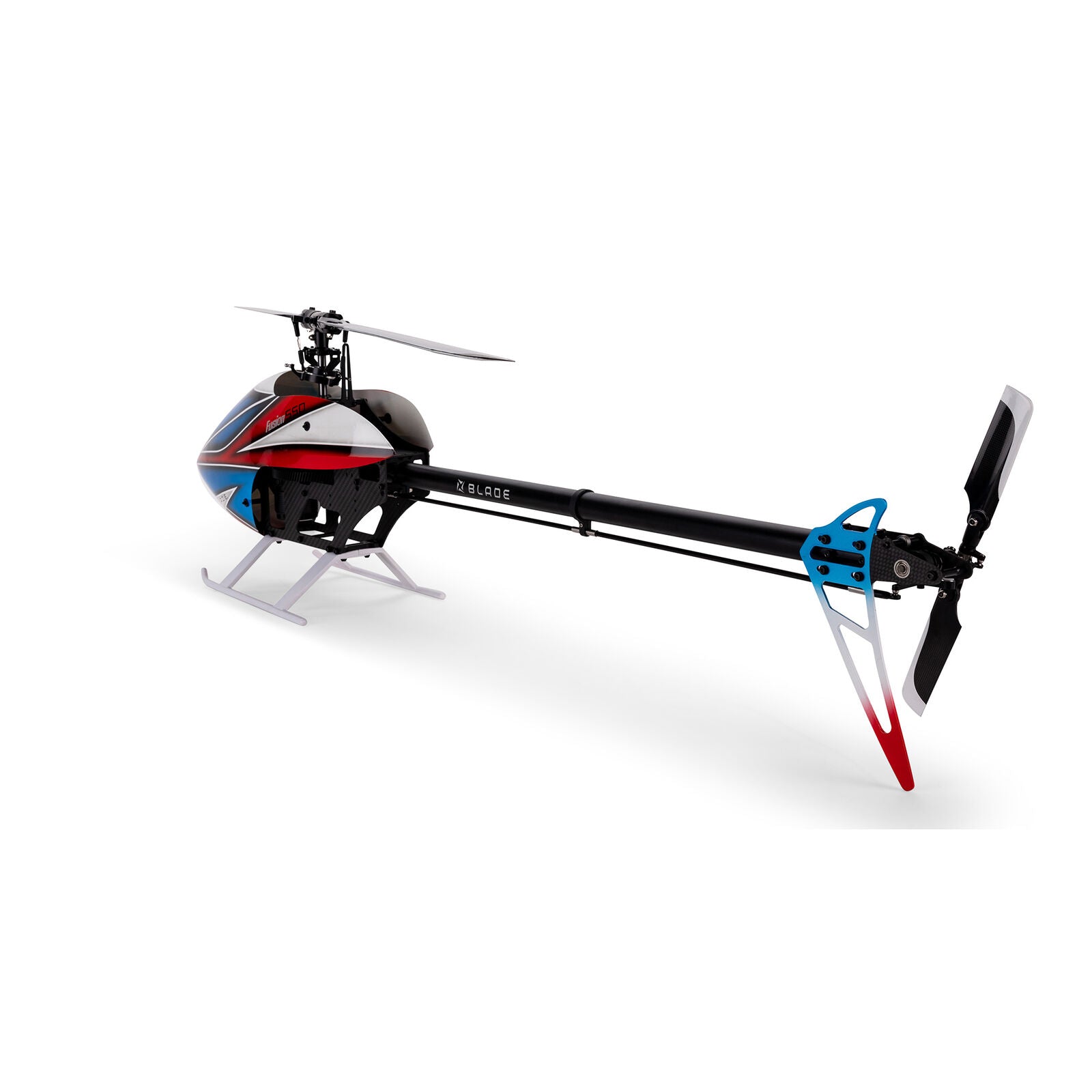

Oversized 25 mm diameter tail boom eliminates the need for boom supports
6 mm wide belt for the driven tail featuring adjustable tension
High-strength steel 5 mm tail shaft paired with a metal bell crank and grips
Carbon fibre and aluminium tail case with a metal tail drive pulley
5 mm diameter carbon fibre tail pushrod for precise tail control
Fits standard-sized servos for cyclic and tail control
Exclusive Optimised Servo Geometry for precise and responsive control
All-metal and 2 mm thick carbon fibre construction

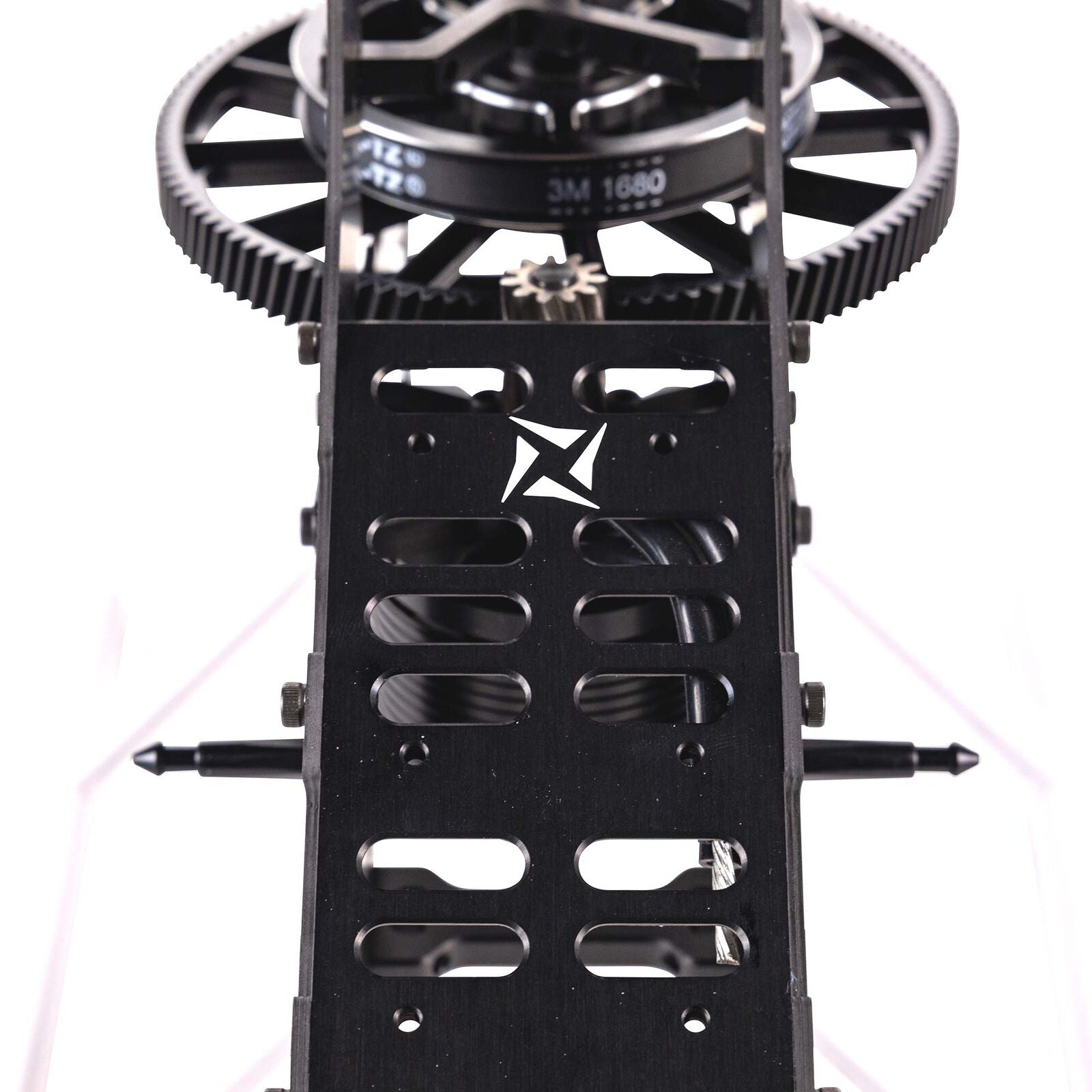

Aluminium battery tray with two oversized battery straps
Aluminium bearing and servo mounting blocks with Optimised Servo Geometry

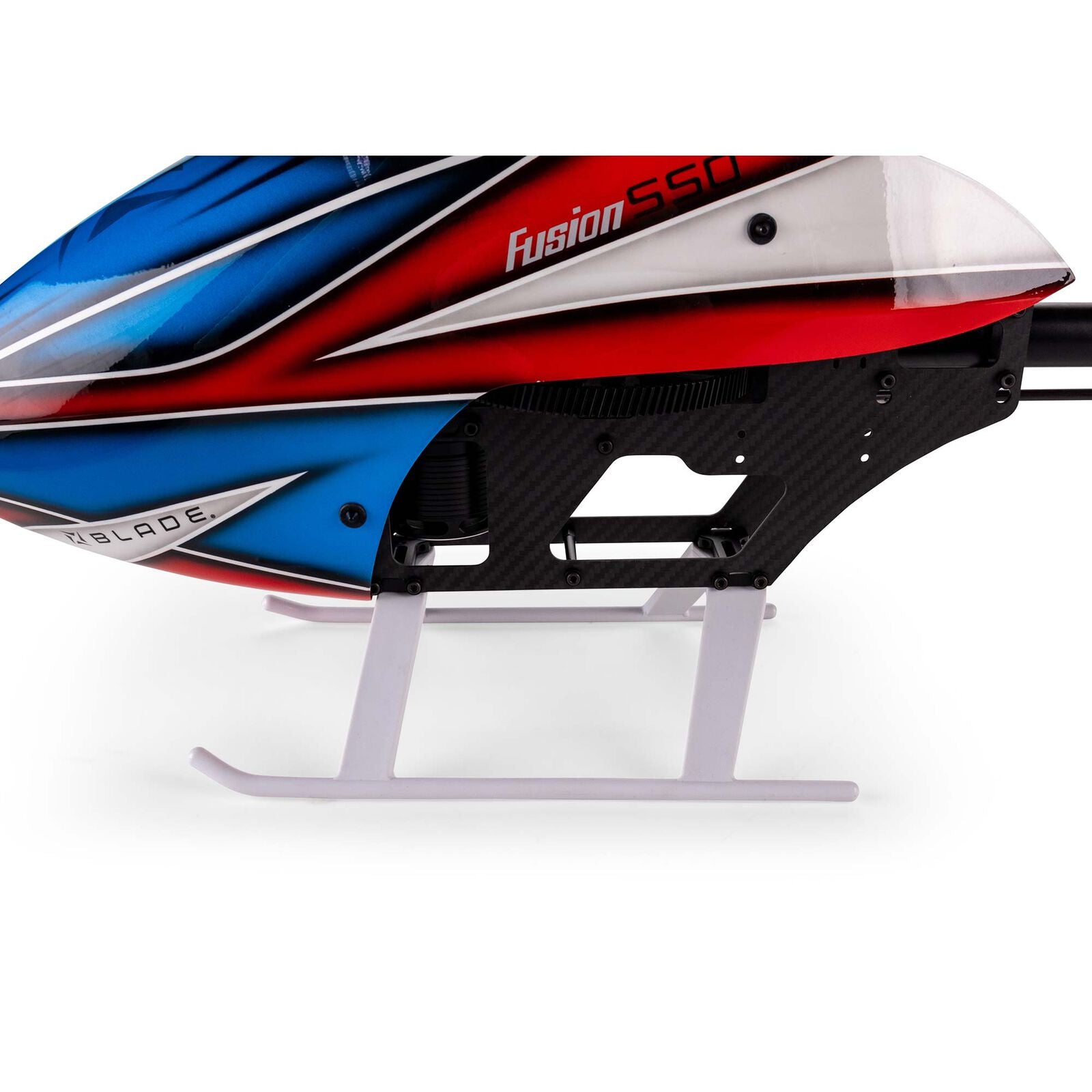

White moulded landing gear plus a painted fibreglass canopy for excellent visibility
Oversized 25 mm diameter tail boom eliminates the need for boom supports

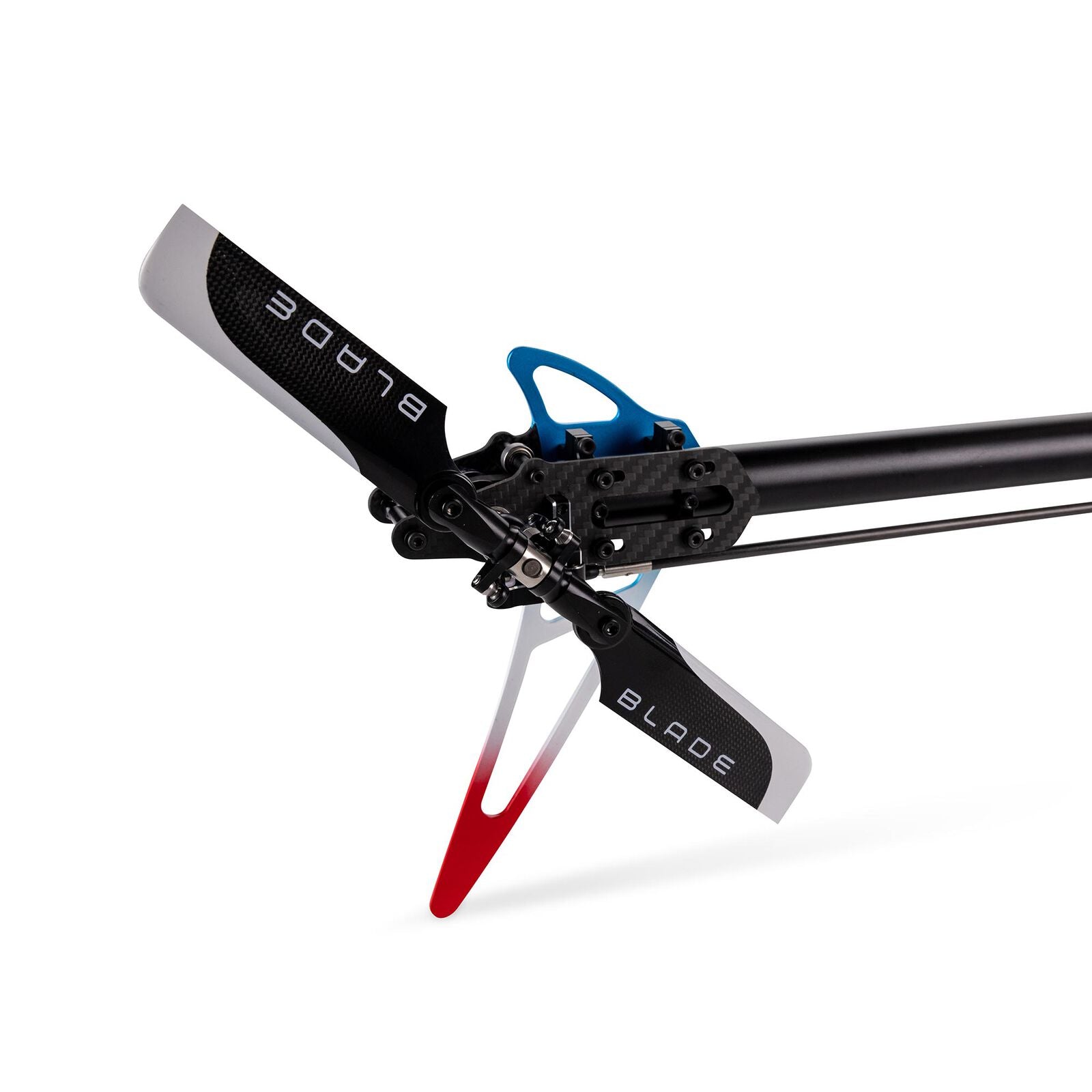

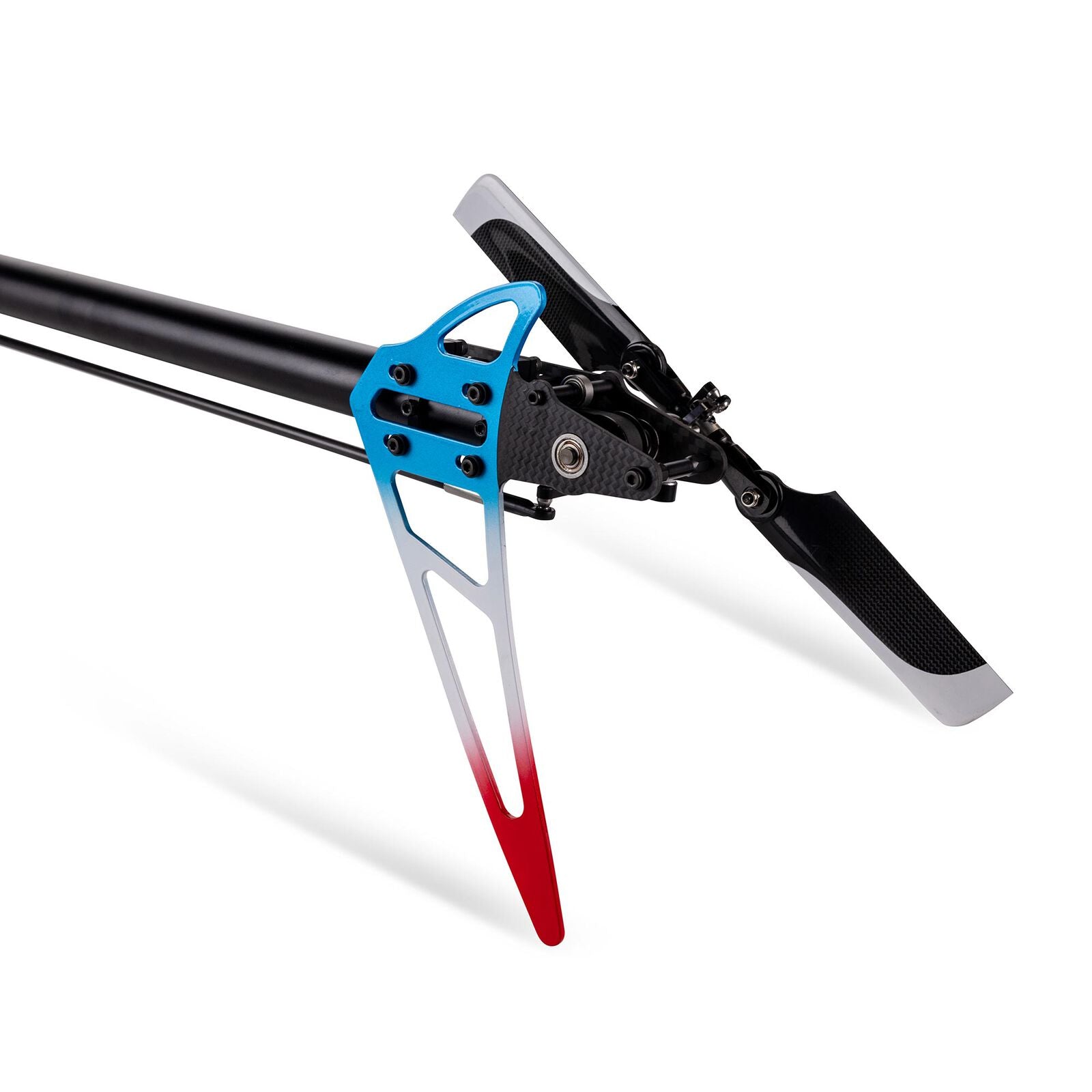

2.5 mm thick carbon fibre tail box and painted vertical fin for improved visibility
6 mm wide drive belt with adjustable tension drives a large aluminium pulley

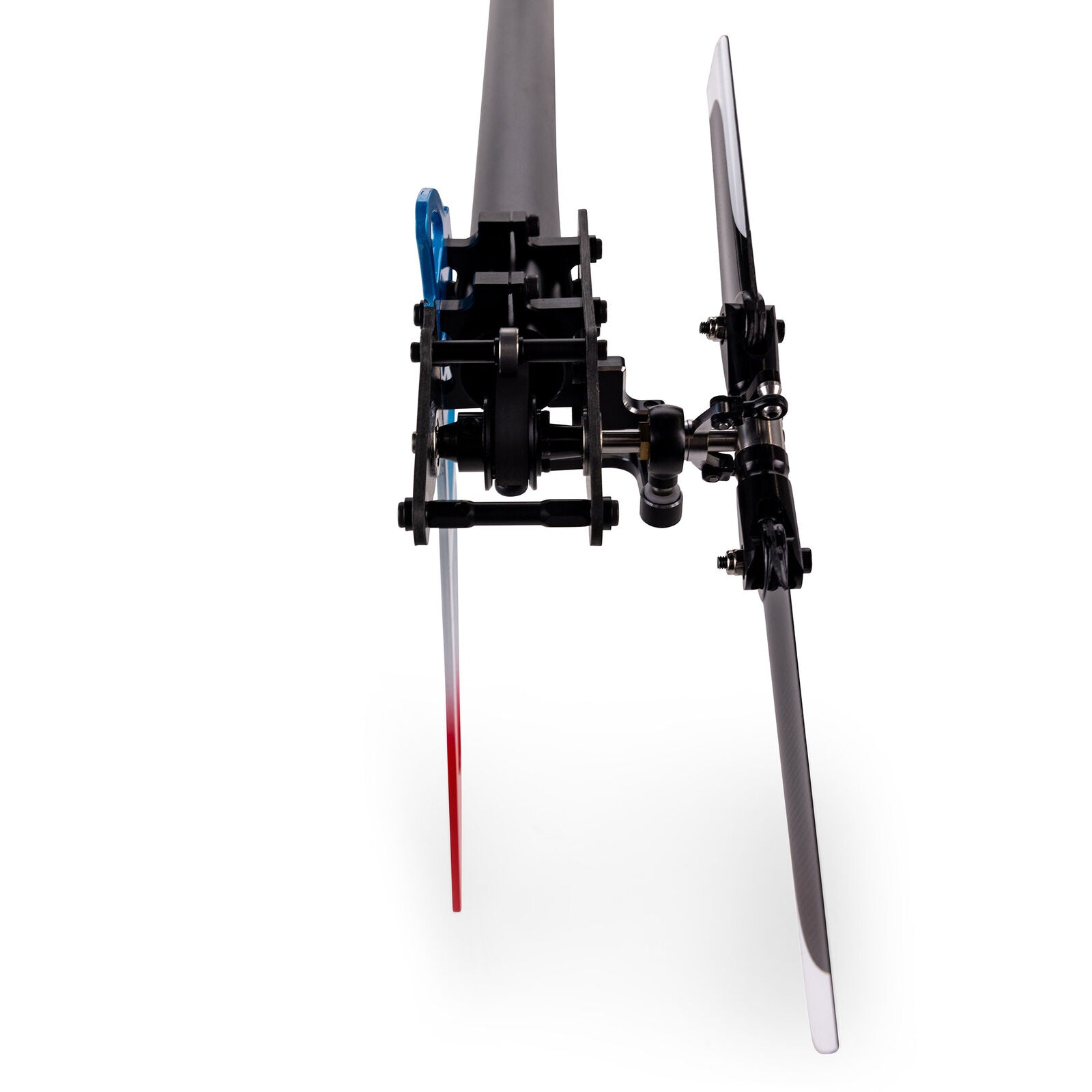

5 mm high-strength steel tail shaft with metal bell crank, hub, and grips
5 mm carbon fibre tail pushrod with ball links for precise control
Hidden tail servo for added protection and a sleek look
Includes 95 mm carbon fibre tail rotor blades
Includes a 4320-1180Kv outrunner motor compatible with 6S batteries
Efficient helical main gear paired with a steel pinion to reduce noise

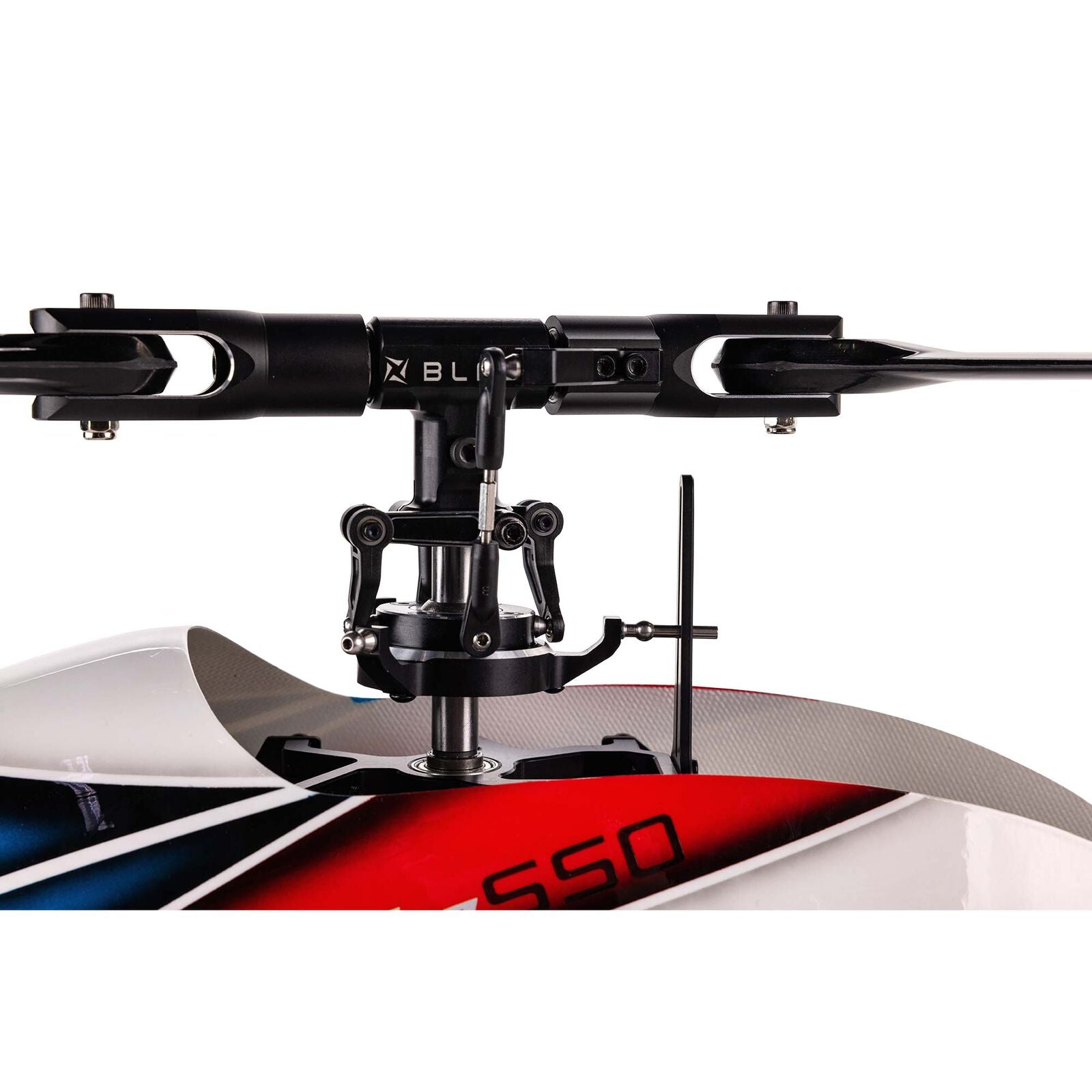

Black anodised aluminium swashplate and other components
High-strength steel 10 mm main shaft and 8 mm spindle
Aluminium blade grips with zero pitch indicator marks
Includes 550 mm carbon fibre main rotor blades

More Information

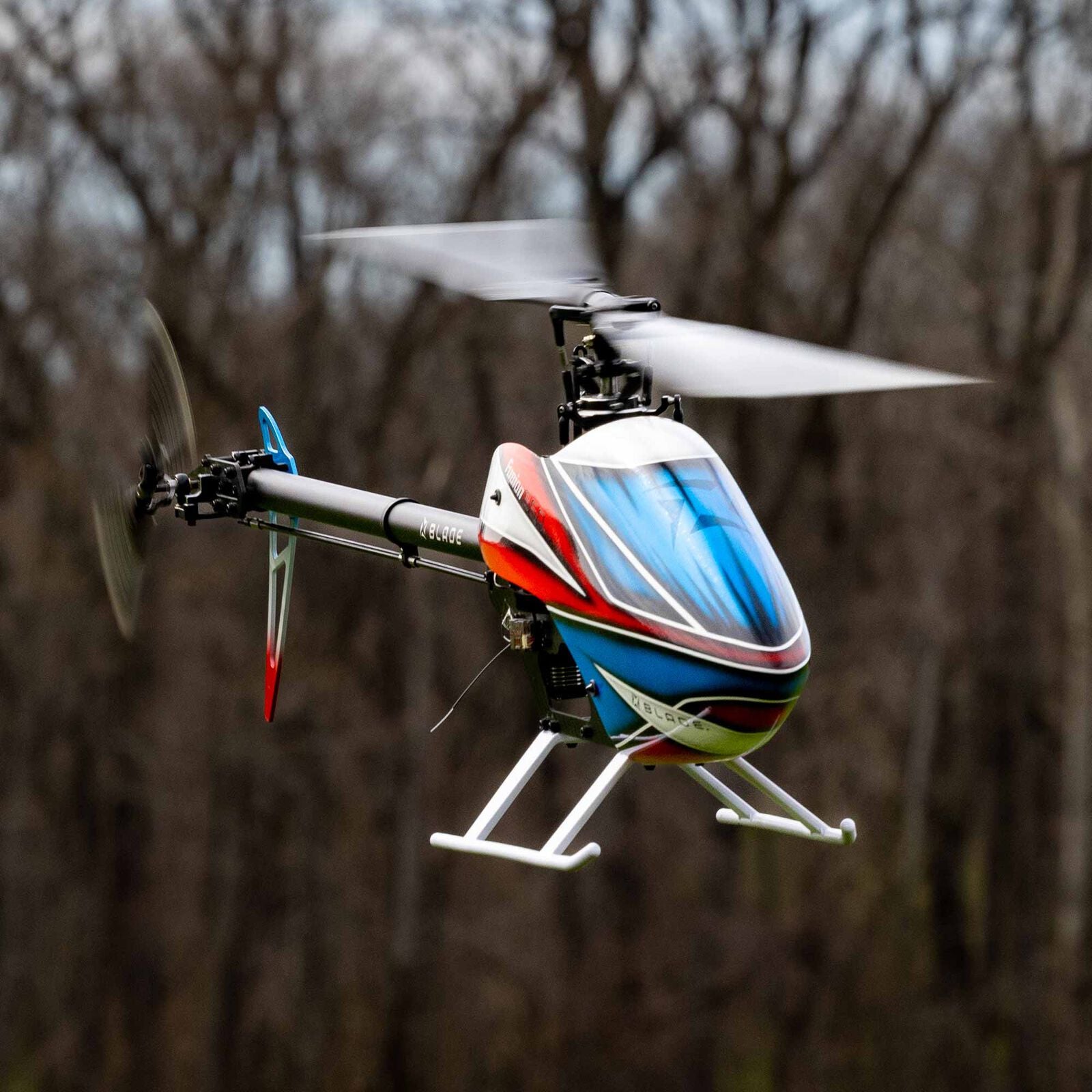

The Blade Fusion 550 blurs the lines between convenience and capabilities, plus quality and value. The strong and lightweight carbon fibre and aluminium airframe is ready to pair with the included carbon fibre 550 mm main and 95 mm tail rotor blades, plus a more powerful motor and common 6S 4000–5000 mAh batteries, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a larger-sized helicopter with cutting-edge capabilities, along with incredible durability and reliability, a reality!

Built on nearly two decades of Blade helicopter engineering and development experience, and based on the extremely popular Fusion 480 and stretch kit, the Blade Fusion 550 packs a variety of high-quality and high-performance features into a rugged and reliable helicopter that's ready to rip up the skies. The lightweight yet extremely durable carbon fibre and aluminium airframe design features many factory-finished assemblies so it assembles quickly – in less than half the time of typical kits – plus it's easy to maintain and repair. The Optimised Servo Geometry provides precise and responsive control from hovering to sport flying, and from basic to all-out 3D aerobatics. The quiet helical main gear is driven by the included 4320-1180Kv brushless outrunner motor that delivers incredible torque and performance with popular 6S 4000–5000 mAh LiPo batteries. A belt-driven tail assembly featuring carbon fibre and aluminium construction ensures locked-in tail performance on every flight. So whether you're an intermediate pilot and this is your first-ever kit-built model, or you're a world-class 3D pilot, the Fusion 550 delivers an unmatched combination of convenience, capabilities, quality, and value!

Specifications

Approximate Assembly Time: 5–7 Hours
Battery: Sold Separately
Canopy/Body Material: Fibreglass
Channels: 6
Charger: Sold Separately
Completion Level: Kit
Gear Ratio: 9.33
Main Blade Material: Carbon Fibre
Main Frame Material: Carbon Fibre
Main Motor Type: Brushless
Main Rotor Blade Length: 550 mm (21.65")
Main Rotor Diameter: 1245 mm (49.01")
Main Rotor Head Type: Collective Pitch Flybarless
Motor Size: 4320-1180Kv 10 Pole
Pinion: 12T
Power Type: Electric
Product Height: 320 mm (12.59")
Product Length: 1080 mm (42.52")
Product Weight: 3.1 kg (6.72 lb) with Recommended Battery
Product Width: 188 mm (7.4")
Receiver: Included
Servos: Included
Skill Level: Level 3
Speed Control: Included
Swashplate Type: 120 Degree CCPM
Tail Blade Material: Carbon Fibre
Tail Drive: Belt Drive
Tail Rotor Blade Length: 95 mm (3.74")
Tail Rotor Diameter: 250 mm (9.84")
Technology: Smart
