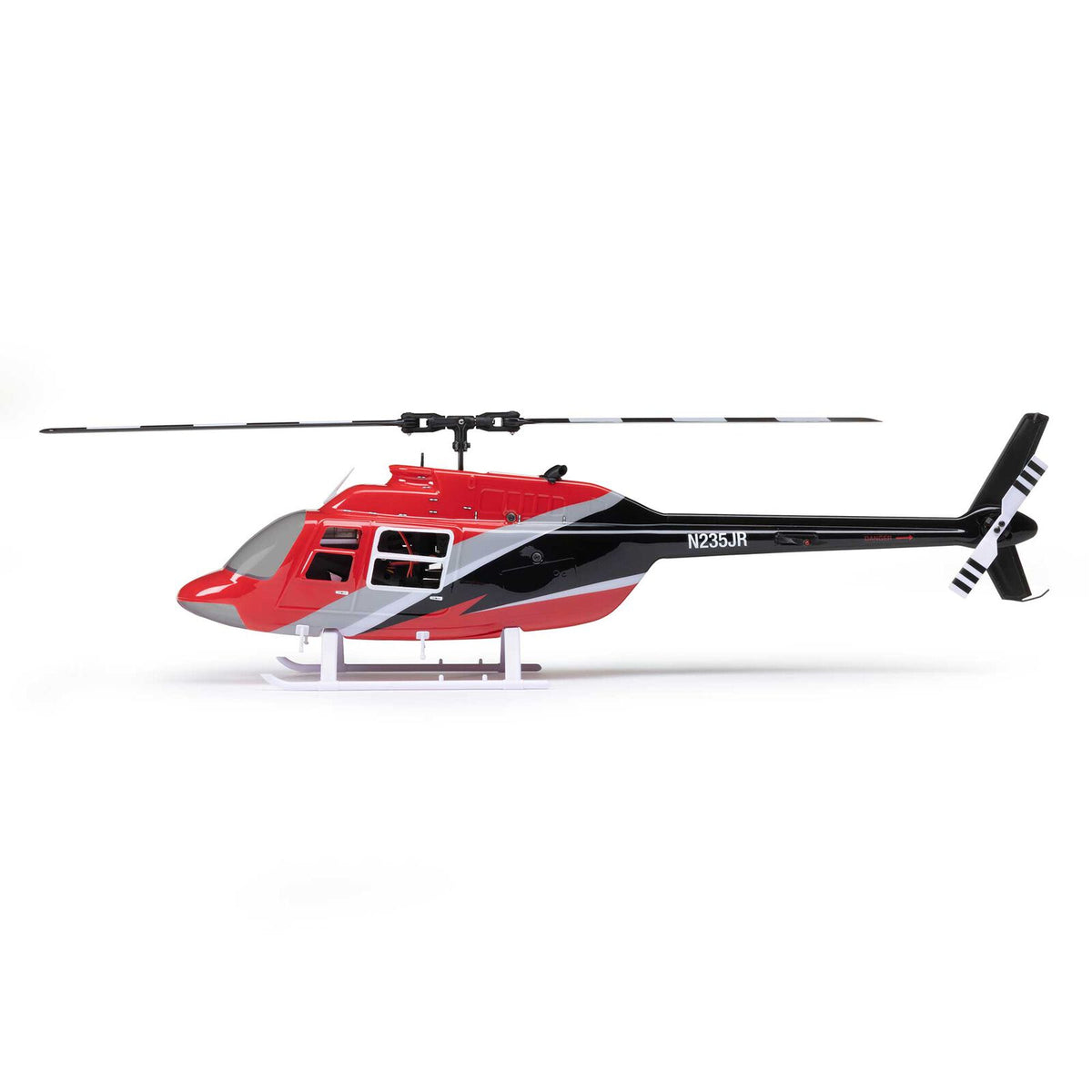

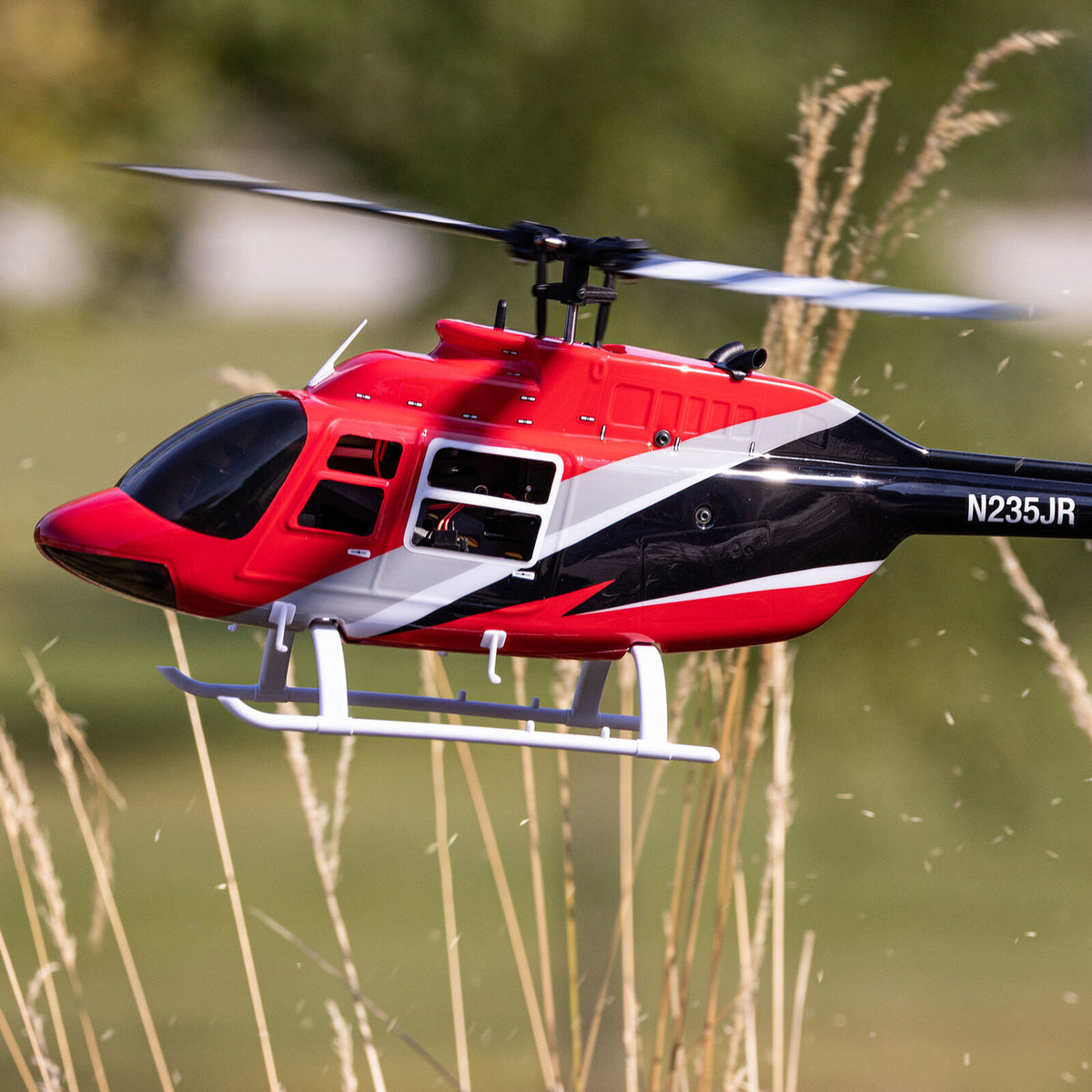

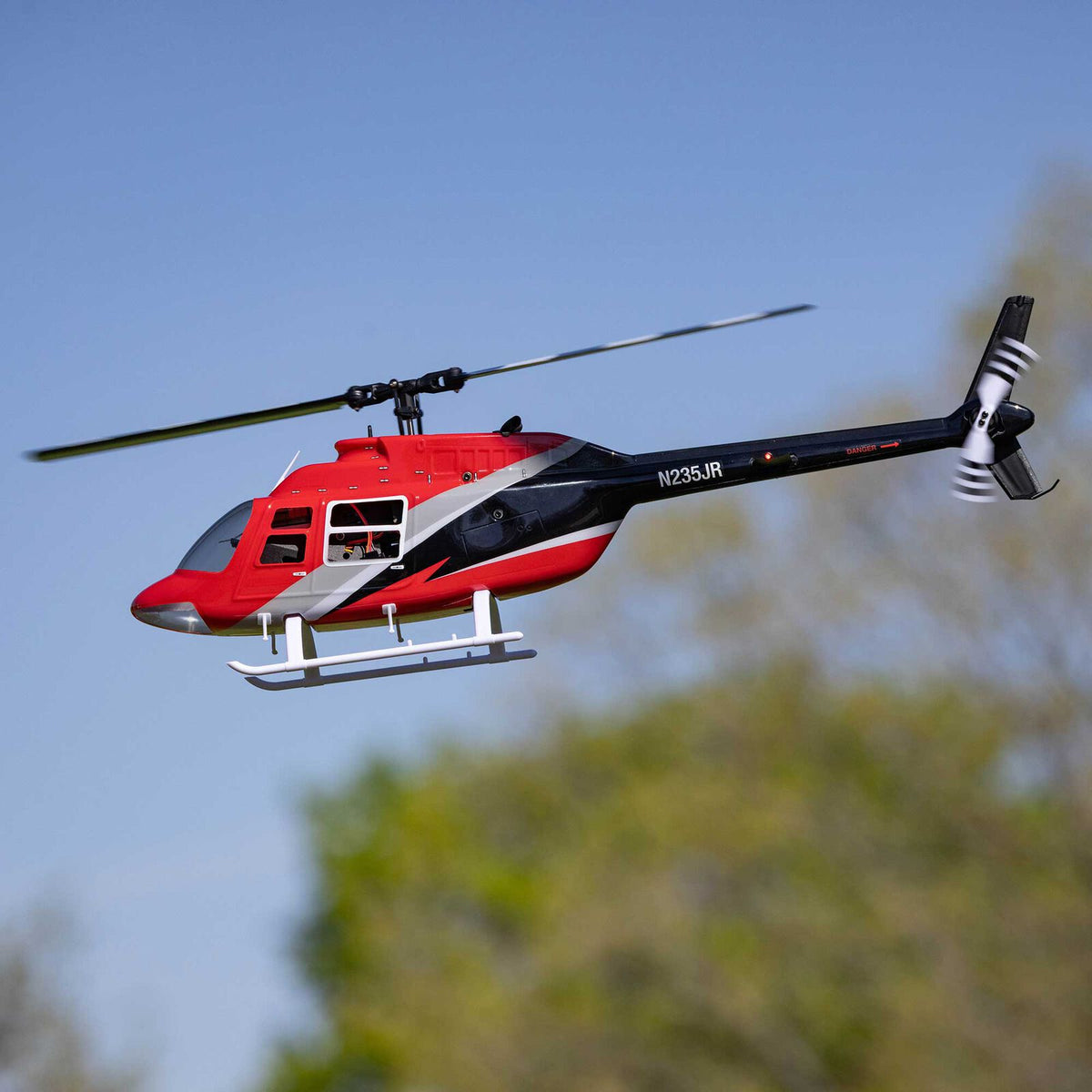

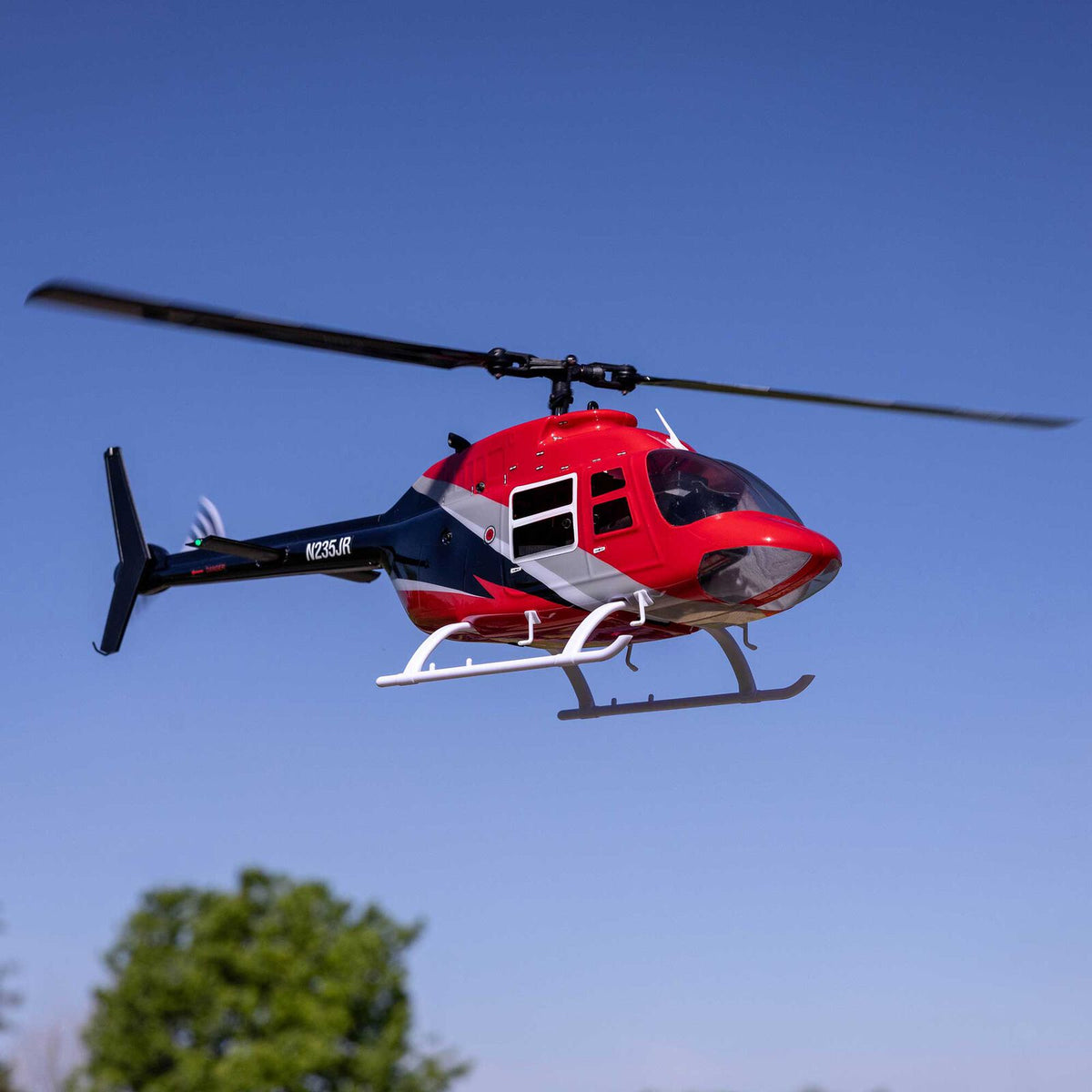

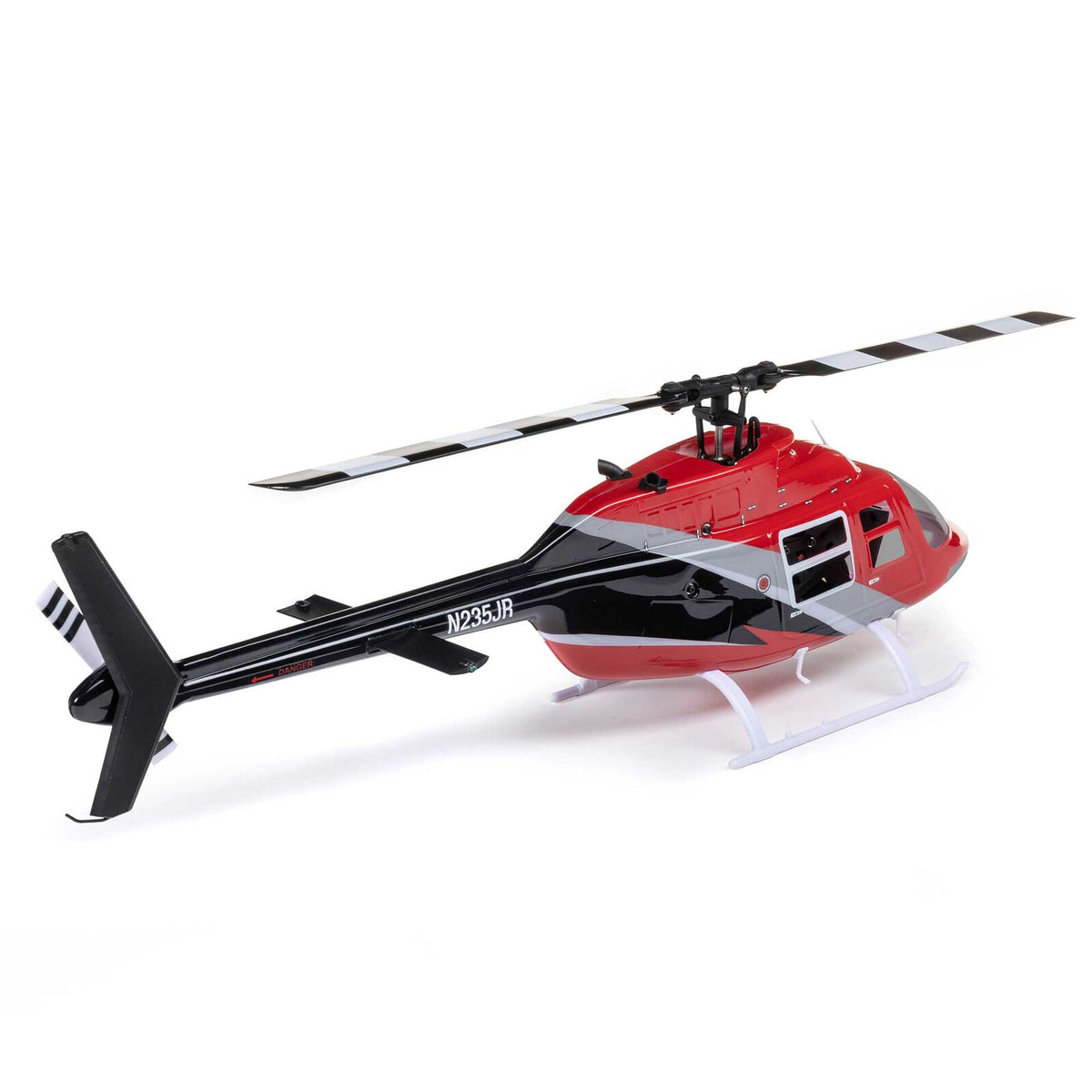

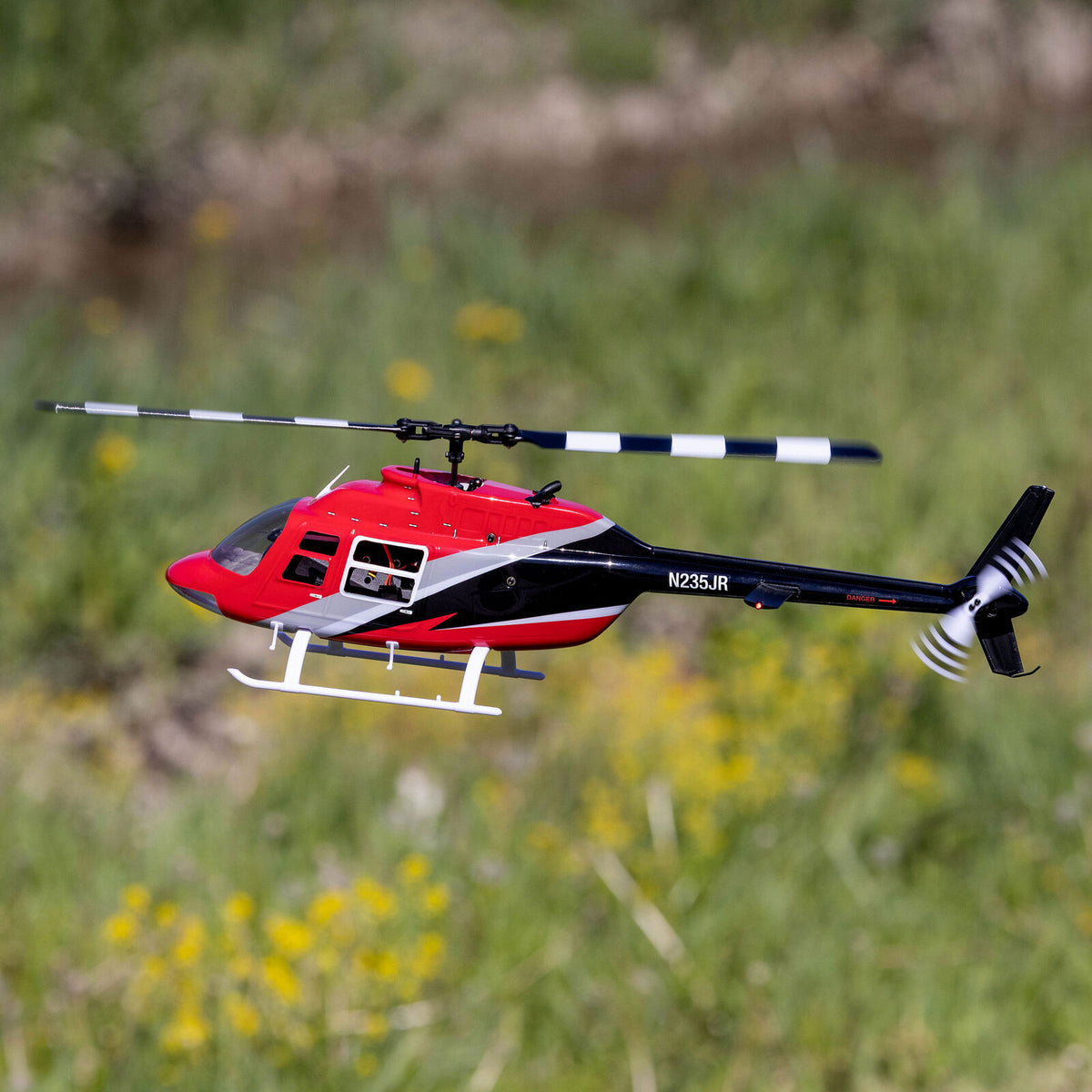

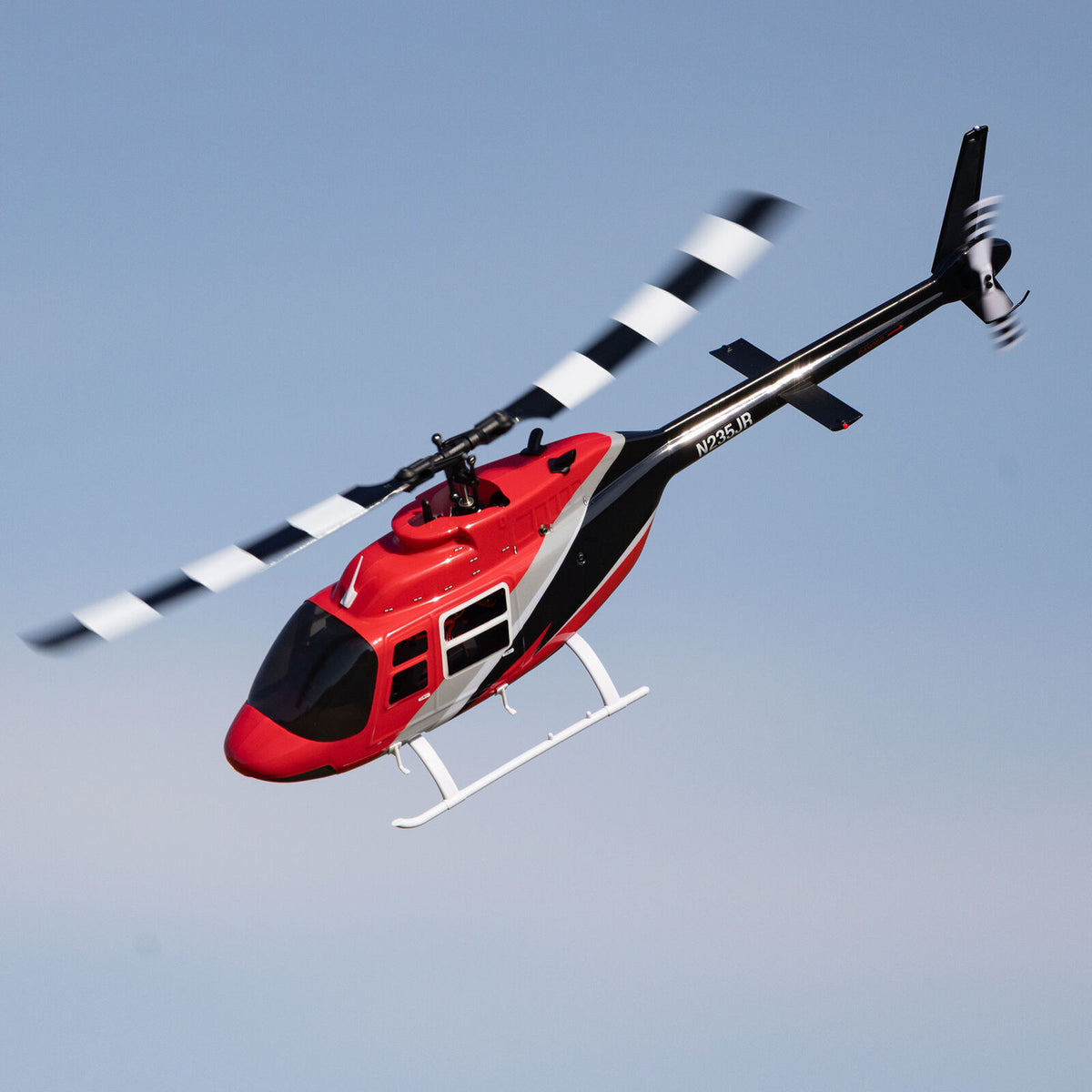

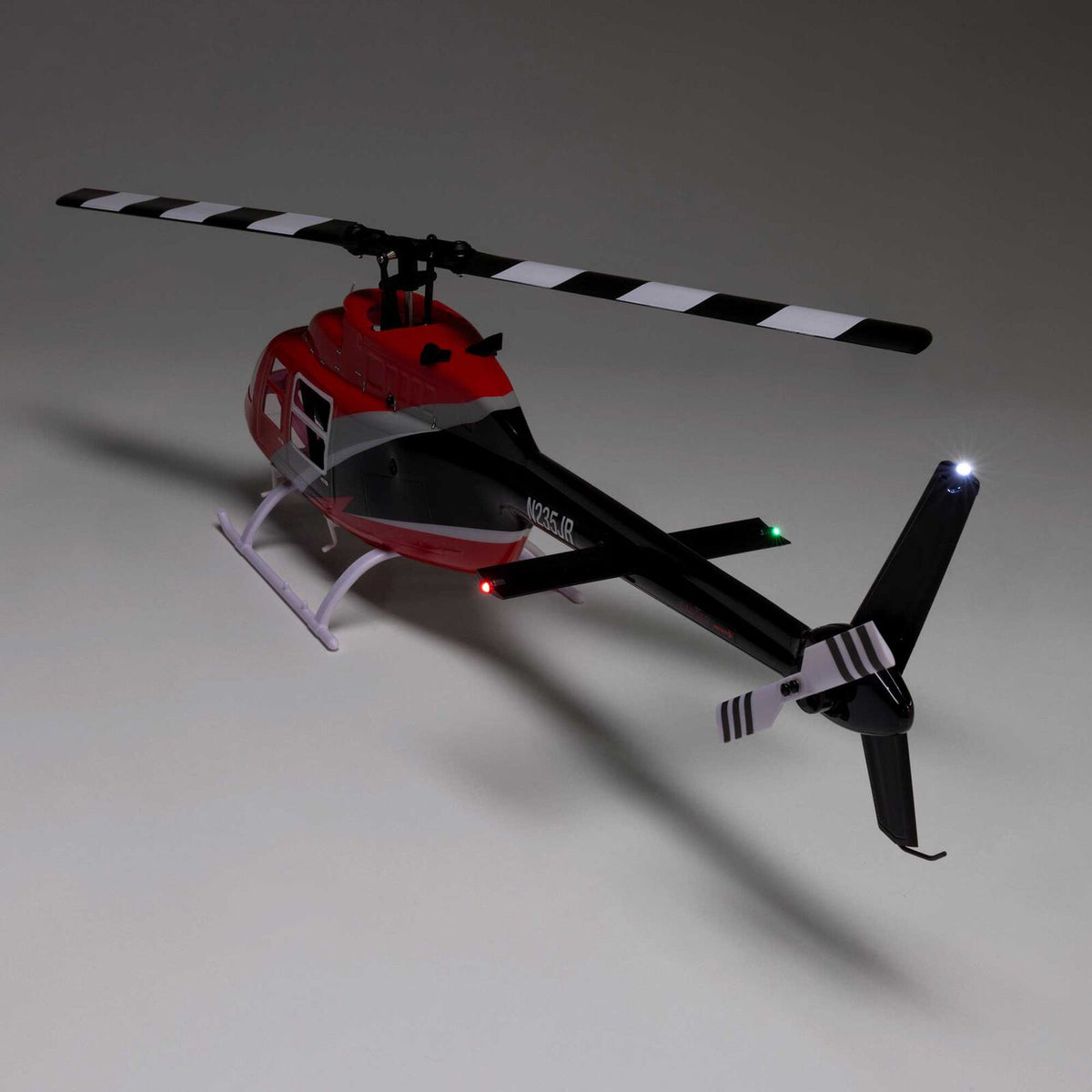

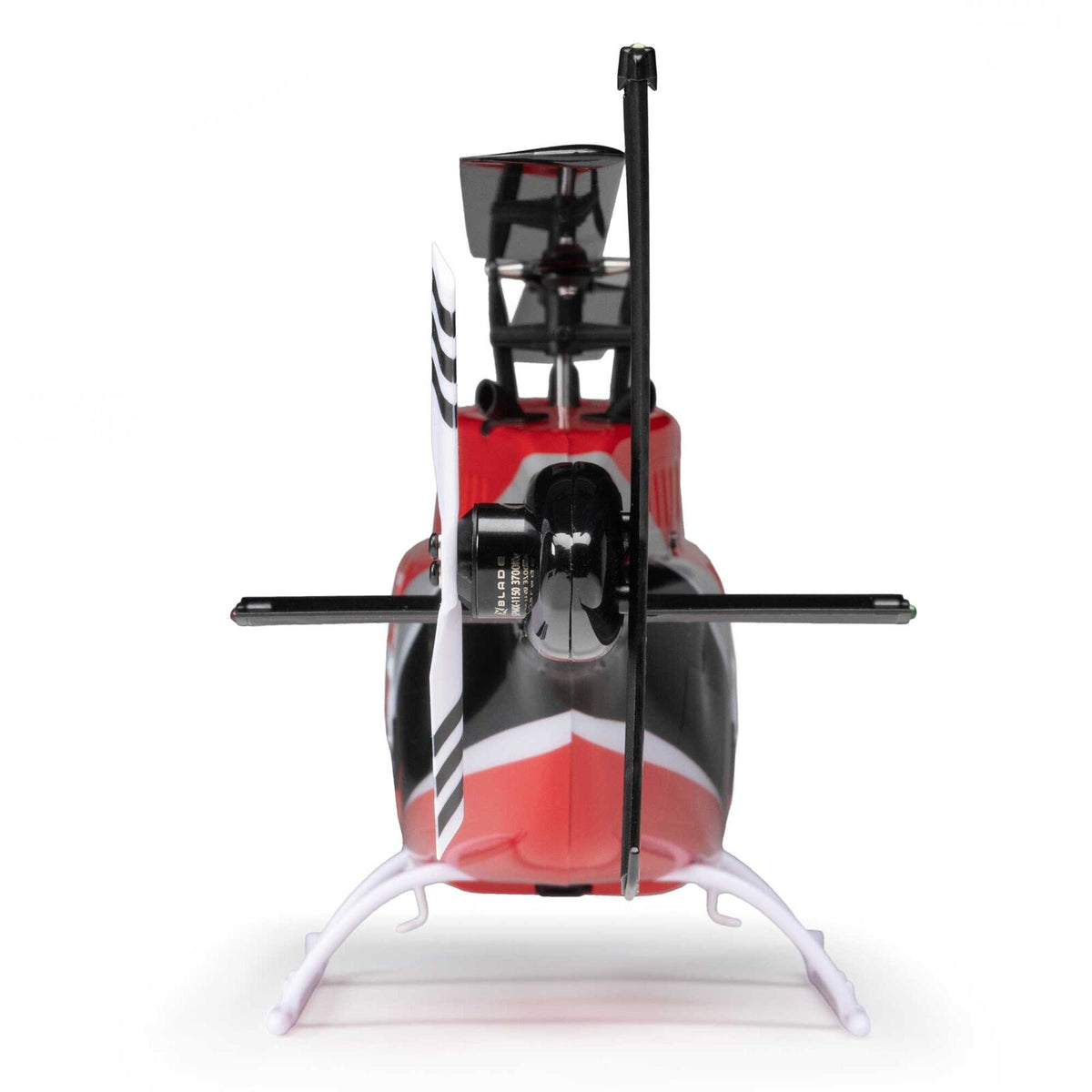

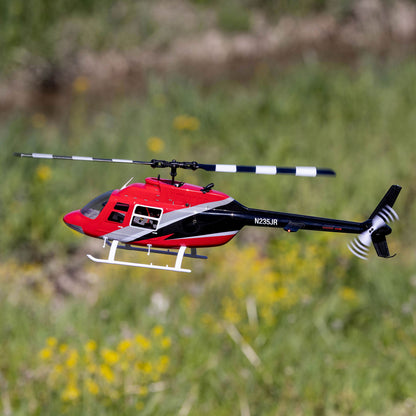

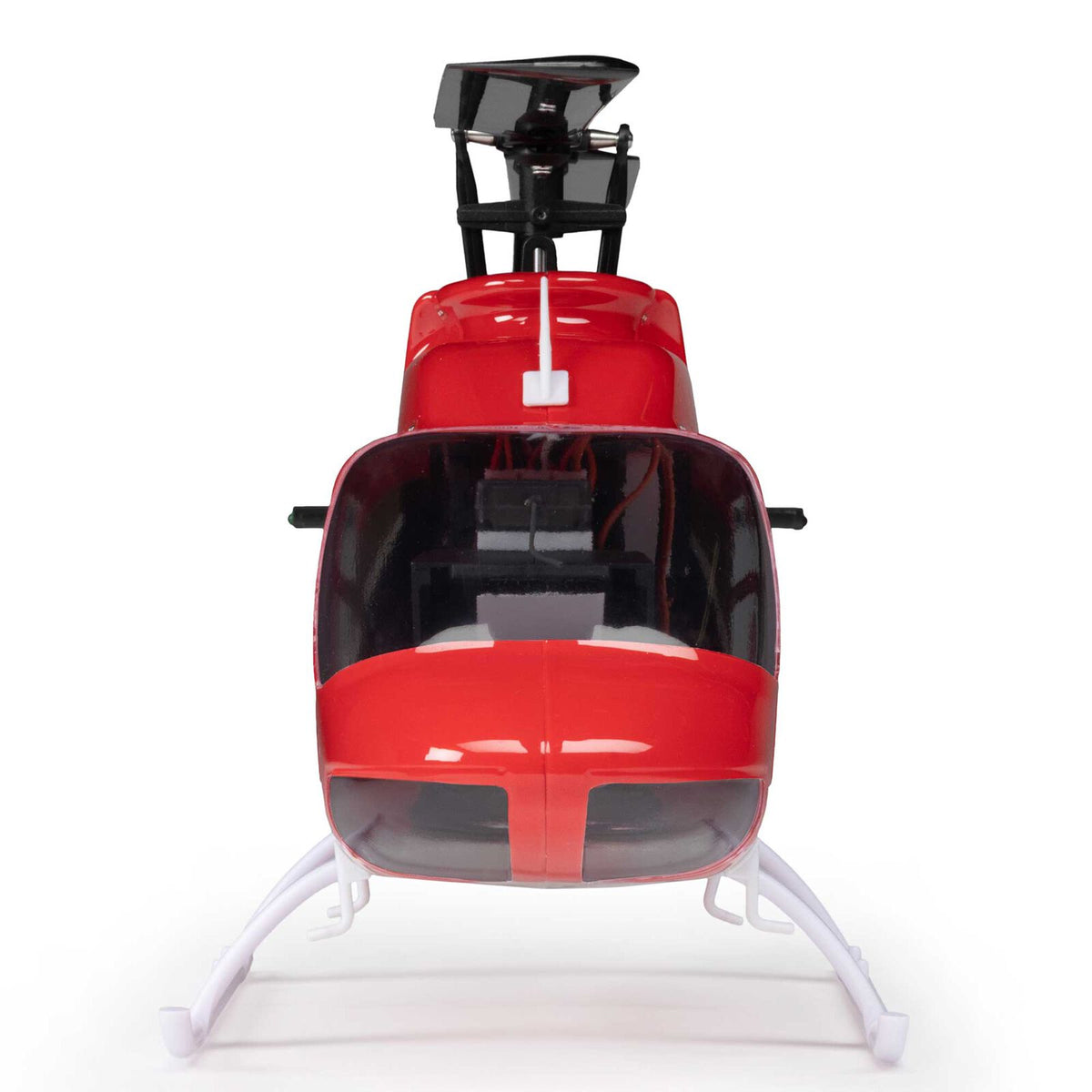

Blade Bell 206 Jet Ranger 235 CP BNF Basic with AS3X and SAFE

Now you can learn to fly Collective Pitch (CP) helicopters and advance your skills with a scale replica of the iconic Jet Ranger! The Bell 206 Jet Ranger 235 CP is based on the best-selling Blade Revolution 235 CP and arrives factory-assembled, flight-tested, and ready to fly right out of the box for first-time to experienced heli pilots.

In the Box

Blade Bell 206 Jet Ranger 235 CP with: x1
Brushless Outrunner Tail Motor (installed) x1
Brushless Outrunner Main Motor (installed) x1
Spektrum Digital, Metal-Geared Servos (installed) x3
Spektrum AR6250MHX Flybarless Flight Controller and Receiver with AS3X and SAFE x1
Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC (installed) x1
Product Manual x1

Needed to Complete

Full-range 6+ channel Spektrum DSMX/DSM2 compatible transmitter (programmable for helicopters) x1
3S 11.1V 850mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately) x1
Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320, sold separately) x1

Features

Officially licensed scale replica of the Bell 206 Jet Ranger – one of the most iconic and recognisable helicopter designs of all time
The perfect scale model to learn to fly Collective Pitch (CP) helicopters and for advancing your skills with
Mini-sized for improved visibility and stability when flying outdoors in gardens, parks, sports fields, and beyond in light winds
Fully factory-assembled, flight-tested, and ready to fly right out of the box – no assembly or setup required
Equipped with improved SAFE technology that helps prevent crashes and makes it easy to learn how to fly
Normal (SAFE) plus Stunt 1 and 2 (AS3X) flight modes you can easily change between at the flip of a switch
Panic Recovery mode at the push and hold of a button to prevent loss of control and crashes
Receiver loaded with a Smart Transmitter File (STF) that allows you to automatically import all settings for NX and iX series transmitters during the binding process
Compatible with popular and affordable 3S 850mAh Smart and similar non-Smart LiPo batteries with IC2 connectors (or use a compatible IC2 adapter)
Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters (with Smart and non-Smart batteries)
Factory-installed Spektrum AR6250MHX flybarless flight controller featuring exclusive AS3X and updated SAFE technologies
Improved flight controller tuning for better self-levelling performance when switching back to Normal (SAFE) mode

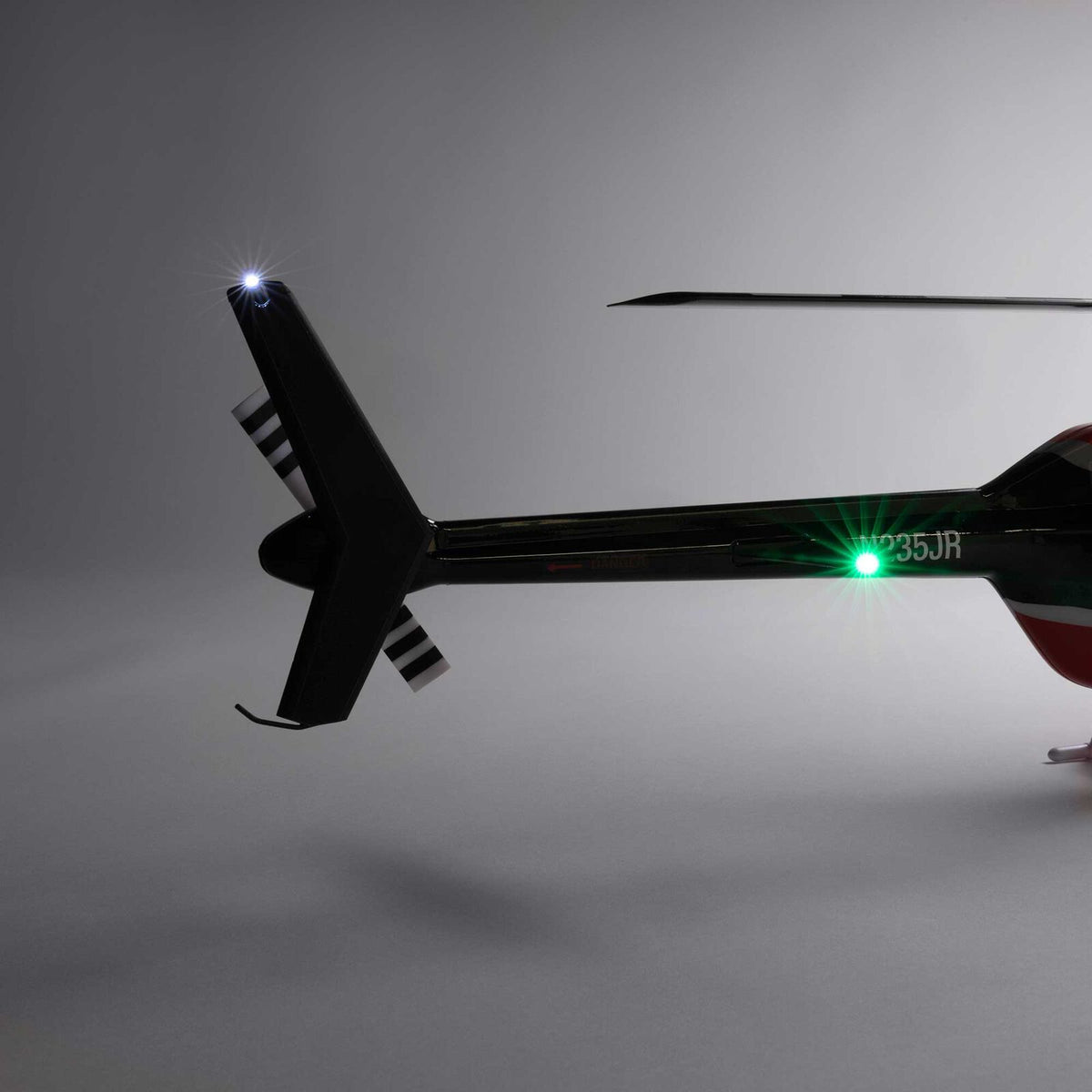

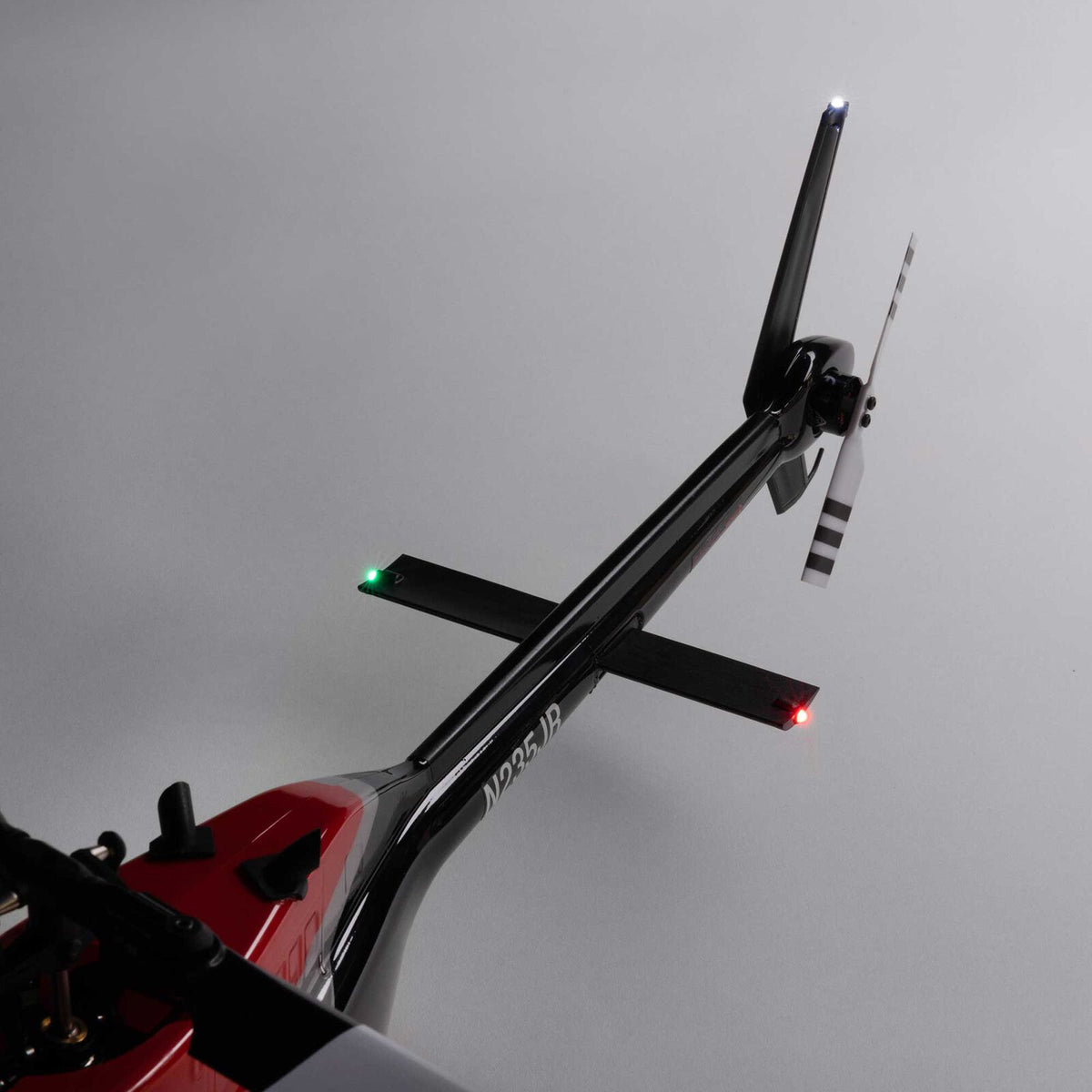

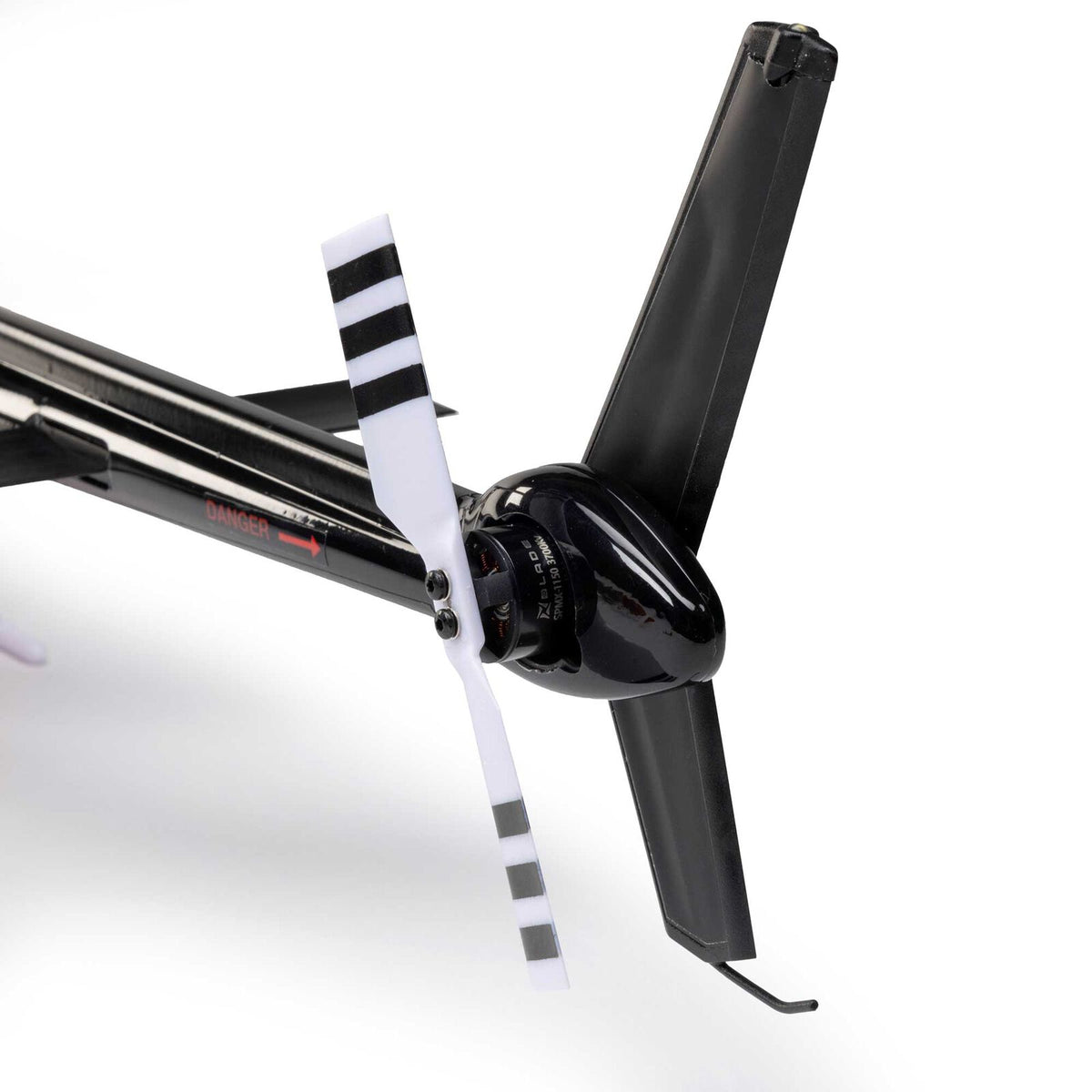

Tail motor and rotor mounted on the left side with main rotor blades that rotate in the scale direction

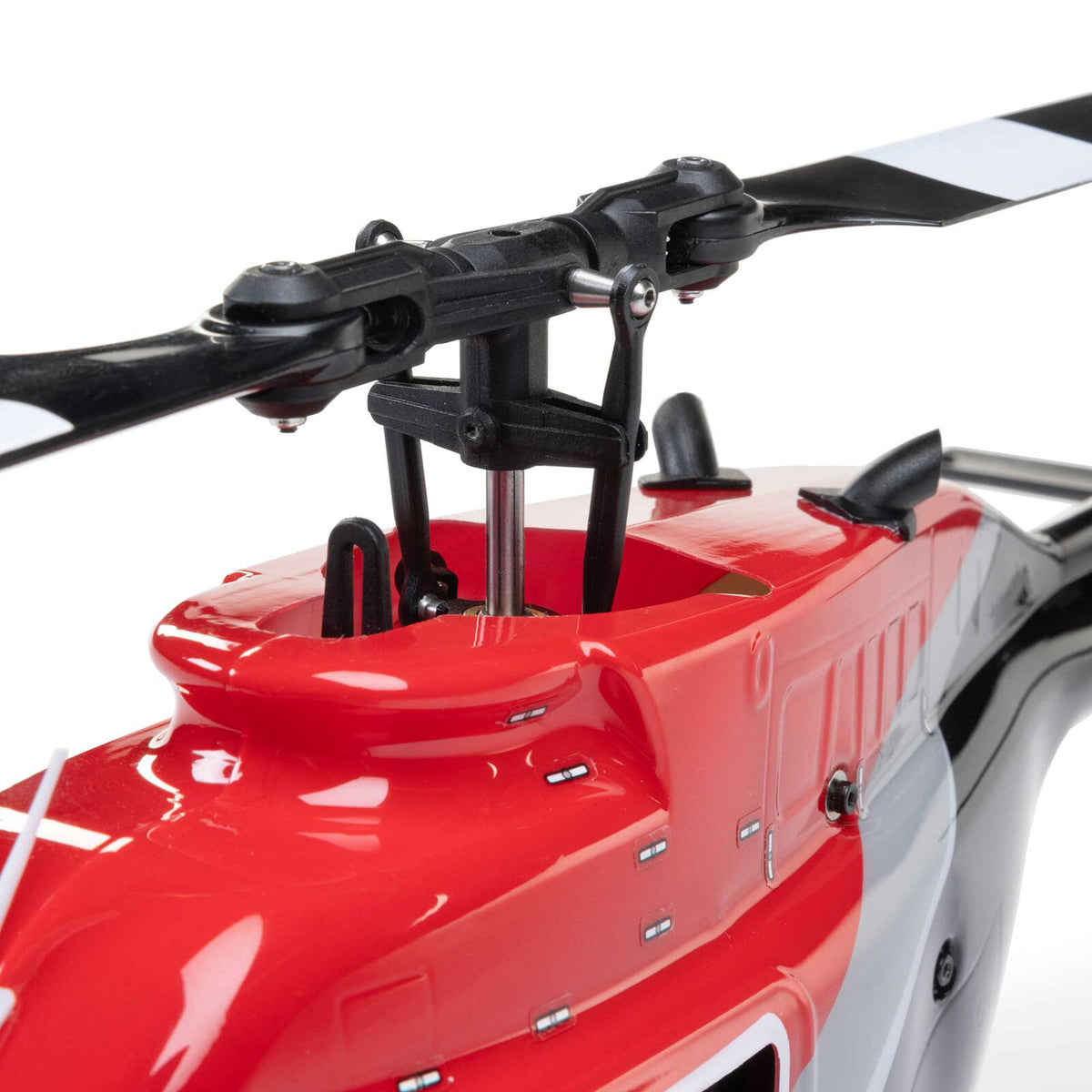

Factory-installed digital and metal-geared cyclic servos with precise ball-link equipped linkages

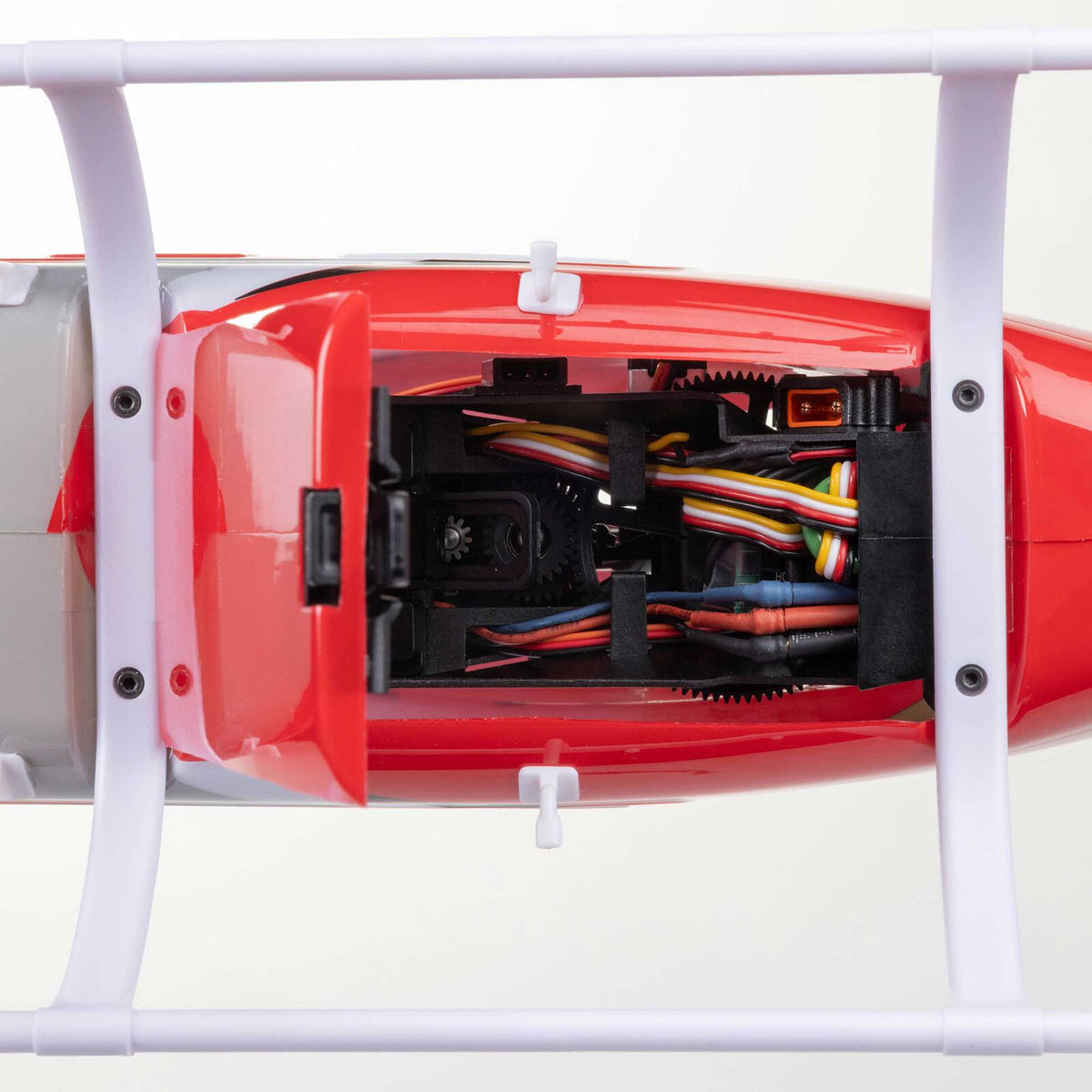

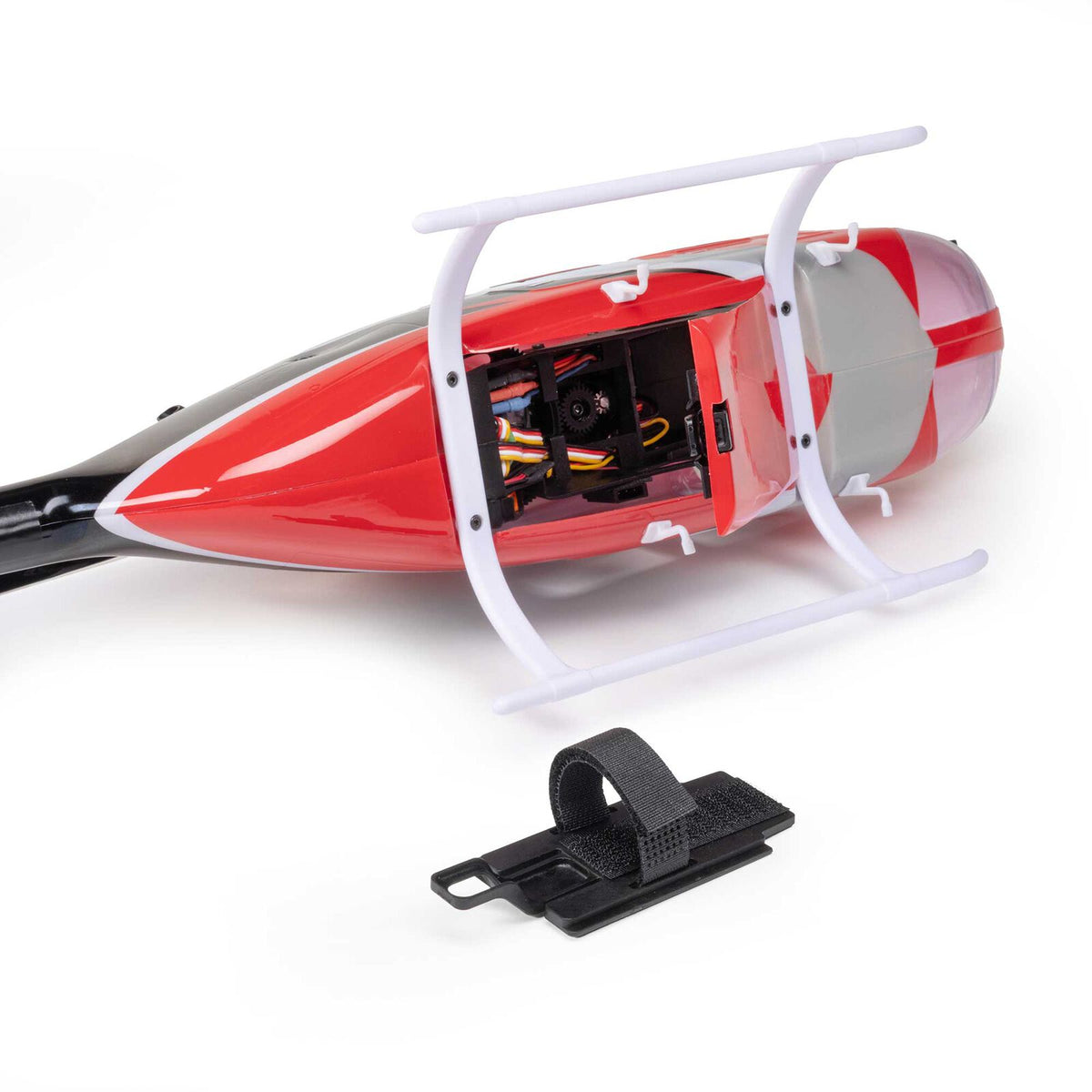

Unique frame design featuring a two-stage gear reduction and easy-to-remove battery tray

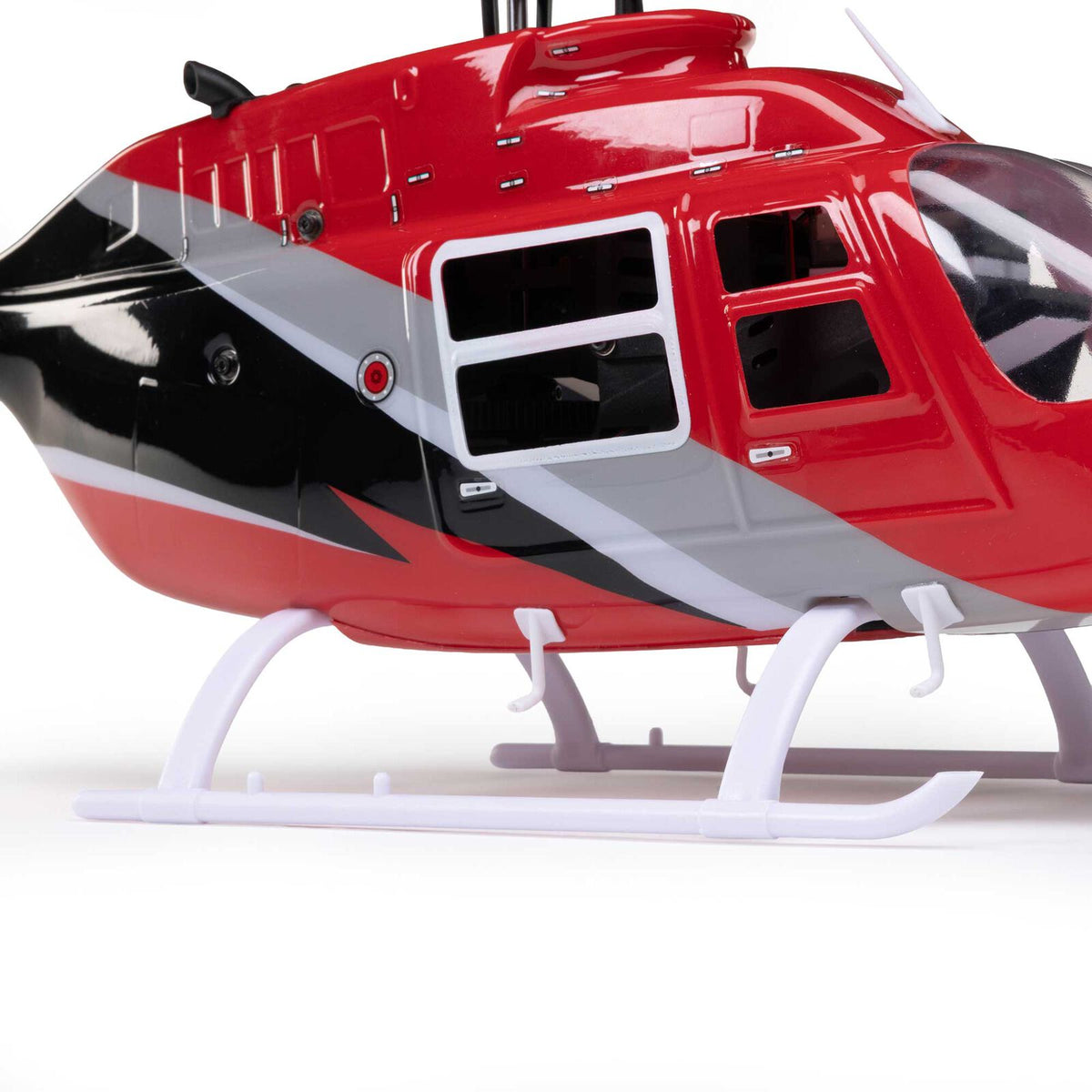

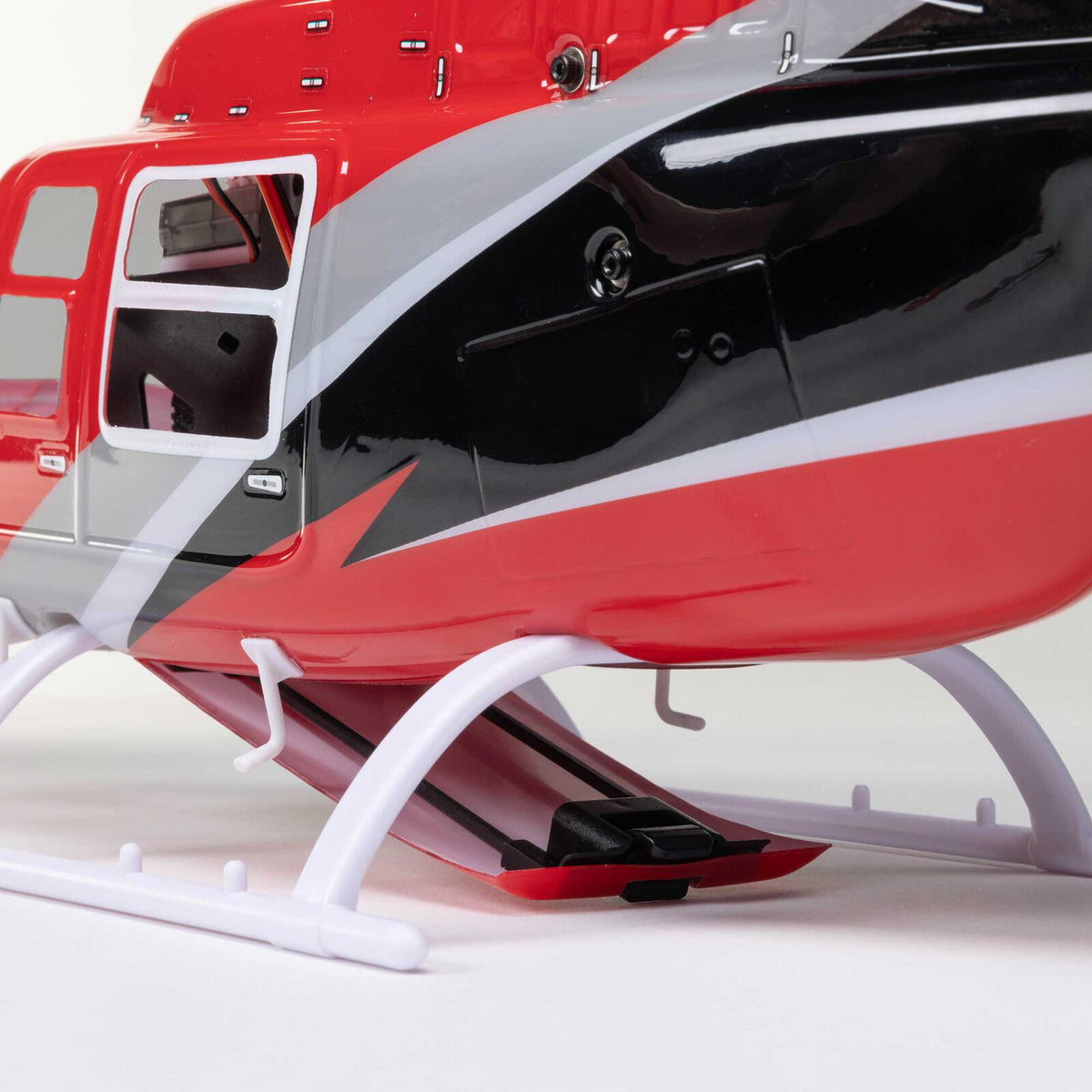

Factory-finished and installed body with a hinged battery hatch for improved scale looks
Powerful and efficient brushless main and tail motors
Full line of replacement/spare parts available

More Information

The Bell 206 Jet Ranger is one of the most iconic and recognisable helicopter designs of all time. First developed and flown in the 1960s, the design proved to be so capable and adaptable that more than 7,000 were produced in various versions over more than 5 decades – for everything from corporate transport to news reporting, and air ambulance to military use.

And for almost a decade, more people learned to fly CP (Collective Pitch) RC helicopters with multiple versions of the Blade 230 S than any other model. The Bell 206 Jet Ranger 235 CP is factory-finished with a Jet Ranger body and equipped with features that make it even easier to fly than ever before. It features exclusive and innovative SAFE (Sensor Assisted Flight Envelope) technology, which offers angle limits and improved self-levelling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it!

Best of all, the Bell 206 Jet Ranger 235 CP arrives 100% factory-assembled, flight-tested, and ready to fly right out of the box – no assembly or setup required. It includes a Spektrum flybarless flight controller and receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters automatically during the binding process to make it easier and faster to get flying with your favourite or upgraded transmitter.

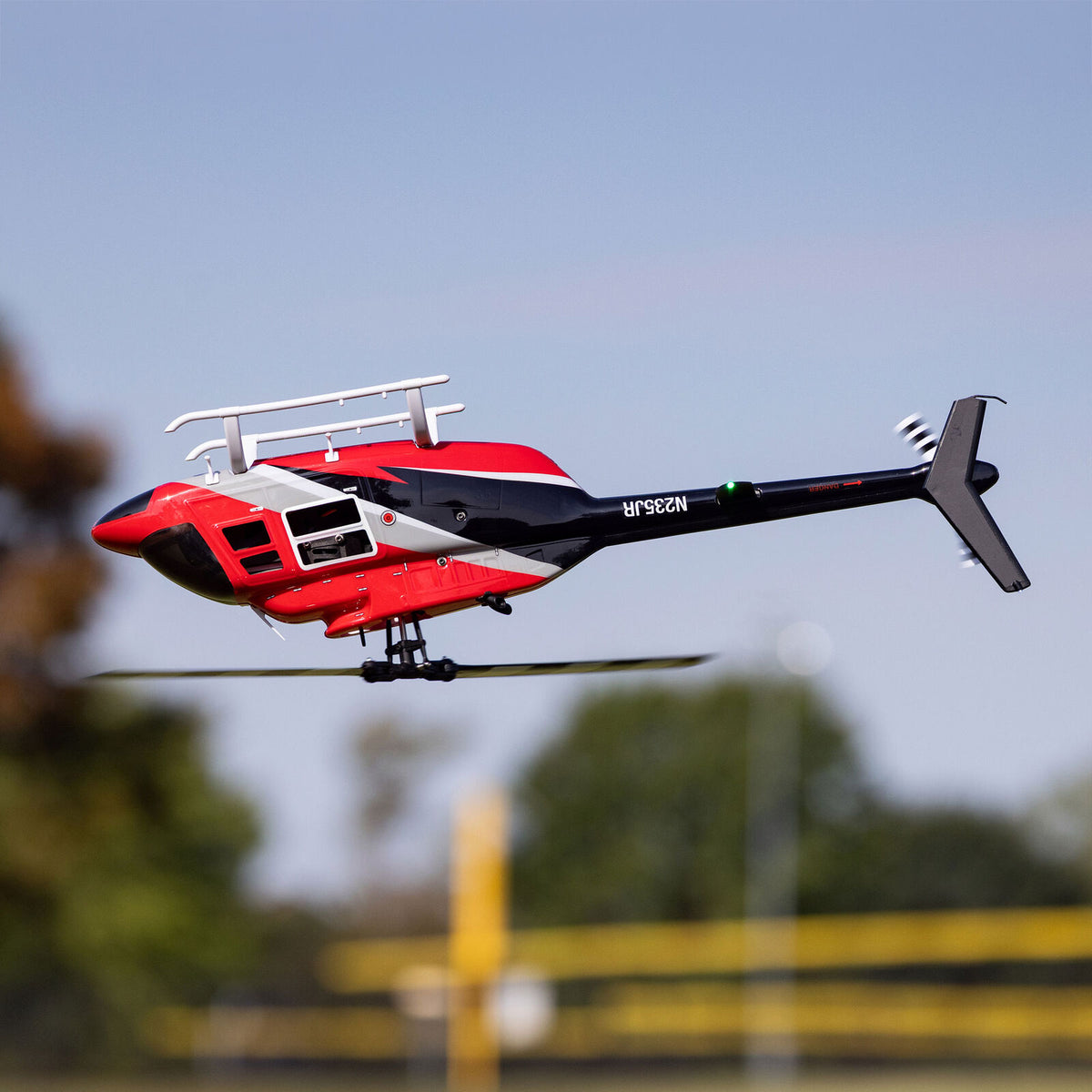

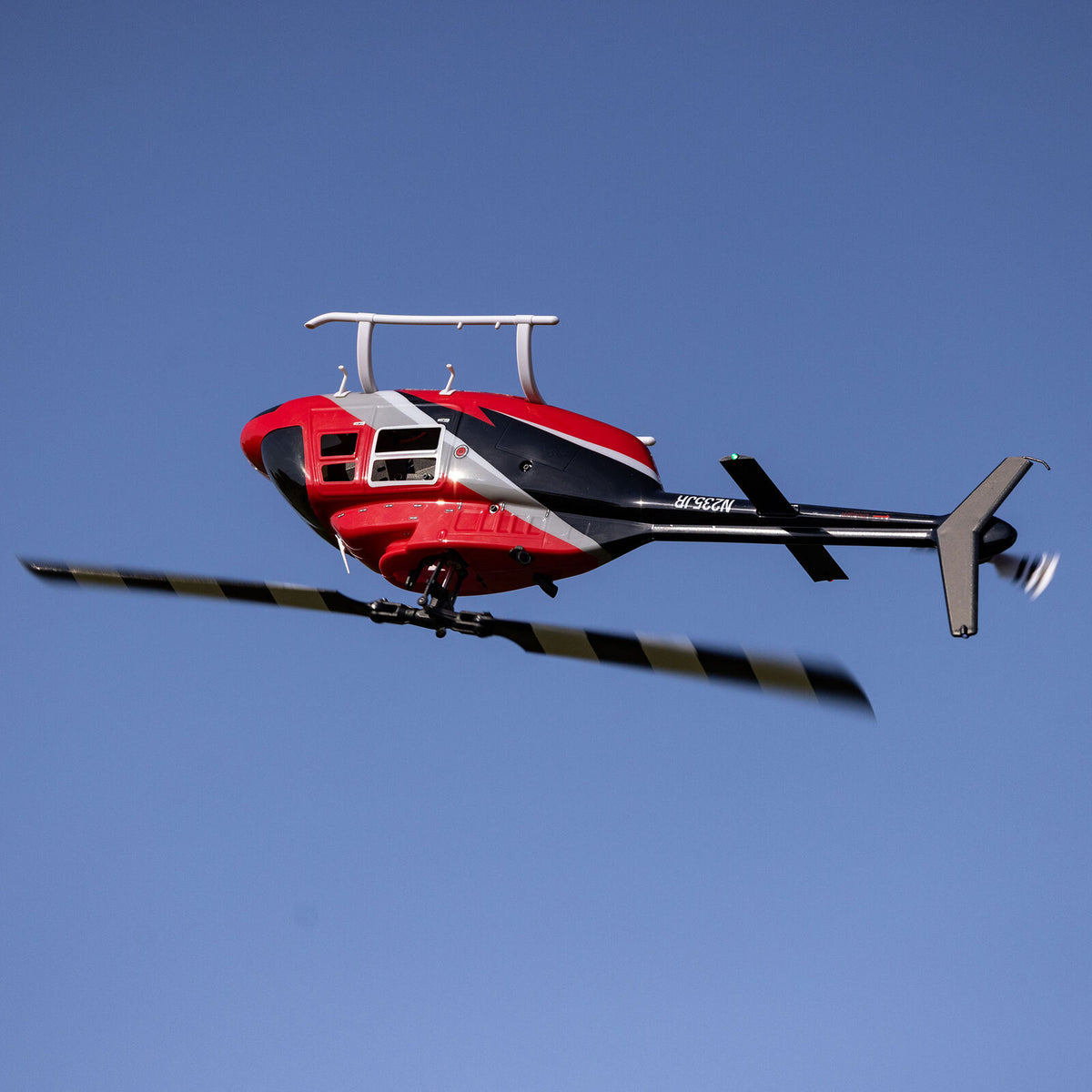

Plus, the fun doesn't stop after you learn how to fly! In the Stunt/Idle Up flight modes, the Jet Ranger 235 CP is capable of performing basic aerobatic manoeuvres, including loops, rolls, inverted (upside down) flight, and more. It's never been easier to learn to fly or advance your skills with a scale RC helicopter than ever before!

Specifications

Approximate Assembly Time: No assembly required
Battery: Sold Separately
Canopy/Body Material: PVC
Charger: Sold Separately
ESC Type: Dual Brushless ESC (SPMXAE1020C)
Gear Ratio: 11.28:1
Main Frame Material: Plastic

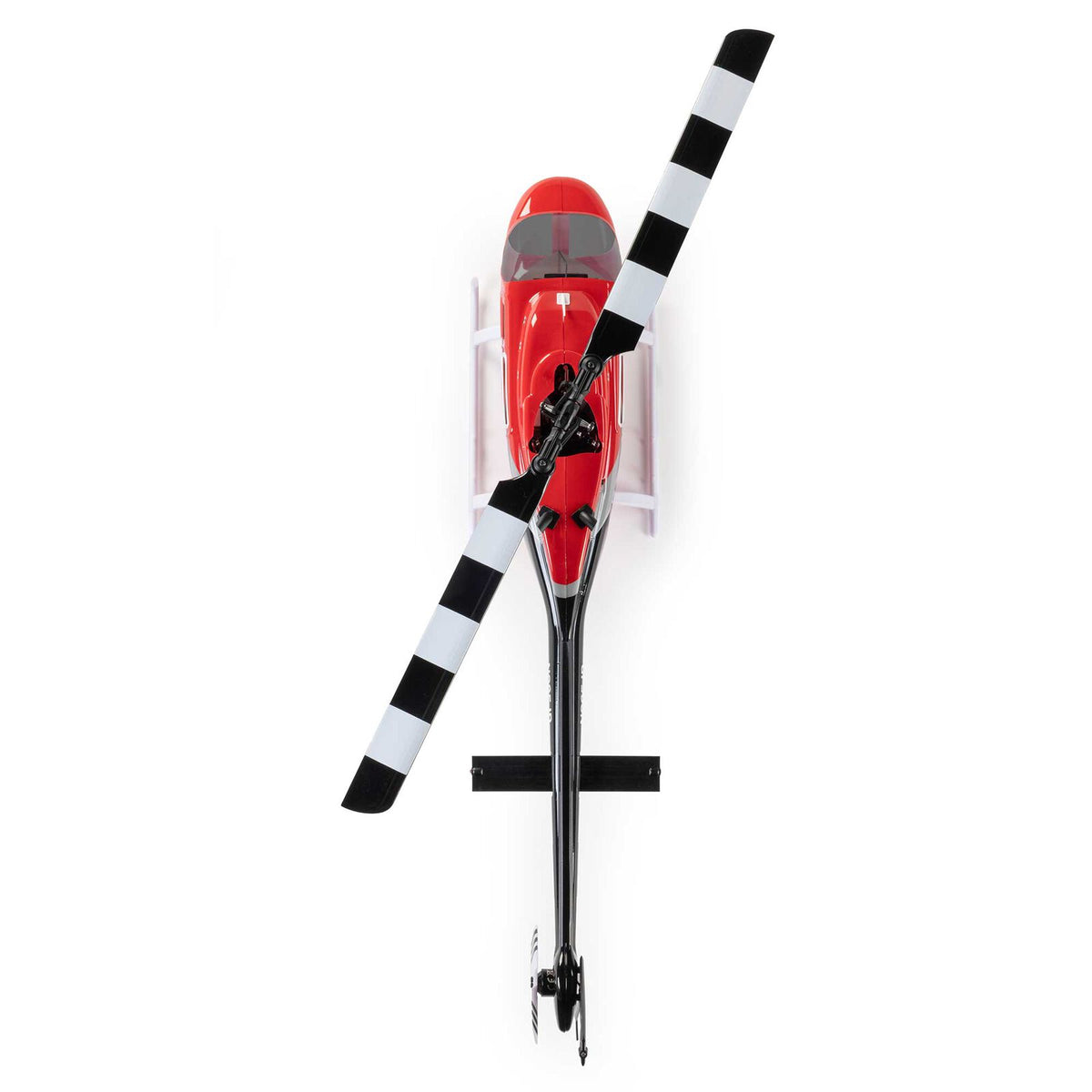

Main Rotor Blade Length: 245 mm (9.63")
Main Rotor Diameter: 555 mm (21.85")
Motor Type: Brushless
Pinion: 12T
Product Height: 168 mm (6.6")
Product Length: 568 mm (22.36")
Product Weight Without Battery: 408 g (14.39 oz)
Product Weight With Recommended 3S 11.1V 850mAh 30C LiPo Flight Battery: 477 g (16.83 oz)
Product Width: 127 mm (5")
Radio: Sold Separately
Receiver: Included
Servos: Included
Skill Level: Level 1
Tail Blade Material: Plastic
Tail Rotor Diameter: 100 mm (3.95")
Technology: AS3X, SAFE, Smart Transmitter File, Smart
